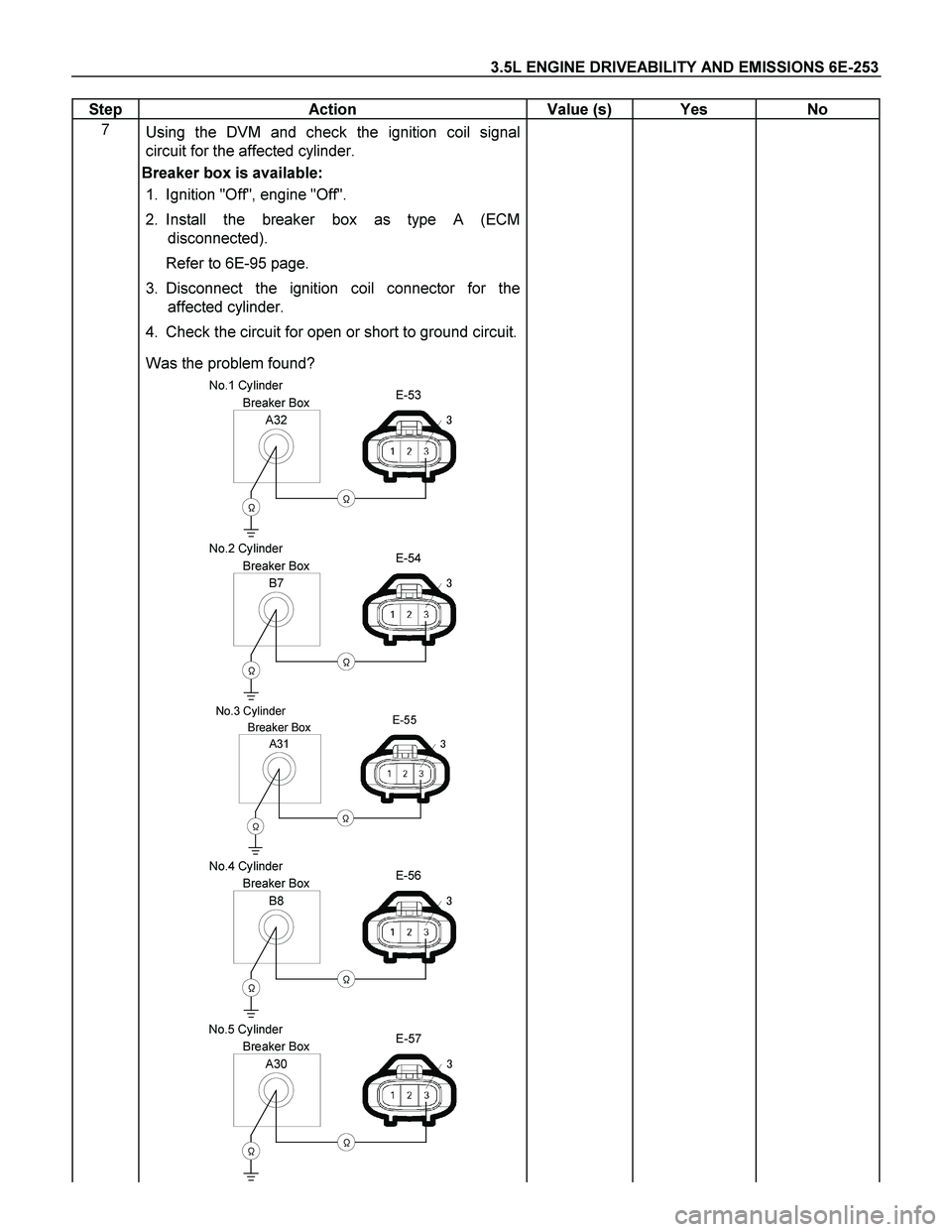

Page 2249 of 4264

ISUZU TF SERIES 2004 Workshop Manual 3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-253 Step Action Value (s) Yes No 7 Using the DVM and check the ignition coil signal circuit for the affected cylinder. Breaker box is available:

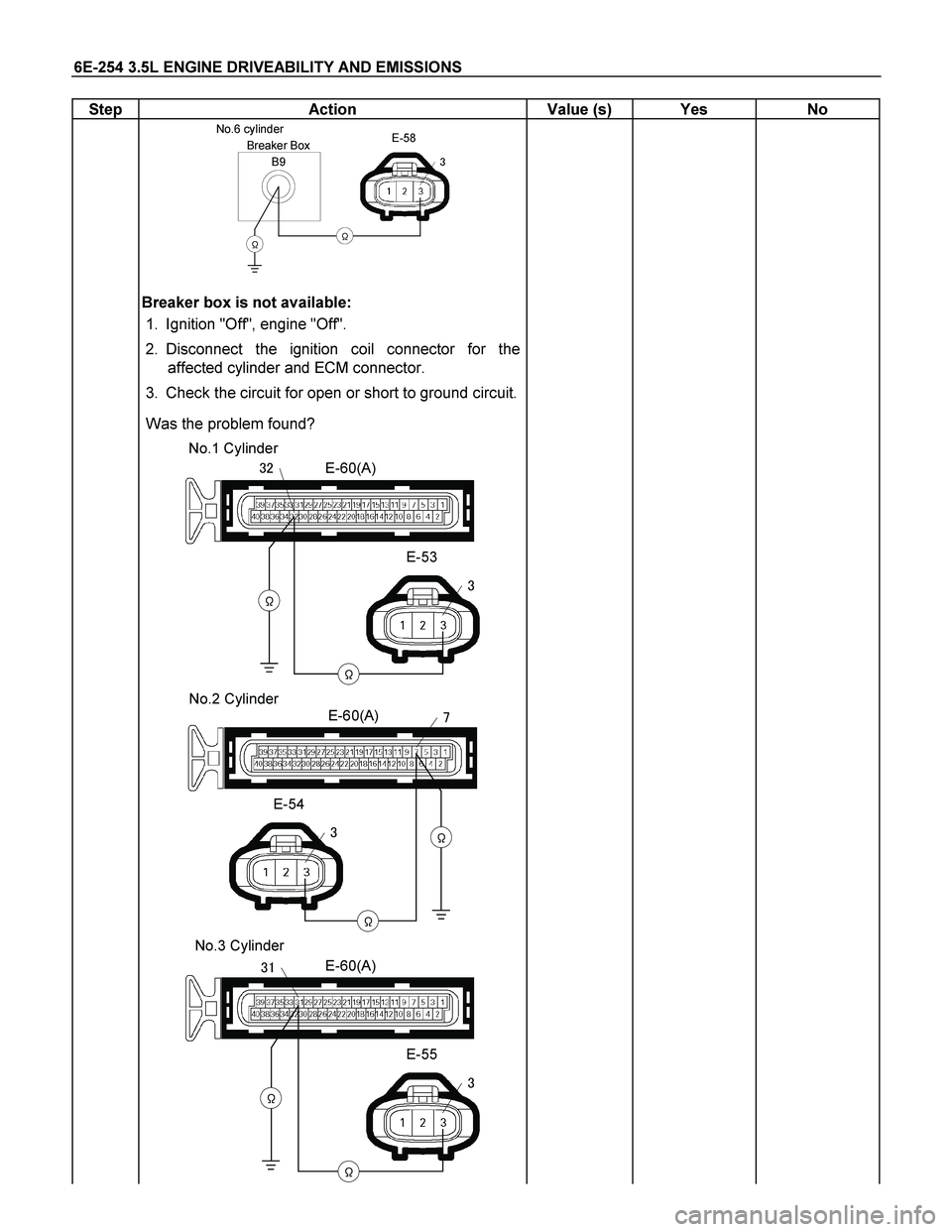

Page 2250 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6E-254 3.5L ENGINE DRIVEABILITY AND EMISSIONS Step Action Value (s) Yes No B9 Breaker Box No.6 cylinder  E-58   Breaker box is not available: 1. Ignition "Off", engine "Off". 2. D

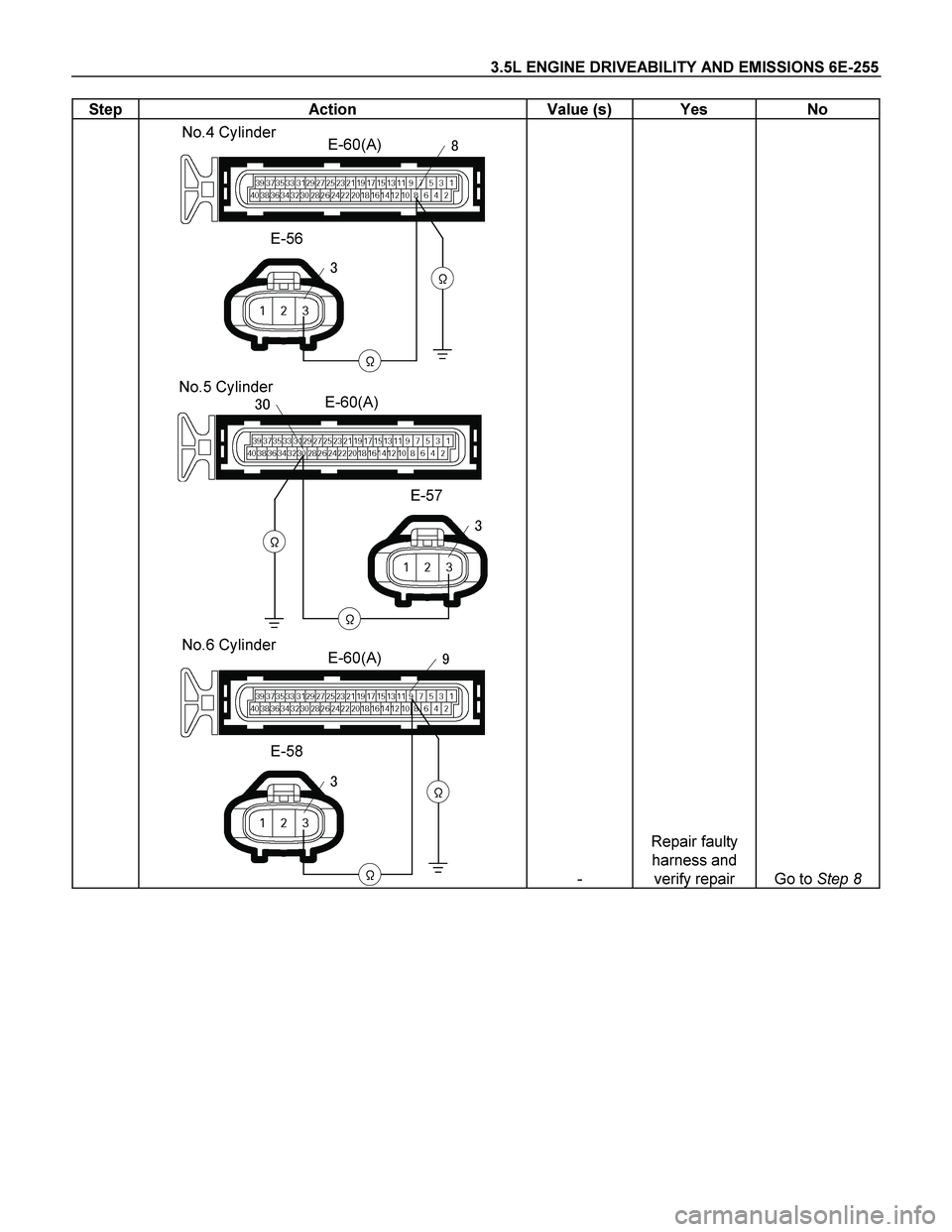

Page 2251 of 4264

ISUZU TF SERIES 2004 Workshop Manual 3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-255 Step Action Value (s) Yes No E-60(A) E-56     No.4 Cylinder E-60(A) E-57     No.5 Cylinder E-60(A) E-58     No.6 Cylinder - Repa

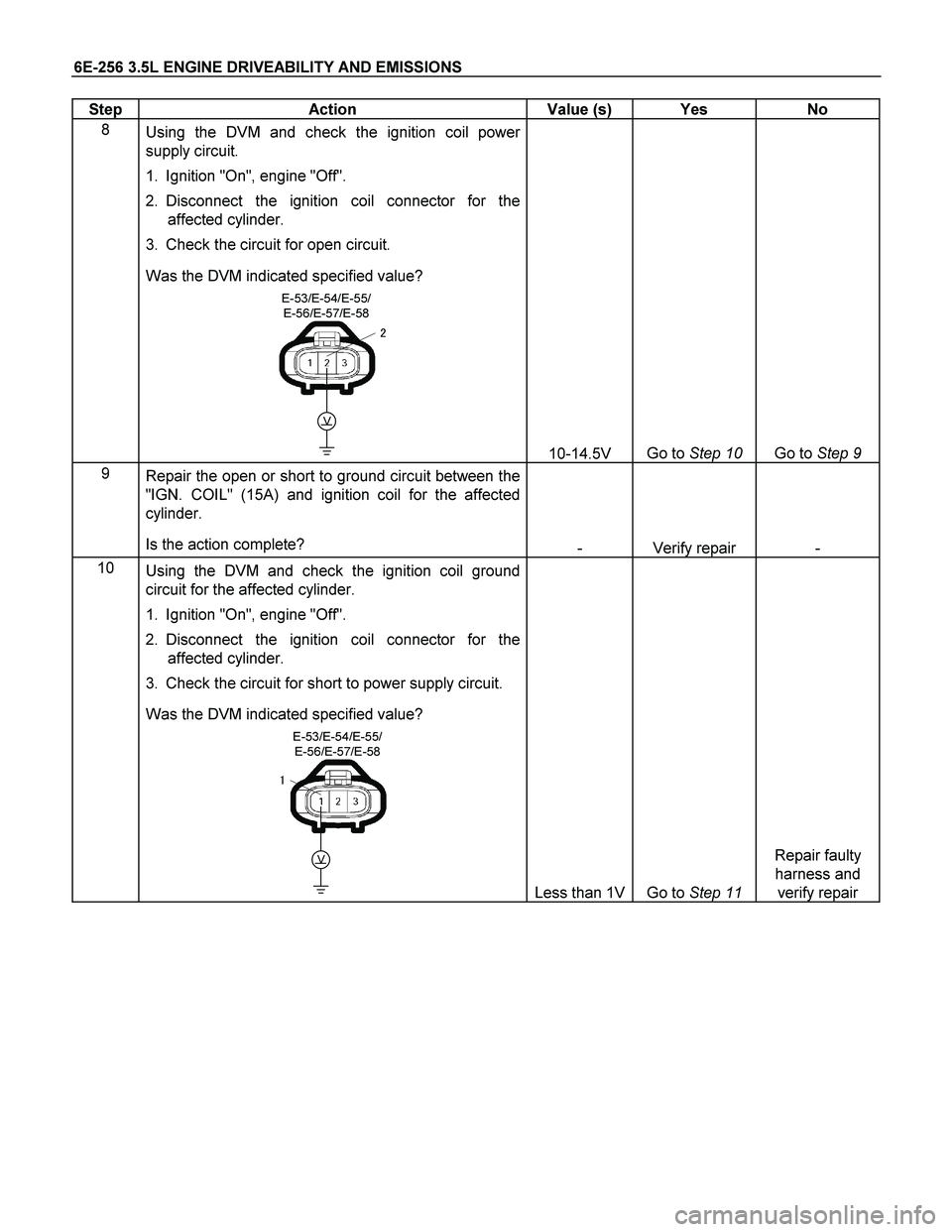

Page 2252 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6E-256 3.5L ENGINE DRIVEABILITY AND EMISSIONS Step Action Value (s) Yes No 8 Using the DVM and check the ignition coil power supply circuit. 1. Ignition "On", engine "Off". 2. Disconnect

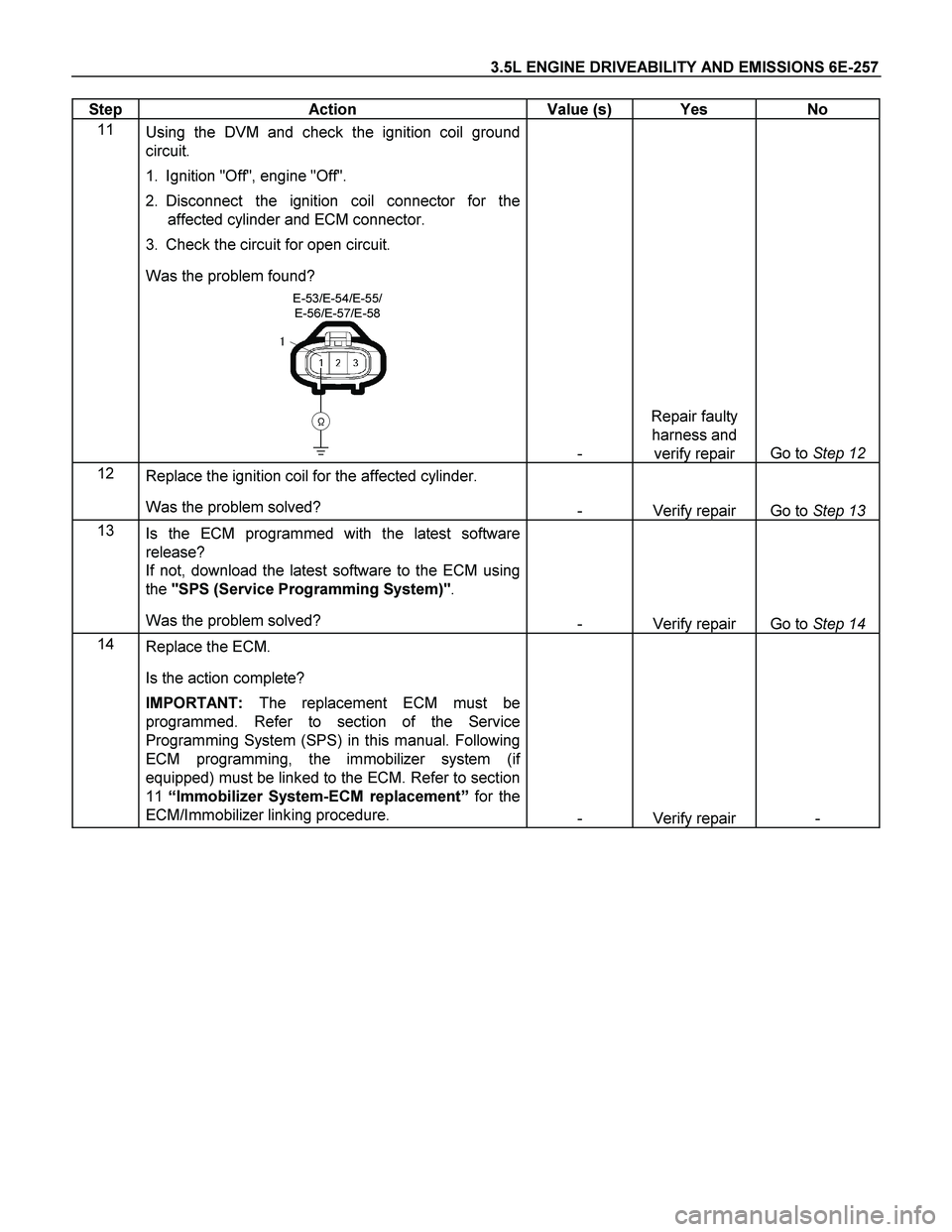

Page 2253 of 4264

ISUZU TF SERIES 2004 Workshop Manual 3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-257 Step Action Value (s) Yes No 11 Using the DVM and check the ignition coil ground circuit. 1. Ignition "Off", engine "Off". 2. Disconnect the

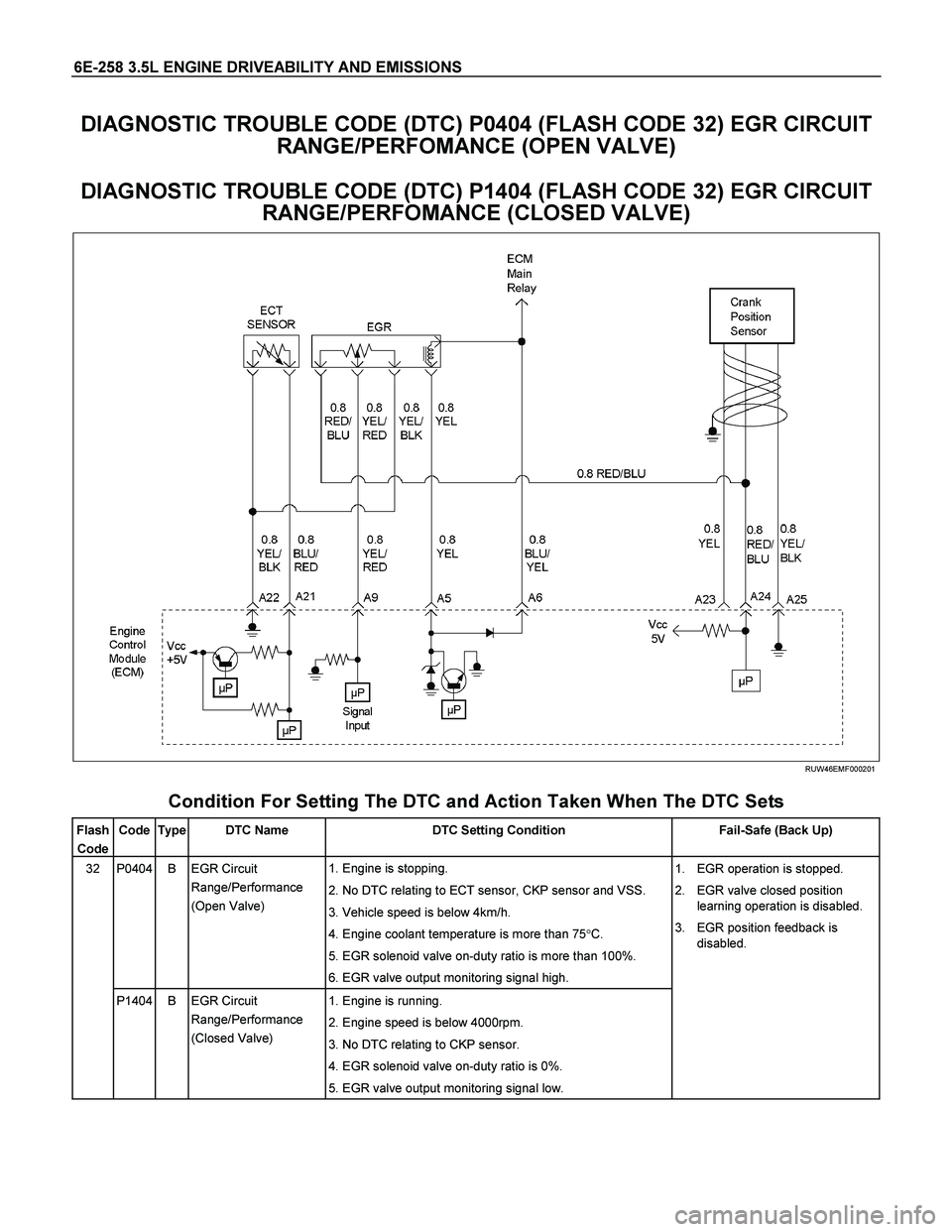

Page 2254 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6E-258 3.5L ENGINE DRIVEABILITY AND EMISSIONS DIAGNOSTIC TROUBLE CODE (DTC) P0404 (FLASH CODE 32) EGR CIRCUIT RANGE/PERFOMANCE (OPEN VALVE) DIAGNOSTIC TROUBLE CODE (DTC) P1404 (FLASH CODE 32) EGR C

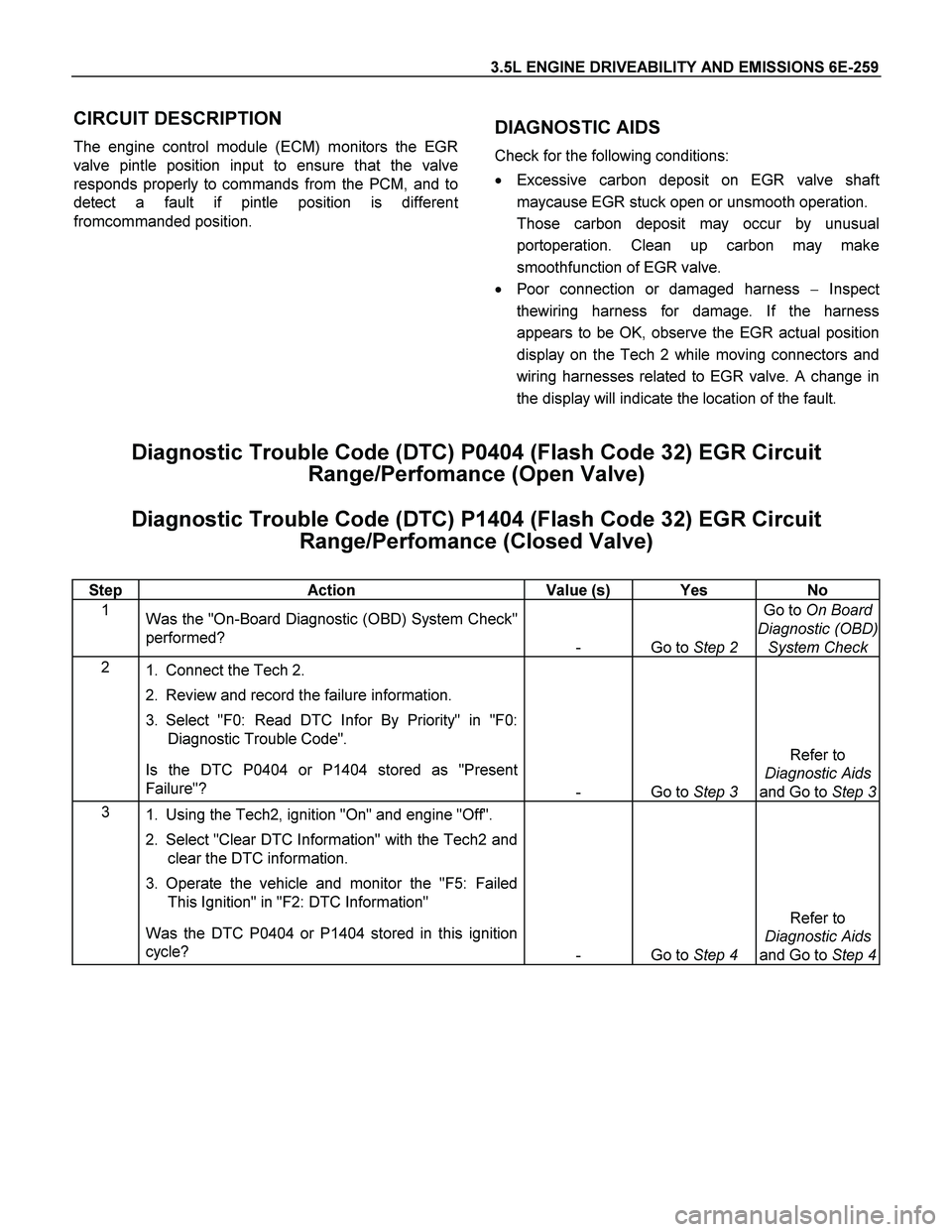

Page 2255 of 4264

ISUZU TF SERIES 2004 Workshop Manual 3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-259 CIRCUIT DESCRIPTION The engine control module (ECM) monitors the EGR valve pintle position input to ensure that the valve responds properly to commands

Page 2256 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6E-260 3.5L ENGINE DRIVEABILITY AND EMISSIONS Step Action Value (s) Yes No 4 Check for poor/faulty connection at the EGR valve or ECM connector. If a poor/faulty connection is found, repair
