ISUZU TF SERIES 2004 Workshop Manual ACCESSORIES 9-7 RTW48AXF011201

Page 10 of 4264

ISUZU TF SERIES 2004 Workshop Manual 9-8 ACCESSORIES LHD RTW48AXF010901

Page 11 of 4264

ISUZU TF SERIES 2004 Workshop Manual ACCESSORIES 9-9 RTW48AXF011001

Page 12 of 4264

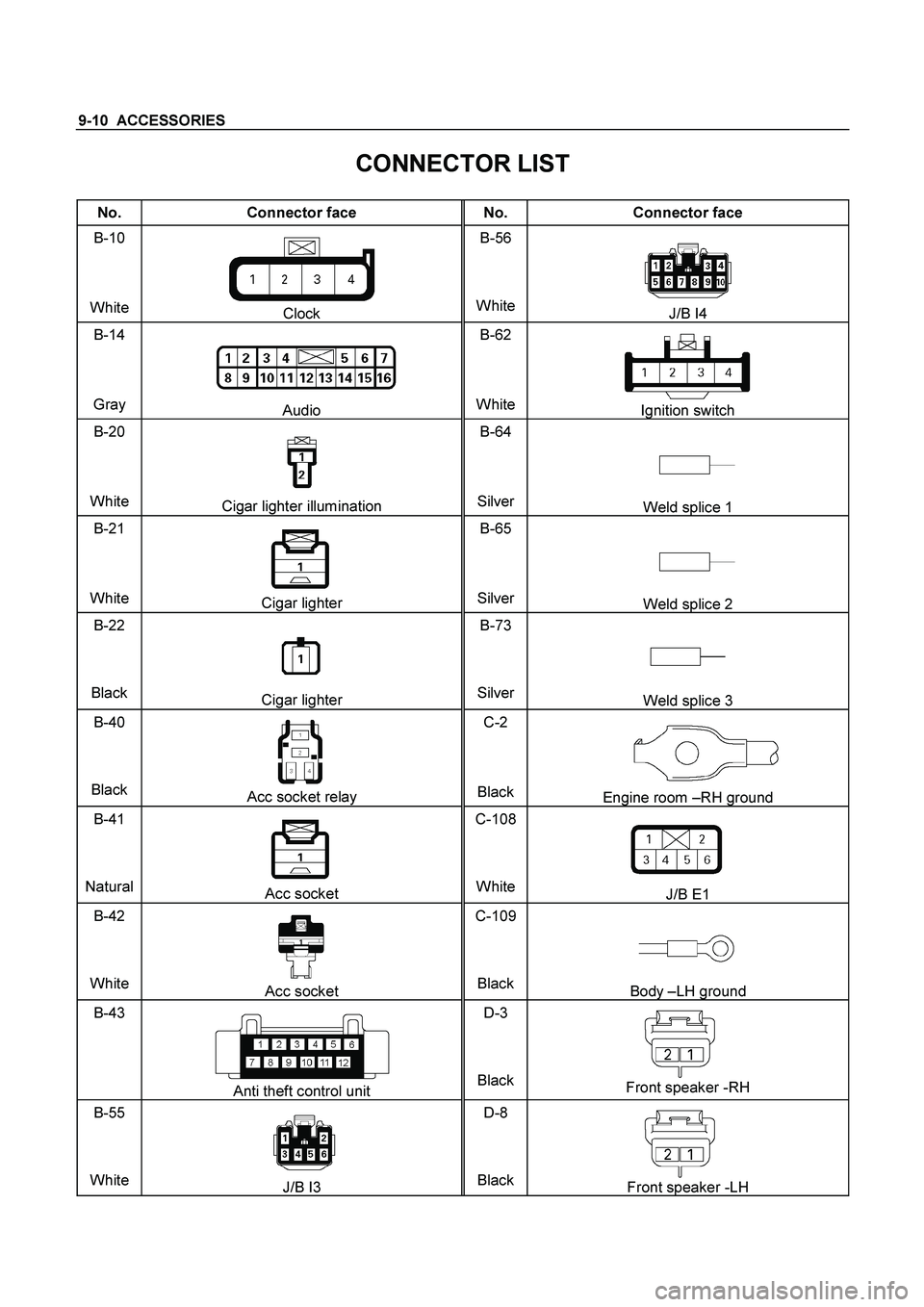

ISUZU TF SERIES 2004 Workshop Manual 9-10 ACCESSORIES CONNECTOR LIST No. Connector face No. Connector face B-10 White Clock B-56 WhiteJ/B I4 B-14 Gray Audio B-62 WhiteIgnition switch B-20 White Cigar lighter illumination

Page 13 of 4264

ISUZU TF SERIES 2004 Workshop Manual ACCESSORIES 9-11 No. Connector face No. Connector face D-13 Black Rear speaker -LH H-25 BlackINST  Front door -LH D-17 Black Rear speaker -RH H-27 BlackINST  Rear body D-19 White

Page 14 of 4264

ISUZU TF SERIES 2004 Workshop Manual 9-12 ACCESSORIES RADIO REMOVAL AND INSTALLATION RTW48AMF000201 Removal 1. Remove the ash try 2. Remove the HVAC control 3. Remove the 2 crews unit on the HVAC 4.

Page 15 of 4264

ISUZU TF SERIES 2004 Workshop Manual ACCESSORIES 9-13 FRONT SPEAKER REMOVAL AND INSTALLATION Removal 1. Remove the Door Trim Panel  Refer to section 10 “FRONT DOOR ASSEMBLY”fo r door trim panel removal steps.

Page 16 of 4264

ISUZU TF SERIES 2004 Workshop Manual 9-14 ACCESSORIES TWEETER REMOVAL AND INSTALLATION RTW390SH000101 Removal 1. Remove the Door Trim Panel  Refer to section 10 “FRONT DOOR ASSEMBLY”fo r door trim panel remova
