Return spring Check the number of effective return spring coils.
If the number is less than the specified minimum, the
return spring must be replaced.
Effective return spring coils (standard): 10.2
Measure the return spring outside diameter, free length,
and linear diameter.
If any of the measured values exceed the specified limit,
the return spring must be replaced.
Return spring measurements (standard):
Outside diameter – 8.0 mm (0.315 in)
Free length – 27.1 mm (1.067 in)
Linear diameter – 1.1 mm (0.043 in)
10R&H40
Reverse clutch piston
Apply compressed air (392 kPa/4.0 kg/cm
2) to the
reverse clutch piston from the outside to the inside.
The flow of air should be blocked.
11R&H44
Apply compressed air (392 kPa/4.0 kg/cm2) to the
reverse clutch piston from inside to the outside.
The flow of air should be unrestricted.
12R&H39
Reassembly steps
Coat the parts with ATF before installing them.
1. Seal ring (high clutch)
Install new seal rings to the high clutch piston.
Page 4210 of 4264
7A4-36 UNIT REPAIR (JR405E)
13R&H38

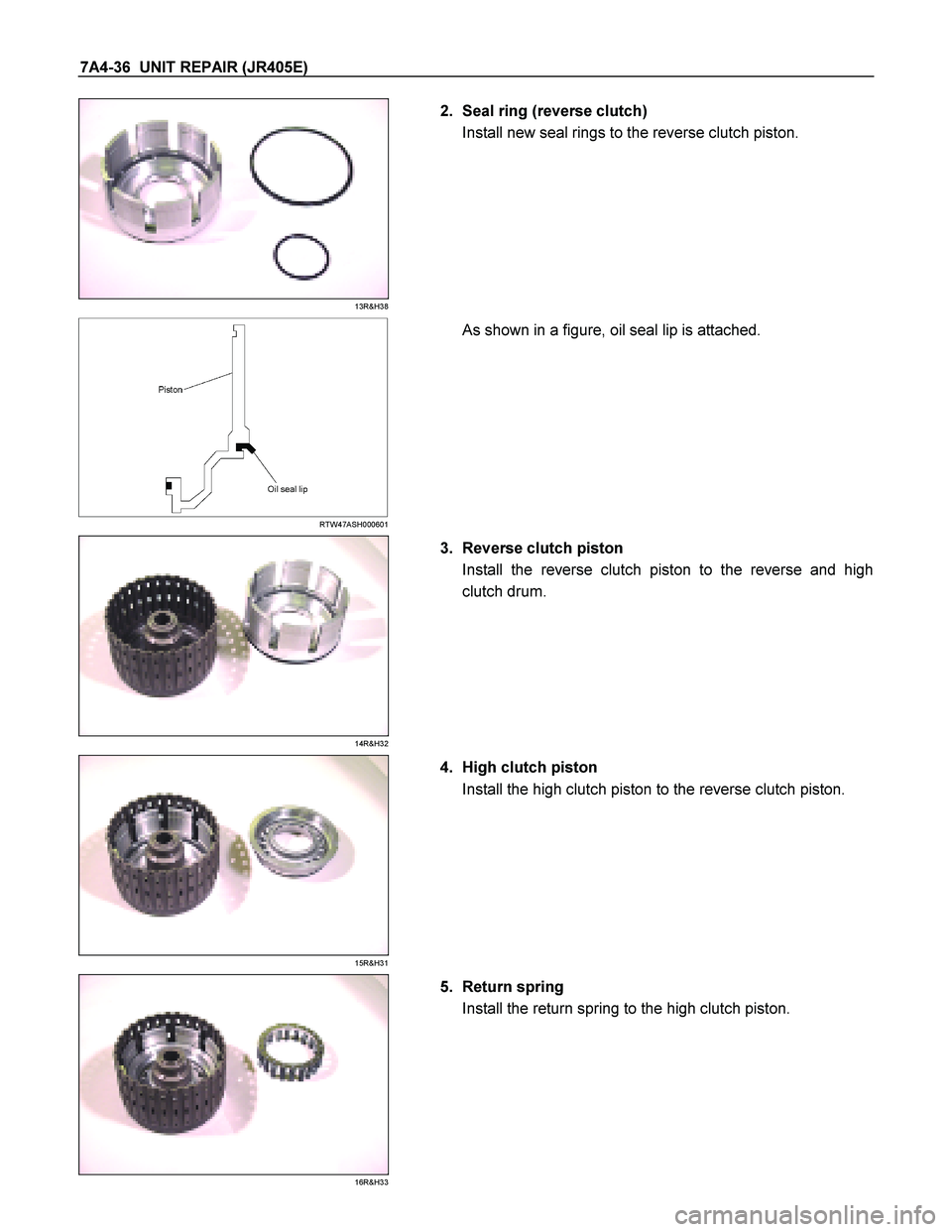

2. Seal ring (reverse clutch)
Install new seal rings to the reverse clutch piston.
RTW47ASH000601
As shown in a figure, oil seal lip is attached.
14R&H32
3. Reverse clutch piston
Install the reverse clutch piston to the reverse and high
clutch drum.
15R&H31
4. High clutch piston
Install the high clutch piston to the reverse clutch piston.
16R&H33
5. Return spring
Install the return spring to the high clutch piston.
Page 4211 of 4264
UNIT REPAIR (JR405E) 7A4-37
17R&H30

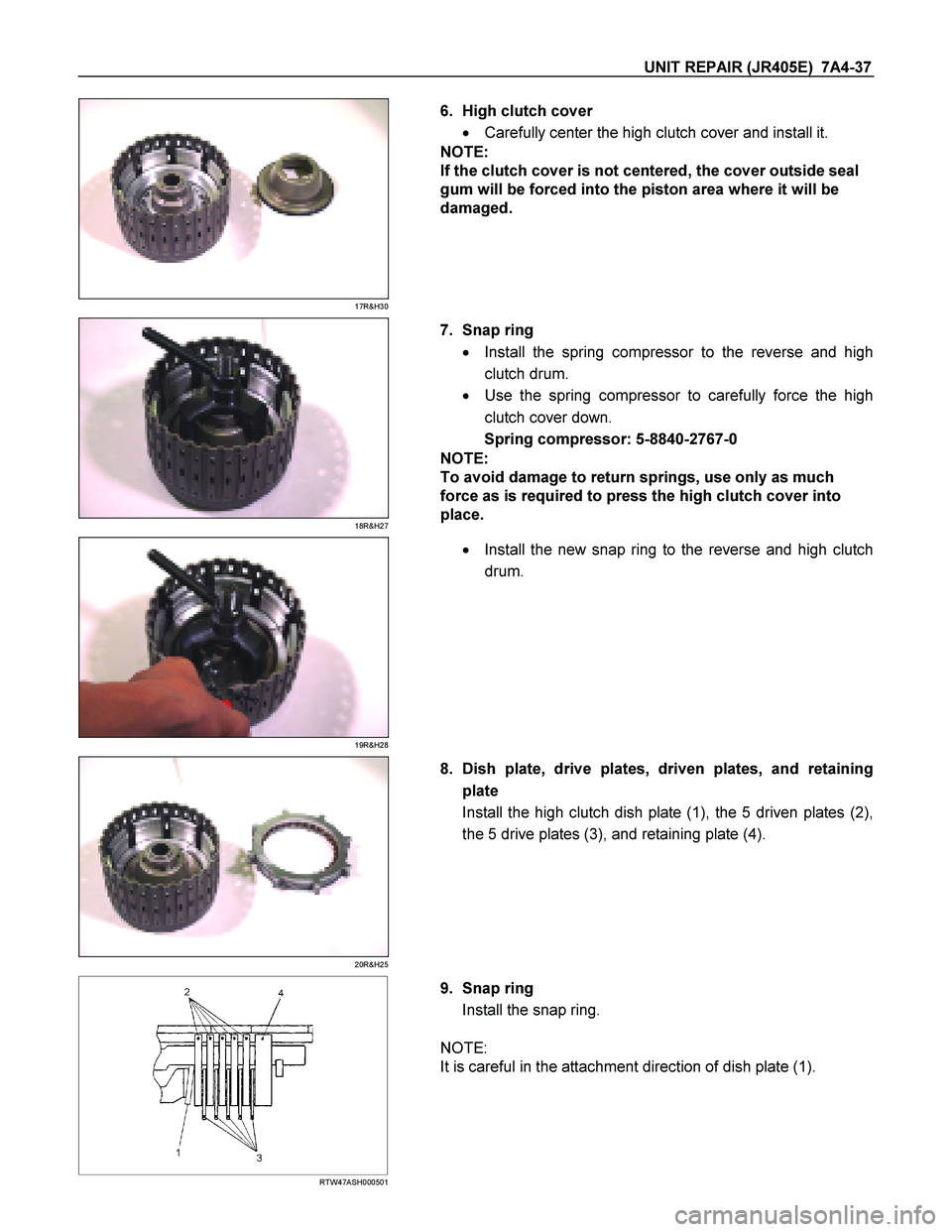

6. High clutch cover
Carefully center the high clutch cover and install it.
NOTE:
If the clutch cover is not centered, the cover outside seal
gum will be forced into the piston area where it will be
damaged.
18R&H27
7. Snap ring
Install the spring compressor to the reverse and high
clutch drum.
Use the spring compressor to carefully force the high
clutch cover down.
Spring compressor: 5-8840-2767-0
NOTE:
To avoid damage to return springs, use only as much
force as is required to press the high clutch cover into
place.
19R&H28
Install the new snap ring to the reverse and high clutch
drum.
20R&H25
8. Dish plate, drive plates, driven plates, and retaining
plate
Install the high clutch dish plate (1), the 5 driven plates (2),
the 5 drive plates (3), and retaining plate (4).
RTW47ASH000501
9. Snap ring
Install the snap ring.
NOTE:
It is careful in the attachment direction of dish plate (1).
Page 4212 of 4264

7A4-38 UNIT REPAIR (JR405E)
21R&H21
10.Dish plate, drive plates, driven plates, and retaining
plate Install the reverse clutch dish plate (1) the 2 driven plates
(2), the 2 drive plates (3), and retaining plate (4).
248L300003
11.Snap ring
Install the snap ring.
NOTE:
If is careful in the attachment direction of dish plate (1).
22R&H35
Install the reverse and high clutch drum to the oil pump
assembly.
Force compressed air (392 kPa/4.0 kg/cm
2) through the
oil pump oil passages to check high clutch operation.
If the clutch does not operate, the seal ring may be
damaged or the parts may have been installed in the
wrong order.
23CLEAR02
Measure the clearance between the high clutch retaining
plate and the snap ring.
If the clearance is outside the specified range, replace
the existing retaining plate with a new plate of the prope
r
size (thickness).
High clutch retaining plate and snap ring clearance
(A): 1.2~1.6 mm (0.047~0.063 in)
Available high clutch retaining plate thicknesses
4.6 mm (0.181 in)
4.8 mm (0.189 in)
Page 4213 of 4264
UNIT REPAIR (JR405E) 7A4-39
248L300004
5.0 mm (0.197 in)
5.2 mm (0.205 in)
5.4 mm (0.213 in)
24R&H34
Force compressed air (392 kPa/4.0 kg/cm2) through the
oil pump oil passages to check reverse clutch operation.
If the clutch does not operate, the seal ring may be
damaged or the parts may have been installed in the
wrong order.
Page 4214 of 4264
7A4-40 UNIT REPAIR (JR405E)
25CLEAR04

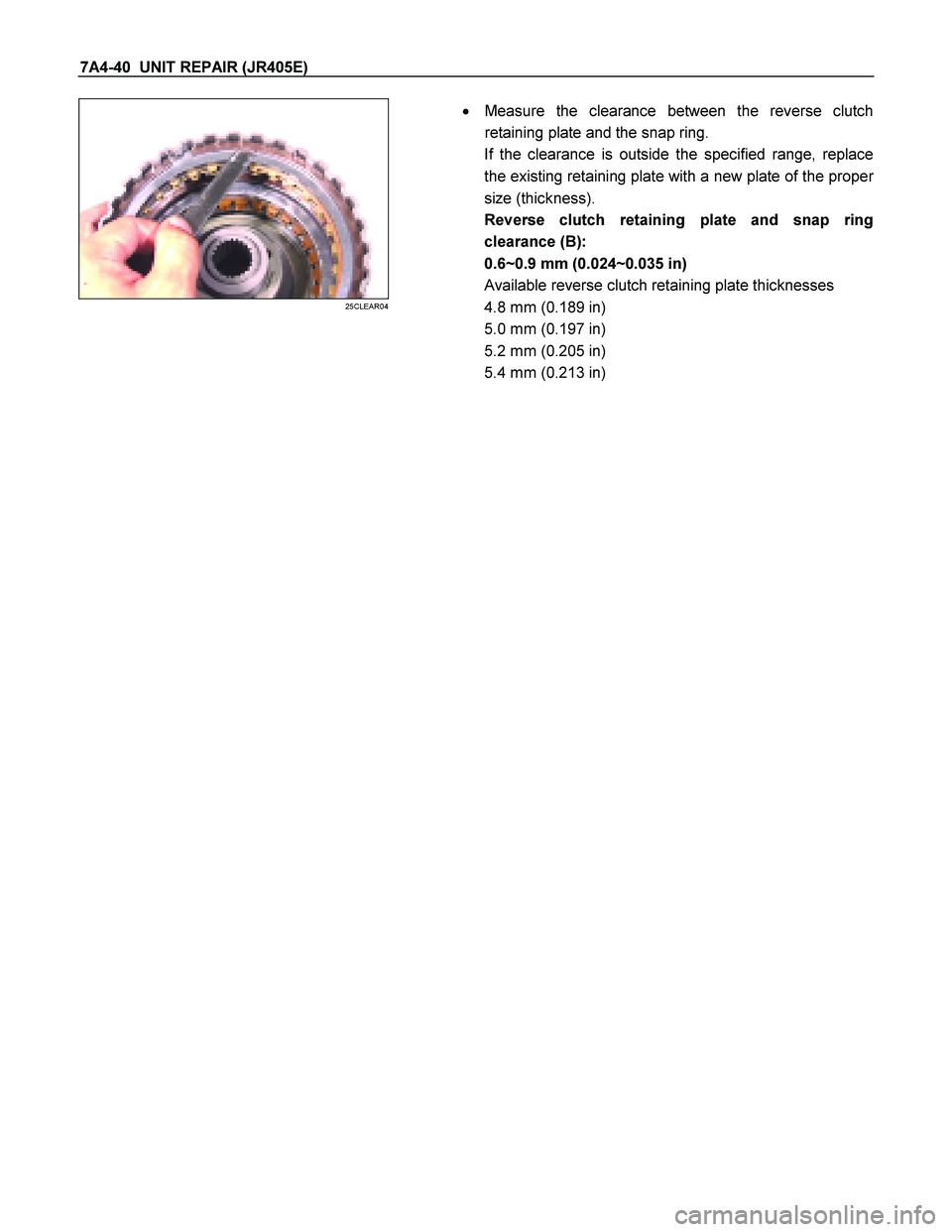

Measure the clearance between the reverse clutch
retaining plate and the snap ring.
If the clearance is outside the specified range, replace
the existing retaining plate with a new plate of the prope
r
size (thickness).
Reverse clutch retaining plate and snap ring
clearance (B):
0.6~0.9 mm (0.024~0.035 in)
Available reverse clutch retaining plate thicknesses
4.8 mm (0.189 in)
5.0 mm (0.197 in)
5.2 mm (0.205 in)
5.4 mm (0.213 in)
Page 4215 of 4264
UNIT REPAIR (JR405E) 7A4-41
CARRIER AND LOW CLUTCH
ASSEMBLY
01C&L12

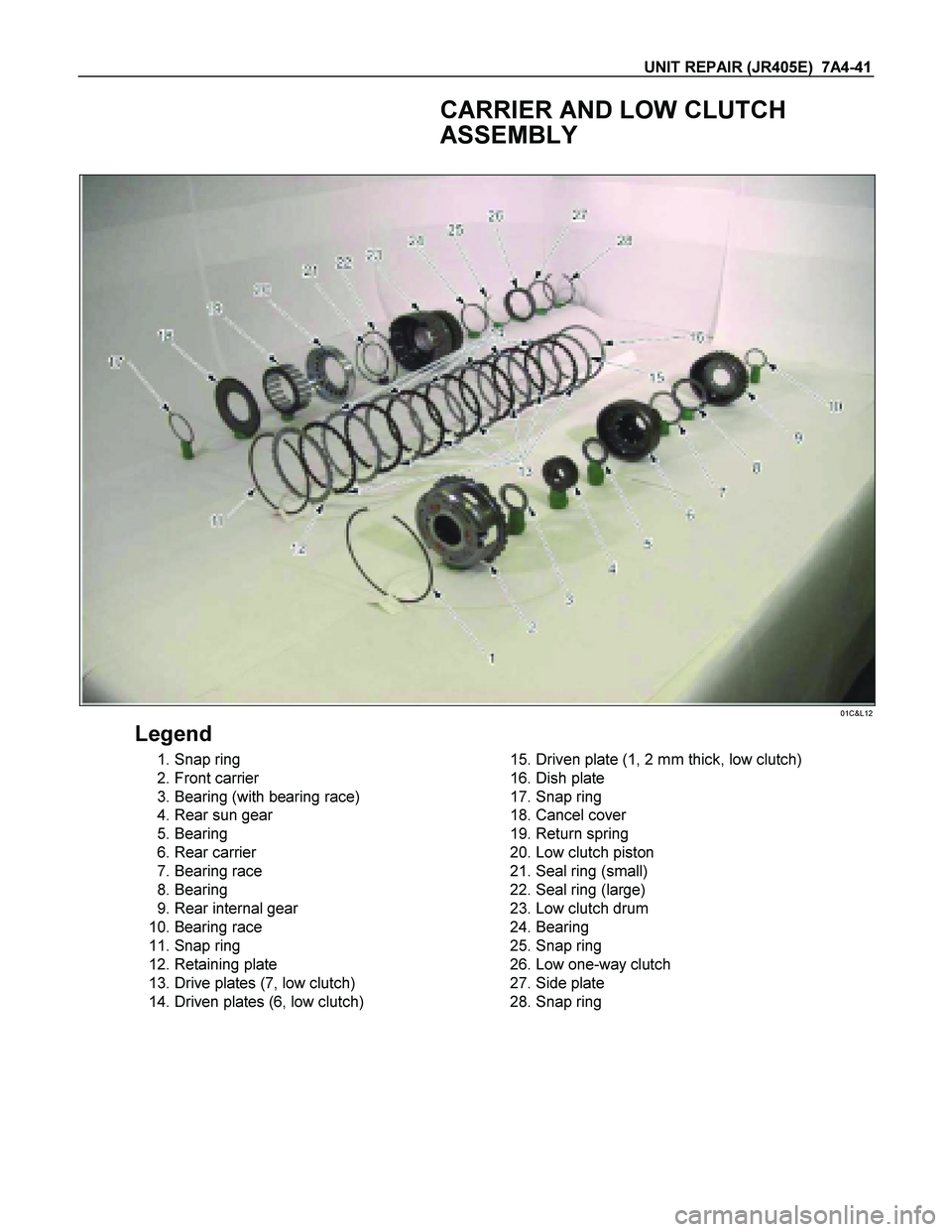

Legend
1. Snap ring
2. Front carrier
3. Bearing (with bearing race)
4. Rear sun gear
5. Bearing
6. Rear carrier
7. Bearing race
8. Bearing
9. Rear internal gear
10. Bearing race
11. Snap ring
12. Retaining plate
13. Drive plates (7, low clutch)
14. Driven plates (6, low clutch)
15. Driven plate (1, 2 mm thick, low clutch)
16. Dish plate
17. Snap ring
18. Cancel cover
19. Return spring
20. Low clutch piston
21. Seal ring (small)
22. Seal ring (large)
23. Low clutch drum
24. Bearing
25. Snap ring
26. Low one-way clutch
27. Side plate
28. Snap ring
Page 4216 of 4264
7A4-42 UNIT REPAIR (JR405E)
02C&L-SUB03
Disassembly steps

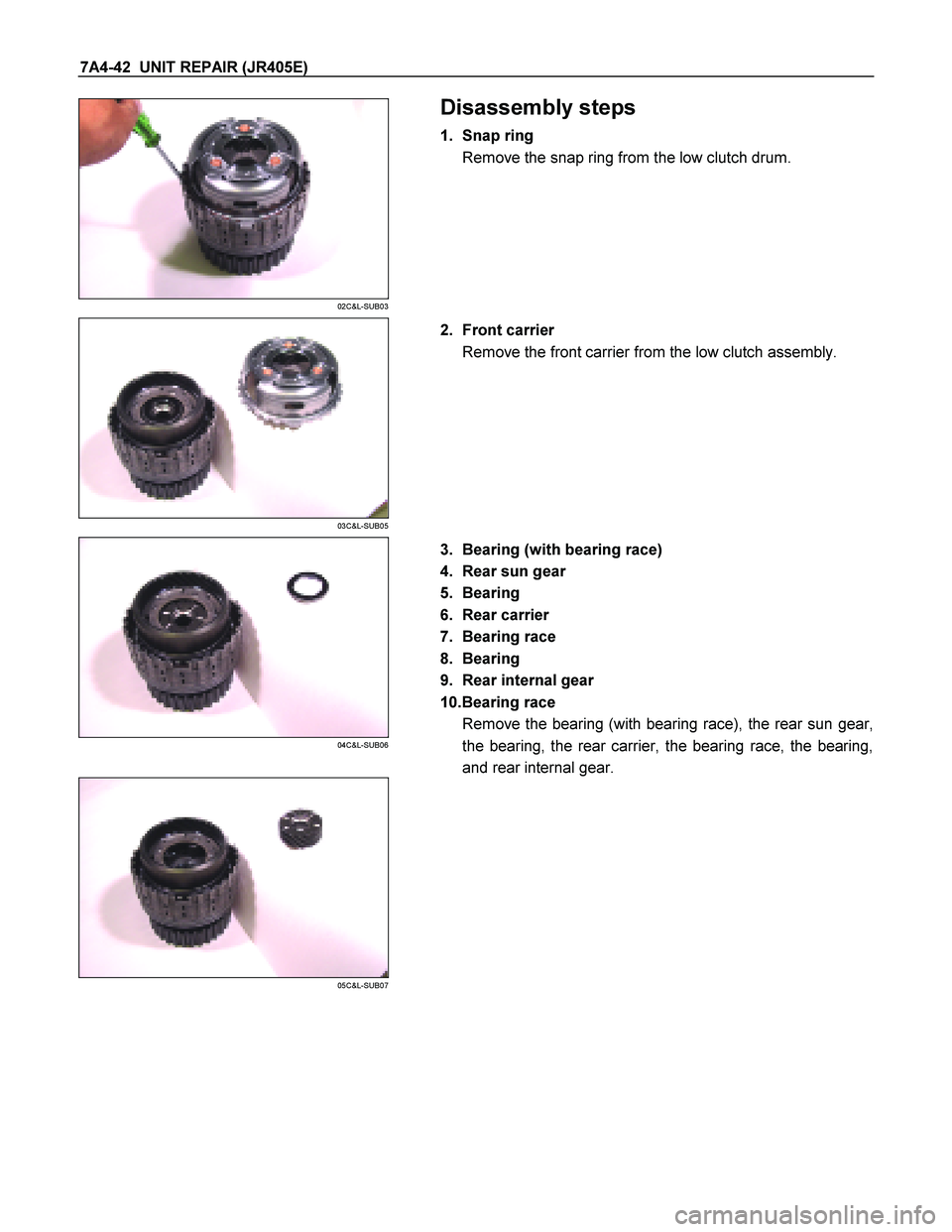

1. Snap ring
