Page 1881 of 4264

ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL (6VE1 3.5L) 6A-57 Disassembly 1. Remove camshaft bracket fixing bolts (1). 2. Remove camshaft assembly (intake). 3. Remove camshaft assembly (Exhaust side). 4. Remove shim (4)

Page 1882 of 4264

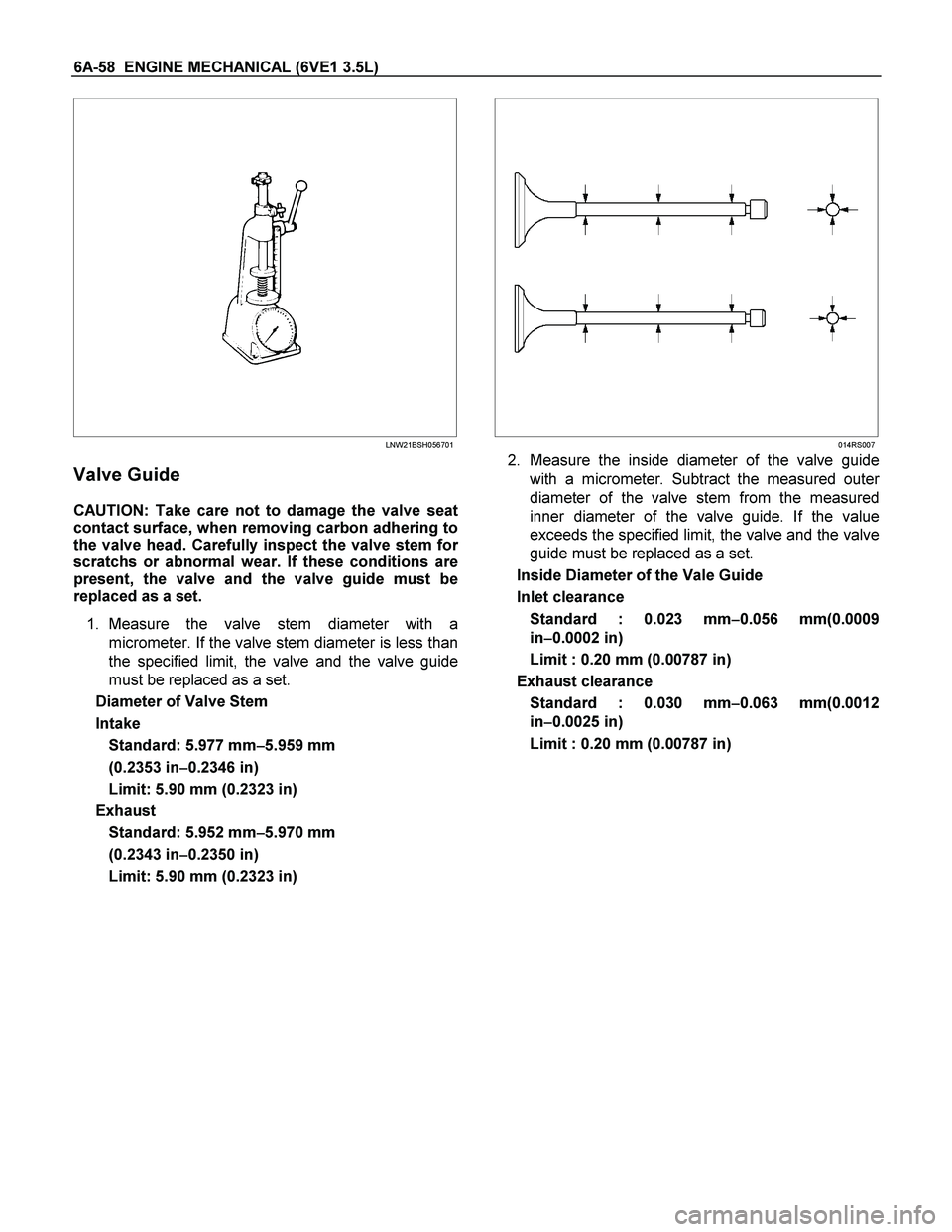

ISUZU TF SERIES 2004 Workshop Manual 6A-58 ENGINE MECHANICAL (6VE1 3.5L) LNW21BSH056701 Valve Guide CAUTION: Take care not to damage the valve seat contact surface, when removing carbon adhering to the valve head. Carefully

Page 1883 of 4264

ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL (6VE1 3.5L) 6A-59 Valve Guide Replacement 1. Using Valve guide replacer: 5884024420, drive out the valve guide from the combustion chamber side. 014RS008 2. Apply engin

Page 1884 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6A-60 ENGINE MECHANICAL (6VE1 3.5L) 2. Measure the valve seat contact width. Make the necessary corrections if the seat contact surface is damaged or rough or if the contact width wea r exceeds the

Page 1885 of 4264

ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL (6VE1 3.5L) 6A-61 Valve Seat Insert Replacement 1. Arc weld the rod at several points. Be careful not to damage the aluminum section. 2. Allow the rod to cool for a few minutes.

Page 1886 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6A-62 ENGINE MECHANICAL (6VE1 3.5L) 5. Install lower valve spring seat, valve spring and upper valve spring seat then put split collars on the upper spring seat, using the 5884024460 valve sprin

Page 1887 of 4264

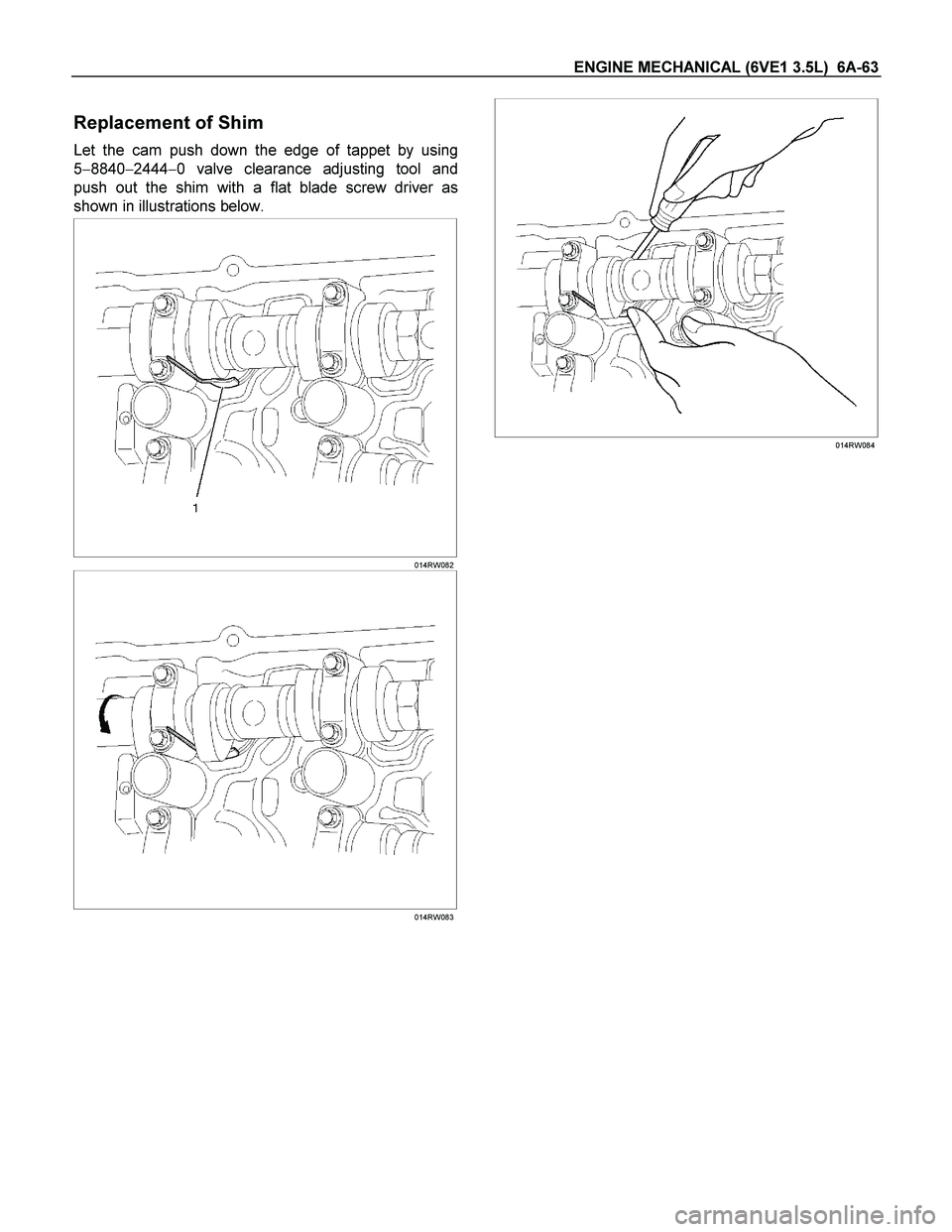

ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL (6VE1 3.5L) 6A-63 Replacement of Shim Let the cam push down the edge of tappet by using 5884024440 valve clearance adjusting tool and push out the shim with a flat blade screw

Page 1888 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6A-64 ENGINE MECHANICAL (6VE1 3.5L) Camshaft Camshaft and Associated Parts 014RW040 Legend (1) Camshaft Bracket Fixing Bolt (2) Camshaft Bracket (3) Camshaft Assembly Intake
