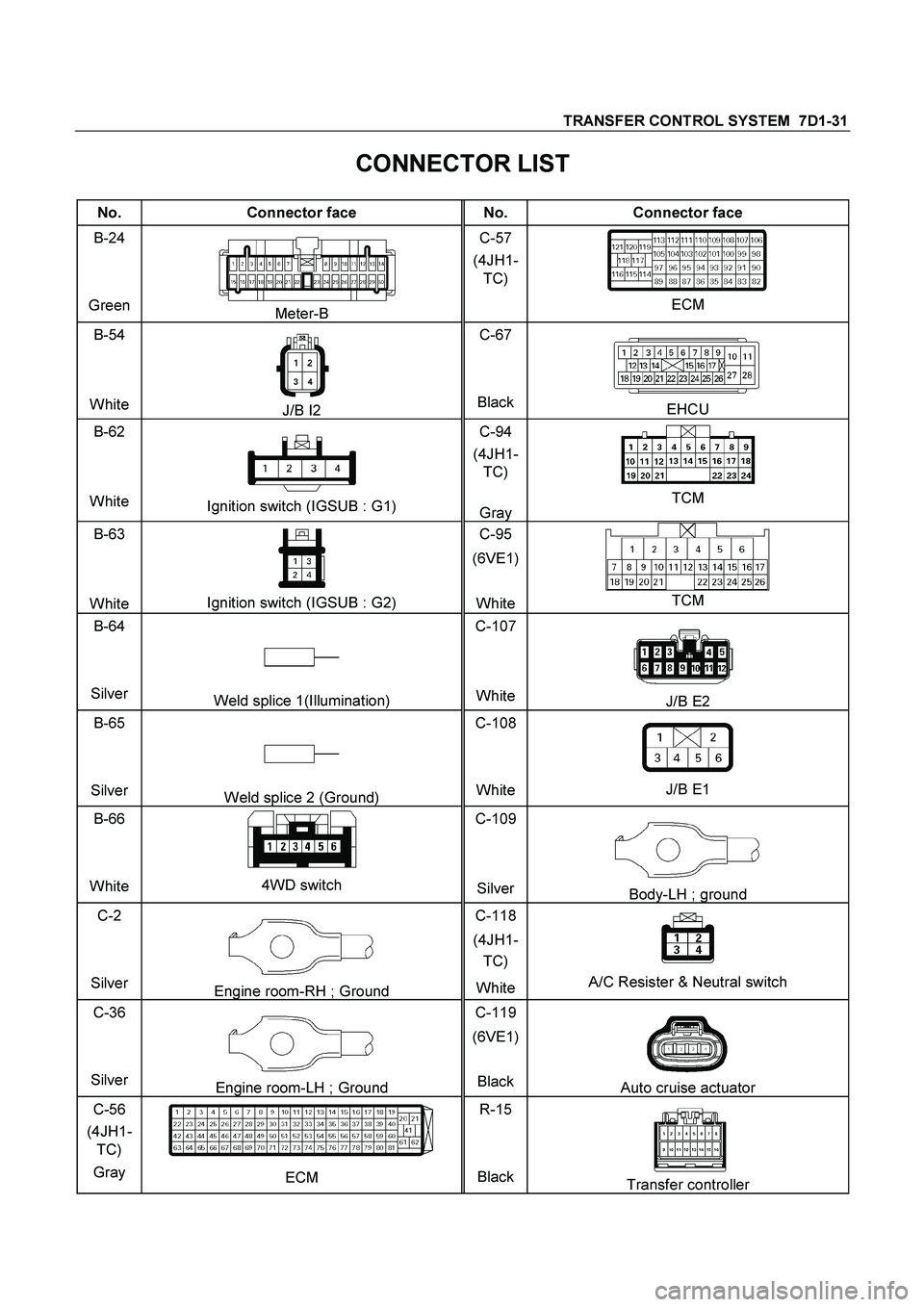

TRANSFER CONTROL SYSTEM 7D1-31
CONNECTOR LIST
No. Connector face No. Connector face
B-24
Green
Meter-B C-57
(4JH1-
TC)
ECM
B-54
White
J/B I2 C-67
BlackEHCU
B-62
White
Ignition switch (IGSUB : G1) C-94
(4JH1-
TC)
Gray TCM
B-63
White
Ignition switch (IGSUB : G2) C-95
(6VE1)
WhiteTCM
B-64
Silver
Weld splice 1(Illumination) C-107
WhiteJ/B E2
B-65
Silver
Weld splice 2 (Ground) C-108
WhiteJ/B E1
B-66
White
4WD switch C-109
SilverBody-LH ; ground
C-2
Silver
Engine room-RH ; Ground C-118
(4JH1-
TC)
WhiteA/C Resister & Neutral switch
C-36
Silver
Engine room-LH ; Ground C-119
(6VE1)
BlackAuto cruise actuator
C-56
(4JH1-
TC)
Gray
ECM R-15
BlackTransfer controller
Page 3658 of 4264

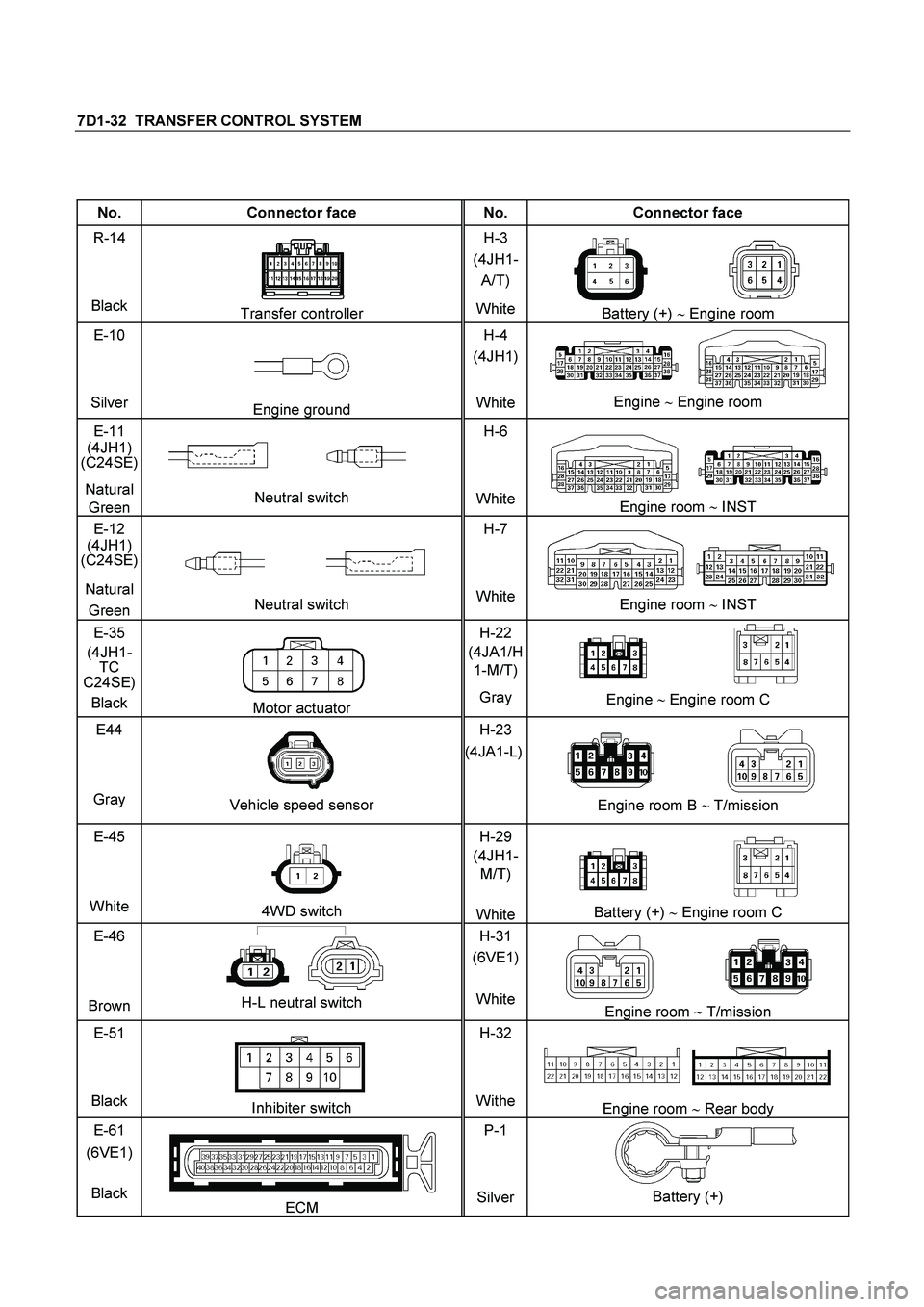

7D1-32 TRANSFER CONTROL SYSTEM
No. Connector face No. Connector face
R-14
Black
Transfer controller H-3
(4JH1-
A/T)
WhiteBattery (+) Engine room
E-10
Silver
Engine ground H-4
(4JH1)
WhiteEngine Engine room
E-11
(4JH1)
(C24SE)
Natural
Green
Neutral switch H-6
White
Engine room
INST
E-12
(4JH1)
(C24SE)
Natural
Green
Neutral switch H-7
WhiteEngine room
INST
E-35
(4JH1-
TC
C24SE)
Black
Motor actuator H-22
(4JA1/H
1-M/T)
Gray Engine
Engine room C
E44
Gray
Vehicle speed sensor H-23
(4JA1-L)
Engine room B
T/mission
E-45
White
4WD switch H-29
(4JH1-
M/T)
WhiteBattery (+) Engine room C
E-46
Brown
H-L neutral switch H-31
(6VE1)
WhiteEngine room
T/mission
E-51
Black
Inhibiter switch H-32
WitheEngine room Rear body
E-61
(6VE1)
Black
ECM P-1
SilverBattery (+)
Page 3659 of 4264

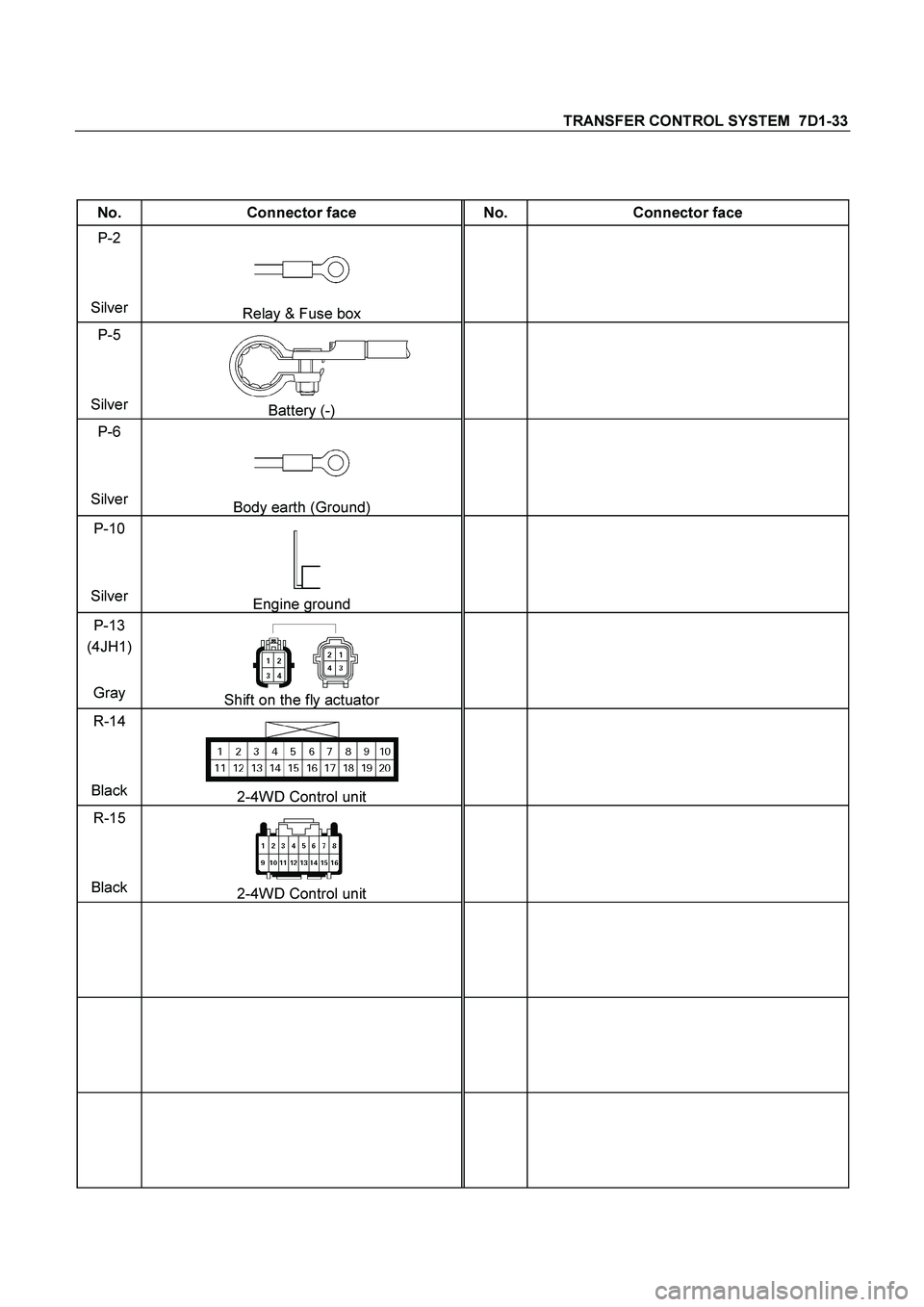

TRANSFER CONTROL SYSTEM 7D1-33
No. Connector face No. Connector face
P-2
Silver
Relay & Fuse box
P-5
Silver
Battery (-)
P-6
Silver
Body earth (Ground)
P-10
Silver
Engine ground
P-13
(4JH1)
Gray
Shift on the fly actuator
R-14
Black 2-4WD Control unit
R-15
Black 2-4WD Control unit
Page 3660 of 4264

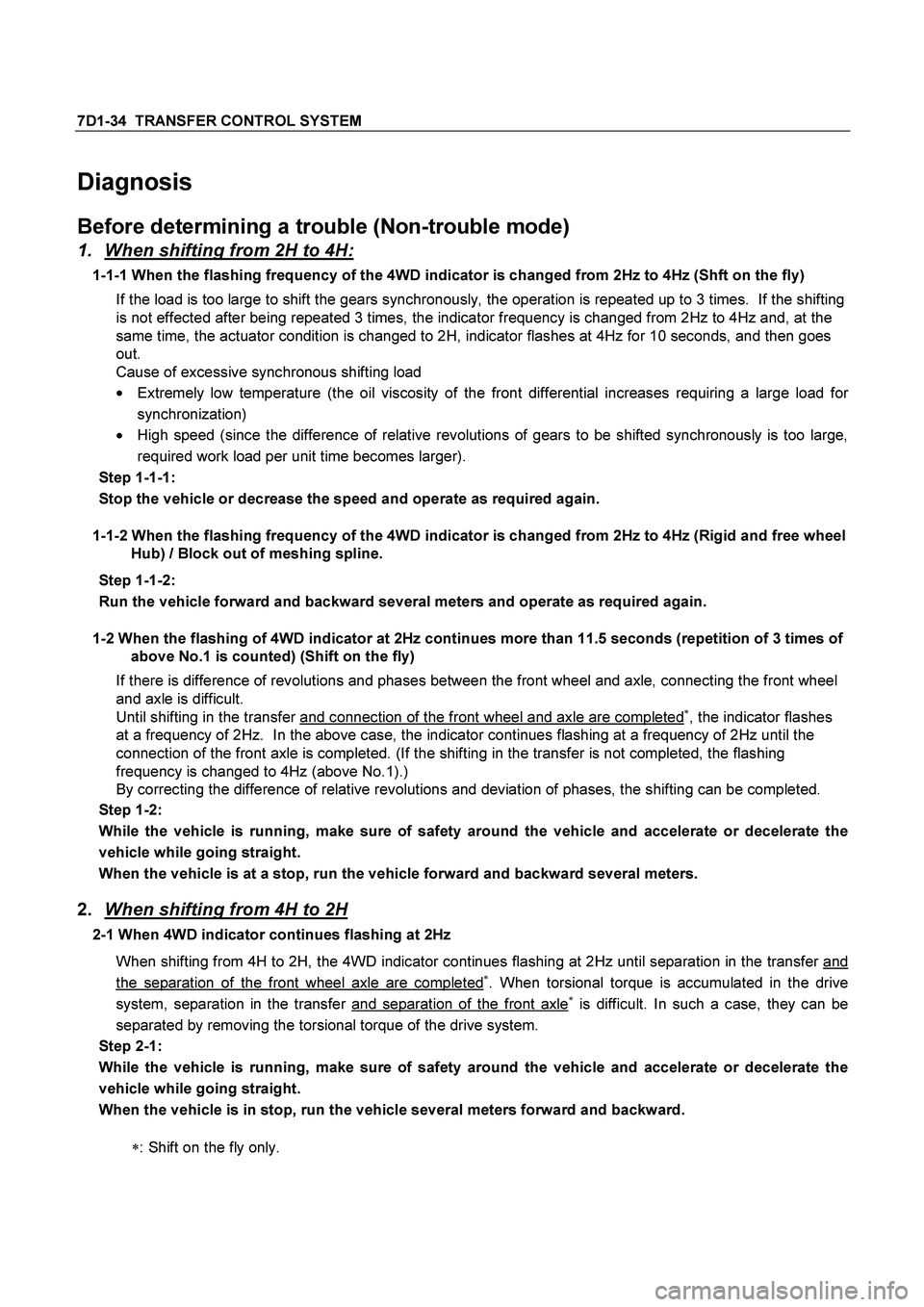

7D1-34 TRANSFER CONTROL SYSTEM
Diagnosis
Before determining a trouble (Non-trouble mode)
1. When shifting from 2H to 4H:
1-1-1 When the flashing frequency of the 4WD indicator is changed from 2Hz to 4Hz (Shft on the fly)
If the load is too large to shift the gears synchronously, the operation is repeated up to 3 times. If the shifting
is not effected after being repeated 3 times, the indicator frequency is changed from 2Hz to 4Hz and, at the
same time, the actuator condition is changed to 2H, indicator flashes at 4Hz for 10 seconds, and then goes
out.
Cause of excessive synchronous shifting load
Extremely low temperature (the oil viscosity of the front differential increases requiring a large load for
synchronization)
High speed (since the difference of relative revolutions of gears to be shifted synchronously is too large,
required work load per unit time becomes larger).
Step 1-1-1:
Stop the vehicle or decrease the speed and operate as required again.
1-1-2 When the flashing frequency of the 4WD indicator is changed from 2Hz to 4Hz (Rigid and free wheel
Hub) / Block out of meshing spline.
Step 1-1-2:
Run the vehicle forward and backward several meters and operate as required again.
1-2 When the flashing of 4WD indicator at 2Hz continues more than 11.5 seconds (repetition of 3 times of
above No.1 is counted) (Shift on the fly)
If there is difference of revolutions and phases between the front wheel and axle, connecting the front wheel
and axle is difficult.
Until shifting in the transfer and connection of the front wheel and axle are completed
, the indicator flashes
at a frequency of 2Hz. In the above case, the indicator continues flashing at a frequency of 2Hz until the
connection of the front axle is completed. (If the shifting in the transfer is not completed, the flashing
frequency is changed to 4Hz (above No.1).)
By correcting the difference of relative revolutions and deviation of phases, the shifting can be completed.
Step 1-2:
While the vehicle is running, make sure of safety around the vehicle and accelerate or decelerate the
vehicle while going straight.
When the vehicle is at a stop, run the vehicle forward and backward several meters.
2.
When shifting from 4H to 2H
2-1 When 4WD indicator continues flashing at 2Hz
When shifting from 4H to 2H, the 4WD indicator continues flashing at 2Hz until separation in the transfer and
the separation of the front wheel axle are completed. When torsional torque is accumulated in the drive
system, separation in the transfer and separation of the front axle is difficult. In such a case, they can be
separated by removing the torsional torque of the drive system.
Step 2-1:
While the vehicle is running, make sure of safety around the vehicle and accelerate or decelerate the
vehicle while going straight.
When the vehicle is in stop, run the vehicle several meters forward and backward.
: Shift on the fly only.
Page 3661 of 4264

TRANSFER CONTROL SYSTEM 7D1-35

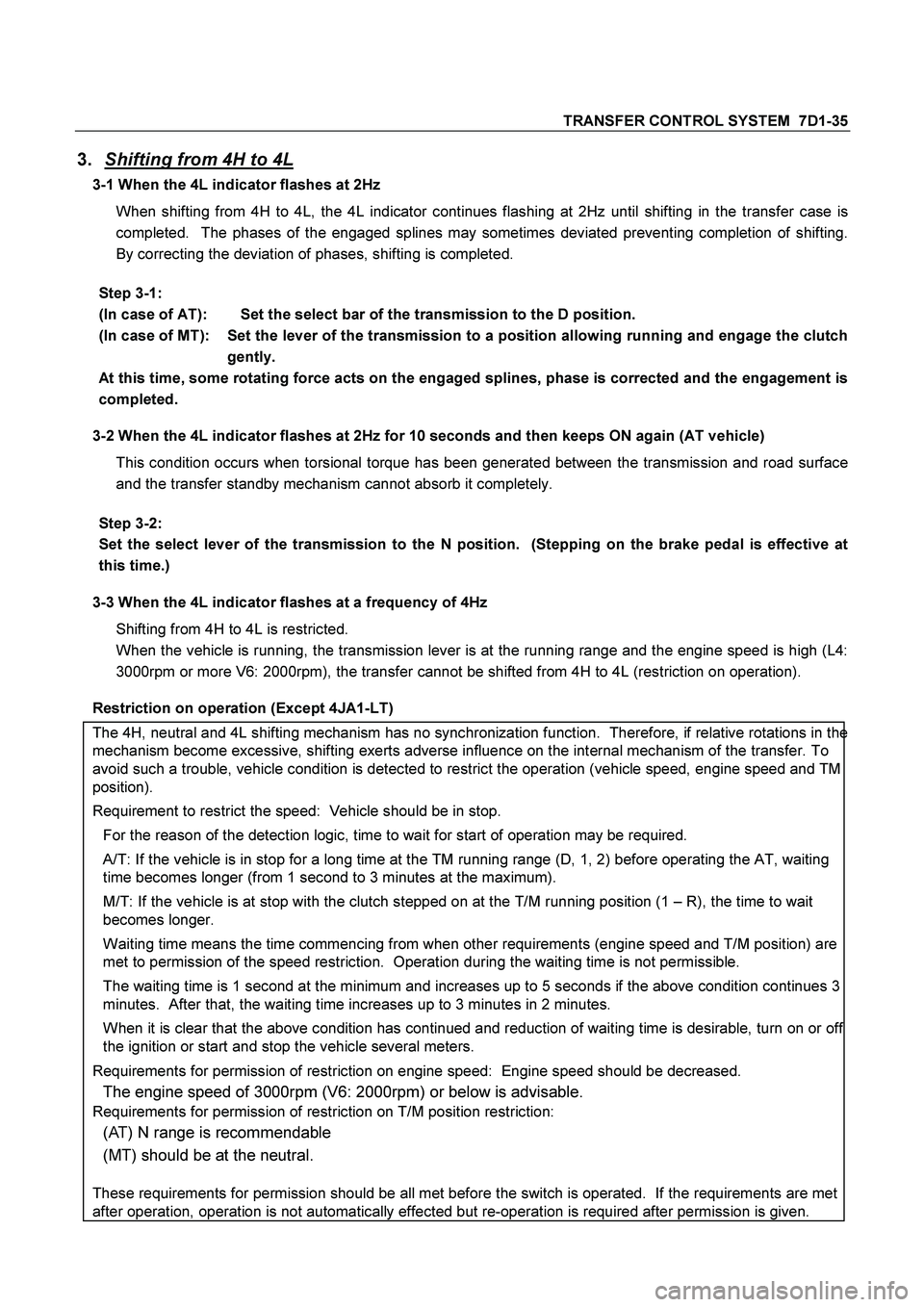

3.
Shifting from 4H to 4L
3-1 When the 4L indicator flashes at 2Hz
When shifting from 4H to 4L, the 4L indicator continues flashing at 2Hz until shifting in the transfer case is
completed. The phases of the engaged splines may sometimes deviated preventing completion of shifting.
By correcting the deviation of phases, shifting is completed.
Step 3-1:
(In case of AT): Set the select bar of the transmission to the D position.
(In case of MT): Set the lever of the transmission to a position allowing running and engage the clutch
gently.
At this time, some rotating force acts on the engaged splines, phase is corrected and the engagement is
completed.
3-2 When the 4L indicator flashes at 2Hz for 10 seconds and then keeps ON again (AT vehicle)
This condition occurs when torsional torque has been generated between the transmission and road surface
and the transfer standby mechanism cannot absorb it completely.
Step 3-2:
Set the select lever of the transmission to the N position. (Stepping on the brake pedal is effective at
this time.)
3-3 When the 4L indicator flashes at a frequency of 4Hz
Shifting from 4H to 4L is restricted.
When the vehicle is running, the transmission lever is at the running range and the engine speed is high (L4:
3000rpm or more V6: 2000rpm), the transfer cannot be shifted from 4H to 4L (restriction on operation).
Restriction on operation (Except 4JA1-LT)
The 4H, neutral and 4L shifting mechanism has no synchronization function. Therefore, if relative rotations in the
mechanism become excessive, shifting exerts adverse influence on the internal mechanism of the transfer. To
avoid such a trouble, vehicle condition is detected to restrict the operation (vehicle speed, engine speed and TM
position).
Requirement to restrict the speed: Vehicle should be in stop.
For the reason of the detection logic, time to wait for start of operation may be required.
A/T: If the vehicle is in stop for a long time at the TM running range (D, 1, 2) before operating the AT, waiting
time becomes longer (from 1 second to 3 minutes at the maximum).
M/T: If the vehicle is at stop with the clutch stepped on at the T/M running position (1 – R), the time to wait
becomes longer.
Waiting time means the time commencing from when other requirements (engine speed and T/M position) are
met to permission of the speed restriction. Operation during the waiting time is not permissible.
The waiting time is 1 second at the minimum and increases up to 5 seconds if the above condition continues 3
minutes. After that, the waiting time increases up to 3 minutes in 2 minutes.
When it is clear that the above condition has continued and reduction of waiting time is desirable, turn on or off
the ignition or start and stop the vehicle several meters.
Requirements for permission of restriction on engine speed: Engine speed should be decreased.
The engine speed of 3000rpm (V6: 2000rpm) or below is advisable.
Requirements for permission of restriction on T/M position restriction:
(AT) N range is recommendable
(MT) should be at the neutral.
These requirements for permission should be all met before the switch is operated. If the requirements are met
after operation, operation is not automatically effected but re-operation is required after permission is given.
Page 3662 of 4264

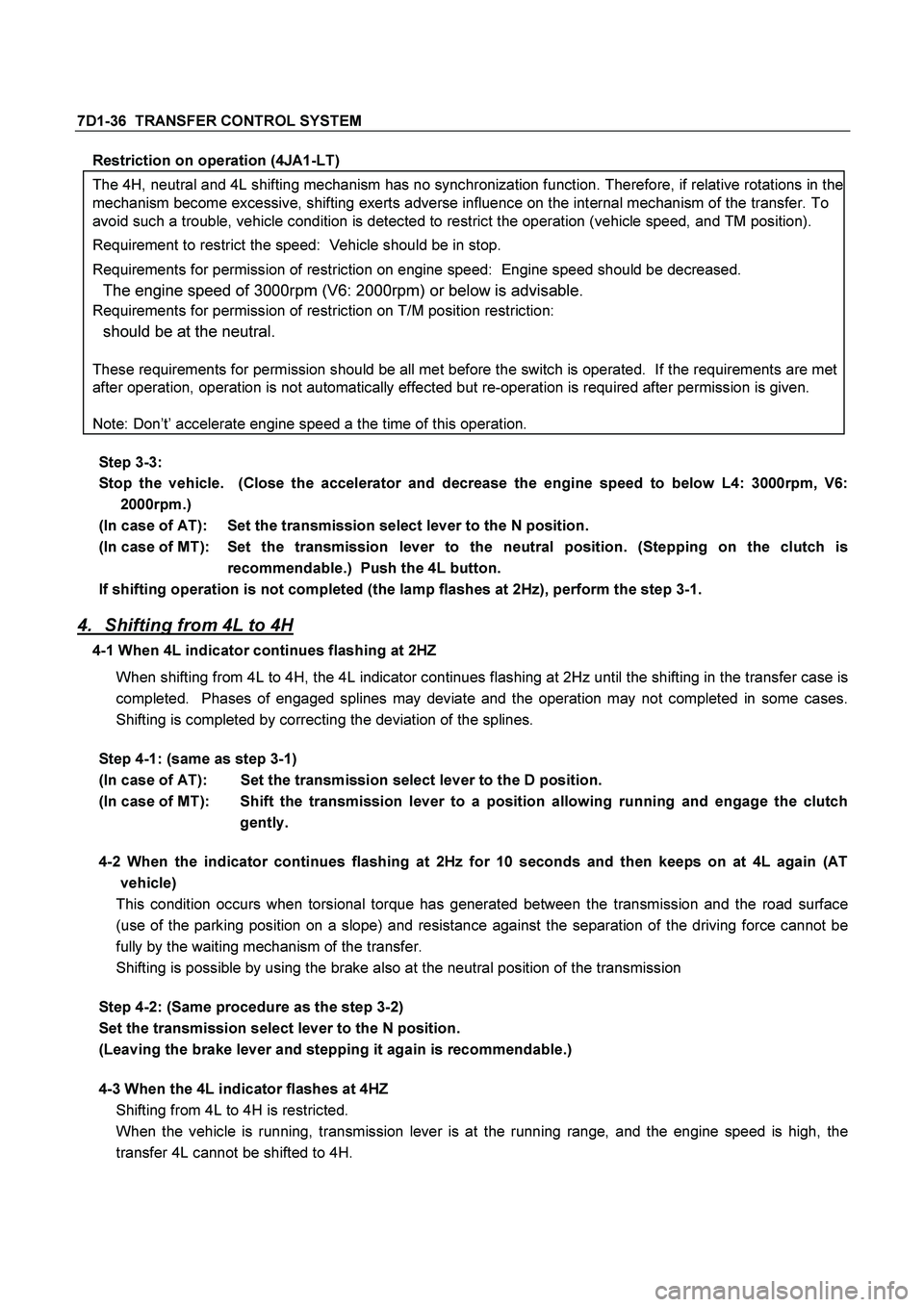

7D1-36 TRANSFER CONTROL SYSTEM
Restriction on operation (4JA1-LT)
The 4H, neutral and 4L shifting mechanism has no synchronization function. Therefore, if relative rotations in the
mechanism become excessive, shifting exerts adverse influence on the internal mechanism of the transfer. To
avoid such a trouble, vehicle condition is detected to restrict the operation (vehicle speed, and TM position).
Requirement to restrict the speed: Vehicle should be in stop.
Requirements for permission of restriction on engine speed: Engine speed should be decreased.
The engine speed of 3000rpm (V6: 2000rpm) or below is advisable.
Requirements for permission of restriction on T/M position restriction:
should be at the neutral.
These requirements for permission should be all met before the switch is operated. If the requirements are met
after operation, operation is not automatically effected but re-operation is required after permission is given.
Note: Don’t’ accelerate engine speed a the time of this operation.
Step 3-3:
Stop the vehicle. (Close the accelerator and decrease the engine speed to below L4: 3000rpm, V6:
2000rpm.)
(In case of AT): Set the transmission select lever to the N position.
(In case of MT): Set the transmission lever to the neutral position. (Stepping on the clutch is
recommendable.) Push the 4L button.
If shifting operation is not completed (the lamp flashes at 2Hz), perform the step 3-1.
4. Shifting from 4L to 4H
4-1 When 4L indicator continues flashing at 2HZ
When shifting from 4L to 4H, the 4L indicator continues flashing at 2Hz until the shifting in the transfer case is
completed. Phases of engaged splines may deviate and the operation may not completed in some cases.
Shifting is completed by correcting the deviation of the splines.
Step 4-1: (same as step 3-1)
(In case of AT): Set the transmission select lever to the D position.
(In case of MT): Shift the transmission lever to a position allowing running and engage the clutch
gently.
4-2 When the indicator continues flashing at 2Hz for 10 seconds and then keeps on at 4L again (AT
vehicle)
This condition occurs when torsional torque has generated between the transmission and the road surface
(use of the parking position on a slope) and resistance against the separation of the driving force cannot be
fully by the waiting mechanism of the transfer.
Shifting is possible by using the brake also at the neutral position of the transmission
Step 4-2: (Same procedure
as the step 3-2)
Set the transmission select lever to the N position.
(Leaving the brake lever and stepping it again is recommendable.)
4-3 When the 4L indicator flashes at 4HZ
Shifting from 4L to 4H is restricted.
When the vehicle is running, transmission lever is at the running range, and the engine speed is high, the
transfer 4L cannot be shifted to 4H.
Page 3663 of 4264

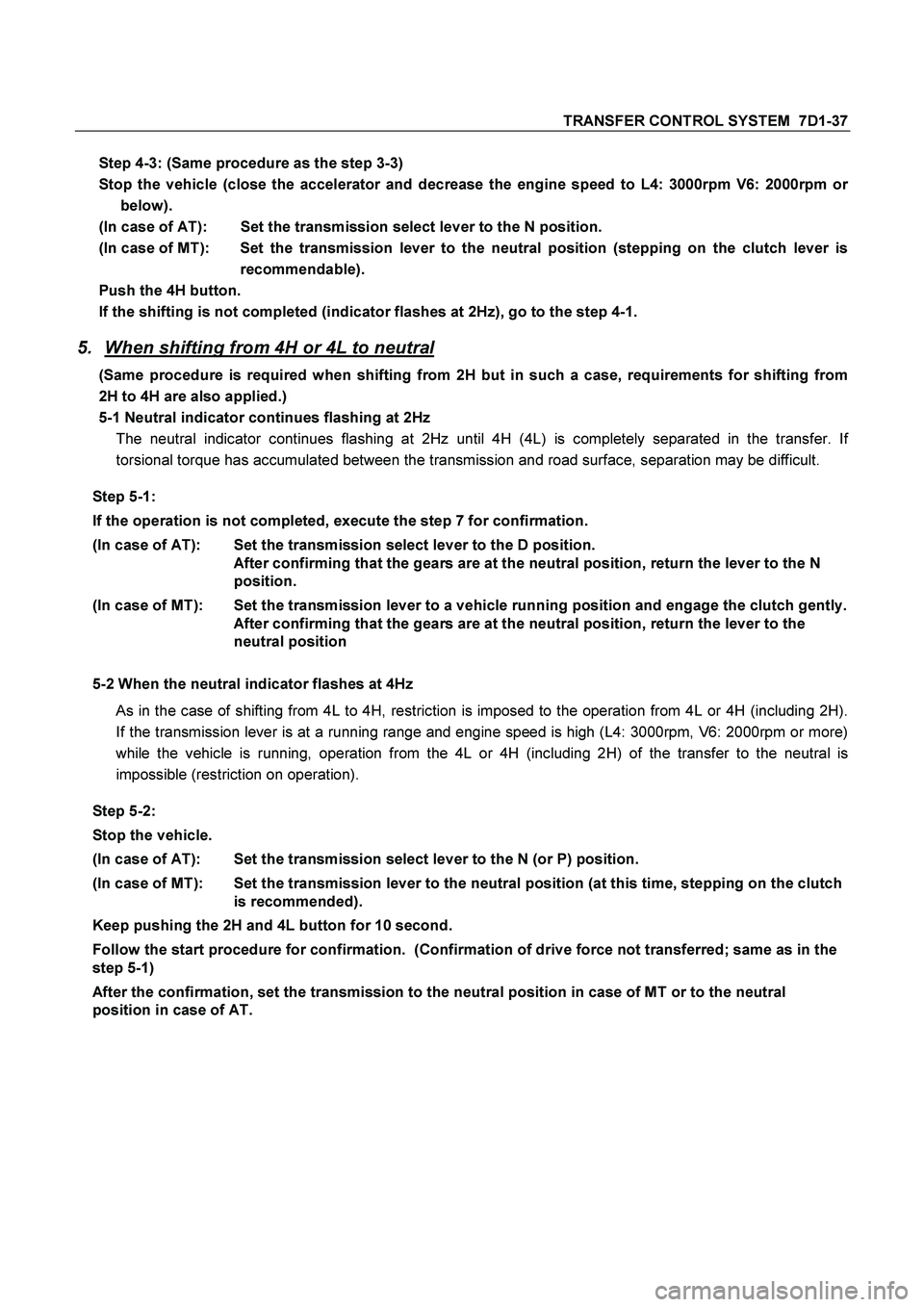

TRANSFER CONTROL SYSTEM 7D1-37
Step 4-3: (Same procedure as the step 3-3)
Stop the vehicle (close the accelerator and decrease the engine speed to L4: 3000rpm V6: 2000rpm or
below).
(In case of AT): Set the transmission select lever to the N position.
(In case of MT): Set the transmission lever to the neutral position (stepping on the clutch lever is
recommendable).
Push the 4H button.
If the shifting is not completed (indicator flashes at 2Hz), go to the step 4-1.
5. When shifting from 4H or 4L to neutral
(Same procedure is required when shifting from 2H but in such a case, requirements for shifting from
2H to 4H are also applied.)
5-1 Neutral indicator continues flashing at 2Hz
The neutral indicator continues flashing at 2Hz until 4H (4L) is completely separated in the transfer. If
torsional torque has accumulated between the transmission and road surface, separation may be difficult.
Step 5-1:
If the operation is not completed, execute the step 7 for confirmation.
(In case of AT): Set the transmission select lever to the D position.
After confirming that the gears are at the neutral position, return the lever to the N
position.
(In case of MT): Set the transmission lever to a vehicle running position and engage the clutch gently.
After confirming that the gears are at the neutral position, return the lever to the
neutral position
5-2 When the neutral indicator flashes at 4Hz
As in the case of shifting from 4L to 4H, restriction is imposed to the operation from 4L or 4H (including 2H).
If the transmission lever is at a running range and engine speed is high (L4: 3000rpm, V6: 2000rpm or more)
while the vehicle is running, operation from the 4L or 4H (including 2H) of the transfer to the neutral is
impossible (restriction on operation).
Step 5-2:
Stop the vehicle.
(In case of AT): Set the transmission select lever to the N (or P) position.
(In case of MT): Set the transmission lever to the neutral position (at this time, stepping on the clutch
is recommended).
Keep pushing the 2H and 4L button for 10 second.
Follow the start procedure for confirmation. (Confirmation of drive force not transferred; same as in the
step 5-1)
After the confirmation, set the transmission to the neutral position in case of MT or to the neutral
position in case of AT.
Page 3664 of 4264

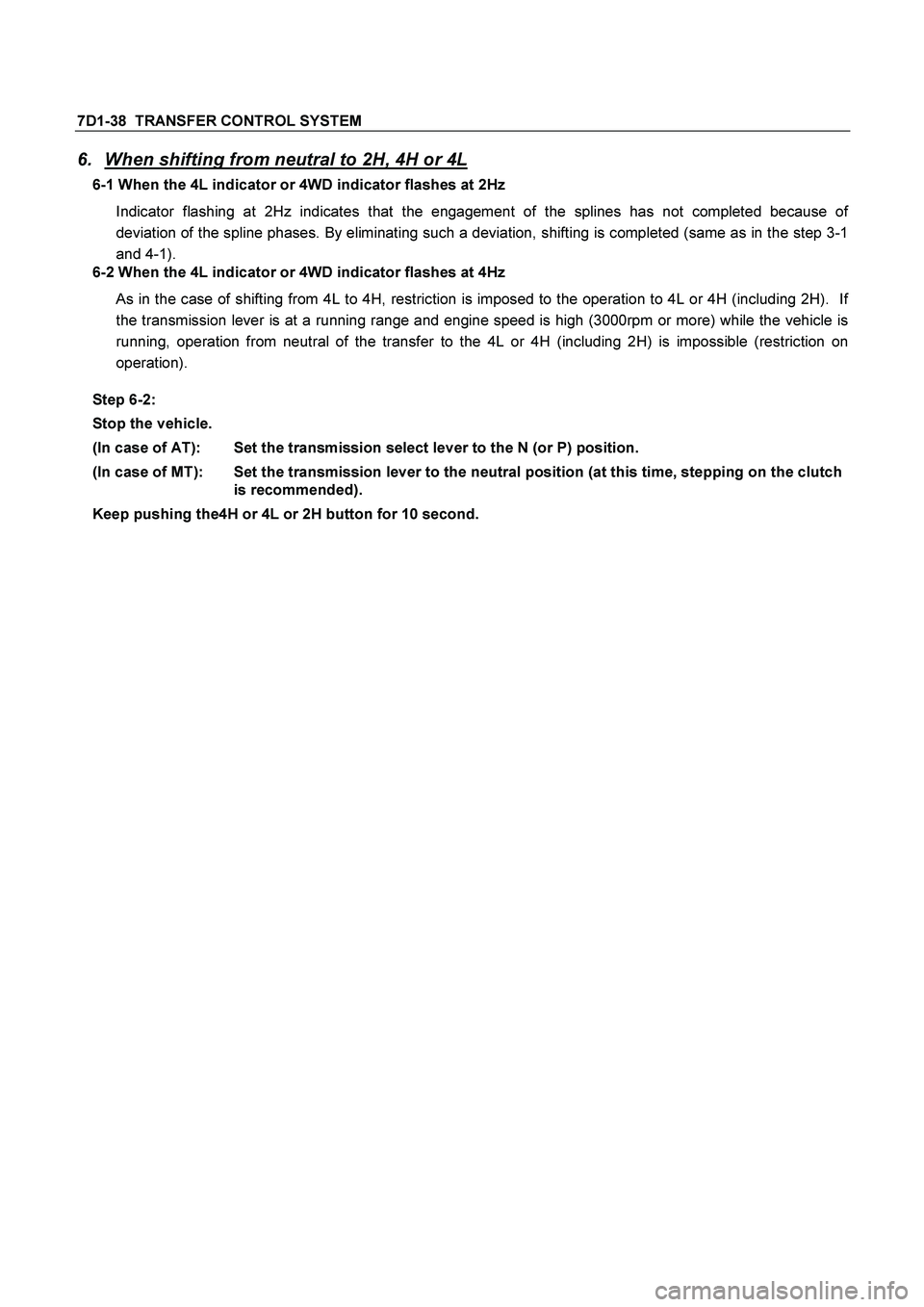

7D1-38 TRANSFER CONTROL SYSTEM
6. When shifting from neutral to 2H, 4H or 4L
6-1 When the 4L indicator or 4WD indicator flashes at 2Hz
Indicator flashing at 2Hz indicates that the engagement of the splines has not completed because of
deviation of the spline phases. By eliminating such a deviation, shifting is completed (same as in the step 3-1
and 4-1).
6-2 When the 4L indicator or 4WD indicator flashes at 4Hz
As in the case of shifting from 4L to 4H, restriction is imposed to the operation to 4L or 4H (including 2H). If
the transmission lever is at a running range and engine speed is high (3000rpm or more) while the vehicle is
running, operation from neutral of the transfer to the 4L or 4H (including 2H) is impossible (restriction on
operation).
Step 6-2:
Stop the vehicle.
(In case of AT): Set the transmission select lever to the N (or P) position.
(In case of MT): Set the transmission lever to the neutral position (at this time, stepping on the clutch
is recommended).
Keep pushing the4H or 4L or 2H button for 10 second.
