ISUZU TF SERIES 2004 Workshop Manual

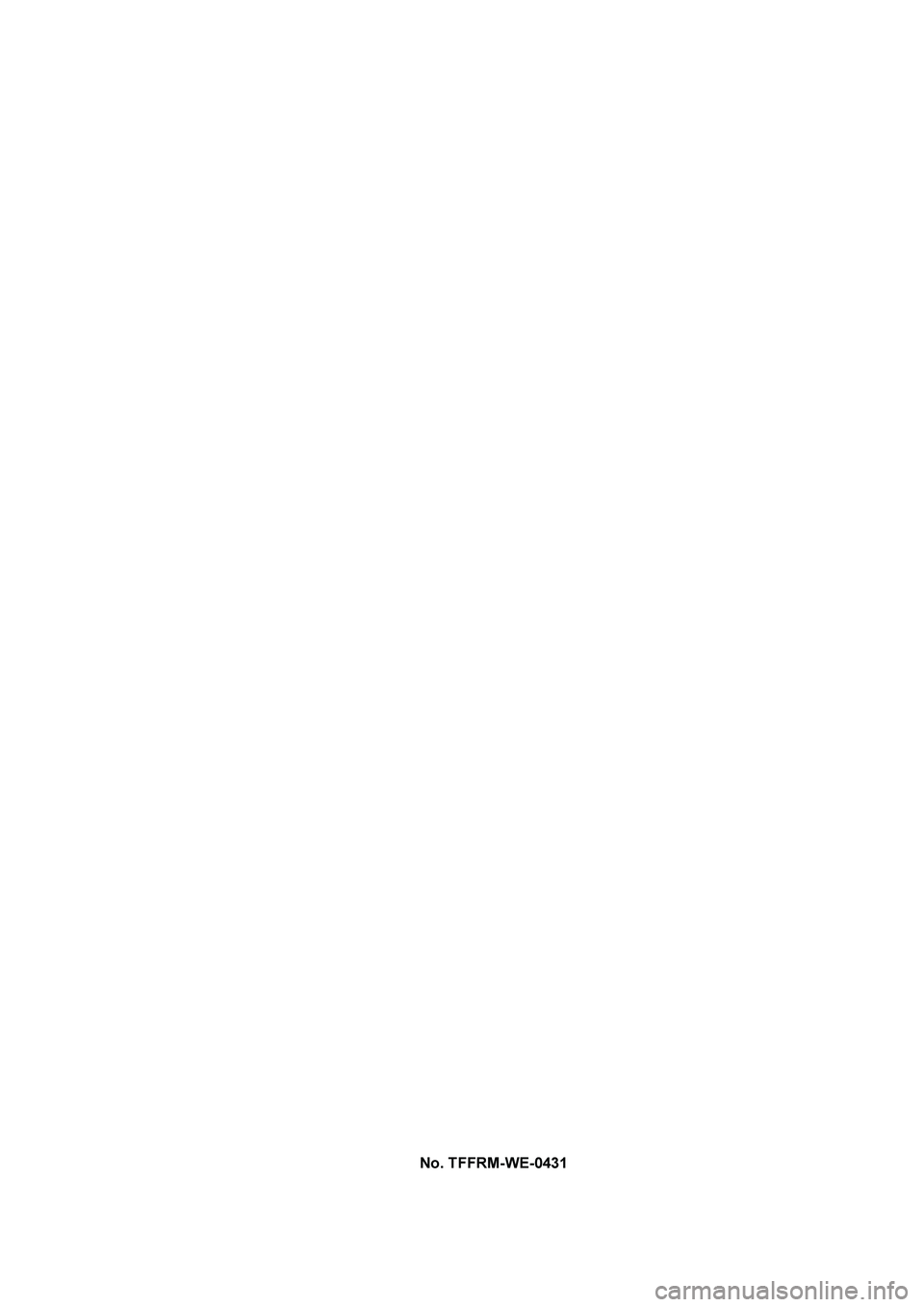

No. TFFRM-WE-0431

Page 2971 of 4264

ISUZU TF SERIES 2004 Workshop Manual

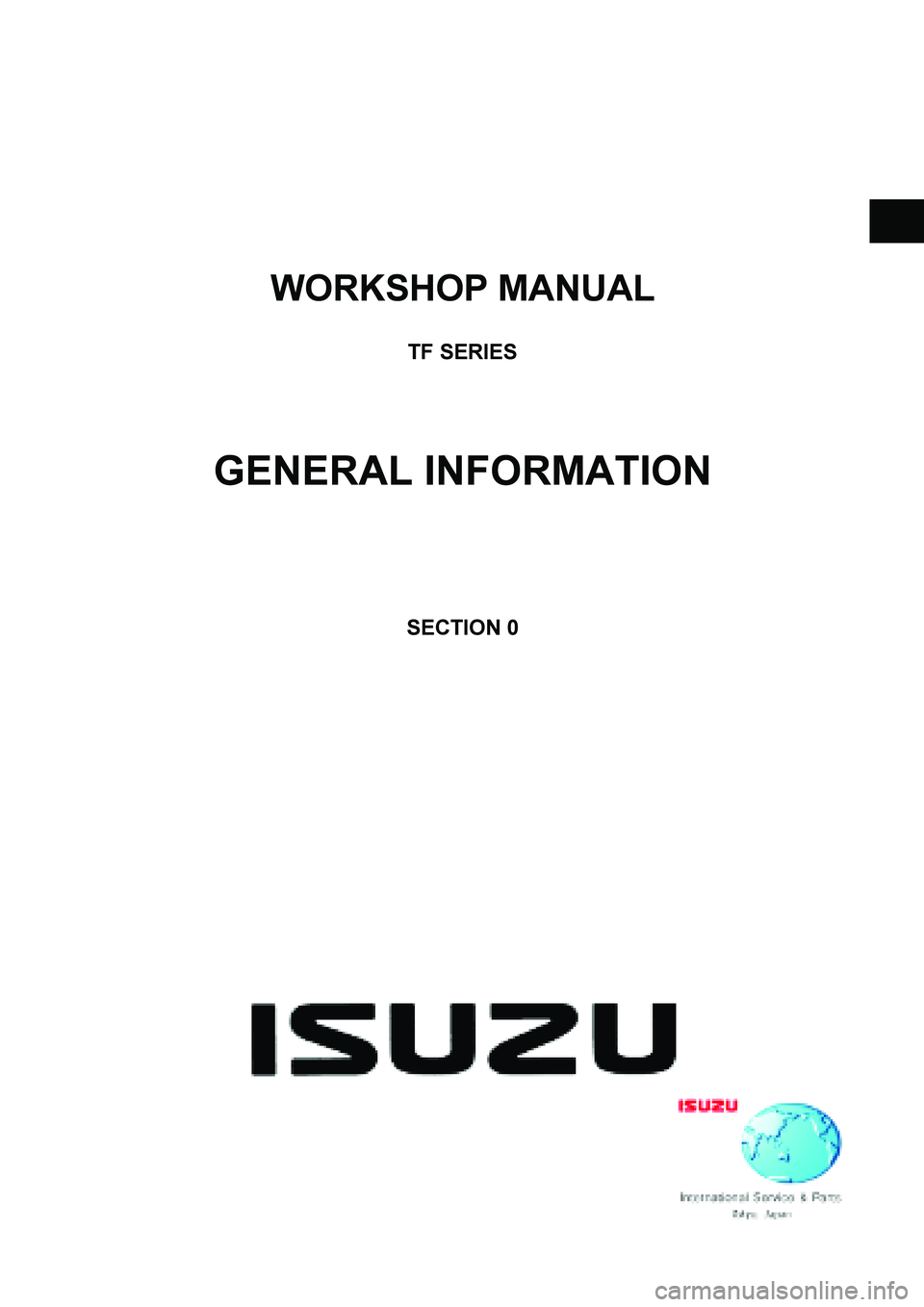

WORKSHOP MANUAL

TF SERIES

GENERAL INFORMATION

SECTION 0

Page 2972 of 4264

Page 2973 of 4264

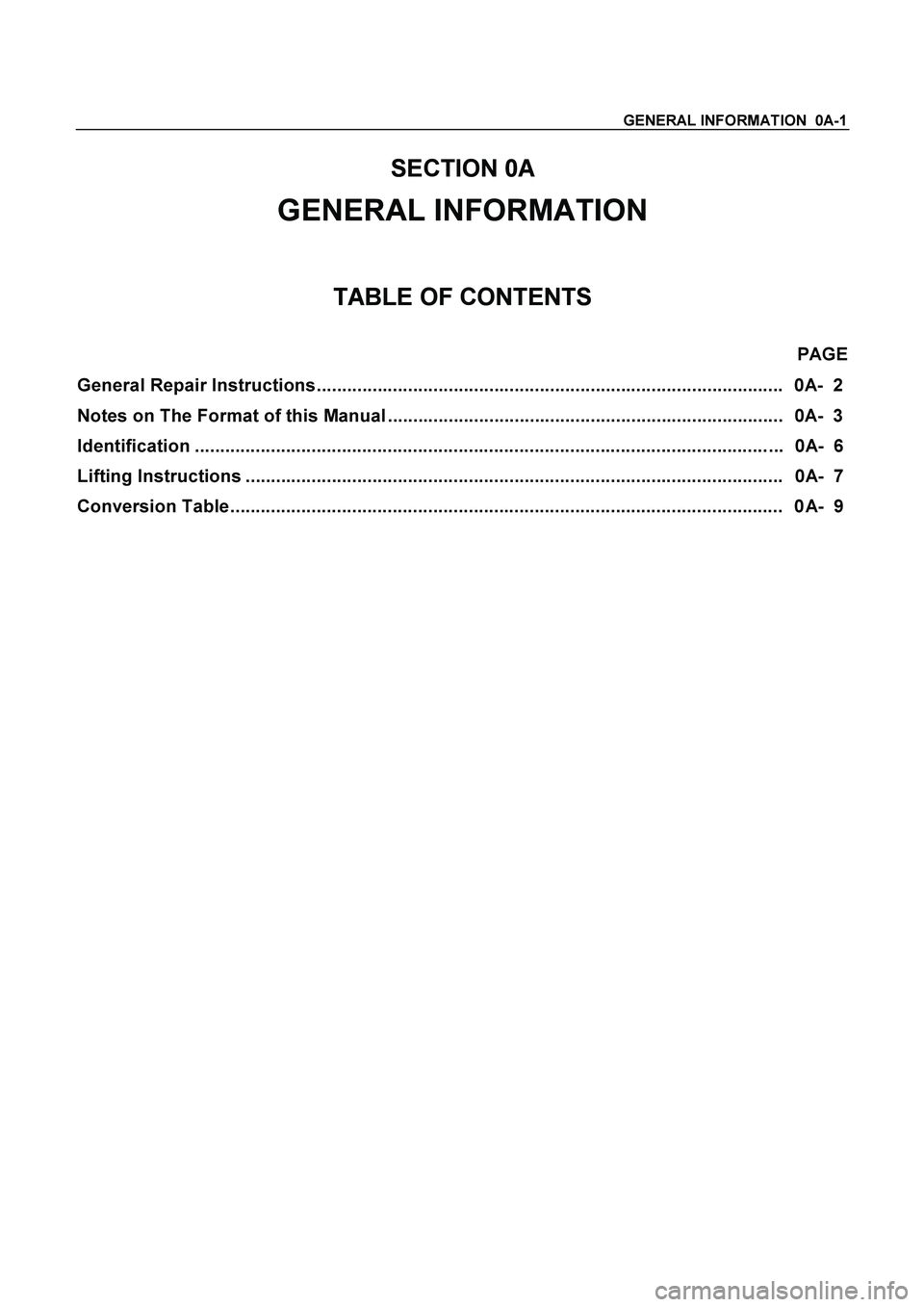

ISUZU TF SERIES 2004 Workshop Manual GENERAL INFORMATION 0A-1

SECTION 0A
GENERAL INFORMATION
TABLE OF CONTENTS
PAGE
General Repair Instructions .....................................................................................

Page 2974 of 4264

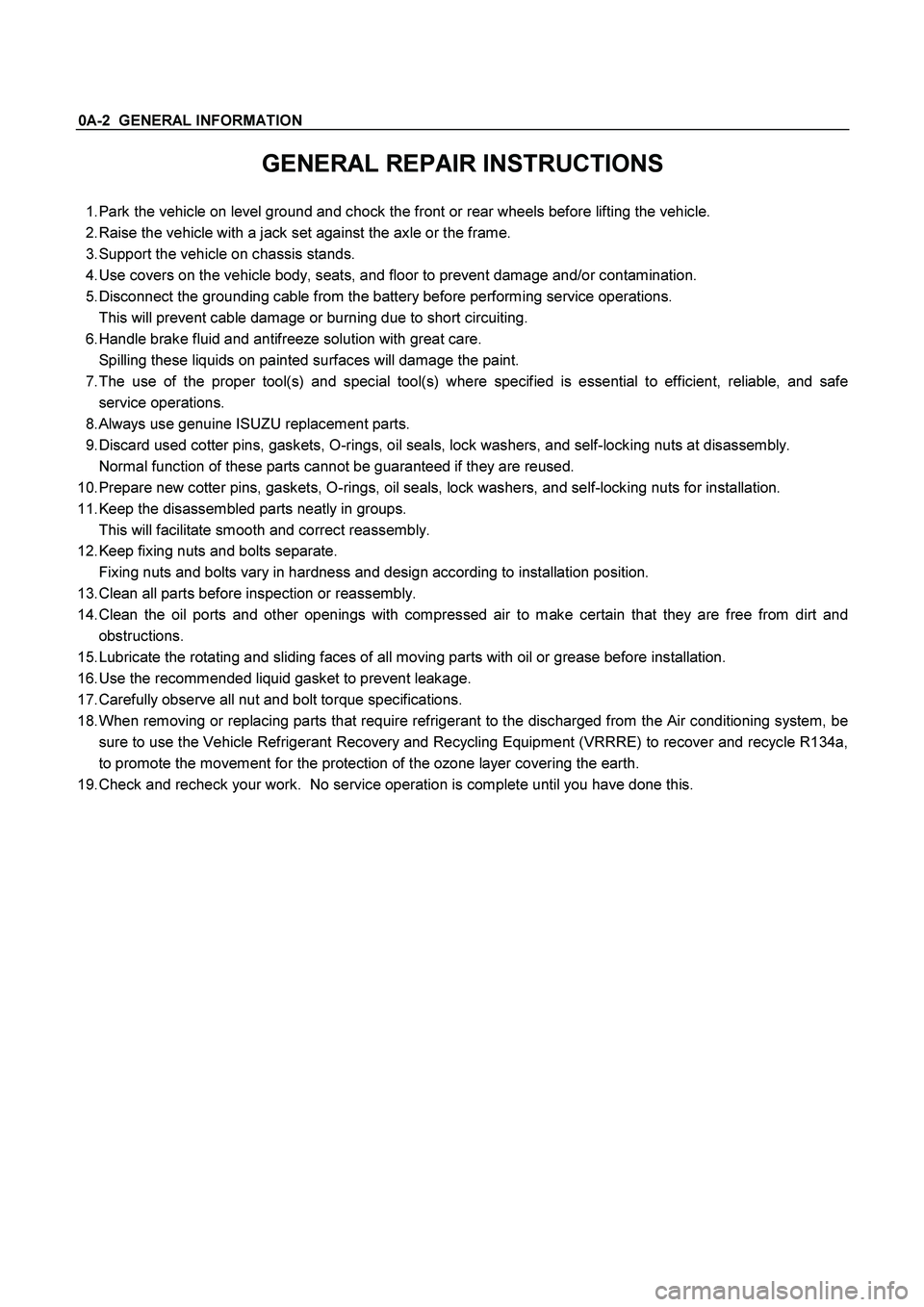

ISUZU TF SERIES 2004 Workshop Manual 0A-2 GENERAL INFORMATION
GENERAL REPAIR INSTRUCTIONS
1. Park the vehicle on level ground and chock the front or rear wheels before lifting the vehicle.
2. Raise the vehicle with a jack set against

0A-2 GENERAL INFORMATION
GENERAL REPAIR INSTRUCTIONS
1. Park the vehicle on level ground and chock the front or rear wheels before lifting the vehicle.
2. Raise the vehicle with a jack set against the axle or the frame.
3. Support the vehicle on chassis stands.
4. Use covers on the vehicle body, seats, and floor to prevent damage and/or contamination.
5. Disconnect the grounding cable from the battery before performing service operations.

This will prevent cable damage or burning due to short circuiting.
6. Handle brake fluid and antifreeze solution with great care.

Spilling these liquids on painted surfaces will damage the paint.
7. The use of the proper tool(s) and special tool(s) where specified is essential to efficient, reliable, and safe
service operations.
8. Always use genuine ISUZU replacement parts.
9. Discard used cotter pins, gaskets, O-rings, oil seals, lock washers, and self-locking nuts at disassembly.
Normal function of these parts cannot be guaranteed if they are reused.
10. Prepare new cotter pins, gaskets, O-rings, oil seals, lock washers, and self-locking nuts for installation.
11. Keep the disassembled parts neatly in groups.
This will facilitate smooth and correct reassembly.
12. Keep fixing nuts and bolts separate.
Fixing nuts and bolts vary in hardness and design according to installation position.
13. Clean all parts before inspection or reassembly.
14. Clean the oil ports and other openings with compressed air to make certain that they are free from dirt and
obstructions.
15. Lubricate the rotating and sliding faces of all moving parts with oil or grease before installation.
16. Use the recommended liquid gasket to prevent leakage.
17. Carefully observe all nut and bolt torque specifications.
18. When removing or replacing parts that require refrigerant to the discharged from the Air conditioning system, be
sure to use the Vehicle Refrigerant Recovery and Recycling Equipment (VRRRE) to recover and recycle R134a,
to promote the movement for the protection of the ozone layer covering the earth.
19. Check and recheck your work. No service operation is complete until you have done this.

Page 2975 of 4264

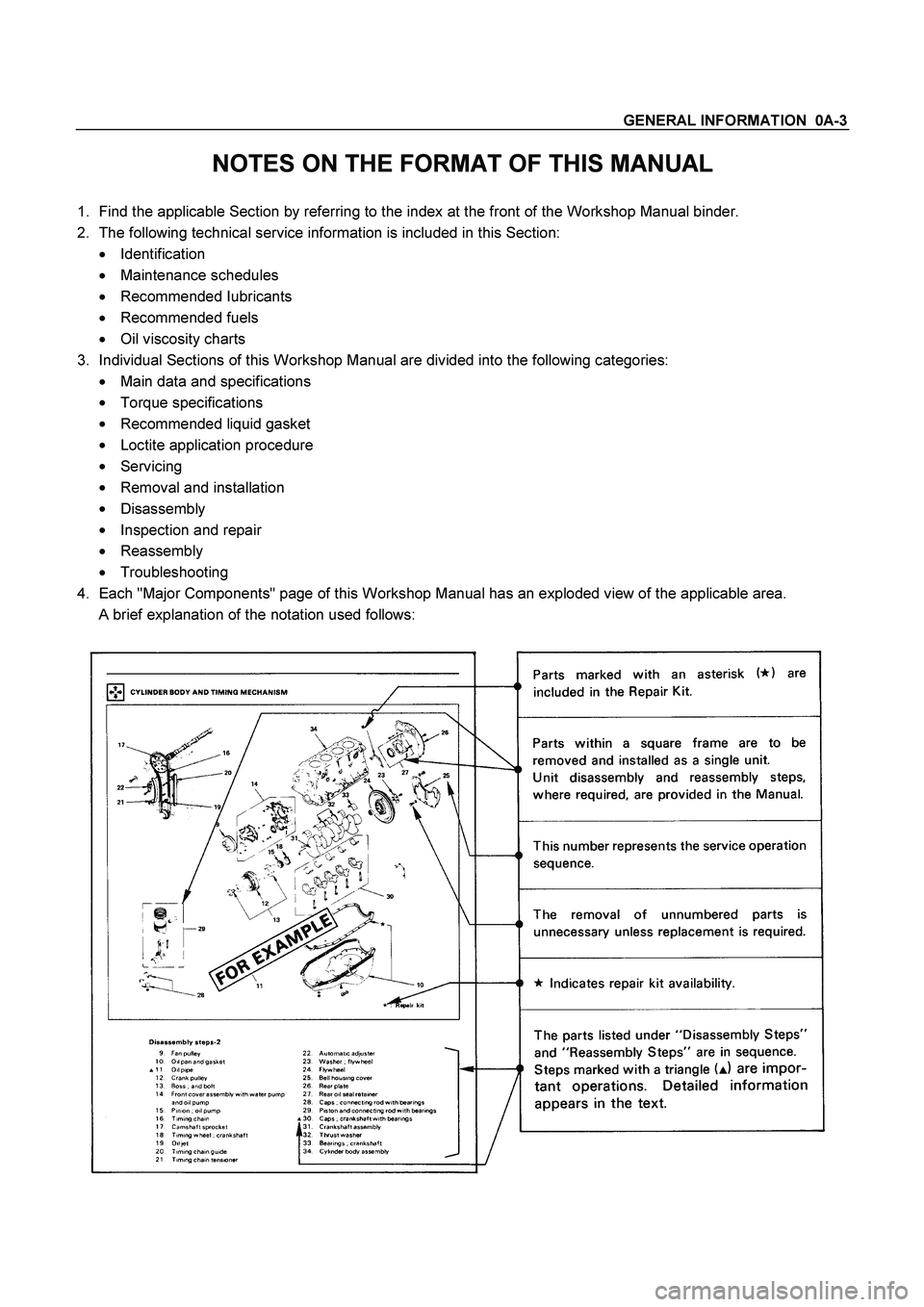

ISUZU TF SERIES 2004 Workshop Manual GENERAL INFORMATION 0A-3

NOTES ON THE FORMAT OF THIS MANUAL
1. Find the applicable Section by referring to the index at the front of the Workshop Manual binder.
2. The following technical servi

Page 2976 of 4264

ISUZU TF SERIES 2004 Workshop Manual 0A-4 GENERAL INFORMATION
5. Below is a sample of the Workshop Manual text following the " Major Components " page.
A brief explanation of the notation used follows:

6. The following symbol
