Page 1697 of 4264

4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–325
Diagnostic Trouble Code (DTC) P1612 (Symptom Code A) (Flash Code 56)
Immobilizer No or Wrong Signal
Step Action Value(s) Yes No
1Was the “On-Board Diagnostic (OBD) System Check”
performed?
—Go to Step 2Go to On Board
Diagnostic
(OBD) System
Check
2 1. Connect the Tech 2.
2. Review and record the failure information.
3. Select “F0: Read DTC Infor As Stored By ECU” in
“F0: Diagnostic Trouble Codes”.
Is the DTC P1612 (Symptom Code A) stored as
“Present Failure”?—Go to Step 3Refer to
Diagnostic Aids
and Go to Step
3
3 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Select “F1: Clear DTC Information” in “F0:
Diagnostic Trouble Codes” with the Tech 2 and
clear the DTC information.
3. Operate the vehicle and monitor the “F0: Read
DTC Infor As Stored By ECU” in the “F0:
Diagnostic Trouble Codes”.
Was the DTC P1612 (Symptom Code A) stored in this
ignition cycle?—Go to Step 4Refer to
Diagnostic Aids
and Go to Step
4
4 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Select “Immobilizer” in the system selection menu
“Body”.
3. Select “Read DTC Info Ordered By Priority” in the
“Diagnositic Trouble Code”.
Was the DTC B0007 stored in this ignition cycle?—Refer to
“Immobilizer
Workshop
Manual” & Go
to DTC Chart
B0007 Go to Step 5
5 Check for poor/faulty connection at the immobilizer
control unit connector or ECM connector. If a poor/
faulty connection is found, repair as necessary.
Was the problem found?
—Verify repair Go to Step 6
42
35
78 C-56
B-68
Page 1698 of 4264

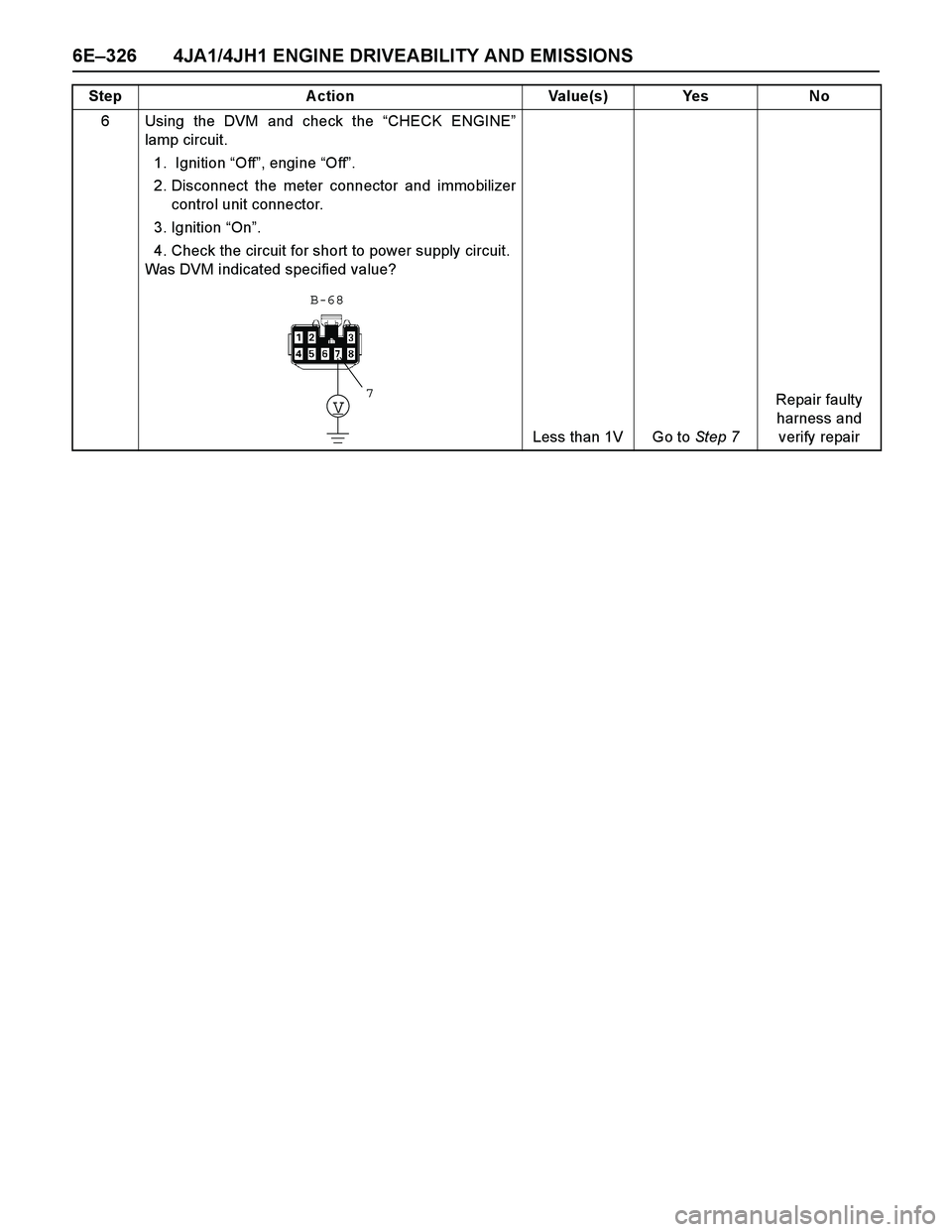

6E–326 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
6 Using the DVM and check the “CHECK ENGINE”
lamp circuit.
1. Ignition “Off”, engine “Off”.
2. Disconnect the meter connector and immobilizer
control unit connector.
3. Ignition “On”.
4. Check the circuit for short to power supply circuit.
Was DVM indicated specified value?
Less than 1V Go to Step 7Repair faulty
harness and
verify repair Step Action Value(s) Yes No
7
V
B-68
Page 1699 of 4264

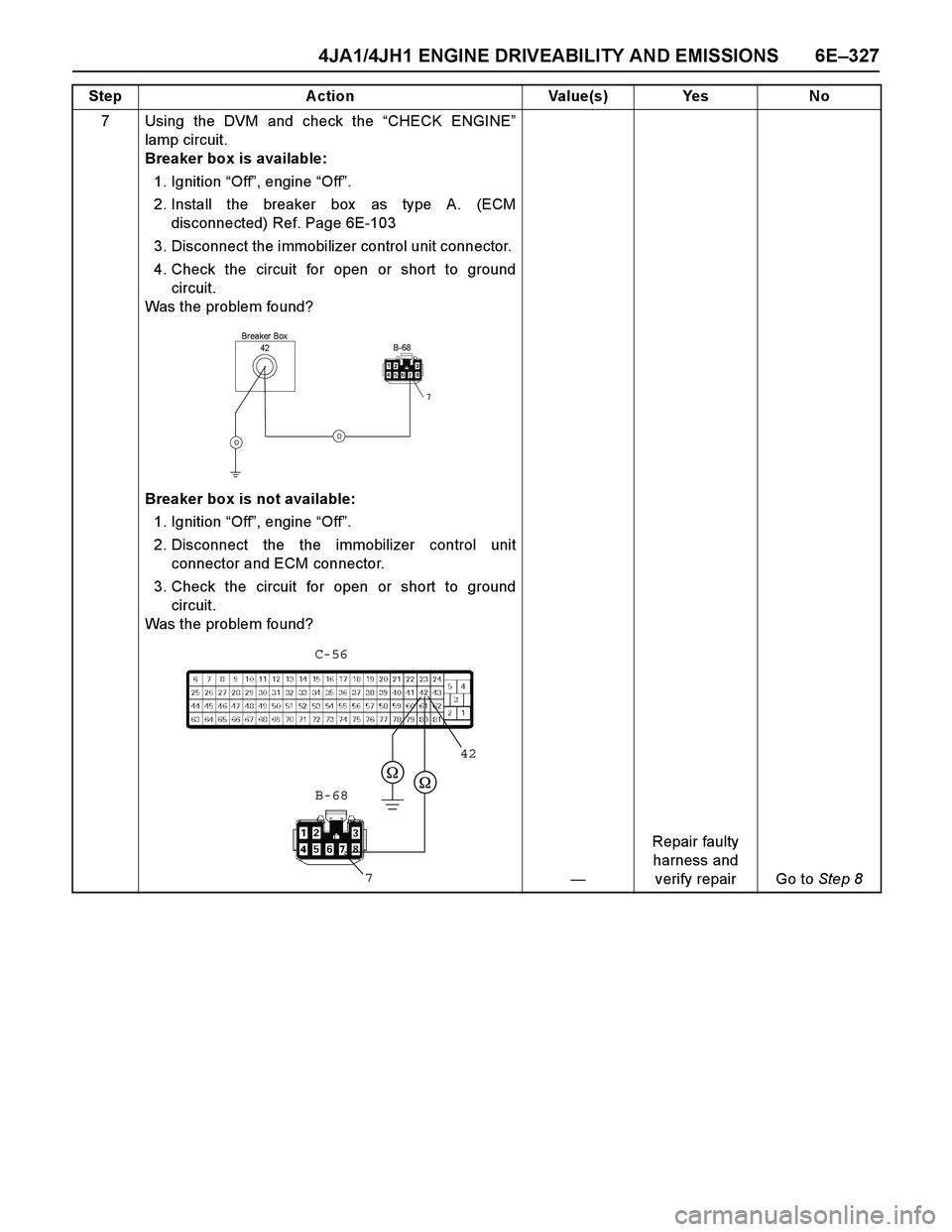

4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–327
7 Using the DVM and check the “CHECK ENGINE”
lamp circuit.
Breaker box is available:
1. Ignition “Off”, engine “Off”.
2. Install the breaker box as type A. (ECM
disconnected) Ref. Page 6E-103
3. Disconnect the immobilizer control unit connector.
4. Check the circuit for open or short to ground
circuit.
Was the problem found?
Breaker box is not available:
1. Ignition “Off”, engine “Off”.
2. Disconnect the the immobilizer control unit
connector and ECM connector.
3. Check the circuit for open or short to ground
circuit.
Was the problem found?
—Repair faulty
harness and
verify repair Go to Step 8 Step Action Value(s) Yes No
B-6842Breaker Box
42
7
C-56
B-68
Page 1700 of 4264

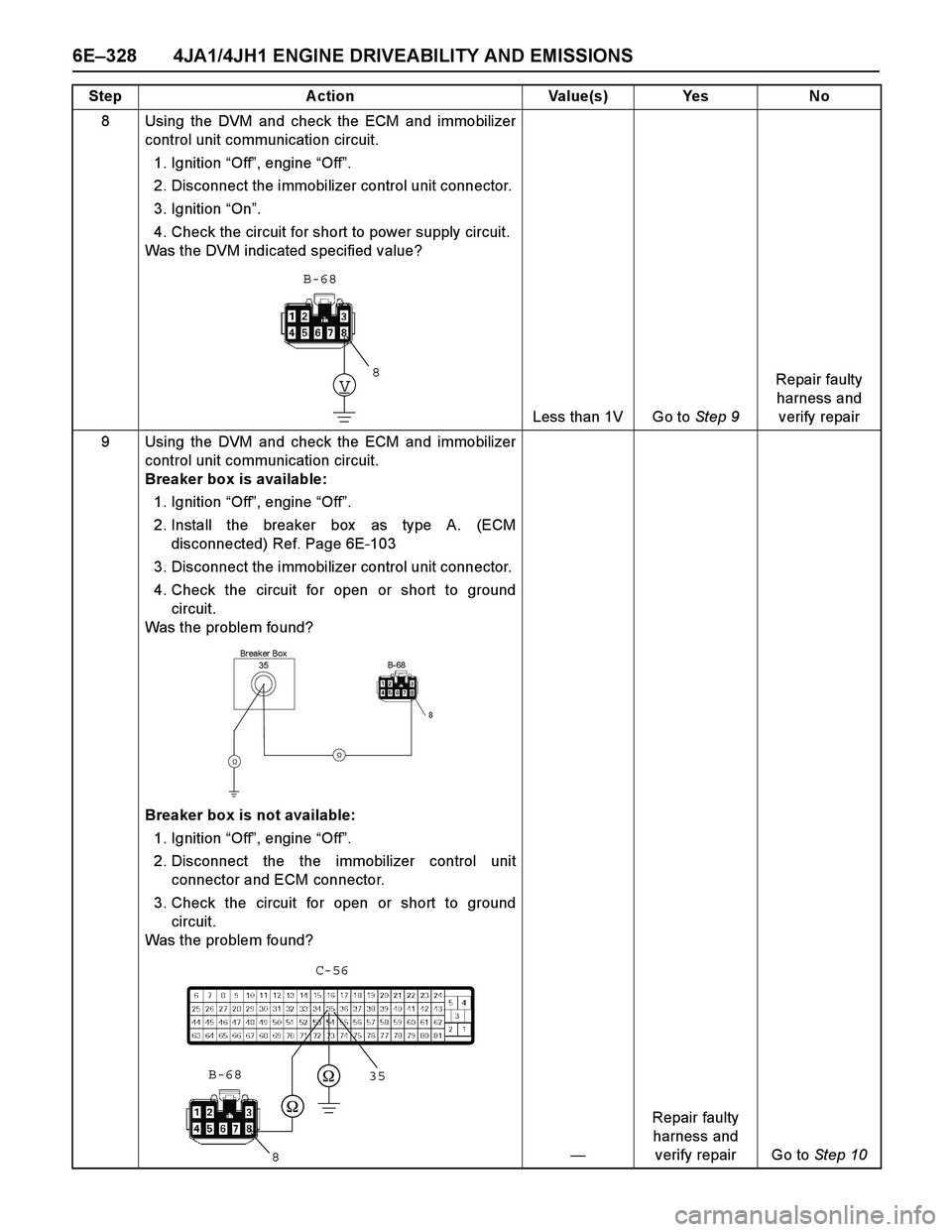

6E–328 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
8 Using the DVM and check the ECM and immobilizer
control unit communication circuit.
1. Ignition “Off”, engine “Off”.
2. Disconnect the immobilizer control unit connector.
3. Ignition “On”.
4. Check the circuit for short to power supply circuit.
Was the DVM indicated specified value?
Less than 1V Go to Step 9Repair faulty
harness and
verify repair
9 Using the DVM and check the ECM and immobilizer
control unit communication circuit.
Breaker box is available:
1. Ignition “Off”, engine “Off”.
2. Install the breaker box as type A. (ECM
disconnected) Ref. Page 6E-103
3. Disconnect the immobilizer control unit connector.
4. Check the circuit for open or short to ground
circuit.
Was the problem found?
Breaker box is not available:
1. Ignition “Off”, engine “Off”.
2. Disconnect the the immobilizer control unit
connector and ECM connector.
3. Check the circuit for open or short to ground
circuit.
Was the problem found?
—Repair faulty
harness and
verify repair Go to Step 10 Step Action Value(s) Yes No
8
V
B-68
B-6835Breaker Box
35
8
C-56
B-68
Page 1701 of 4264

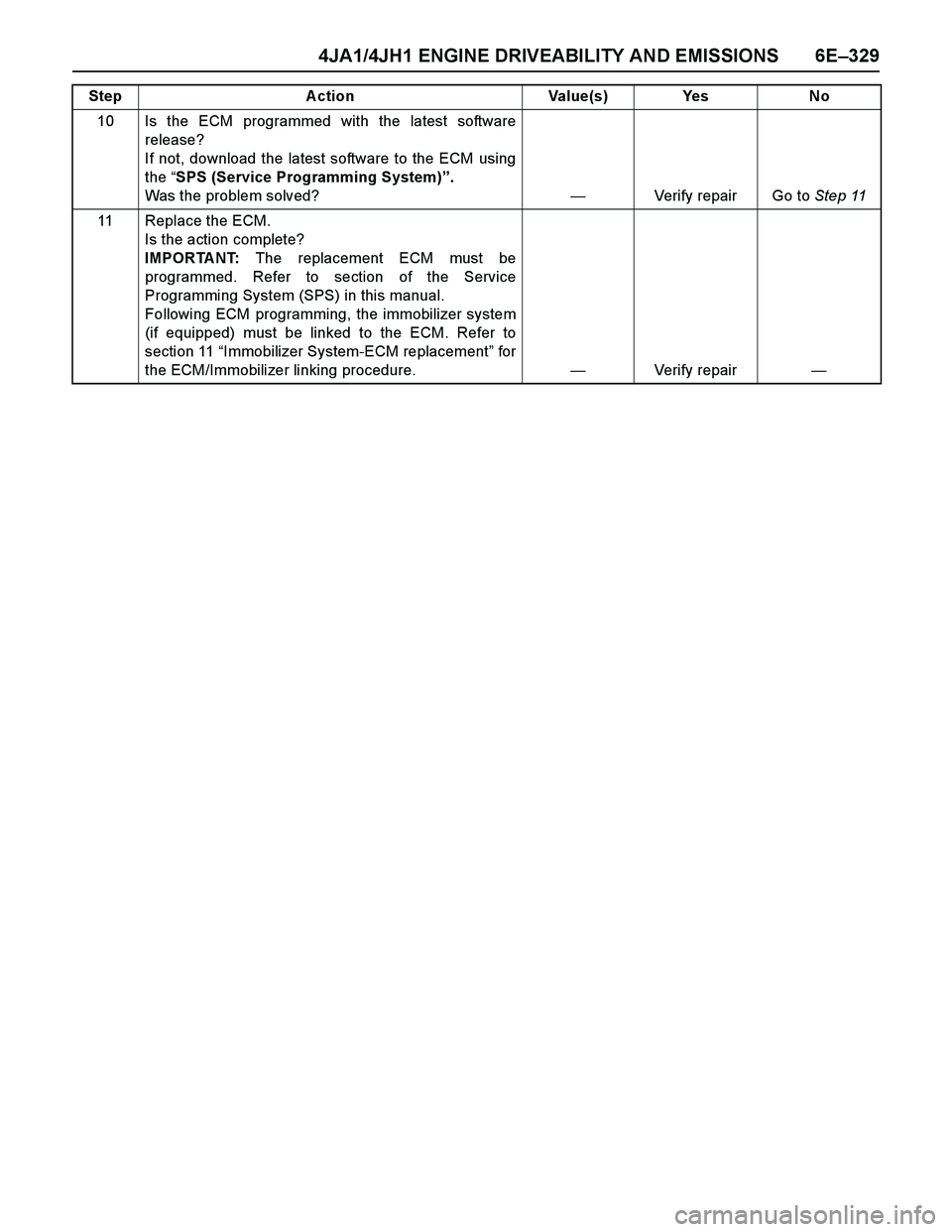

4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–329
10 Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?—Verify repair Go to Step 11
11 Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure.—Verify repair— Step Action Value(s) Yes No
Page 1702 of 4264

6E–330 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
DIAGNOSTIC TROUBLE CODE (DTC) P1613 (SYMPTOM CODE A)
(FLASH CODE 56) IMMOBILIZER NO OR WRONG SIGNAL
Condition for setting the DTC and action taken when the DTC sets
Circuit Description
The ECM decides whether that is an abnormality in the
immobilizer control system. DTC P1613 (Symptom
Code A) is recorded when received immobilizer
response signal was not correct.
Diagnostic Aids
Check for the following conditions:
Poor connection at ECM and immobilizer control unit-
Inspect harness connectors for backed out terminals,
improper mating, broken locks, improperly formed or
damaged terminals, and poor terminal to wire
connection.
Damaged harness-Inspect the wiring harness for
damage. If the harness appears to be OK, observe
the DTC P1613 display on the Tech2 while moving
connectors and wiring harnesses.
Flash
CodeCode Symptom
CodeMIL DTC Name DTC Setting Condition Fail-Safe (Back Up)
56 P1613 A - Immobilizer No or Wrong Sig-
na lReceived response signal is
no t co rrect or not re ce iv ed.1. Engine does not start.
2. Check e ngine lamp fla sh.
Page 1703 of 4264

4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–331
Diagnostic Trouble Code (DTC) P1613 (Symptom Code A) (Flash Code 56)
Immobilizer No or Wrong Signal
Step Action Value(s) Yes No
1Was the “On-Board Diagnostic (OBD) System Check”
performed?
—Go to Step 2Go to On Board
Diagnostic
(OBD) System
Check
2 1. Connect the Tech 2.
2. Review and record the failure information.
3. Select “F0: Read DTC Infor As Stored By ECU” in
“F0: Diagnostic Trouble Codes”.
Is the DTC P1613 (Symptom Code A) stored as
“Present Failure”?—Go to Step 3Refer to
Diagnostic Aids
and Go to Step
3
3 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Select “F1: Clear DTC Information” in “F0:
Diagnostic Trouble Codes” with the Tech 2 and
clear the DTC information.
3. Operate the vehicle and monitor the “F0: Read
DTC Infor As Stored By ECU” in the “F0:
Diagnostic Trouble Codes”.
Was the DTC P1613 (Symptom Code A) stored in this
ignition cycle?—Go to Step 4Refer to
Diagnostic Aids
and Go to Step
4
4 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Select “Immobilizer” in the system selection menu
“Body”.
3. Select “Read DTC Info Ordered By Priority” in the
“Diagnositic Trouble Code”.
Was the any DTC's B**** stored in this ignition cycle?—Refer to
“Immobilizer
Workshop
Manual” & Go
to DTC Chart
B**** Go to Step 5
5 Check for poor/faulty connection at the immobilizer
control unit connector or ECM connector. If a poor/
faulty connection is found, repair as necessary.
Was the problem found?
—Verify repair Go to Step 6
42
35
78 C-56
B-68
Page 1704 of 4264

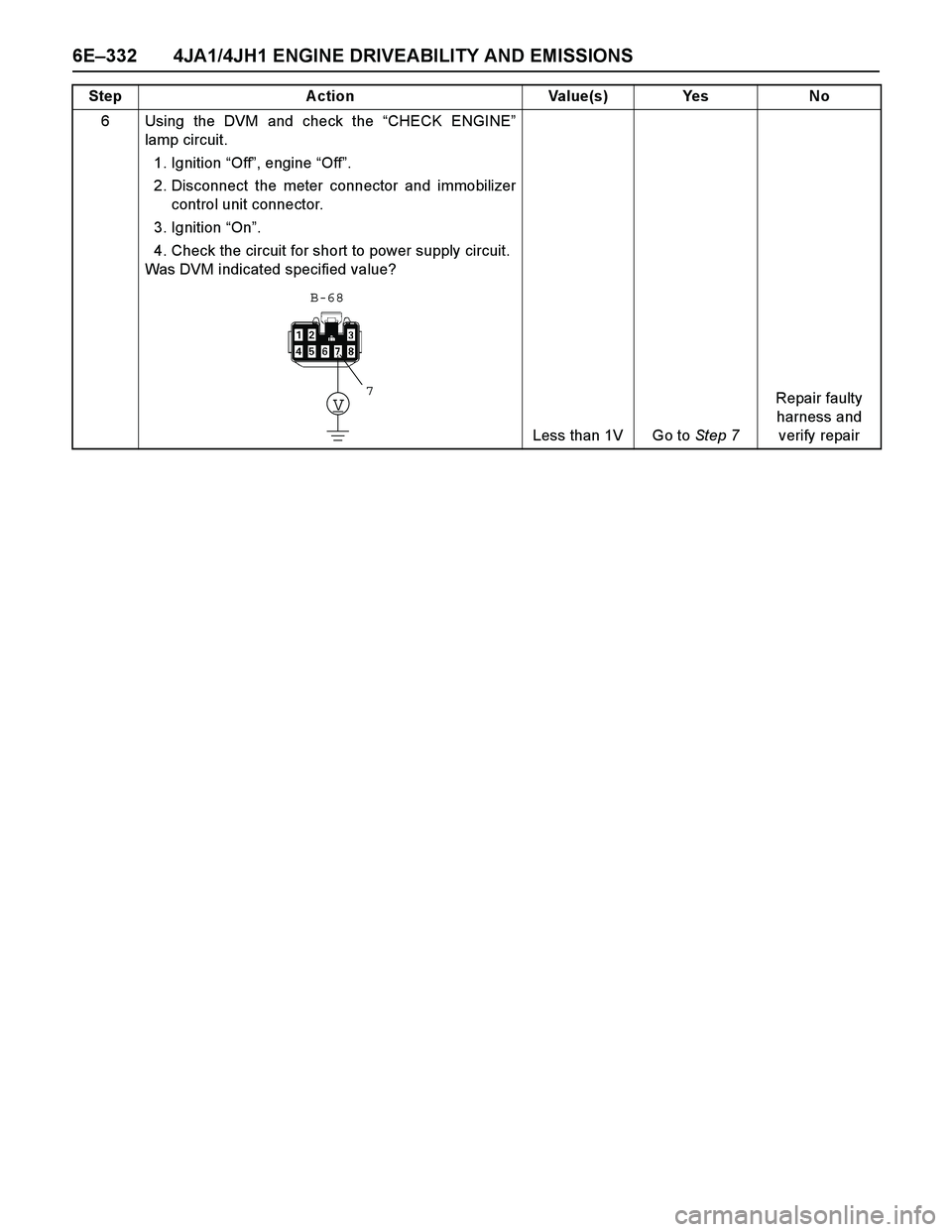

6E–332 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
6 Using the DVM and check the “CHECK ENGINE”
lamp circuit.
1. Ignition “Off”, engine “Off”.
2. Disconnect the meter connector and immobilizer
control unit connector.
3. Ignition “On”.
4. Check the circuit for short to power supply circuit.
Was DVM indicated specified value?
Less than 1V Go to Step 7Repair faulty
harness and
verify repair Step Action Value(s) Yes No
7
V
B-68
