Page 3553 of 4264

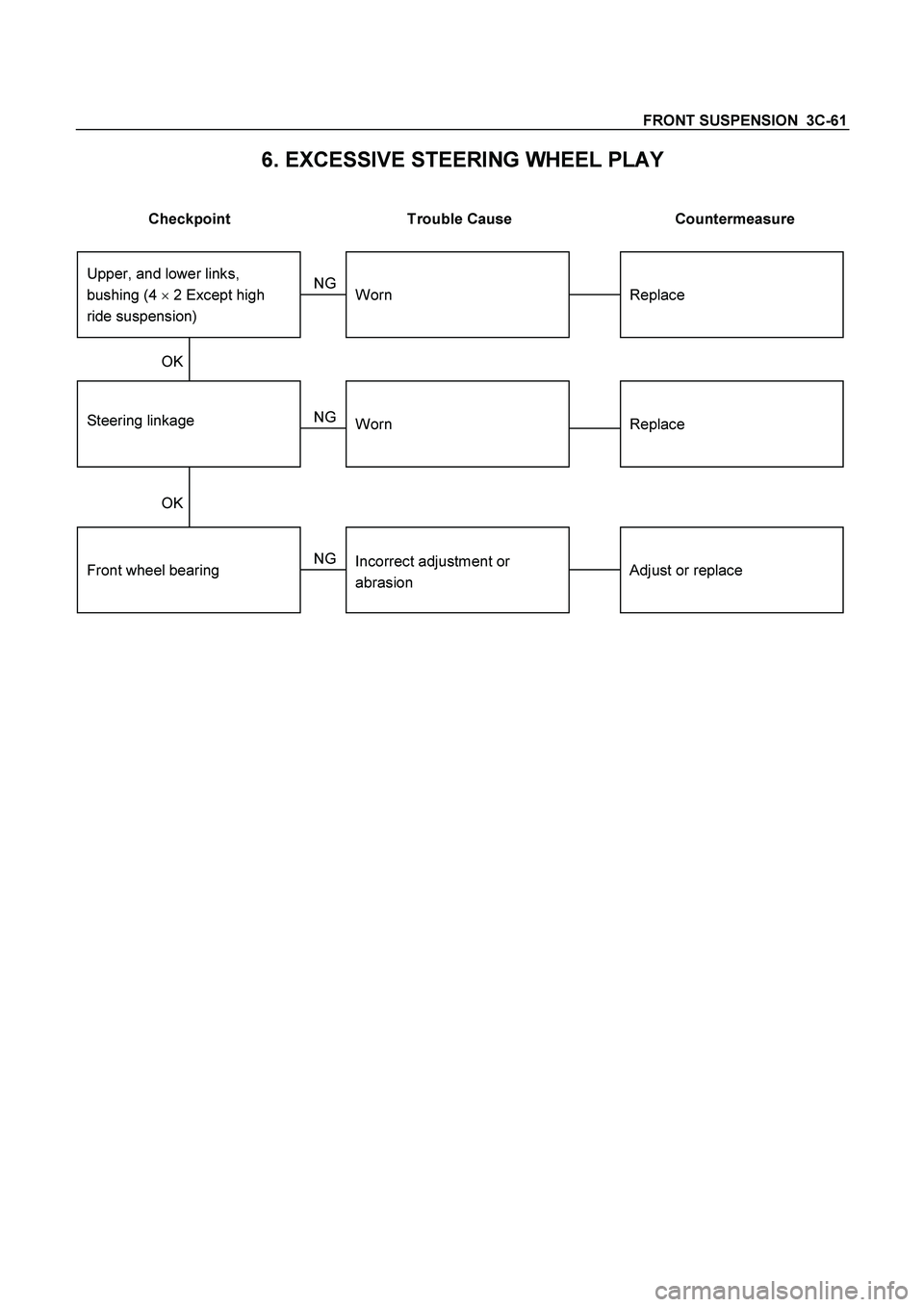

ISUZU TF SERIES 2004 Workshop Manual FRONT SUSPENSION 3C-61 6. EXCESSIVE STEERING WHEEL PLAY Checkpoint Trouble Cause Countermeasure Front wheel bearing Steering linkage Adjust or replace Replace Incorre

Page 3554 of 4264

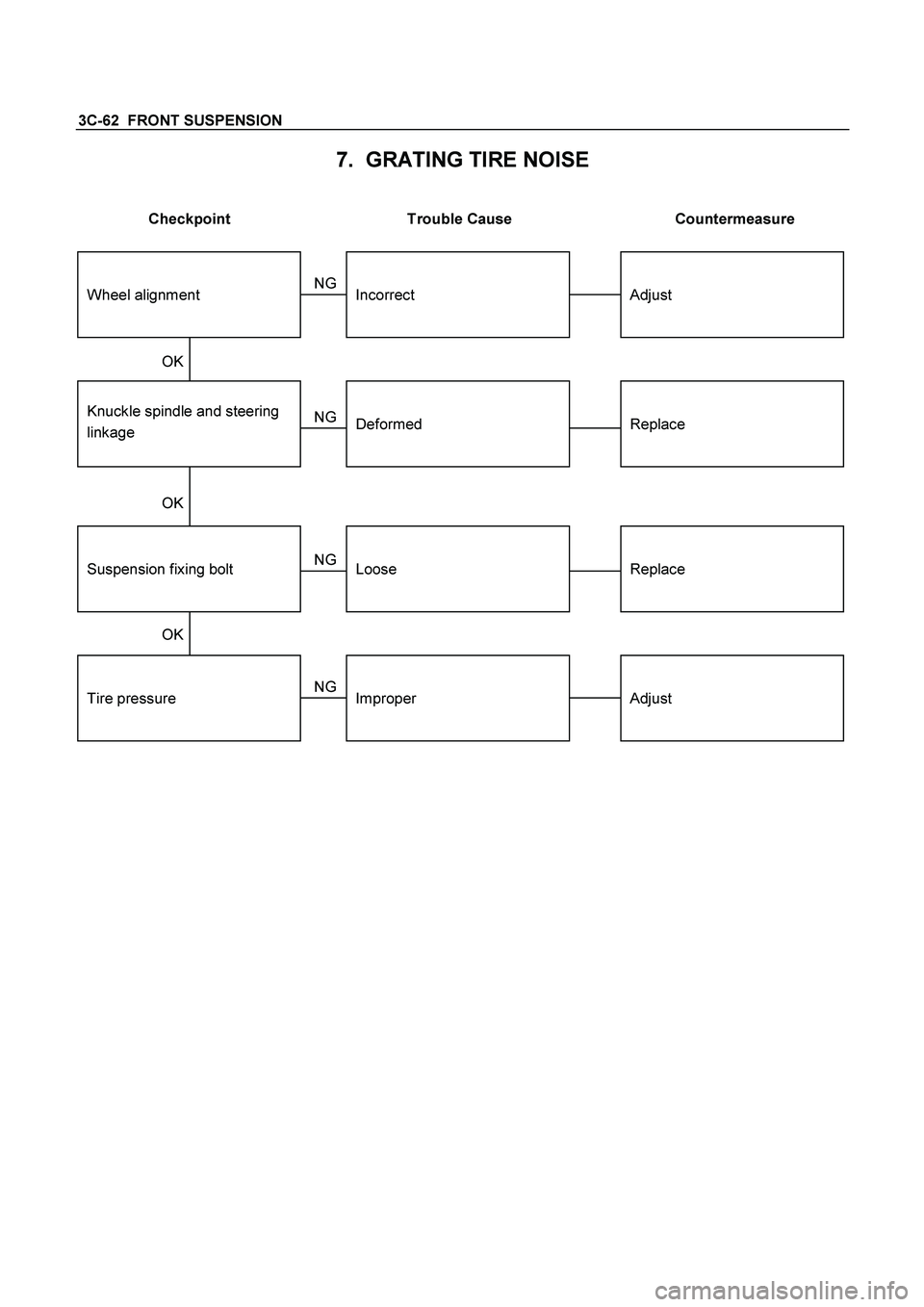

ISUZU TF SERIES 2004 Workshop Manual 3C-62 FRONT SUSPENSION 7. GRATING TIRE NOISE Checkpoint Trouble Cause Countermeasure Tire pressure Knuckle spindle and steering linkage Adjust Replace Improper Deformed Suspension fixing bo

Page 3555 of 4264

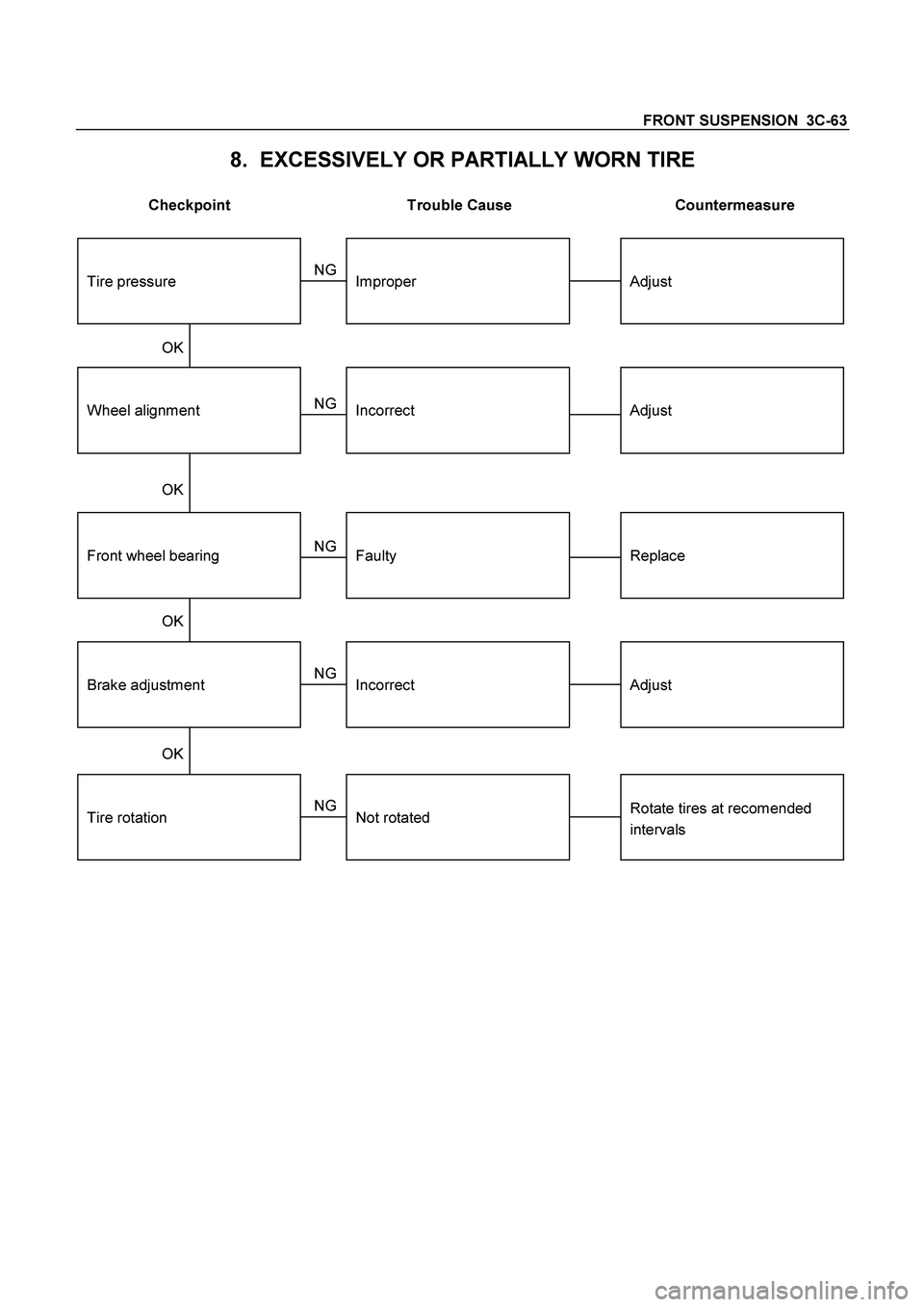

ISUZU TF SERIES 2004 Workshop Manual FRONT SUSPENSION 3C-63 8. EXCESSIVELY OR PARTIALLY WORN TIRE Checkpoint Trouble Cause Countermeasure Brake adjustment Wheel alignment Adjust Adjust Incorrect Incorrect Front wheel bearingRe

Page 3556 of 4264

ISUZU TF SERIES 2004 Workshop Manual 3C-64 FRONT SUSPENSION MEMO

Page 3557 of 4264

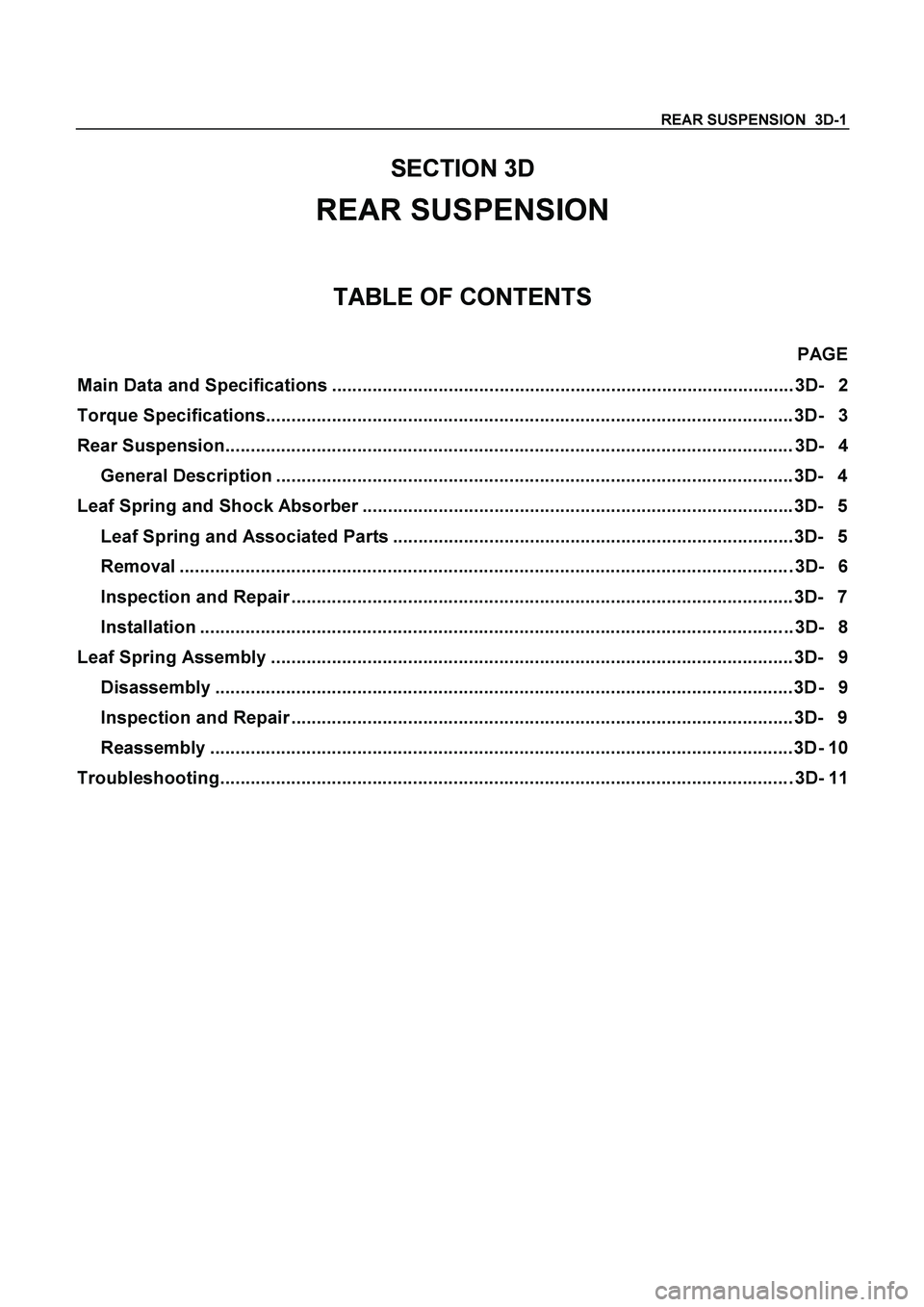

ISUZU TF SERIES 2004 Workshop Manual REAR SUSPENSION 3D-1 SECTION 3D REAR SUSPENSION TABLE OF CONTENTS PAGE Main Data and Specifications...........................................................................................3D-

Page 3558 of 4264

ISUZU TF SERIES 2004 Workshop Manual 3D-2 REAR SUSPENSION MAIN DATA AND SPECIFICATIONS General Specifications Models Standard Heavy-duty Suspension Items 4  2 (Except High Ride Sus) 4  2 (High Ride Sus) 4  4 4  2 (Excep

Page 3559 of 4264

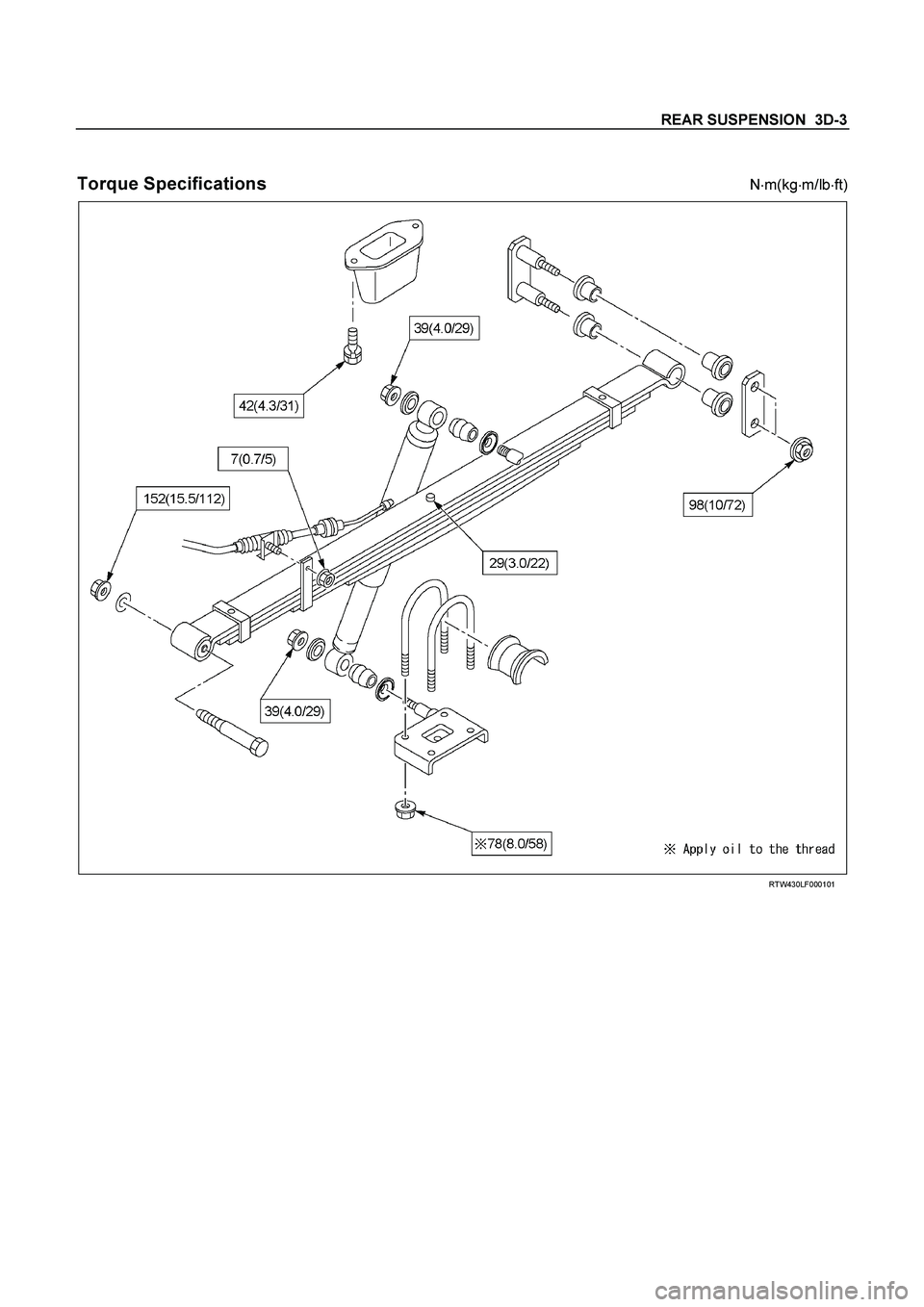

ISUZU TF SERIES 2004 Workshop Manual REAR SUSPENSION 3D-3 Torque Specifications N m(kg m/lb ft) RTW430LF000101

Page 3560 of 4264

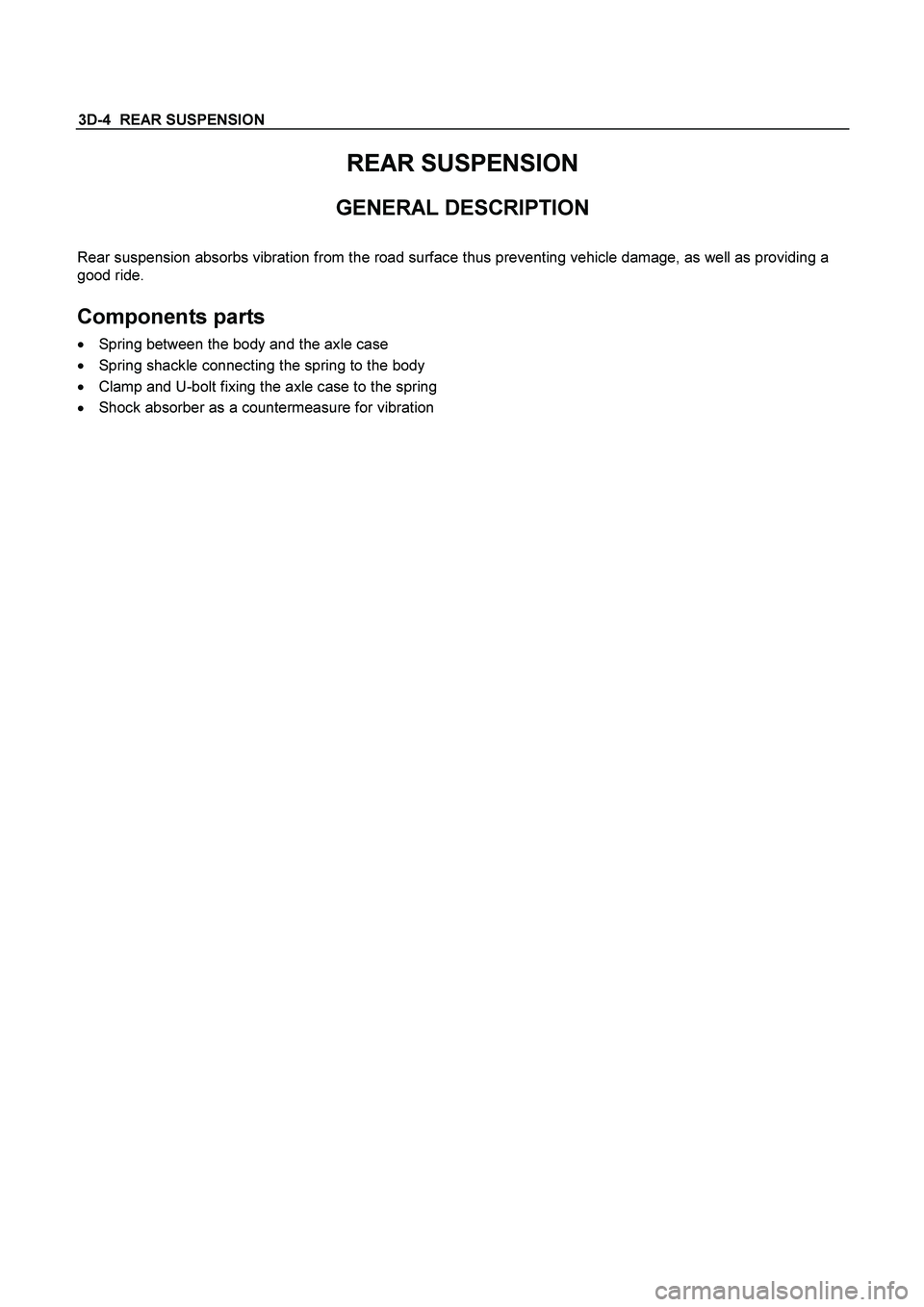

ISUZU TF SERIES 2004 Workshop Manual 3D-4 REAR SUSPENSION REAR SUSPENSION GENERAL DESCRIPTION Rear suspension absorbs vibration from the road surface thus preventing vehicle damage, as well as providing a good ride. Components
