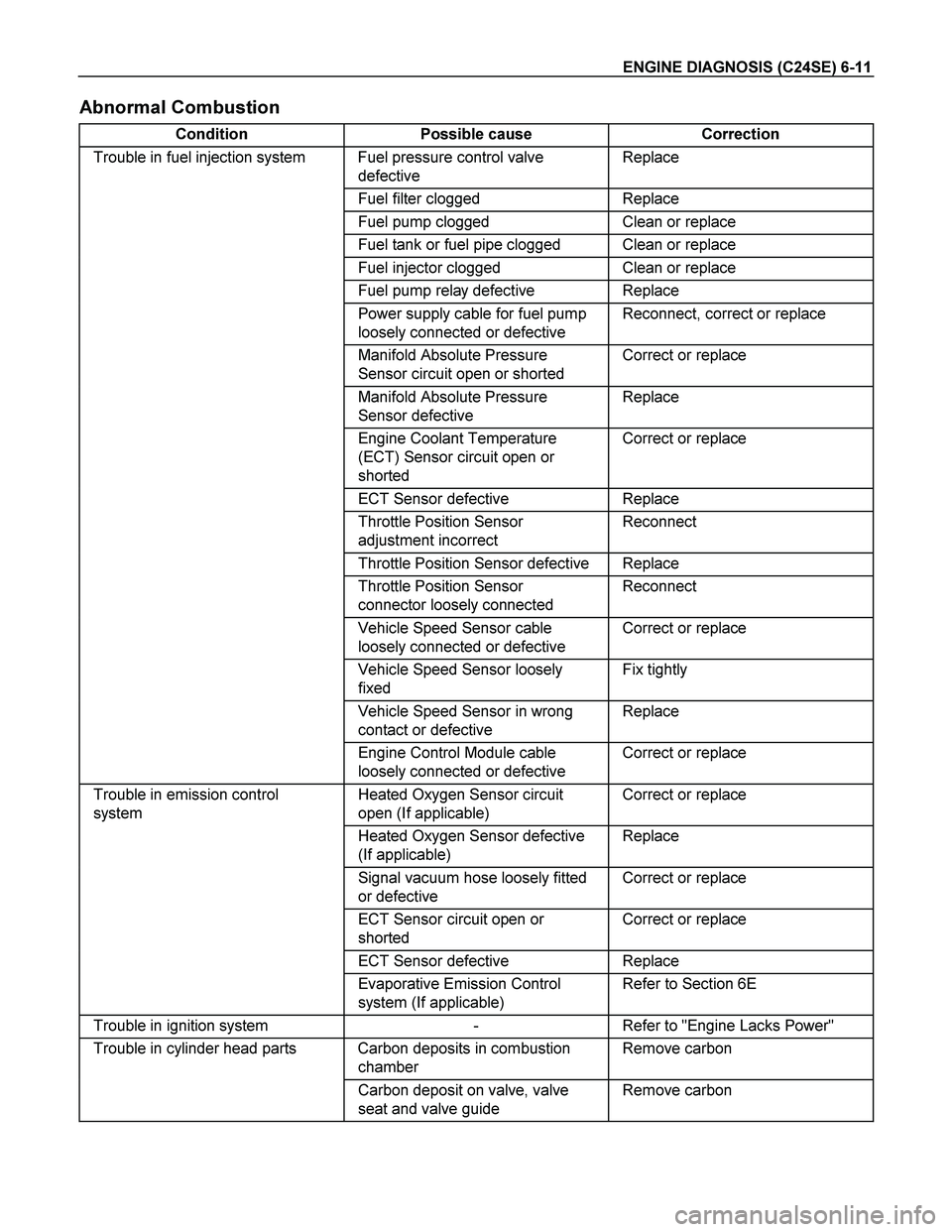

ISUZU TF SERIES 2004 Workshop Manual ENGINE DIAGNOSIS (C24SE) 6-11
Abnormal Combustion
Condition Possible cause Correction
Trouble in fuel injection system Fuel pressure control valve
defective Replace
Fuel filter clogged Replac

Page 2418 of 4264

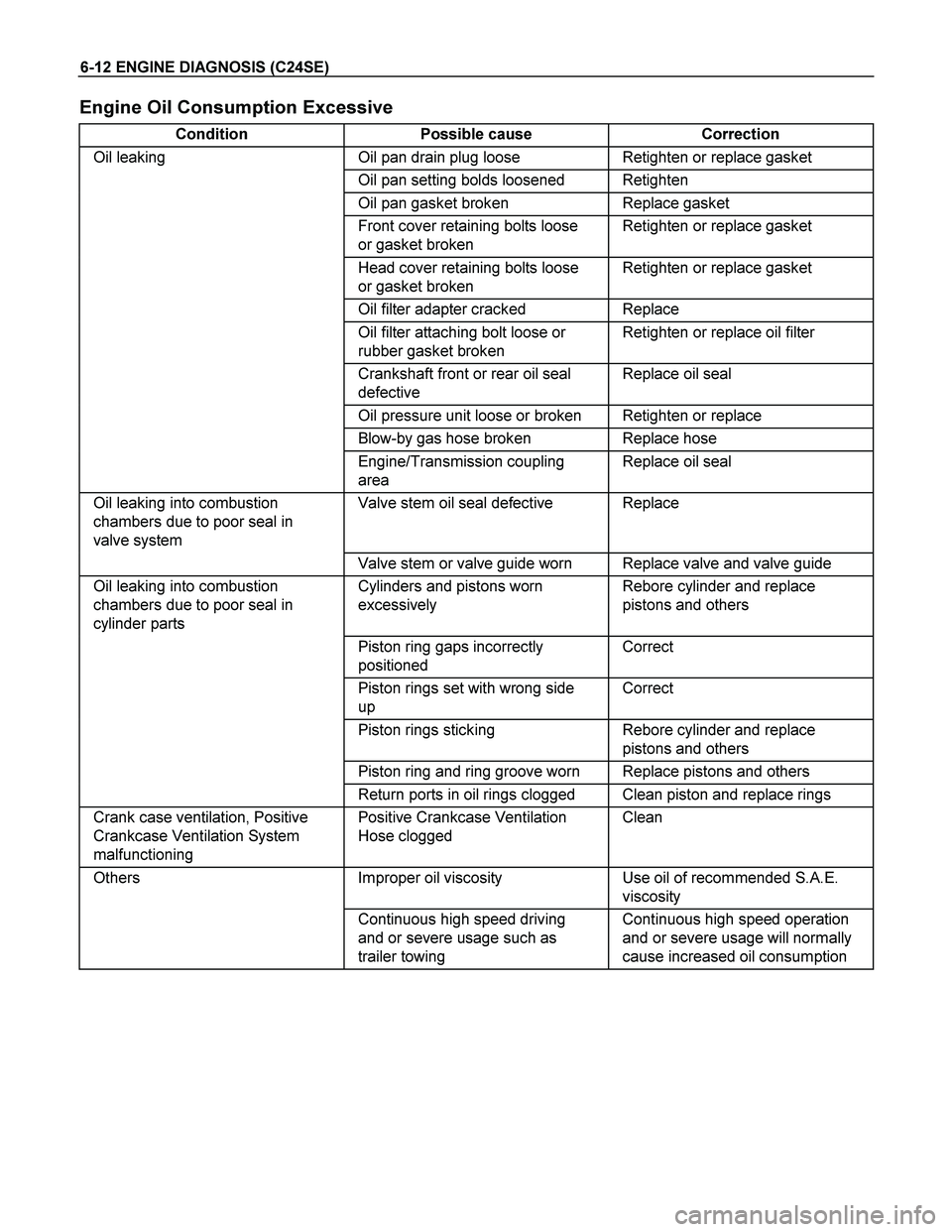

ISUZU TF SERIES 2004 Workshop Manual 6-12 ENGINE DIAGNOSIS (C24SE)
Engine Oil Consumption Excessive
Condition Possible cause Correction
Oil leaking Oil pan drain plug loose Retighten or replace gasket
Oil pan setting bolds loose

Page 2419 of 4264

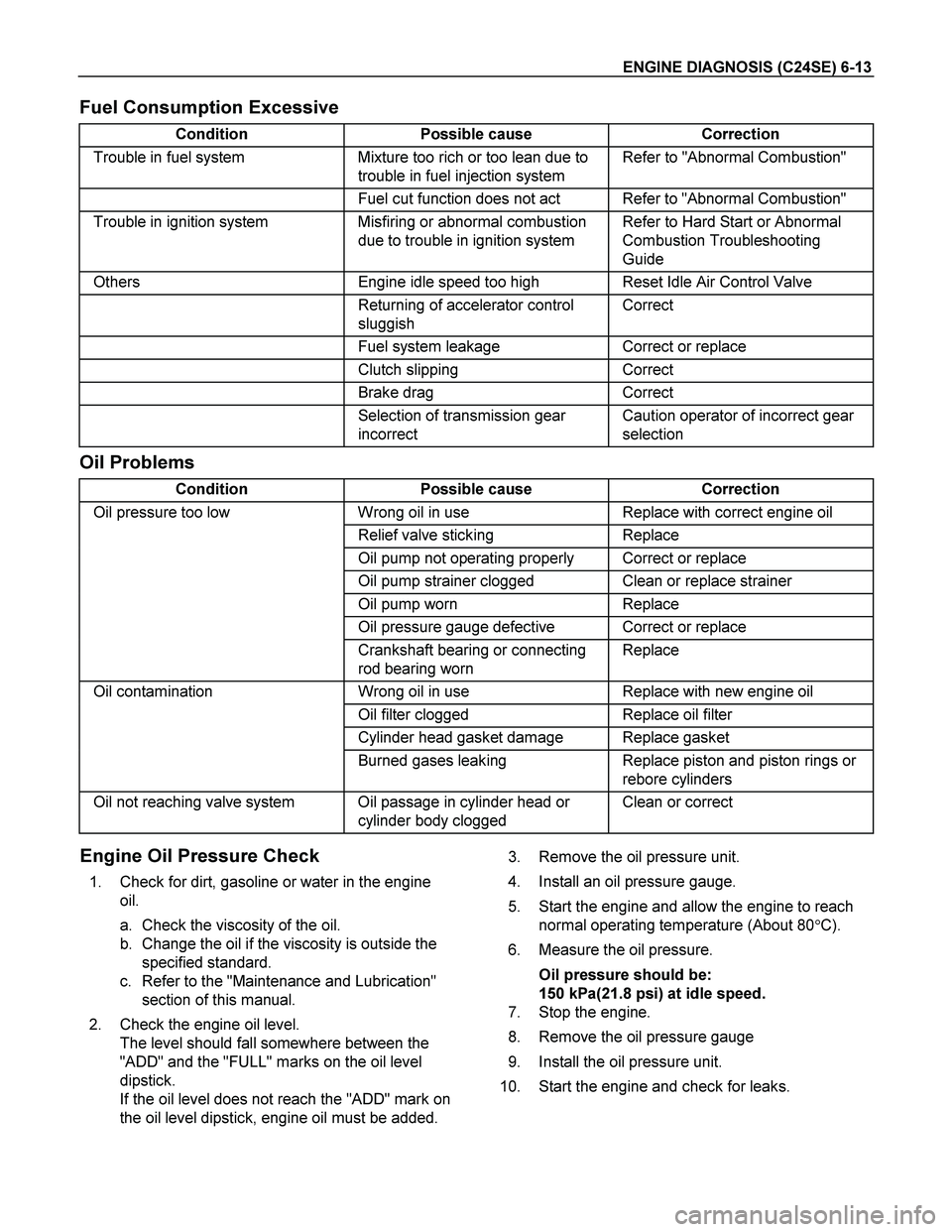

ISUZU TF SERIES 2004 Workshop Manual ENGINE DIAGNOSIS (C24SE) 6-13
Fuel Consumption Excessive
Condition Possible cause Correction
Trouble in fuel system Mixture too rich or too lean due to
trouble in fuel injection system Refer to "

ENGINE DIAGNOSIS (C24SE) 6-13
Fuel Consumption Excessive
Condition Possible cause Correction
Trouble in fuel system Mixture too rich or too lean due to
trouble in fuel injection system Refer to "Abnormal Combustion"
Fuel cut function does not act Refer to "Abnormal Combustion"
Trouble in ignition system Misfiring or abnormal combustion
due to trouble in ignition system Refer to Hard Start or Abnormal
Combustion Troubleshooting
Guide
Others Engine idle speed too high Reset Idle Air Control Valve
Returning of accelerator control
sluggish Correct
Fuel system leakage Correct or replace
Clutch slipping Correct
Brake drag Correct
Selection of transmission gear
incorrect Caution operator of incorrect gear
selection
Oil Problems
Condition Possible cause Correction
Oil pressure too low Wrong oil in use Replace with correct engine oil
Relief valve sticking Replace
Oil pump not operating properly Correct or replace
Oil pump strainer clogged Clean or replace strainer
Oil pump worn Replace
Oil pressure gauge defective Correct or replace
Crankshaft bearing or connecting
rod bearing worn Replace
Oil contamination Wrong oil in use Replace with new engine oil
Oil filter clogged Replace oil filter
Cylinder head gasket damage Replace gasket
Burned gases leaking Replace piston and piston rings or
rebore cylinders
Oil not reaching valve system Oil passage in cylinder head or
cylinder body clogged Clean or correct

Engine Oil Pressure Check
1. Check for dirt, gasoline or water in the engine
oil.
a. Check the viscosity of the oil.
b. Change the oil if the viscosity is outside the
specified standard.
c. Refer to the "Maintenance and Lubrication"
section of this manual.
2. Check the engine oil level.
The level should fall somewhere between the
"ADD" and the "FULL" marks on the oil level
dipstick.
If the oil level does not reach the "ADD" mark on
the oil level dipstick, engine oil must be added. 3. Remove the oil pressure unit.
4. Install an oil pressure gauge.
5. Start the engine and allow the engine to reach
normal operating temperature (About 80C).
6. Measure the oil pressure.
Oil pressure should be:
150 kPa(21.8 psi) at idle speed.
7. Stop the engine.
8. Remove the oil pressure gauge
9. Install the oil pressure unit.
10. Start the engine and check for leaks.

Page 2420 of 4264

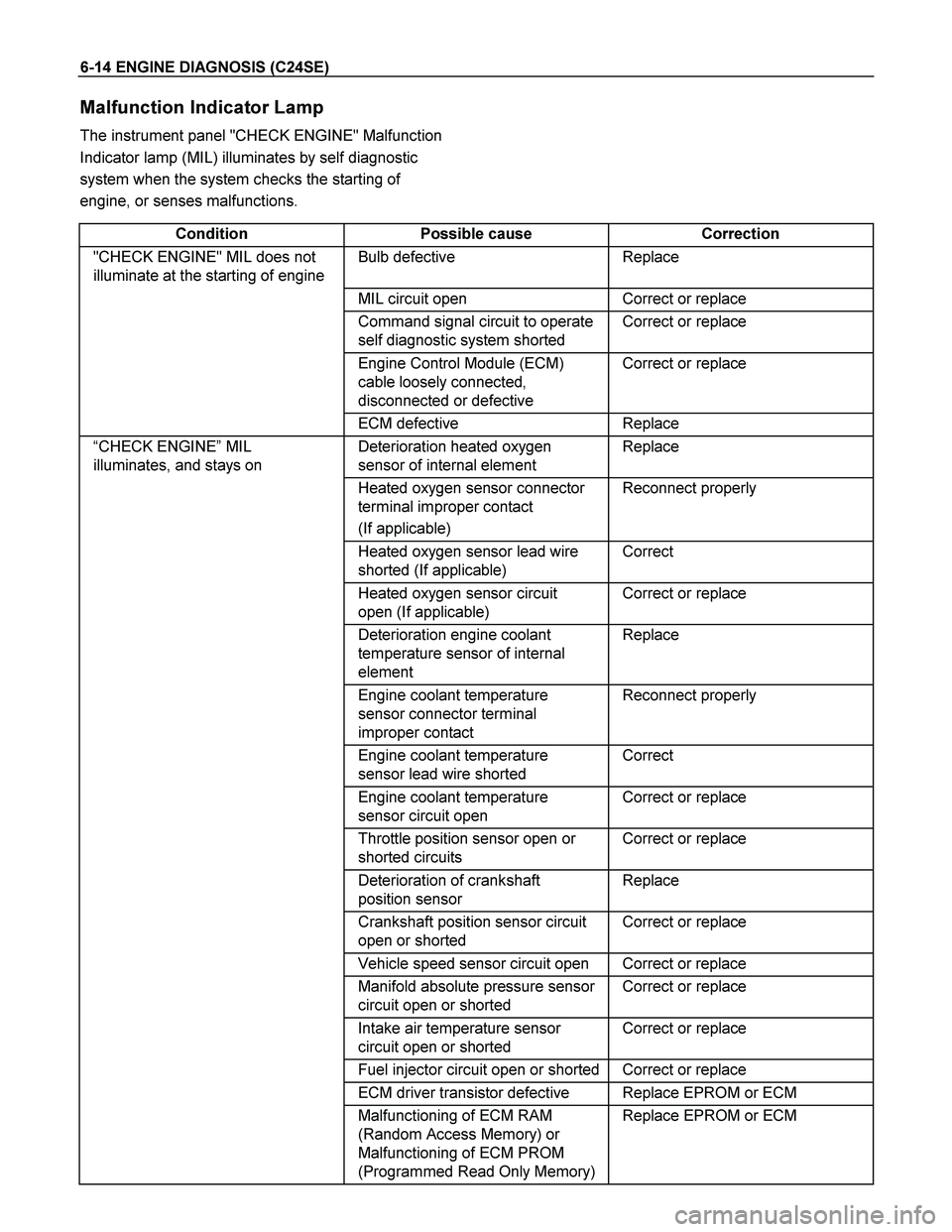

ISUZU TF SERIES 2004 Workshop Manual 6-14 ENGINE DIAGNOSIS (C24SE)
Malfunction Indicator Lamp
The instrument panel "CHECK ENGINE" Malfunction
Indicator lamp (MIL) illuminates by self diagnostic
system when the system checks the star

Page 2421 of 4264

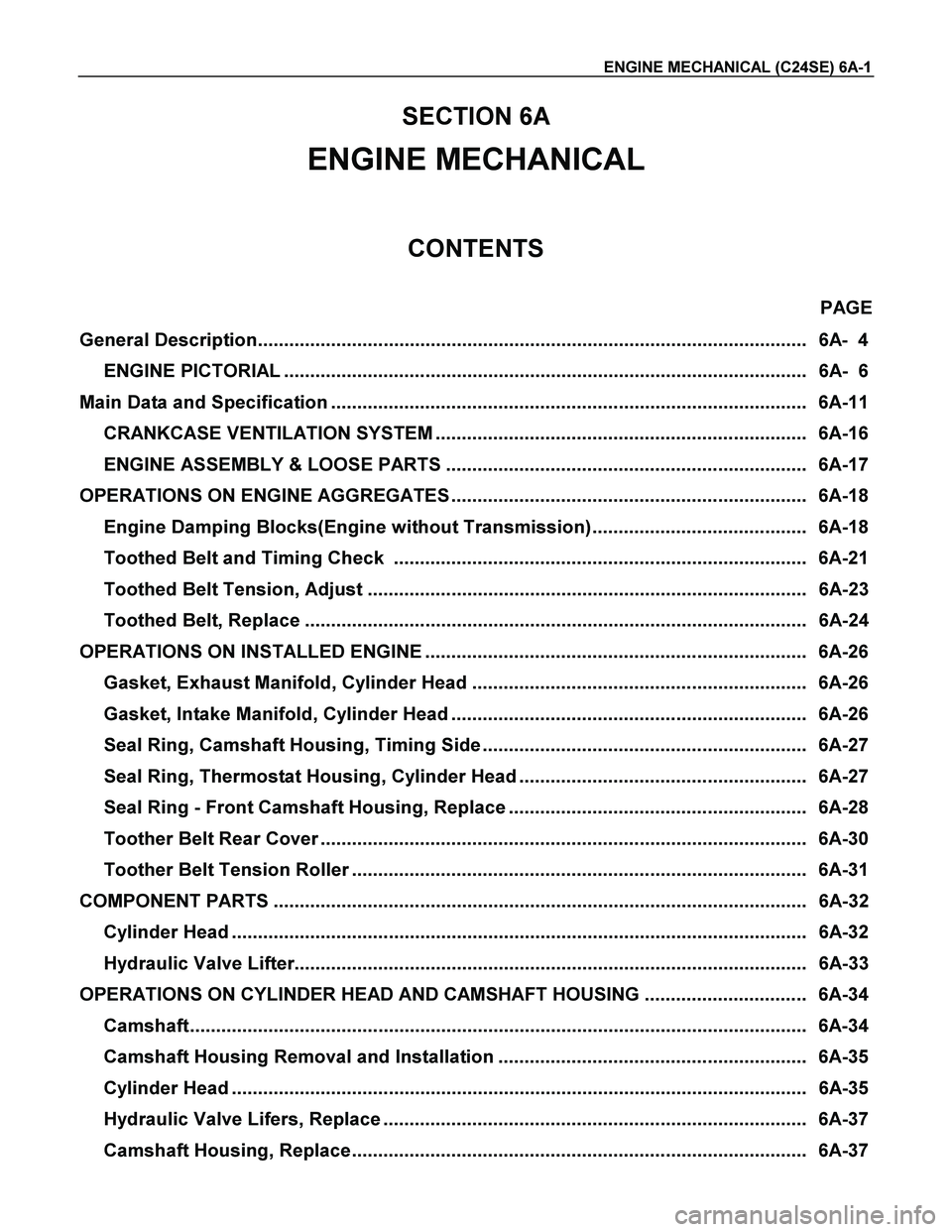

ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL (C24SE) 6A-1
SECTION 6A
ENGINE MECHANICAL
CONTENTS
PAGE
General Description......................................................................................................

ENGINE MECHANICAL (C24SE) 6A-1
SECTION 6A
ENGINE MECHANICAL
CONTENTS
PAGE
General Description......................................................................................................... 6A- 4
ENGINE PICTORIAL .................................................................................................... 6A- 6
Main Data and Specification ........................................................................................... 6A-11
CRANKCASE VENTILATION SYSTEM ....................................................................... 6A-16
ENGINE ASSEMBLY & LOOSE PARTS ..................................................................... 6A-17
OPERATIONS ON ENGINE AGGREGATES .................................................................... 6A-18
Engine Damping Blocks(Engine without Transmission)......................................... 6A-18
Toothed Belt and Timing Check ............................................................................... 6A-21
Toothed Belt Tension, Adjust .................................................................................... 6A-23
Toothed Belt, Replace ................................................................................................ 6A-24
OPERATIONS ON INSTALLED ENGINE ......................................................................... 6A-26
Gasket, Exhaust Manifold, Cylinder Head ................................................................ 6A-26
Gasket, Intake Manifold, Cylinder Head .................................................................... 6A-26
Seal Ring, Camshaft Housing, Timing Side .............................................................. 6A-27
Seal Ring, Thermostat Housing, Cylinder Head ....................................................... 6A-27
Seal Ring - Front Camshaft Housing, Replace ......................................................... 6A-28
Toother Belt Rear Cover ............................................................................................. 6A-30
Toother Belt Tension Roller ....................................................................................... 6A-31
COMPONENT PARTS ...................................................................................................... 6A-32
Cylinder Head .............................................................................................................. 6A-32
Hydraulic Valve Lifter.................................................................................................. 6A-33
OPERATIONS ON CYLINDER HEAD AND CAMSHAFT HOUSING ............................... 6A-34
Camshaft...................................................................................................................... 6A-34
Camshaft Housing Removal and Installation ........................................................... 6A-35
Cylinder Head .............................................................................................................. 6A-35
Hydraulic Valve Lifers, Replace ................................................................................. 6A-37
Camshaft Housing, Replace....................................................................................... 6A-37

Page 2422 of 4264

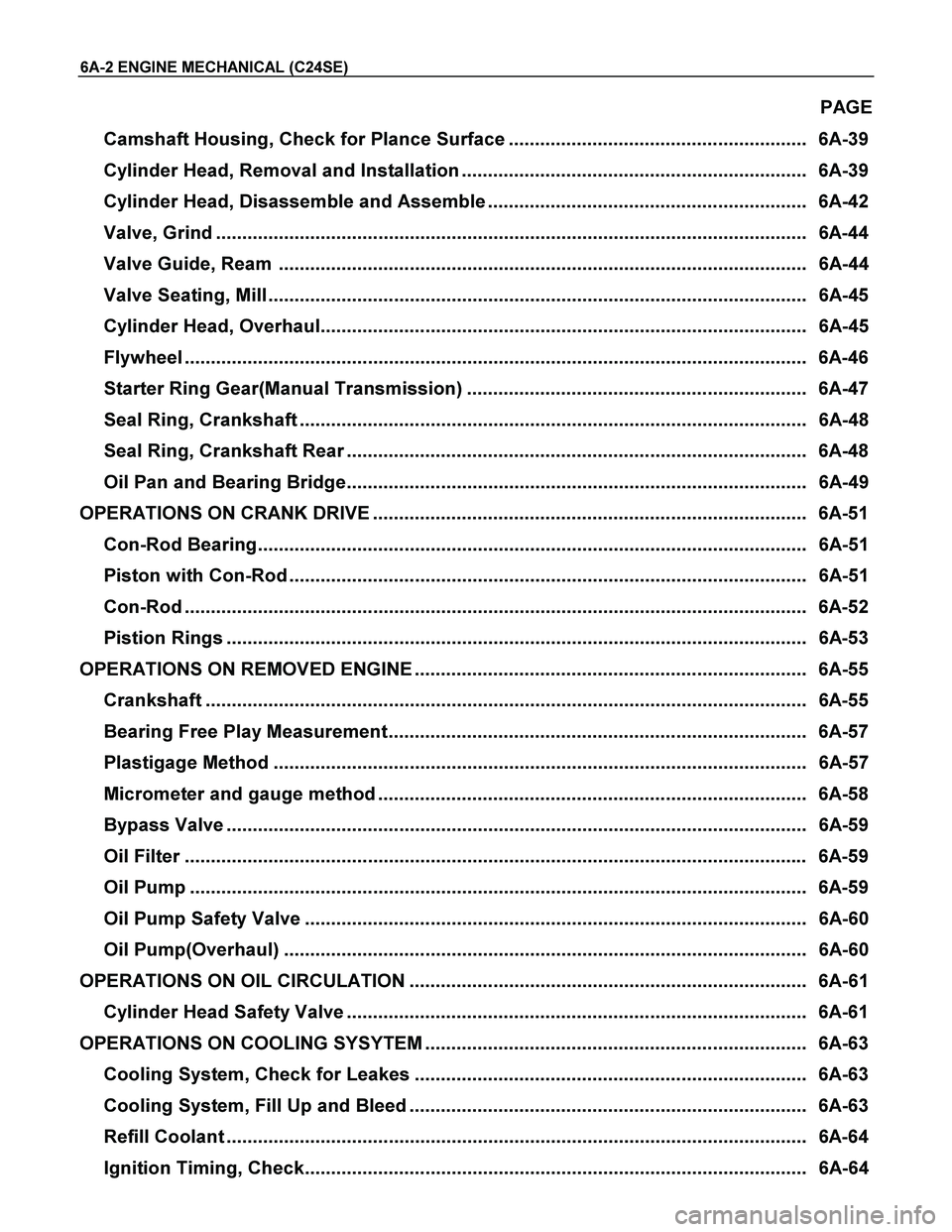

ISUZU TF SERIES 2004 Workshop Manual 6A-2 ENGINE MECHANICAL (C24SE)
PAGE
Camshaft Housing, Check for Plance Surface ......................................................... 6A-39
Cylinder Head, Removal and Installation .............

6A-2 ENGINE MECHANICAL (C24SE)
PAGE
Camshaft Housing, Check for Plance Surface ......................................................... 6A-39
Cylinder Head, Removal and Installation .................................................................. 6A-39
Cylinder Head, Disassemble and Assemble ............................................................. 6A-42
Valve, Grind ................................................................................................................. 6A-44
Valve Guide, Ream ..................................................................................................... 6A-44
Valve Seating, Mill ....................................................................................................... 6A-45
Cylinder Head, Overhaul............................................................................................. 6A-45
Flywheel ....................................................................................................................... 6A-46
Starter Ring Gear(Manual Transmission) ................................................................. 6A-47
Seal Ring, Crankshaft ................................................................................................. 6A-48
Seal Ring, Crankshaft Rear ........................................................................................ 6A-48
Oil Pan and Bearing Bridge........................................................................................ 6A-49
OPERATIONS ON CRANK DRIVE ................................................................................... 6A-51
Con-Rod Bearing......................................................................................................... 6A-51
Piston with Con-Rod ................................................................................................... 6A-51
Con-Rod ....................................................................................................................... 6A-52
Pistion Rings ............................................................................................................... 6A-53
OPERATIONS ON REMOVED ENGINE ........................................................................... 6A-55
Crankshaft ................................................................................................................... 6A-55
Bearing Free Play Measurement ................................................................................ 6A-57
Plastigage Method ...................................................................................................... 6A-57
Micrometer and gauge method .................................................................................. 6A-58
Bypass Valve ............................................................................................................... 6A-59
Oil Filter ....................................................................................................................... 6A-59
Oil Pump ...................................................................................................................... 6A-59
Oil Pump Safety Valve ................................................................................................ 6A-60
Oil Pump(Overhaul) .................................................................................................... 6A-60
OPERATIONS ON OIL CIRCULATION ............................................................................ 6A-61
Cylinder Head Safety Valve ........................................................................................ 6A-61
OPERATIONS ON COOLING SYSYTEM ......................................................................... 6A-63
Cooling System, Check for Leakes ........................................................................... 6A-63
Cooling System, Fill Up and Bleed ............................................................................ 6A-63
Refill Coolant ............................................................................................................... 6A-64
Ignition Timing, Check................................................................................................ 6A-64

Page 2423 of 4264

ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL (C24SE) 6A-3
PAGE
ENGINE EXTERNAL PARTS ............................................................................................ 6A-65
Radiator ..............................

ENGINE MECHANICAL (C24SE) 6A-3
PAGE
ENGINE EXTERNAL PARTS ............................................................................................ 6A-65
Radiator ....................................................................................................................... 6A-65
Thermostat................................................................................................................... 6A-66
Water Pump ................................................................................................................. 6A-66
Coating sealing surfaces with Silicone Grease ....................................................... 6A-67
Alternator ..................................................................................................................... 6A-67
Starter .......................................................................................................................... 6A-67
V-belt Tension of Alternator ....................................................................................... 6A-68
FUEL INJECTION SYSTEM.............................................................................................. 6A-69
Map Sensor.................................................................................................................. 6A-69
Pressure Regulator ..................................................................................................... 6A-69
ECM (Engine Control Module).................................................................................... 6A-69
ECT ............................................................................................................................... 6A-70
Idle Air Control(IAC) Valve.......................................................................................... 6A-70
Ignition Coil ................................................................................................................. 6A-70
Crank Position Sensor................................................................................................ 6A-71
FUEL INJECTOR .............................................................................................................. 6A-72
Knock Sensor .............................................................................................................. 6A-72
Oxygen Sensor ............................................................................................................ 6A-73
Throttle Valve Position Sensor .................................................................................. 6A-73
Acclelerator Pedal and Cable..................................................................................... 6A-73
Air Cleaner Filter ......................................................................................................... 6A-74
Spark Plug Thread ...................................................................................................... 6A-75
TECHNICAL DATA ........................................................................................................... 6A-76
Recommended Troque Values................................................................................... 6A-87
SPECIAL SERVICE TOOL................................................................................................ 6A-88

Page 2424 of 4264

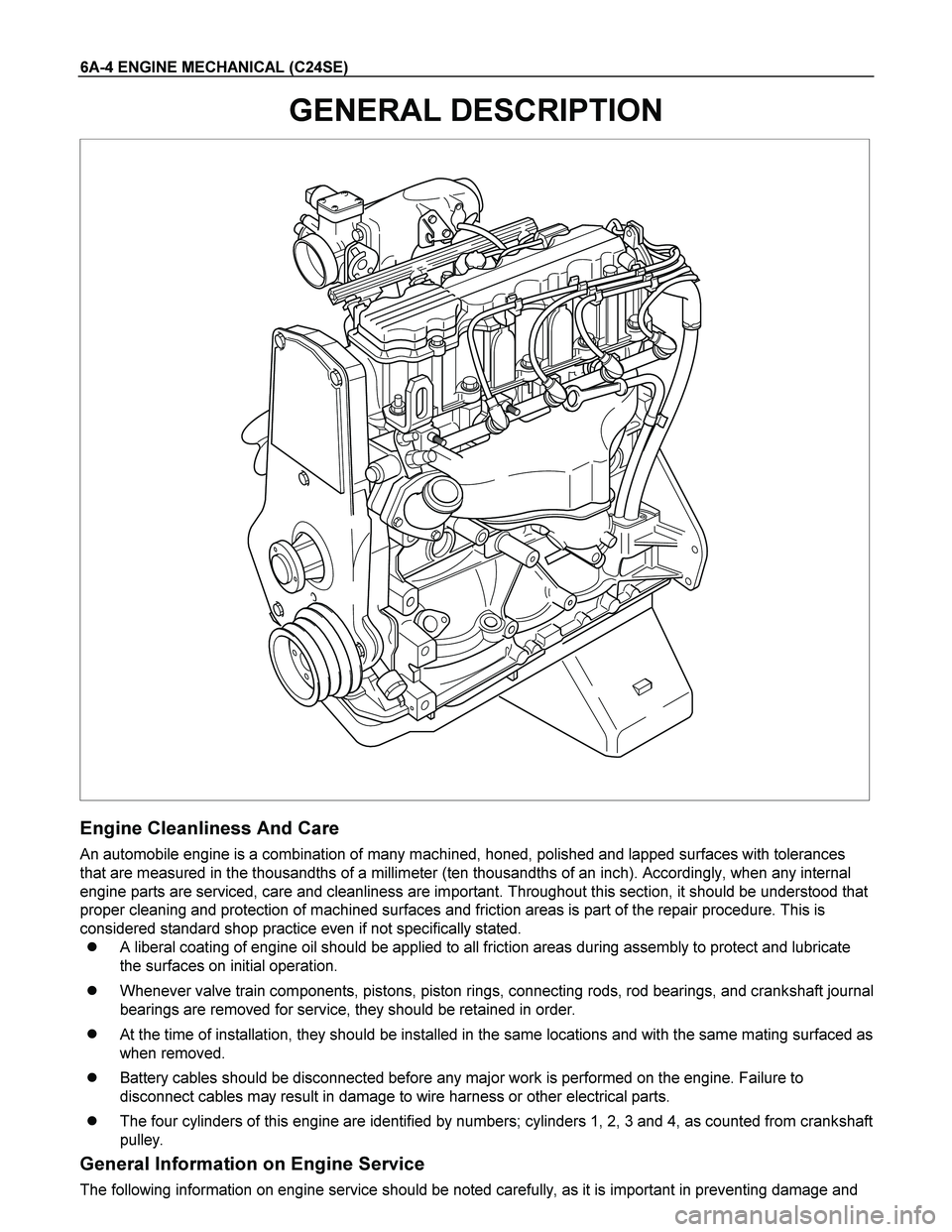

ISUZU TF SERIES 2004 Workshop Manual 6A-4 ENGINE MECHANICAL (C24SE)
GENERAL DESCRIPTION

Engine Cleanliness And Care
An automobile engine is a combination of many machined, honed, polished and lapped surfaces with tolerances
that ar
