Page 1137 of 4264

ISUZU TF SERIES 2004 Workshop Manual TROUBLESHOOTING 6 – 17
14-3 Battery Under Charging
Step Action Value(s) Yes No
1 Was “Visual/Physical Check" performed.
—
Go to Step 2 Go to
visual/physical
check
2 Inspect the brush

TROUBLESHOOTING 6 – 17
14-3 Battery Under Charging
Step Action Value(s) Yes No
1 Was “Visual/Physical Check" performed.
—
Go to Step 2 Go to
visual/physical
check
2 Inspect the brush contact condition on the generator.
Was there intermittent contact between the brush
and the slip ring? — Repair or
replace the
brush holder
assembly. Go to Step 3
3 Inspect the rotor coil on the generator.
Was there a short circuit in the rotor coil? — Repair or
replace the
rotor coil. Go to Step 4
4 Inspect the stator coil on the generator.
Was there an open circuit or the short circuit on the
stator coil? — Repair or
replace the
stator coil. Go to Step 5
5 Inspect the rectifier on the generator.
Was the rectifier defective? — Replace the
rectifier Go to Step 6
6 Inspect the IC regulator on the generator.
Was the IC regulator defective? — Replace the IC
regulator. Go to Step 7
7 Was the electrical load excessive? — Replace more
higher capacity
generator. Go to Step 8
8 Are any DTC stored? — Go to indicated
DTC. Solved

14-4 Battery Unstable Charging Current
Step Action Value(s) Yes No
1 Was “Visual/Physical Check" performed.
—
Go to Step 2 Go to
visual/physical
check
2 Inspect the brush contact condition on the generator.
Was there poor contact between the brush and the
slip ring? — Repair or
replace the
brush and/or
the slip ring. Go to Step 3
3 Inspect the rotor coil on the generator.
Was there the short circuit or an open circuit in the
rotor coil? — Repair or
replace the
rotor coil. Go to Step 4
4 Inspect the stator coil on the generator.
Was there an open circuit or the short circuit in the
stator coil? — Repair or
replace the
stator coil. Go to Step 5
5 Inspect the connection between the rectifier and
stator coil on the generator.
Was there a loose connection between the rectifier
and stator coil ? —
Repair the
loose
connection. Go to Step 6
6 Inspect the IC regulator on the generator.
Was the IC regulator defective? — Replace the IC
regulator. Go to Step 7
7 Are any DTC stored? — Go to indicated
DTC. Solved

Page 1138 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6 – 18 TROUBLESHOOTING
14-5 Charging System Noise
Step Action Value(s) Yes No
1 Was “Visual/Physical Check" performed.
—
Go to Step 2 Go to
visual/physical
check
2 Was there intermit

Page 1139 of 4264

ISUZU TF SERIES 2004 Workshop Manual TROUBLESHOOTING 6 – 19
15. Starter Motor Problem
Visual/physical check the following items before diagnosis.
The battery terminals connection condition.
The ground connection condition.
The st

Page 1140 of 4264

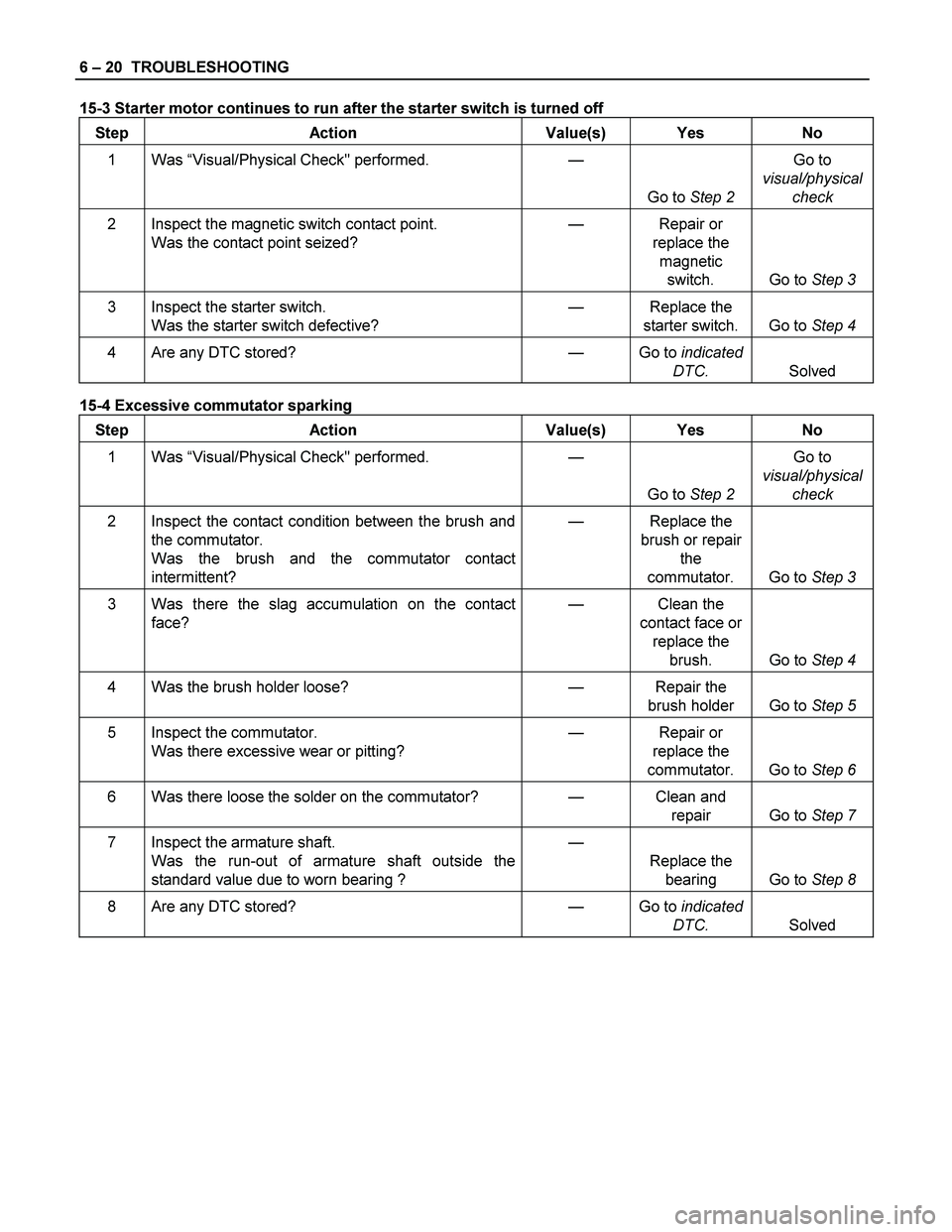

ISUZU TF SERIES 2004 Workshop Manual 6 – 20 TROUBLESHOOTING
15-3 Starter motor continues to run after the starter switch is turned off
Step Action Value(s) Yes No
1 Was “Visual/Physical Check" performed.
—
Go to Step 2 Go t

Page 1141 of 4264

ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL 6A – 1

SECTION 6A
ENGINE MECHANICAL

TABLE OF CONTENTS
PAGE
Main Data and Specifications .............................................................................

ENGINE MECHANICAL 6A – 1

SECTION 6A
ENGINE MECHANICAL

TABLE OF CONTENTS
PAGE
Main Data and Specifications ....................................................................................... 6A - 4
Torque Specifications ................................................................................................... 6A - 8
Standard Bolts ........................................................................................................... 6A - 8
Special Parts Fixing Nuts and Bolts ........................................................................ 6A - 9
Recommended Liquid Gasket ...................................................................................... 6A - 22
LOCTITE Application Procedure .................................................................................. 6A - 23
Servicing......................................................................................................................... 6A - 24
Model Identification ................................................................................................... 6A - 24
Air Cleaner .................................................................................................................. 6A - 24
Lubricating System .................................................................................................... 6A - 24
Fuel System ................................................................................................................ 6A - 25
Cooling System .......................................................................................................... 6A - 27
Valve Clearance Adjustment ..................................................................................... 6A - 31
Compression Pressure Measurement ...................................................................... 6A - 32
General Description....................................................................................................... 6A- 36
Removal and Installation............................................................................................... 6A- 37
Removal ...................................................................................................................... 6A- 37
Installation .................................................................................................................. 6A- 40
Coolant Replenishment.......................................................................................... 6A- 41
Engine Warm-Up..................................................................................................... 6A- 41
Engine Repair Kit ........................................................................................................... 6A- 42
Engine Overhaul ............................................................................................................ 6A- 43
Removal ...................................................................................................................... 6A- 43
External Parts ......................................................................................................... 6A- 43

Page 1142 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6A – 2 ENGINE MECHANICAL
Disassembly ............................................................................................................... 6A- 47
Internal Parts.........................

6A – 2 ENGINE MECHANICAL
Disassembly ............................................................................................................... 6A- 47
Internal Parts........................................................................................................... 6A- 47
Major Components.............................................................................................. 6A- 47
Minor Components ............................................................................................. 6A- 56
Rocker Arm Shaft and Rocker Arm................................................................ 6A- 56
Cylinder Head .................................................................................................. 6A- 57
Piston and Connecting Rod ........................................................................... 6A- 59
Inspection and Repair................................................................................................ 6A- 61
Cylinder Head ......................................................................................................... 6A- 61
Rocker Arm Shaft and Rocker Arm ....................................................................... 6A- 68
Cylinder Body ......................................................................................................... 6A- 69
Camshaft ................................................................................................................. 6A- 77
Crankshaft and Bearing ......................................................................................... 6A- 79
Crankshaft Bearing Selection................................................................................ 6A- 83
Crankshaft Pilot Bearing........................................................................................ 6A- 85
Flywheel and Ring Gear ......................................................................................... 6A- 85
Piston....................................................................................................................... 6A- 86
Cylinder Head Gasket Selection............................................................................ 6A- 88
Connecting Rod ...................................................................................................... 6A- 90
Idler Gear Shaft and Idler Gear.............................................................................. 6A- 91
Timing Gear Case Cover ........................................................................................ 6A- 91
Reassembly ................................................................................................................ 6A- 93
Internal Parts........................................................................................................... 6A- 93
Minor Component ............................................................................................... 6A- 93
Rocker Arm Shaft and Rocker Arm................................................................ 6A- 93
Cylinder Head .................................................................................................. 6A- 94
Piston and Connecting Rod ........................................................................... 6A- 96
Positive Crankcase Ventilation (PCV) Valve ................................................. 6A- 99
Major Component................................................................................................ 6A- 101
Installation .................................................................................................................. 6A- 118
External Parts ......................................................................................................... 6A- 118
Lubrication System........................................................................................................ 6A- 126

Page 1143 of 4264

ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL 6A – 3
Lubricating Flow ........................................................................................................ 6A- 126
Oil Pump and Oil Filter ..............

Page 1144 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6A – 4 ENGINE MECHANICAL
MAIN DATA AND SPECIFICATIONS
Engine model
Item 4JA1T (L) 4JA1TC
Engine type
Combustion chamber type
Cylinder liner type
Timing gear train system Four-cycle, overhead
