Page 1809 of 4264

ISUZU TF SERIES 2004 Workshop Manual EXHAUST SYSTEM 6F – 15 TURBOCHARGER MAIN DATA AND SPECIFICATIONS Engine 4JA1T(L) 4JA1TC 4JH1TC Model IHI RHF4H IHI RHF4H IHI RHF5 Turbine type Mixed type Compressor type Backword & ra

Page 1810 of 4264

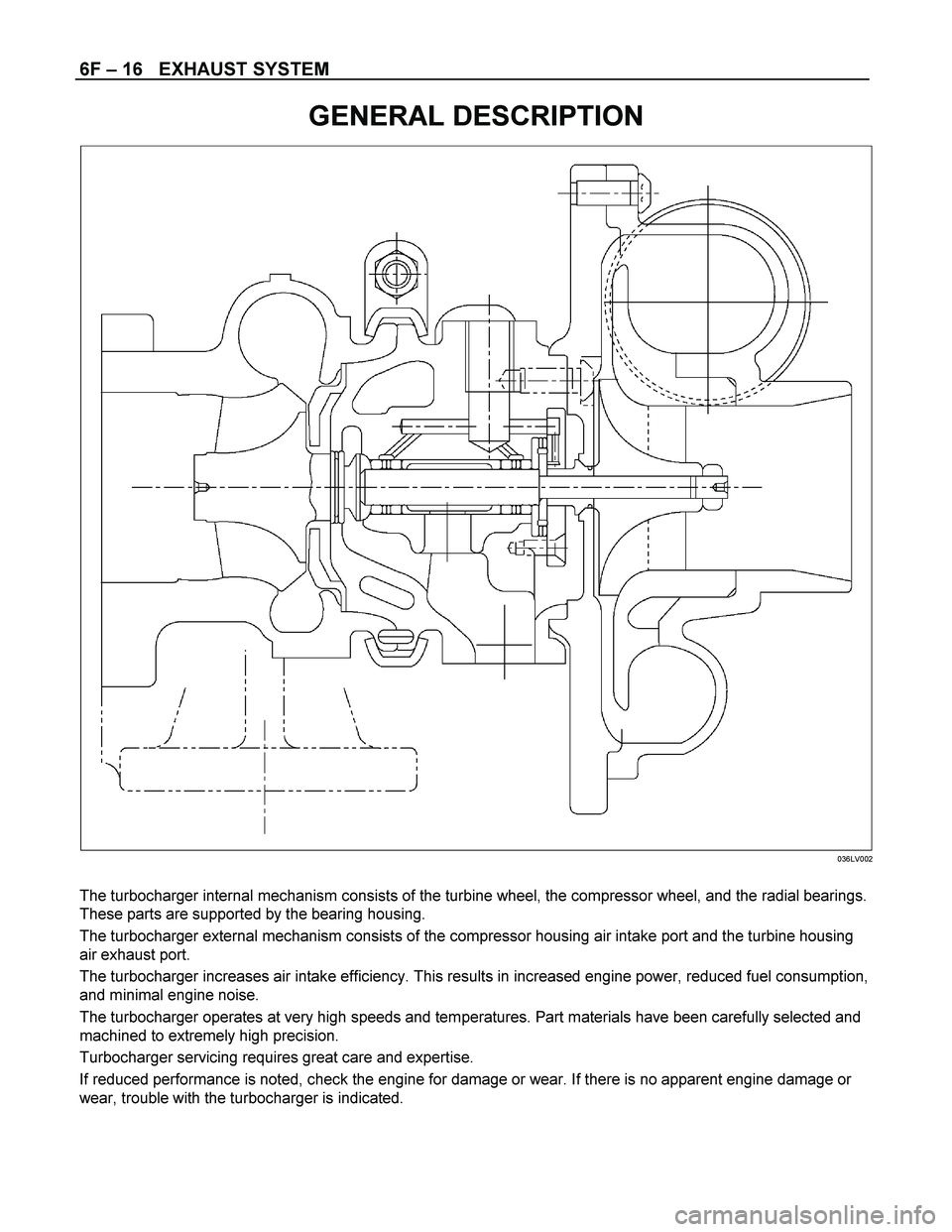

ISUZU TF SERIES 2004 Workshop Manual 6F – 16 EXHAUST SYSTEM GENERAL DESCRIPTION 036LV002 The turbocharger internal mechanism consists of the turbine wheel, the compressor wheel, and the radial bearings. These parts are s

Page 1811 of 4264

ISUZU TF SERIES 2004 Workshop Manual EXHAUST SYSTEM 6F – 17 INSPECTION AND REPAIR Make the necessary adjustments, repairs, and part replacements if excessive wear or damage is discovered during inspection.

Page 1812 of 4264

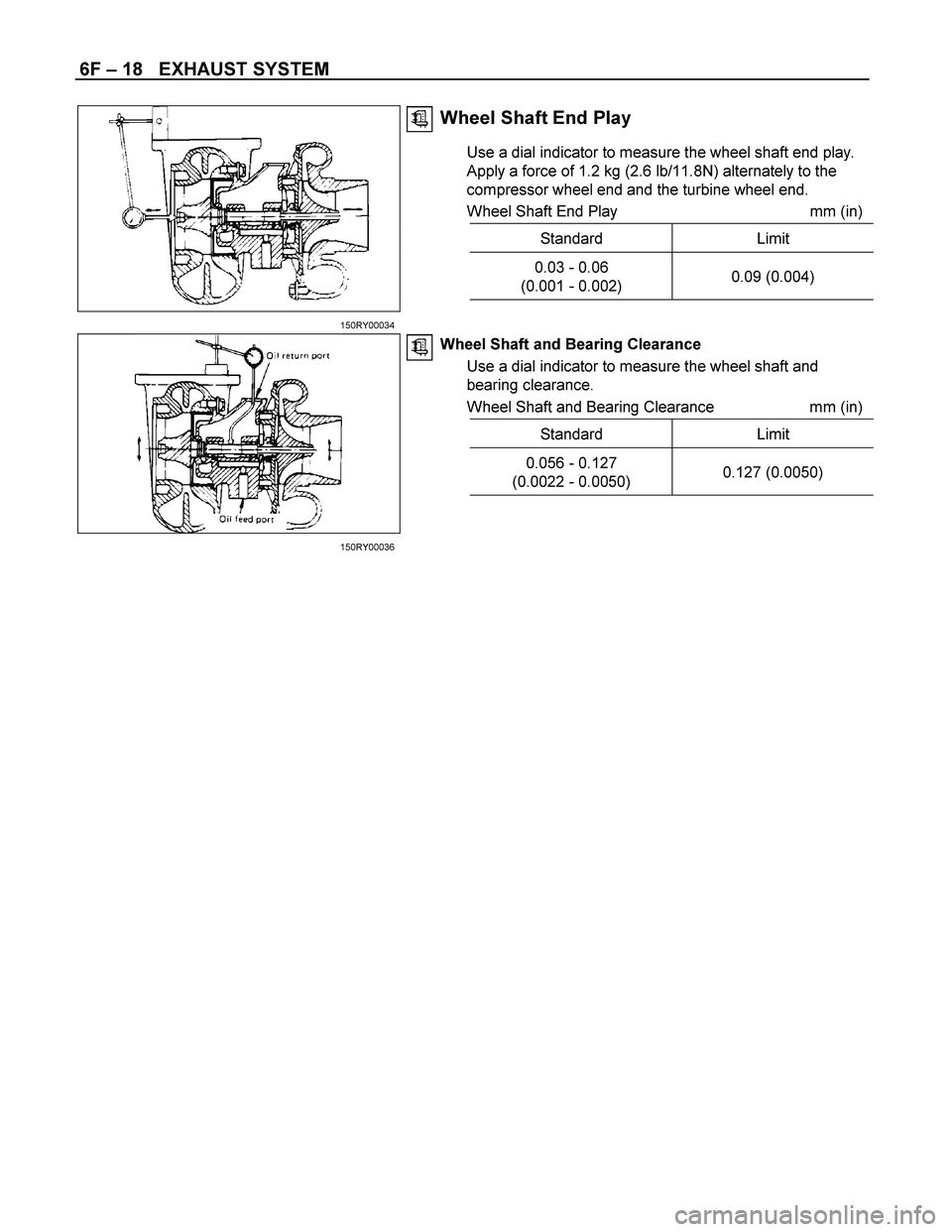

ISUZU TF SERIES 2004 Workshop Manual 6F – 18 EXHAUST SYSTEM Wheel Shaft End Play Use a dial indicator to measure the wheel shaft end play. Apply a force of 1.2 kg (2.6 lb/11.8N) alternately to the compressor wheel end and the t

Page 1813 of 4264

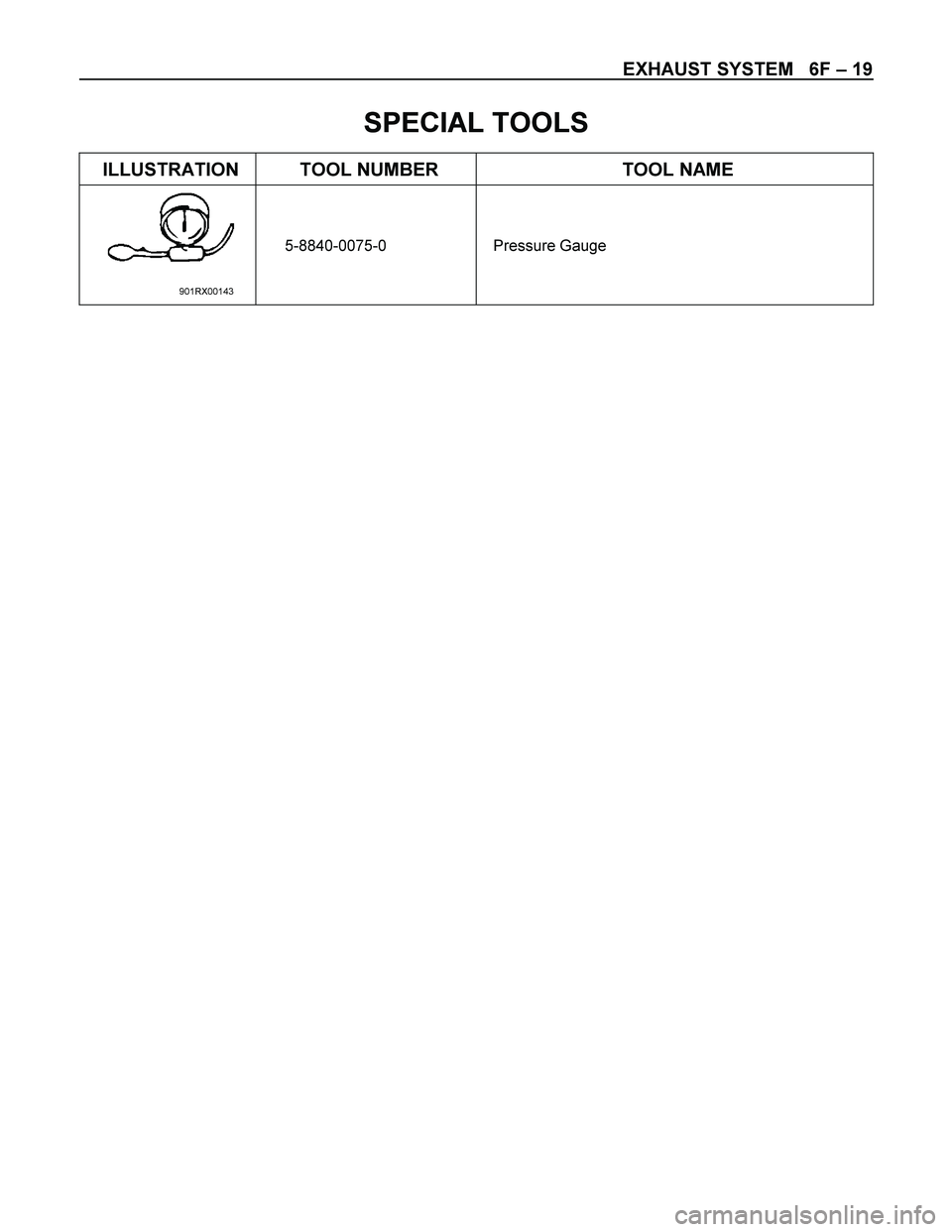

ISUZU TF SERIES 2004 Workshop Manual EXHAUST SYSTEM 6F – 19 SPECIAL TOOLS ILLUSTRATION TOOL NUMBER TOOL NAME 901RX00143 5-8840-0075-0 Pressure Gauge

Page 1814 of 4264

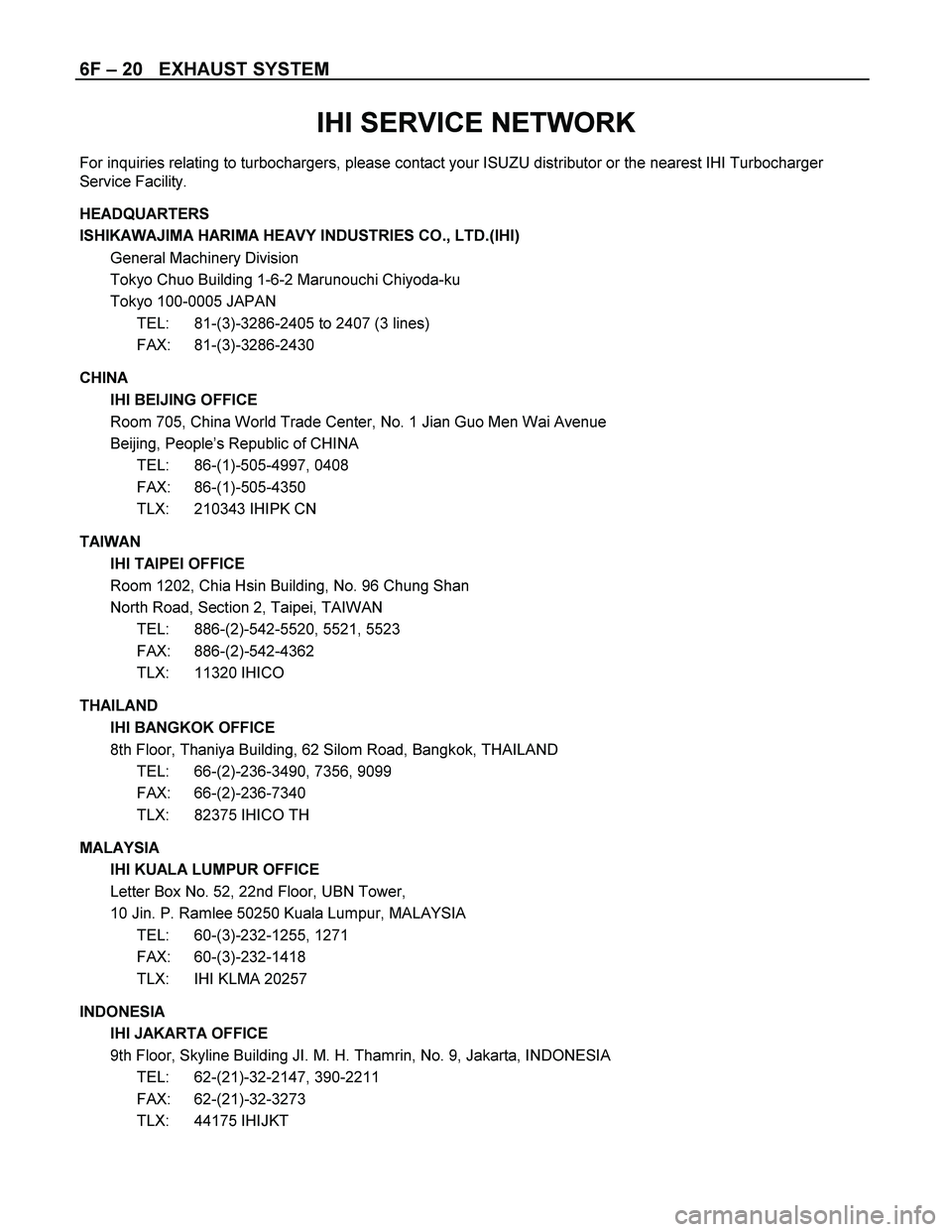

ISUZU TF SERIES 2004 Workshop Manual 6F – 20 EXHAUST SYSTEM IHI SERVICE NETWORK For inquiries relating to turbochargers, please contact your ISUZU distributor or the nearest IHI Turbocharger Service Facility. HEADQUARTERS IS

Page 1815 of 4264

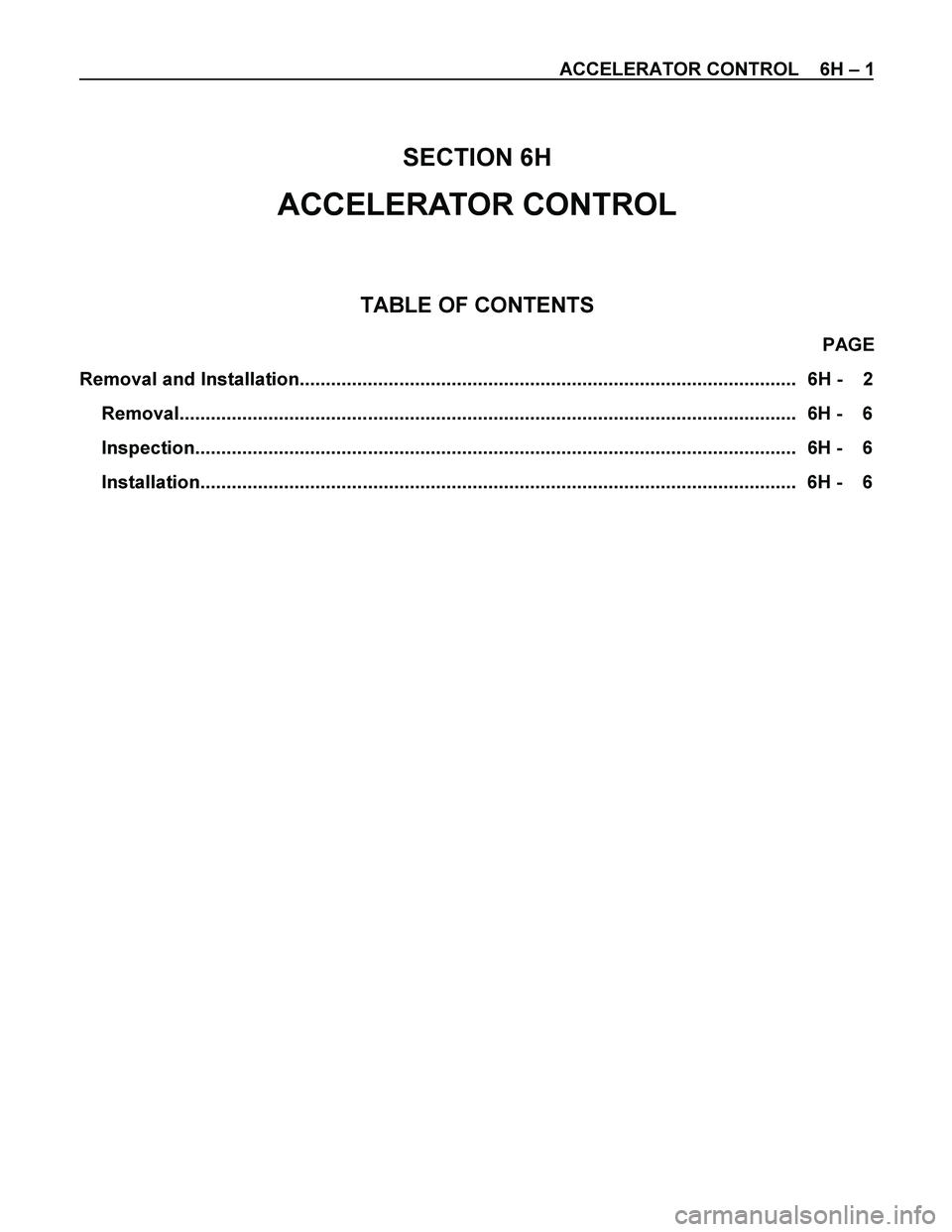

ISUZU TF SERIES 2004 Workshop Manual ACCELERATOR CONTROL 6H – 1 SECTION 6H ACCELERATOR CONTROL TABLE OF CONTENTS PAGE Removal and Installation.............................................................................

Page 1816 of 4264

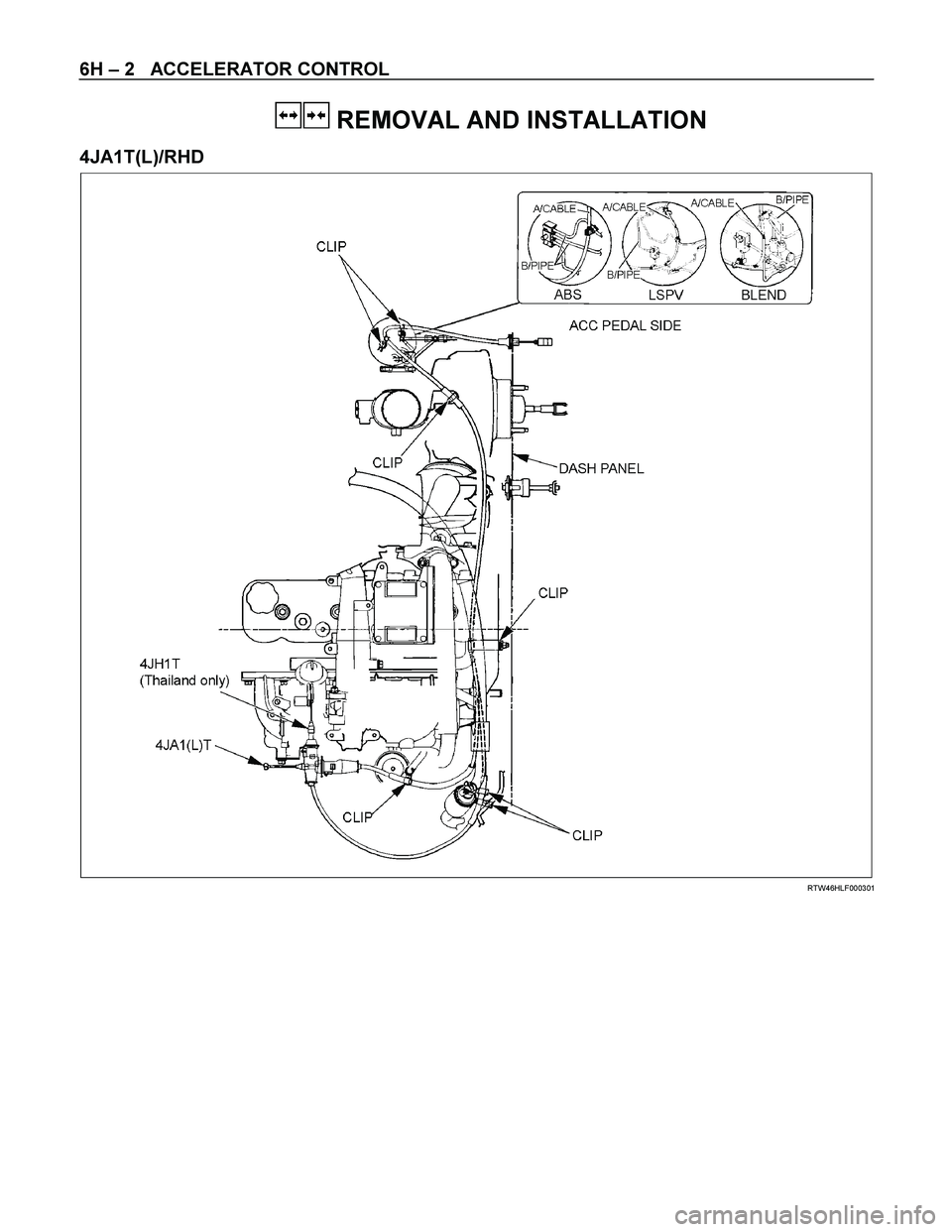

ISUZU TF SERIES 2004 Workshop Manual 6H – 2 ACCELERATOR CONTROL REMOVAL AND INSTALLATION 4JA1T(L)/RHD RTW46HLF000301
