Page 3065 of 4264

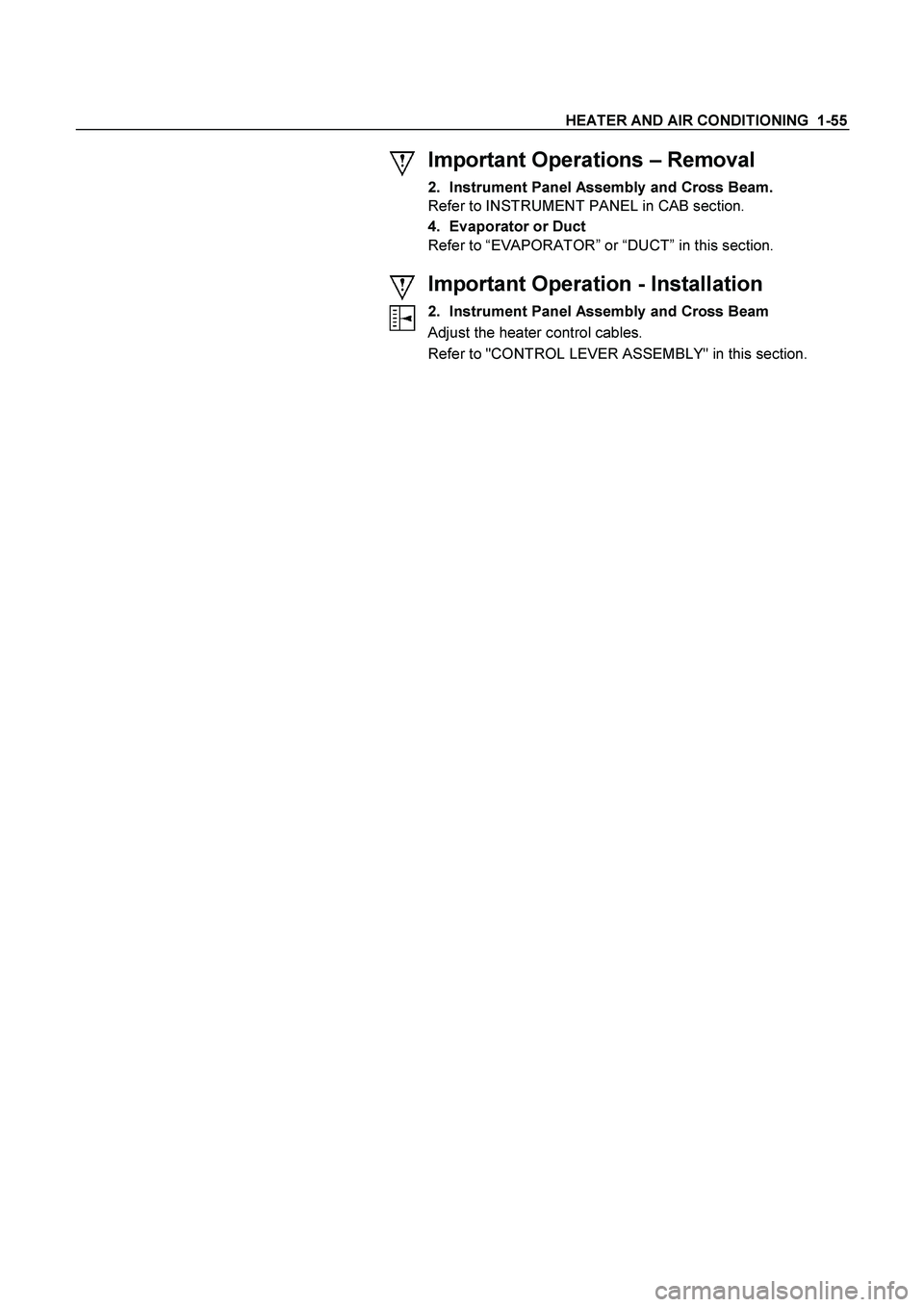

ISUZU TF SERIES 2004 Workshop Manual HEATER AND AIR CONDITIONING 1-55 Important Operations – Removal 2. Instrument Panel Assembly and Cross Beam. Refer to INSTRUMENT PANEL in CAB section. 4. Evaporator or Duct Refer to “EVA

Page 3066 of 4264

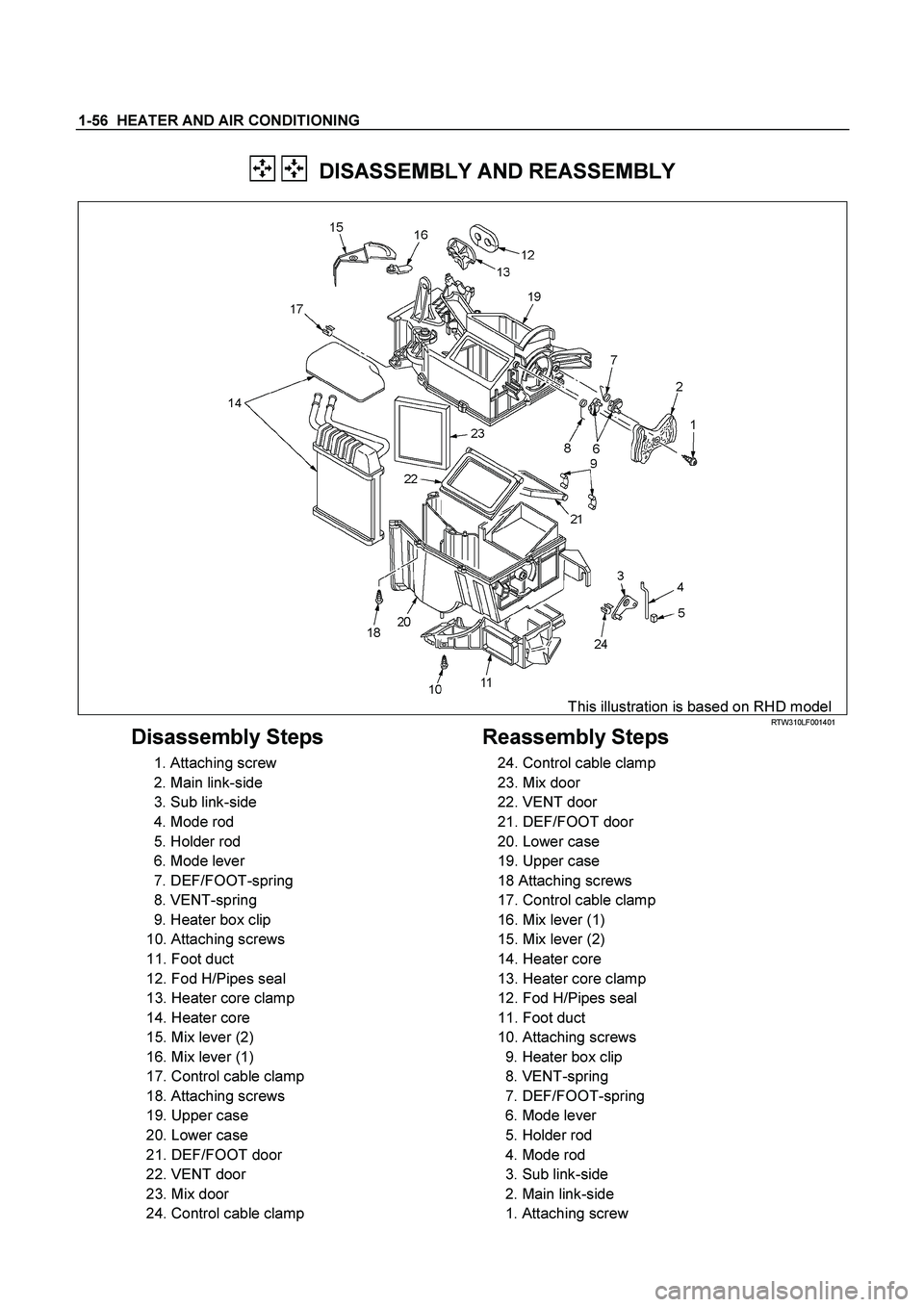

ISUZU TF SERIES 2004 Workshop Manual 1-56 HEATER AND AIR CONDITIONING DISASSEMBLY AND REASSEMBLY This illustration is based on RHD model RTW310LF001401 Disassembly Steps 1. Attaching screw 2. Main link-side 3. Sub l

Page 3067 of 4264

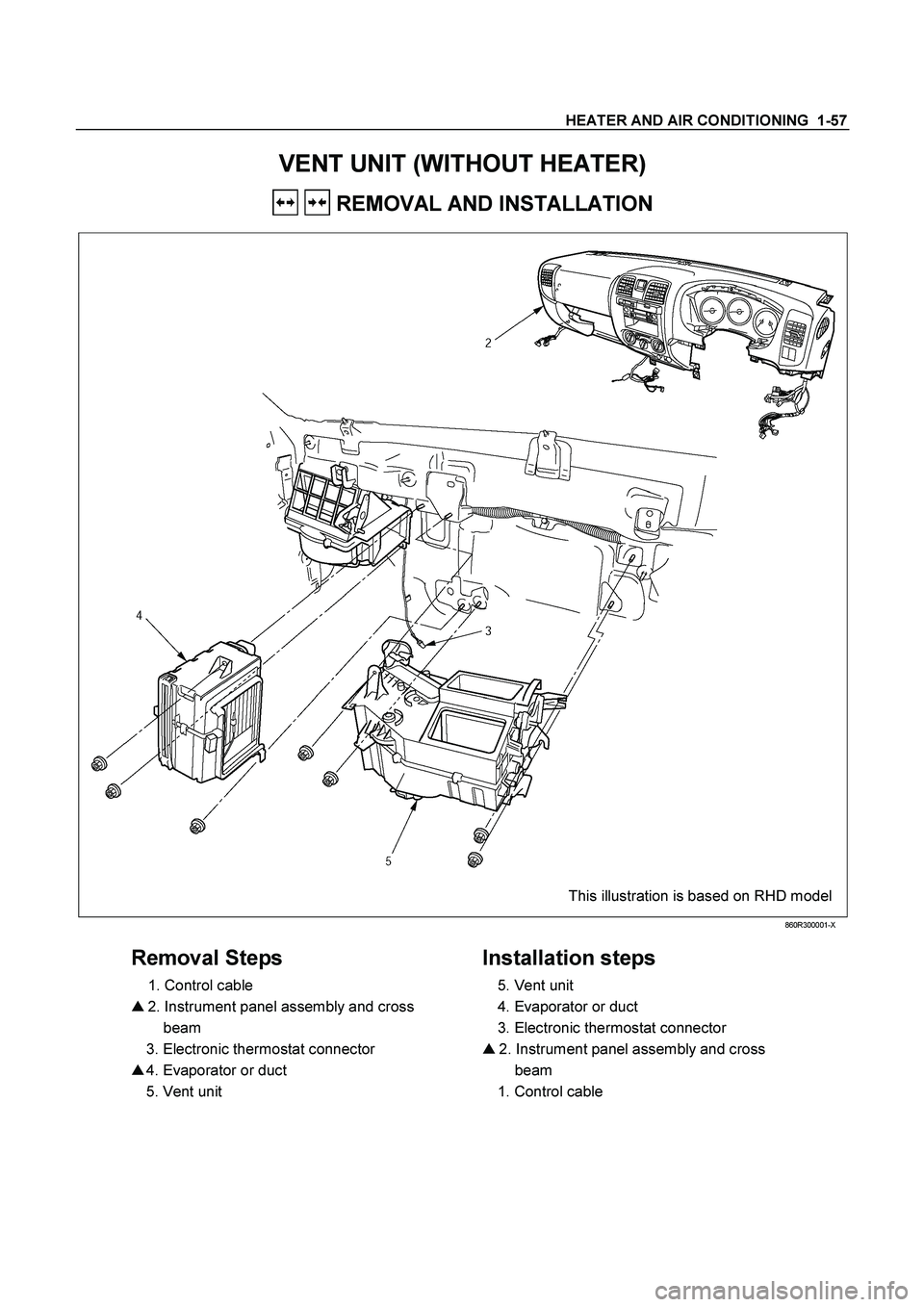

ISUZU TF SERIES 2004 Workshop Manual HEATER AND AIR CONDITIONING 1-57 VENT UNIT (WITHOUT HEATER) REMOVAL AND INSTALLATION This illustration is based on RHD model 860R300001-X Removal Steps 1. Control cable  2. I

Page 3068 of 4264

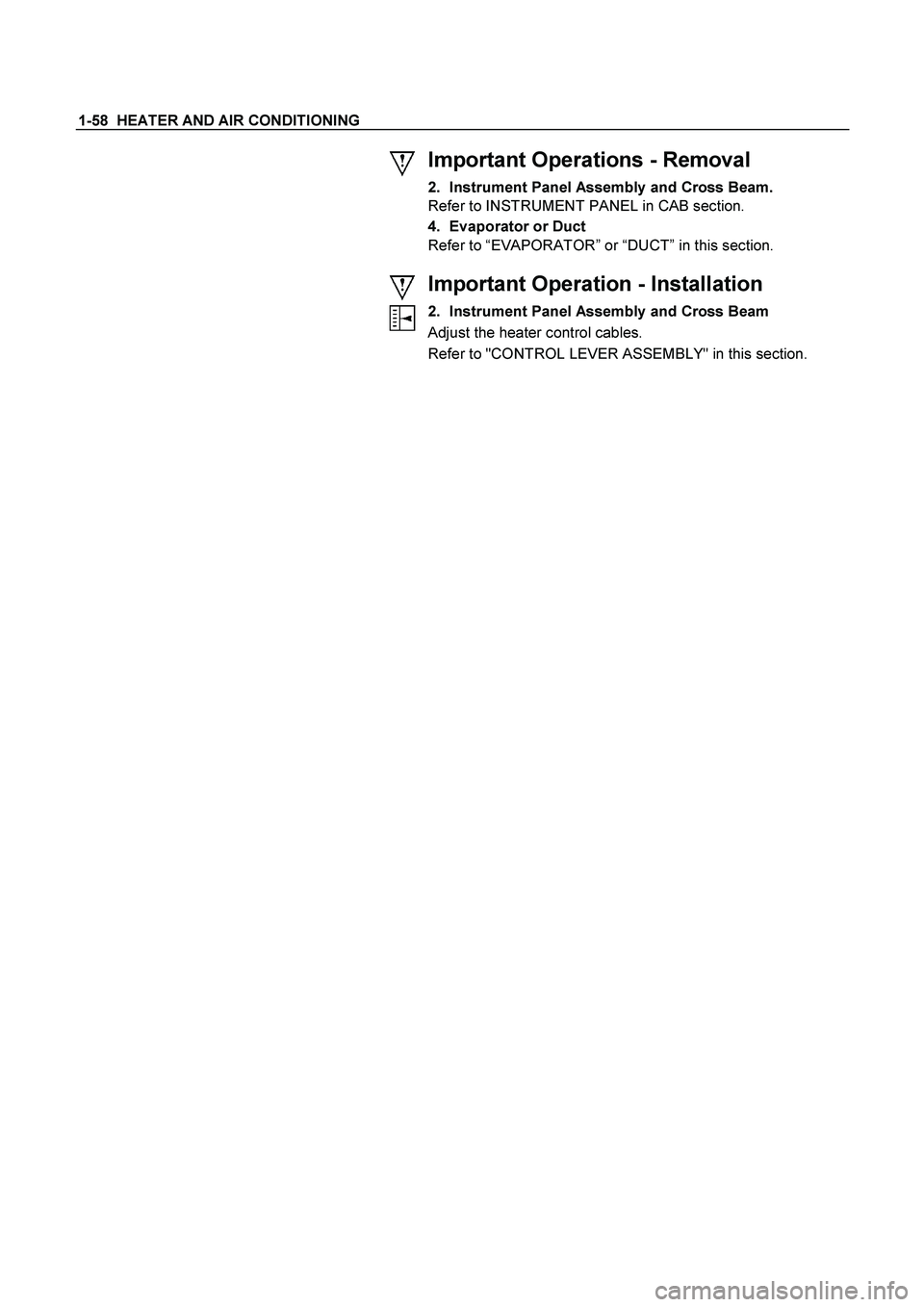

ISUZU TF SERIES 2004 Workshop Manual 1-58 HEATER AND AIR CONDITIONING Important Operations - Removal 2. Instrument Panel Assembly and Cross Beam. Refer to INSTRUMENT PANEL in CAB section. 4. Evaporator or Duct Refer to “EVAPO

Page 3069 of 4264

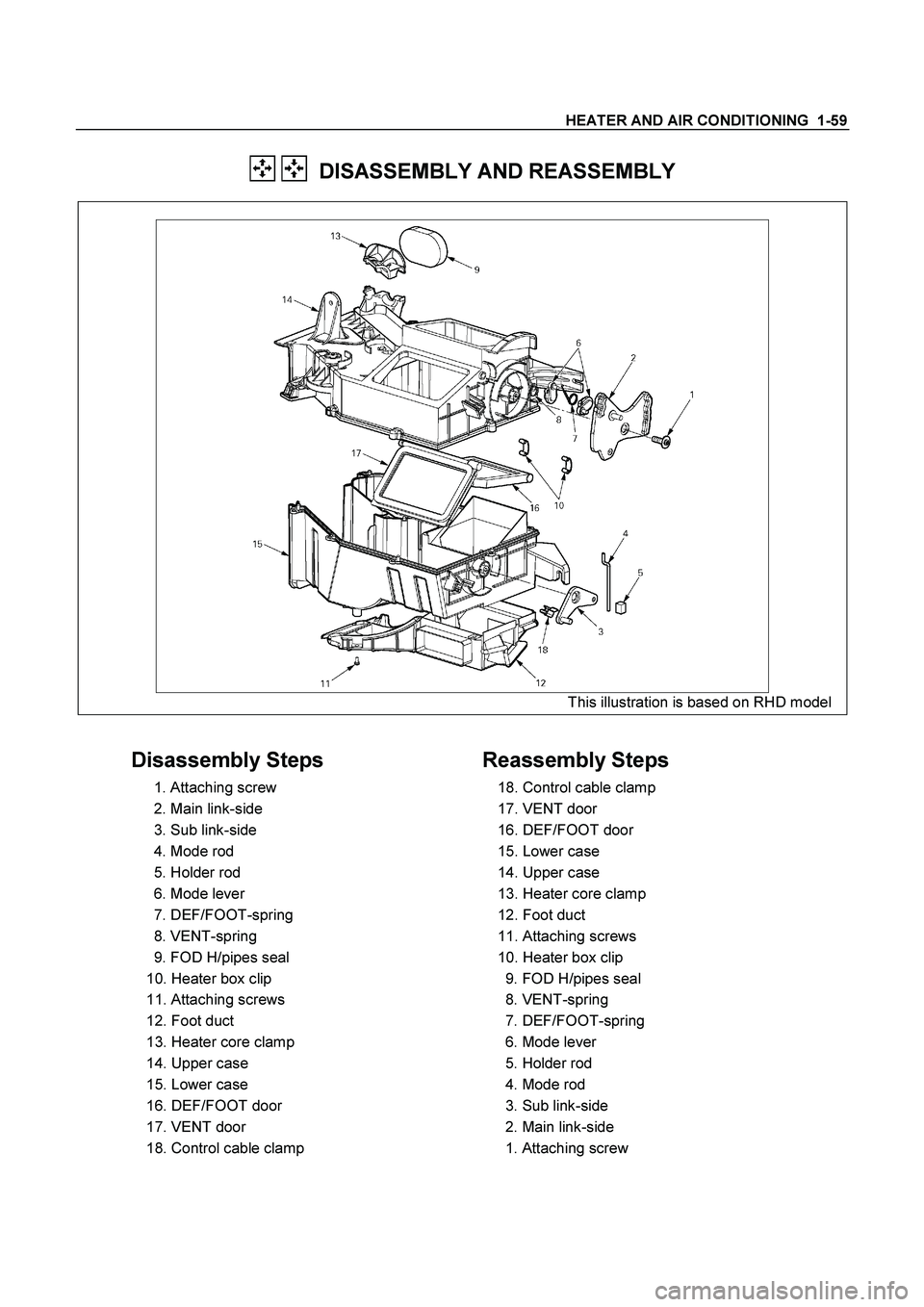

ISUZU TF SERIES 2004 Workshop Manual HEATER AND AIR CONDITIONING 1-59 DISASSEMBLY AND REASSEMBLY This illustration is based on RHD model Disassembly Steps 1. Attaching screw 2. Main link-side 3. Sub link-side

Page 3070 of 4264

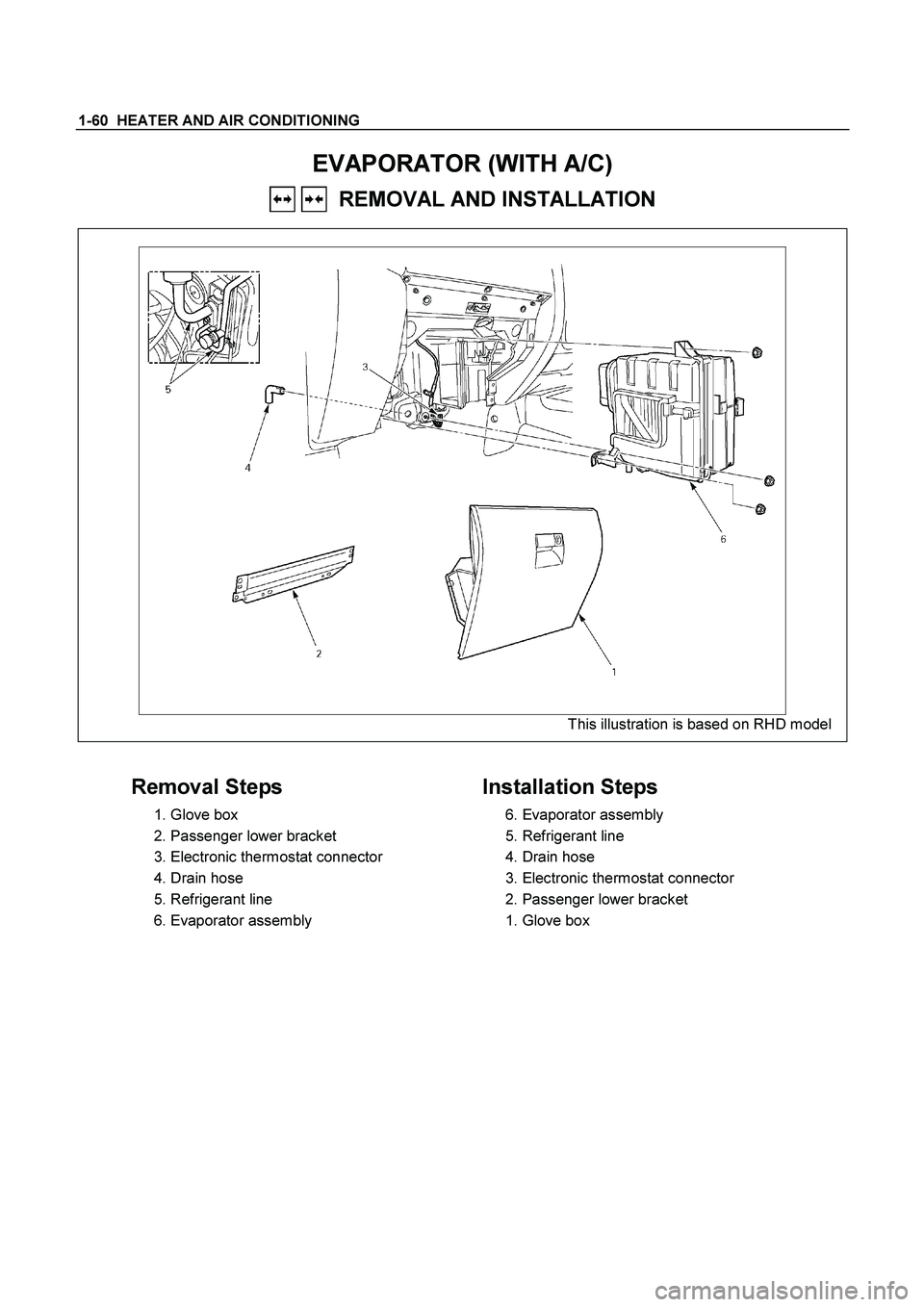

ISUZU TF SERIES 2004 Workshop Manual 1-60 HEATER AND AIR CONDITIONING EVAPORATOR (WITH A/C) REMOVAL AND INSTALLATION This illustration is based on RHD model Removal Steps 1. Glove box 2. Passenger lower bracket

Page 3071 of 4264

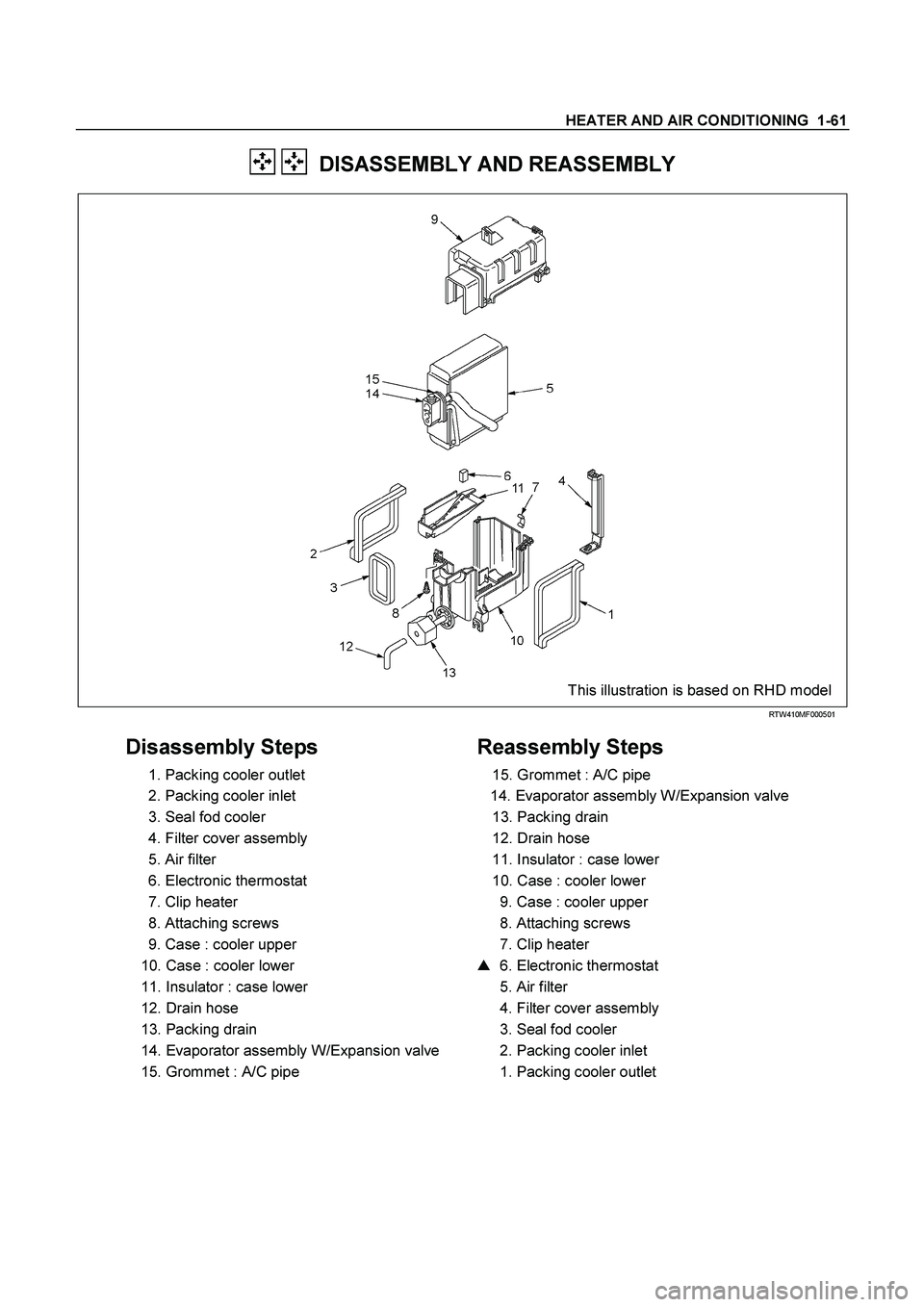

ISUZU TF SERIES 2004 Workshop Manual HEATER AND AIR CONDITIONING 1-61 DISASSEMBLY AND REASSEMBLY This illustration is based on RHD model RTW410MF000501 Disassembly Steps 1. Packing cooler outlet 2. Packing cooler

Page 3072 of 4264

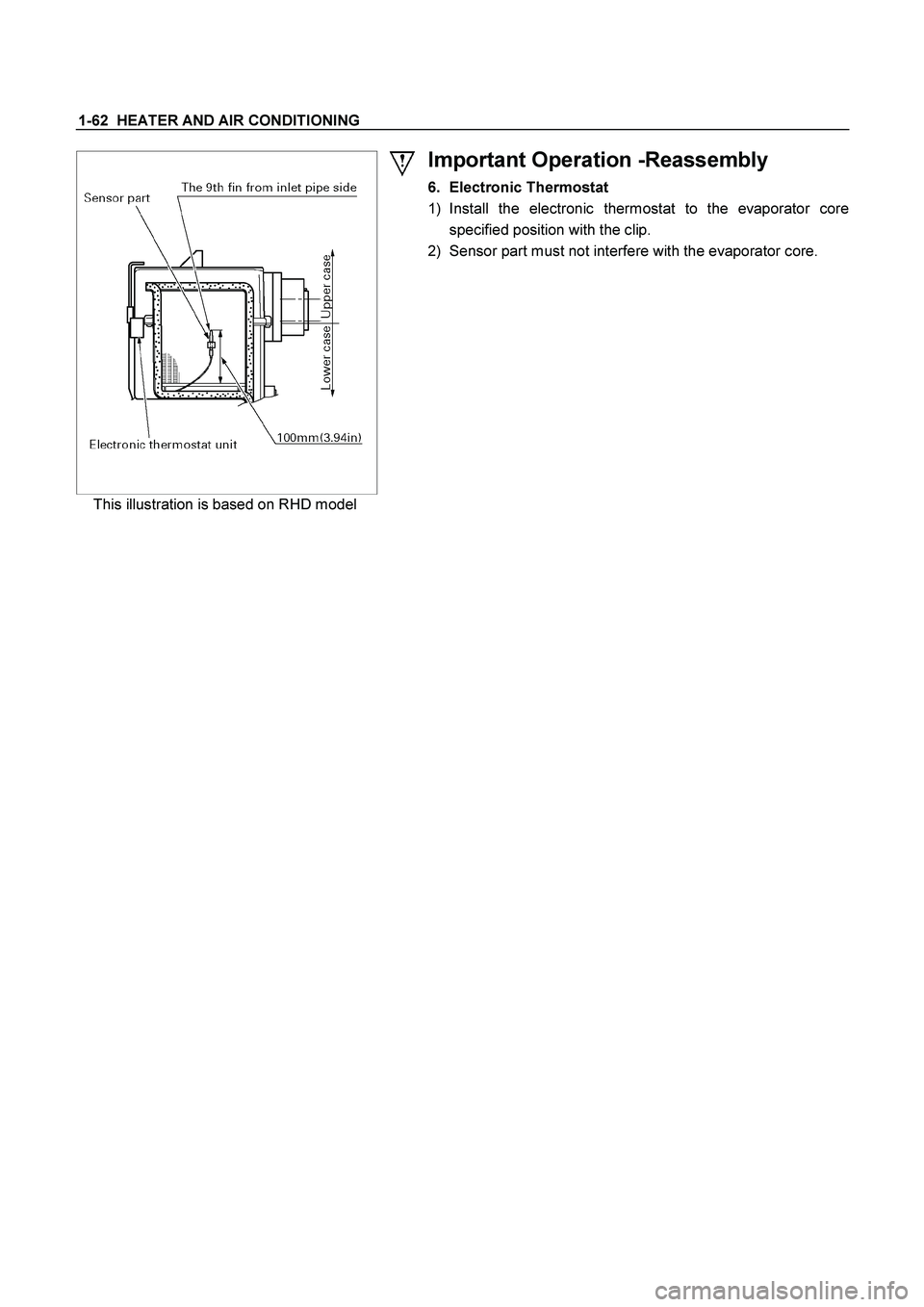

ISUZU TF SERIES 2004 Workshop Manual 1-62 HEATER AND AIR CONDITIONING This illustration is based on RHD model Important Operation -Reassembly 6. Electronic Thermostat 1) Install the electronic thermostat to the evaporator core sp
