Page 2017 of 4264

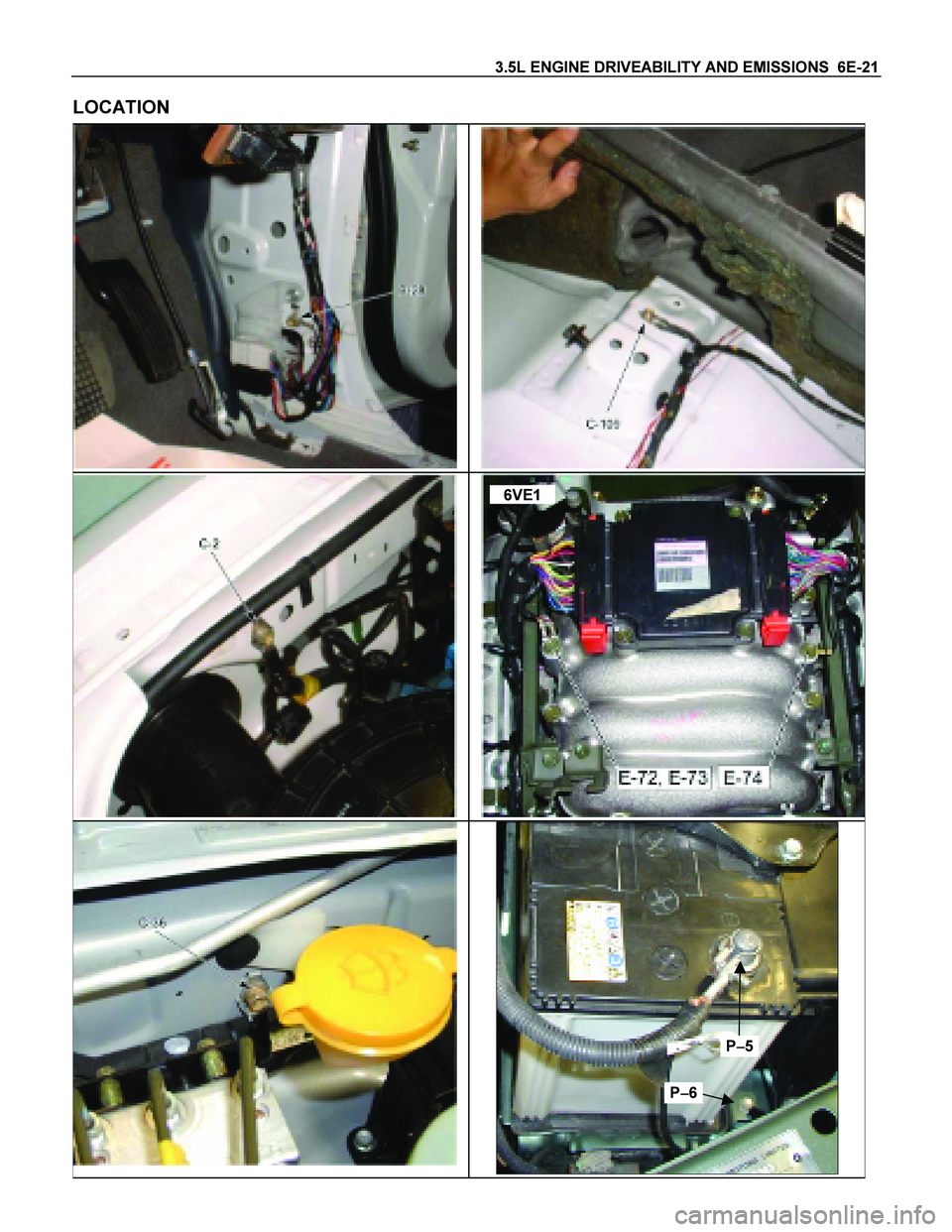

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-21
LOCATION
P
5
P
6
6VE1
Page 2018 of 4264

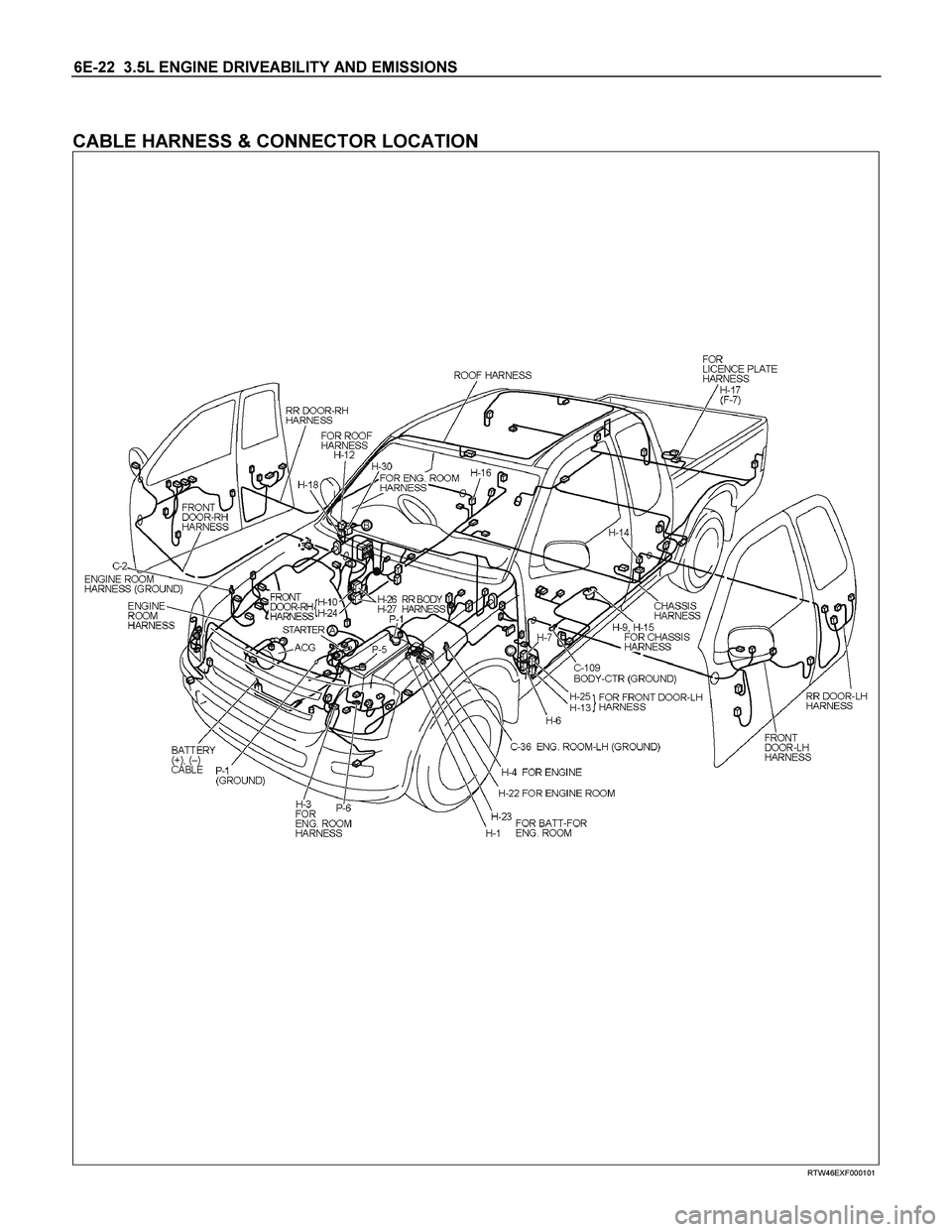

6E-22 3.5L ENGINE DRIVEABILITY AND EMISSIONS
CABLE HARNESS & CONNECTOR LOCATION
RTW46EXF000101
Page 2019 of 4264

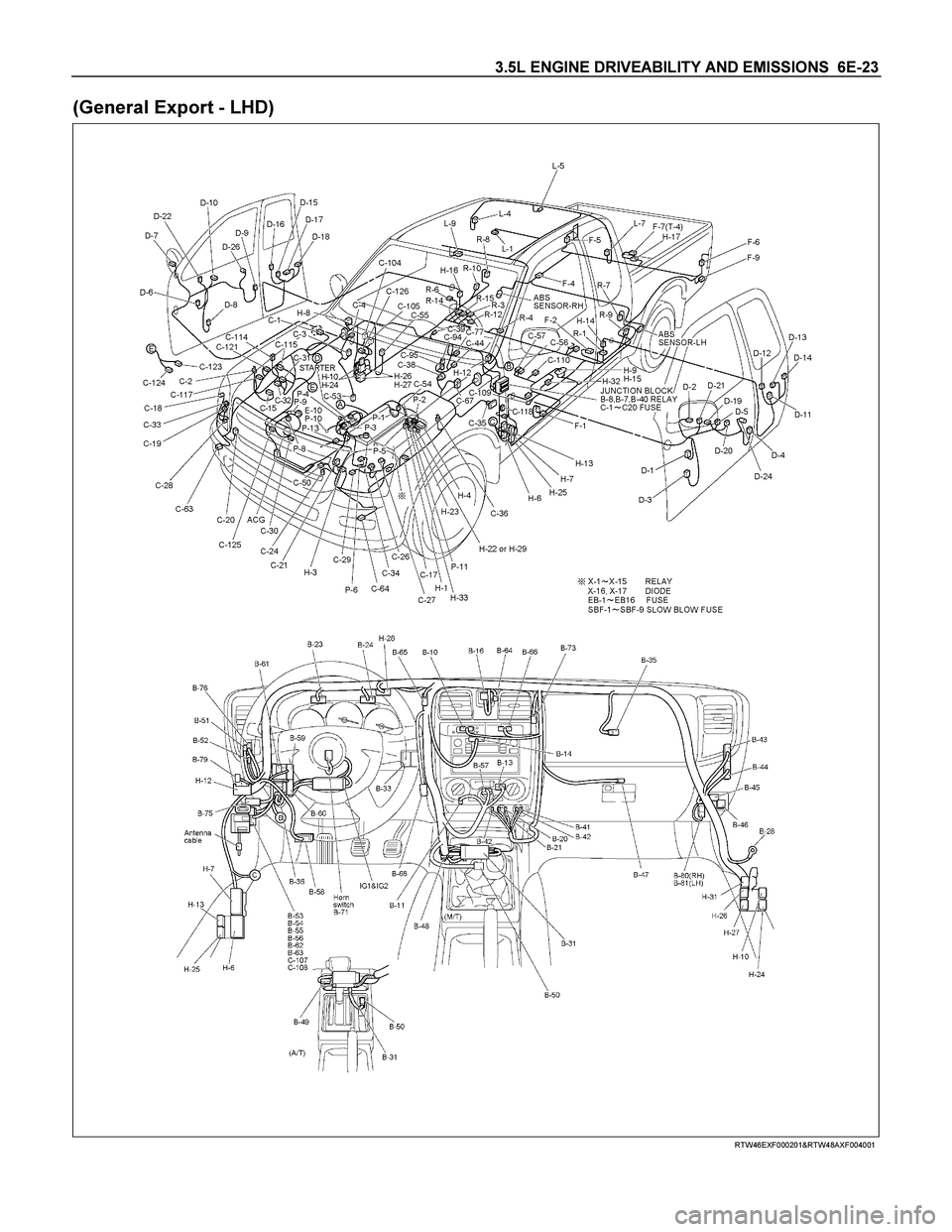

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-23
(General Export - LHD)
RTW46EXF000201&RTW48AXF004001
Page 2020 of 4264

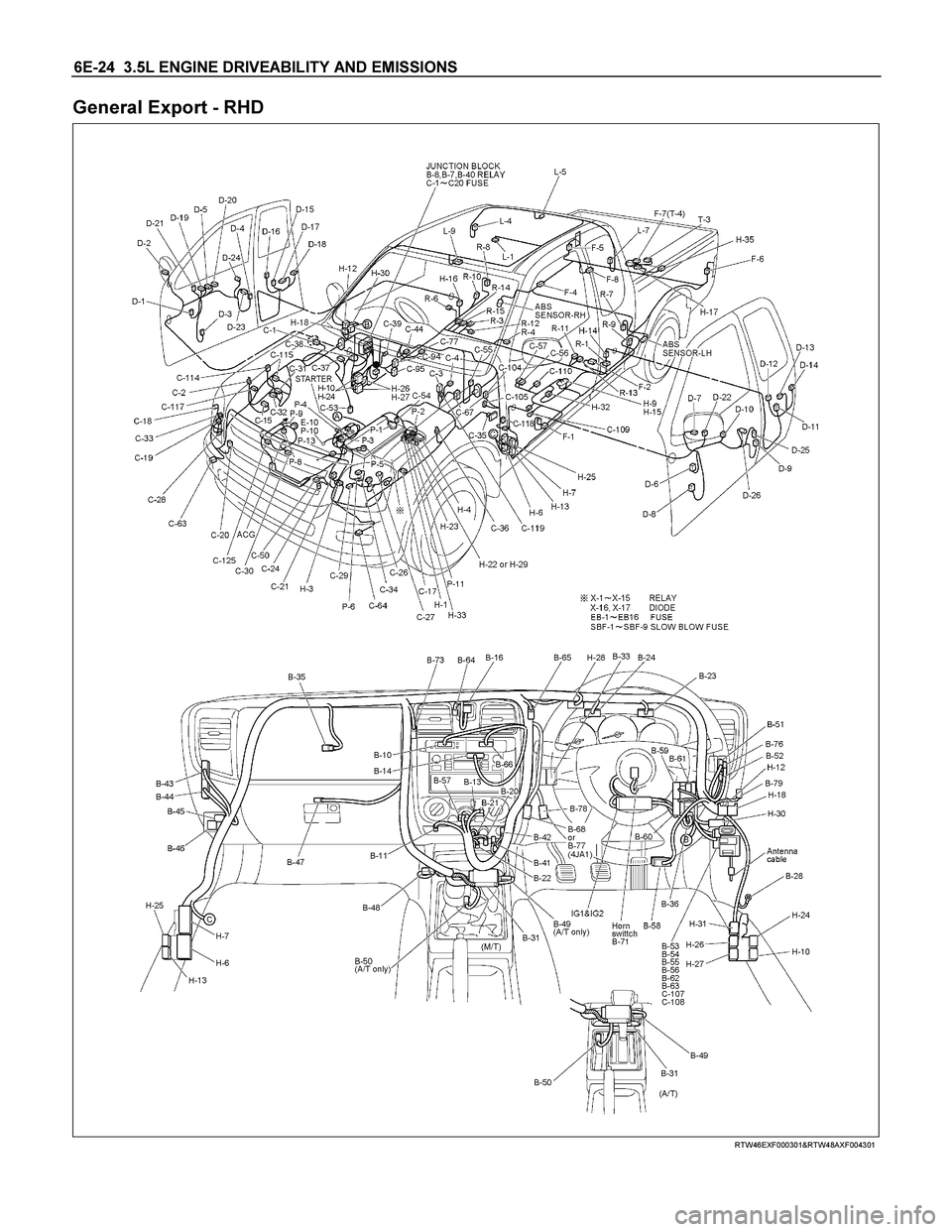

6E-24 3.5L ENGINE DRIVEABILITY AND EMISSIONS
General Export - RHD
RTW46EXF000301&RTW48AXF004301
Page 2021 of 4264

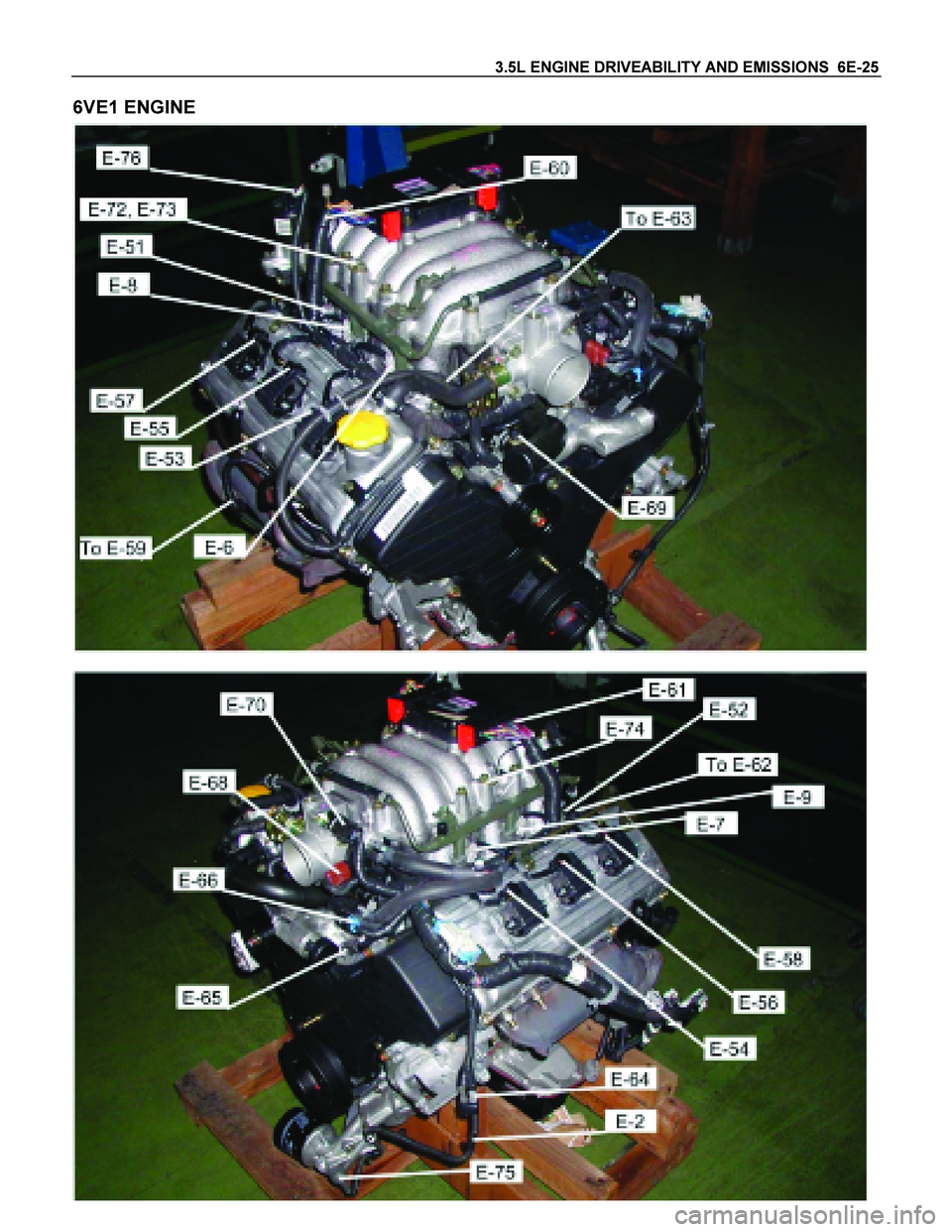

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-25
6VE1 ENGINE
Page 2022 of 4264

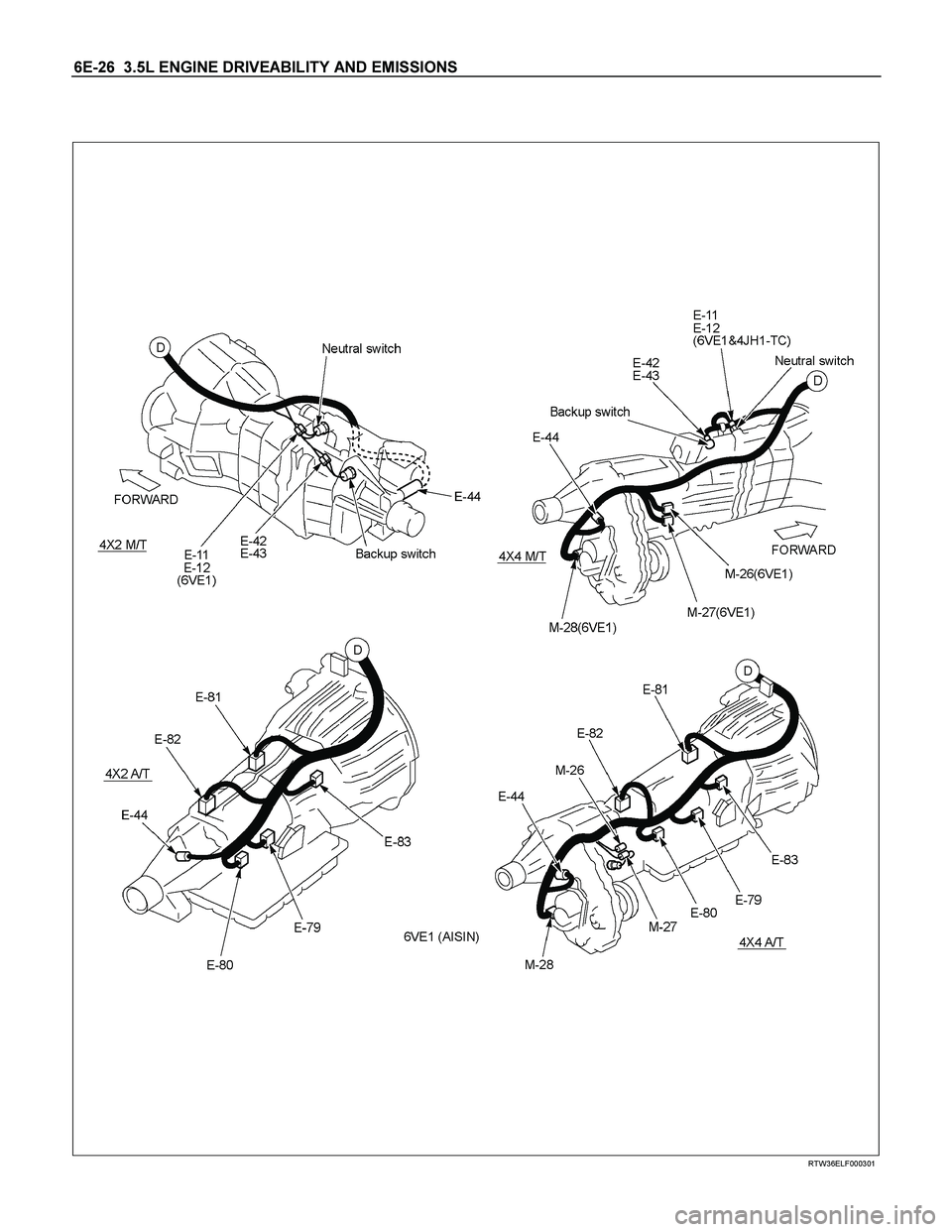

6E-26 3.5L ENGINE DRIVEABILITY AND EMISSIONS
RTW36ELF000301
Page 2023 of 4264

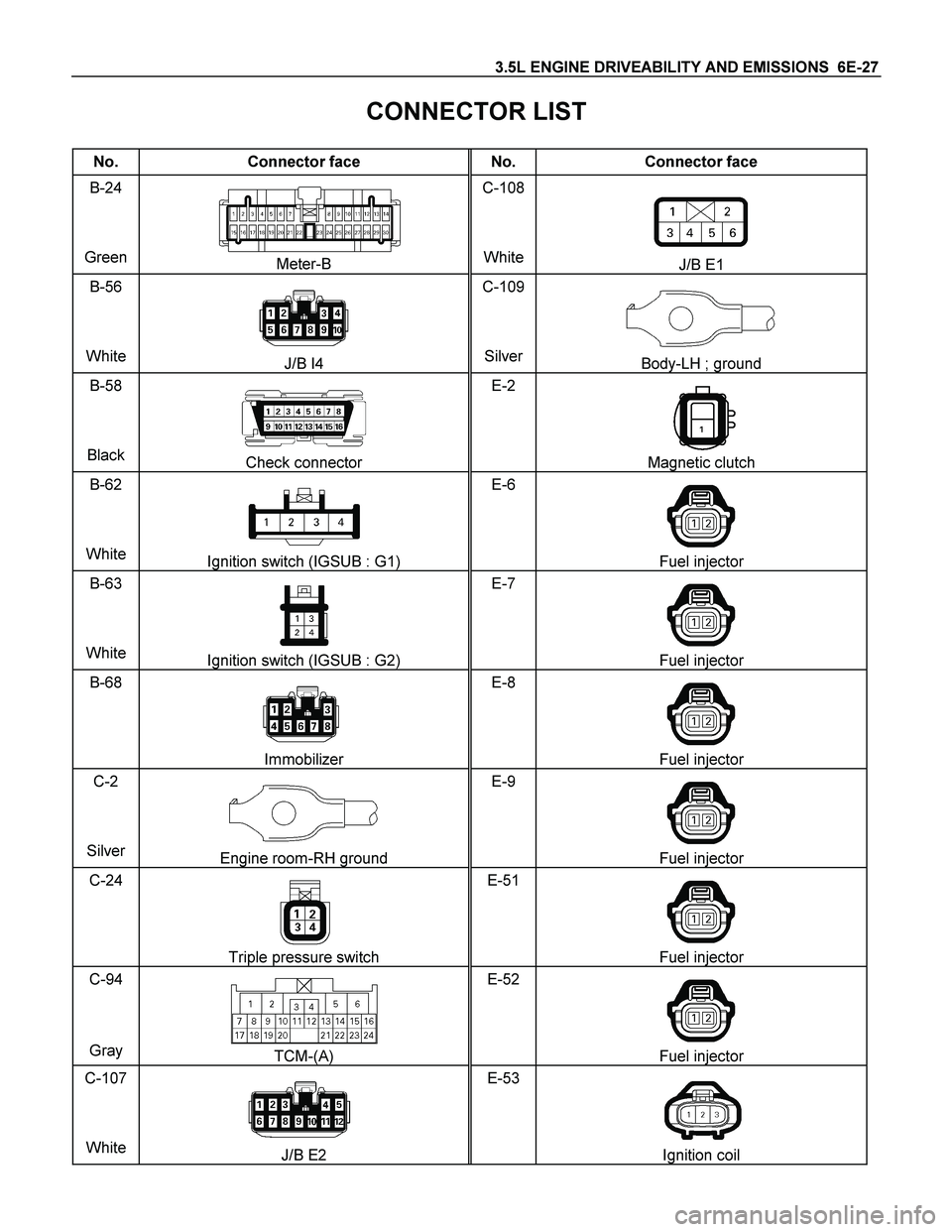

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-27
CONNECTOR LIST
No. Connector face No. Connector face
B-24
Green
Meter-B C-108
WhiteJ/B E1
B-56
White
J/B I4 C-109
SilverBody-LH ; ground
B-58
Black
Check connector E-2
Magnetic clutch
B-62
White
Ignition switch (IGSUB : G1) E-6
Fuel injector
B-63
White
Ignition switch (IGSUB : G2) E-7
Fuel injector
B-68
Immobilizer E-8
Fuel injector
C-2
Silver
Engine room-RH ground E-9
Fuel injector
C-24
Triple pressure switch E-51
Fuel injector
C-94
Gray TCM-(A) E-52
Fuel injector
C-107
White
J/B E2 E-53
Ignition coil
Page 2024 of 4264

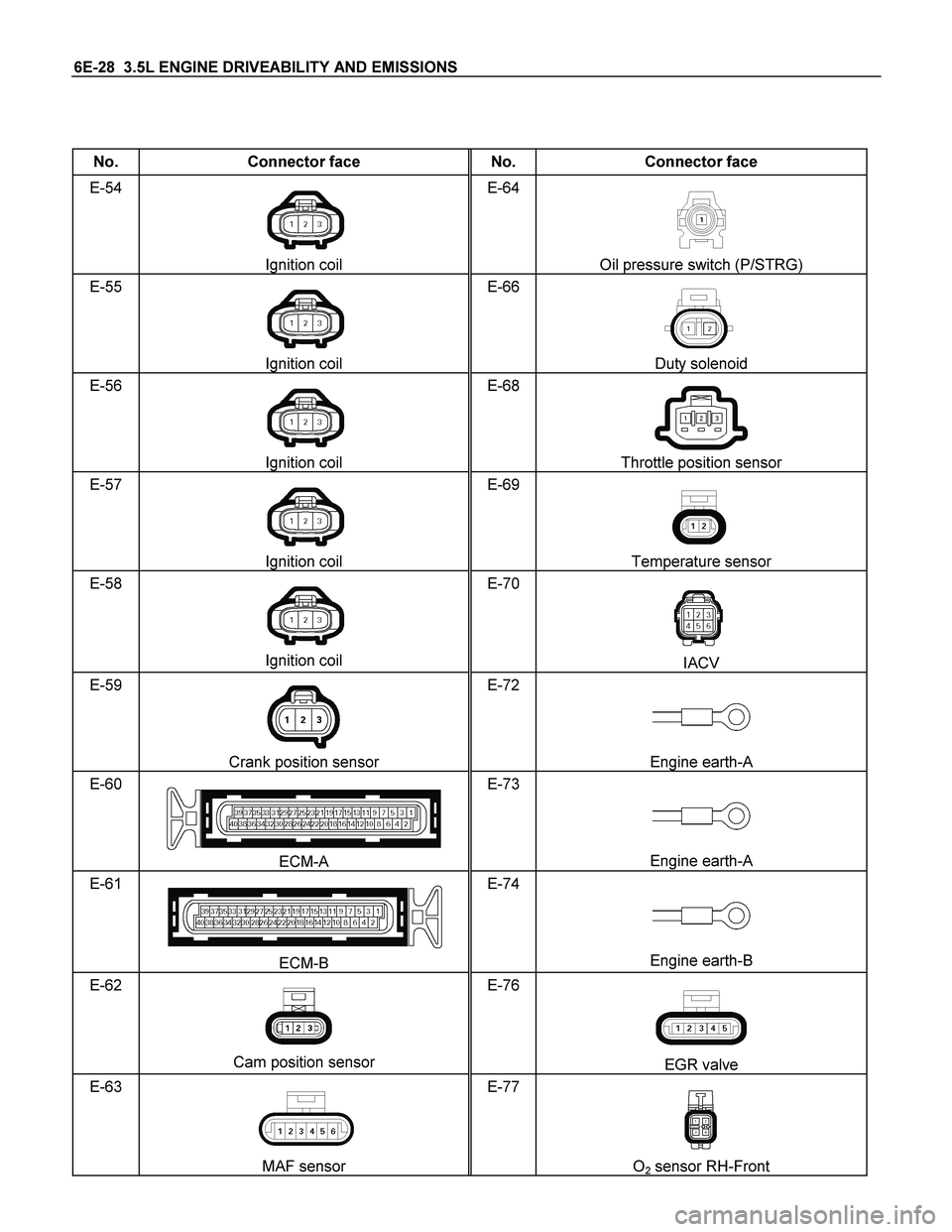

6E-28 3.5L ENGINE DRIVEABILITY AND EMISSIONS
No. Connector face No. Connector face
E-54
Ignition coil E-64
Oil pressure switch (P/STRG)
E-55
Ignition coil E-66
Duty solenoid
E-56
Ignition coil E-68
Throttle position sensor
E-57
Ignition coil E-69
Temperature sensor
E-58
Ignition coil E-70
IACV
E-59
Crank position sensor E-72
Engine earth-A
E-60
ECM-A E-73
Engine earth-A
E-61
ECM-B E-74
Engine earth-B
E-62
Cam position sensor E-76
EGR valve
E-63
MAF sensor E-77
O2 sensor RH-Front
