Page 57 of 4264

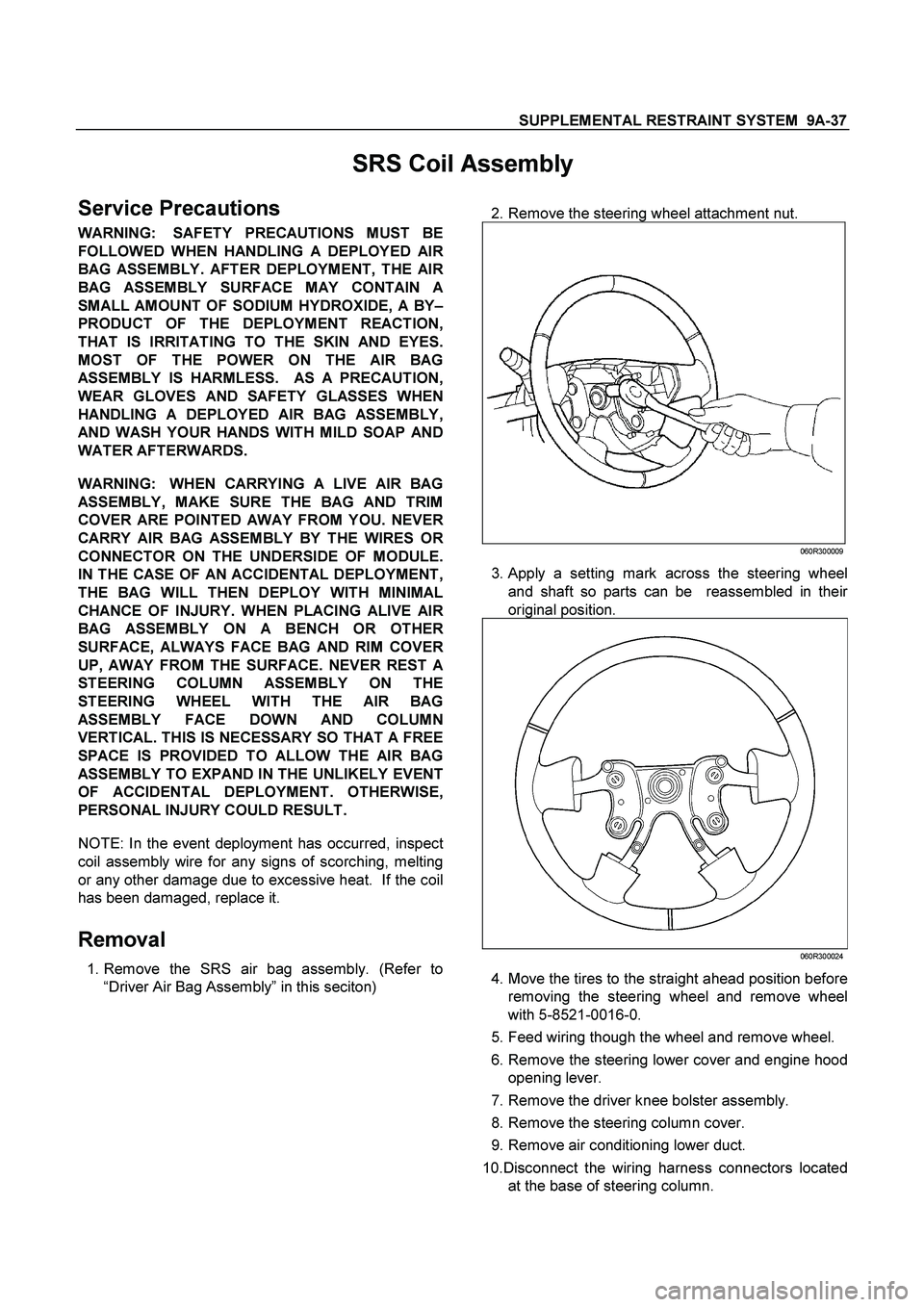

SUPPLEMENTAL RESTRAINT SYSTEM 9A-37
SRS Coil Assembly
Service Precautions
WARNING: SAFETY PRECAUTIONS MUST BE
FOLLOWED WHEN HANDLING A DEPLOYED AI
R
BAG ASSEMBLY. AFTER DEPLOYMENT, THE AIR
BAG ASSEMBLY SURFACE MAY CONTAIN A
SMALL AMOUNT OF SODIUM HYDROXIDE, A BY–
PRODUCT OF THE DEPLOYMENT REACTION,
THAT IS IRRITATING TO THE SKIN AND EYES.
MOST OF THE POWER ON THE AIR BAG
ASSEMBLY IS HARMLESS. AS A PRECAUTION,
WEAR GLOVES AND SAFETY GLASSES WHEN
HANDLING A DEPLOYED AIR BAG ASSEMBLY,
AND WASH YOUR HANDS WITH MILD SOAP AND
WATER AFTERWARDS.
WARNING: WHEN CARRYING A LIVE AIR BAG
ASSEMBLY, MAKE SURE THE BAG AND TRIM
COVER ARE POINTED AWAY FROM YOU. NEVE
R
CARRY AIR BAG ASSEMBLY BY THE WIRES OR
CONNECTOR ON THE UNDERSIDE OF MODULE.
IN THE CASE OF AN ACCIDENTAL DEPLOYMENT,
THE BAG WILL THEN DEPLOY WITH MINIMAL
CHANCE OF INJURY. WHEN PLACING ALIVE AI
R
BAG ASSEMBLY ON A BENCH OR OTHER
SURFACE, ALWAYS FACE BAG AND RIM COVER
UP, AWAY FROM THE SURFACE. NEVER REST A
STEERING COLUMN ASSEMBLY ON THE
STEERING WHEEL WITH THE AIR BAG
ASSEMBLY FACE DOWN AND COLUMN
VERTICAL. THIS IS NECESSARY SO THAT A FREE
SPACE IS PROVIDED TO ALLOW THE AIR BAG
ASSEMBLY TO EXPAND IN THE UNLIKELY EVENT
OF ACCIDENTAL DEPLOYMENT. OTHERWISE,
PERSONAL INJURY COULD RESULT.
NOTE: In the event deployment has occurred, inspec
t
coil assembly wire for any signs of scorching, melting
or any other damage due to excessive heat. If the coil
has been damaged, replace it.
Removal
1. Remove the SRS air bag assembly. (Refer to
“Driver Air Bag Assembly” in this seciton)
2. Remove the steering wheel attachment nut.
060R300009
3. Apply a setting mark across the steering wheel
and shaft so parts can be reassembled in thei
r
original position.
060R300024
4. Move the tires to the straight ahead position before
removing the steering wheel and remove wheel
with 5-8521-0016-0.
5. Feed wiring though the wheel and remove wheel.
6. Remove the steering lower cover and engine hood
opening lever.
7. Remove the driver knee bolster assembly.
8. Remove the steering column cover.
9. Remove air conditioning lower duct.
10.Disconnect the wiring harness connectors located
at the base of steering column.
Page 58 of 4264

9A-38 SUPPLEMENTAL RESTRAINT SYSTEM
CAUTION: Never apply force to the steering wheel
in the direction of the shaft by using a hammer o
r
other impact tools in an attempt to remove the
steering wheel. The steering shaft is designed as
an energy absorbing unit.
11. Remove the combination switch assembly with
SRS coil.
NOTE: SRS coil is a part of combination switch
assembly, which cannot be replaced separately.
Therefore, be sure not to remove the SRS coil from
the combination switch assembly.
Installation
1. Install the combination switch assembly with SRS
coil.
2. Turn the SRS coil counterclockwise to full, return
about 3 turns and align the neutral mark.
CAUTION: When turning the SRS coil
counterclockwise to full, stop turning if resistance
is felt. Forced further turning may damage the
cable in the SRS coil.
826RW014
Legend
(1) Neutral mark
3. Connect the wiring harness connectors located at
the base of steering column.
4. Install the air conditioning lower duct.
5. Install the steering column cover.
CAUTION: When installing the steering column
cover, be sure to wire (through each harness) as
illustrated so that the harness starter switch,
combination switch and SRS coil may not catch
wiring.
825RS048
6. Install the driver knee bolster assembly.
7. Install the steering lower cover and engine hood
opening lever.
8. Install the steering wheel and align the setting
marks.
060R300024
Page 59 of 4264
SUPPLEMENTAL RESTRAINT SYSTEM 9A-39
NOTE: Confirm SRS and Horn harness connector is
fixed by the steering wheel.
RTW33BSH000601
9. Tighten the steering wheel fixing nut to the
specified torque.
Torque: 35 N
m (3.5 kg
m/25 lb ft)
10. Install the SRS air bag assembly. (Refer to “Drive
r
Air Bag Assembly in this section).
Page 60 of 4264

9A-40 SUPPLEMENTAL RESTRAINT SYSTEM
Steering Column
Service Precautions
WARNING: SAFETY PRECAUTIONS MUST BE
FOLLOWED WHEN HANDLING A DEPLOYED AI
R
BAG ASSEMBLY. AFTER DEPLOYMENT, THE AIR
BAG ASSEMBLY SURFACE MAY CONTAIN A
SMALL AMOUNT OF SODIUM HYDROXIDE, A BY–
PRODUCT OF THE DEPLOYMENT REACTION,
THAT IS IRRITATING TO THE SKIN AND EYES.
MOST OF THE POWER ON THE AIR BAG
ASSEMBLY IS HARMLESS. AS A PRECAUTION,
WEAR GLOVES AND SAFETY GLASSES WHEN
HANDLING A DEPLOYED AIR BAG ASSEMBLY,
AND WASH YOUR HANDS WITH MILD SOAP AND
WATER AFTERWARDS.
WARNING: WHEN CARRYING A LIVE AIR BAG
ASSEMBLY, MAKE SURE THE BAG AND TRIM
COVER ARE POINTED AWAY FROM YOU. NEVE
R
CARRY AIR BAG ASSEMBLY BY THE WIRES OR
CONNECTOR ON THE UNDERSIDE OF MODULE.
IN THE CASE OF AN ACCIDENTAL DEPLOYMENT,
THE BAG WILL THEN DEPLOY WITH MINIMAL
CHANCE OF INJURY. WHEN PLACING ALIVE AI
R
BAG ASSEMBLY ON A BENCH OR OTHER
SURFACE, ALWAYS FACE BAG AND RIM COVER
UP, AWAY FROM THE SURFACE. NEVER REST A
STEERING COLUMN ASSEMBLY ON THE
STEERING WHEEL WITH THE AIR BAG
ASSEMBLY FACE DOWN AND COLUMN
VERTICAL. THIS IS NECESSARY SO THAT A FREE
SPACE IS PROVIDED TO ALLOW THE AIR BAG
ASSEMBLY TO EXPAND IN THE UNLIKELY EVENT
OF ACCIDENTAL DEPLOYMENT. OTHERWISE,
PERSONAL INJURY COULD RESULT.
In the event deployment has occurred, inspect coil
assembly wire for any signs of scorching, melting o
r
any other damage due to excessive heat. If the coil
has been damaged, replace it.
Removal
1. Remove the SRS air bag assembly. (Refer to
“Driver Air Bag Assembly” in this section)
2. Remove the steering wheel attachment nut.
060R300009
3. Apply a setting mark across the steering wheel
and shaft so parts can be reassembled in thei
r
original position.
060R300024
4. Move the tires to the straight ahead position before
removing the steering wheel and removing wheel
with 5-8521-0016-0.
5. Feed wiring though the wheel and remove wheel.
6. Remove the steering lower cover and engine hood
opening lever.
Page 61 of 4264

SUPPLEMENTAL RESTRAINT SYSTEM 9A-41
7. Remove the driver knee bolster assembly.
RTW49JSH000401
Legend
(1) RHD
(2) LHD
8. Remove the steering column cover.
9. Disconnect the wiring harness connectors located
at the base of steering column.
CAUTION: Never apply force to the steering wheel
in direction of the shaft by using a hammer o
r
other impact tools in an attempt to remove the
steering wheel. The steering shaft is designed as
an energy absorbing unit.
10. Remove the combination switch assembly with
SRS coil.
SRS coil is a part of combination switch assembly,
which cannot be replaced separately. Therefore, be
sure not to remove the SRS coil from the combination
switch assembly.
11.Remove the snap ring.
12. Remove the cushion rubber.
13. Disconnect shift lock cable (A/T only).
14.Disconnect the starter switch harness connecto
r
located base of steering column.
15. Remove steering lock cylinder assembly.
16.Apply a setting mark across the universal joint and
steering shaft to reassemble the parts in thei
r
original position.
060R300038
17.Remove steering column assembly.
Installation
1. Install the steering column assembly and align the
setting marks on the universal joint and steering
shaft made during removal.
060R300038
2. Tighten the steering column fixing bolts (dash
panel side) to the specified torque.
Torque: 20 N
m (2.0 kg
m/14 lb ft)
3. Tighten the steering column fixing bolts (Pedal
bracket) to the specified torque.
Torque: 20 N
m (2.0 kg
m/14 lb ft)
Page 62 of 4264
9A-42 SUPPLEMENTAL RESTRAINT SYSTEM
4. Tighten the universal joint to the specified torque.
Torque: 31 N
m (3.2 kg
m/23 lb ft)
5. Install steering lock cylinder assembly.
6. Connect shift lock cable (For A/T)
7. Install cushion rubber.
8. Install snap ring.
9. Install the combination switch assembly with SRS
coil.
10. Connect the wiring harness connector located on
the base of steering column.
11. Turn the SRS coil counterclockwise to full, return
about 3 turns and align the neutral mark.
CAUTION: When turning the SRS coil
counterclockwise to full, stop turning if resistance
is felt. Forced further turning may damage to the
cable in the SRS coil.
826RW014
Legend
(1) Neutral mark
12.Install steering column cover.
CAUTION: When installing the steering column
cover, be sure to wire (through each harness) as
illustrated so that the harness starter switch,
combination switch and SRS coil may not catch
wiring.
825RS048
13.Install the steering wheel and align the setting
marks.
Page 63 of 4264
SUPPLEMENTAL RESTRAINT SYSTEM 9A-43
NOTE: Confirm SRS and Horn harness connector is
fixed by the steering wheel.
RTW33BSH000601
14.Tighten the steering wheel fixing nut to the
specified torque.
Torque: 35 N
m (3.5 kg
m/25 lb ft)
15. Install the SRS air bag assembly. (Refer to “Drive
r
Air Bag Assembly in this section)
Page 64 of 4264

9A-44 SUPPLEMENTAL RESTRAINT SYSTEM
Passenger Air Bag Assembly
Service Precautions
WARNING: SAFETY PRECAUTIONS MUST BE
FOLLOWED WHEN HANDLING A DEPLOYED AI
R
BAG ASSEMBLY. AFTER DEPLOYMENT, THE AIR
BAG ASSEMBLY SURFACE MAY CONTAIN A
SMALL AMOUNT OF SODIUM HYDROXIDE, A BY–
PRODUCT OF THE DEPLOYMENT REACTION,
THAT IS IRRITATING TO THE SKIN AND EYES.
MOST OF THE POWER ON THE AIR BAG
ASSEMBLY IS HARMLESS. AS A PRECAUTION,
WEAR GLOVES AND SAFETY GLASSES WHEN
HANDLING A DEPLOYED AIR BAG ASSEMBLY,
AND WASH YOUR HANDS WITH MILD SOAP AND
WATER AFTERWARDS.
WARNING: WHEN CARRYING A LIVE AIR BAG
ASSEMBLY, MAKE SURE THE BAG AND TRIM
COVER ARE POINTED AWAY FROM YOU. NEVE
R
CARRY AIR BAG ASSEMBLY BY THE WIRES OR
CONNECTOR ON THE UNDERSIDE OF MODULE.
IN THE CASE OF AN ACCIDENTAL DEPLOYMENT,
THE BAG WILL THEN DEPLOY WITH MINIMAL
CHANCE OF INJURY. WHEN PLACING ALIVE AI
R
BAG ASSEMBLY ON A BENCH OR OTHER
SURFACE, ALWAYS FACE BAG AND RIM COVER
UP, AWAY FROM THE SURFACE. NEVER REST A
STEERING COLUMN ASSEMBLY ON THE
STEERING WHEEL WITH THE AIR BAG
ASSEMBLY FACE DOWN AND COLUMN
VERTICAL. THIS IS NECESSARY SO THAT A FREE
SPACE IS PROVIDED TO ALLOW THE AIR BAG
ASSEMBLY TO EXPAND IN THE UNLIKELY EVENT
OF ACCIDENTAL DEPLOYMENT. OTHERWISE,
PERSONAL INJURY COULD RESULT.
WARNING: IN THE EVENT DEPLOYMENT HAS
OCCURRED, INSPECT COIL ASSEMBLY WIRE
FOR ANY SIGNS OF SCORCHING, MELTING O
R
ANY OTHER DAMAGE DUE TO EXCESSIVE HEAT.
IF THE COIL HAS BEEN DAMAGED, REPLACE IT.
Removal
1. Disable the SRS. (Refer to “Disabling the SRS”in
this section)
2. Remove glove box.
3. Remove glove box cover.
4. Remove passenger air bag assembly fixing bolts
and nuts. Universal joint is used when removing a
nut.
060R300043
060R300044
5. Remove passenger air bag assembly.
6. Disconnect passenger air bag assembly harness
connector.
