Page 2601 of 4264

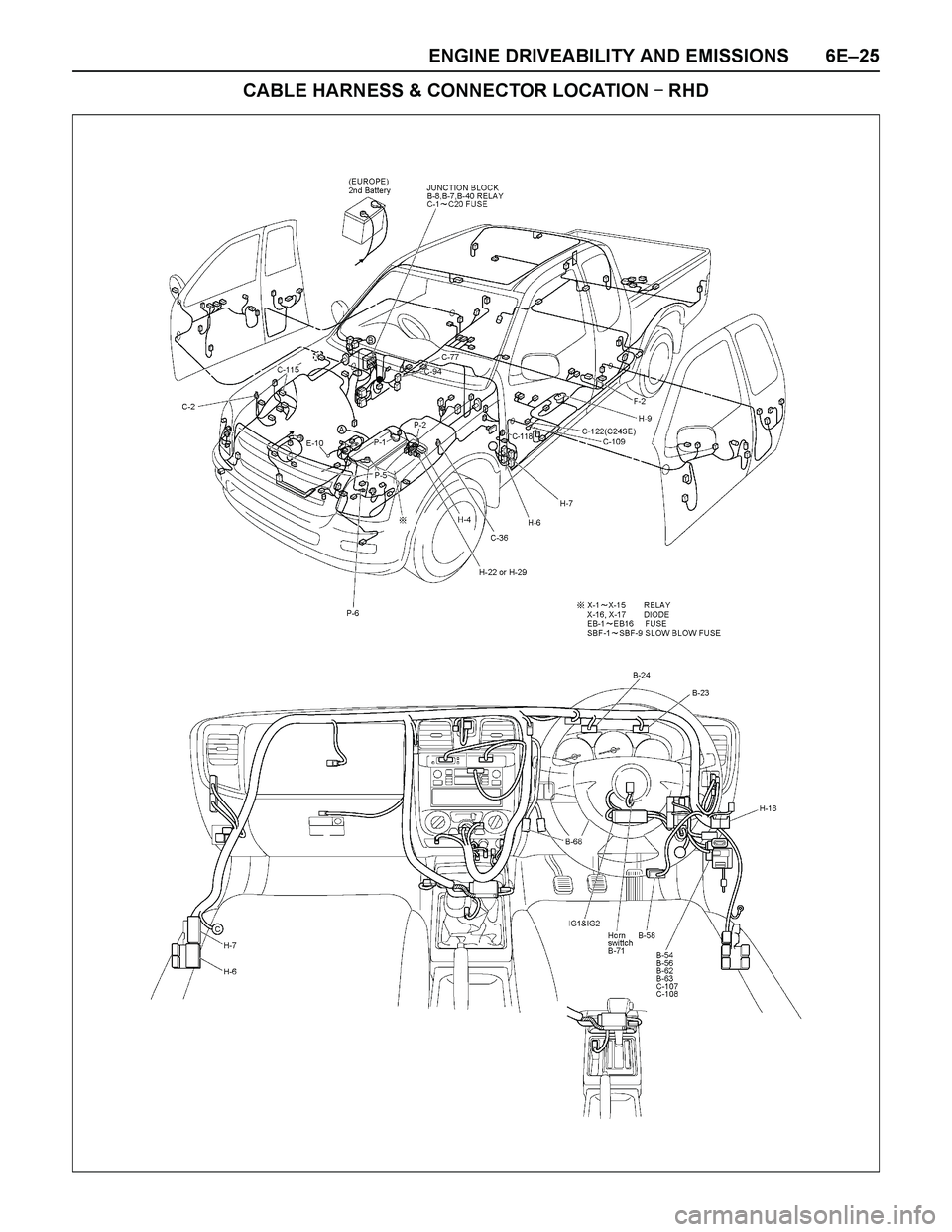

ISUZU TF SERIES 2004 Workshop Manual ENGINE DRIVEABILITY AND EMISSIONS 6E–25 CABLE HARNESS & CONNECTOR LOCATION    RHD

Page 2602 of 4264

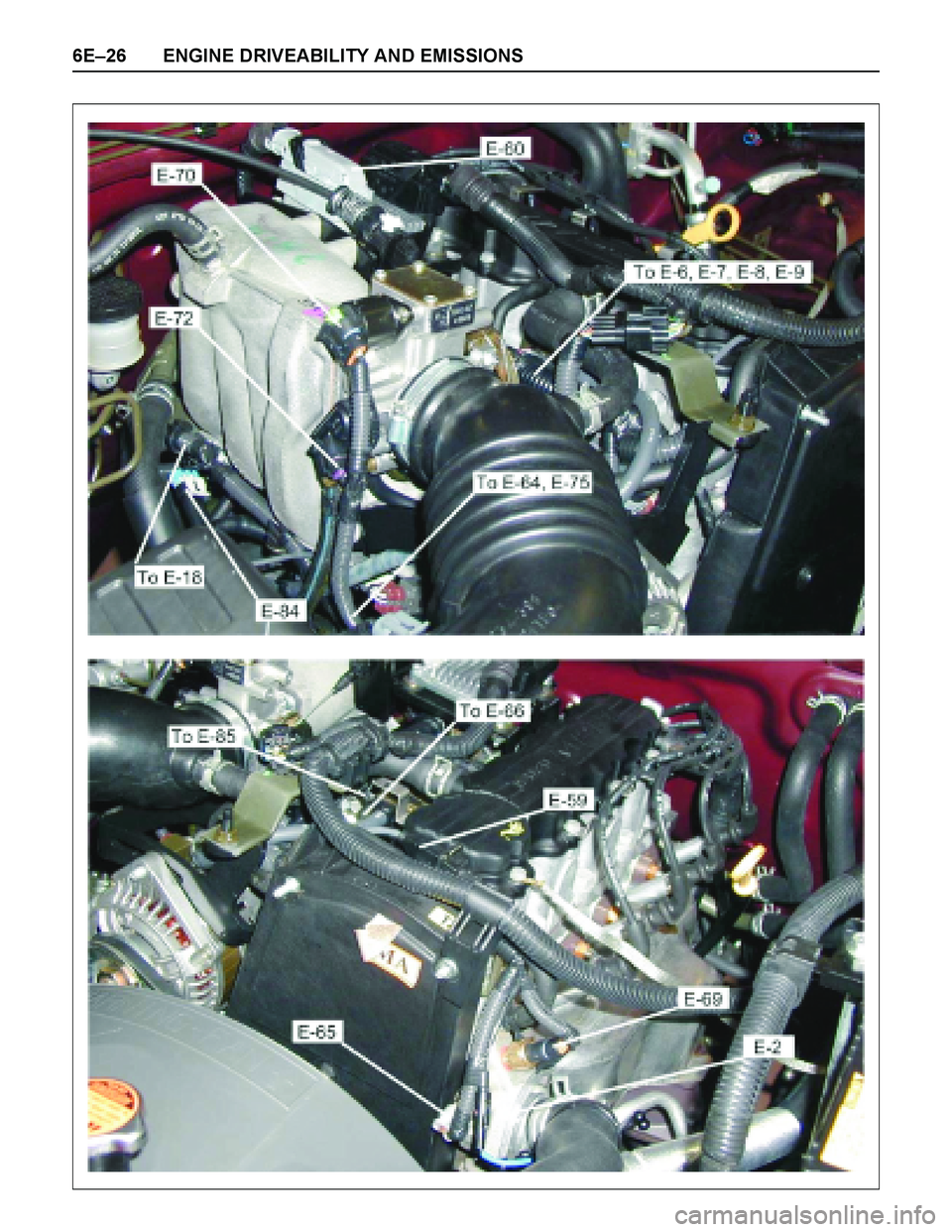

ISUZU TF SERIES 2004 Workshop Manual 6E–26 ENGINE DRIVEABILITY AND EMISSIONS

Page 2603 of 4264

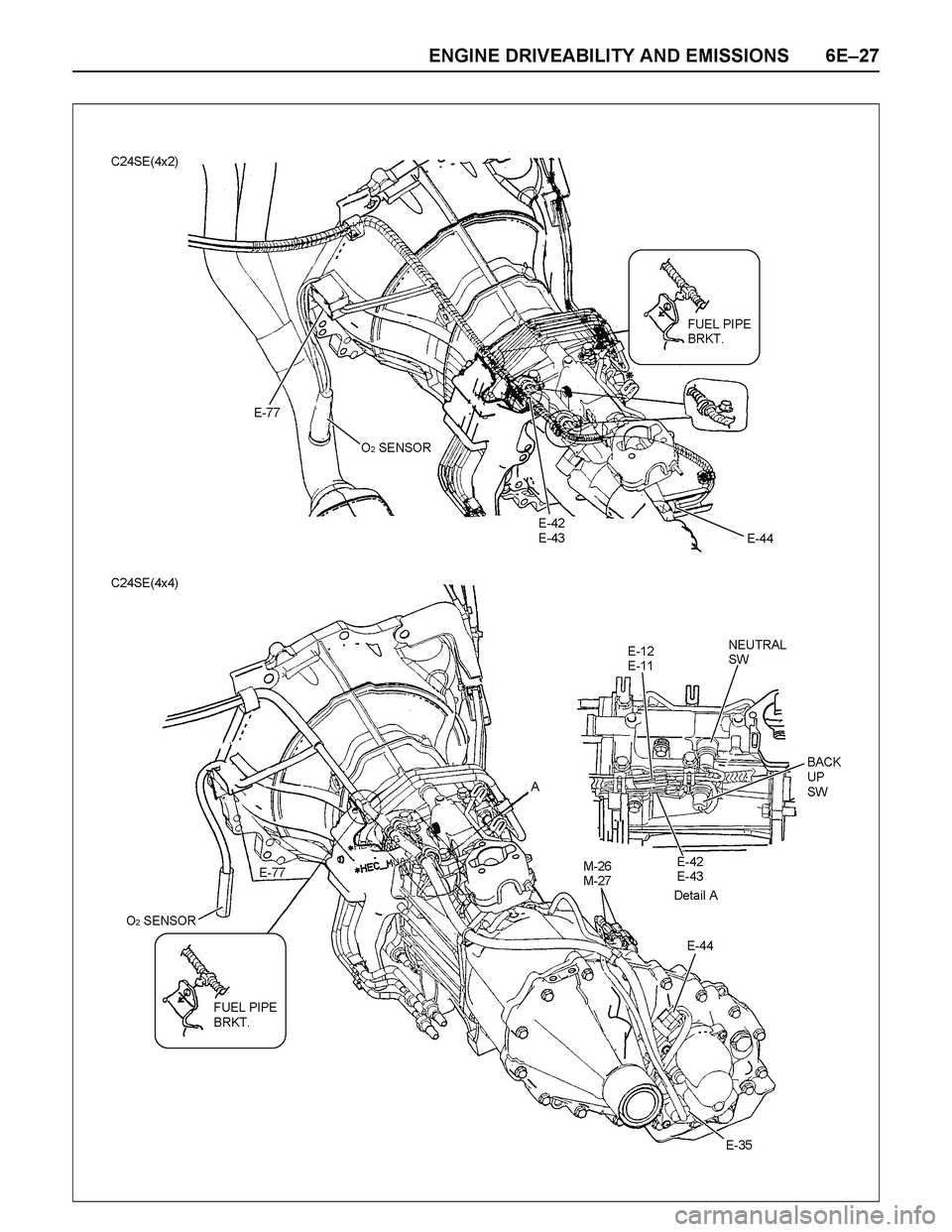

ISUZU TF SERIES 2004 Workshop Manual ENGINE DRIVEABILITY AND EMISSIONS 6E–27

Page 2604 of 4264

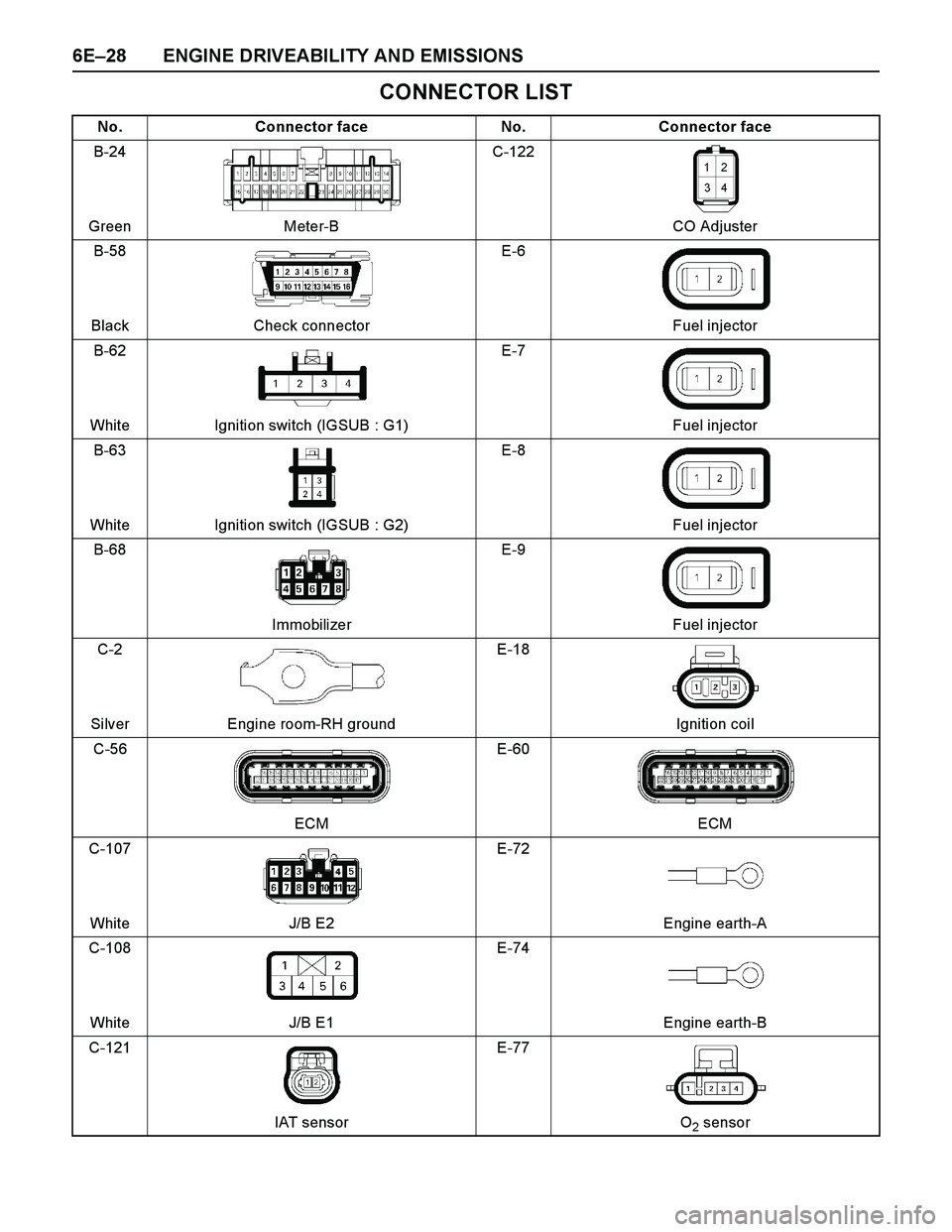

ISUZU TF SERIES 2004 Workshop Manual 6E–28 ENGINE DRIVEABILITY AND EMISSIONS CONNECTOR LIST No. Connector face No. Connector face B-24 Green Meter-BC-122 CO Adjuster B-58 Black Check connectorE-6 Fuel injector B-62 White Ignition switc

Page 2605 of 4264

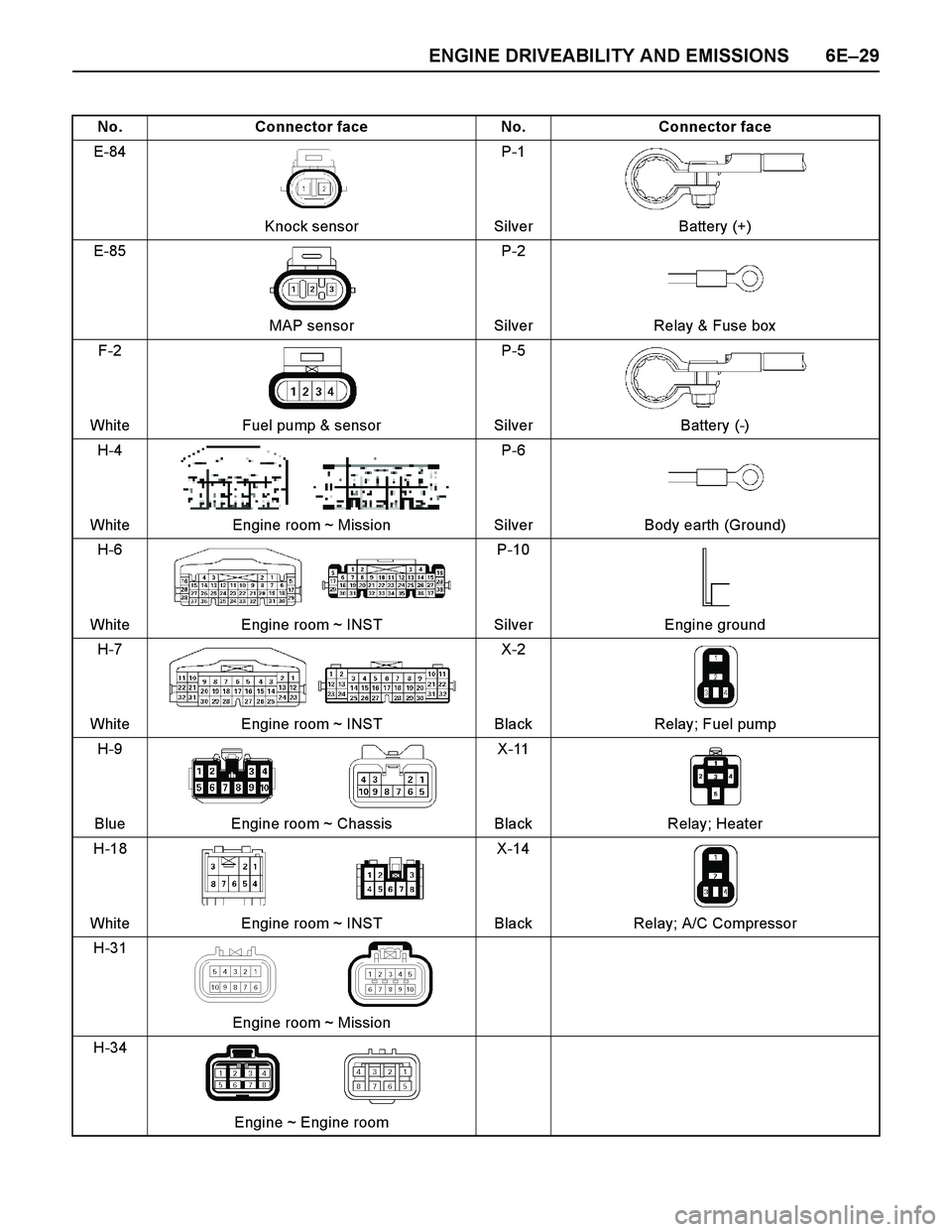

ISUZU TF SERIES 2004 Workshop Manual ENGINE DRIVEABILITY AND EMISSIONS 6E–29 No. Connector face No. Connector face E-84 Knock sensorP-1 Silver Battery (+) E-85 MAP sensorP-2 Silver Relay & Fuse box F-2 White Fuel pump & sensorP-5 Silve

Page 2606 of 4264

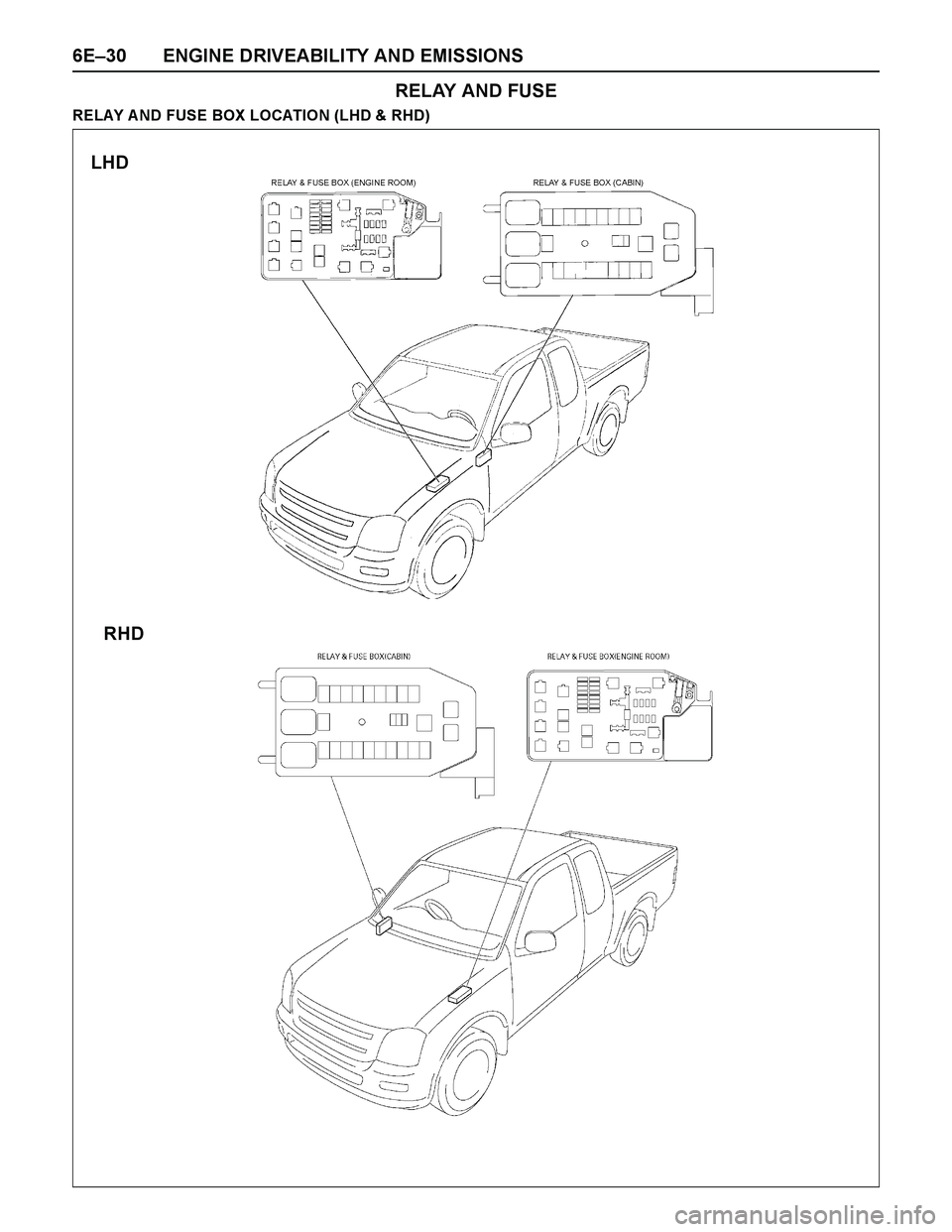

ISUZU TF SERIES 2004 Workshop Manual 6E–30 ENGINE DRIVEABILITY AND EMISSIONS RELAY AND FUSE RELAY A ND FUSE BOX LOCATION (LHD & RHD) LHD RHD

Page 2607 of 4264

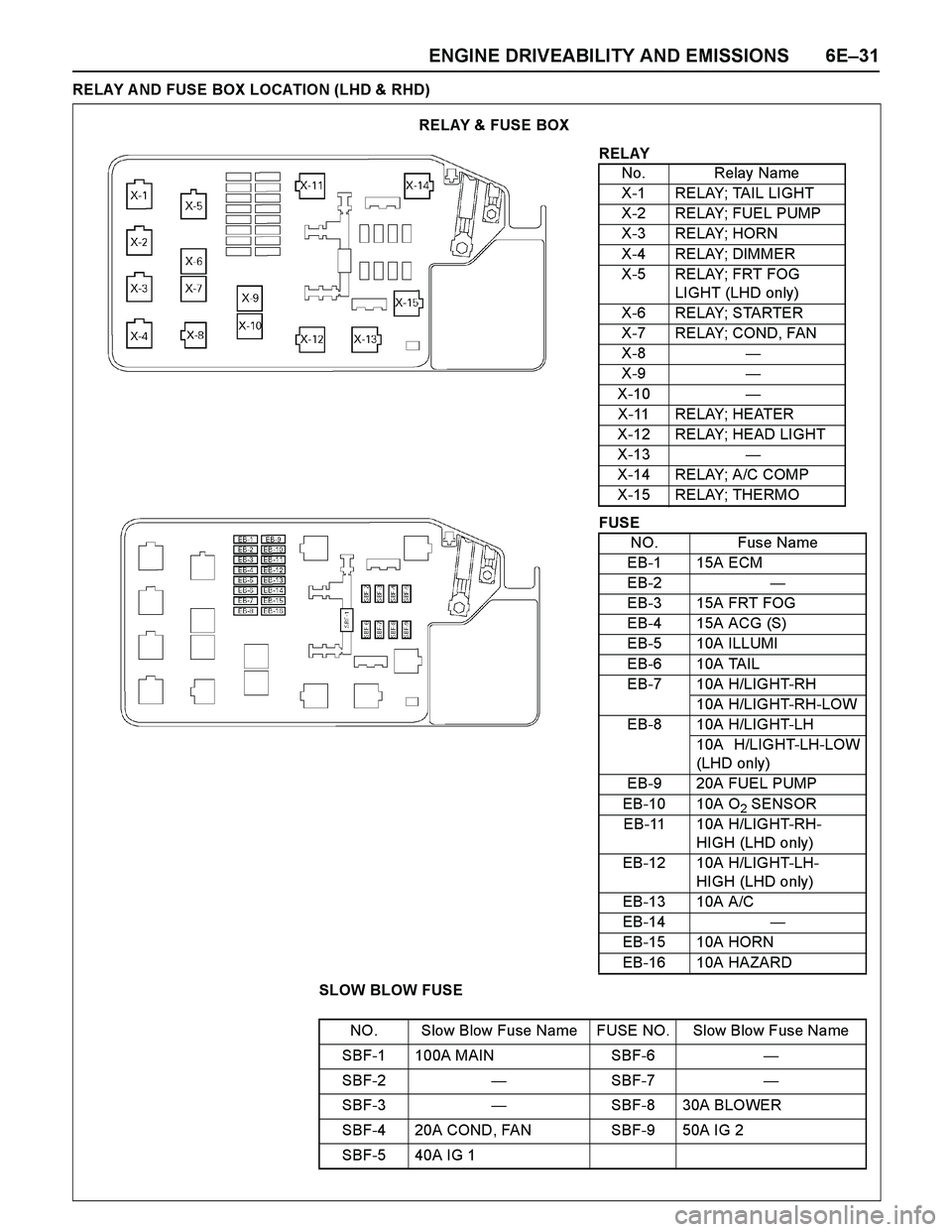

ISUZU TF SERIES 2004 Workshop Manual ENGINE DRIVEABILITY AND EMISSIONS 6E–31 RELAY A ND FUSE BOX LOCATION (LHD & RHD) RELAY & FUSE BOX RELAY No. Relay Name X-1 RELAY; TAIL LIGHT X-2 RELAY; FUEL PUMP X-3 RELAY; HORN X-4 RELAY; DIMMER X-

Page 2608 of 4264

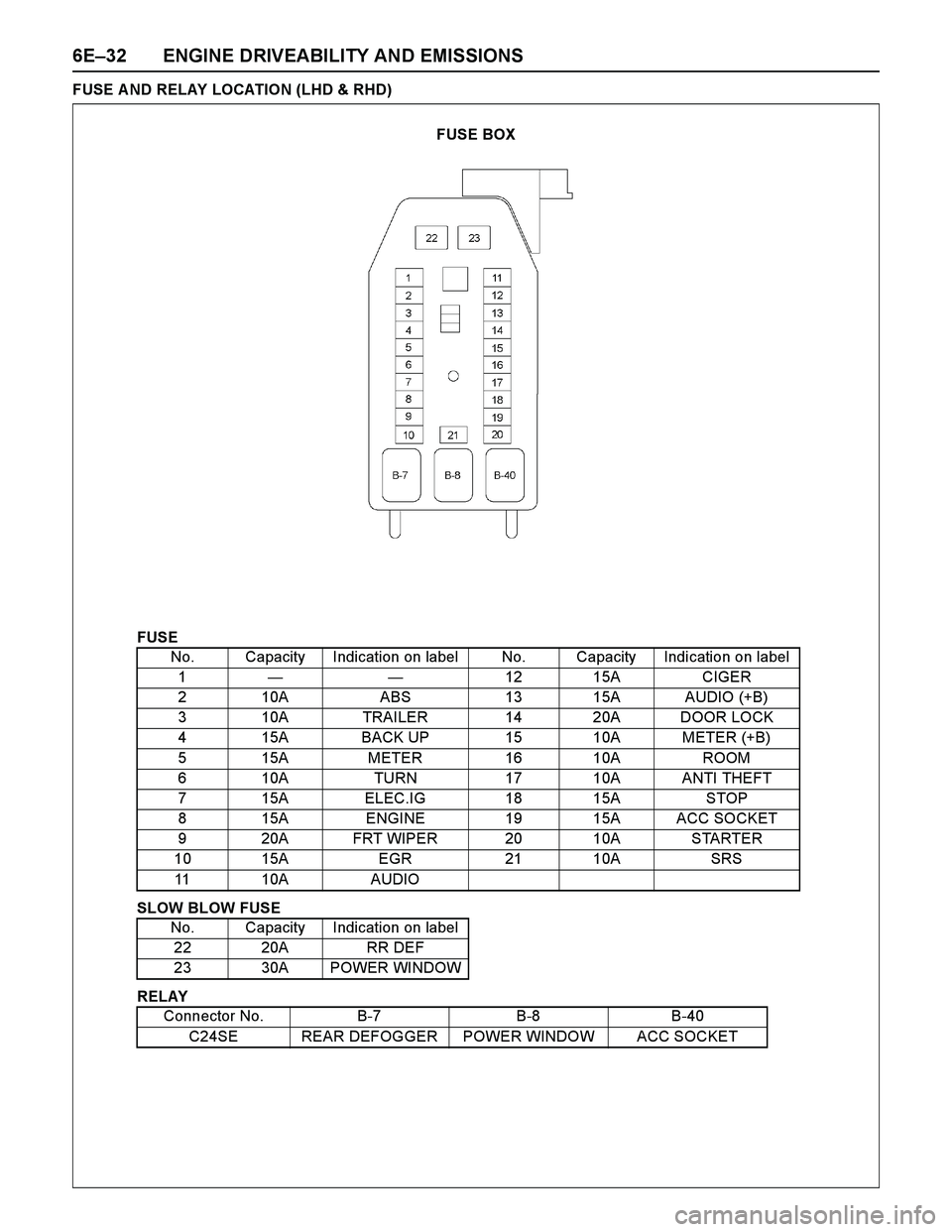

ISUZU TF SERIES 2004 Workshop Manual 6E–32 ENGINE DRIVEABILITY AND EMISSIONS FUSE A ND RELAY LOCATION (LHD & RHD) FUSE SLOW BLOW FUSE RELAYNo. Capacity Indication on label No. Capacity Indication on label 1——12 15A CIGER 2 10A ABS
