ISUZU TF SERIES 2004 Workshop Manual CAB 10-69 Important Operation - Installation 1. Fuel Filler Lid Cable Assembly  Install the cable holder of cable assembly to the recess and push the grommet in to the back panel. Fix the

Page 578 of 4264

ISUZU TF SERIES 2004 Workshop Manual 10-70 CAB QUARTER GLASS (EXTEND CAB) REMOVAL AND INSTALLATION RTW4A0MF000101 Removal Steps  1. Body side rear trim covers 2. Hinge/Faster 3. Quarter glass 4. Weather st

Page 579 of 4264

ISUZU TF SERIES 2004 Workshop Manual CAB 10-71 FRONT SEAT REMOVAL AND INSTALLATION RTW3A0MF000301 Removal Steps  1. Front cover 2. Rear cover 3. Bolt  4. Seat assembly  5. Side seat belt buckle/Pretensi

Page 580 of 4264

ISUZU TF SERIES 2004 Workshop Manual 10-72 CAB Important Operations - Removal 1. Front Cover  While pushing the cover downward, pull it. 4. Seat Assembly  Disconnect the seat belt warning harness connecto r (Driver’s

Page 581 of 4264

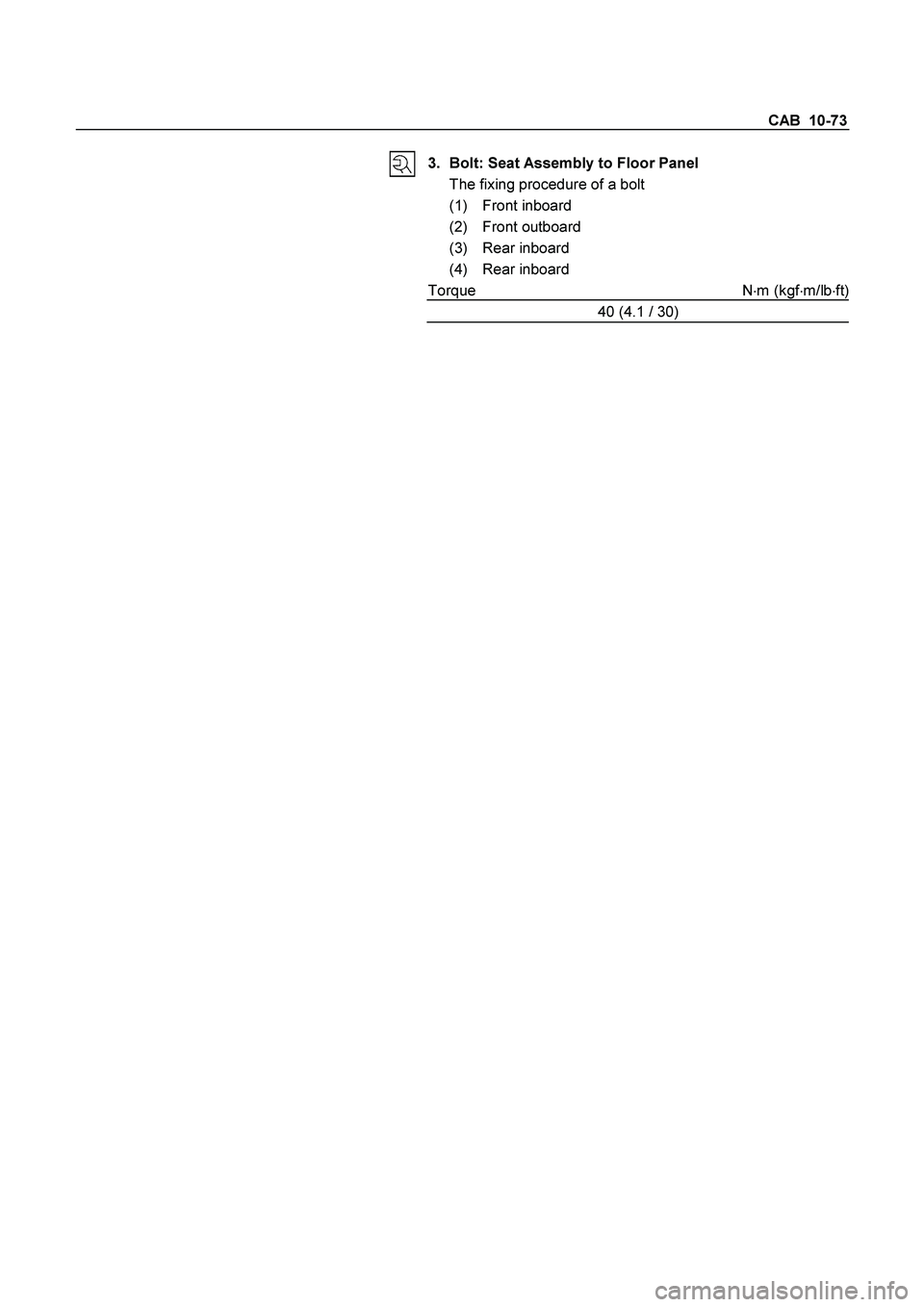

ISUZU TF SERIES 2004 Workshop Manual CAB 10-73 3. Bolt: Seat Assembly to Floor Panel The fixing procedure of a bolt (1) Front inboard (2) Front outboard (3) Rear inboard (4) Rear inboard Torque N m (kgf m/lb ft) 40 (4

Page 582 of 4264

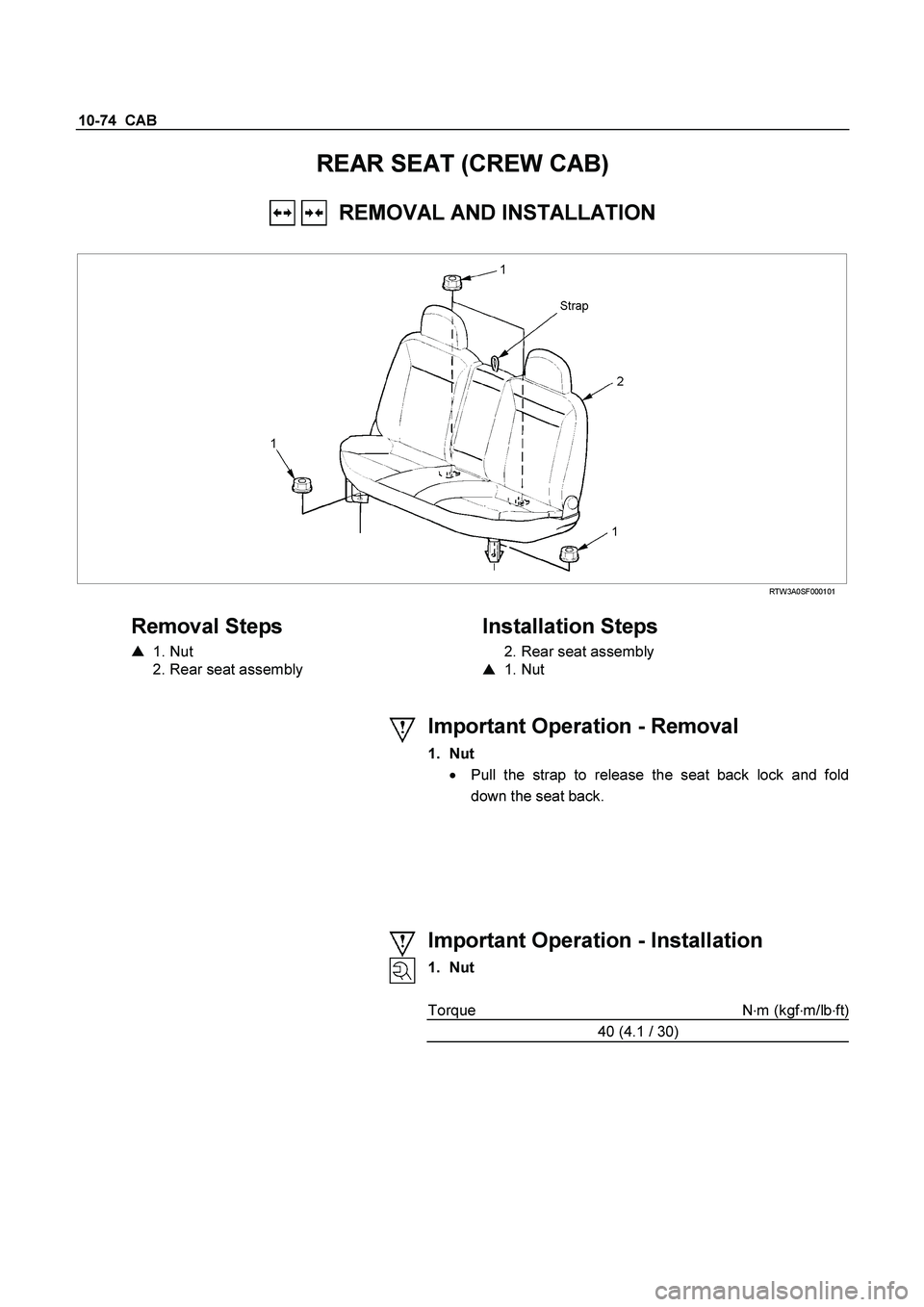

ISUZU TF SERIES 2004 Workshop Manual 10-74 CAB REAR SEAT (CREW CAB) REMOVAL AND INSTALLATION RTW3A0SF000101 Removal Steps  1. Nut 2. Rear seat assembly Installation Steps 2. Rear seat assembly  1. Nut

Page 583 of 4264

ISUZU TF SERIES 2004 Workshop Manual CAB 10-75 JUMP SEAT (EXTEND CAB) REMOVAL AND INSTALLATION RTW3A0MF001201 Removal Steps 1. Cover 2. Bolt 3. Jump seat assembly 4. Storage box Installation Steps 4. S

Page 584 of 4264

ISUZU TF SERIES 2004 Workshop Manual 10-76 CAB FRONT SEAT BELT REMOVAL AND INSTALLATION (TONGUE SIDE SEAT BELT) Removal Steps 1. Body side rear lower trim cover 2. Lower anchor bolt  3. Knob  4. Upper an
