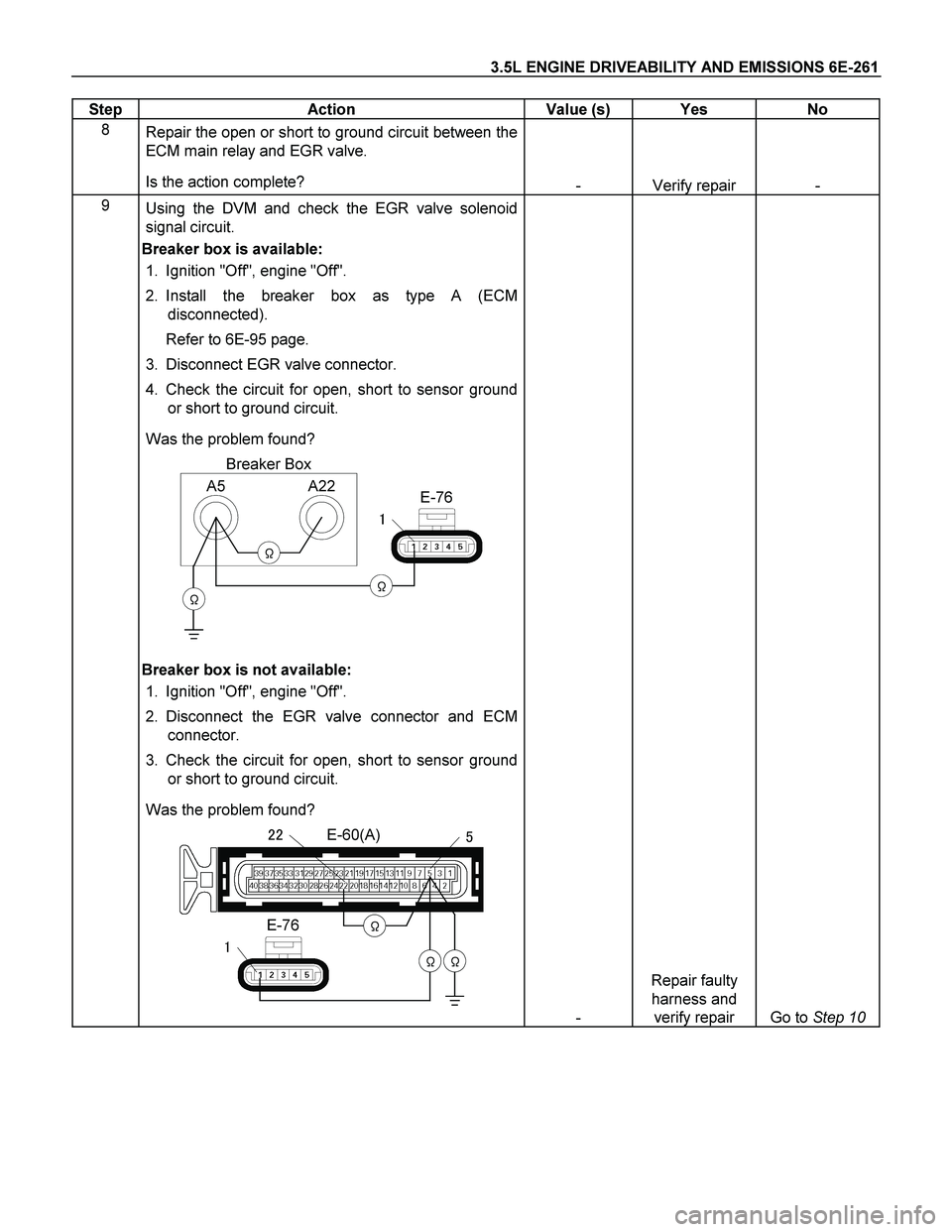

Page 2257 of 4264

ISUZU TF SERIES 2004 Workshop Manual 3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-261 Step Action Value (s) Yes No 8 Repair the open or short to ground circuit between the ECM main relay and EGR valve. Is the action complete? -

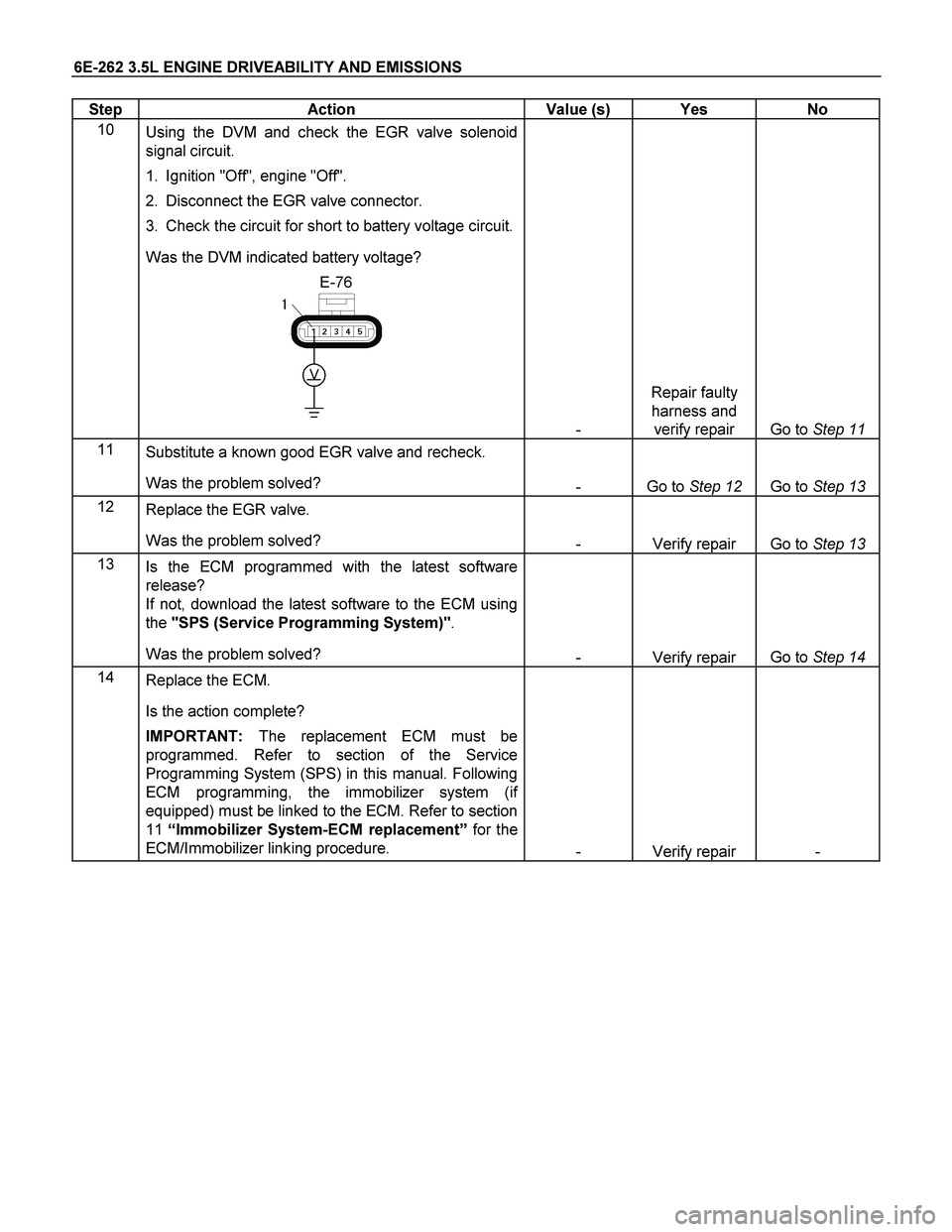

Page 2258 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6E-262 3.5L ENGINE DRIVEABILITY AND EMISSIONS Step Action Value (s) Yes No 10 Using the DVM and check the EGR valve solenoid signal circuit. 1. Ignition "Off", engine "Off". 2. Disconne

Page 2259 of 4264

ISUZU TF SERIES 2004 Workshop Manual 3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-263 DIAGNOSTIC TROUBLE CODE (DTC) P0405 (FLASH CODE 32) EGR CIRCUIT LOW RUW46EMF000201 Condition For Setting The DTC and Action Taken When The D

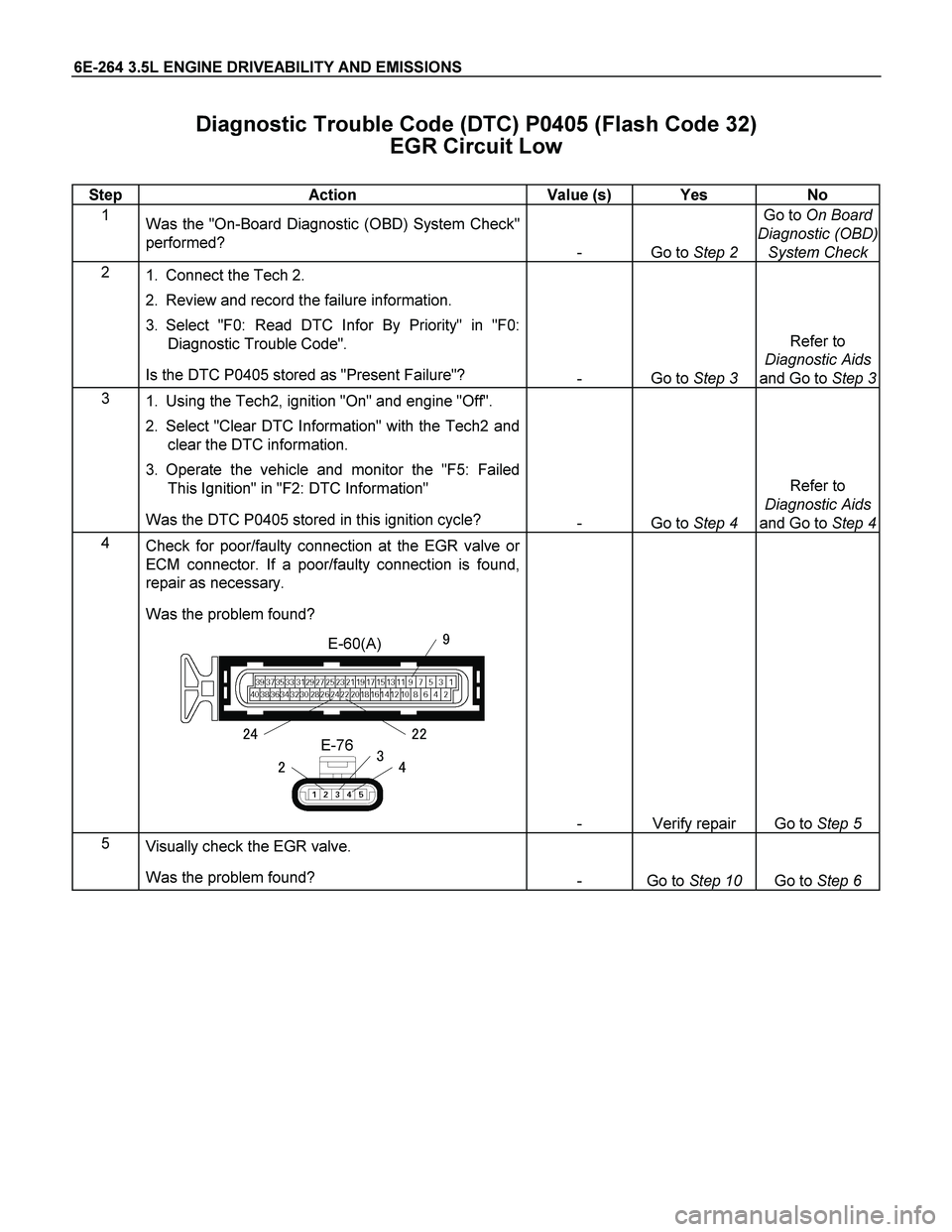

Page 2260 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6E-264 3.5L ENGINE DRIVEABILITY AND EMISSIONS Diagnostic Trouble Code (DTC) P0405 (Flash Code 32) EGR Circuit Low Step Action Value (s) Yes No 1 Was the "On-Board Diagnostic (OBD) System

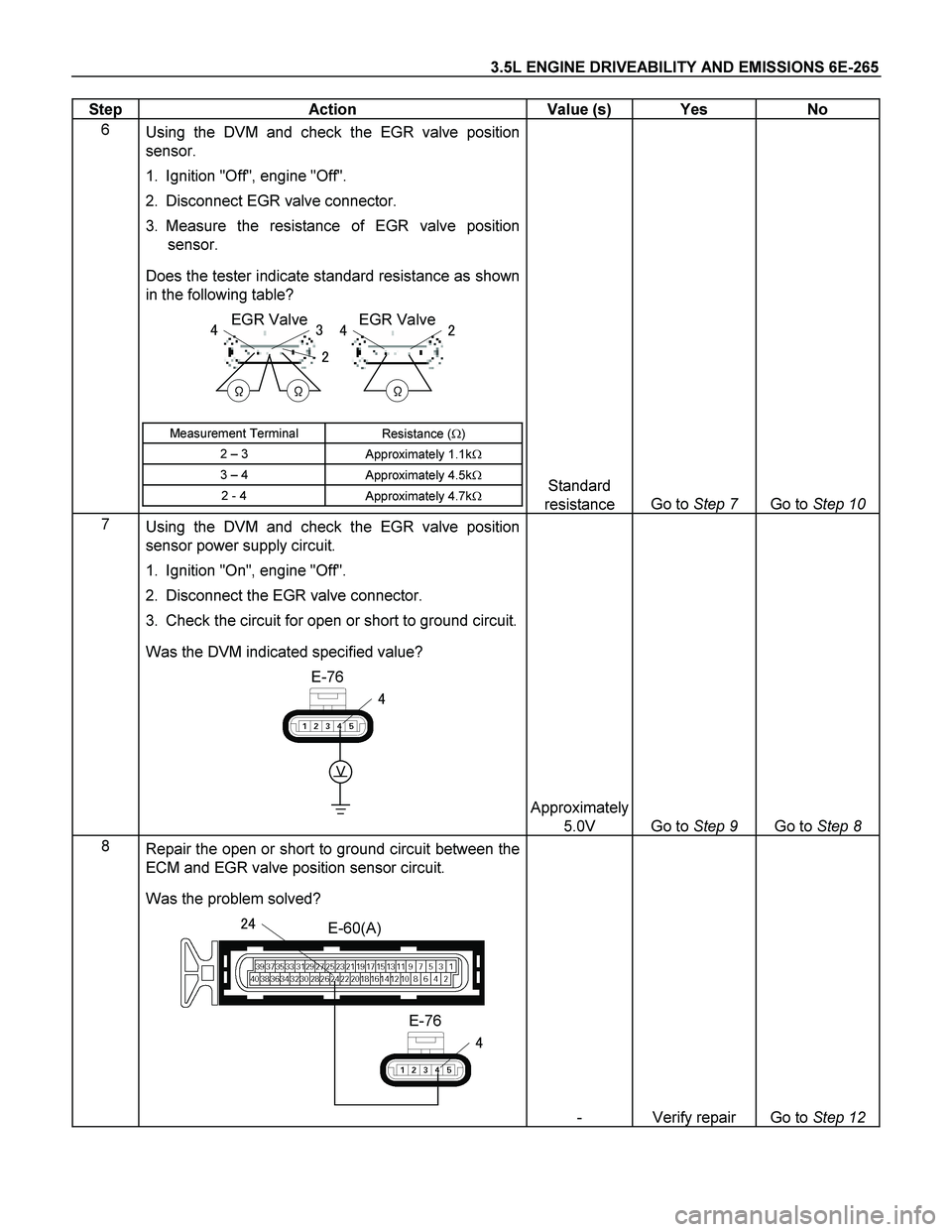

Page 2261 of 4264

ISUZU TF SERIES 2004 Workshop Manual 3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-265 Step Action Value (s) Yes No 6 Using the DVM and check the EGR valve position sensor. 1. Ignition "Off", engine "Off". 2. Disconnect EGR va

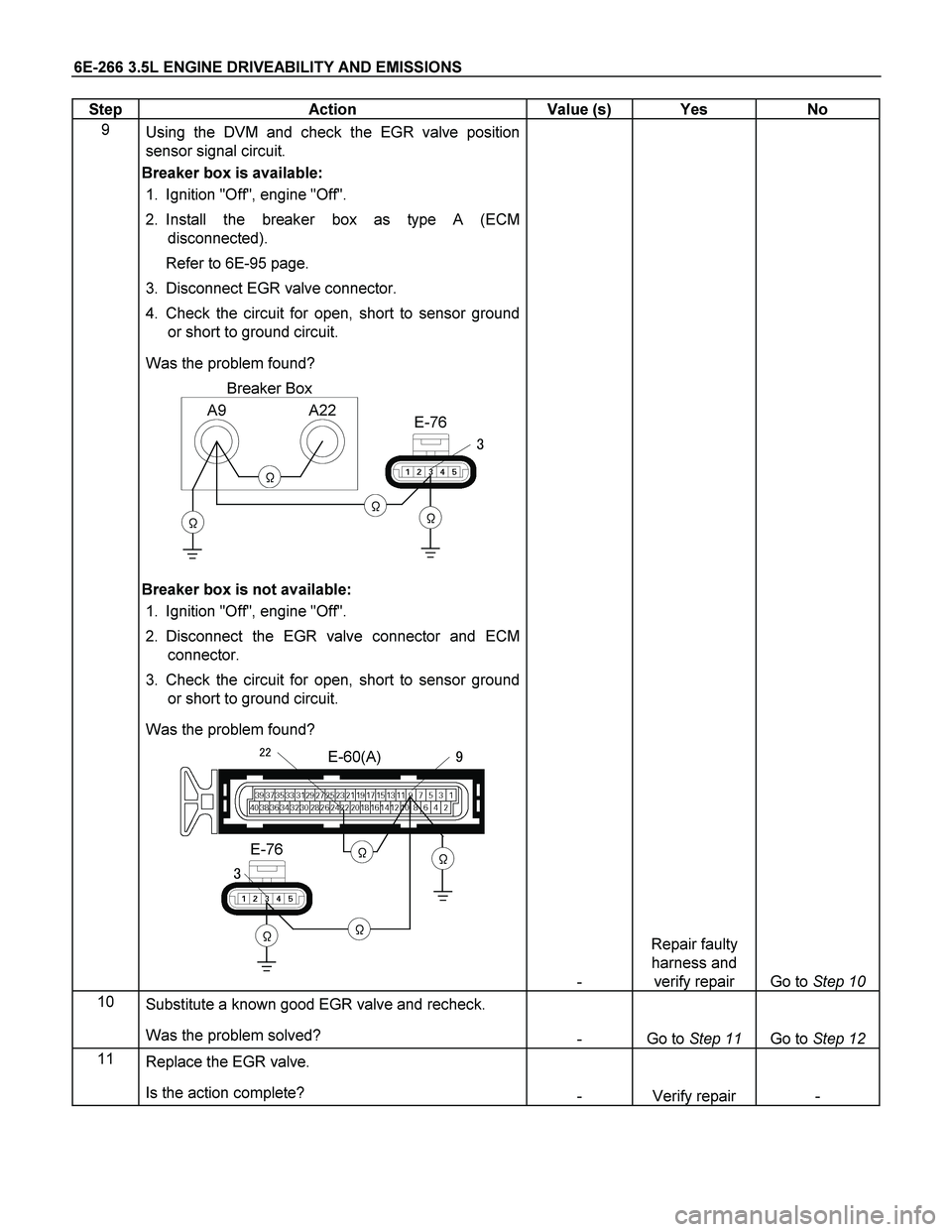

Page 2262 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6E-266 3.5L ENGINE DRIVEABILITY AND EMISSIONS Step Action Value (s) Yes No 9 Using the DVM and check the EGR valve position sensor signal circuit. Breaker box is available: 1. Ignition

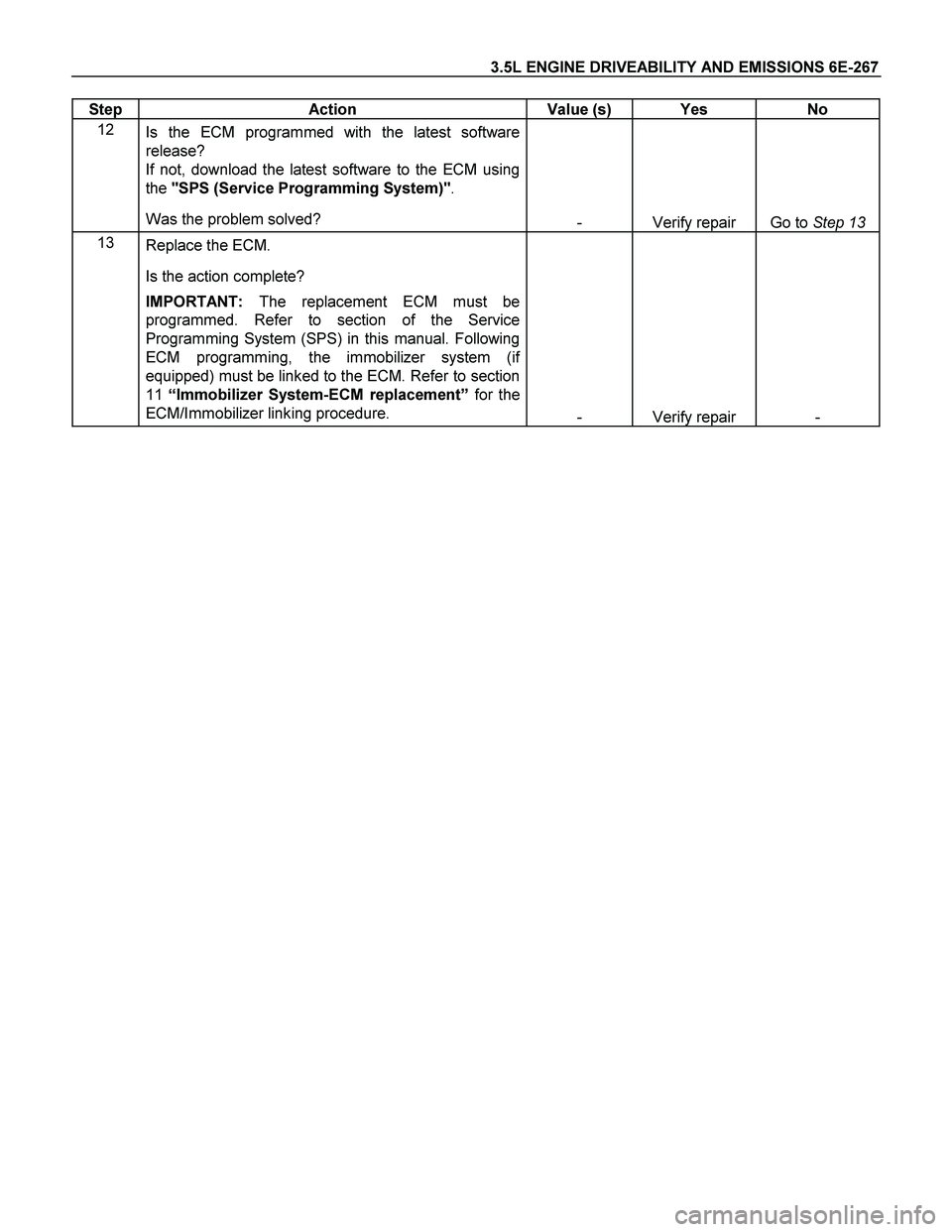

Page 2263 of 4264

ISUZU TF SERIES 2004 Workshop Manual 3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-267 Step Action Value (s) Yes No 12 Is the ECM programmed with the latest software release? If not, download the latest software to the ECM using

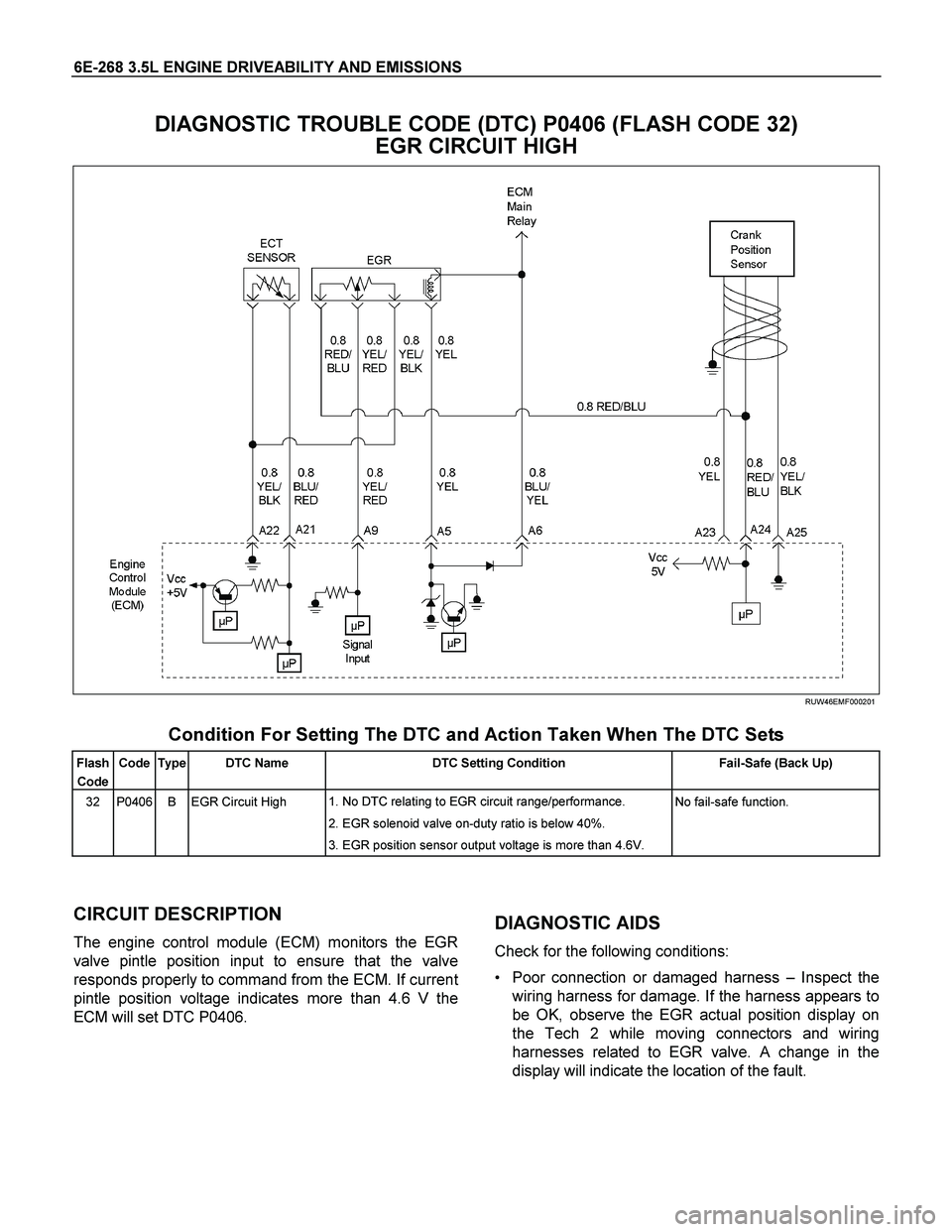

Page 2264 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6E-268 3.5L ENGINE DRIVEABILITY AND EMISSIONS DIAGNOSTIC TROUBLE CODE (DTC) P0406 (FLASH CODE 32) EGR CIRCUIT HIGH RUW46EMF000201 Condition For Setting The DTC and Action Taken When The
