ISUZU TF SERIES 2004 Workshop Manual RESTRAINT CONTROL 9A1-19

Step Action Yes No
the passenger inflator deployment loop.
3. Use the high resolution ohmmeter mode of the DVM while
checking circuits “Passenger Bag High” and �

Page 90 of 4264

ISUZU TF SERIES 2004 Workshop Manual 9A1-20 RESTRAINT CONTROL SYSTEM

DTC B0017 (Flash Code 17) Passenger Airbag Squib Circuit High Resistance

RTW49JLF000101

Circuit Description
When the ignition switch is turned “ON”,

Page 91 of 4264

ISUZU TF SERIES 2004 Workshop Manual RESTRAINT CONTROL 9A1-21

DTC Will Clear When
The ignition switch is turned “OFF.”

DTC Chart Test Description
Number(s) below refer to step number(s) on the
diagnostic chart:
2.
This tes

RESTRAINT CONTROL 9A1-21

DTC Will Clear When
The ignition switch is turned “OFF.”

DTC Chart Test Description
Number(s) below refer to step number(s) on the
diagnostic chart:
2.
This test determines whether the malfunction is in
the SRS control unit.
3.
This test verifies proper connection of the yellow
connector.
4.
This test checks for proper contact and/or corrosion
of the yellow connector terminals.
5.
The test checks for a malfunctioning passenger ai
r
bag assembly.
6.
This test determines whether the malfunction is due
to high resistance in the wiring.
Diagnostic Aids
An intermittent condition is likely to be caused by a poor
connection at the passenger air bag assembly harness
connector terminals “1” and “2”, SRS control unit
terminal “48” and “47”, or a poor wire to terminal
connection in circuits “Passenger Bag High” and
“Passenger Bag Low”. This test for this diagnostic
trouble code is only run while the “AIR BAG” warning
lamp is performing the bulb check. When a scan tool
“Clear Codes” command is issued and the malfunction
is still present, the DTC will not reappear until the next
ignition cycle.

DTC B0017 (Flash Code 17) Passenger Airbag Squib Circuit High Resistance

Step Action Yes No
1 Was the “SRS Diagnostic System Check” Performed? Go to Step 2 Go to The “SRS
Diagnostic System
Check”
2

1. Check the passenger air bag squib circuit for open.

2. If the problem found, repair as necessary.
Was a problem found? Verify repair Go to Step 3
3

1. Ignition switch “Off.”

2. Make sure the passenger air bag assembly yellow connector
located behind the glove box assembly is seated properly.
Is the yellow connector connected properly? Go to Step 4 Seat passenger Air
Bag assembly
yellow connector
properly.
Go to Step 7
4

1. Disconnect and inspect the passenger air bag assembly
yellow connector located behind the glove box assembly.

2. If ok, reconnect the passenger air bag assembly connector.
3. Ignition switch “ON.”
Is DTC B0017 current? Go to Step 5 Go to Step 7
5

1. Ignition switch “Off.”

2. Disconnect SRS coil and passenger air bag assembly, yellow
connector located at the base of the steering column and
behind the glove box assembly.

3. Connect 5-8840-2421-0 SRS driver / passenger load tool and
appropriate adapters to SRS coil and passenger air bag
assembly harness connectors.

4. Ignition switch “ON.”
Is DTC B0017 Current? Go to Step 6 Ignition switch
“Off.”
Replace the
passenger air bag
assembly.
Go to Step 7

Page 92 of 4264

ISUZU TF SERIES 2004 Workshop Manual 9A1-22 RESTRAINT CONTROL SYSTEM

Step Action Yes No
6

1. Ignition switch “Off.”

2. There has been an increase in the total circuit resistance of
the passenger inflator deployment loo

Page 93 of 4264

ISUZU TF SERIES 2004 Workshop Manual RESTRAINT CONTROL 9A1-23

DTC B0018 (Flash Code 18) Passenger Airbag Squib Circuit Voltage
Range/Performance

RTW49JLF000101

Circuit Description
When the ignition switch is turned “ON�

Page 94 of 4264

ISUZU TF SERIES 2004 Workshop Manual 9A1-24 RESTRAINT CONTROL SYSTEM

DTC Will Clear When
This malfunction is no longer occurring and the ignition
switch is turned “OFF”.

DTC Chart Test Description
Number(s) below refer to cir

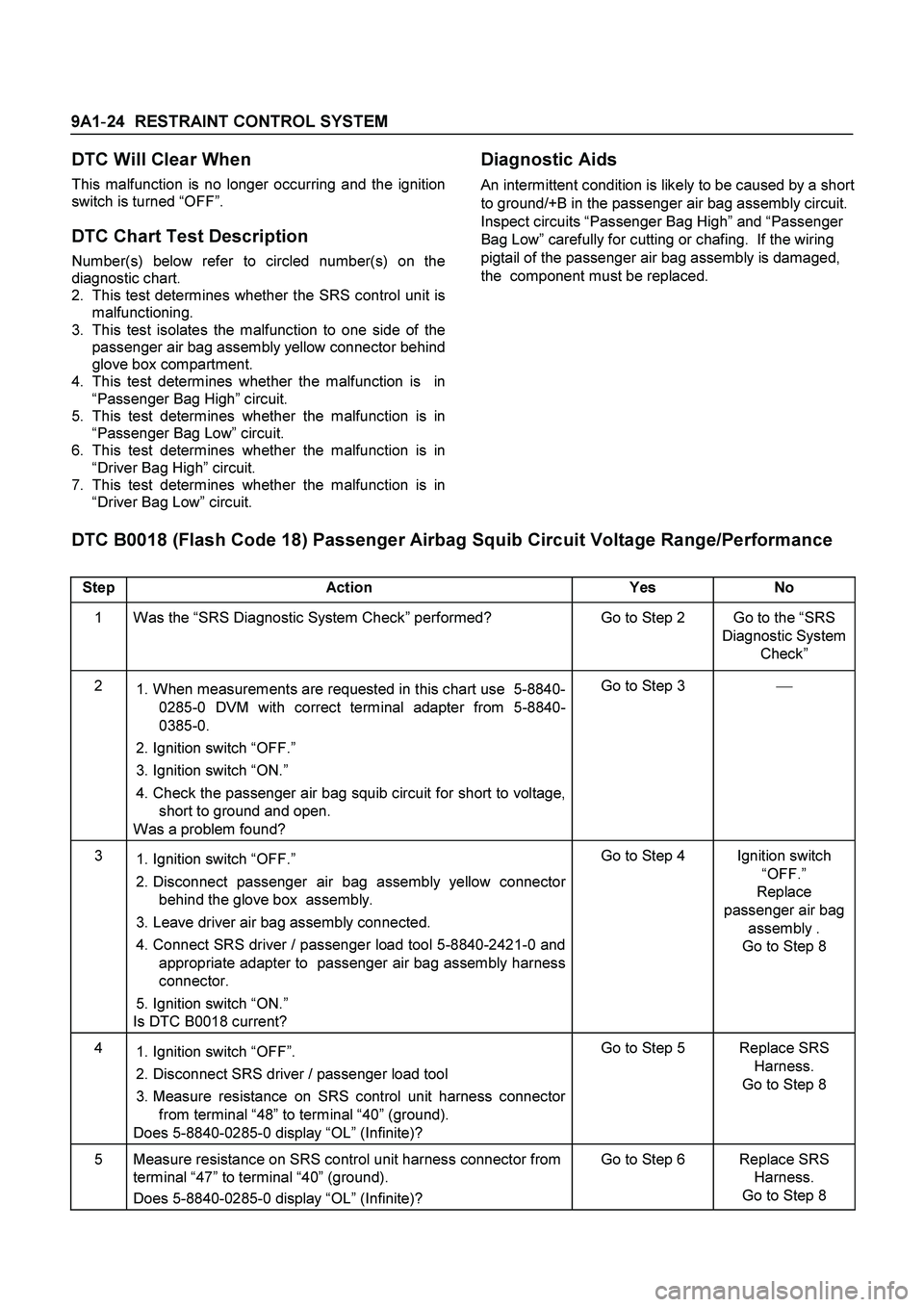

9A1-24 RESTRAINT CONTROL SYSTEM

DTC Will Clear When
This malfunction is no longer occurring and the ignition
switch is turned “OFF”.

DTC Chart Test Description
Number(s) below refer to circled number(s) on the
diagnostic chart.
2.
This test determines whether the SRS control unit is
malfunctioning.
3.
This test isolates the malfunction to one side of the
passenger air bag assembly yellow connector behind
glove box compartment.
4.
This test determines whether the malfunction is in
“Passenger Bag High” circuit.
5.
This test determines whether the malfunction is in
“Passenger Bag Low” circuit.
6.
This test determines whether the malfunction is in
“Driver Bag High” circuit.
7.
This test determines whether the malfunction is in
“Driver Bag Low” circuit.
Diagnostic Aids
An intermittent condition is likely to be caused by a short
to ground/+B in the passenger air bag assembly circuit.
Inspect circuits “Passenger Bag High” and “Passenger
Bag Low” carefully for cutting or chafing. If the wiring
pigtail of the passenger air bag assembly is damaged,
the component must be replaced.

DTC B0018 (Flash Code 18) Passenger Airbag Squib Circuit Voltage Range/Performance

Step Action Yes No
1 Was the “SRS Diagnostic System Check” performed? Go to Step 2 Go to the “SRS
Diagnostic System
Check”
2

1. When measurements are requested in this chart use 5-8840-
0285-0 DVM with correct terminal adapter from 5-8840-
0385-0.

2. Ignition switch “OFF.”

3. Ignition switch “ON.”

4. Check the passenger air bag squib circuit for short to voltage,
short to ground and open.
Was a problem found? Go to Step 3

3

1. Ignition switch “OFF.”

2. Disconnect passenger air bag assembly yellow connector
behind the glove box assembly.
3. Leave driver air bag assembly connected.

4. Connect SRS driver / passenger load tool 5-8840-2421-0 and
appropriate adapter to passenger air bag assembly harness
connector.
5. Ignition switch “ON.”
Is DTC B0018 current? Go to Step 4 Ignition switch
“OFF.”
Replace
passenger air bag
assembly .
Go to Step 8
4

1. Ignition switch “OFF”.

2. Disconnect SRS driver / passenger load tool
3. Measure resistance on SRS control unit harness connector
from terminal “48” to terminal “40” (ground).
Does 5-8840-0285-0 display “OL” (Infinite)? Go to Step 5 Replace SRS
Harness.
Go to Step 8
5 Measure resistance on SRS control unit harness connector from
terminal “47” to terminal “40” (ground).
Does 5-8840-0285-0 display “OL” (Infinite)? Go to Step 6
Replace SRS
Harness.
Go to Step 8

Page 95 of 4264

ISUZU TF SERIES 2004 Workshop Manual RESTRAINT CONTROL 9A1-25

Step Action Yes No
6 Measure resistance on SRS control unit harness connector from
terminal “48” to terminal “35” (ignition).
Does 5-8840-0285-0 display “OL�

Page 96 of 4264

ISUZU TF SERIES 2004 Workshop Manual 9A1-26 RESTRAINT CONTROL SYSTEM

DTC B0022 (Flash Code 22) Driver Airbag Squib Circuit Low Resistance

RTW49JLF000101

Circuit Description
When the ignition switch is turned “ON”, the
