Page 2897 of 4264
FRAME AND BUMPER 2A-5
RTW32ASH000101

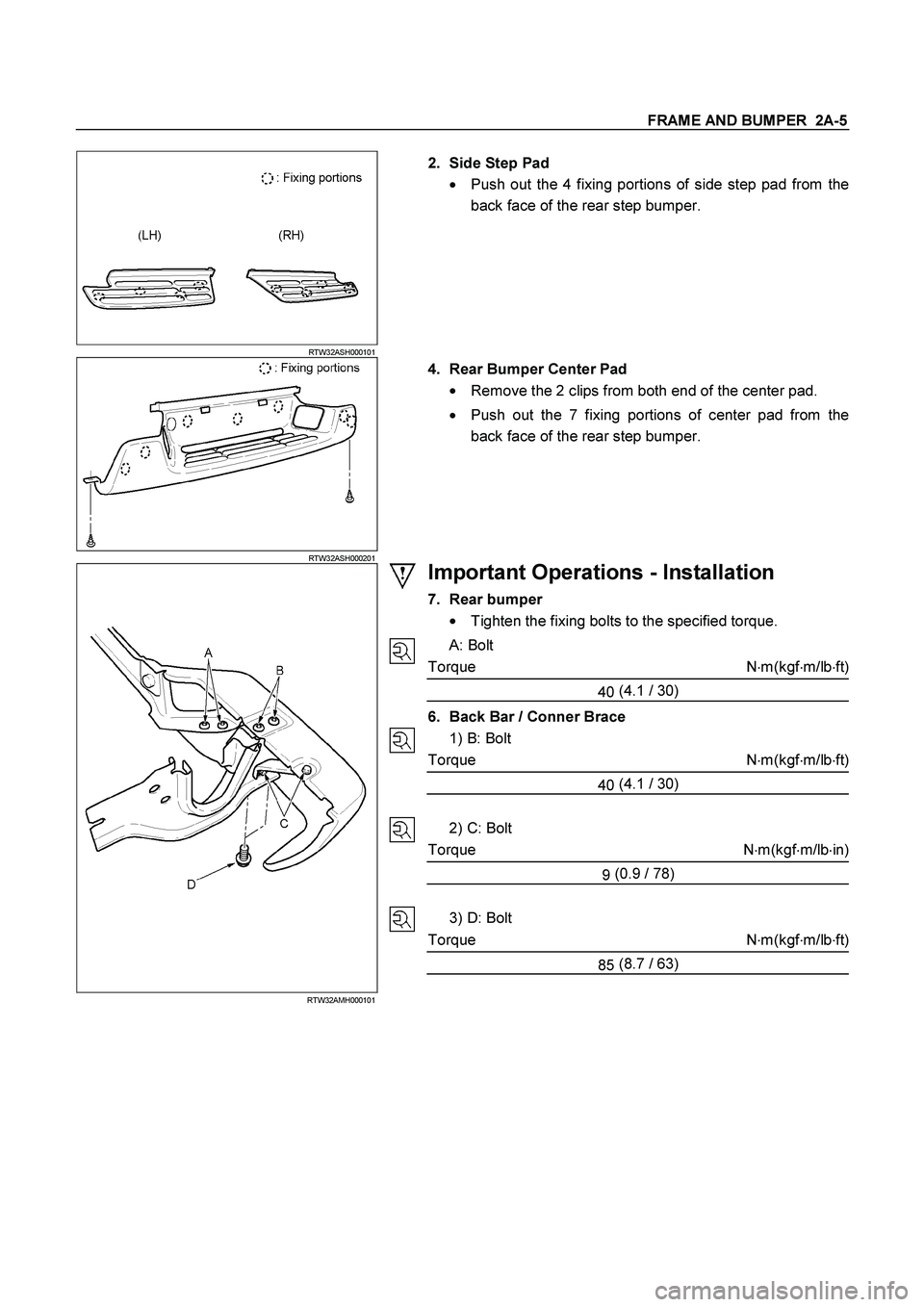

2. Side Step Pad
Push out the 4 fixing portions of side step pad from the
back face of the rear step bumper.
RTW32ASH000201
4. Rear Bumper Center Pad
Remove the 2 clips from both end of the center pad.
Push out the 7 fixing portions of center pad from the
back face of the rear step bumper.
RTW32AM H000101
Important Operations - Installation
7. Rear bumper
Tighten the fixing bolts to the specified torque.
A: Bolt
Torque Nm(kgfm/lbft)
40 (4.1
/ 30)
6. Back Bar / Conner Brace
1) B: Bolt
Torque N
m(kgf
m/lb
ft)
40 (4.1
/ 30)
2) C: Bolt
Torque Nm(kgfm/lbin)
9 (0.9
/ 78)
3) D: Bolt
Torque N
m(kgf
m/lb
ft)
85 (8.7
/ 63)
Page 2898 of 4264
2A-6 FRAME AND BUMPER
RTW32AMH000201
1. Rear Step Bumper Assembly

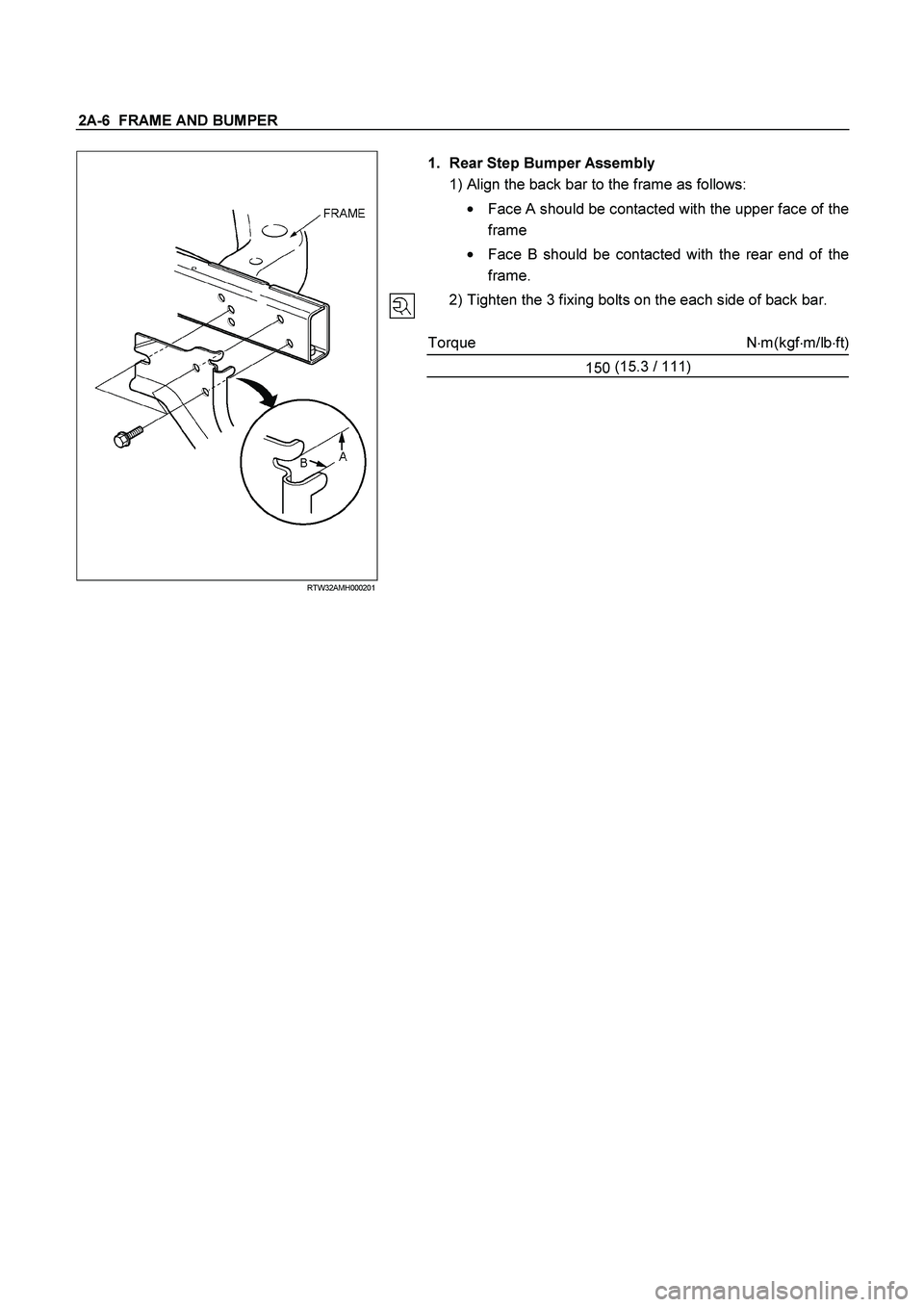

1) Align the back bar to the frame as follows:
Face A should be contacted with the upper face of the
frame
Face B should be contacted with the rear end of the
frame.
2) Tighten the 3 fixing bolts on the each side of back bar.
Torque N
m(kgf
m/lb
ft)
150 (15.3
/ 111)
Page 2899 of 4264
FRAME AND BUMPER 2A-7

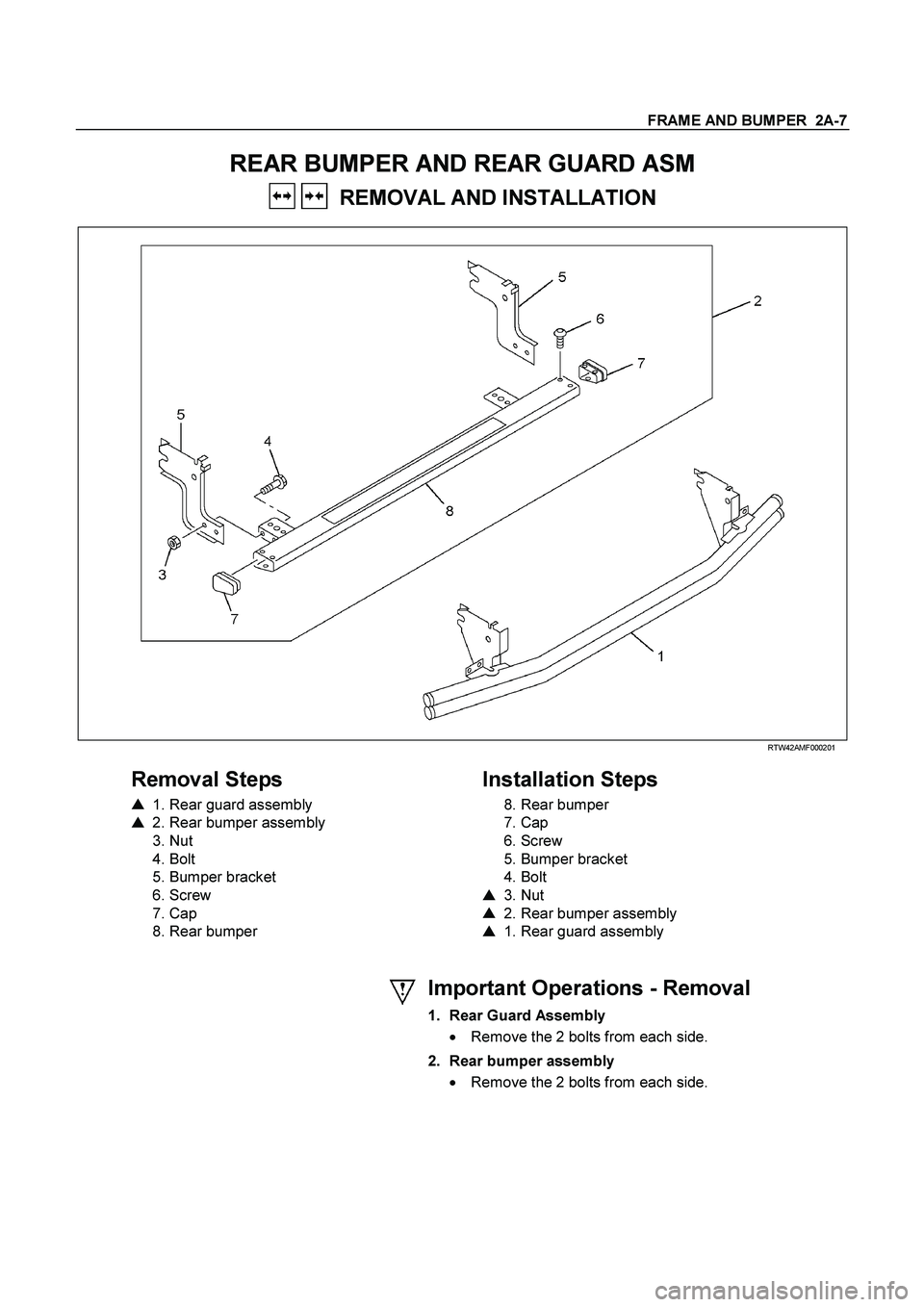

REAR BUMPER AND REAR GUARD ASM
REMOVAL AND INSTALLATION
RTW42AMF000201
Removal Steps
1. Rear guard assembly
2. Rear bumper assembly
3. Nut
4. Bolt
5. Bumper bracket
6. Screw
7. Cap
8. Rear bumper
Installation Steps
8. Rear bumper
7. Cap
6. Screw
5. Bumper bracket
4. Bolt
3. Nut
2. Rear bumper assembly
1. Rear guard assembly
Important Operations - Removal
1. Rear Guard Assembly
Remove the 2 bolts from each side.
2. Rear bumper assembly
Remove the 2 bolts from each side.
Page 2900 of 4264
2A-8 FRAME AND BUMPER
Important Operations - Installation
3. Nut
Tighten the fixing bolts to the specified torque.
Torque N
m (kgf
m/lb
ft)
116 (11.8
/ 85)
RTW42AMH000101
2. Rear Bumper Assembly

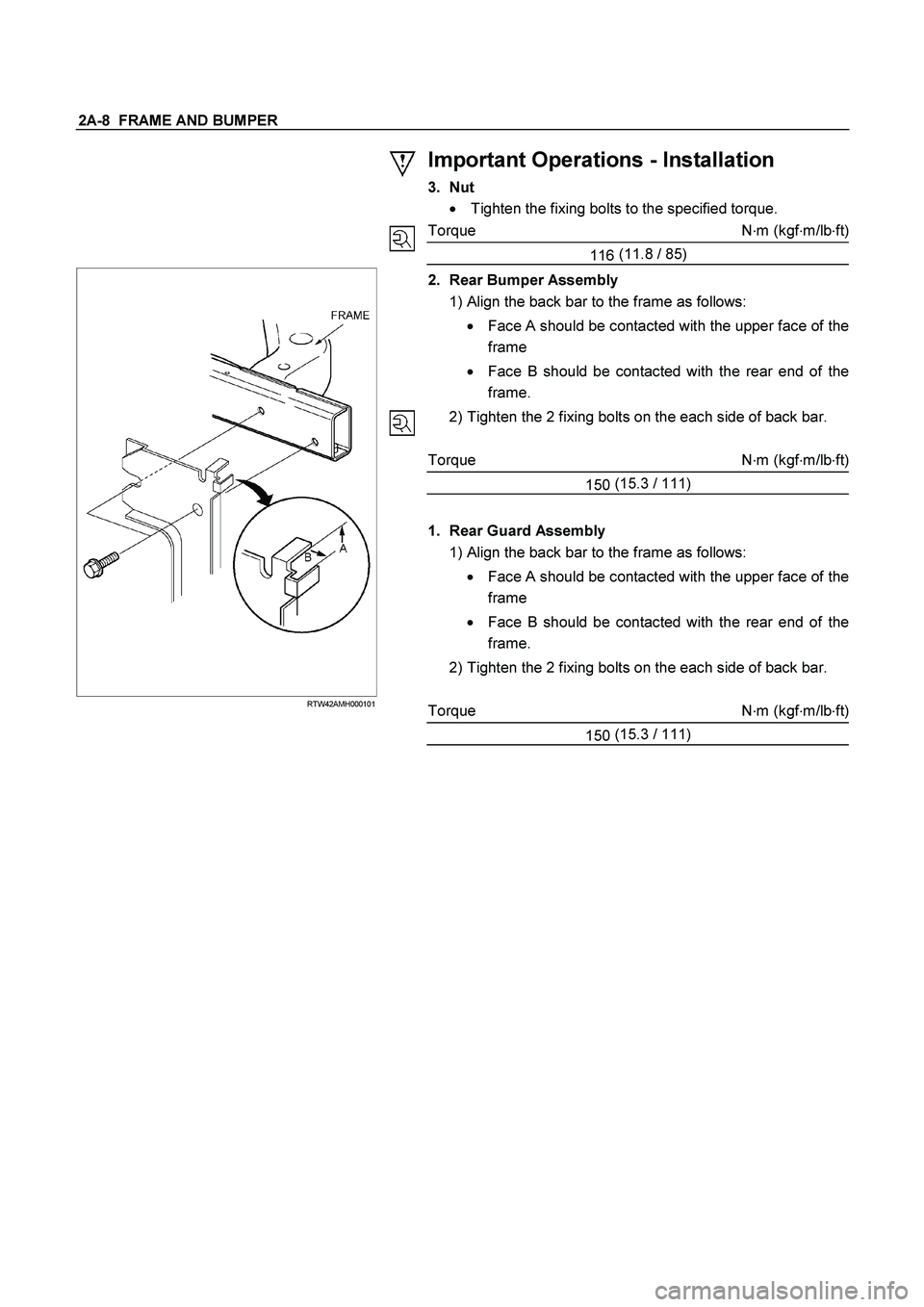

1) Align the back bar to the frame as follows:
Face A should be contacted with the upper face of the
frame
Face B should be contacted with the rear end of the
frame.
2) Tighten the 2 fixing bolts on the each side of back bar.
Torque N
m (kgf
m/lb
ft)
150 (15.3
/ 111)
1. Rear Guard Assembly
1) Align the back bar to the frame as follows:
Face A should be contacted with the upper face of the
frame
Face B should be contacted with the rear end of the
frame.
2) Tighten the 2 fixing bolts on the each side of back bar.
Torque N
m (kgf
m/lb
ft)
150 (15.3
/ 111)
Page 2901 of 4264
FRAME AND BUMPER 2A-9
FRAME DIMENSIONS 4
2, LWB, REGULAR CAB MODEL
RTW32AXF002601
Page 2902 of 4264

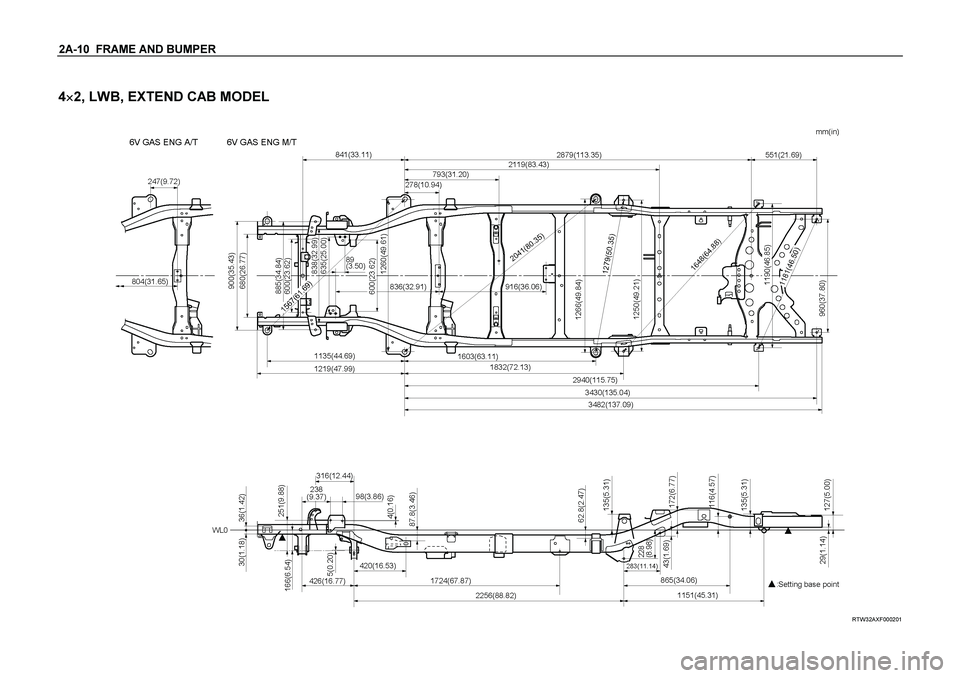

2A-10 FRAME AND BUMPER
4
2, LWB, EXTEND CAB MODEL
RTW32AXF000201
Page 2903 of 4264
FRAME AND BUMPER 2A-11
4

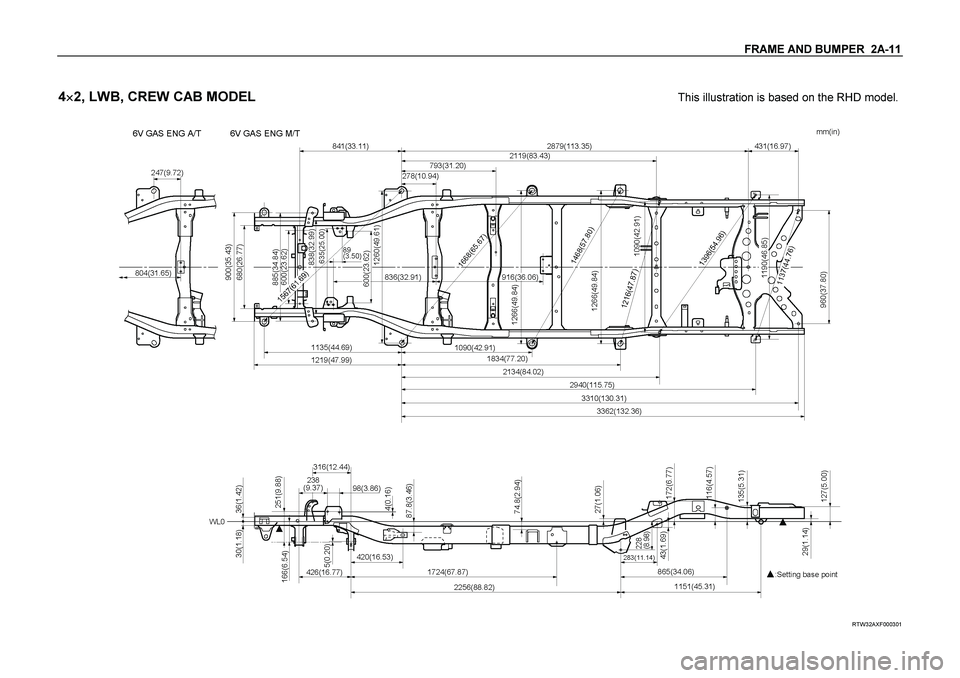

2, LWB, CREW CAB MODEL
This illustration is based on the RHD model.
RTW32AXF000301
Page 2904 of 4264

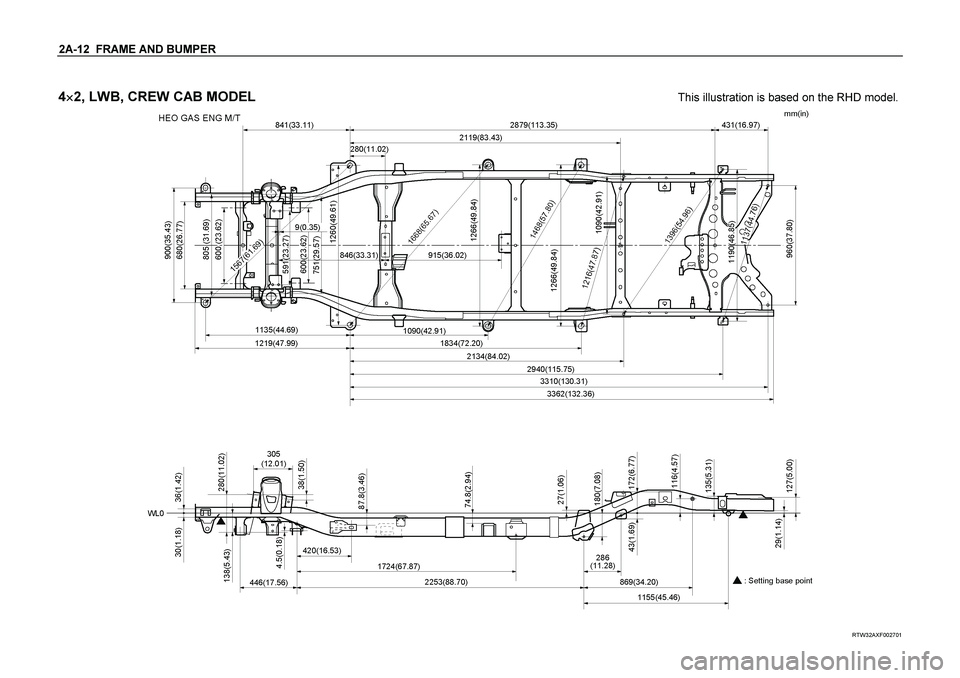

2A-12 FRAME AND BUMPER
4
2, LWB, CREW CAB MODEL
This illustration is based on the RHD model.
RTW32AXF002701
