Page 2353 of 4264

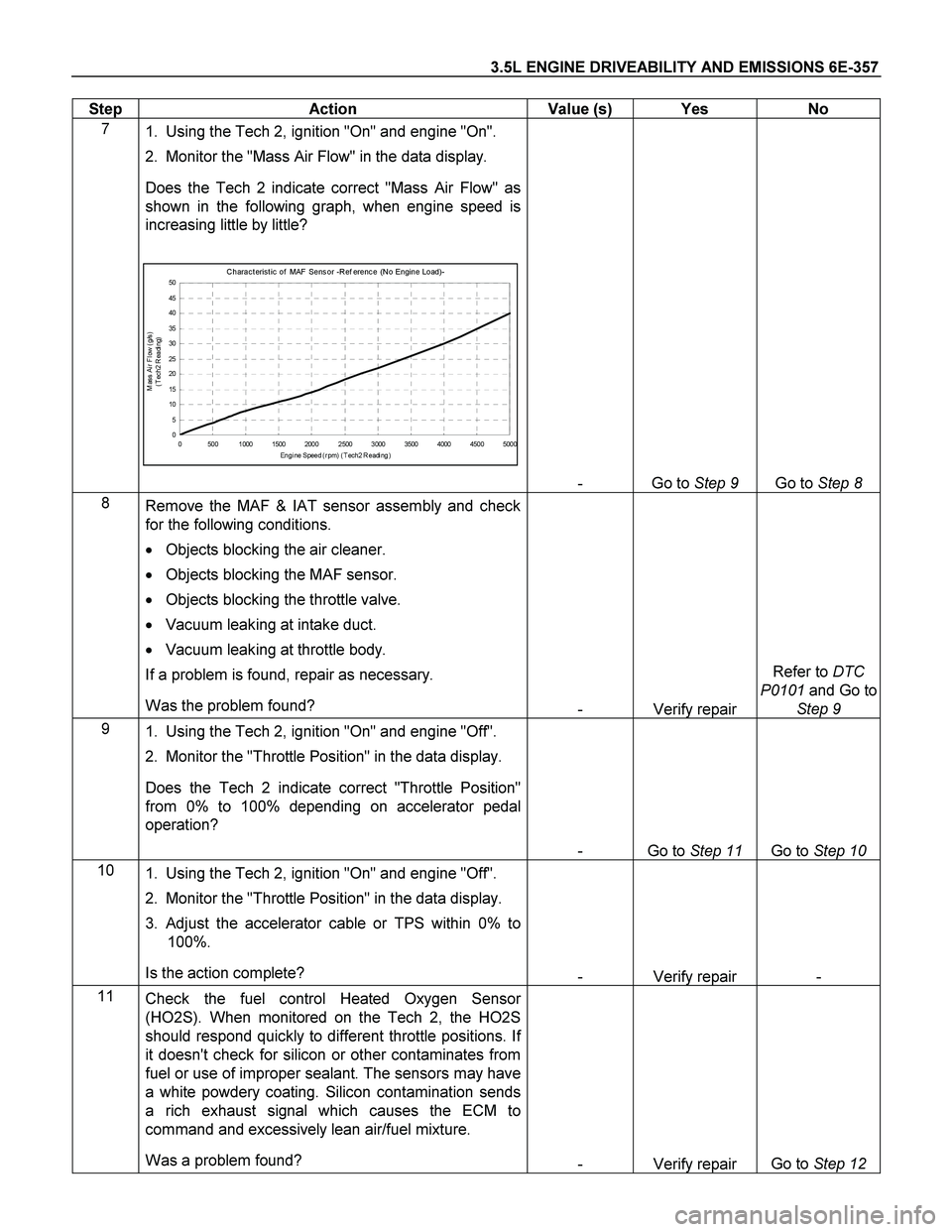

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-357
Step Action Value (s) Yes No
7
1. Using the Tech 2, ignition "On" and engine "On".
2. Monitor the "Mass Air Flow" in the data display.
Does the Tech 2 indicate correct "Mass Air Flow" as
shown in the following graph, when engine speed is
increasing little by little?
Characteris tic of MAF Sens or -Ref erence (No Engine Load)-
0 5 10 15 20 25 30 35 40 45 50
0 500 1000 1500 2000 2500 3000 3500 4000 4500 5000
Eng i ne Speed ( r pm) ( T ech2 R eadi ng )
Mass Air Flow (g/s)
( T ec h2 R eadi ng)
- Go to Step 9 Go to Step 8
8
Remove the MAF & IAT sensor assembly and check
for the following conditions.
Objects blocking the air cleaner.
Objects blocking the MAF sensor.
Objects blocking the throttle valve.
Vacuum leaking at intake duct.
Vacuum leaking at throttle body.
If a problem is found, repair as necessary.
Was the problem found?
- Verify repair Refer to DTC
P0101 and Go to
Step 9
9
1. Using the Tech 2, ignition "On" and engine "Off".
2. Monitor the "Throttle Position" in the data display.
Does the Tech 2 indicate correct "Throttle Position"
from 0% to 100% depending on accelerator pedal
operation?
- Go to Step 11 Go to Step 10
10
1. Using the Tech 2, ignition "On" and engine "Off".
2. Monitor the "Throttle Position" in the data display.
3. Adjust the accelerator cable or TPS within 0% to
100%.
Is the action complete?
- Verify repair -
11
Check the fuel control Heated Oxygen Sensor
(HO2S). When monitored on the Tech 2, the HO2S
should respond quickly to different throttle positions. If
it doesn't check for silicon or other contaminates from
fuel or use of improper sealant. The sensors may have
a white powdery coating. Silicon contamination sends
a rich exhaust signal which causes the ECM to
command and excessively lean air/fuel mixture.
Was a problem found?
- Verify repair Go to Step 12
Page 2354 of 4264

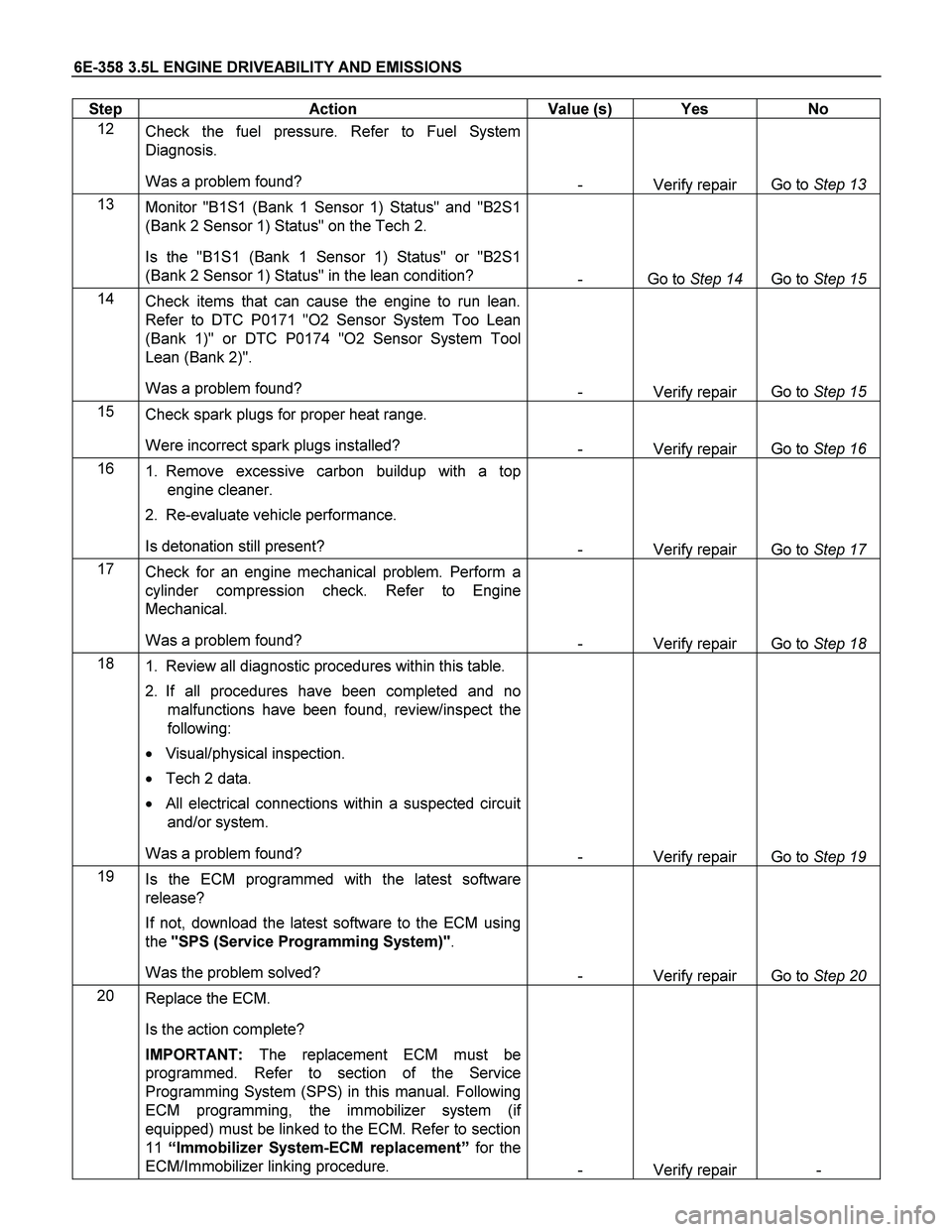

6E-358 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Step Action Value (s) Yes No
12
Check the fuel pressure. Refer to Fuel System
Diagnosis.
Was a problem found?
- Verify repair Go to Step 13
13
Monitor "B1S1 (Bank 1 Sensor 1) Status" and "B2S1
(Bank 2 Sensor 1) Status" on the Tech 2.
Is the "B1S1 (Bank 1 Sensor 1) Status" or "B2S1
(Bank 2 Sensor 1) Status" in the lean condition?
- Go to Step 14 Go to Step 15
14
Check items that can cause the engine to run lean.
Refer to DTC P0171 "O2 Sensor System Too Lean
(Bank 1)" or DTC P0174 "O2 Sensor System Tool
Lean (Bank 2)".
Was a problem found?
- Verify repair Go to Step 15
15
Check spark plugs for proper heat range.
Were incorrect spark plugs installed?
- Verify repair Go to Step 16
16
1. Remove excessive carbon buildup with a top
engine cleaner.
2. Re-evaluate vehicle performance.
Is detonation still present?
- Verify repair Go to Step 17
17
Check for an engine mechanical problem. Perform a
cylinder compression check. Refer to Engine
Mechanical.
Was a problem found?
- Verify repair Go to Step 18
18
1. Review all diagnostic procedures within this table.
2. If all procedures have been completed and no
malfunctions have been found, review/inspect the
following:
Visual/physical inspection.
Tech 2 data.
All electrical connections within a suspected circuit
and/or system.
Was a problem found?
- Verify repair Go to Step 19
19
Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the "SPS (Service Programming System)".
Was the problem solved?
- Verify repair Go to Step 20
20
Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual. Following
ECM programming, the immobilizer system (if
equipped) must be linked to the ECM. Refer to section
11 “Immobilizer System-ECM replacement” for the
ECM/Immobilizer linking procedure.
- Verify repair -
Page 2355 of 4264

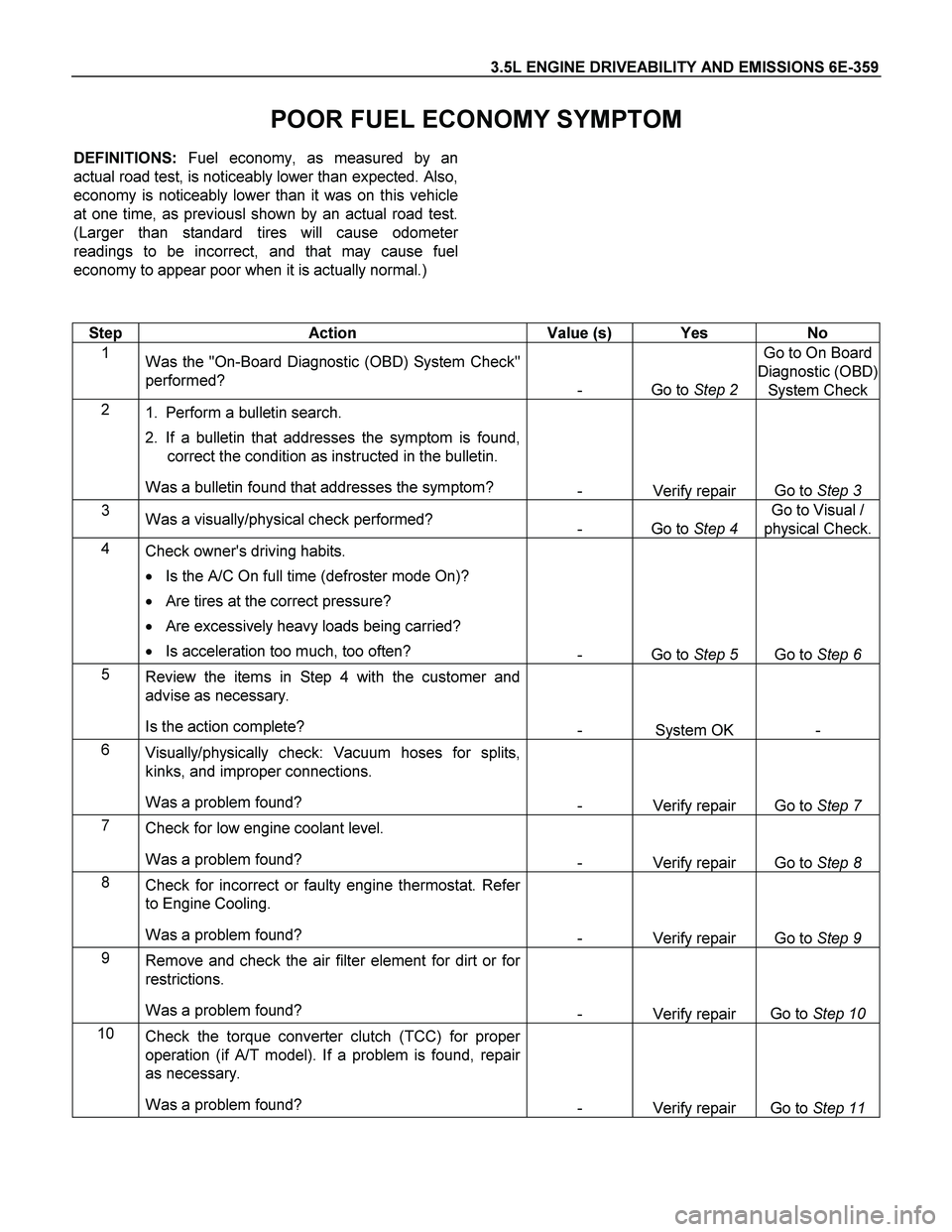

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-359
POOR FUEL ECONOMY SYMPTOM
DEFINITIONS: Fuel economy, as measured by an
actual road test, is noticeably lower than expected. Also,
economy is noticeably lower than it was on this vehicle
at one time, as previousl shown by an actual road test.
(Larger than standard tires will cause odomete
r
readings to be incorrect, and that may cause fuel
economy to appear poor when it is actually normal.)
Step Action Value (s) Yes No
1
Was the "On-Board Diagnostic (OBD) System Check"
performed?
- Go to Step 2 Go to On Board
Diagnostic (OBD)
System Check
2
1. Perform a bulletin search.
2. If a bulletin that addresses the symptom is found,
correct the condition as instructed in the bulletin.
Was a bulletin found that addresses the symptom?
- Verify repair Go to Step 3
3
Was a visually/physical check performed?
- Go to Step 4 Go to Visual /
physical Check.
4
Check owner's driving habits.
Is the A/C On full time (defroster mode On)?
Are tires at the correct pressure?
Are excessively heavy loads being carried?
Is acceleration too much, too often?
- Go to Step 5 Go to Step 6
5
Review the items in Step 4 with the customer and
advise as necessary.
Is the action complete?
- System OK -
6
Visually/physically check: Vacuum hoses for splits,
kinks, and improper connections.
Was a problem found?
- Verify repair Go to Step 7
7
Check for low engine coolant level.
Was a problem found?
- Verify repair Go to Step 8
8
Check for incorrect or faulty engine thermostat. Refer
to Engine Cooling.
Was a problem found?
- Verify repair Go to Step 9
9
Remove and check the air filter element for dirt or for
restrictions.
Was a problem found?
- Verify repair Go to Step 10
10
Check the torque converter clutch (TCC) for proper
operation (if A/T model). If a problem is found, repair
as necessary.
Was a problem found?
- Verify repair Go to Step 11
Page 2356 of 4264

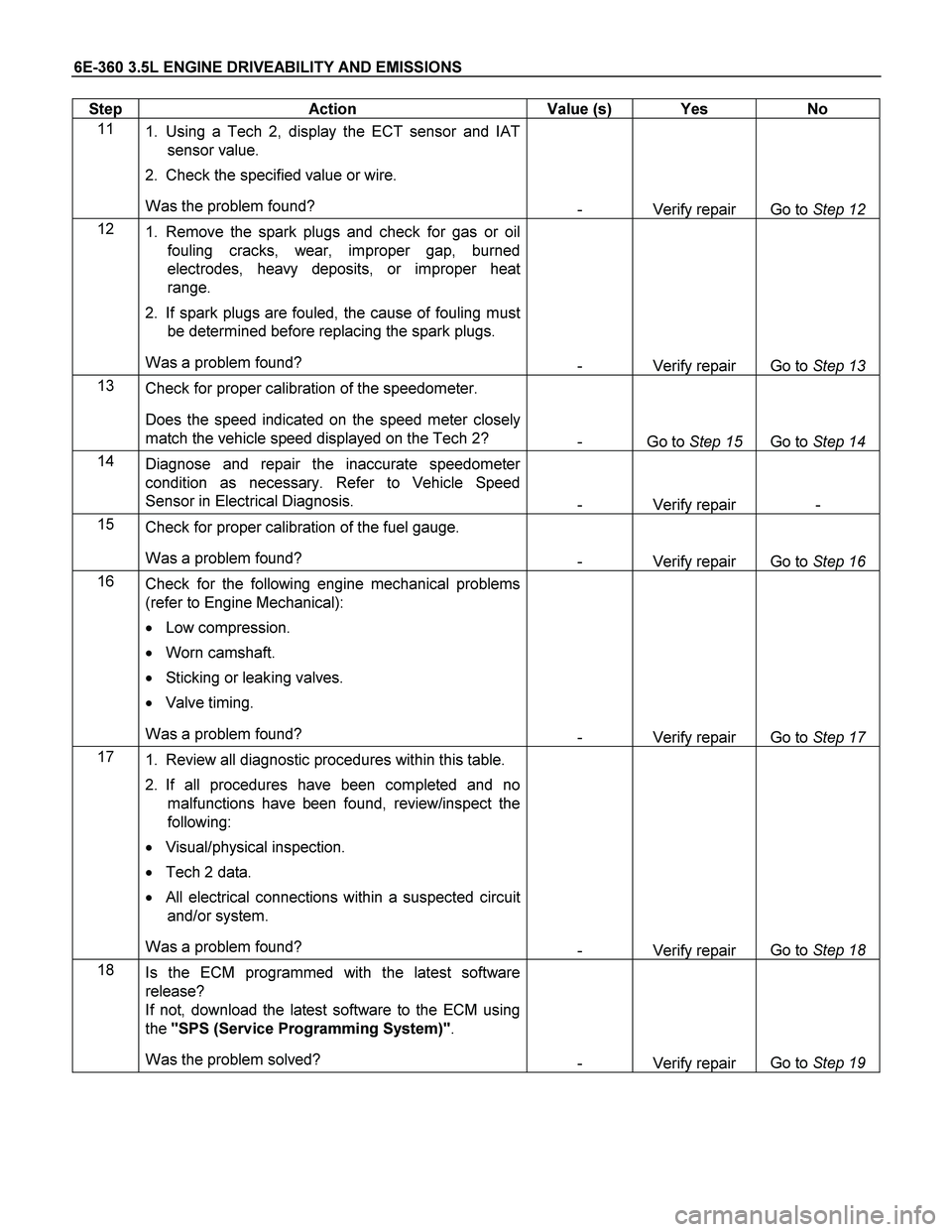

6E-360 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Step Action Value (s) Yes No
11
1. Using a Tech 2, display the ECT sensor and IAT
sensor value.
2. Check the specified value or wire.
Was the problem found?
- Verify repair Go to Step 12
12
1. Remove the spark plugs and check for gas or oil
fouling cracks, wear, improper gap, burned
electrodes, heavy deposits, or improper heat
range.
2. If spark plugs are fouled, the cause of fouling must
be determined before replacing the spark plugs.
Was a problem found?
- Verify repair Go to Step 13
13
Check for proper calibration of the speedometer.
Does the speed indicated on the speed meter closely
match the vehicle speed displayed on the Tech 2?
- Go to Step 15 Go to Step 14
14
Diagnose and repair the inaccurate speedometer
condition as necessary. Refer to Vehicle Speed
Sensor in Electrical Diagnosis.
- Verify repair -
15
Check for proper calibration of the fuel gauge.
Was a problem found?
- Verify repair Go to Step 16
16
Check for the following engine mechanical problems
(refer to Engine Mechanical):
Low compression.
Worn camshaft.
Sticking or leaking valves.
Valve timing.
Was a problem found?
- Verify repair Go to Step 17
17
1. Review all diagnostic procedures within this table.
2. If all procedures have been completed and no
malfunctions have been found, review/inspect the
following:
Visual/physical inspection.
Tech 2 data.
All electrical connections within a suspected circuit
and/or system.
Was a problem found?
- Verify repair Go to Step 18
18
Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the "SPS (Service Programming System)".
Was the problem solved?
- Verify repair Go to Step 19
Page 2357 of 4264

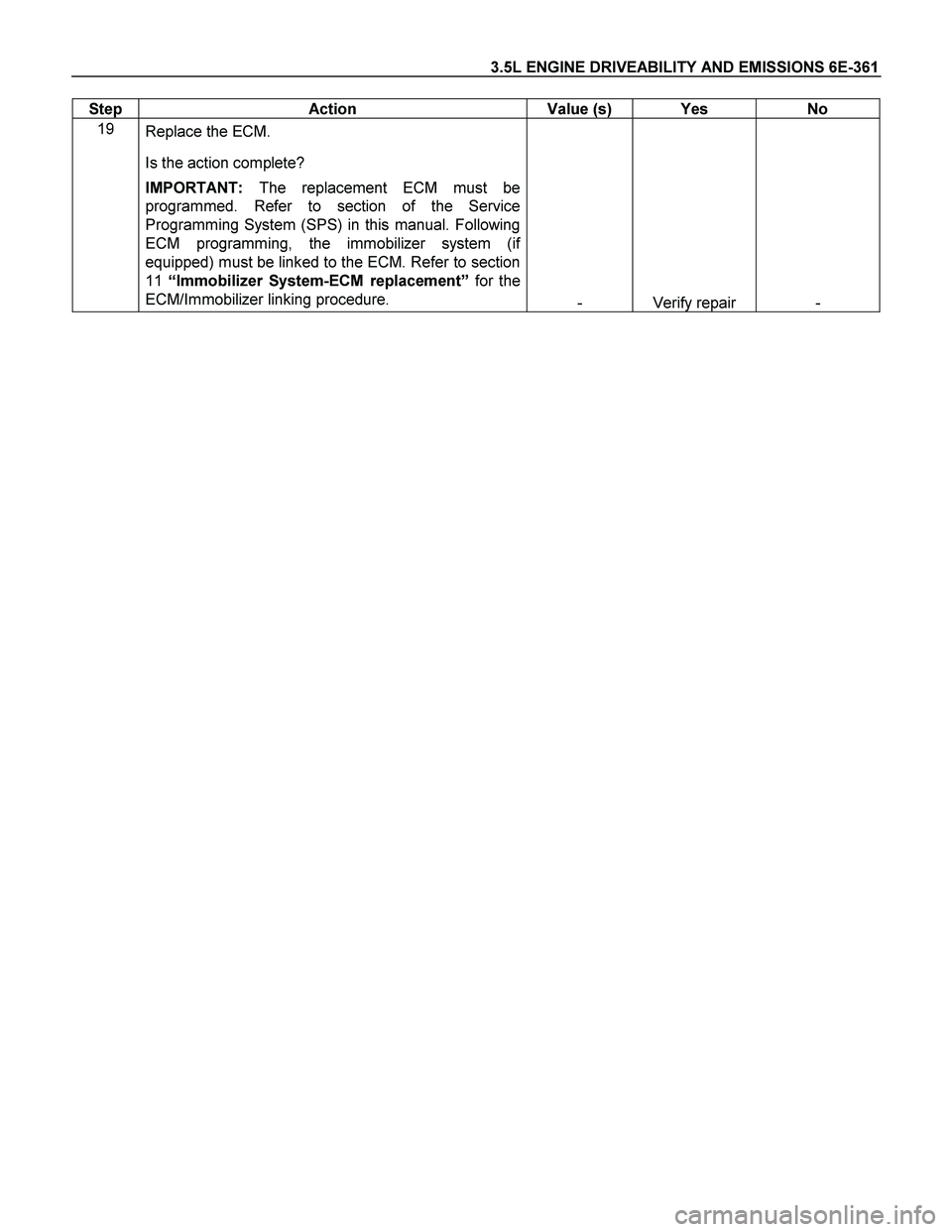

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-361
Step Action Value (s) Yes No
19
Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual. Following
ECM programming, the immobilizer system (if
equipped) must be linked to the ECM. Refer to section
11 “Immobilizer System-ECM replacement” for the
ECM/Immobilizer linking procedure.
- Verify repair -
Page 2358 of 4264

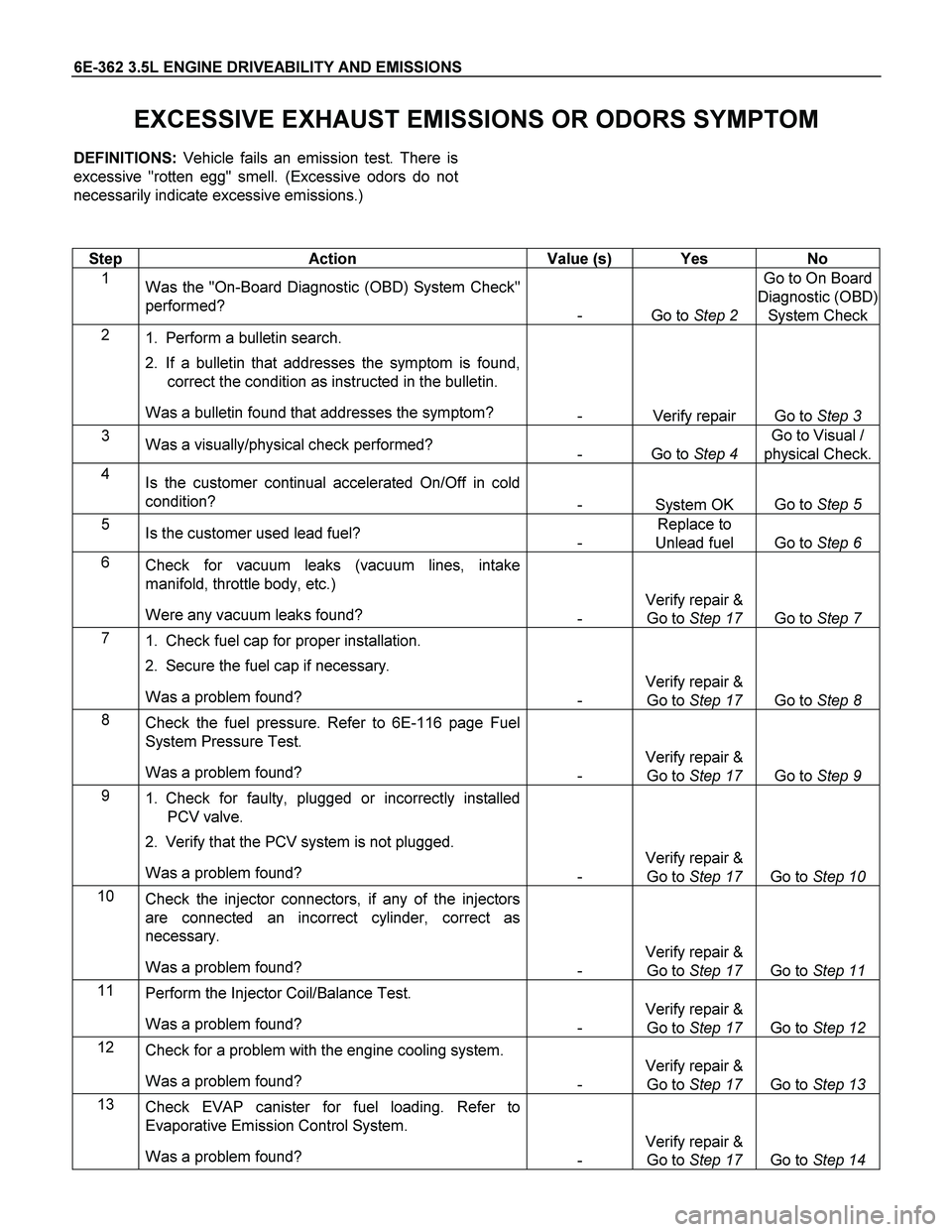

6E-362 3.5L ENGINE DRIVEABILITY AND EMISSIONS
EXCESSIVE EXHAUST EMISSIONS OR ODORS SYMPTOM
DEFINITIONS: Vehicle fails an emission test. There is
excessive "rotten egg" smell. (Excessive odors do no
t
necessarily indicate excessive emissions.)
Step Action Value (s) Yes No
1
Was the "On-Board Diagnostic (OBD) System Check"
performed?
- Go to Step 2 Go to On Board
Diagnostic (OBD)
System Check
2
1. Perform a bulletin search.
2. If a bulletin that addresses the symptom is found,
correct the condition as instructed in the bulletin.
Was a bulletin found that addresses the symptom?
- Verify repair Go to Step 3
3
Was a visually/physical check performed?
- Go to Step 4 Go to Visual /
physical Check.
4
Is the customer continual accelerated On/Off in cold
condition?
- System OK Go to Step 5
5
Is the customer used lead fuel?
- Replace to
Unlead fuel Go to Step 6
6
Check for vacuum leaks (vacuum lines, intake
manifold, throttle body, etc.)
Were any vacuum leaks found?
- Verify repair &
Go to Step 17 Go to Step 7
7
1. Check fuel cap for proper installation.
2. Secure the fuel cap if necessary.
Was a problem found?
- Verify repair &
Go to Step 17 Go to Step 8
8
Check the fuel pressure. Refer to 6E-116 page Fuel
System Pressure Test.
Was a problem found?
- Verify repair &
Go to Step 17 Go to Step 9
9
1. Check for faulty, plugged or incorrectly installed
PCV valve.
2. Verify that the PCV system is not plugged.
Was a problem found?
- Verify repair &
Go to Step 17 Go to Step 10
10
Check the injector connectors, if any of the injectors
are connected an incorrect cylinder, correct as
necessary.
Was a problem found?
- Verify repair &
Go to Step 17 Go to Step 11
11
Perform the Injector Coil/Balance Test.
Was a problem found?
- Verify repair &
Go to Step 17 Go to Step 12
12
Check for a problem with the engine cooling system.
Was a problem found?
- Verify repair &
Go to Step 17 Go to Step 13
13
Check EVAP canister for fuel loading. Refer to
Evaporative Emission Control System.
Was a problem found?
- Verify repair &
Go to Step 17 Go to Step 14
Page 2359 of 4264

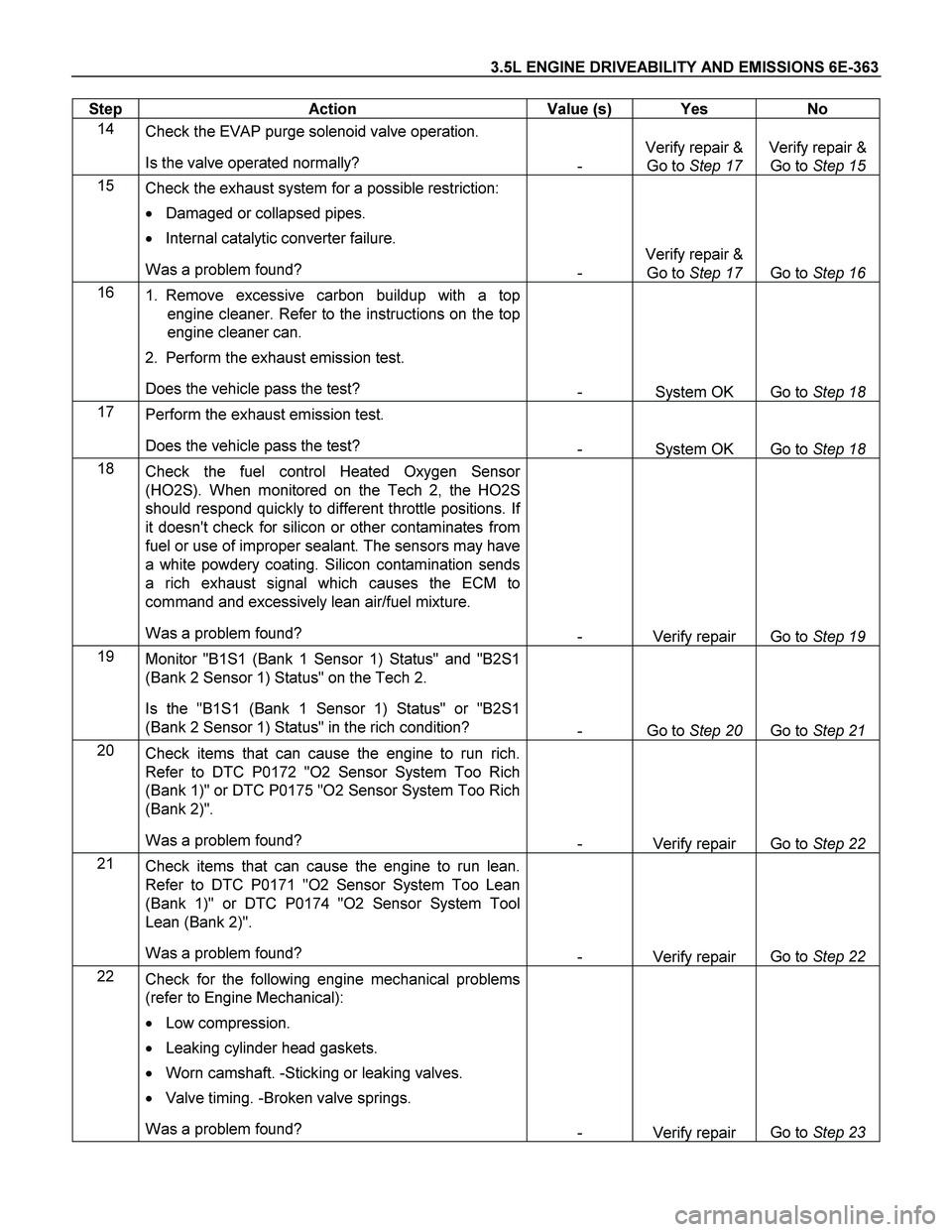

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-363
Step Action Value (s) Yes No
14
Check the EVAP purge solenoid valve operation.
Is the valve operated normally?
- Verify repair &
Go to Step 17 Verify repair &
Go to Step 15
15
Check the exhaust system for a possible restriction:
Damaged or collapsed pipes.
Internal catalytic converter failure.
Was a problem found?
- Verify repair &
Go to Step 17 Go to Step 16
16
1. Remove excessive carbon buildup with a top
engine cleaner. Refer to the instructions on the top
engine cleaner can.
2. Perform the exhaust emission test.
Does the vehicle pass the test?
- System OK Go to Step 18
17
Perform the exhaust emission test.
Does the vehicle pass the test?
- System OK Go to Step 18
18
Check the fuel control Heated Oxygen Sensor
(HO2S). When monitored on the Tech 2, the HO2S
should respond quickly to different throttle positions. If
it doesn't check for silicon or other contaminates from
fuel or use of improper sealant. The sensors may have
a white powdery coating. Silicon contamination sends
a rich exhaust signal which causes the ECM to
command and excessively lean air/fuel mixture.
Was a problem found?
- Verify repair Go to Step 19
19
Monitor "B1S1 (Bank 1 Sensor 1) Status" and "B2S1
(Bank 2 Sensor 1) Status" on the Tech 2.
Is the "B1S1 (Bank 1 Sensor 1) Status" or "B2S1
(Bank 2 Sensor 1) Status" in the rich condition?
- Go to Step 20 Go to Step 21
20
Check items that can cause the engine to run rich.
Refer to DTC P0172 "O2 Sensor System Too Rich
(Bank 1)" or DTC P0175 "O2 Sensor System Too Rich
(Bank 2)".
Was a problem found?
- Verify repair Go to Step 22
21
Check items that can cause the engine to run lean.
Refer to DTC P0171 "O2 Sensor System Too Lean
(Bank 1)" or DTC P0174 "O2 Sensor System Tool
Lean (Bank 2)".
Was a problem found?
- Verify repair Go to Step 22
22
Check for the following engine mechanical problems
(refer to Engine Mechanical):
Low compression.
Leaking cylinder head gaskets.
Worn camshaft. -Sticking or leaking valves.
Valve timing. -Broken valve springs.
Was a problem found?
- Verify repair Go to Step 23
Page 2360 of 4264

6E-364 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Step Action Value (s) Yes No
23
1. Review all diagnostic procedures within this table.
2. If all procedures have been completed and no
malfunctions have been found, review/inspect the
following:
Visual/physical inspection.
Tech 2 data.
All electrical connections within a suspected circuit
and/or system.
Was a problem found?
- Verify repair Go to Step 24
24
Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the "SPS (Service Programming System)".
Was the problem solved?
- Verify repair Go to Step 25
25
Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual. Following
ECM programming, the immobilizer system (if
equipped) must be linked to the ECM. Refer to section
11 “Immobilizer System-ECM replacement” for the
ECM/Immobilizer linking procedure.
- Verify repair -
