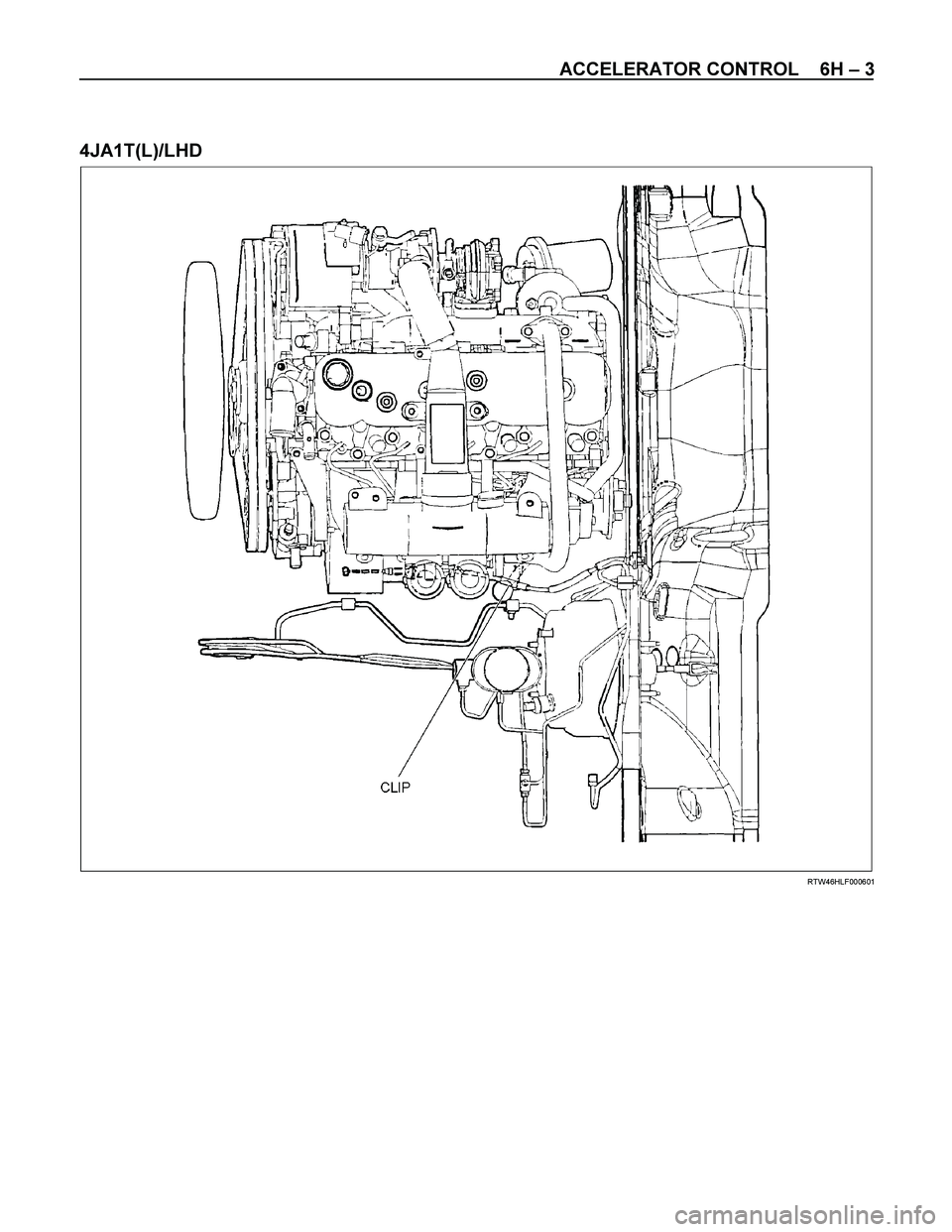

ACCELERATOR CONTROL 6H – 3
4JA1T(L)/LHD
RTW46HLF000601
Page 1818 of 4264

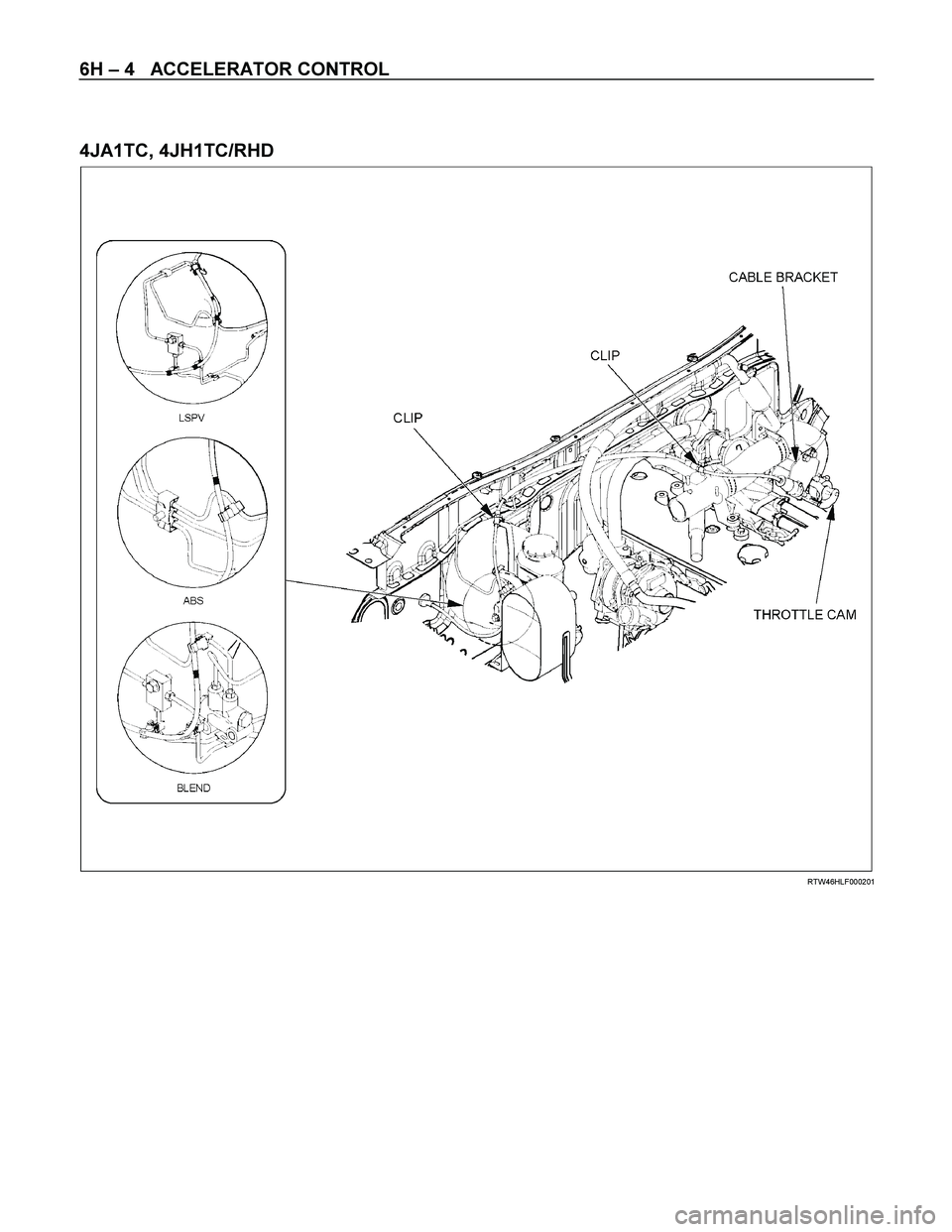

6H – 4 ACCELERATOR CONTROL
4JA1TC, 4JH1TC/RHD
RTW46HLF000201
Page 1819 of 4264

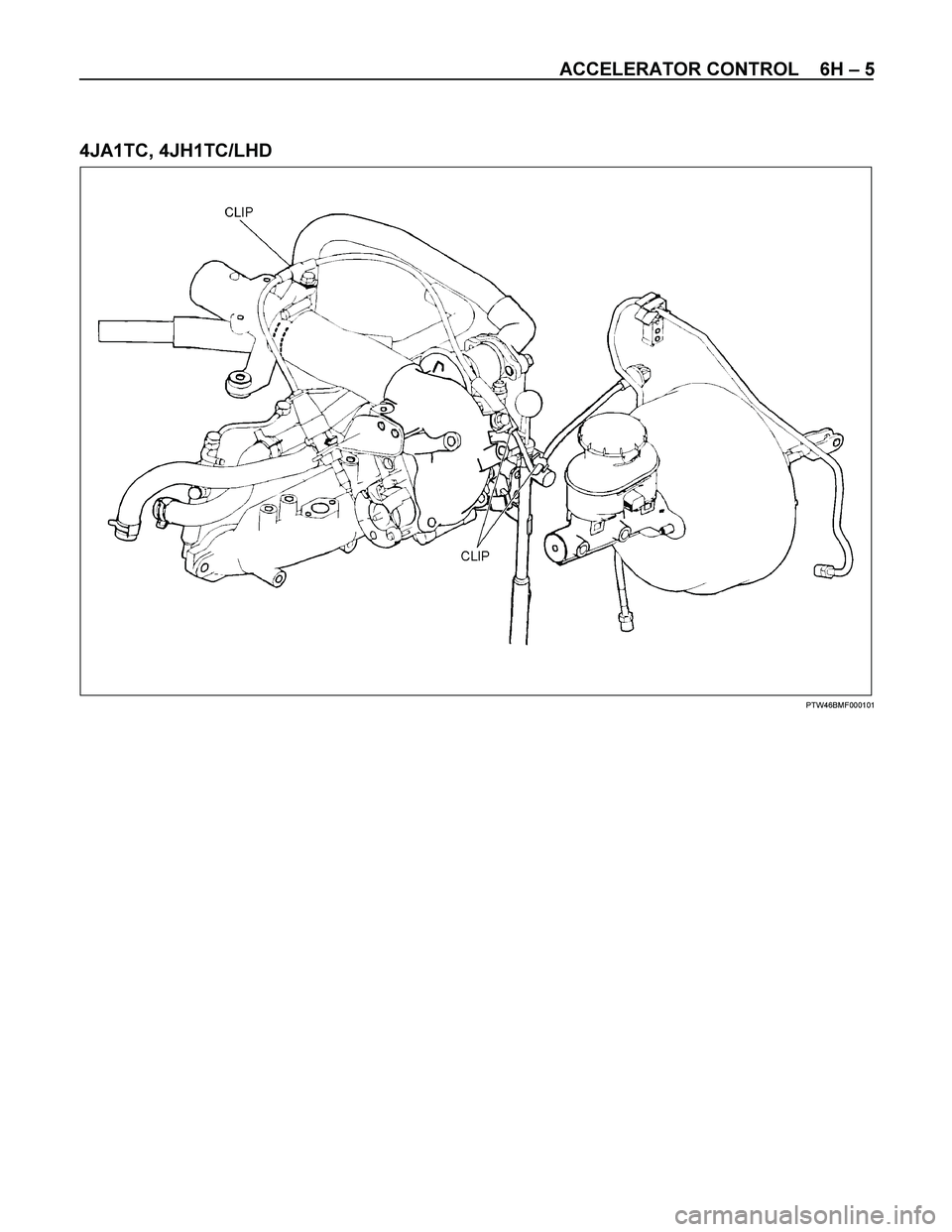

ACCELERATOR CONTROL 6H – 5
4JA1TC, 4JH1TC/LHD
PTW46BMF000101
Page 1820 of 4264

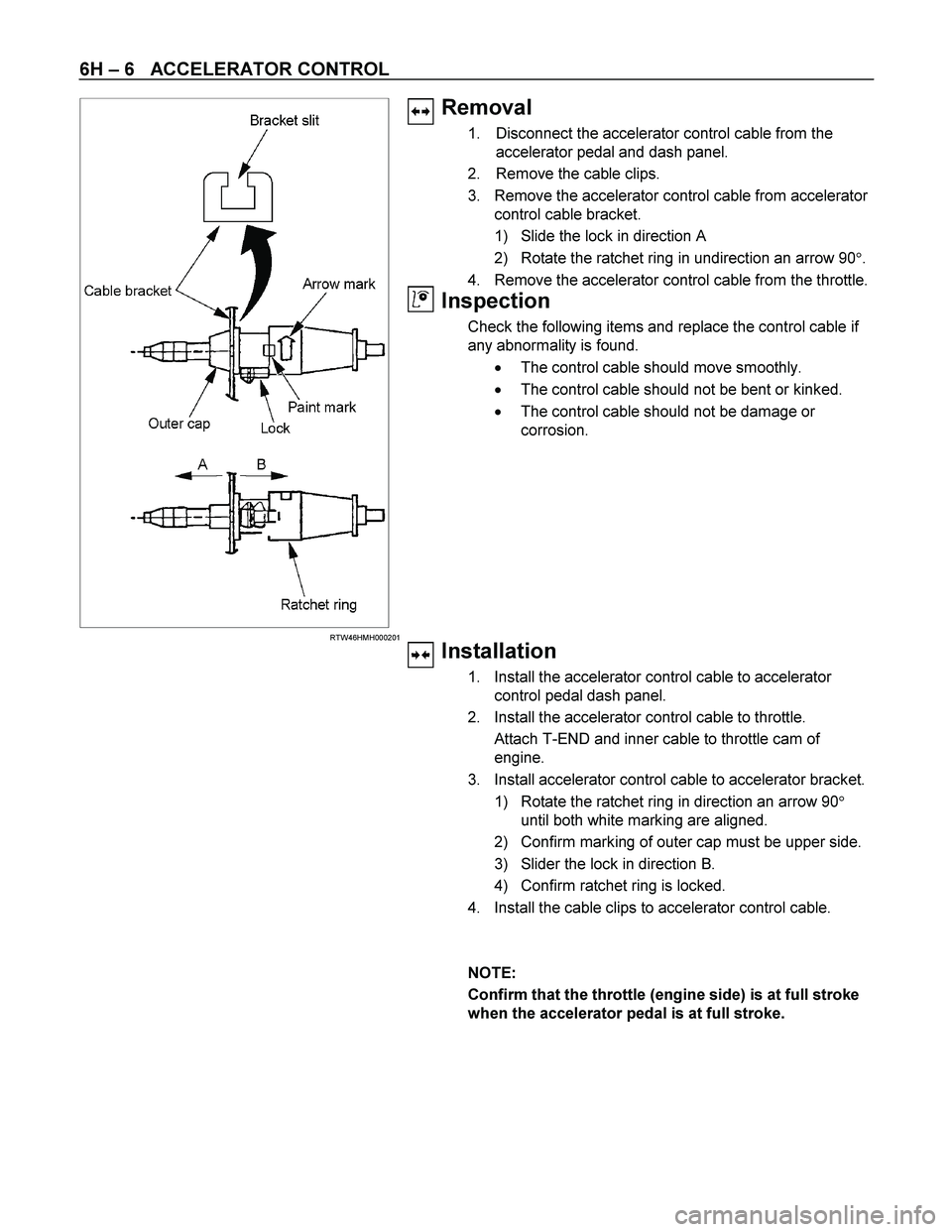

6H – 6 ACCELERATOR CONTROL
RTW46HMH000201
Removal
1. Disconnect the accelerator control cable from the
accelerator pedal and dash panel.
2. Remove the cable clips.
3. Remove the accelerator control cable from accelerator
control cable bracket.
1) Slide the lock in direction A
2) Rotate the ratchet ring in undirection an arrow 90.
4. Remove the accelerator control cable from the throttle.
Inspection
Check the following items and replace the control cable if
any abnormality is found.
The control cable should move smoothly.
The control cable should not be bent or kinked.
The control cable should not be damage or
corrosion.
Installation
1. Install the accelerator control cable to accelerator
control pedal dash panel.
2. Install the accelerator control cable to throttle.
Attach T-END and inner cable to throttle cam of
engine.
3. Install accelerator control cable to accelerator bracket.
1) Rotate the ratchet ring in direction an arrow 90
until both white marking are aligned.
2) Confirm marking of outer cap must be upper side.
3) Slider the lock in direction B.
4) Confirm ratchet ring is locked.
4. Install the cable clips to accelerator control cable.
NOTE:
Confirm that the throttle (engine side) is at full stroke
when the accelerator pedal is at full stroke.
