ISUZU TF SERIES 2004 Workshop Manual ANTITHEFT SYSTEM 11B

Page 3394 of 4264

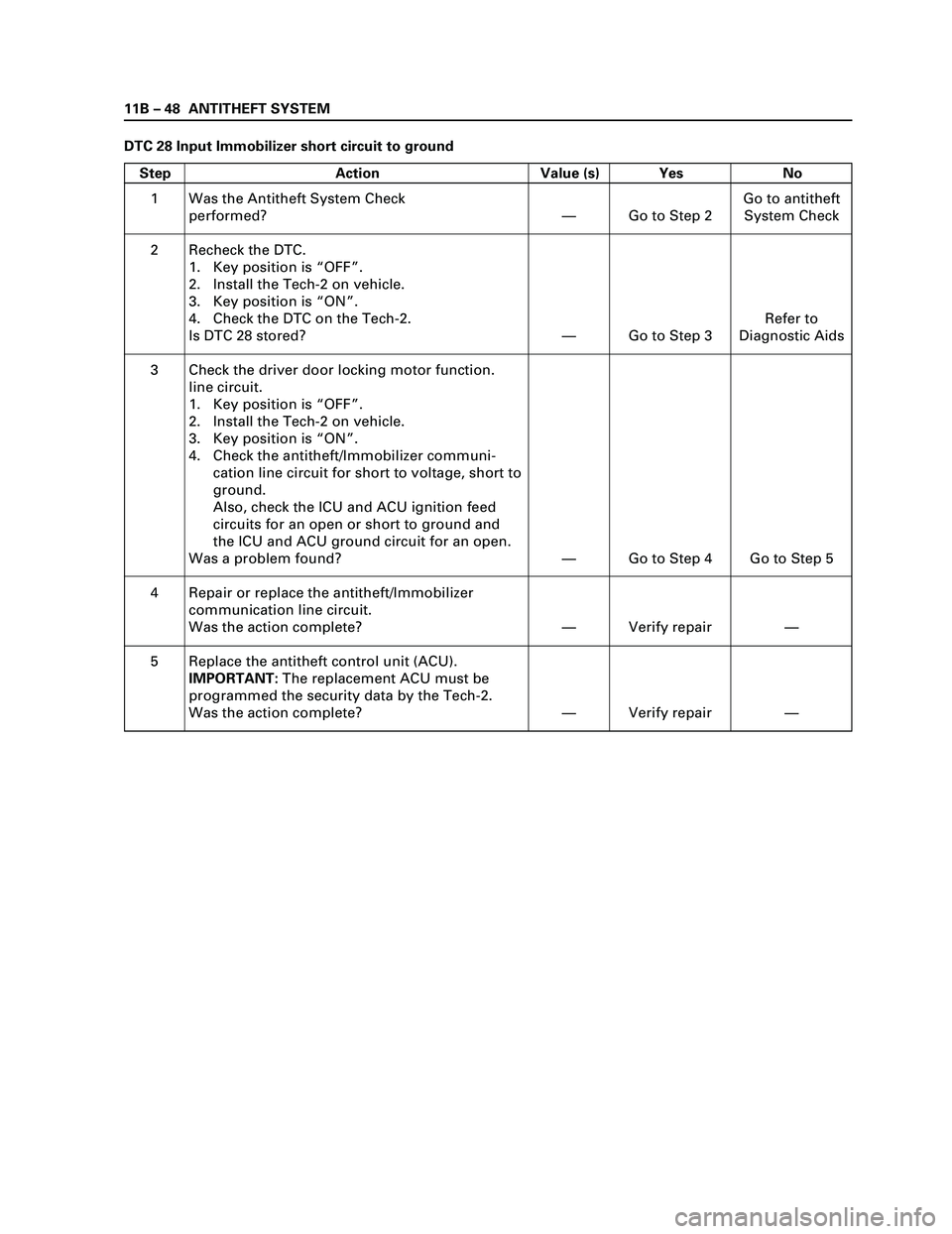

ISUZU TF SERIES 2004 Workshop Manual 11B – 48 ANTITHEFT SYSTEM DTC 28 Input Immobilizer short circuit to ground Step Action Value (s) Yes No 1 2 3 4 5Was the Antitheft System Check performed? Recheck the DTC. 1. Key position is “OFF

Page 3395 of 4264

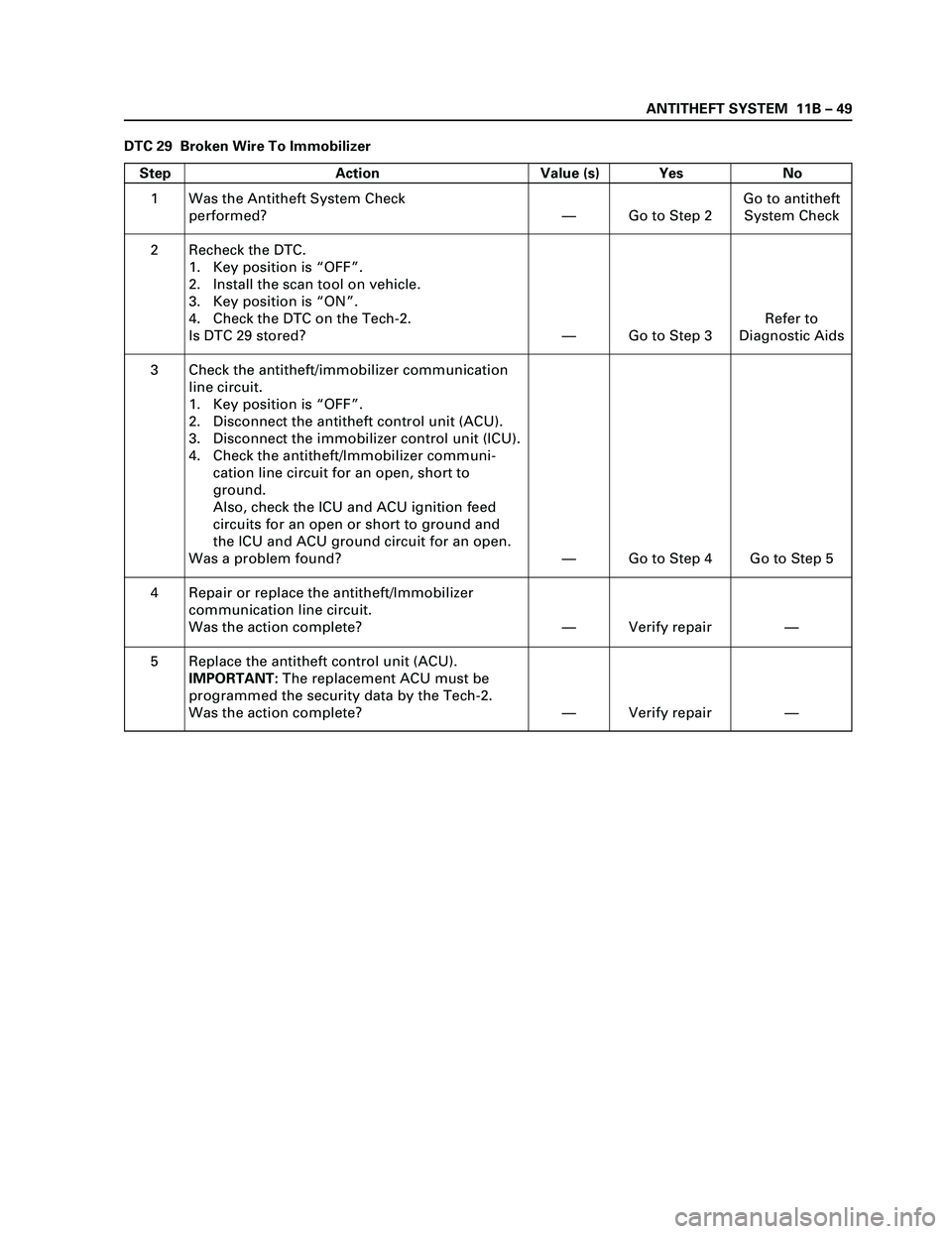

ISUZU TF SERIES 2004 Workshop Manual ANTITHEFT SYSTEM 11B – 49 DTC 29 Broken Wire To Immobilizer Step Action Value (s) Yes No 1 2 3 4 5Was the Antitheft System Check performed? Recheck the DTC. 1. Key position is “OFF”. 2. Instal

Page 3396 of 4264

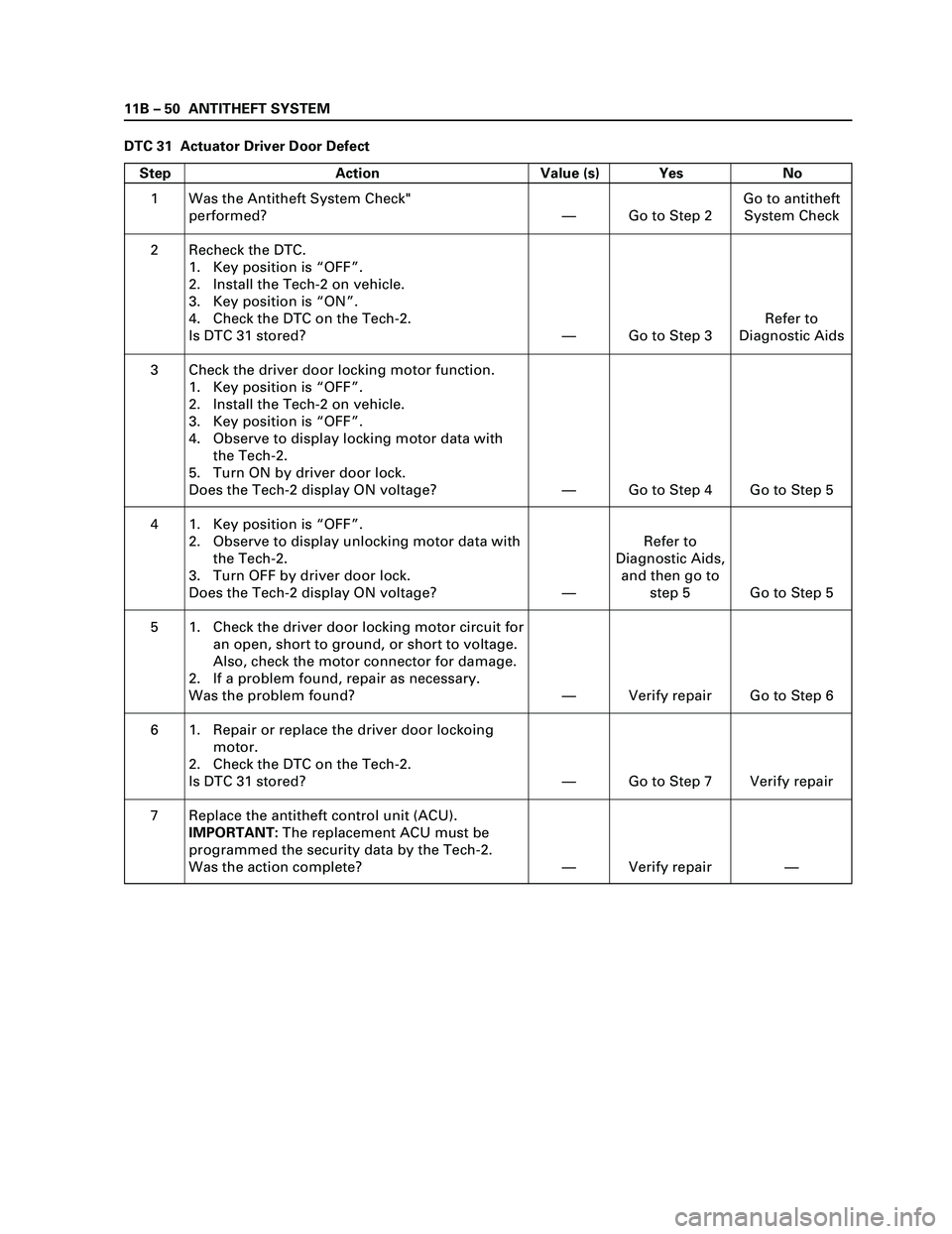

ISUZU TF SERIES 2004 Workshop Manual 11B – 50 ANTITHEFT SYSTEM DTC 31 Actuator Driver Door Defect Step Action Value (s) Yes No 1 2 3 4 5 6 7Was the Antitheft System Check" performed? Recheck the DTC. 1. Key position is “OFF”. 2. I

Page 3397 of 4264

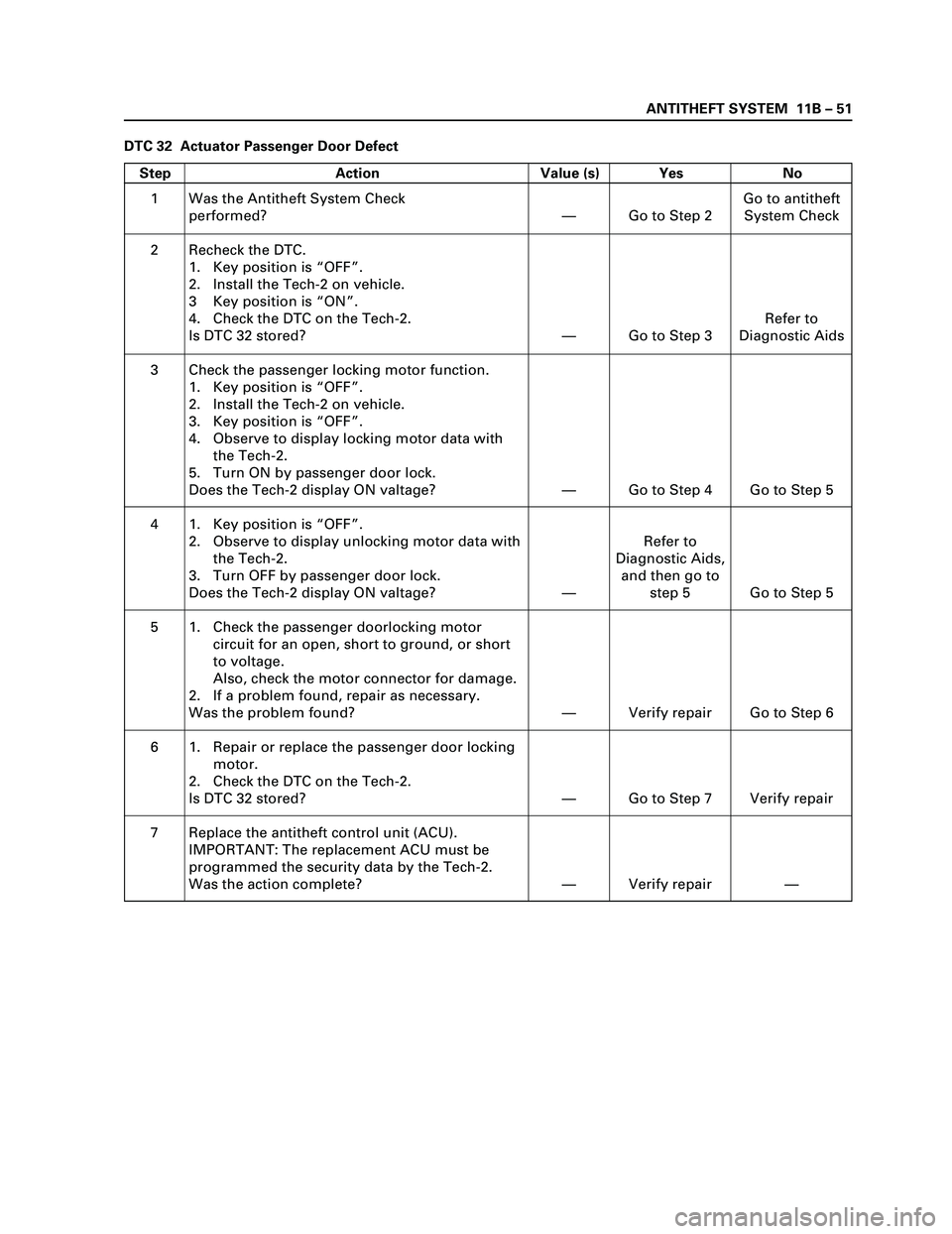

ISUZU TF SERIES 2004 Workshop Manual ANTITHEFT SYSTEM 11B – 51 DTC 32 Actuator Passenger Door Defect Step Action Value (s) Yes No 1 2 3 4 5 6 7Was the Antitheft System Check performed? Recheck the DTC. 1. Key position is “OFF”. 2

Page 3398 of 4264

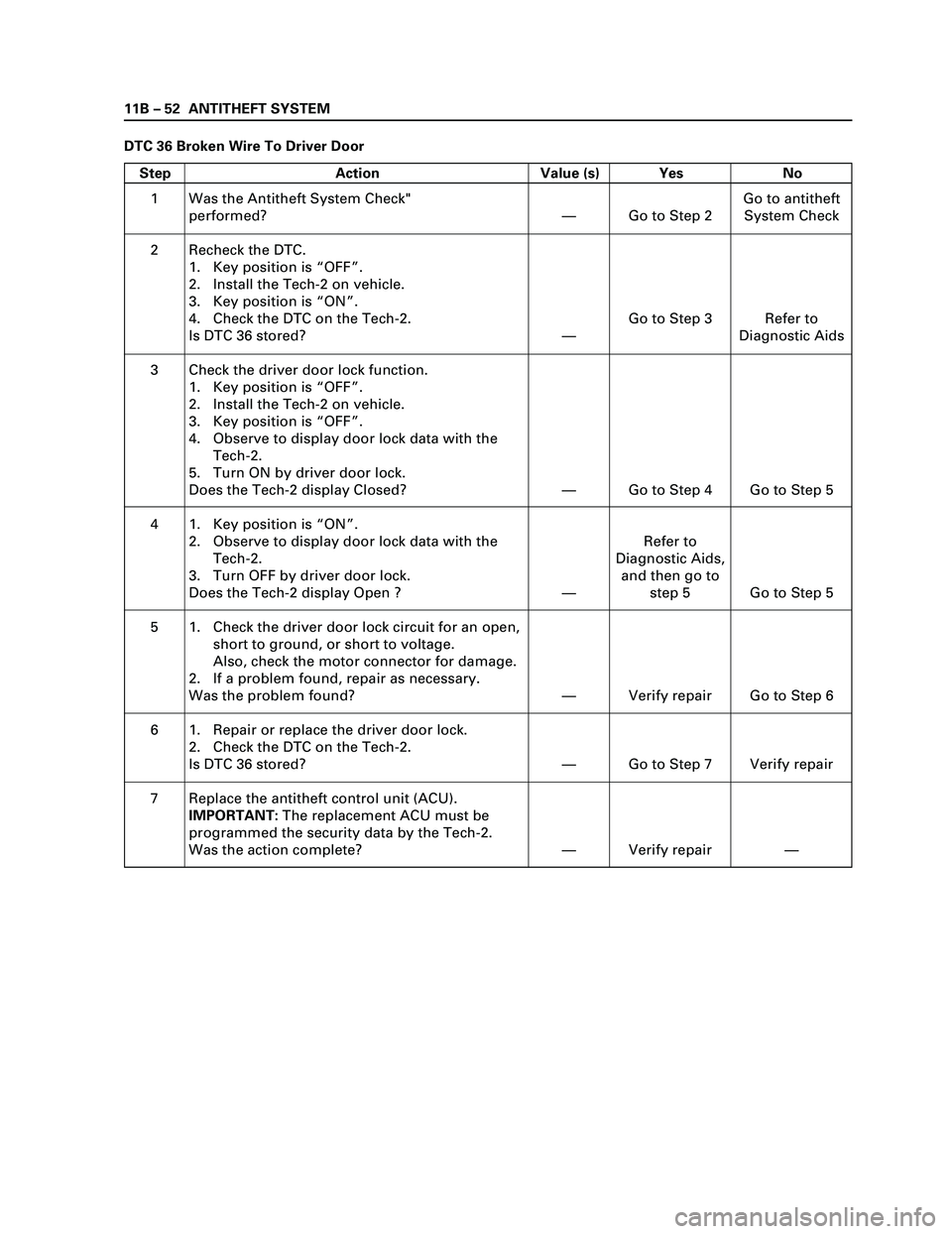

ISUZU TF SERIES 2004 Workshop Manual 11B – 52 ANTITHEFT SYSTEM DTC 36 Broken Wire To Driver Door Step Action Value (s) Yes No 1 2 3 4 5 6 7Was the Antitheft System Check" performed? Recheck the DTC. 1. Key position is “OFF”. 2. In

Page 3399 of 4264

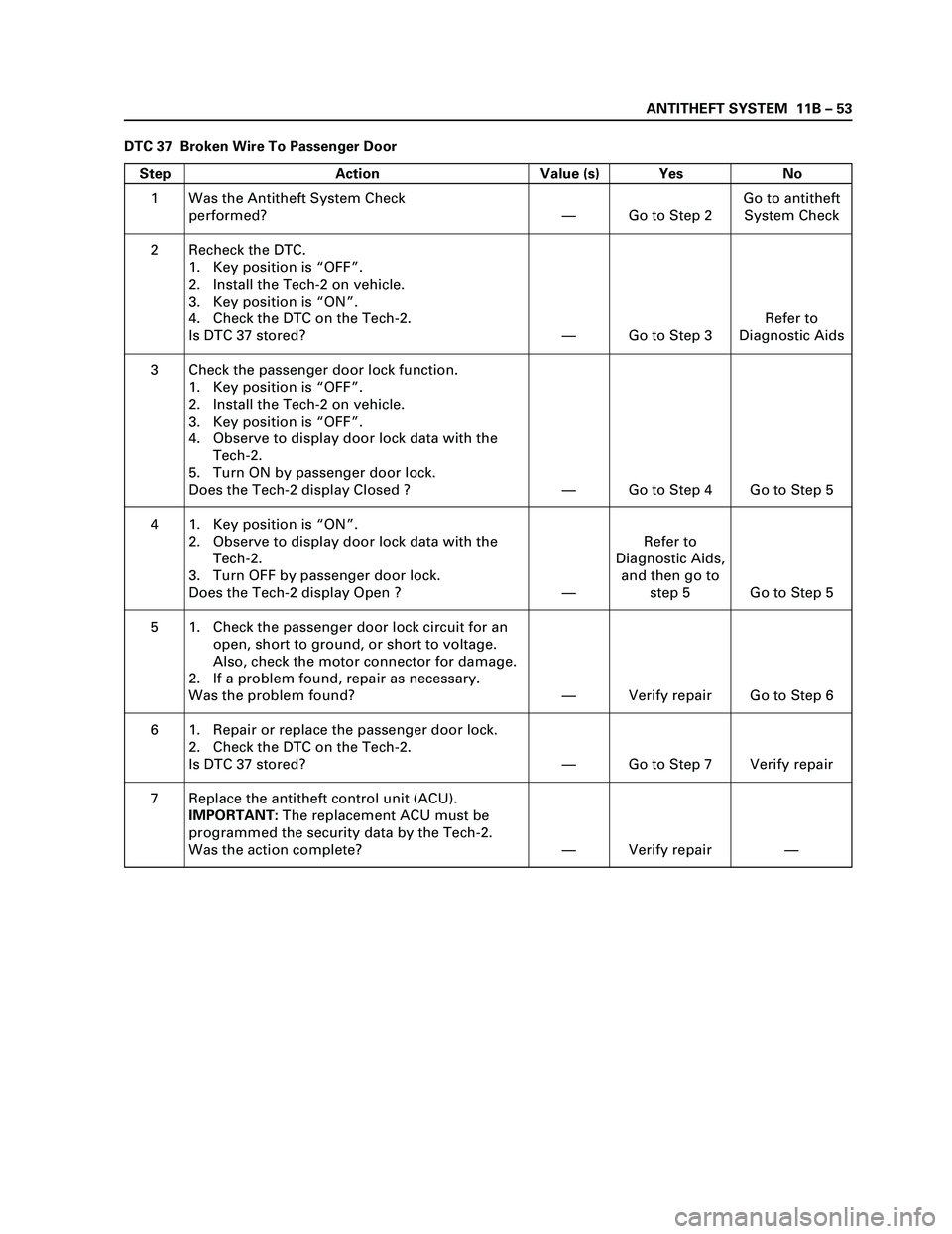

ISUZU TF SERIES 2004 Workshop Manual ANTITHEFT SYSTEM 11B – 53 DTC 37 Broken Wire To Passenger Door Step Action Value (s) Yes No 1 2 3 4 5 6 7Was the Antitheft System Check performed? Recheck the DTC. 1. Key position is “OFF”. 2

Page 3400 of 4264

ISUZU TF SERIES 2004 Workshop Manual 11B – 54 ANTITHEFT SYSTEM DTC 41 Driver Door Lock Switch Unlock Defect Step Action Value (s) Yes No 1 2 3 4 5 6 7Was the Antitheft System Check" performed? Recheck the DTC. 1. Key position is “OF
