ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL 6A – 117 RTW46ASH001201 33. Injection Nozzle Holder 1. Install the injection nozzle gasket and the O-ring to the injection nozzle holder. Be sure that the O-ring fi

Page 1258 of 4264

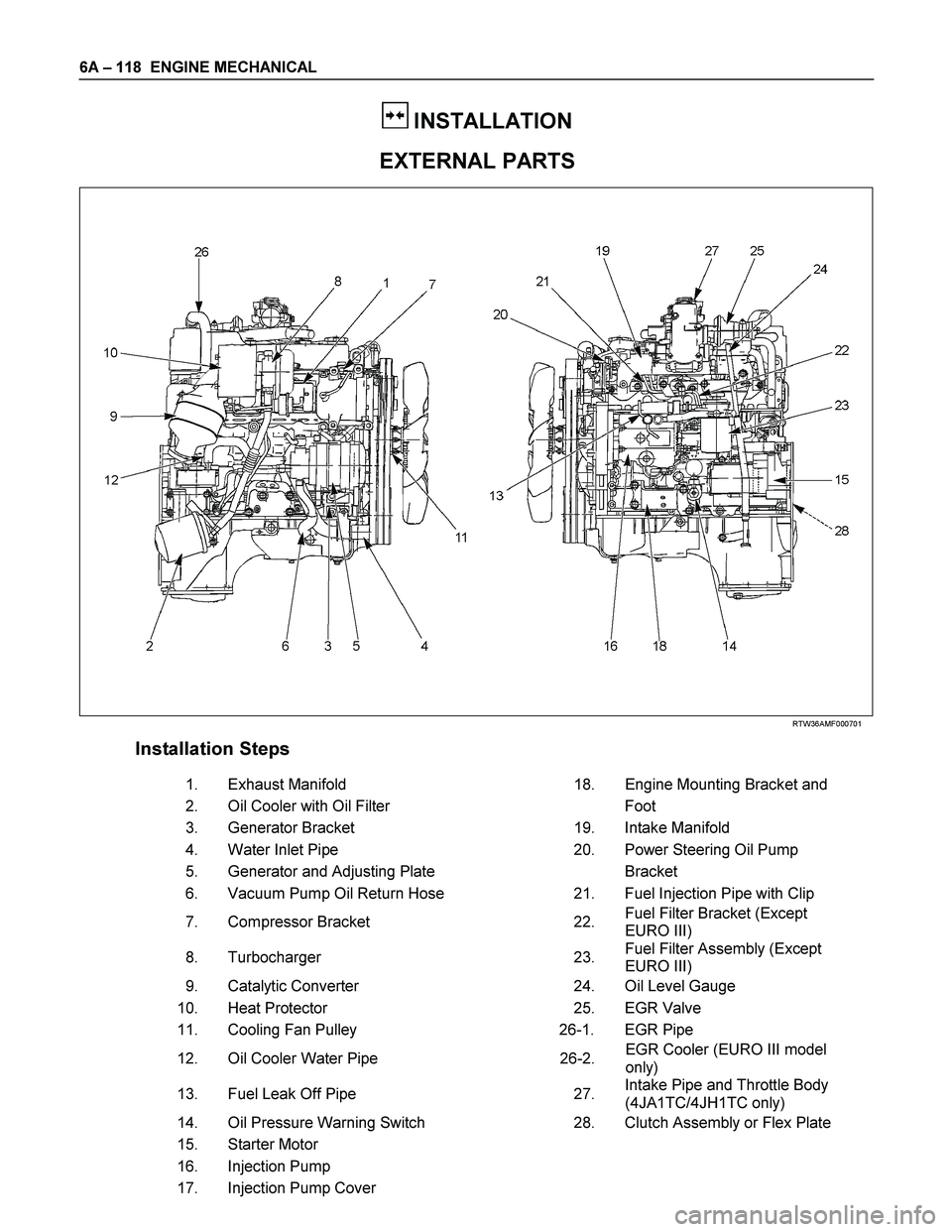

ISUZU TF SERIES 2004 Workshop Manual 6A – 118 ENGINE MECHANICAL INSTALLATION EXTERNAL PARTS RTW36AMF000701 Installation Steps 1. Exhaust Manifold 18. Engine Mounting Bracket and 2. Oil Cooler wi

Page 1259 of 4264

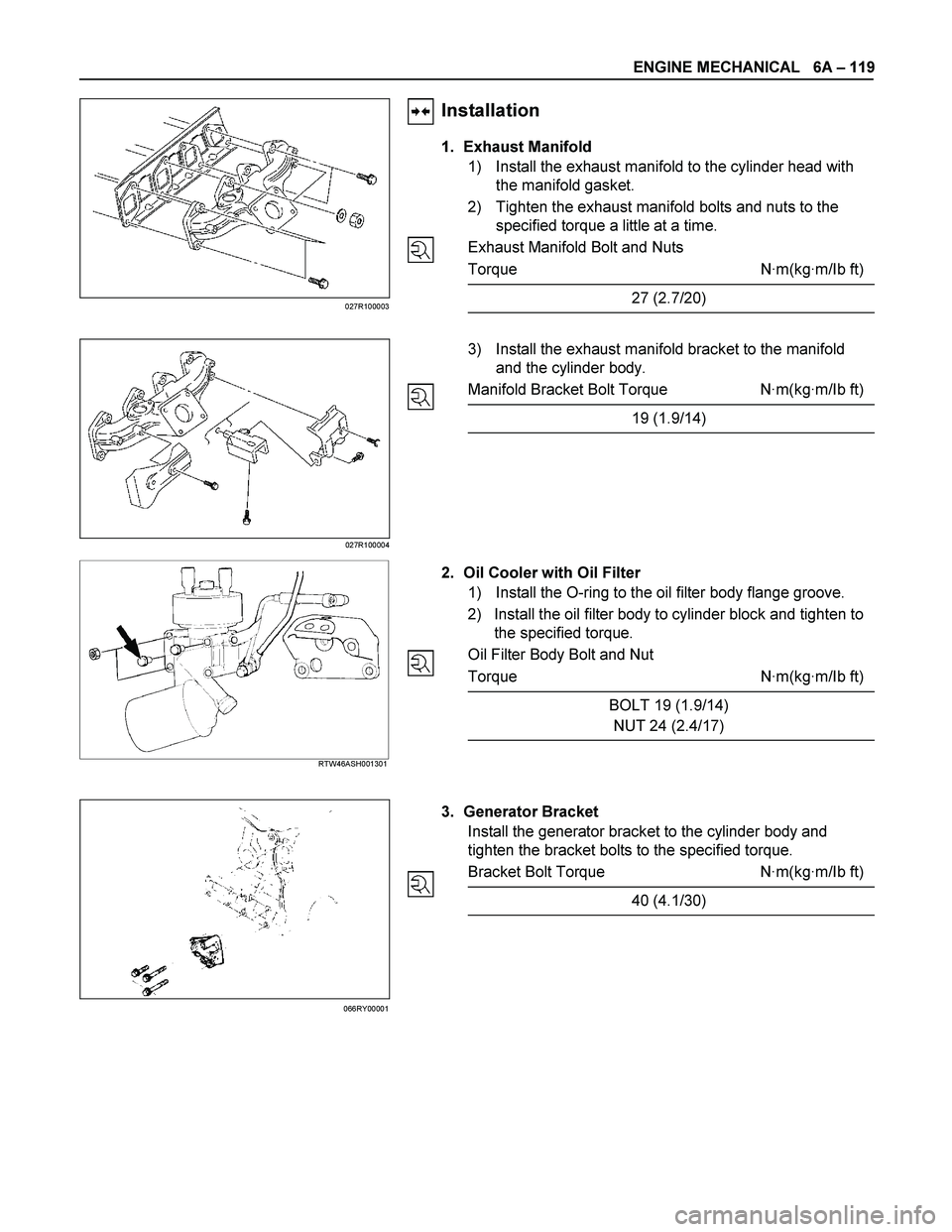

ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL 6A – 119 Installation 1. Exhaust Manifold 1) Install the exhaust manifold to the cylinder head with the manifold gasket. 2) Tighten the exhaust man

Page 1260 of 4264

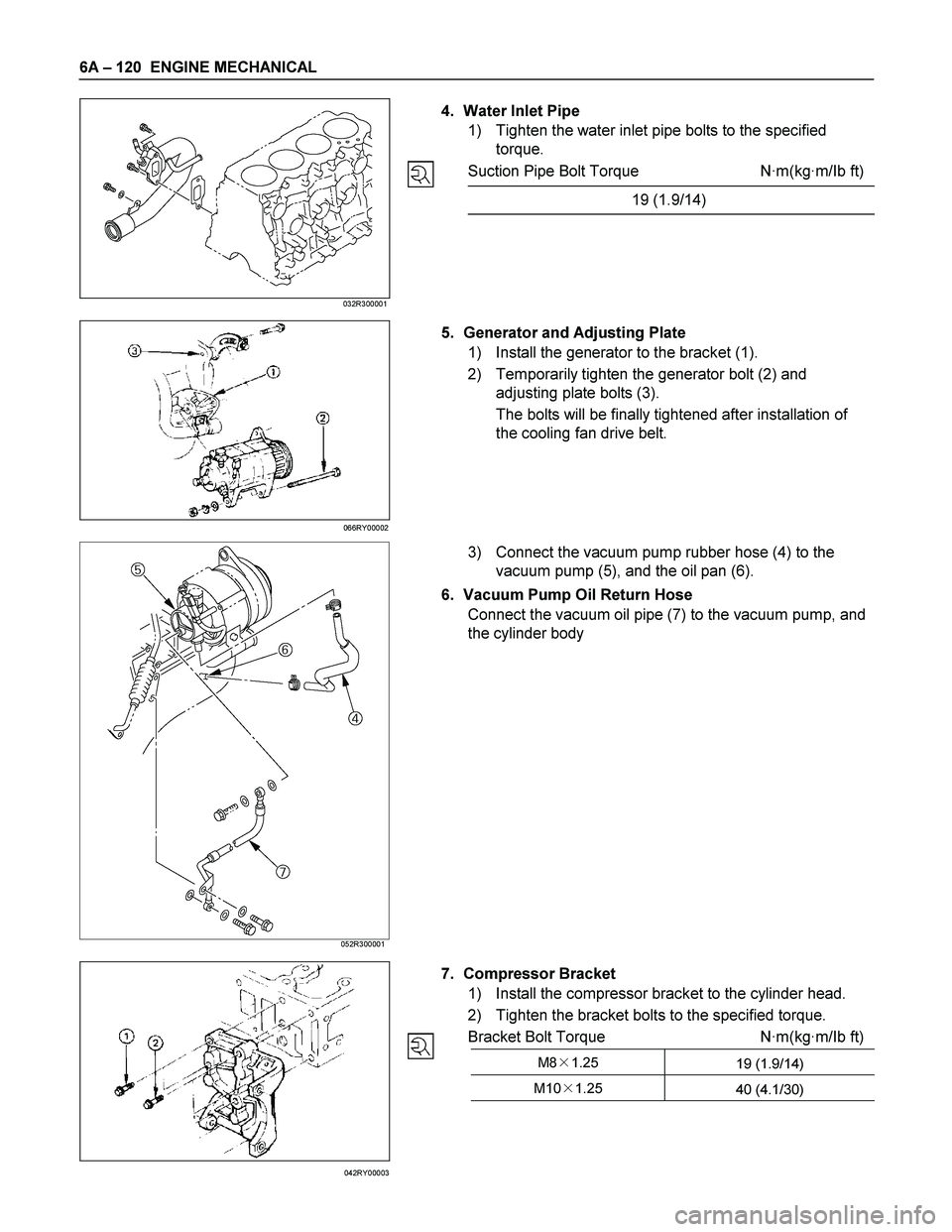

ISUZU TF SERIES 2004 Workshop Manual 6A – 120 ENGINE MECHANICAL 4. Water Inlet Pipe 1) Tighten the water inlet pipe bolts to the specified torque. Suction Pipe Bolt Torque N·m(kg·m/Ib ft) 19 (1.9/14)

Page 1261 of 4264

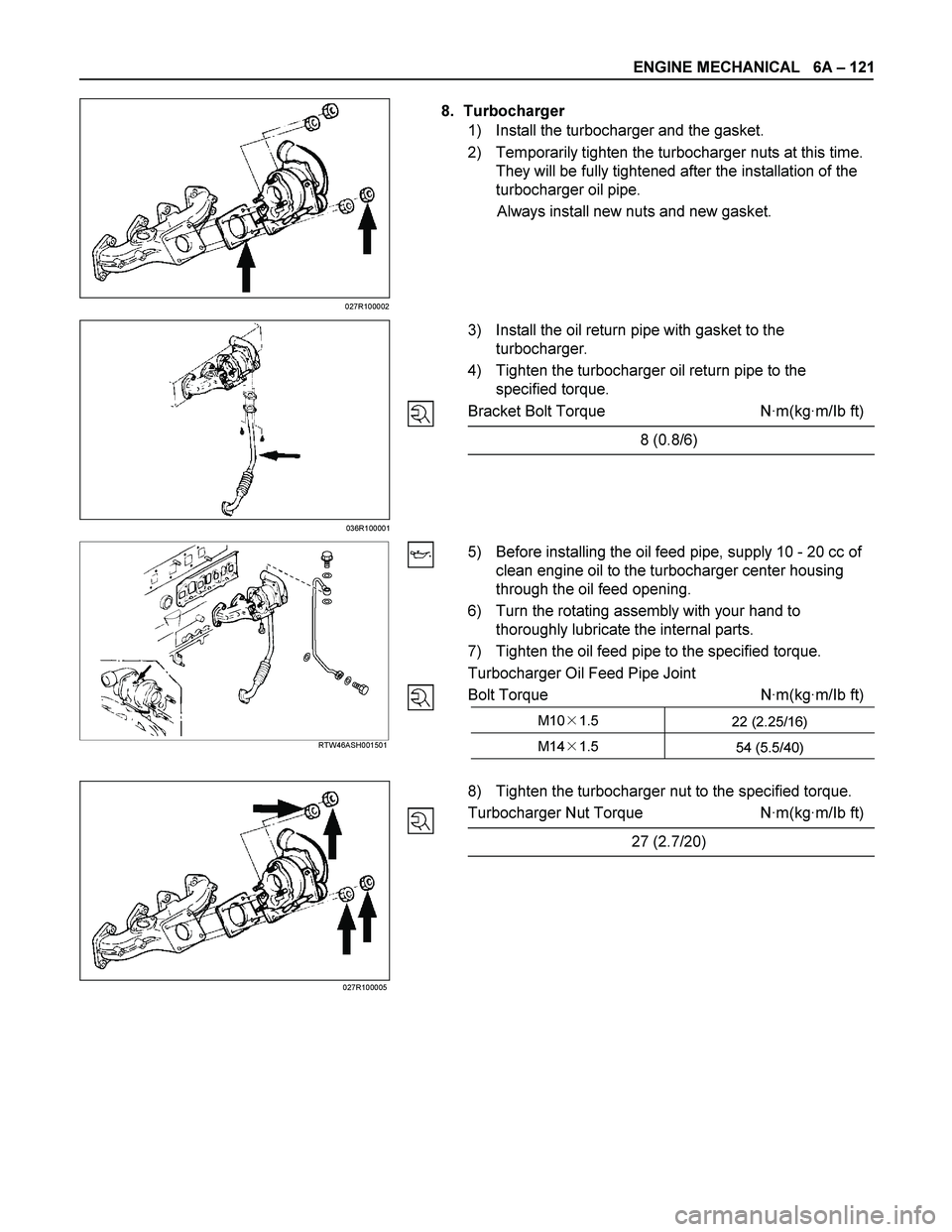

ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL 6A – 121 8. Turbocharger 1) Install the turbocharger and the gasket. 2) Temporarily tighten the turbocharger nuts at this time. They will b

Page 1262 of 4264

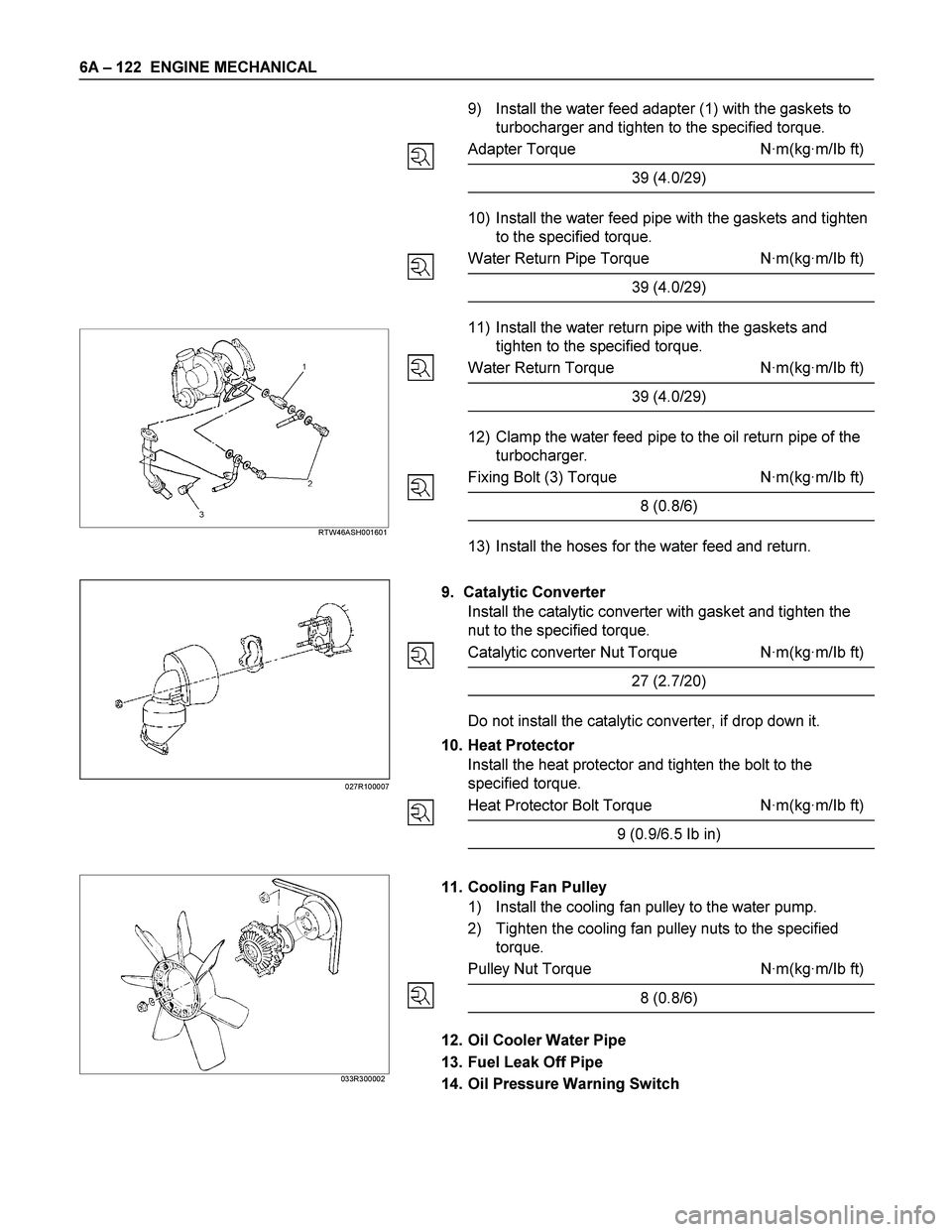

ISUZU TF SERIES 2004 Workshop Manual 6A – 122 ENGINE MECHANICAL RTW46ASH001601 9) Install the water feed adapter (1) with the gaskets

Page 1263 of 4264

ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL 6A – 123 15. Starter Motor Tighten the starter motor bolts to the specified torque. Starter Motor Bolt Torque N·m(kg·m/Ib ft) 85 (8.7/63) 16. Injection Pump

Page 1264 of 4264

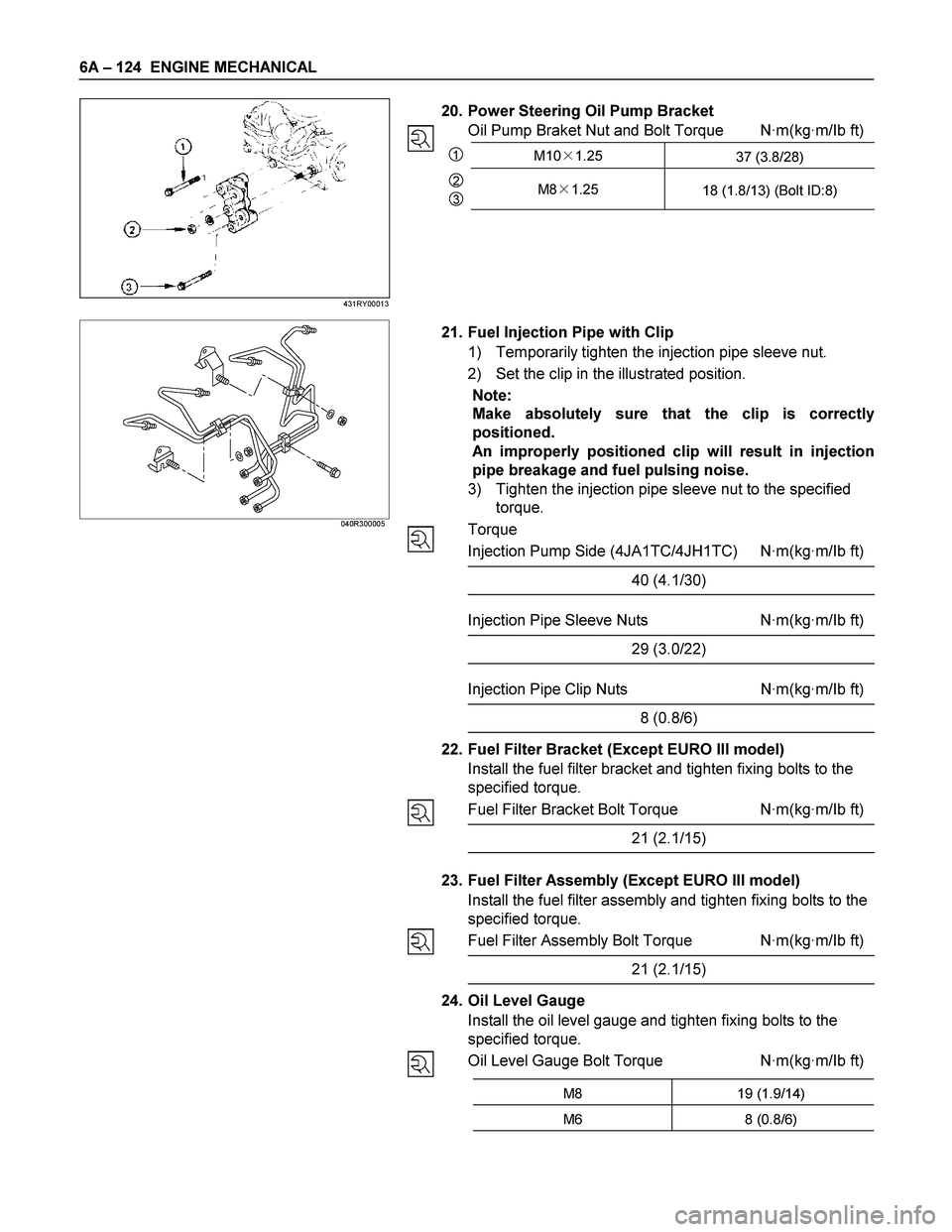

ISUZU TF SERIES 2004 Workshop Manual 6A – 124 ENGINE MECHANICAL 20. Power Steering Oil Pump Bracket Oil Pump Braket Nut and Bolt Torque N·m(kg·m/Ib ft) 1M101.25 37 (3.8/28) 2 3M81.25 18 (1.8/13) (Bolt ID:8)
