Page 1081 of 4264

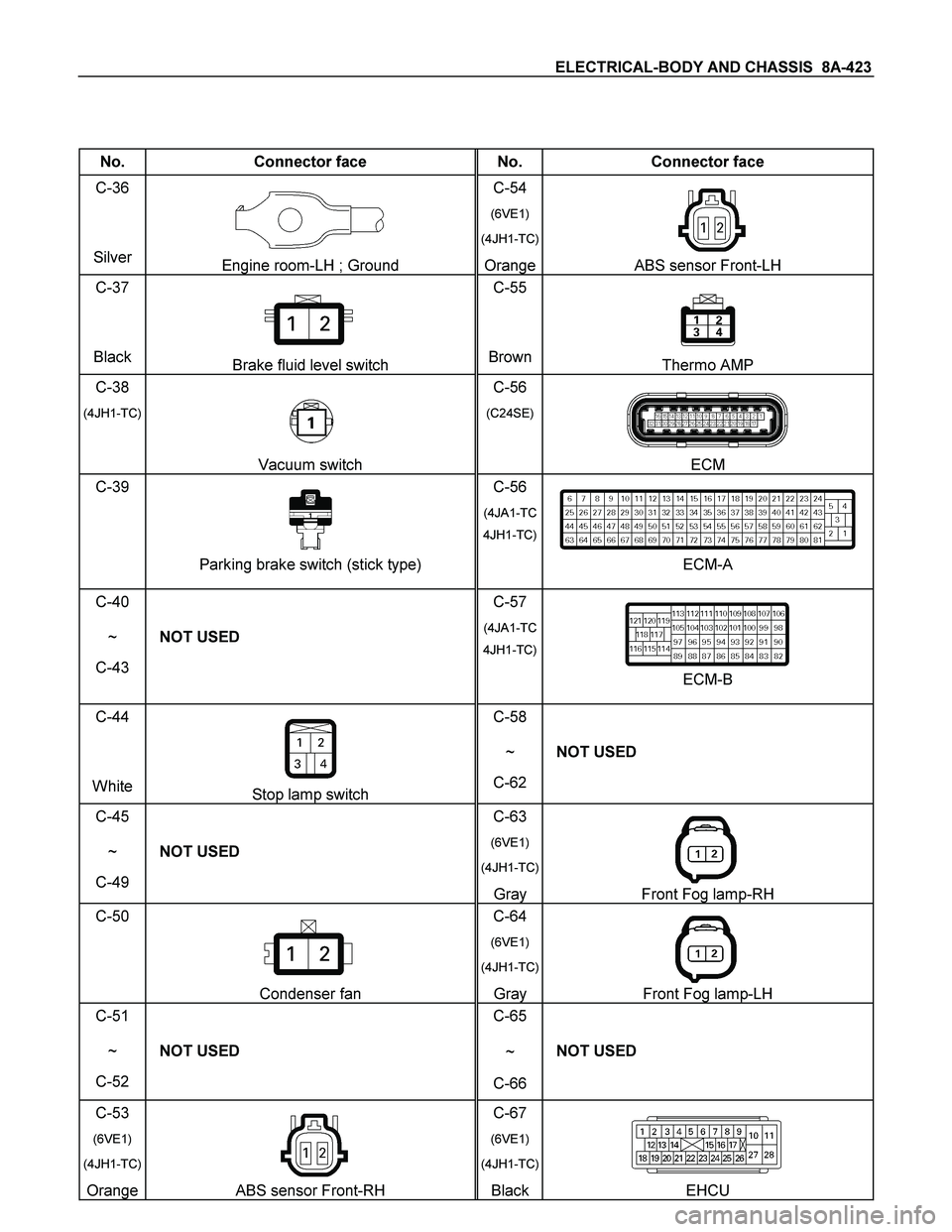

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-423 No. Connector face No. Connector face C-36 Silver Engine room-LH ; Ground C-54 (6VE1) (4JH1-TC) OrangeABS sensor Front-LH C-37 Black Brake fluid leve

Page 1082 of 4264

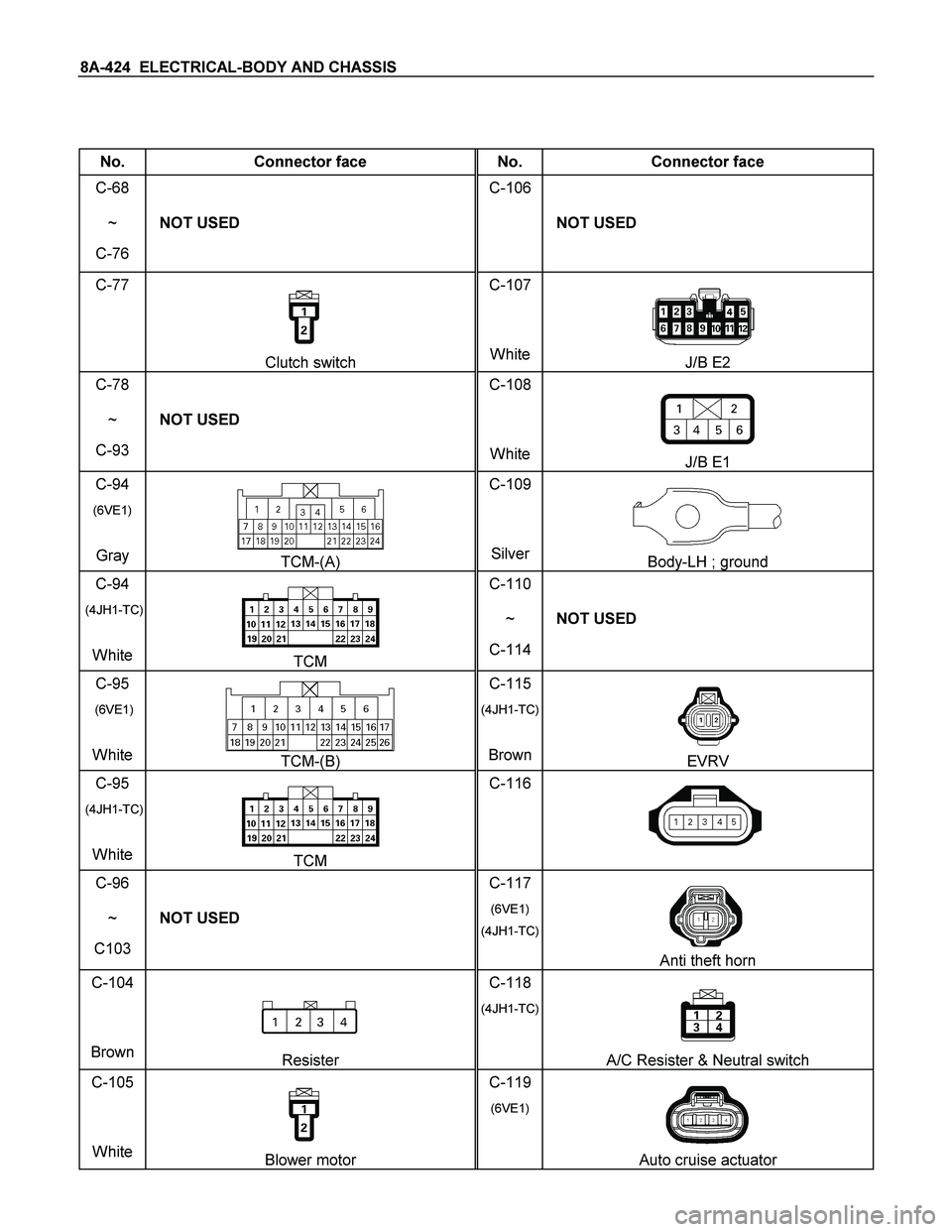

ISUZU TF SERIES 2004 Workshop Manual 8A-424 ELECTRICAL-BODY AND CHASSIS No. Connector face No. Connector face C-68 ~ C-76 NOT USED C-106 NOT USED C-77 Clutch switch C-107 WhiteJ/B E2 C-78 ~ C-93 NOT USED C-108 White J

Page 1083 of 4264

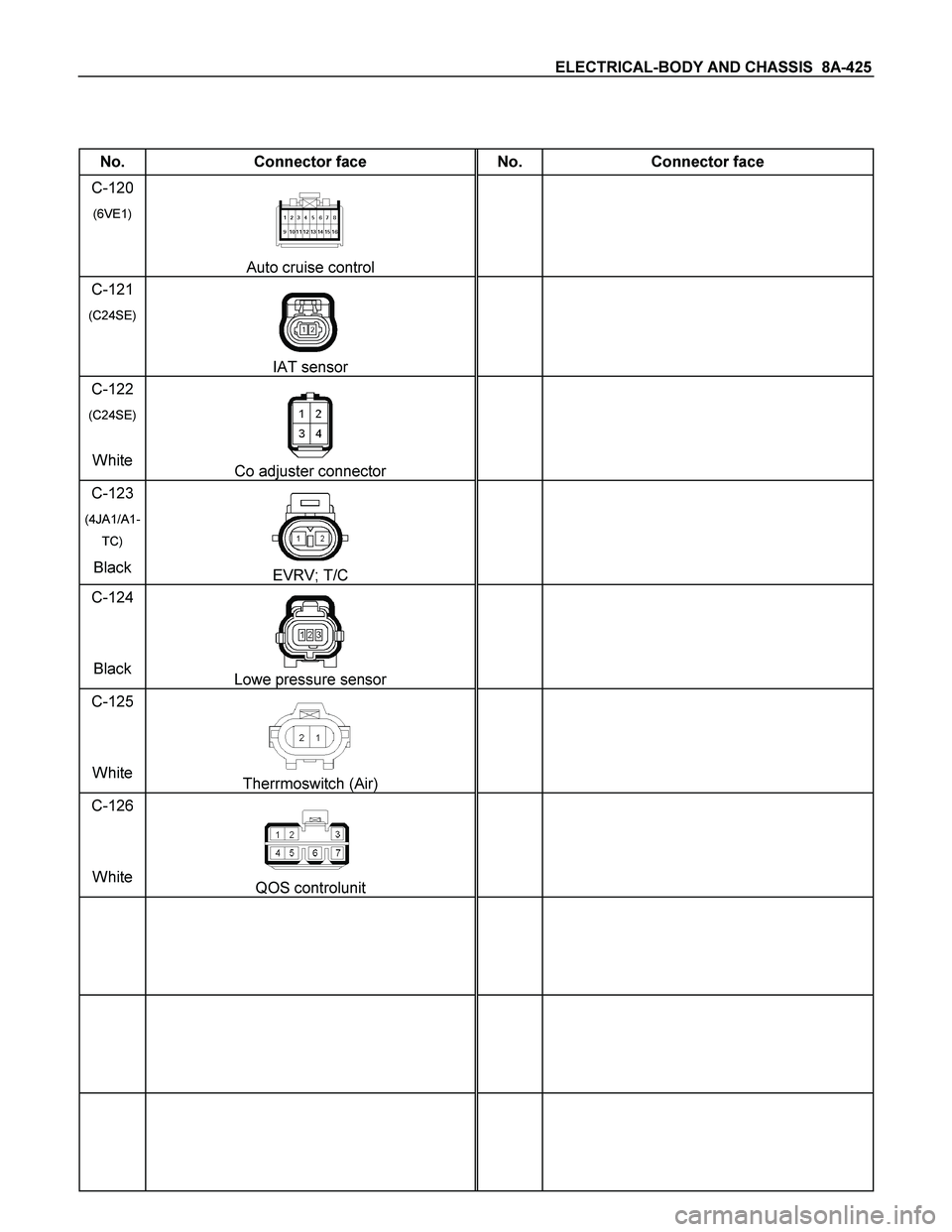

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-425 No. Connector face No. Connector face C-120 (6VE1) Auto cruise control C-121 (C24SE) IAT sensor C-122 (C24SE) White Co adjuster connect

Page 1084 of 4264

ISUZU TF SERIES 2004 Workshop Manual 8A-426 ELECTRICAL-BODY AND CHASSIS No. Connector face No. Connector face D-1 Brown Power window motor-RH D-10 WhitePower window switch passenger side D-2 White Remote mirror-RH D-11 B

Page 1085 of 4264

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-427 No. Connector face No. Connector face D-20 White Power window switch driver side D-21 White Tweeter-RH D-22 White Tweeter-LH D-23

Page 1086 of 4264

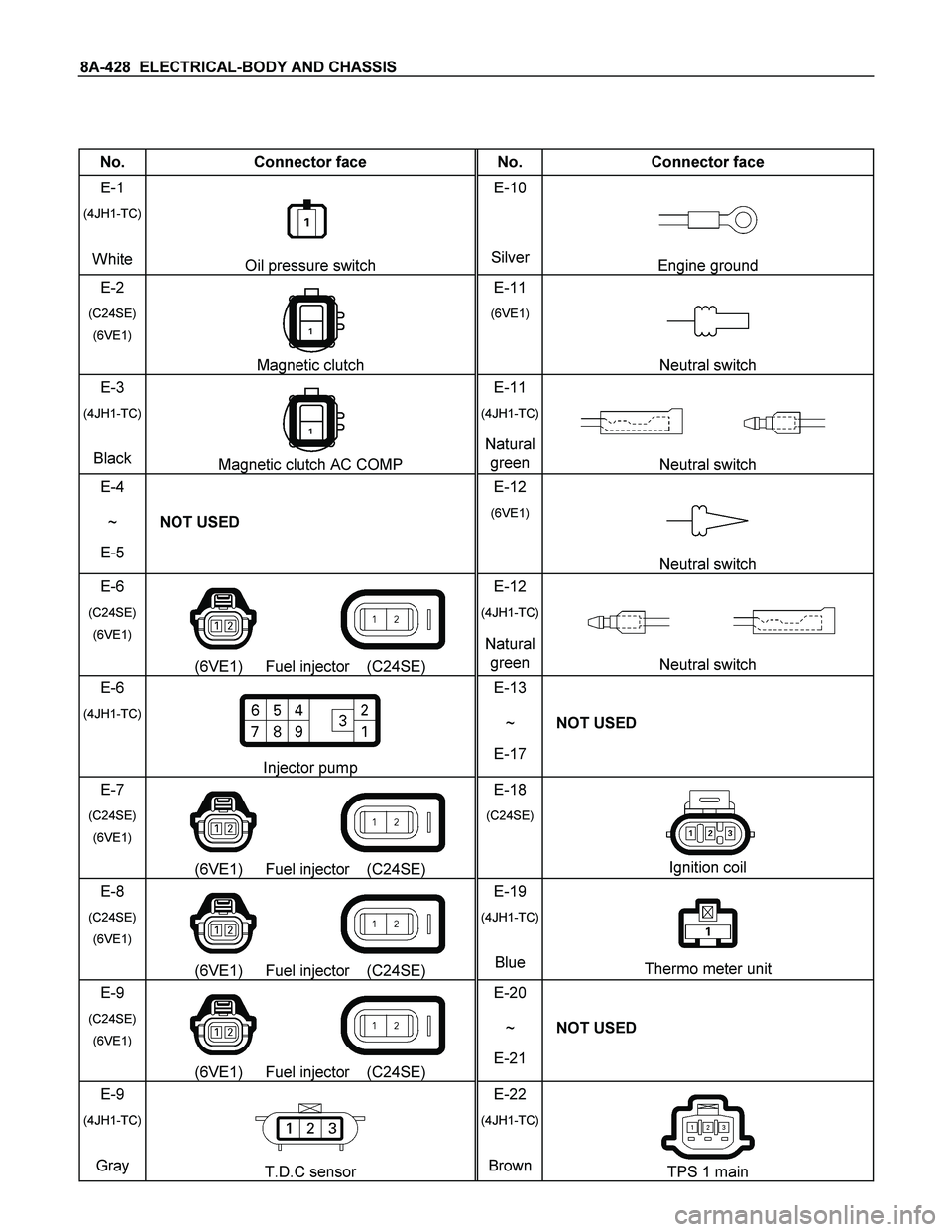

ISUZU TF SERIES 2004 Workshop Manual 8A-428 ELECTRICAL-BODY AND CHASSIS No. Connector face No. Connector face E-1 (4JH1-TC) White Oil pressure switch E-10 SilverEngine ground E-2 (C24SE) (6VE1) Magnetic clutch E-11 (

Page 1087 of 4264

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-429 No. Connector face No. Connector face E-23 (4JH1-TC) Gray TPS 2 main E-44 Gray Vehicle speed sensor E-24 ~ E-29 NOT USED E-45 (4JH1-TC) Gray 2WD-4WD

Page 1088 of 4264

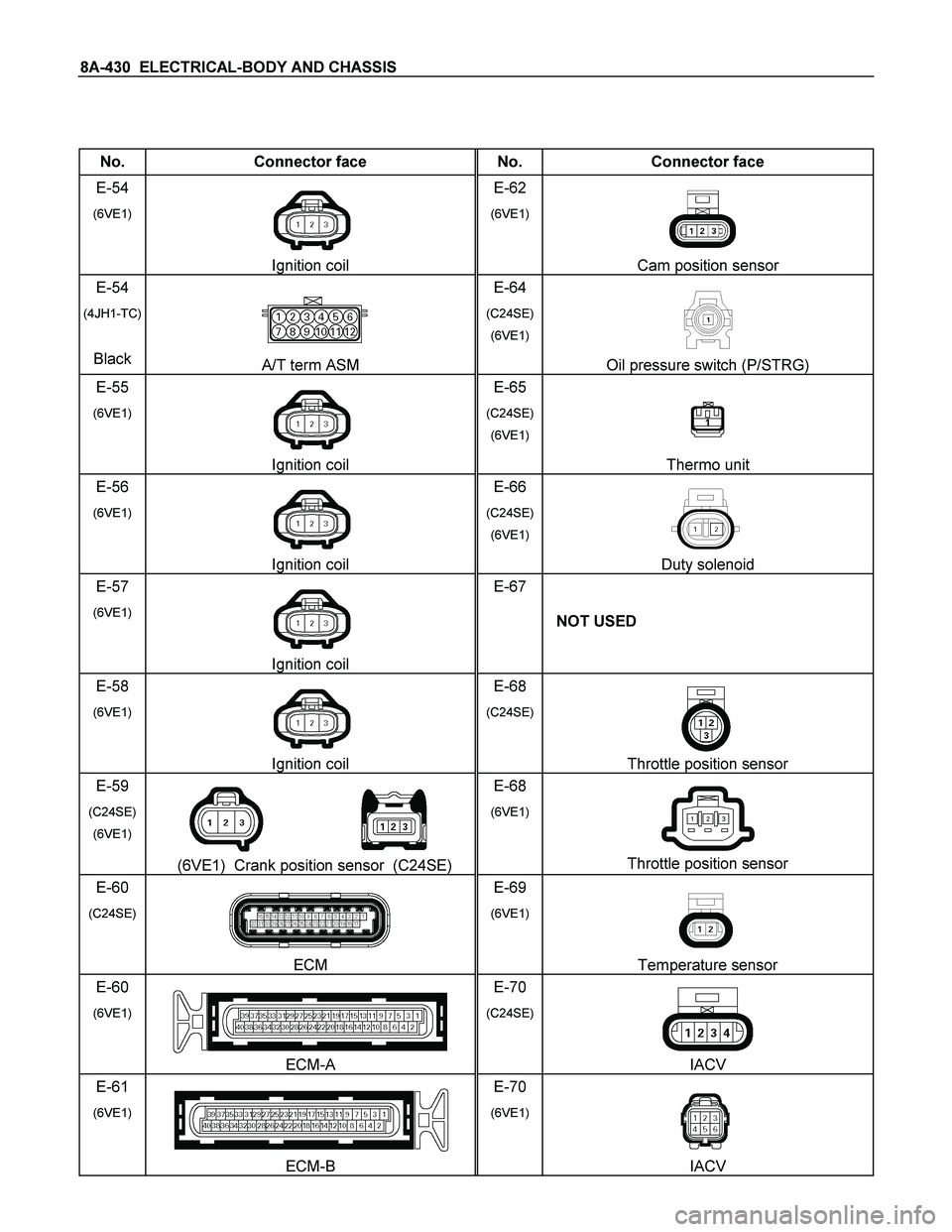

ISUZU TF SERIES 2004 Workshop Manual 8A-430 ELECTRICAL-BODY AND CHASSIS No. Connector face No. Connector face E-54 (6VE1) Ignition coil E-62 (6VE1) Cam position sensor E-54 (4JH1-TC) Black A/T term ASM E-64 (C24SE) (6V
