Page 1665 of 4264

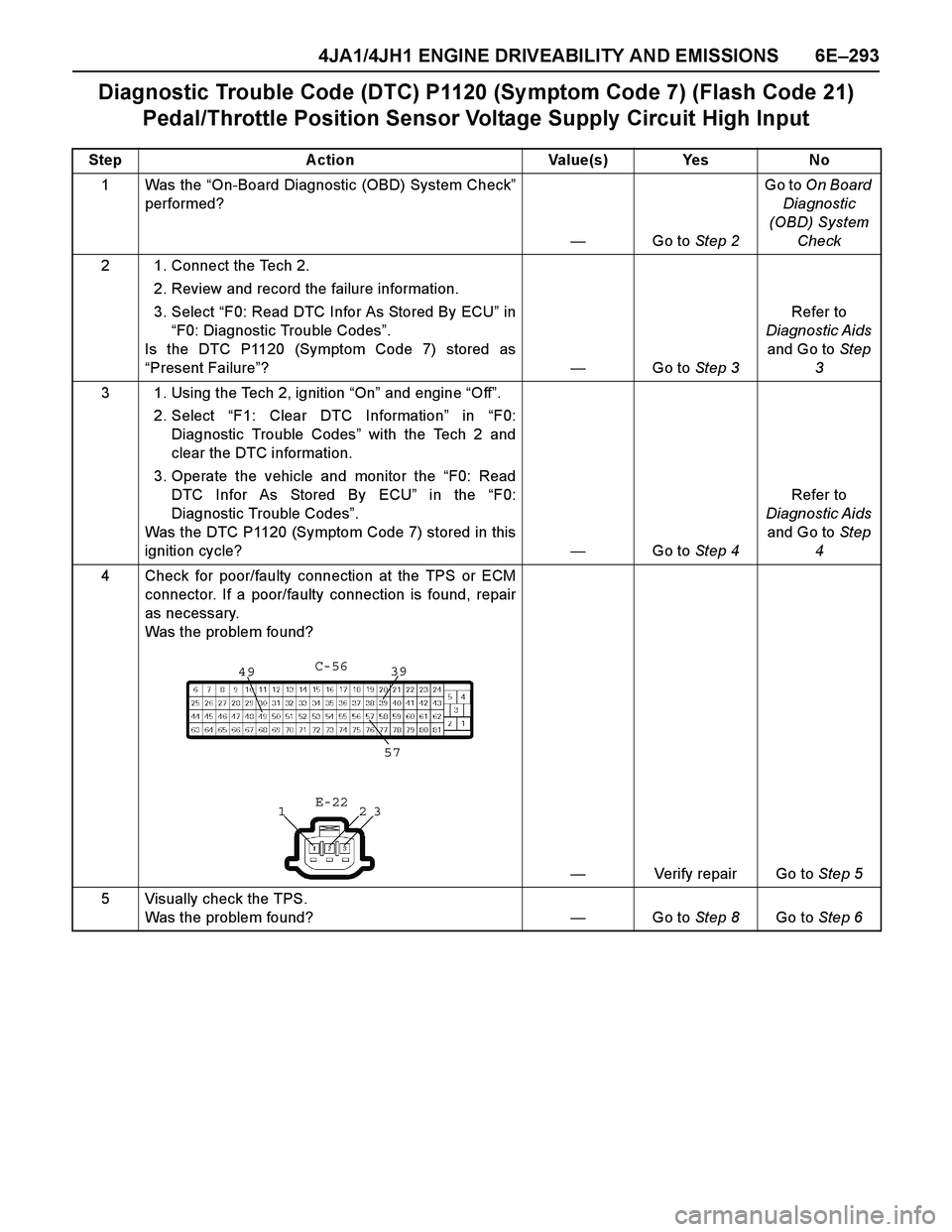

4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–293
Diagnostic Trouble Code (DTC) P1120 (Sy mptom Code 7) (Flash Code 21)
Pedal/Throttle Position Sensor Voltage Supply Circuit High Input
Step Action Value(s) Yes No
1Was the “On-Board Diagnostic (OBD) System Check”
performed?
—Go to Step 2Go to On Board
Diagnostic
(OBD) System
Check
2 1. Connect the Tech 2.
2. Review and record the failure information.
3. Select “F0: Read DTC Infor As Stored By ECU” in
“F0: Diagnostic Trouble Codes”.
Is the DTC P1120 (Symptom Code 7) stored as
“Present Failure”?—Go to Step 3Refer to
Diagnostic Aids
and Go to Step
3
3 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Select “F1: Clear DTC Information” in “F0:
Diagnostic Trouble Codes” with the Tech 2 and
clear the DTC information.
3. Operate the vehicle and monitor the “F0: Read
DTC Infor As Stored By ECU” in the “F0:
Diagnostic Trouble Codes”.
Was the DTC P1120 (Symptom Code 7) stored in this
ignition cycle?—Go to Step 4Refer to
Diagnostic Aids
and Go to Step
4
4 Check for poor/faulty connection at the TPS or ECM
connector. If a poor/faulty connection is found, repair
as necessary.
Was the problem found?
—Verify repair Go to Step 5
5 Visually check the TPS.
Was the problem found? —Go to Step 8Go to Step 6
4939
57
23 1C-56
E-22
Page 1666 of 4264

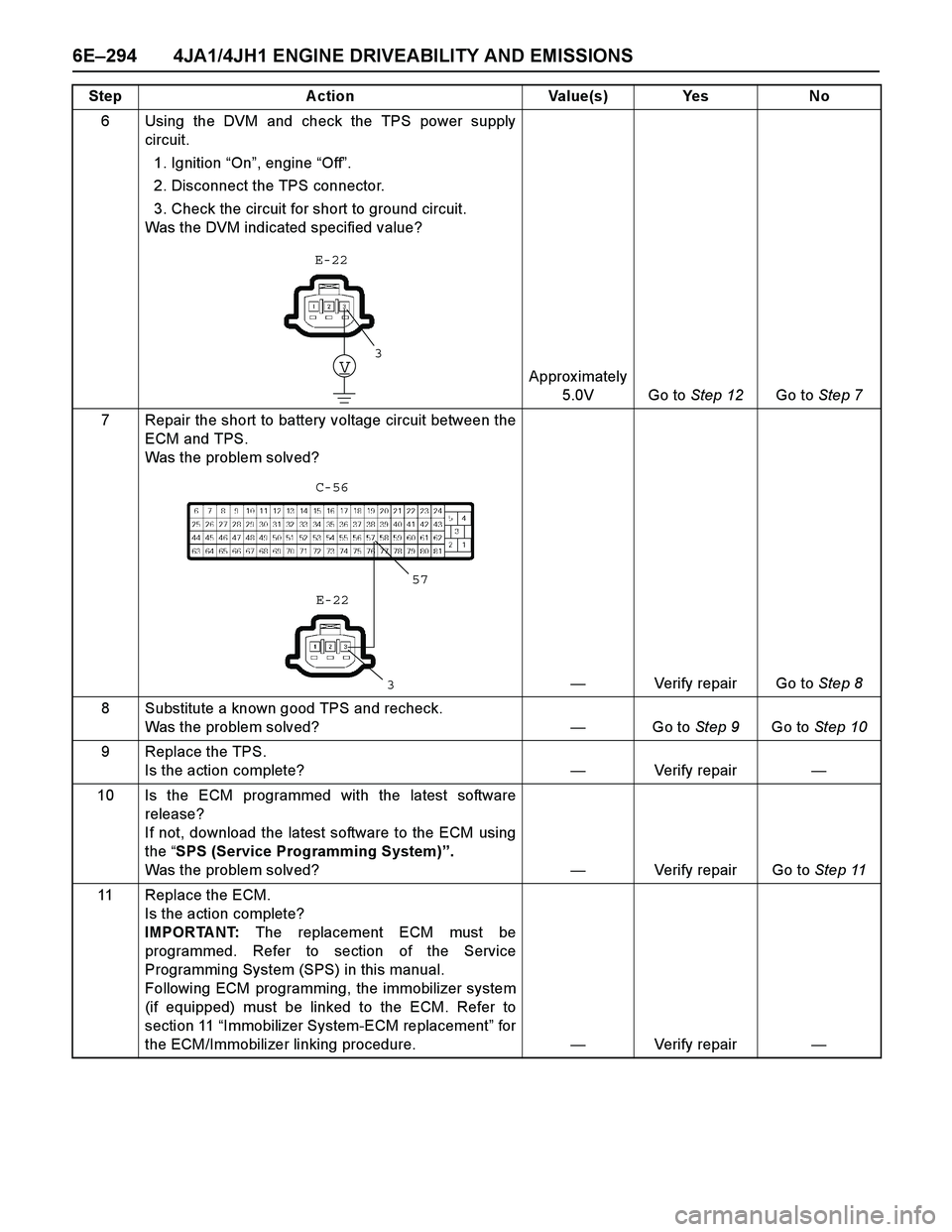

6E–294 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
6 Using the DVM and check the TPS power supply
circuit.
1. Ignition “On”, engine “Off”.
2. Disconnect the TPS connector.
3. Check the circuit for short to ground circuit.
Was the DVM indicated specified value?
Approx imately
5.0V Go to Step 12Go to Step 7
7 Repair the short to battery voltage circuit between the
ECM and TPS.
Was the problem solved?
—Verify repair Go to Step 8
8 Substitute a known good TPS and recheck.
Was the problem solved?—Go to Step 9Go to Step 10
9 Replace the TPS.
Is the action complete?—Verify repair—
10 Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?—Verify repair Go to Step 11
11 Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure.—Verify repair— Step Action Value(s) Yes No
V3 E-22
57
3 C-56
E-22
Page 1667 of 4264

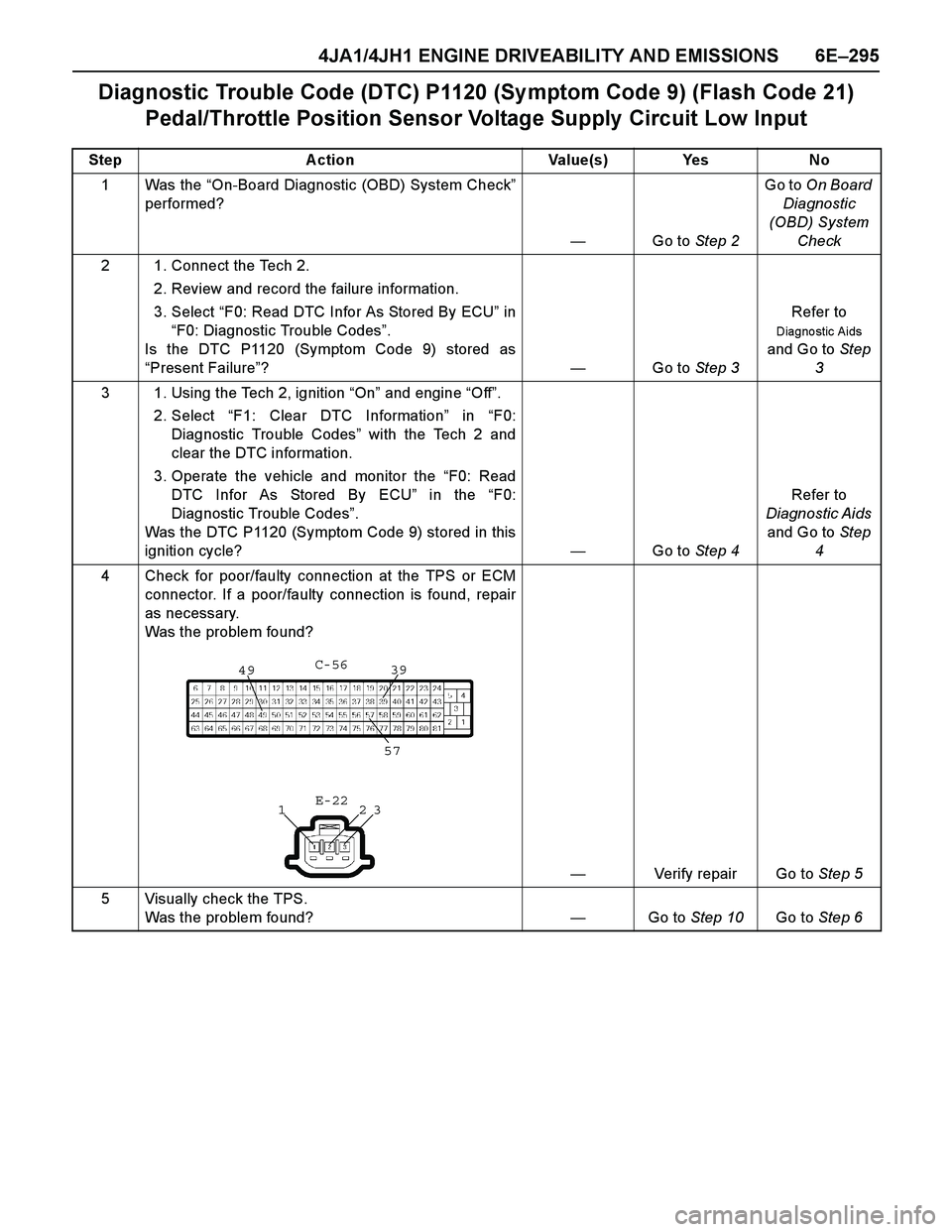

4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–295
Diagnostic Trouble Code (DTC) P1120 (Sy mptom Code 9) (Flash Code 21)
Pedal/Throttle Position Sensor Voltage Supply Circuit Low Input
Step Action Value(s) Yes No
1Was the “On-Board Diagnostic (OBD) System Check”
performed?
—Go to Step 2Go to On Board
Diagnostic
(OBD) System
Check
2 1. Connect the Tech 2.
2. Review and record the failure information.
3. Select “F0: Read DTC Infor As Stored By ECU” in
“F0: Diagnostic Trouble Codes”.
Is the DTC P1120 (Symptom Code 9) stored as
“Present Failure”?—Go to Step 3Refer to
Diagno stic Aids
and Go to Step
3
3 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Select “F1: Clear DTC Information” in “F0:
Diagnostic Trouble Codes” with the Tech 2 and
clear the DTC information.
3. Operate the vehicle and monitor the “F0: Read
DTC Infor As Stored By ECU” in the “F0:
Diagnostic Trouble Codes”.
Was the DTC P1120 (Symptom Code 9) stored in this
ignition cycle?—Go to Step 4Refer to
Diagnostic Aids
and Go to Step
4
4 Check for poor/faulty connection at the TPS or ECM
connector. If a poor/faulty connection is found, repair
as necessary.
Was the problem found?
—Verify repair Go to Step 5
5 Visually check the TPS.
Was the problem found? —Go to Step 10Go to Step 6
4939
57
23 1C-56
E-22
Page 1668 of 4264

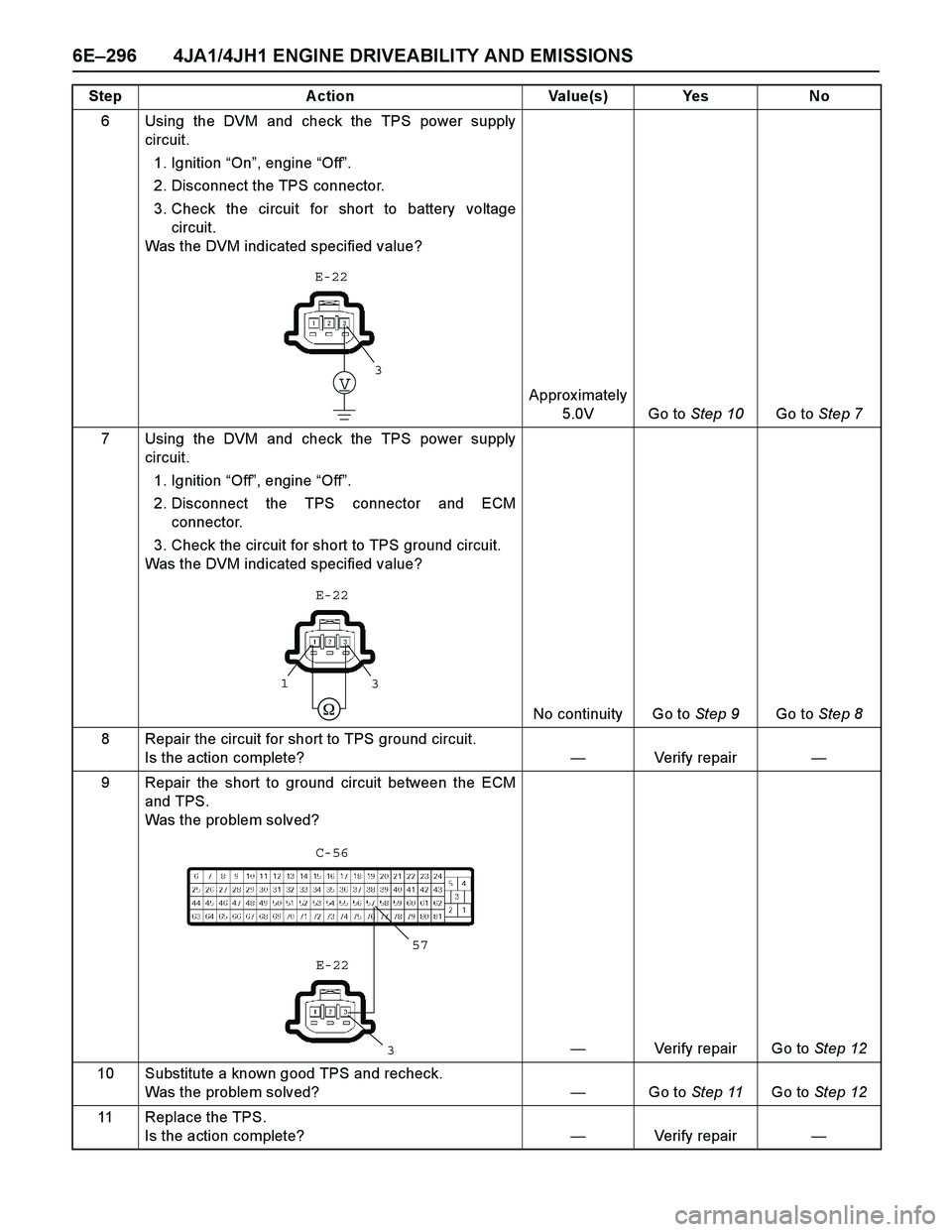

6E–296 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
6 Using the DVM and check the TPS power supply
circuit.
1. Ignition “On”, engine “Off”.
2. Disconnect the TPS connector.
3. Check the circuit for short to battery voltage
circuit.
Was the DVM indicated specified value?
Approx imately
5.0V Go to Step 10Go to Step 7
7 Using the DVM and check the TPS power supply
circuit.
1. Ignition “Off”, engine “Off”.
2. Disconnect the TPS connector and ECM
connector.
3. Check the circuit for short to TPS ground circuit.
Was the DVM indicated specified value?
No continuity Go to Step 9Go to Step 8
8 Repair the circuit for short to TPS ground circuit.
Is the action complete?—Verify repair—
9 Repair the short to ground circuit between the ECM
and TPS.
Was the problem solved?
—Verify repair Go to Step 12
10 Substitute a known good TPS and recheck.
Was the problem solved?—Go to Step 11Go to Step 12
11 Replace the TPS.
Is the action complete?—Verify repair— Step Action Value(s) Yes No
V3 E-22
3 1
E-22
57
3 C-56
E-22
Page 1669 of 4264

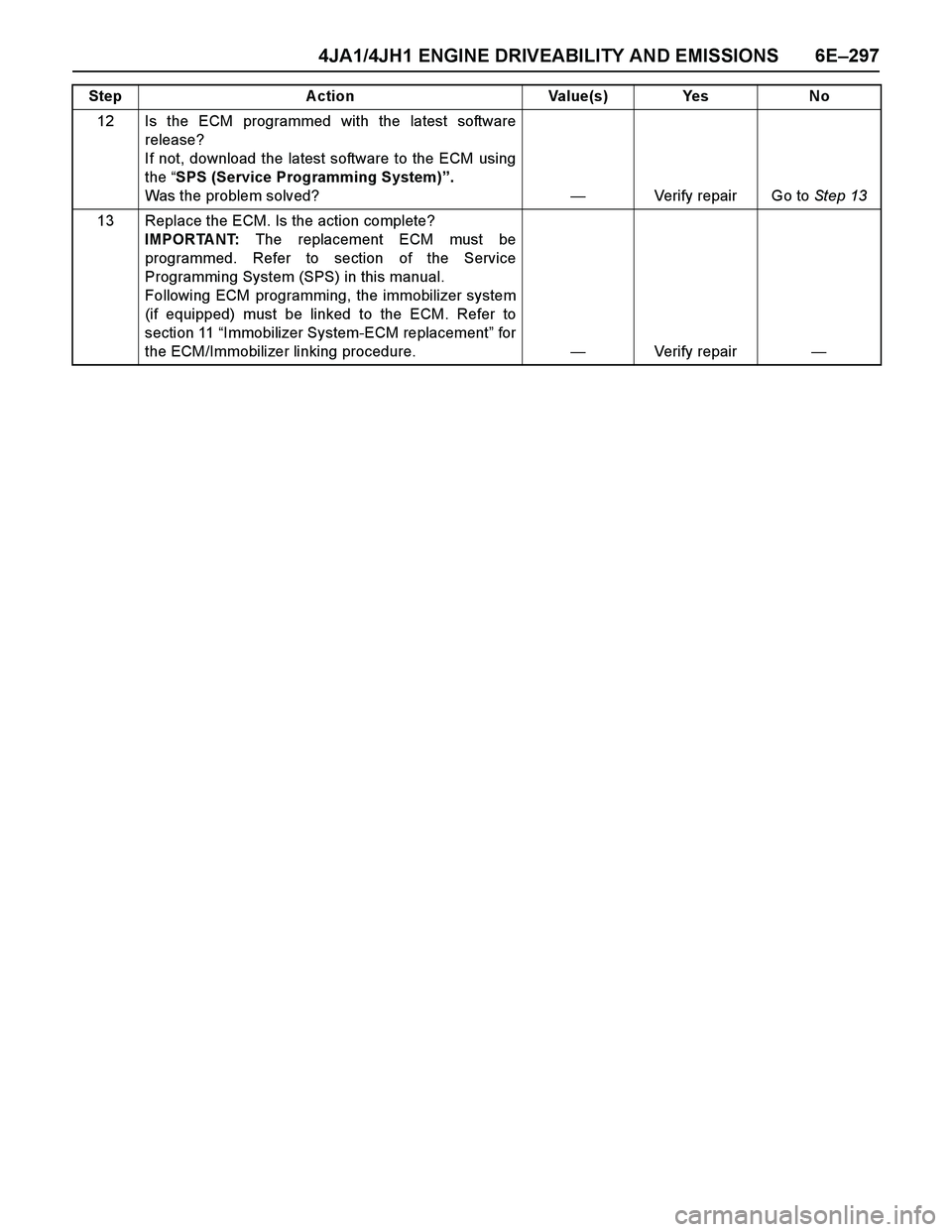

4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–297
12 Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?—Verify repair Go to Step 13
13 Replace the ECM. Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure.—Verify repair— Step Action Value(s) Yes No
Page 1670 of 4264

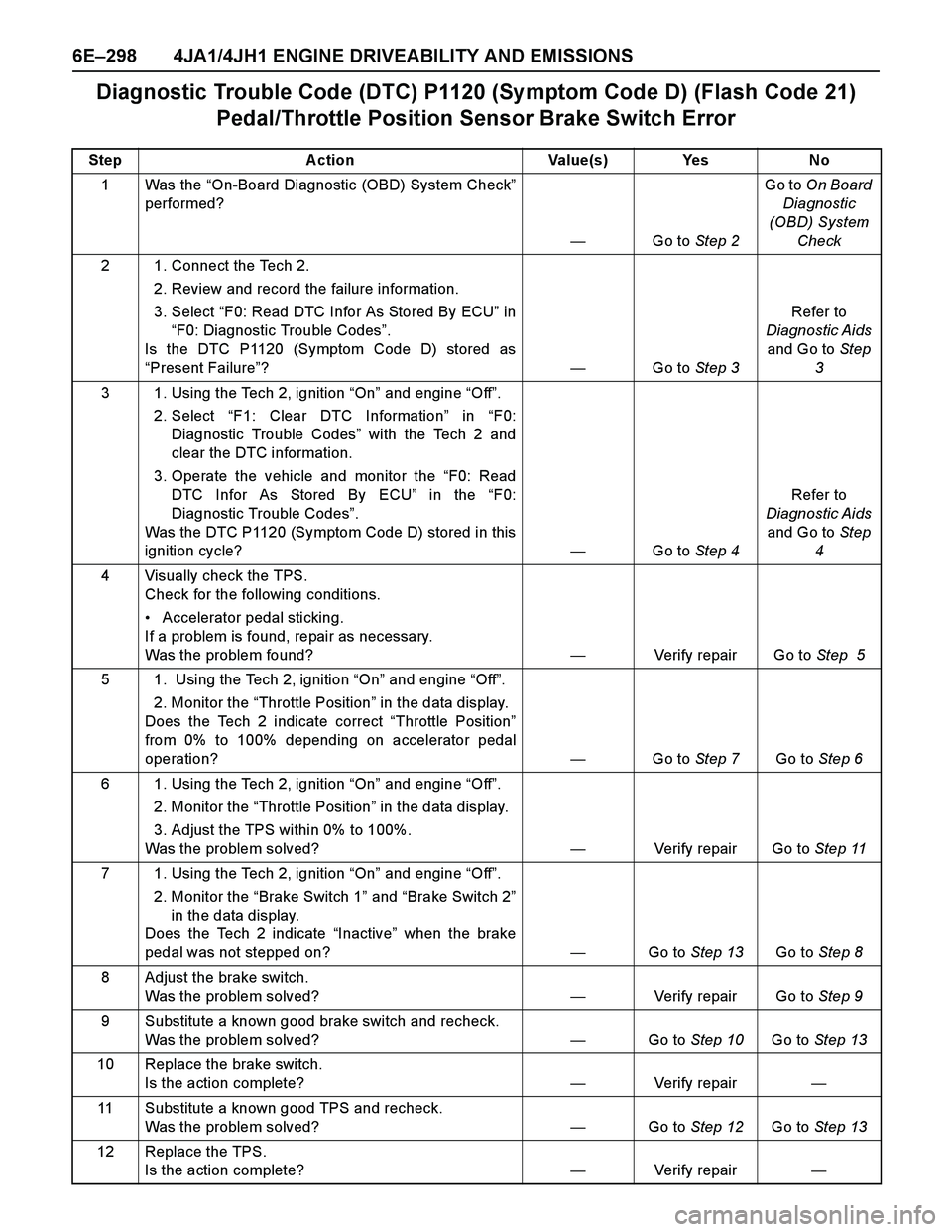

6E–298 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P1120 (Sy mptom Code D) (Flash Code 21)
Pedal/Throttle Position Sensor Brake Switch Error
Step Action Value(s) Yes No
1Was the “On-Board Diagnostic (OBD) System Check”
performed?
—Go to Step 2Go to On Board
Diagnostic
(OBD) System
Check
2 1. Connect the Tech 2.
2. Review and record the failure information.
3. Select “F0: Read DTC Infor As Stored By ECU” in
“F0: Diagnostic Trouble Codes”.
Is the DTC P1120 (Symptom Code D) stored as
“Present Failure”?—Go to Step 3Refer to
Diagnostic Aids
and Go to Step
3
3 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Select “F1: Clear DTC Information” in “F0:
Diagnostic Trouble Codes” with the Tech 2 and
clear the DTC information.
3. Operate the vehicle and monitor the “F0: Read
DTC Infor As Stored By ECU” in the “F0:
Diagnostic Trouble Codes”.
Was the DTC P1120 (Symptom Code D) stored in this
ignition cycle?—Go to Step 4Refer to
Diagnostic Aids
and Go to Step
4
4 Visually check the TPS.
Check for the following conditions.
Accelerator pedal sticking.
If a problem is found, repair as necessary.
Was the problem found? —Verify repair Go to Step 5
5 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Monitor the “Throttle Position” in the data display.
Does the Tech 2 indicate correct “Throttle Position”
from 0% to 100% depending on accelerator pedal
operation?—Go to Step 7Go to Step 6
6 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Monitor the “Throttle Position” in the data display.
3. Adjust the TPS within 0% to 100%.
Was the problem solved?—Verify repair Go to Step 11
7 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Monitor the “Brake Switch 1” and “Brake Switch 2”
in the data display.
Does the Tech 2 indicate “Inactive” when the brake
pedal was not stepped on?—Go to Step 13Go to Step 8
8 Adjust the brake switch.
Was the problem solved?—Verify repair Go to Step 9
9 Substitute a known good brake switch and recheck.
Was the problem solved?—Go to Step 10Go to Step 13
10 Replace the brake switch.
Is the action complete?—Verify repair—
11 Substitute a known good TPS and recheck.
Was the problem solved?—Go to Step 12Go to Step 13
12 Replace the TPS.
Is the action complete?—Verify repair—
Page 1671 of 4264

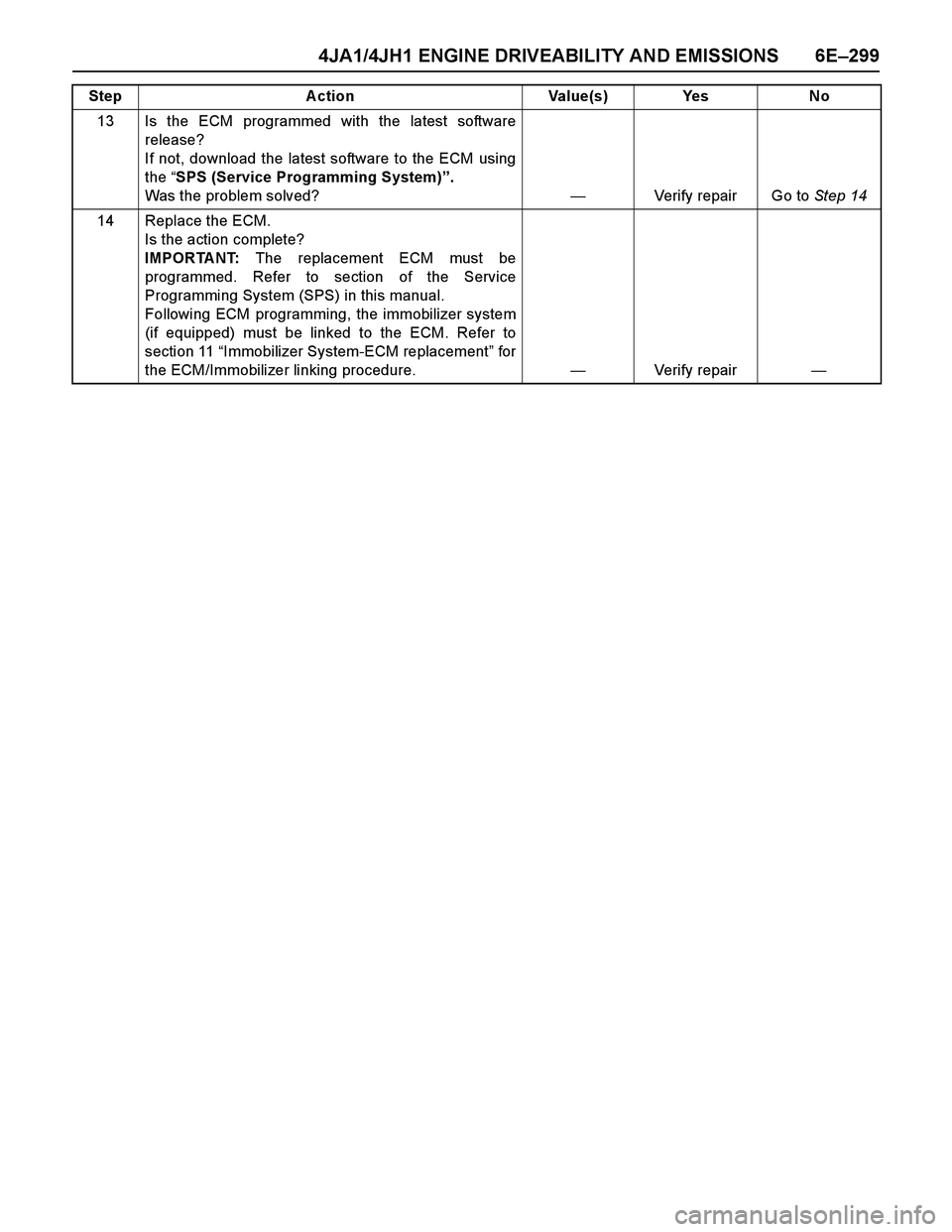

4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–299
13 Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?—Verify repair Go to Step 14
14 Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure.—Verify repair— Step Action Value(s) Yes No
Page 1672 of 4264

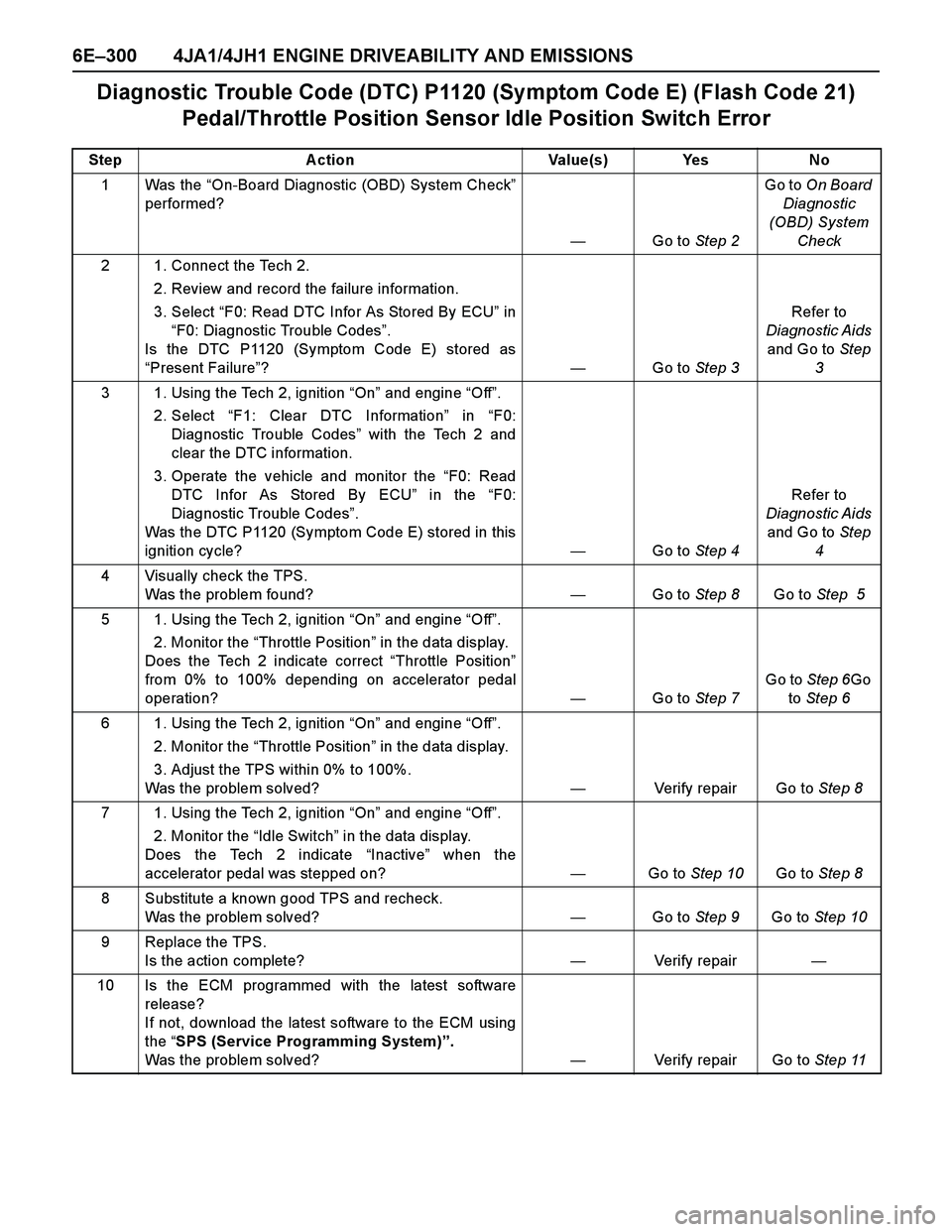

6E–300 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P1120 (Symptom Code E) (Flash Code 21)
Pedal/Throttle Position Sensor Idle Position Switch Error
Step Action Value(s) Yes No
1Was the “On-Board Diagnostic (OBD) System Check”
performed?
—Go to Step 2Go to On Board
Diagnostic
(OBD) System
Check
2 1. Connect the Tech 2.
2. Review and record the failure information.
3. Select “F0: Read DTC Infor As Stored By ECU” in
“F0: Diagnostic Trouble Codes”.
Is the DTC P1120 (Symptom Code E) stored as
“Present Failure”?—Go to Step 3Refer to
Diagnostic Aids
and Go to Step
3
3 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Select “F1: Clear DTC Information” in “F0:
Diagnostic Trouble Codes” with the Tech 2 and
clear the DTC information.
3. Operate the vehicle and monitor the “F0: Read
DTC Infor As Stored By ECU” in the “F0:
Diagnostic Trouble Codes”.
Was the DTC P1120 (Symptom Code E) stored in this
ignition cycle?—Go to Step 4Refer to
Diagnostic Aids
and Go to Step
4
4 Visually check the TPS.
Was the problem found? —Go to Step 8Go to Step 5
5 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Monitor the “Throttle Position” in the data display.
Does the Tech 2 indicate correct “Throttle Position”
from 0% to 100% depending on accelerator pedal
operation?—Go to Step 7Go to Step 6Go
to Step 6
6 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Monitor the “Throttle Position” in the data display.
3. Adjust the TPS within 0% to 100%.
Was the problem solved?—Verify repair Go to Step 8
7 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Monitor the “Idle Switch” in the data display.
Does the Tech 2 indicate “Inactive” when the
accelerator pedal was stepped on?—Go to Step 10Go to Step 8
8 Substitute a known good TPS and recheck.
Was the problem solved?—Go to Step 9Go to Step 10
9 Replace the TPS.
Is the action complete?—Verify repair—
10 Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?—Verify repair Go to Step 11
