Page 3329 of 4264

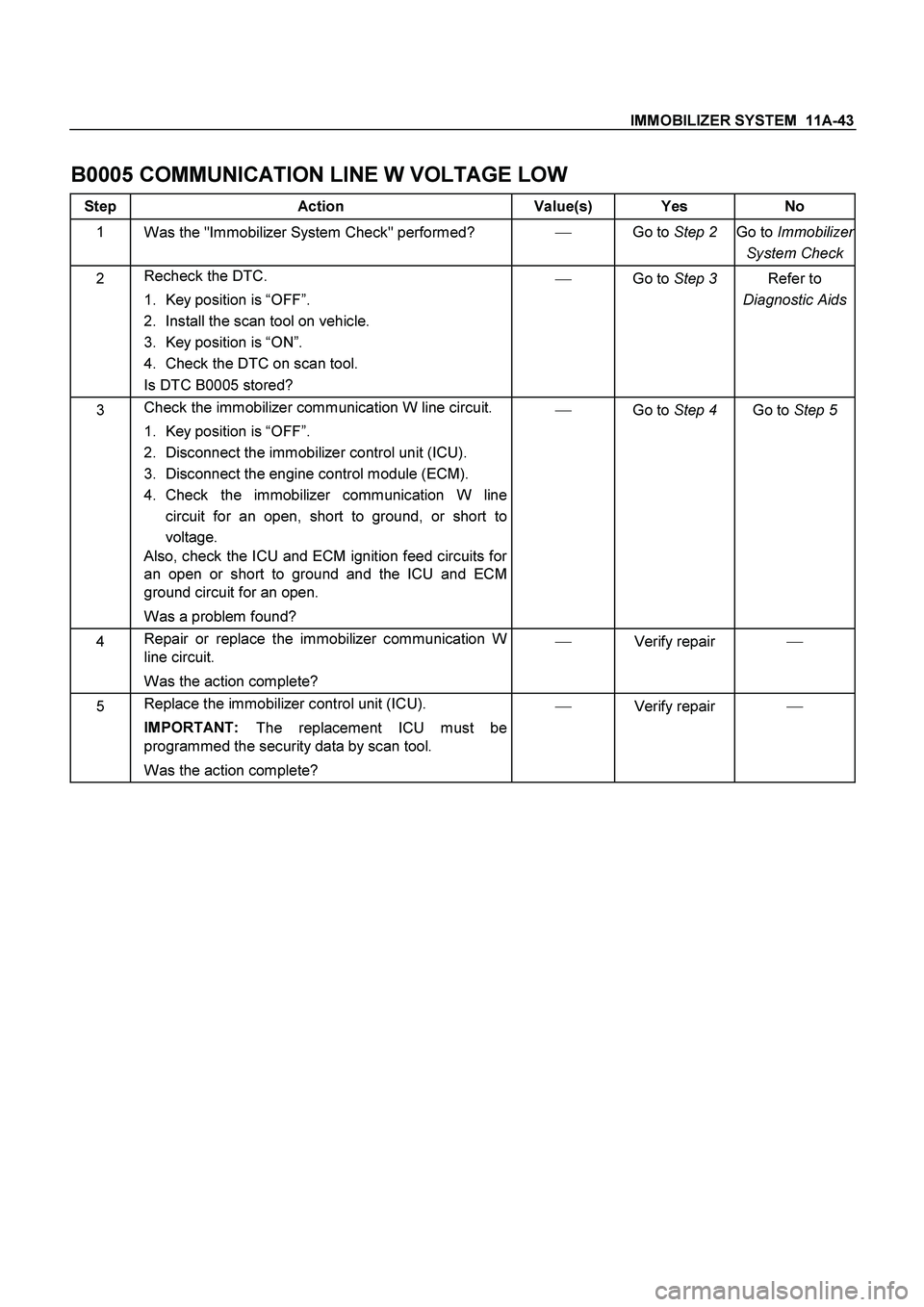

ISUZU TF SERIES 2004 Workshop Manual IMMOBILIZER SYSTEM 11A-43 B0005 COMMUNICATION LINE W VOLTAGE LOW Step Action Value(s) Yes No 1 Was the "Immobilizer System Check" performed?  Go to Step 2 Go to Immobilizer System Check 2 Re

Page 3330 of 4264

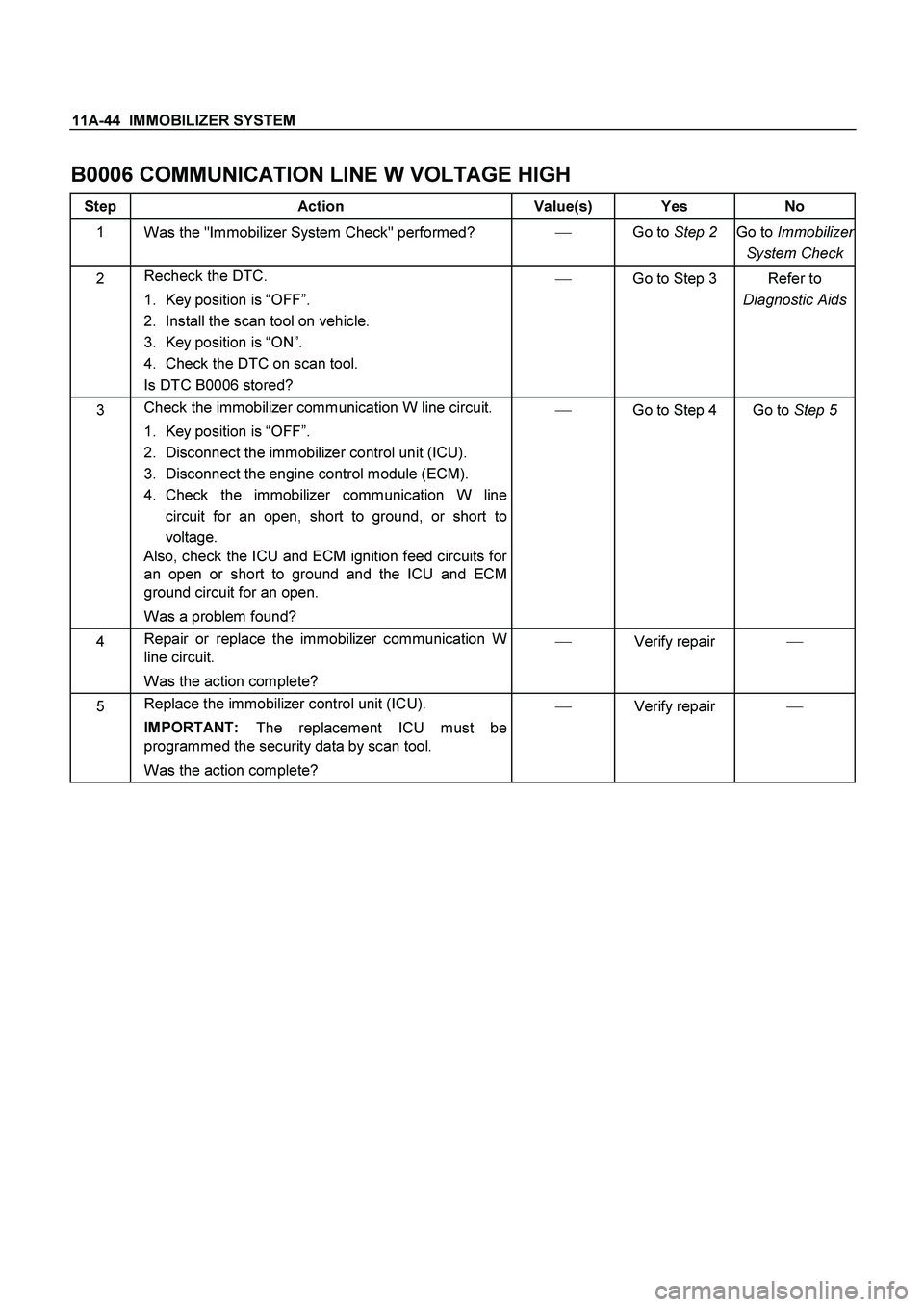

ISUZU TF SERIES 2004 Workshop Manual 11A-44 IMMOBILIZER SYSTEM B0006 COMMUNICATION LINE W VOLTAGE HIGH Step Action Value(s) Yes No 1 Was the "Immobilizer System Check" performed?  Go to Step 2 Go to Immobilizer System Check 2 R

Page 3331 of 4264

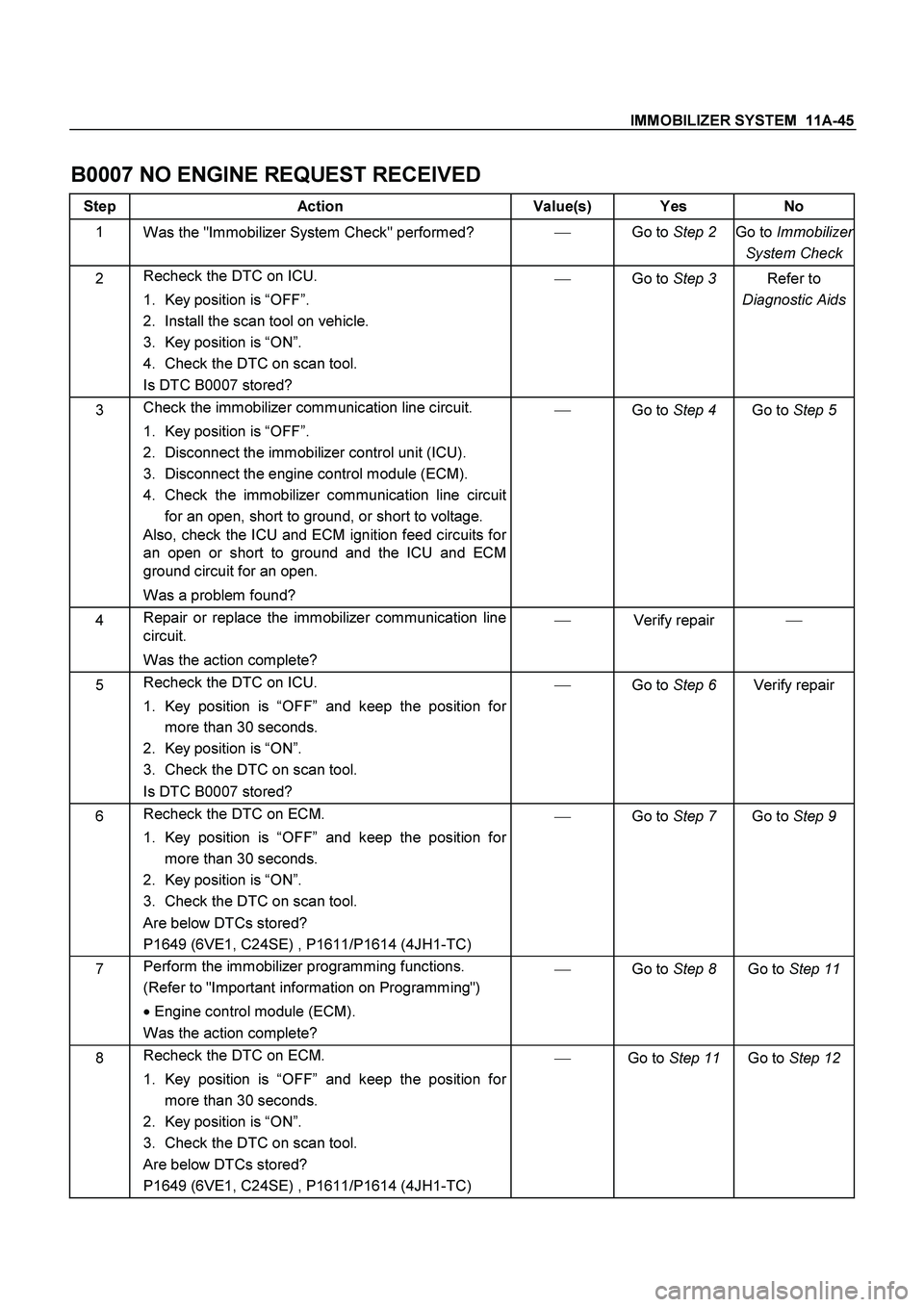

ISUZU TF SERIES 2004 Workshop Manual IMMOBILIZER SYSTEM 11A-45 B0007 NO ENGINE REQUEST RECEIVED Step Action Value(s) Yes No 1 Was the "Immobilizer System Check" performed?  Go to Step 2 Go to Immobilizer System Check 2 Recheck

Page 3332 of 4264

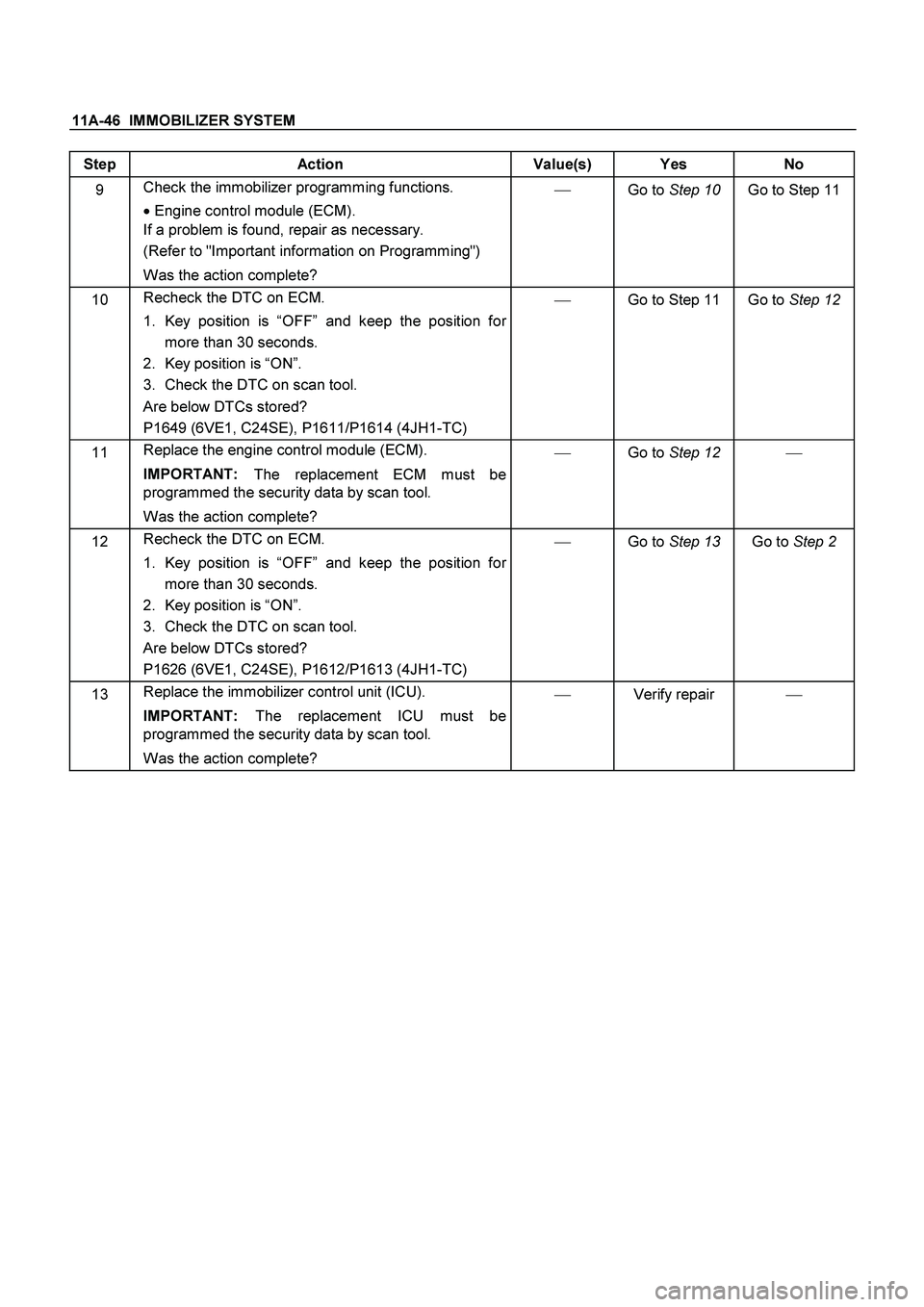

ISUZU TF SERIES 2004 Workshop Manual 11A-46 IMMOBILIZER SYSTEM Step Action Value(s) Yes No 9 Check the immobilizer programming functions.  Engine control module (ECM). If a problem is found, repair as necessary. (Refer to "Impor

Page 3333 of 4264

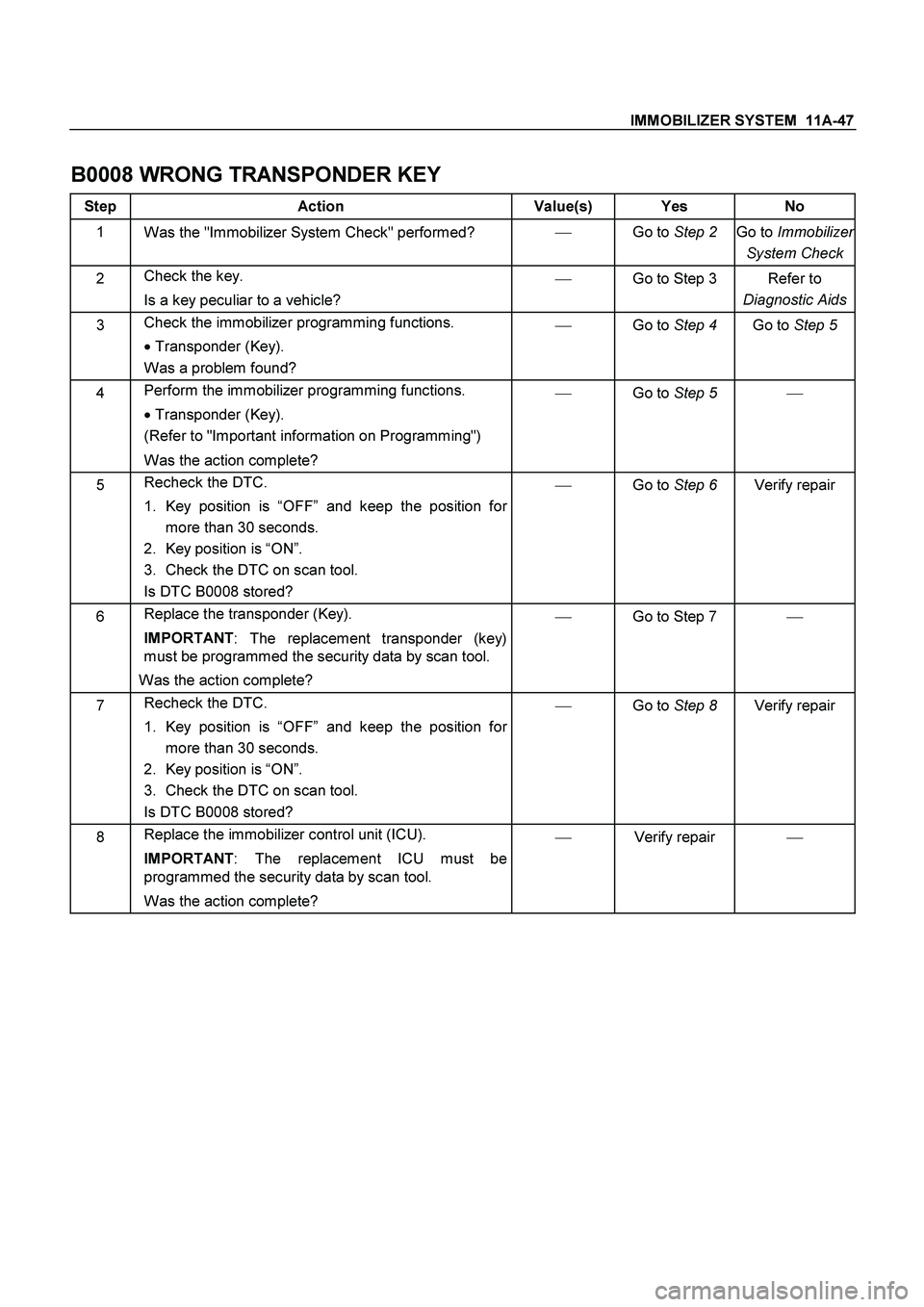

ISUZU TF SERIES 2004 Workshop Manual IMMOBILIZER SYSTEM 11A-47 B0008 WRONG TRANSPONDER KEY Step Action Value(s) Yes No 1 Was the "Immobilizer System Check" performed?  Go to Step 2 Go to Immobilizer System Check 2 Check the key

Page 3334 of 4264

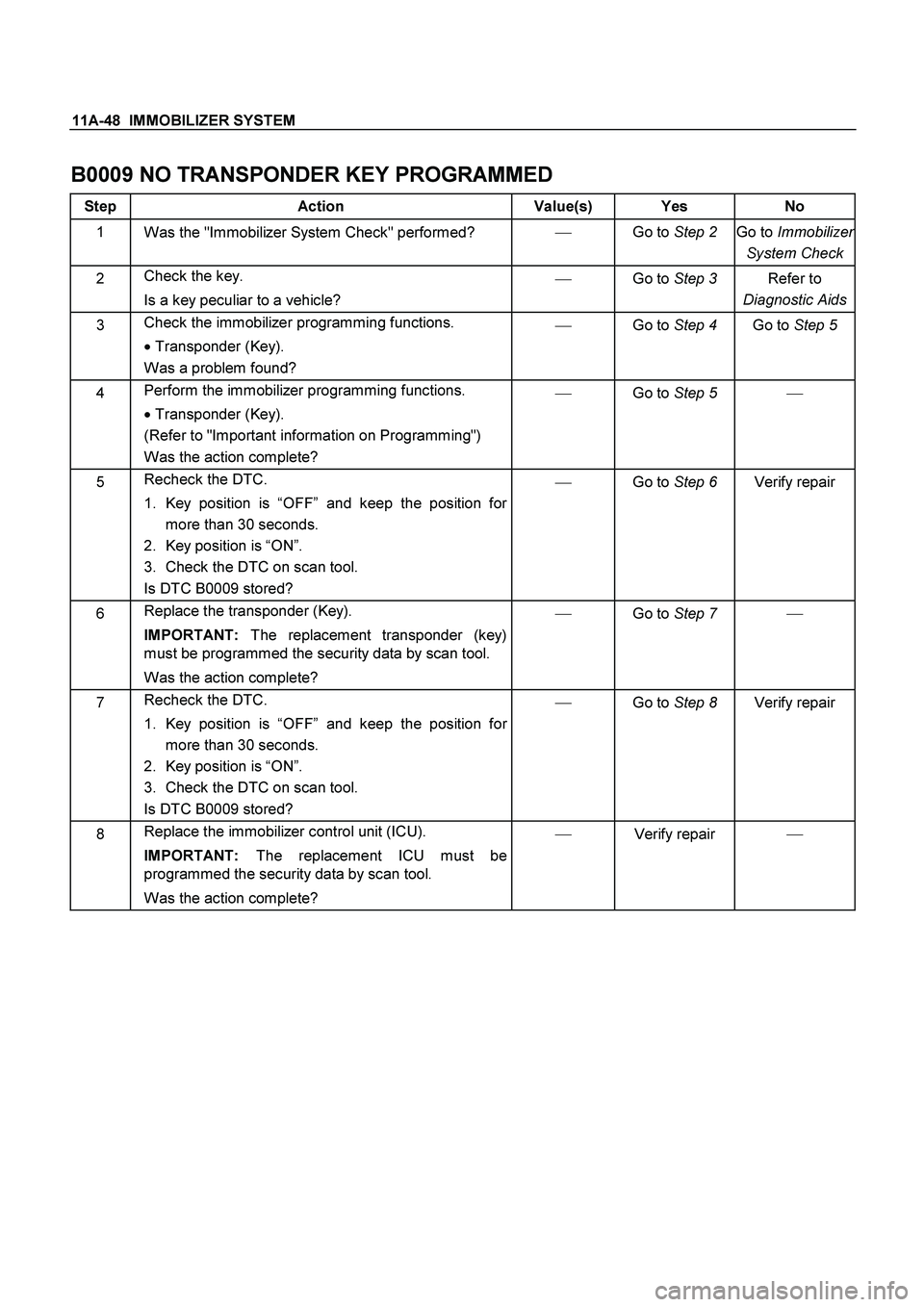

ISUZU TF SERIES 2004 Workshop Manual 11A-48 IMMOBILIZER SYSTEM B0009 NO TRANSPONDER KEY PROGRAMMED Step Action Value(s) Yes No 1 Was the "Immobilizer System Check" performed?  Go to Step 2 Go to Immobilizer System Check 2 Check

Page 3335 of 4264

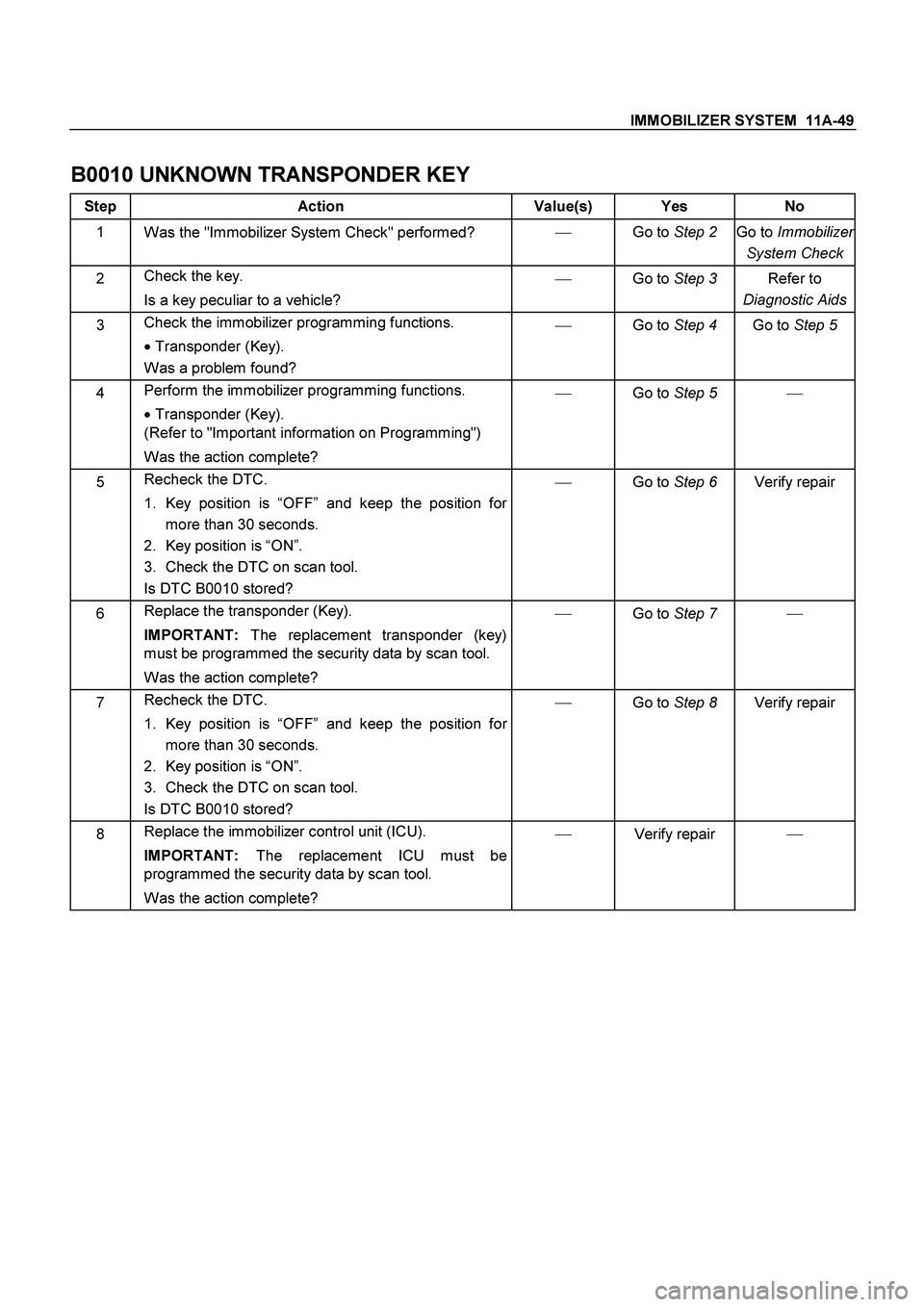

ISUZU TF SERIES 2004 Workshop Manual IMMOBILIZER SYSTEM 11A-49 B0010 UNKNOWN TRANSPONDER KEY Step Action Value(s) Yes No 1 Was the "Immobilizer System Check" performed?  Go to Step 2 Go to Immobilizer System Check 2 Check the k

Page 3336 of 4264

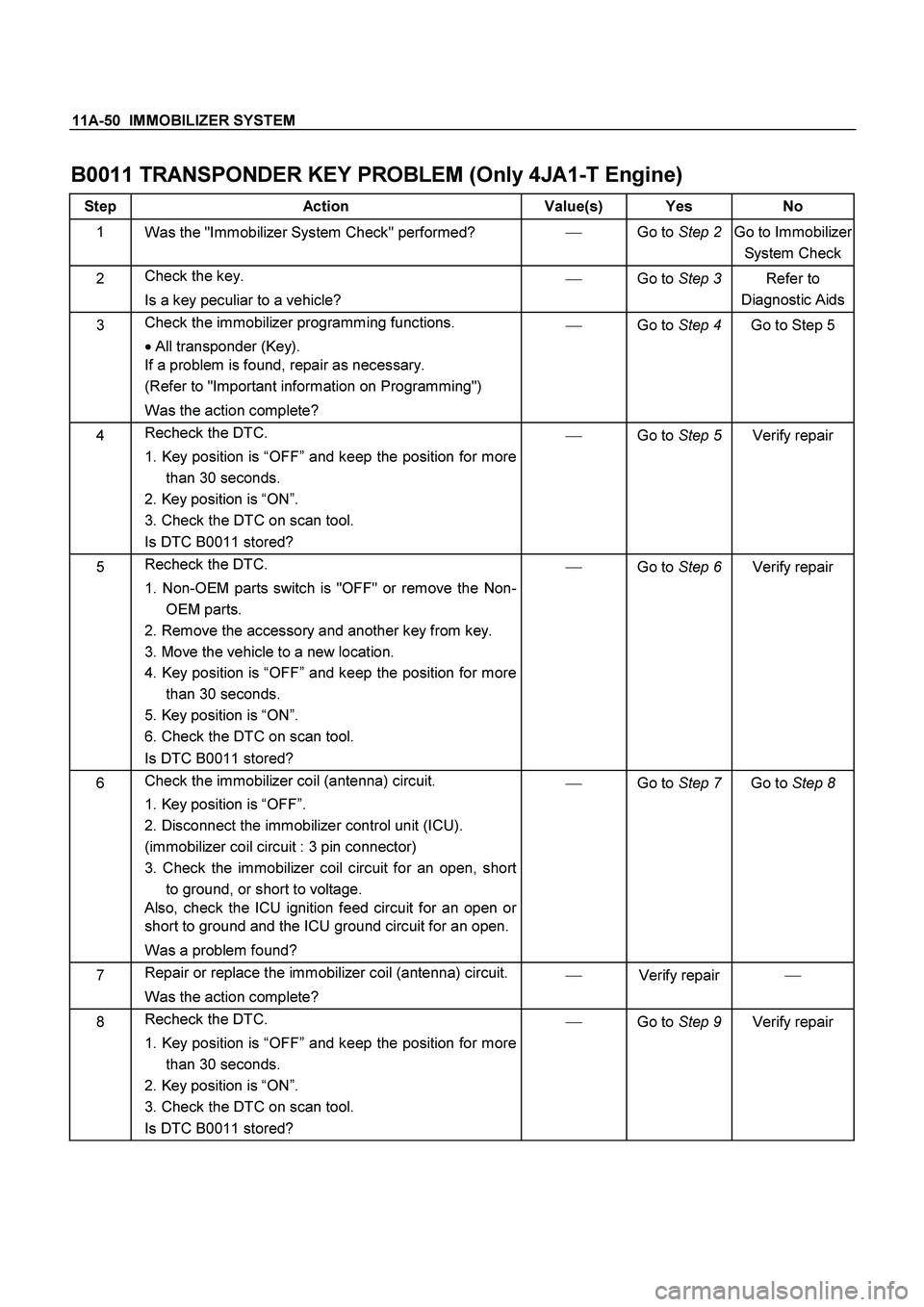

ISUZU TF SERIES 2004 Workshop Manual 11A-50 IMMOBILIZER SYSTEM B0011 TRANSPONDER KEY PROBLEM (Only 4JA1-T Engine) Step Action Value(s) Yes No 1 Was the "Immobilizer System Check" performed?  Go to Step 2 Go to Immobilizer Syste
