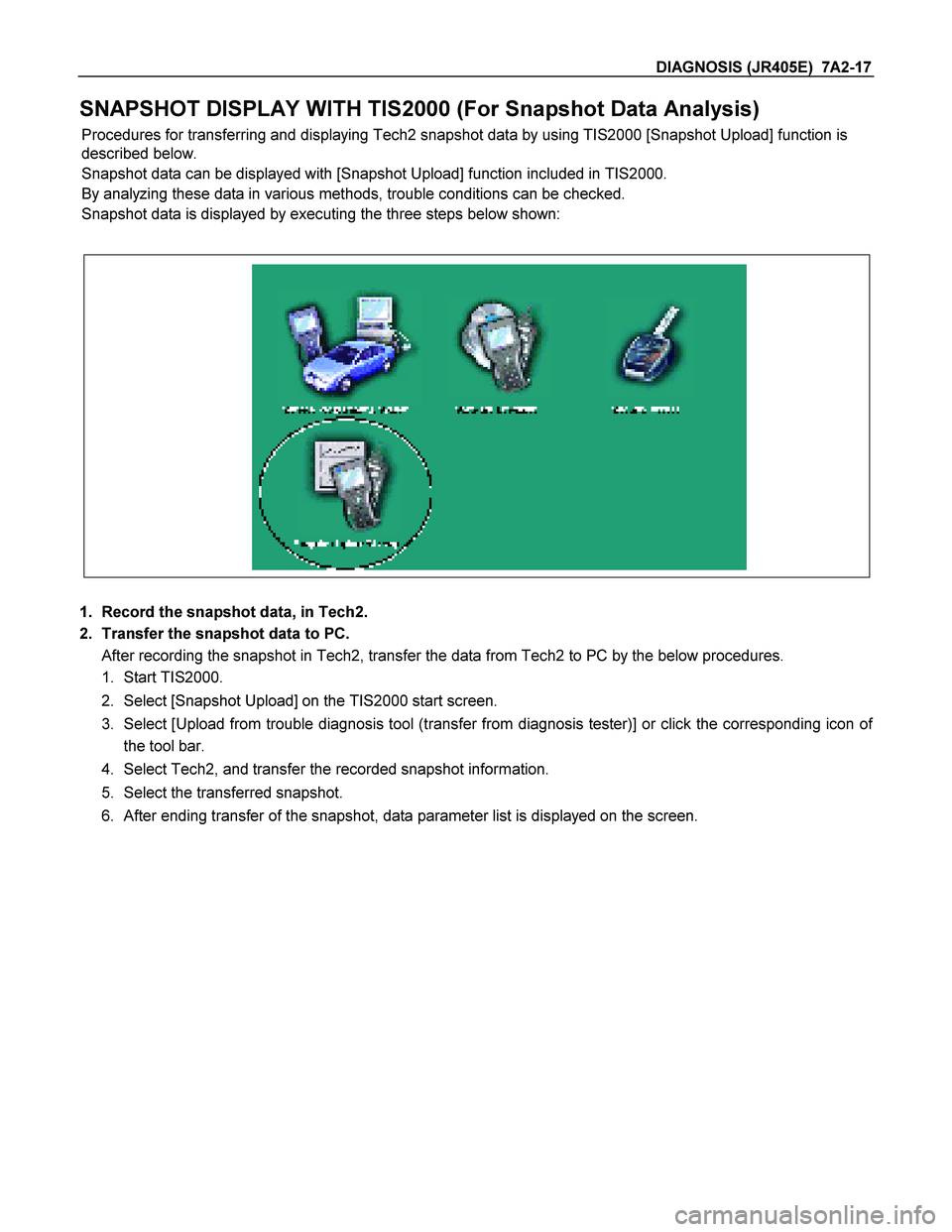

DIAGNOSIS (JR405E) 7A2-17
SNAPSHOT DISPLAY WITH TIS2000 (For Snapshot Data Analysis)
Procedures for transferring and displaying Tech2 snapshot data by using TIS2000 [Snapshot Upload] function is
described below.
Snapshot data can be displayed with [Snapshot Upload] function included in TIS2000.
By analyzing these data in various methods, trouble conditions can be checked.
Snapshot data is displayed by executing the three steps below shown:
1. Record the snapshot data, in Tech2.
2. Transfer the snapshot data to PC.
After recording the snapshot in Tech2, transfer the data from Tech2 to PC by the below procedures.
1. Start TIS2000.
2. Select [Snapshot Upload] on the TIS2000 start screen.
3. Select [Upload from trouble diagnosis tool (transfer from diagnosis tester)] or click the corresponding icon of
the tool bar.
4. Select Tech2, and transfer the recorded snapshot information.
5. Select the transferred snapshot.
6. After ending transfer of the snapshot, data parameter list is displayed on the screen.
Page 4010 of 4264
![ISUZU TF SERIES 2004 Workshop Manual 7A2-18 DIAGNOSIS (JR405E)
3. Snapshot data is displayed with TIS2000 [Snapshot Upload] function.
Snapshot is stored in the PC hard disk or floppy disk, and can be displayed any time.
Stored ISUZU TF SERIES 2004 Workshop Manual 7A2-18 DIAGNOSIS (JR405E)
3. Snapshot data is displayed with TIS2000 [Snapshot Upload] function.
Snapshot is stored in the PC hard disk or floppy disk, and can be displayed any time.
Stored](/manual-img/61/57180/w960_57180-4009.png)

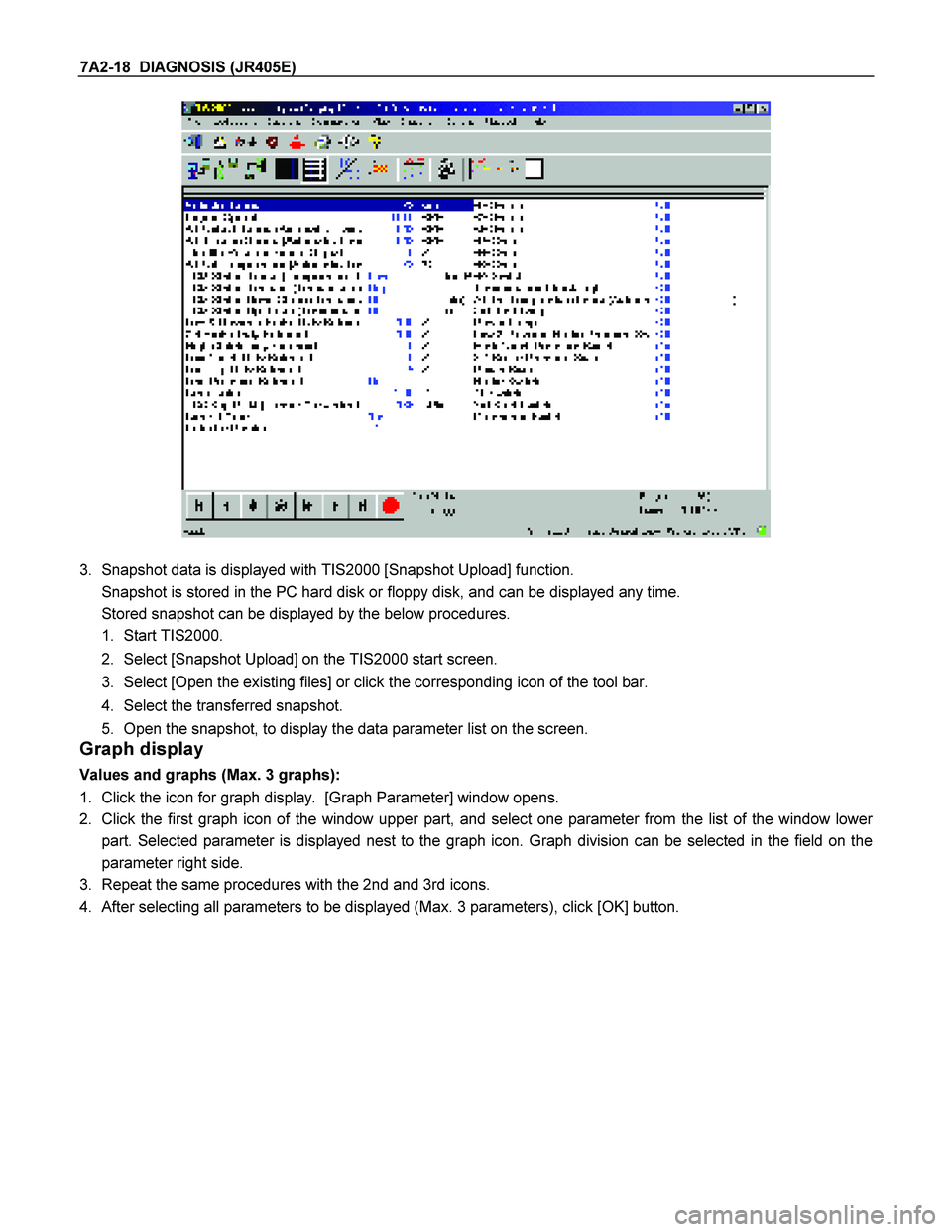

7A2-18 DIAGNOSIS (JR405E)
3. Snapshot data is displayed with TIS2000 [Snapshot Upload] function.
Snapshot is stored in the PC hard disk or floppy disk, and can be displayed any time.
Stored snapshot can be displayed by the below procedures.
1. Start TIS2000.
2. Select [Snapshot Upload] on the TIS2000 start screen.
3. Select [Open the existing files] or click the corresponding icon of the tool bar.
4. Select the transferred snapshot.
5. Open the snapshot, to display the data parameter list on the screen.
Graph display
Values and graphs (Max. 3 graphs):
1. Click the icon for graph display. [Graph Parameter] window opens.
2. Click the first graph icon of the window upper part, and select one parameter from the list of the window lower
part. Selected parameter is displayed nest to the graph icon. Graph division can be selected in the field on the
parameter right side.
3. Repeat the same procedures with the 2nd and 3rd icons.
4. After selecting all parameters to be displayed (Max. 3 parameters), click [OK] button.
Page 4011 of 4264
DIAGNOSIS (JR405E) 7A2-19
5. Parameter selected is displayed in graph form on the right of the data parameter on the screen.
6. Graph display can be moved with the navigation icon.
7. For displaying another parameter by graph, click the parameter of the list, drug the mouse to the display screen
while pressing the mouse button and release the mouse button. New parameter is displayed at the position of
the previous parameter. For displaying the graph display screen in full size, move the cursor upward on the
screen. When the cursor is changed to the magnifying glass form, click the screen. Graph screen is displayed
on the whole screen.
Page 4012 of 4264

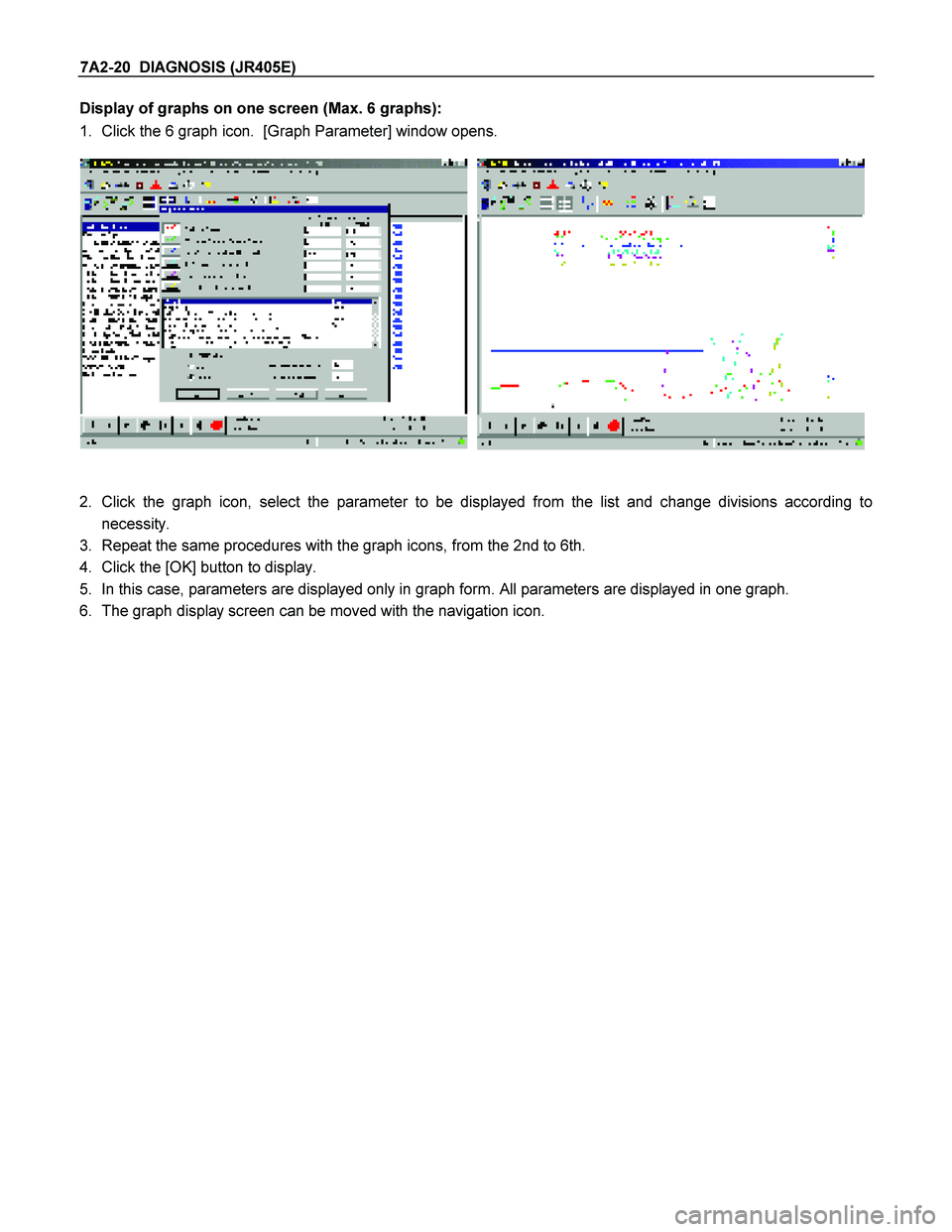

7A2-20 DIAGNOSIS (JR405E)
Display of graphs on one screen (Max. 6 graphs):
1. Click the 6 graph icon. [Graph Parameter] window opens.
2. Click the graph icon, select the parameter to be displayed from the list and change divisions according to
necessity.
3. Repeat the same procedures with the graph icons, from the 2nd to 6th.
4. Click the [OK] button to display.
5. In this case, parameters are displayed only in graph form. All parameters are displayed in one graph.
6. The graph display screen can be moved with the navigation icon.
Page 4013 of 4264

DIAGNOSIS (JR405E) 7A2-21
SERVICE PROGRAMMING SYSTEM (SPS)
The procedure to program the control unit by using Service Programming System (SPS) software contained in TIS
2000 is explained in steps below.
Important: Perform the following checks before attempting to program the control unit:
The Tech 2 PCMCIA card is programmed with the latest software release.
The latest release of TIS2000 is located on the PC.
The vehicle battery is fully charged.
The control unit to be programmed is connected to the vehicle.
1. Preparations of TIS 2000
1. Connect Tech 2 to P/C.
2. Check to see if Hardware Key is plugged into Port.
3. Activate TIS 2000 by P/C.
4. On the activating screen of TIS2000, choose "Service Programming System"
5. On the screen of "Diagnostic Tester and Processing Program Selection", choose the one that will comply with
the following.
Diagnostic Tech2 in use
New programming by the existing module or new programming by the replaced/new module.
Fixing position of the control unit.
6. Upon completion of the selection, push the button of "Next".
2. Demand of Data
1. Connect Tech-2 to the vehicle. When activated by turning on the power of Tech-2, push the "Enter" switch.
2. Turn on the ignition switch (without starting the engine).
3. In the main menu of Diagnostic Tester, push "F1: Service Programming System (SPS)".
4. Push "F0: Request Info" of Tech-2.
5. Where vehicle data has been already saved in Tech 2, the existing data come on display. In this instance, as Tech-2 starts asking whether to keep the data or to continue obtaining anew data from the control unit,
choose either of them.
Page 4014 of 4264

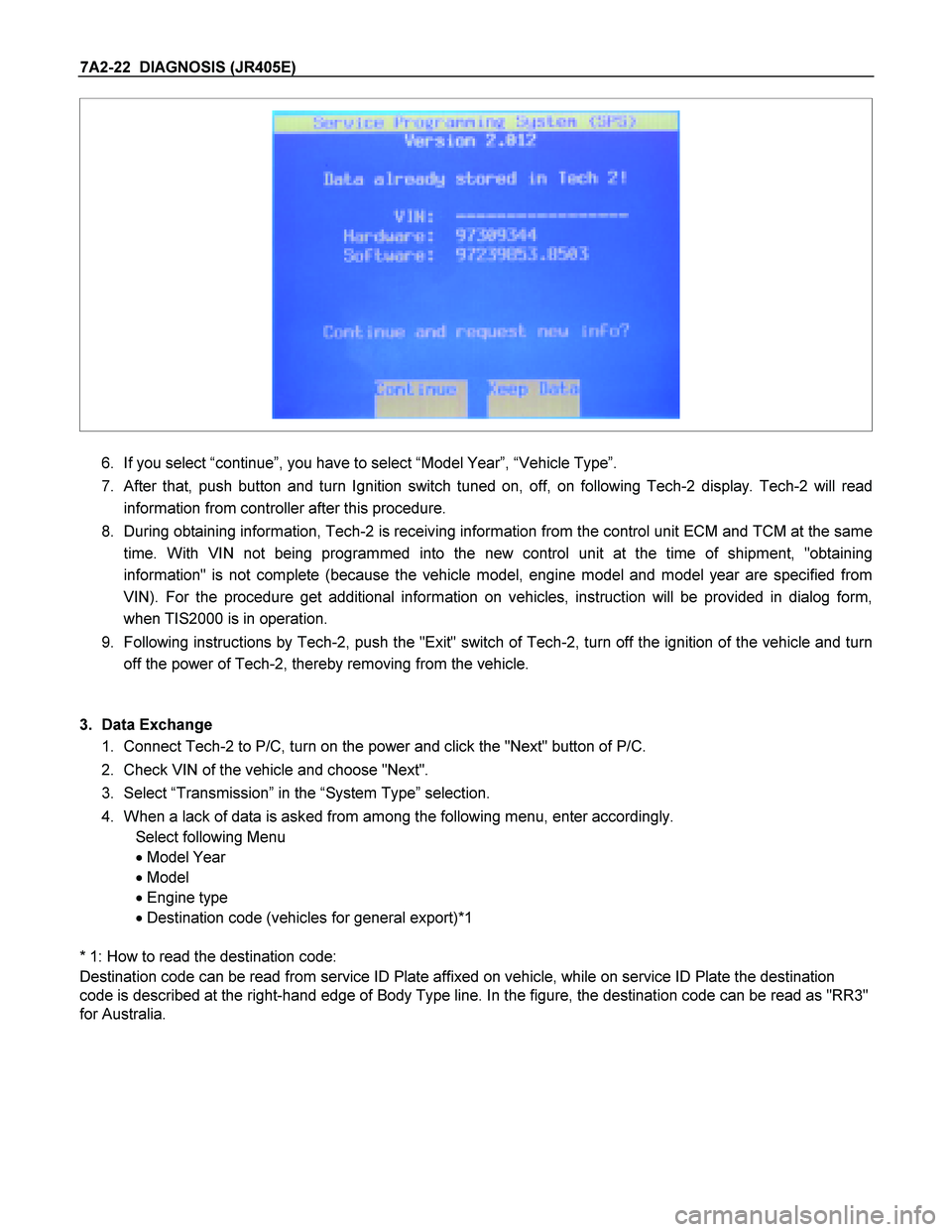

7A2-22 DIAGNOSIS (JR405E)
6. If you select “continue”, you have to select “Model Year”, “Vehicle Type”.
7. After that, push button and turn Ignition switch tuned on, off, on following Tech-2 display. Tech-2 will read
information from controller after this procedure.
8. During obtaining information, Tech-2 is receiving information from the control unit ECM and TCM at the same
time. With VIN not being programmed into the new control unit at the time of shipment, "obtaining
information" is not complete (because the vehicle model, engine model and model year are specified from
VIN). For the procedure get additional information on vehicles, instruction will be provided in dialog form,
when TIS2000 is in operation.
9. Following instructions by Tech-2, push the "Exit" switch of Tech-2, turn off the ignition of the vehicle and turn
off the power of Tech-2, thereby removing from the vehicle.
3. Data Exchange
1. Connect Tech-2 to P/C, turn on the power and click the "Next" button of P/C.
2. Check VIN of the vehicle and choose "Next".
3. Select “Transmission” in the “System Type” selection.
4. When a lack of data is asked from among the following menu, enter accordingly.
Select following Menu
Model Year
Model
Engine type
Destination code (vehicles for general export)*1
* 1: How to read the destination code:
Destination code can be read from service ID Plate affixed on vehicle, while on service ID Plate the destination
code is described at the right-hand edge of Body Type line. In the figure, the destination code can be read as "RR3"
for Australia.
Page 4015 of 4264

DIAGNOSIS (JR405E) 7A2-23
4. After choosing the data, click the "Next" button.
5. When all the necessary information is entered, the "details" of software within the database that match the
entered data will appear for confirmation. Click the "Program" switch and then download the new software
onto Tech-2.
6. "Data Transfer" comes on display. The progress of downloading will be displayed on the screen in the form of
bar graph.
7. Upon finishing the data transfer, turn off the power of Tech-2, removing from P/C.
4. Programming of TCM
1. Check to see if batteries are fully charged, while ABS connectors shall be removed from the vehicle.
2. Connect Tech-2 to Vehicle Diagnostic Connectors.
3. Turn on the power of Tech-2 and the title screen comes on display.
4. Turn on the ignition (without allowing the engine to start)
5. On the title screen of Tech-2, push the "Enter" button.
6. Choose "F1: Service Programming System" on the main screen and then choose "F1: Programming ECU".
7. While data is being transferred, "Programming in Progress" will be displayed on the Tech-2 screen.
8. Upon finishing the data transfer, Tech-2 will display "Reprogramming was Successful". Push the "Exit" button
to bring program to completion.
9. Following "Procedure 2: Demand of Data", try over again "Information Obtaining" and check to confirm if the
data has been correctly re-loaded.
10. Upon finishing confirmation, turn off the ignition of the vehicle and then turn off the power of Tech-2,
removing from the vehicle.
Page 4016 of 4264
7A2-24 DIAGNOSIS (JR405E)

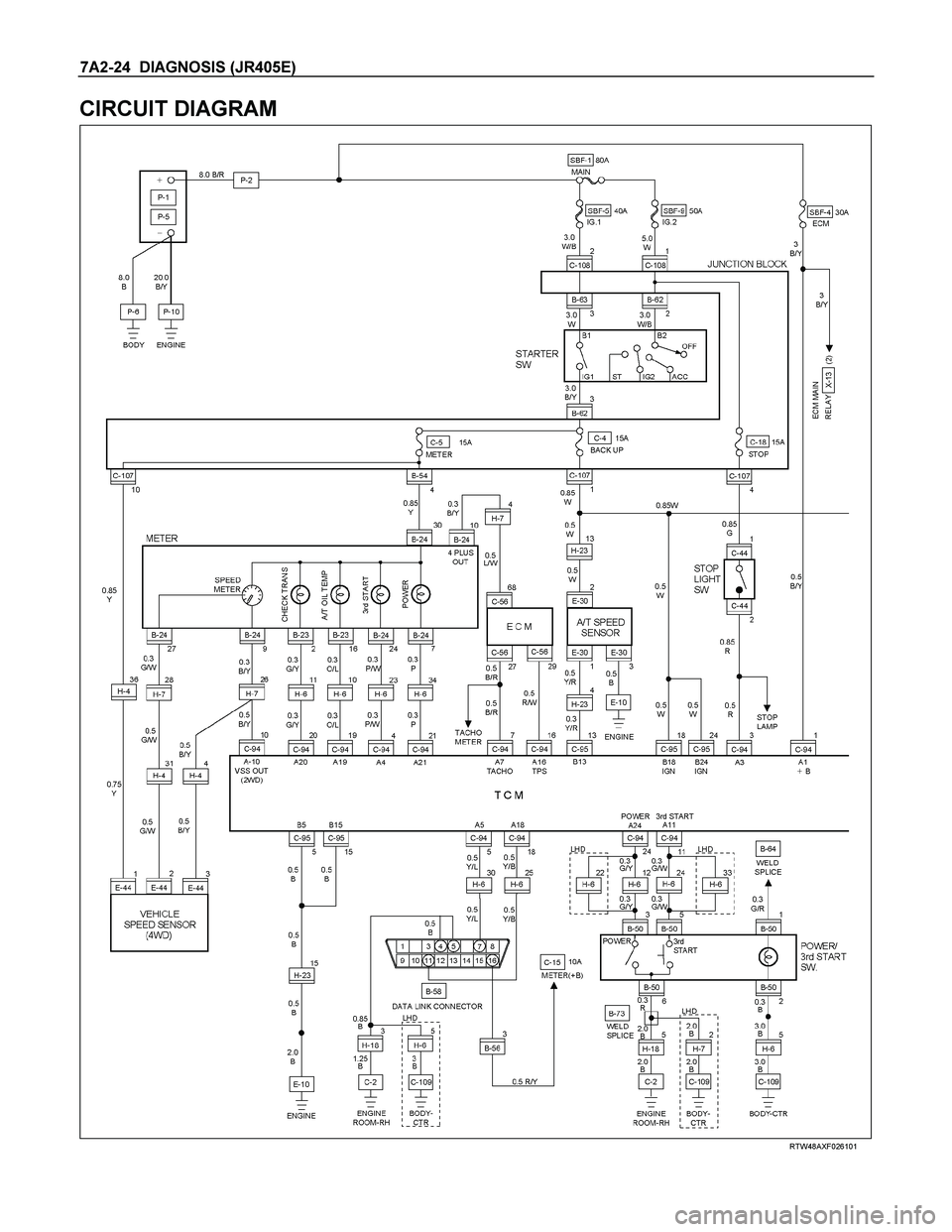

CIRCUIT DIAGRAM
RTW48AXF026101
