Page 1889 of 4264

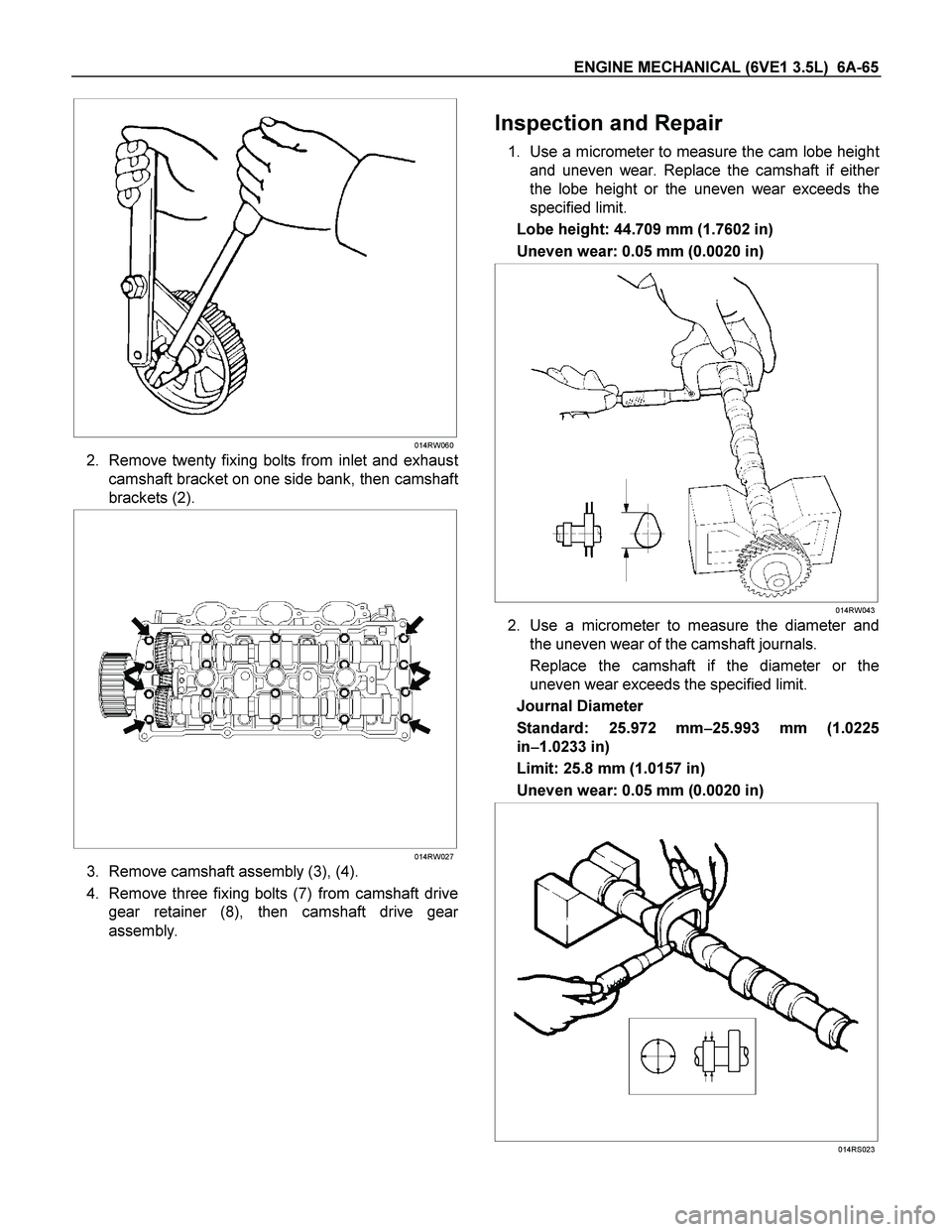

ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL (6VE1 3.5L) 6A-65 014RW060 2. Remove twenty fixing bolts from inlet and exhaust camshaft bracket on one side bank, then camshaft brackets (2). 014RW027 3. R

Page 1890 of 4264

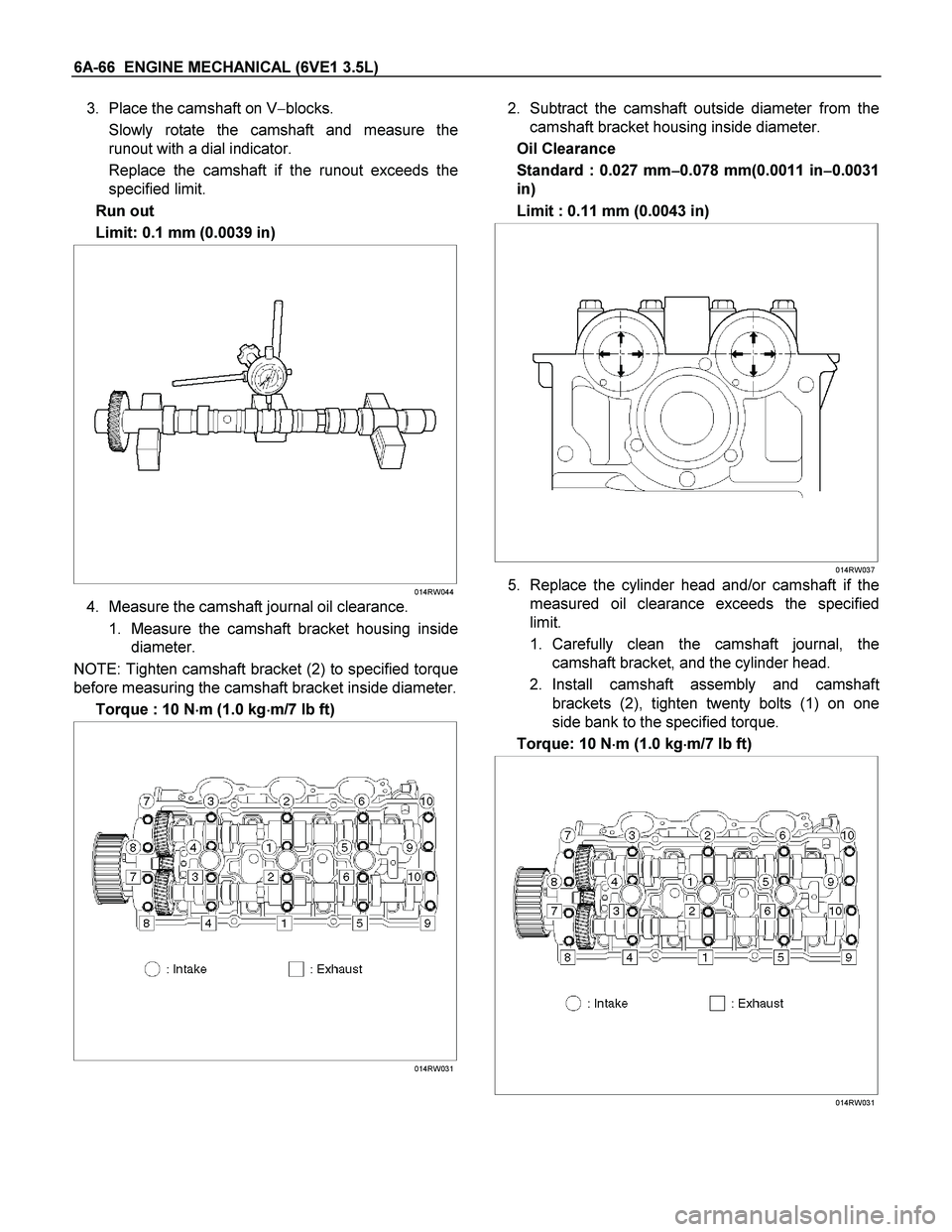

ISUZU TF SERIES 2004 Workshop Manual 6A-66 ENGINE MECHANICAL (6VE1 3.5L) 3. Place the camshaft on Vblocks. Slowly rotate the camshaft and measure the runout with a dial indicator. Replace the camshaft if the runout exceeds the spe

Page 1891 of 4264

ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL (6VE1 3.5L) 6A-67 3. Measure the camshaft thrust clearance with a dial indicator. Replace the camshaft and/or the cylinde r head if the camshaft thrust clearance exceeds the specif

Page 1892 of 4264

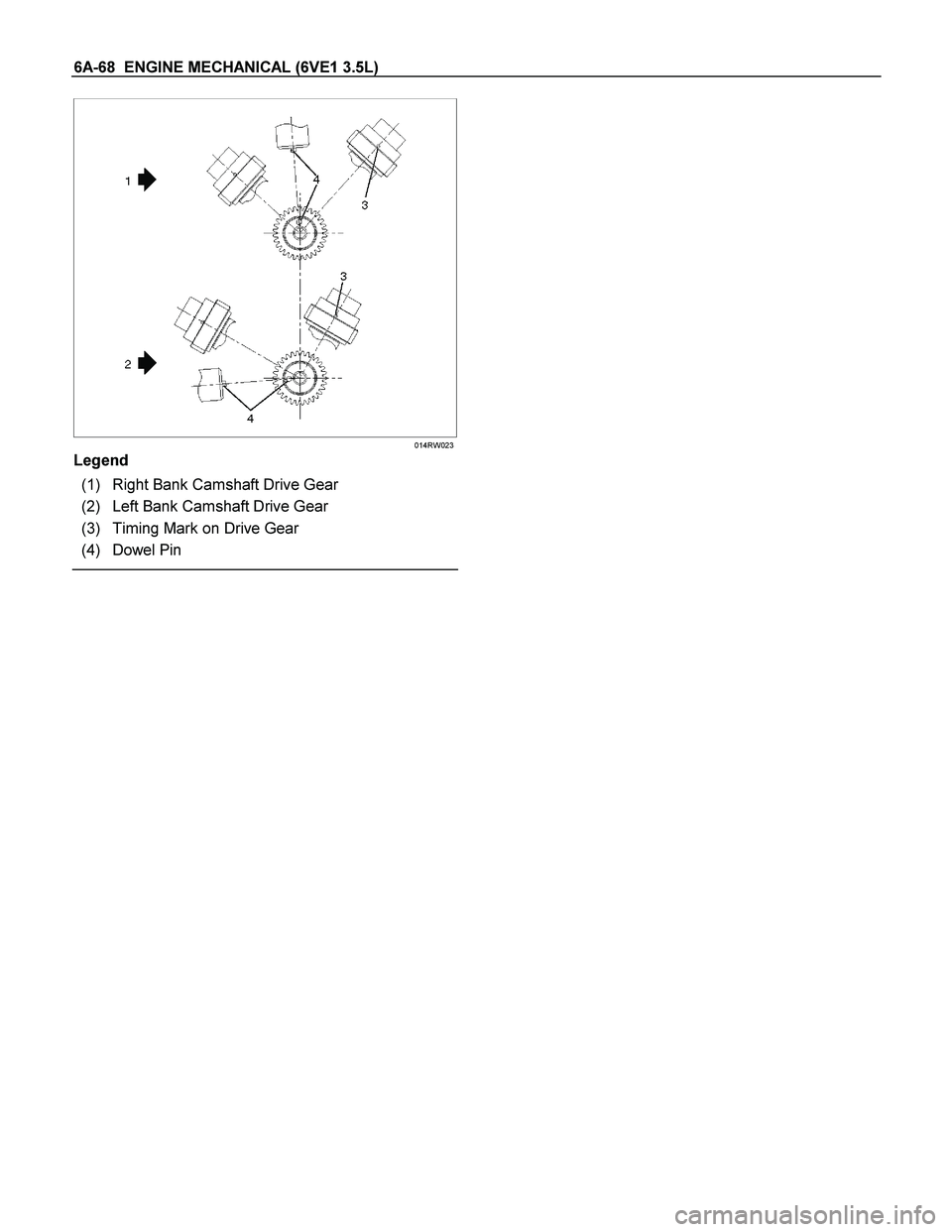

ISUZU TF SERIES 2004 Workshop Manual 6A-68 ENGINE MECHANICAL (6VE1 3.5L) 014RW023 Legend (1) Right Bank Camshaft Drive Gear (2) Left Bank Camshaft Drive Gear (3) Timing Mark on Drive Gear (4) Dowel Pin

Page 1893 of 4264

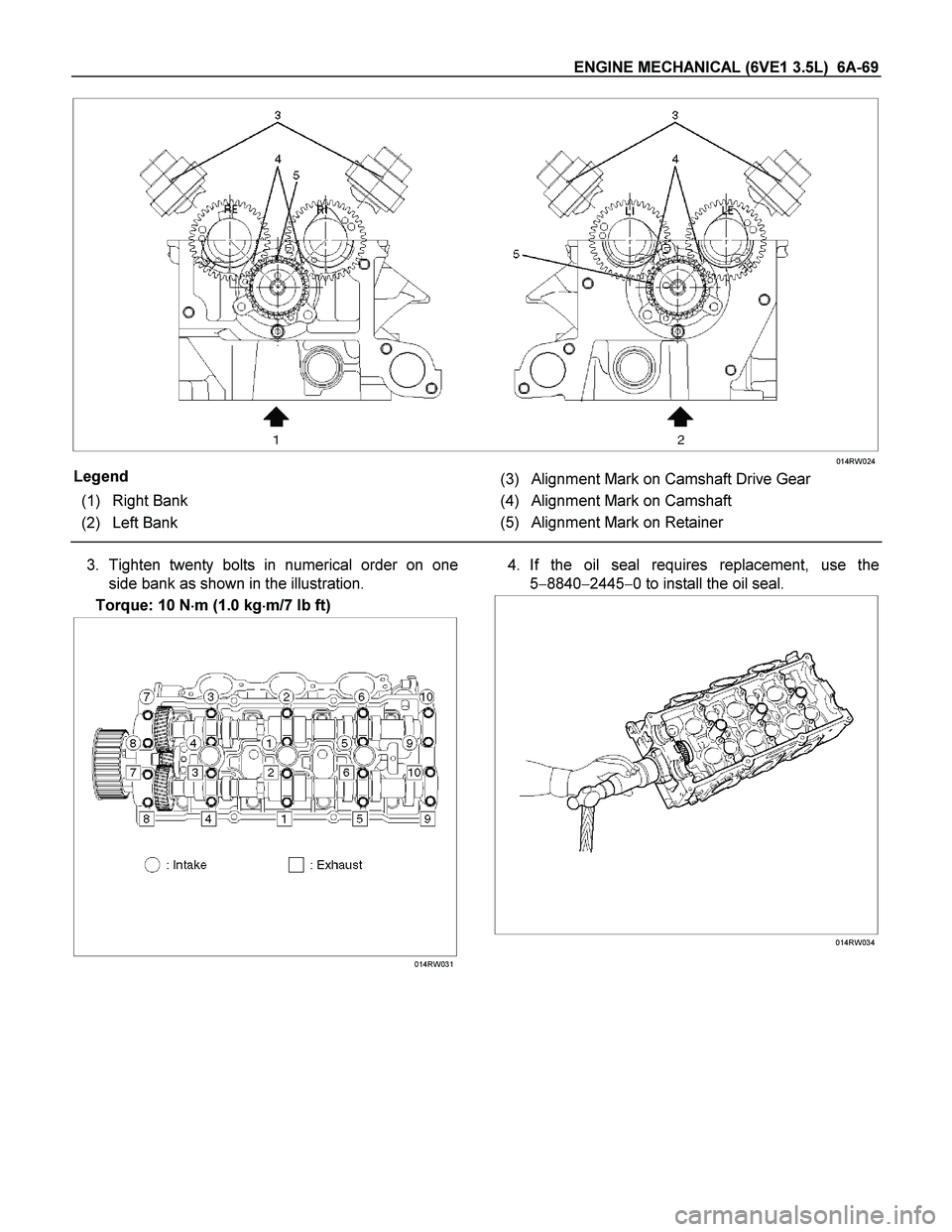

ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL (6VE1 3.5L) 6A-69 014RW024 Legend (1) Right Bank (2) Left Bank (3) Alignment Mark on Camshaft Drive Gear (4) Alignment Mark on Camshaft (5) Alignment Mark on Reta

Page 1894 of 4264

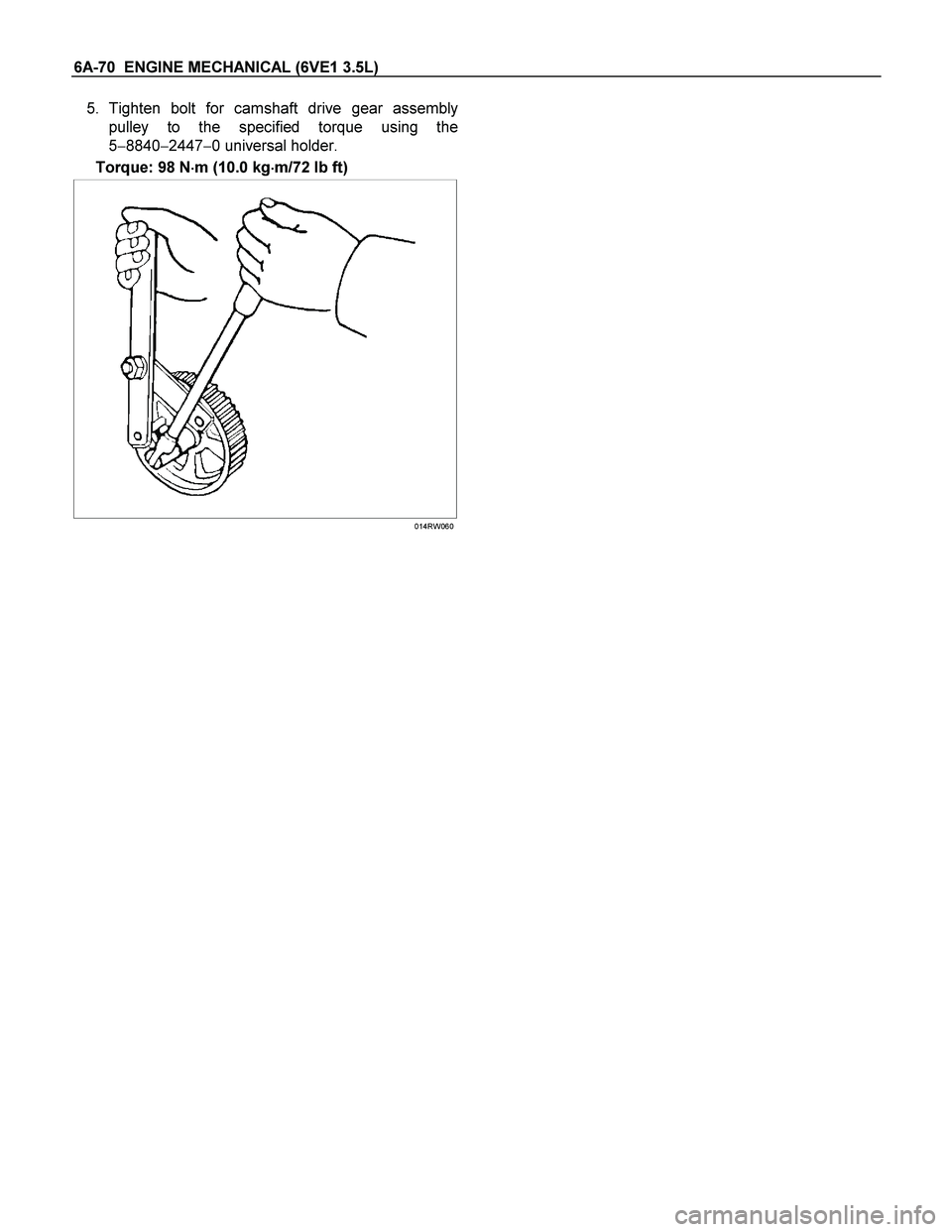

ISUZU TF SERIES 2004 Workshop Manual 6A-70 ENGINE MECHANICAL (6VE1 3.5L) 5. Tighten bolt for camshaft drive gear assembly pulley to the specified torque using the 5884024470 universal holder. Torque: 98 N  m (10.0 kg  m/72

Page 1895 of 4264

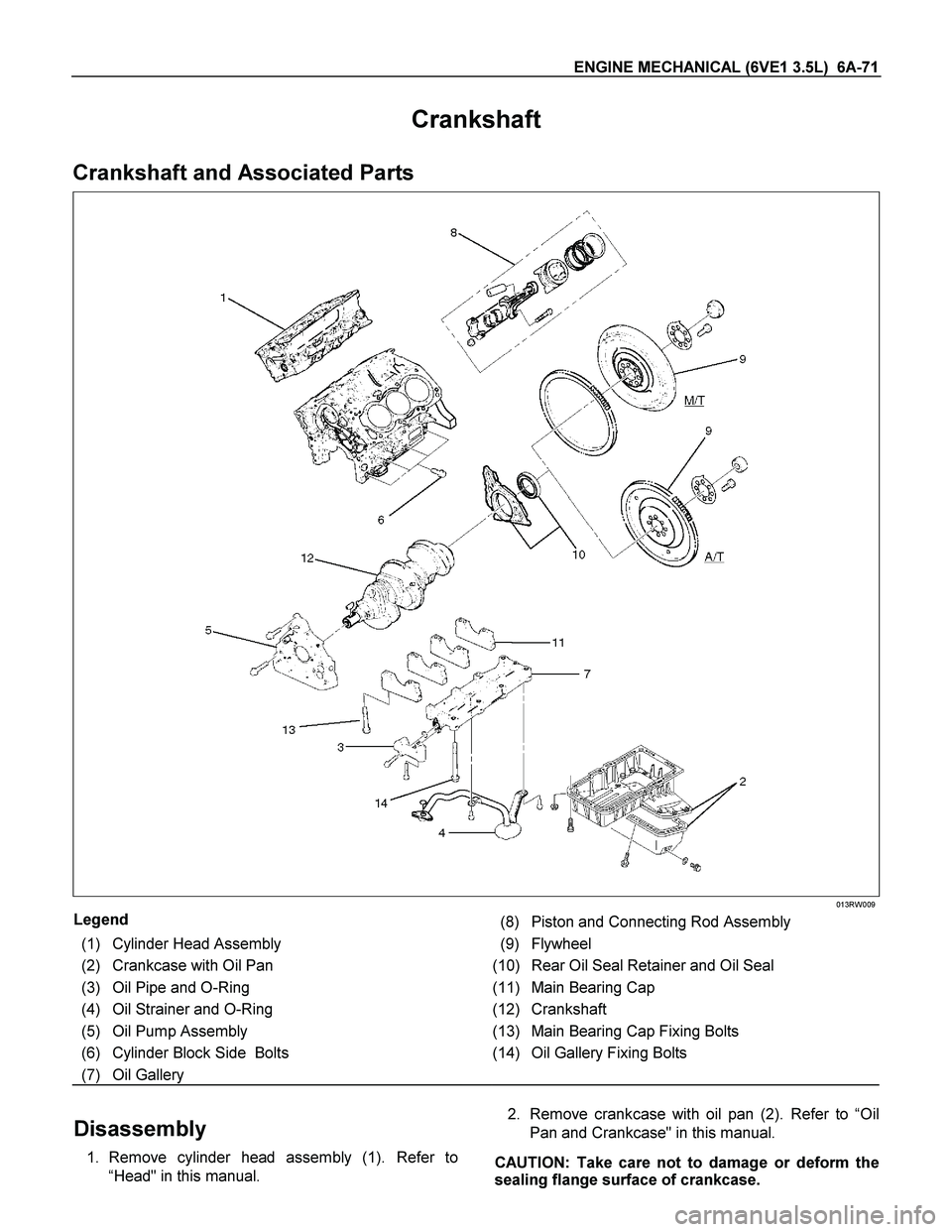

ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL (6VE1 3.5L) 6A-71 Crankshaft Crankshaft and Associated Parts 013RW009 Legend (1) Cylinder Head Assembly (2) Crankcase with Oil Pan (3) Oil Pipe and O-Ring (4) Oil

Page 1896 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6A-72 ENGINE MECHANICAL (6VE1 3.5L) 3. Remove oil pipe and O-ring (3). 4. Remove oil strainer and O-ring (4). 5. Remove oil pump assembly (5). 6. Remove crankcase side bolts (6). 7. Remove oil g
