Page 1001 of 4264

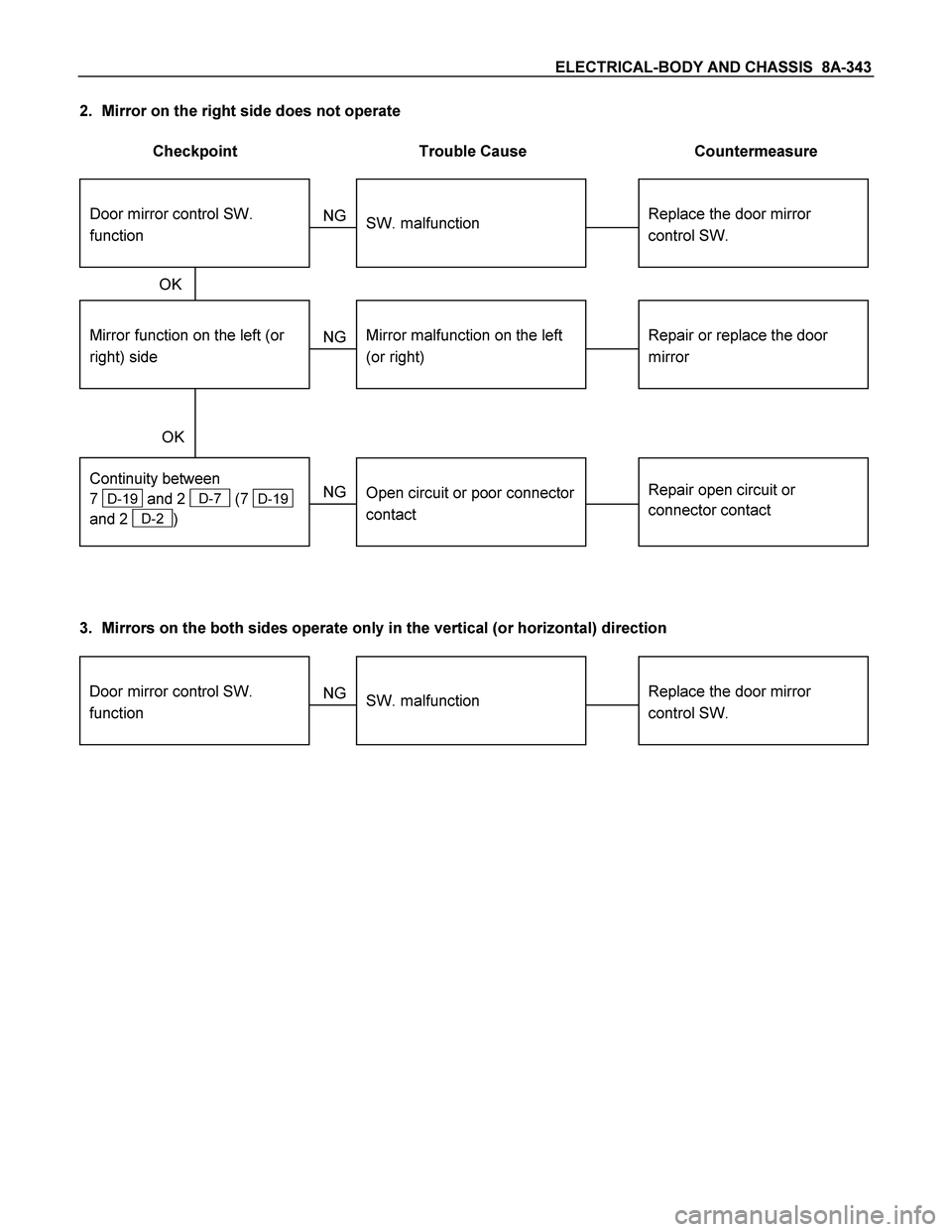

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-343 2. Mirror on the right side does not operate Checkpoint Trouble Cause Countermeasure Replace the door mirror control SW. SW. malfunction NG

Page 1002 of 4264

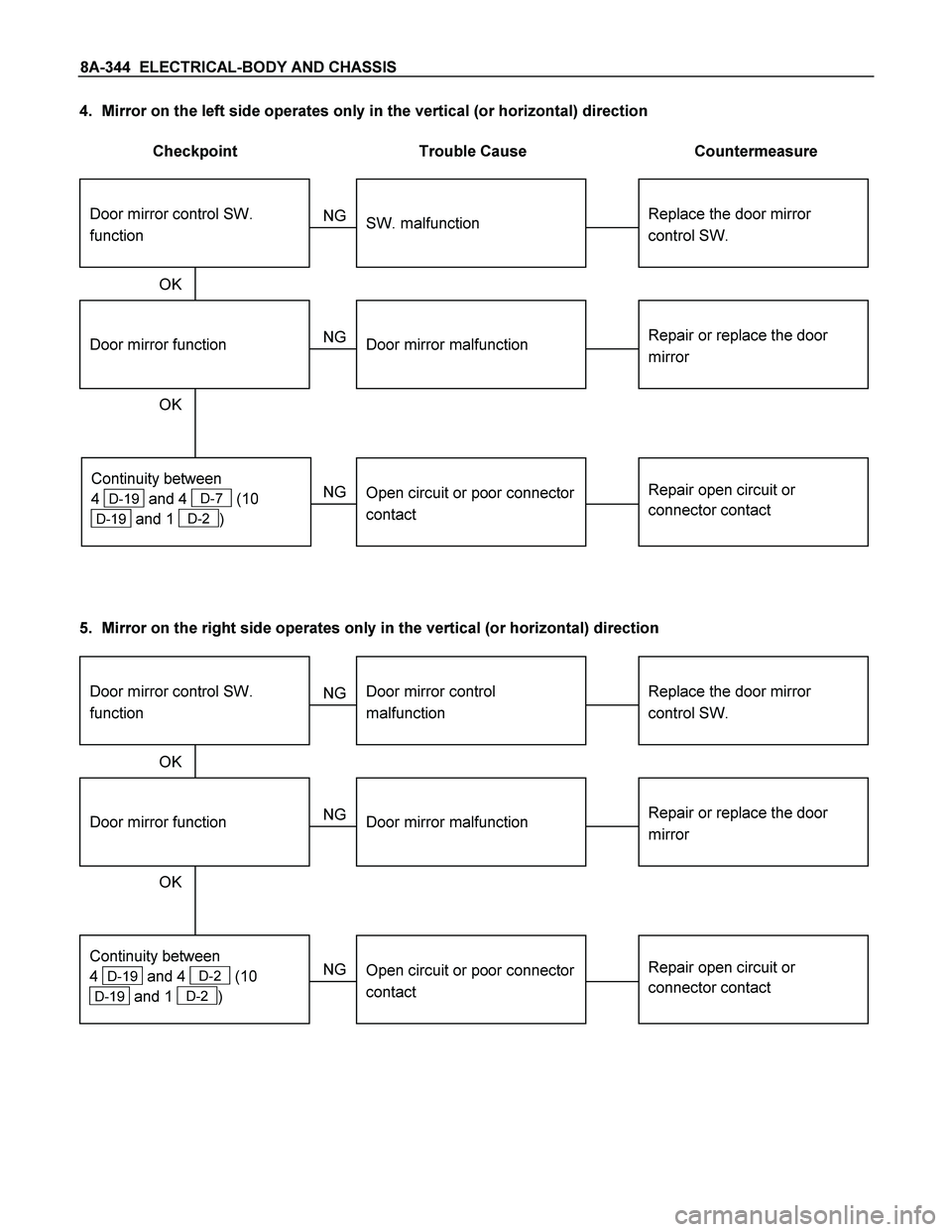

ISUZU TF SERIES 2004 Workshop Manual 8A-344 ELECTRICAL-BODY AND CHASSIS 4. Mirror on the left side operates only in the vertical (or horizontal) direction Checkpoint Trouble Cause Countermeasure Replace the door mirror cont

Page 1003 of 4264

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-345 REMOVAL AND INSTALLATION DOOR MIRROR CONTROL SWITCH Removal 1. Disconnect the battery ground cable. 2. Door trim pad Assembly  Refer to section 1

Page 1004 of 4264

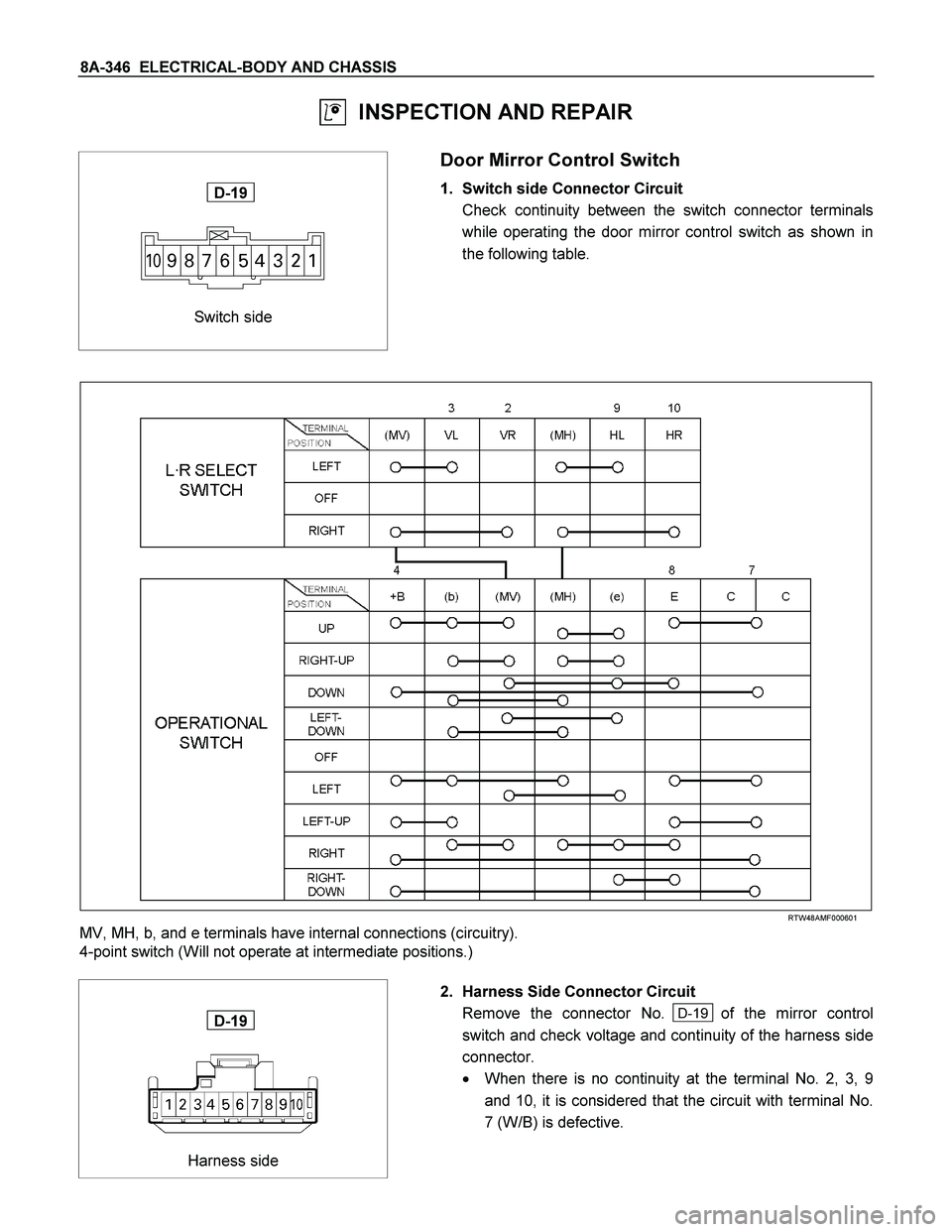

ISUZU TF SERIES 2004 Workshop Manual 8A-346 ELECTRICAL-BODY AND CHASSIS INSPECTION AND REPAIR Switch side D-19 Door Mirror Control Switch 1. Switch side Connector Circuit Check continuity between the switch con

Page 1005 of 4264

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-347  When there is no continuity at either one of the circuit No, 5, 7, 8, or 10, the motor in the mirror of the circuit or the circuit itself is defective. T

Page 1006 of 4264

ISUZU TF SERIES 2004 Workshop Manual 8A-348 ELECTRICAL-BODY AND CHASSIS Door mirror side D-2 D-7 2. Door Mirror Connector Circuit Disconnect the door mirror connector, apply the battery voltage to the door mirror side

Page 1007 of 4264

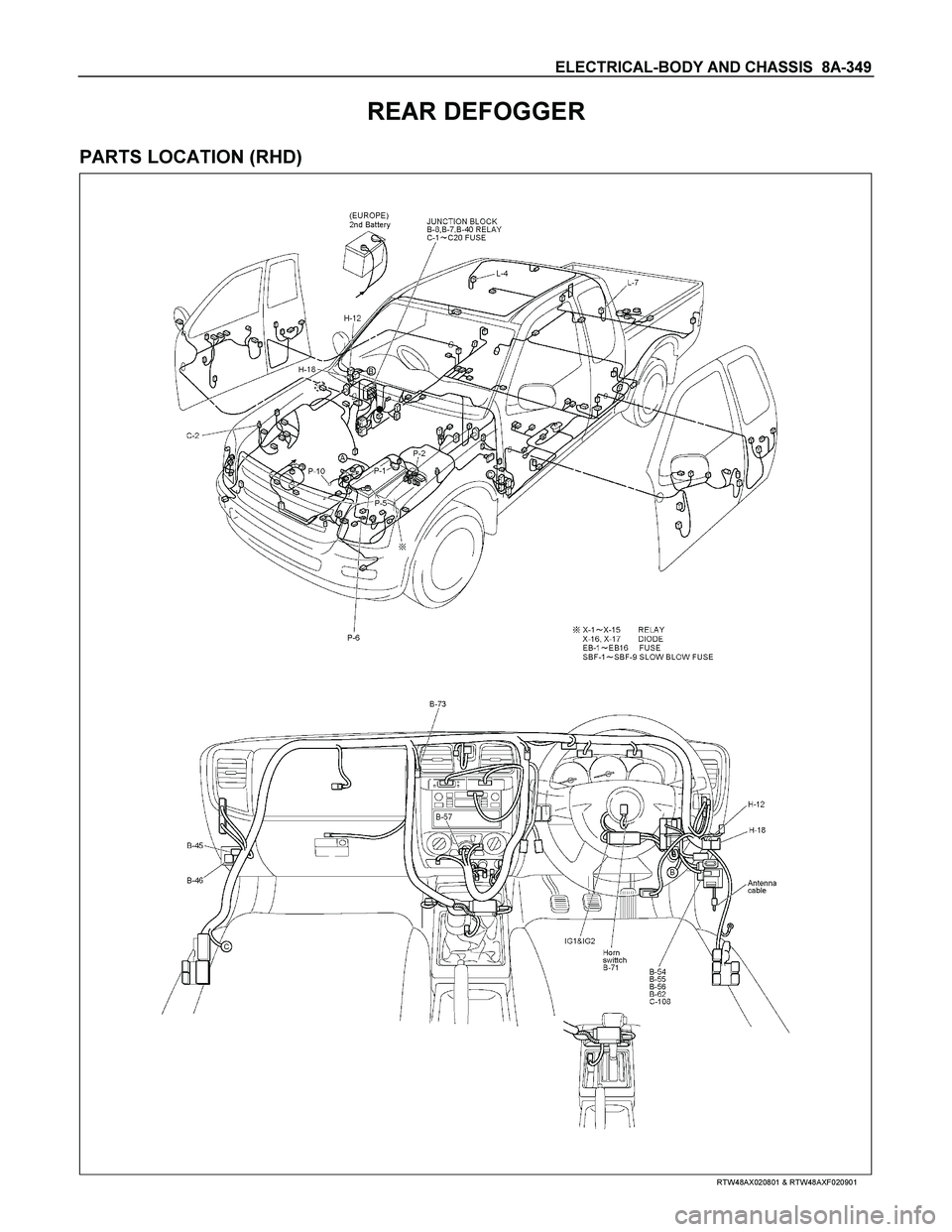

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-349 REAR DEFOGGER PARTS LOCATION (RHD) RTW48AX020801 & RTW48AXF020901

Page 1008 of 4264

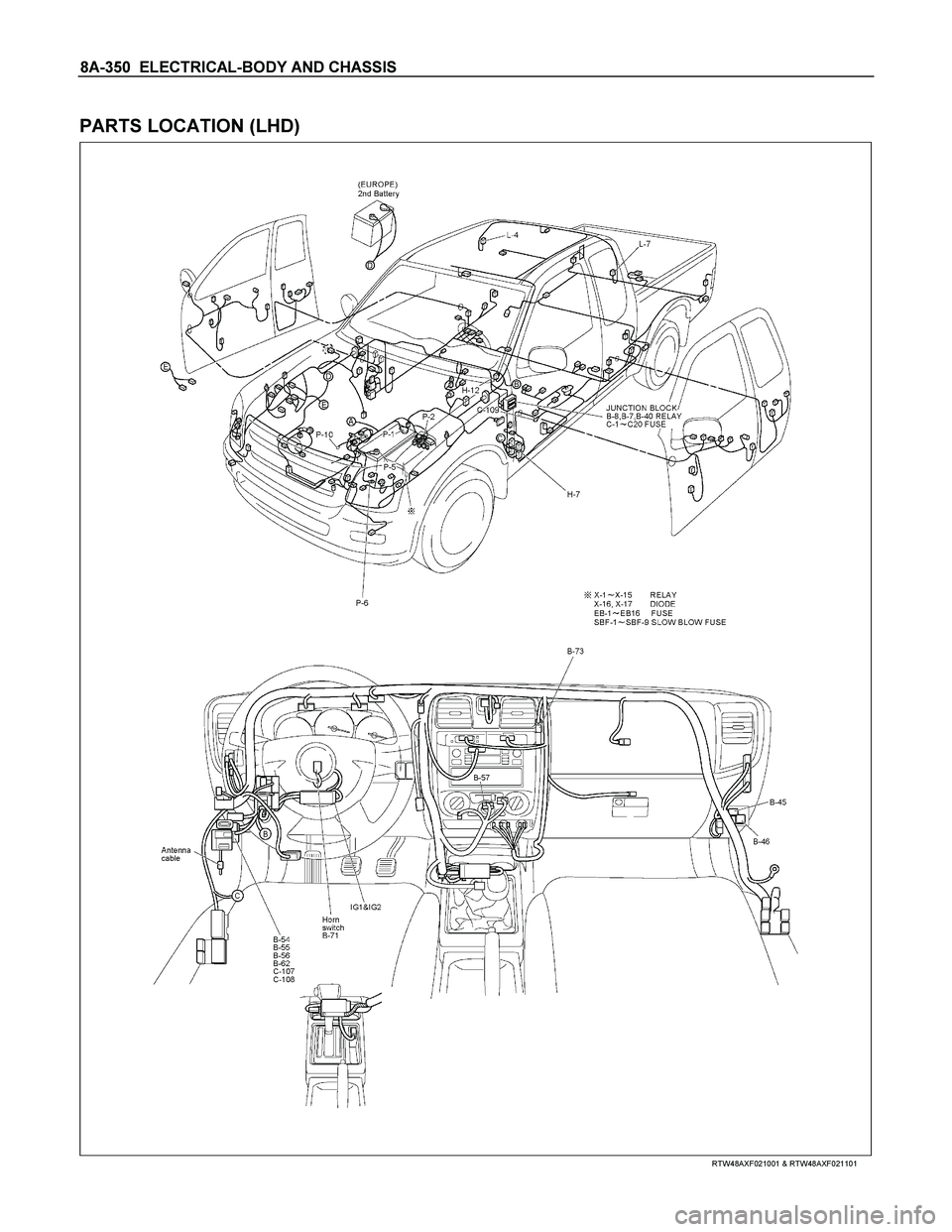

ISUZU TF SERIES 2004 Workshop Manual 8A-350 ELECTRICAL-BODY AND CHASSIS PARTS LOCATION (LHD) RTW48AXF021001 & RTW48AXF021101
