Page 2025 of 4264

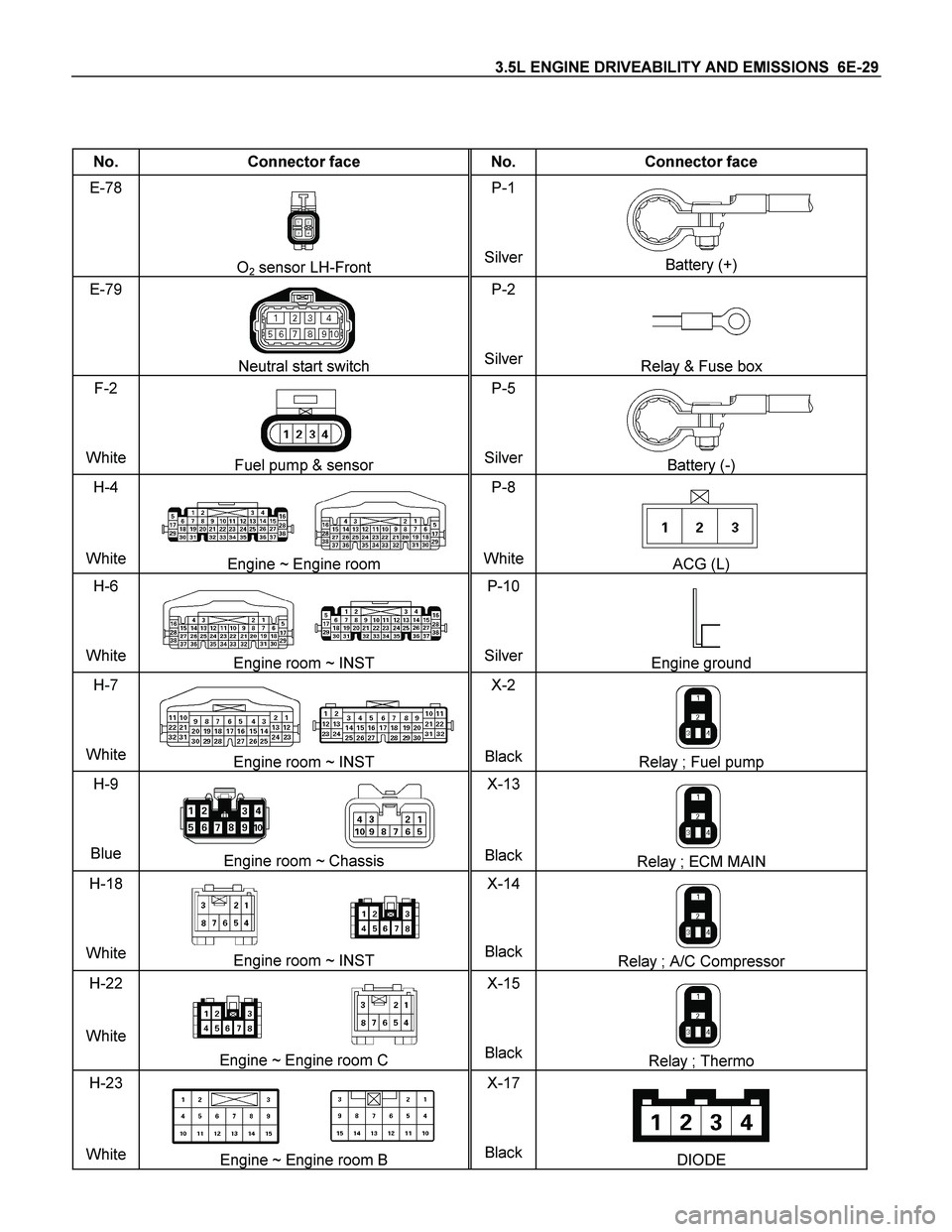

ISUZU TF SERIES 2004 Workshop Manual 3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-29 No. Connector face No. Connector face E-78 O2 sensor LH-Front P-1 SilverBattery (+) E-79 Neutral start switch P-2 SilverRelay & Fuse bo

Page 2026 of 4264

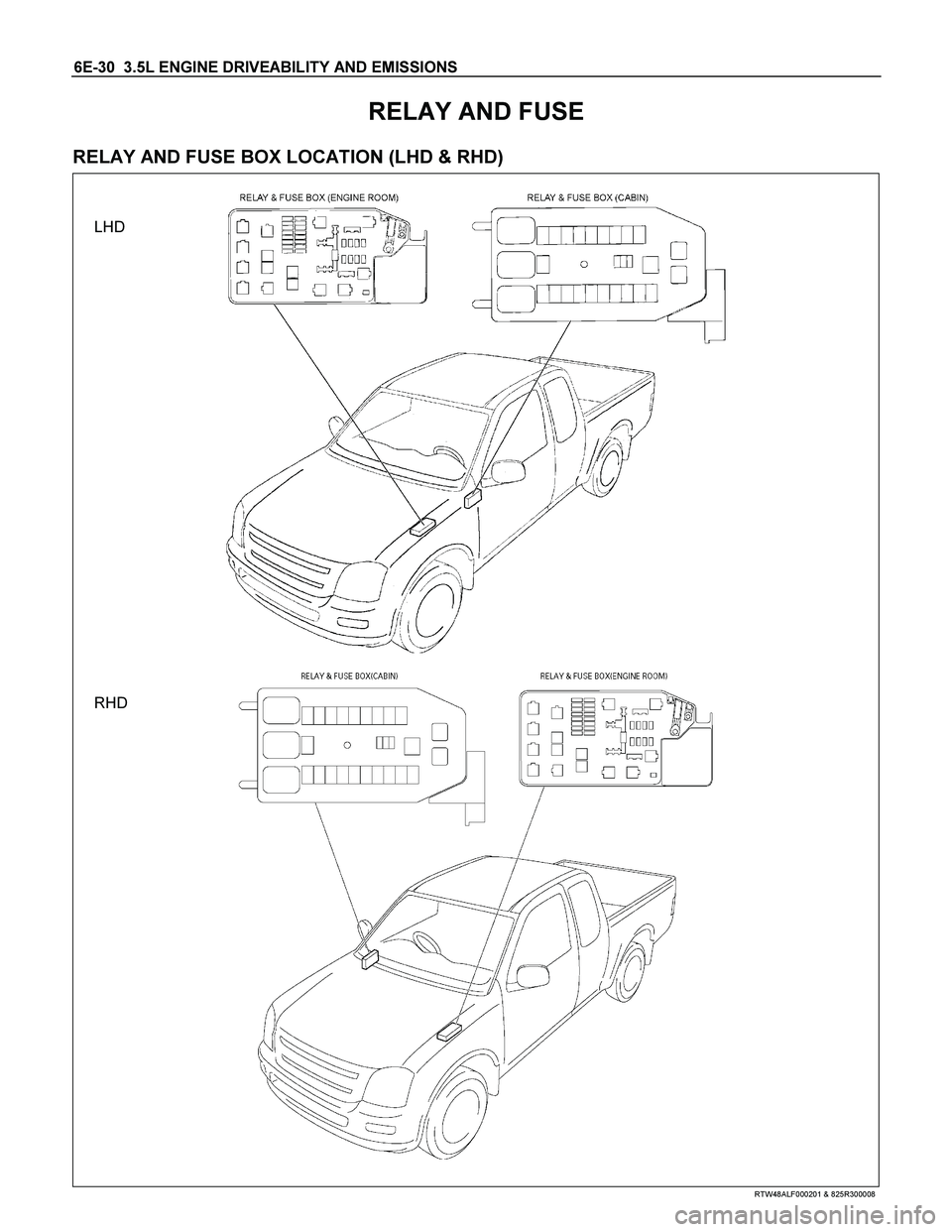

ISUZU TF SERIES 2004 Workshop Manual 6E-30 3.5L ENGINE DRIVEABILITY AND EMISSIONS RELAY AND FUSE RELAY AND FUSE BOX LOCATION (LHD & RHD) LHD RHD RTW48ALF000201 & 825R300008

Page 2027 of 4264

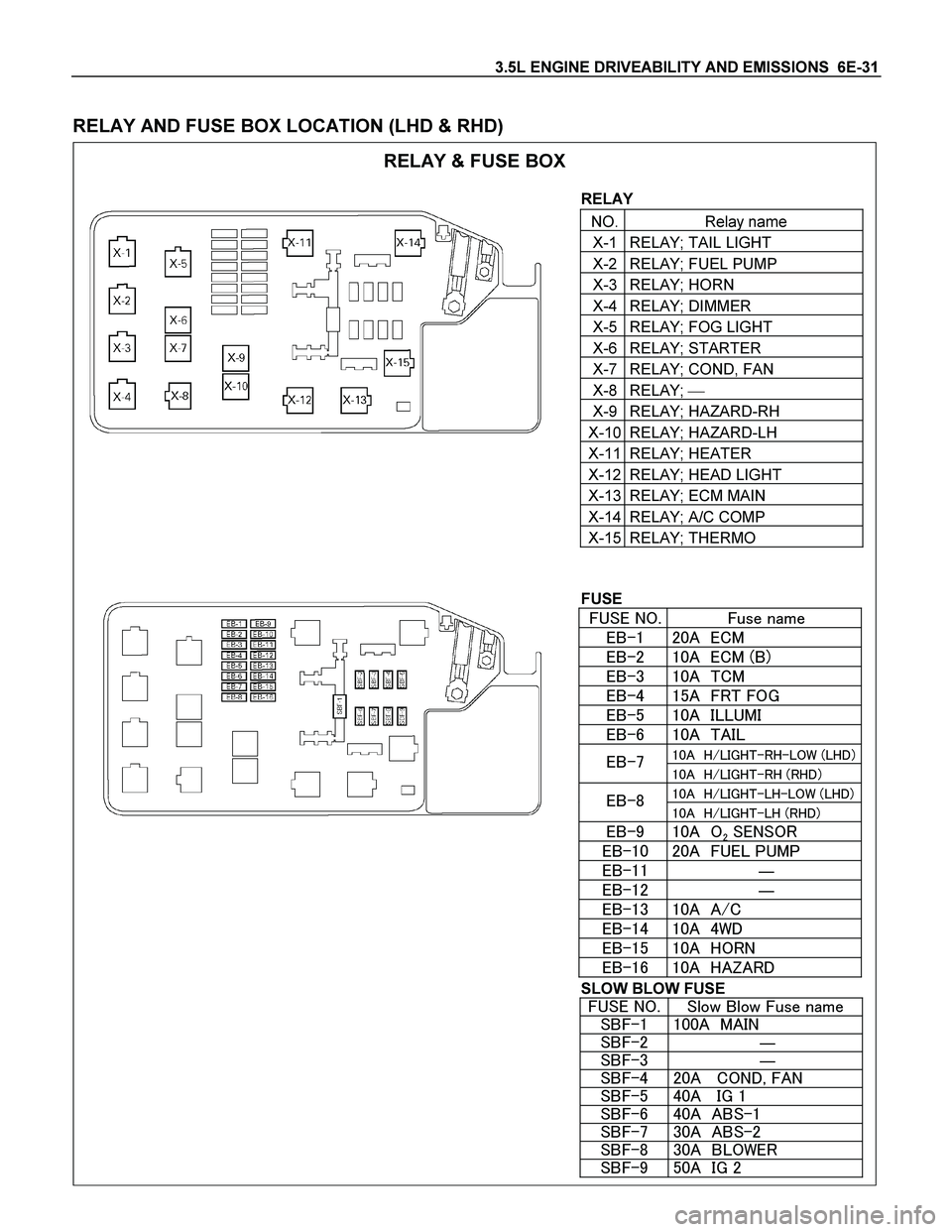

ISUZU TF SERIES 2004 Workshop Manual 3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-31 RELAY AND FUSE BOX LOCATION (LHD & RHD) RELAY & FUSE BOX RELAY NO. Relay name X-1 RELAY; TAIL LIGHT X-2 RELAY; FUEL PUMP X-3 RELAY; HORN X-4

Page 2028 of 4264

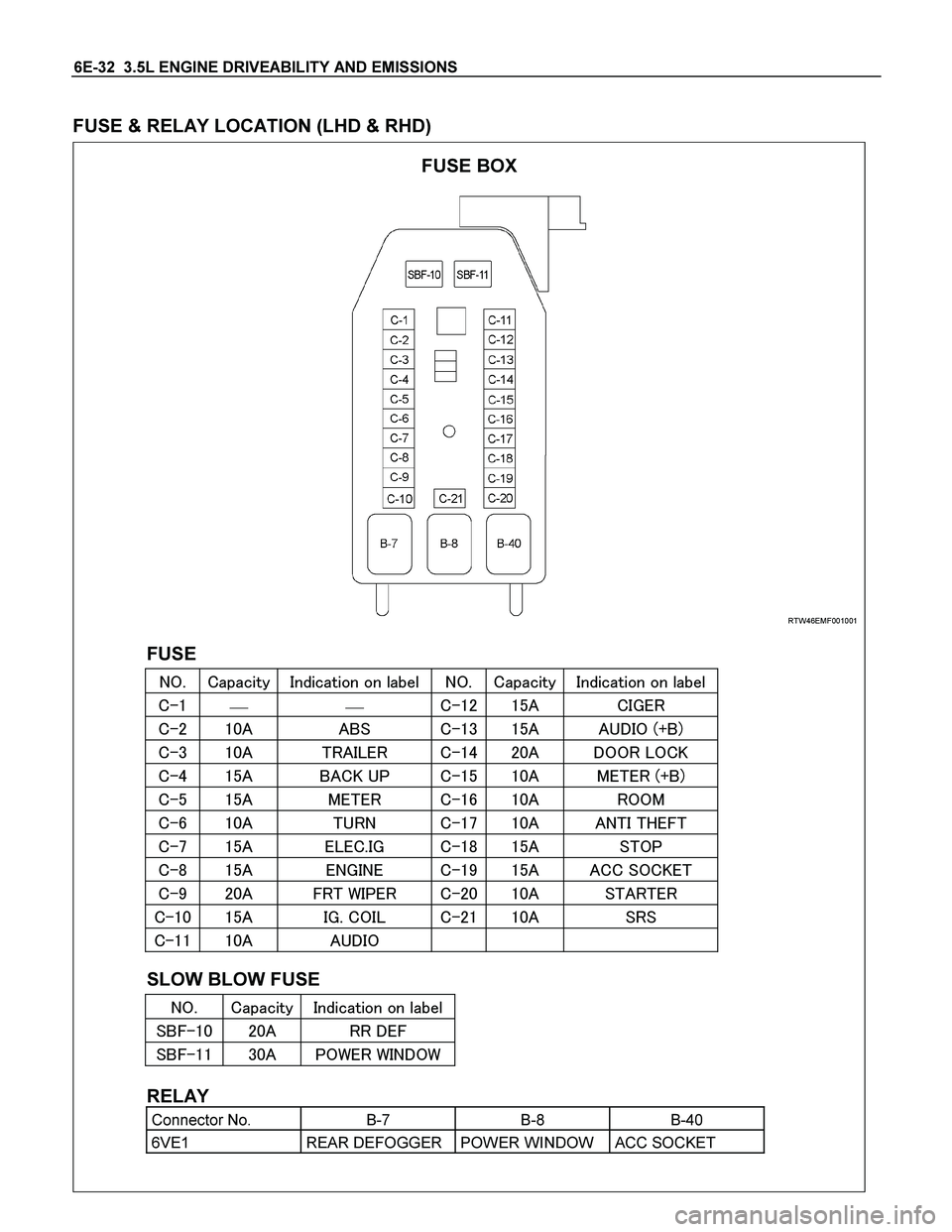

ISUZU TF SERIES 2004 Workshop Manual 6E-32 3.5L ENGINE DRIVEABILITY AND EMISSIONS FUSE & RELAY LOCATION (LHD & RHD) RTW46EMF001001 FUSE   / 0123  410 21, , + 5 +   / 0123  410 21, , + 5 +

Page 2029 of 4264

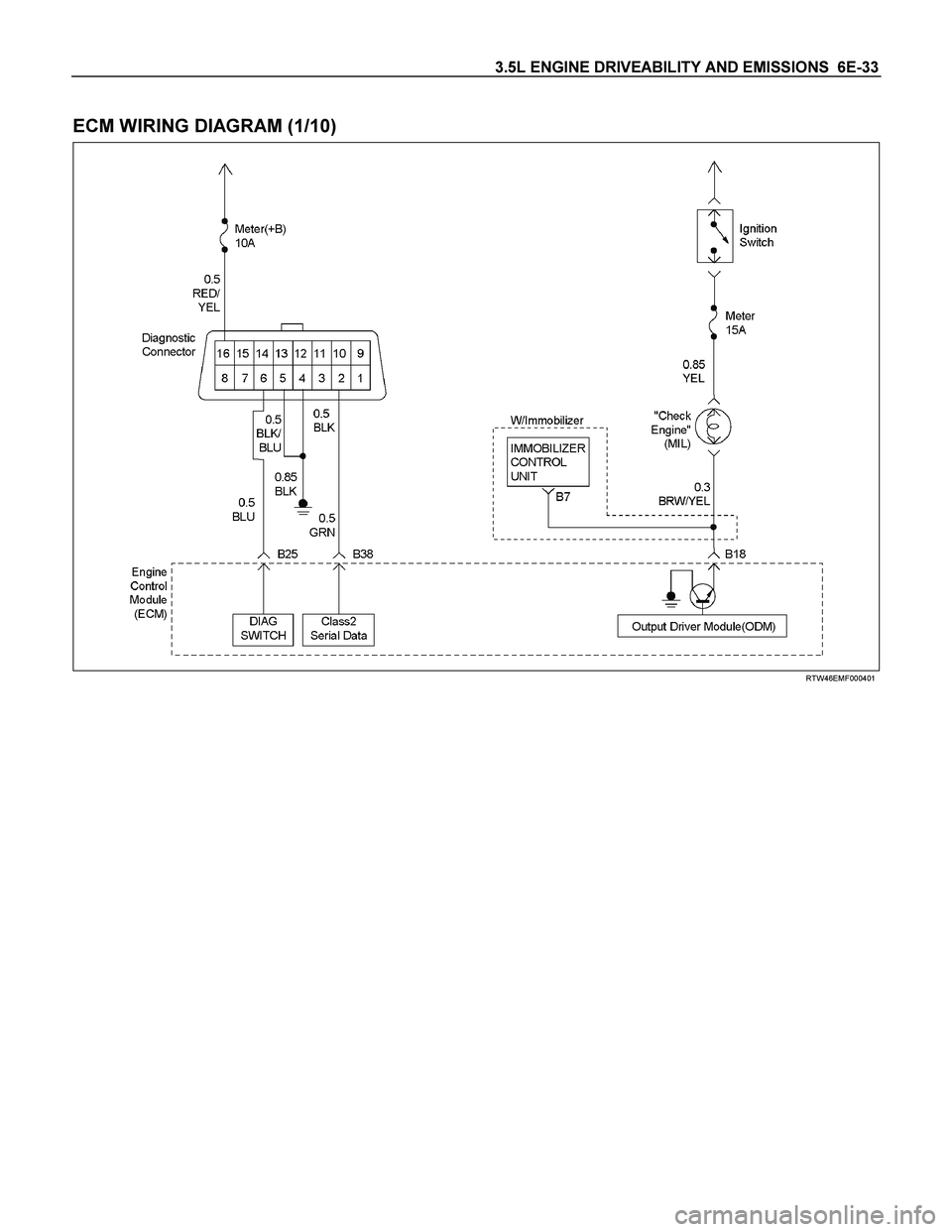

ISUZU TF SERIES 2004 Workshop Manual 3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-33 ECM WIRING DIAGRAM (1/10) RTW46EMF000401

Page 2030 of 4264

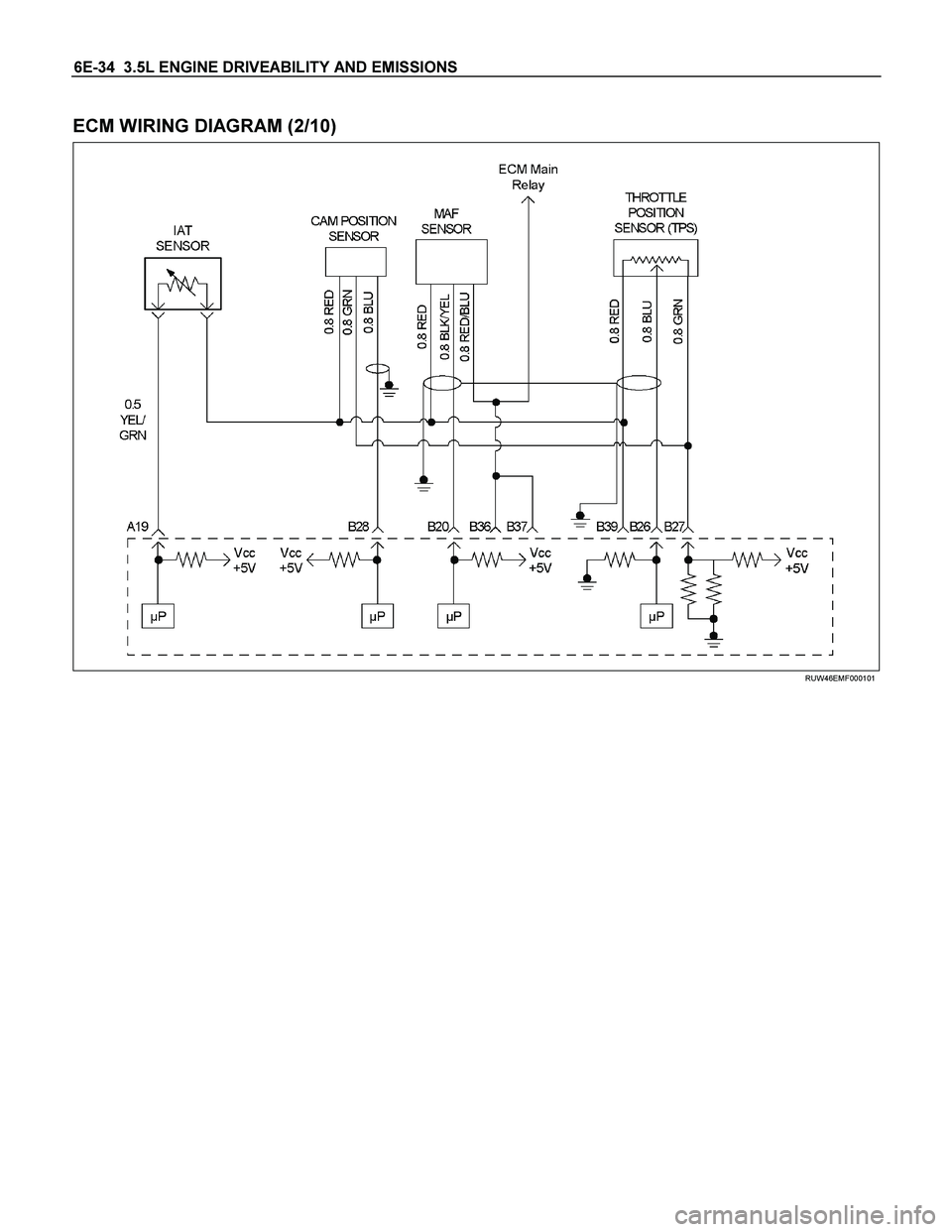

ISUZU TF SERIES 2004 Workshop Manual 6E-34 3.5L ENGINE DRIVEABILITY AND EMISSIONS ECM WIRING DIAGRAM (2/10) RUW46EMF000101

Page 2031 of 4264

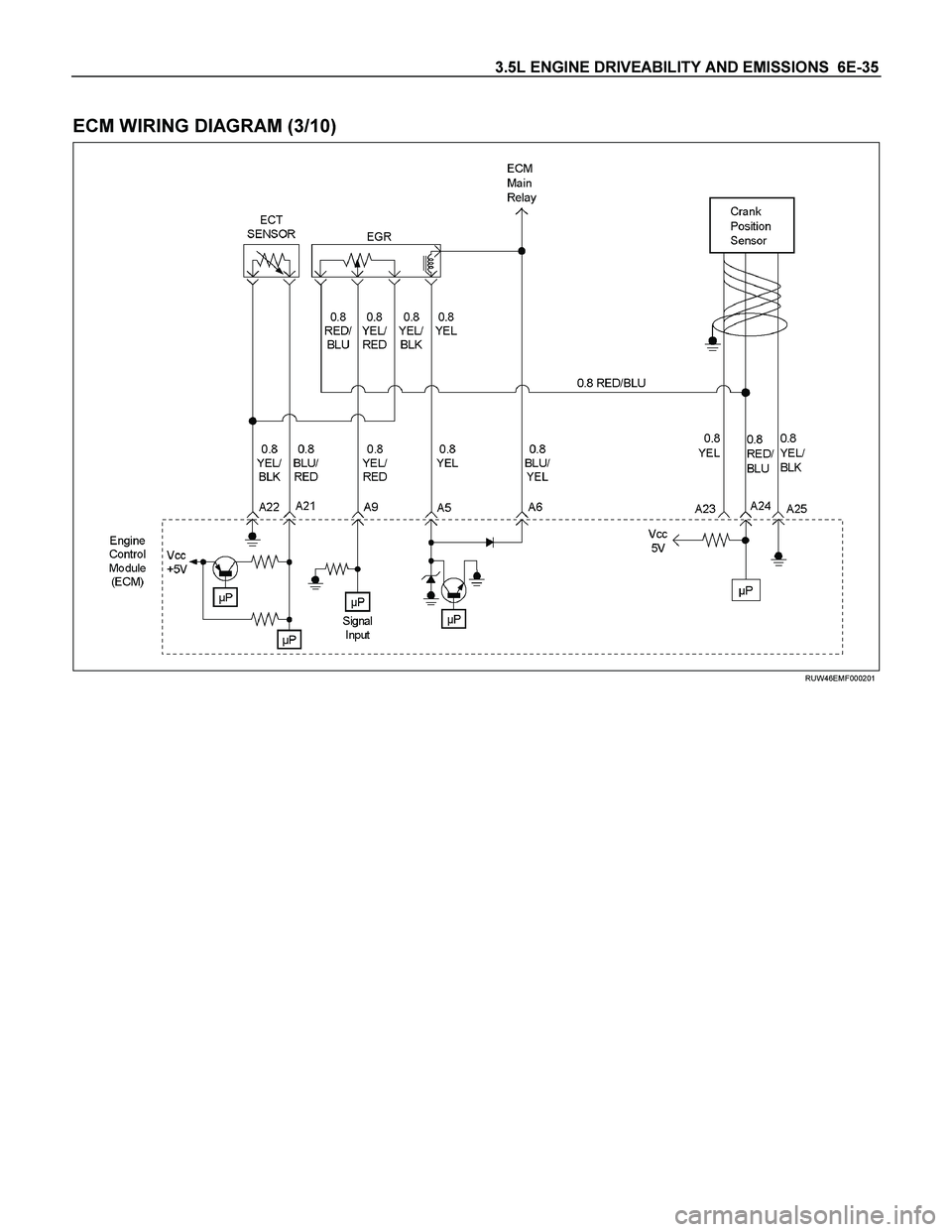

ISUZU TF SERIES 2004 Workshop Manual 3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-35 ECM WIRING DIAGRAM (3/10) RUW46EMF000201

Page 2032 of 4264

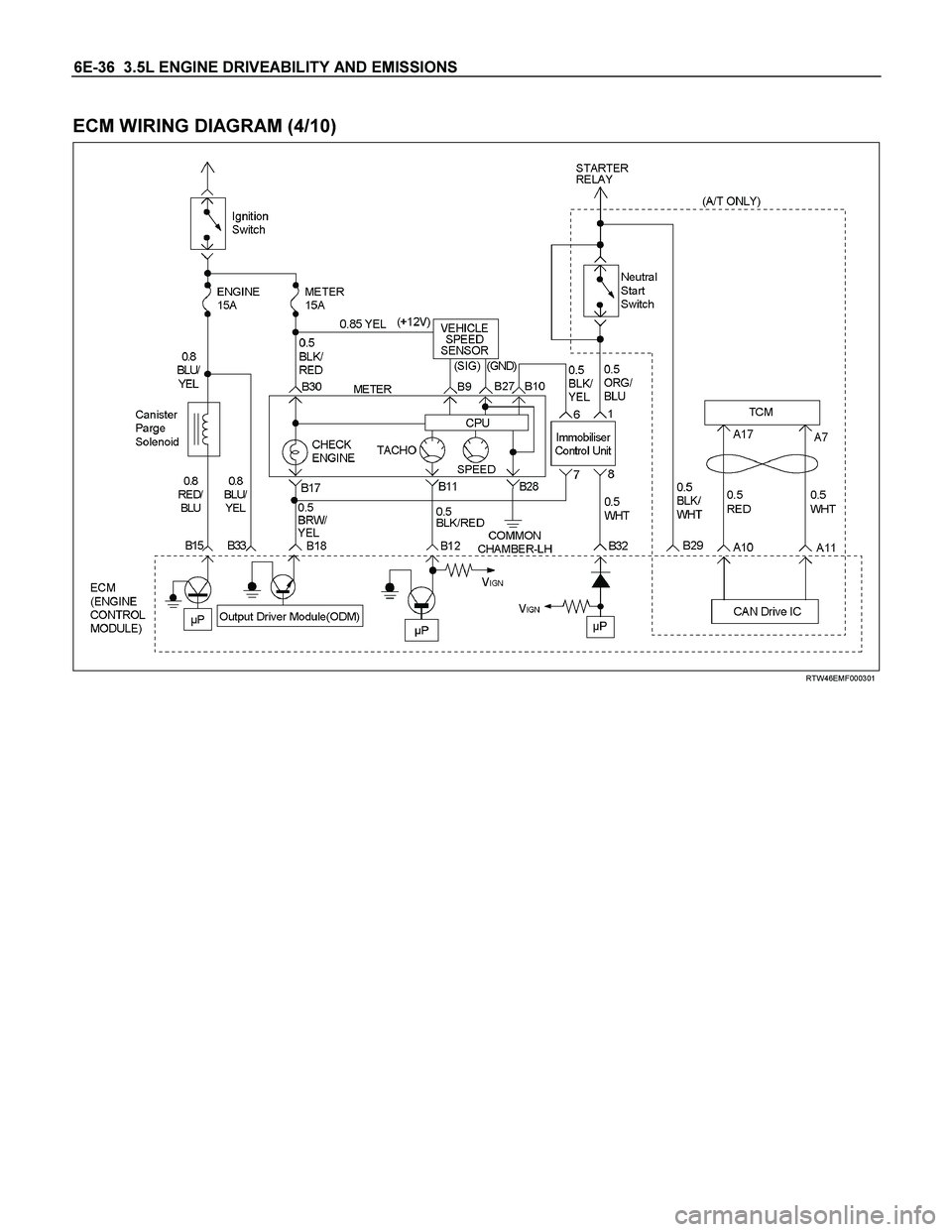

ISUZU TF SERIES 2004 Workshop Manual 6E-36 3.5L ENGINE DRIVEABILITY AND EMISSIONS ECM WIRING DIAGRAM (4/10) RTW46EMF000301
