Page 2585 of 4264

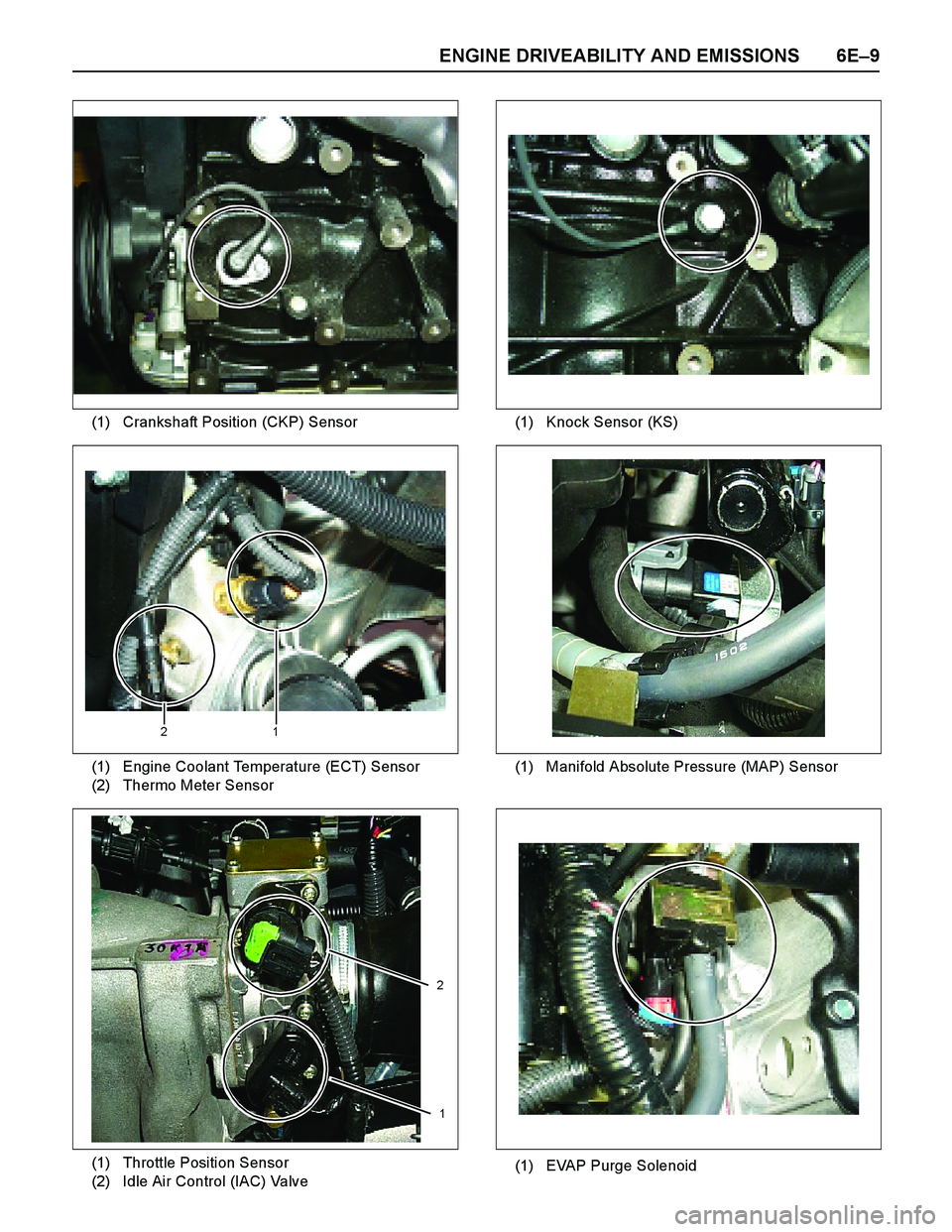

ISUZU TF SERIES 2004 Workshop Manual ENGINE DRIVEABILITY AND EMISSIONS 6E–9 (1) Crankshaft Position (CKP) Sensor(1) Knock Sensor (KS) (1) (2)Engine Coolant Temperature (ECT) Sensor Thermo Meter Sensor 21 (1) Manifold Absolute Pressure

Page 2586 of 4264

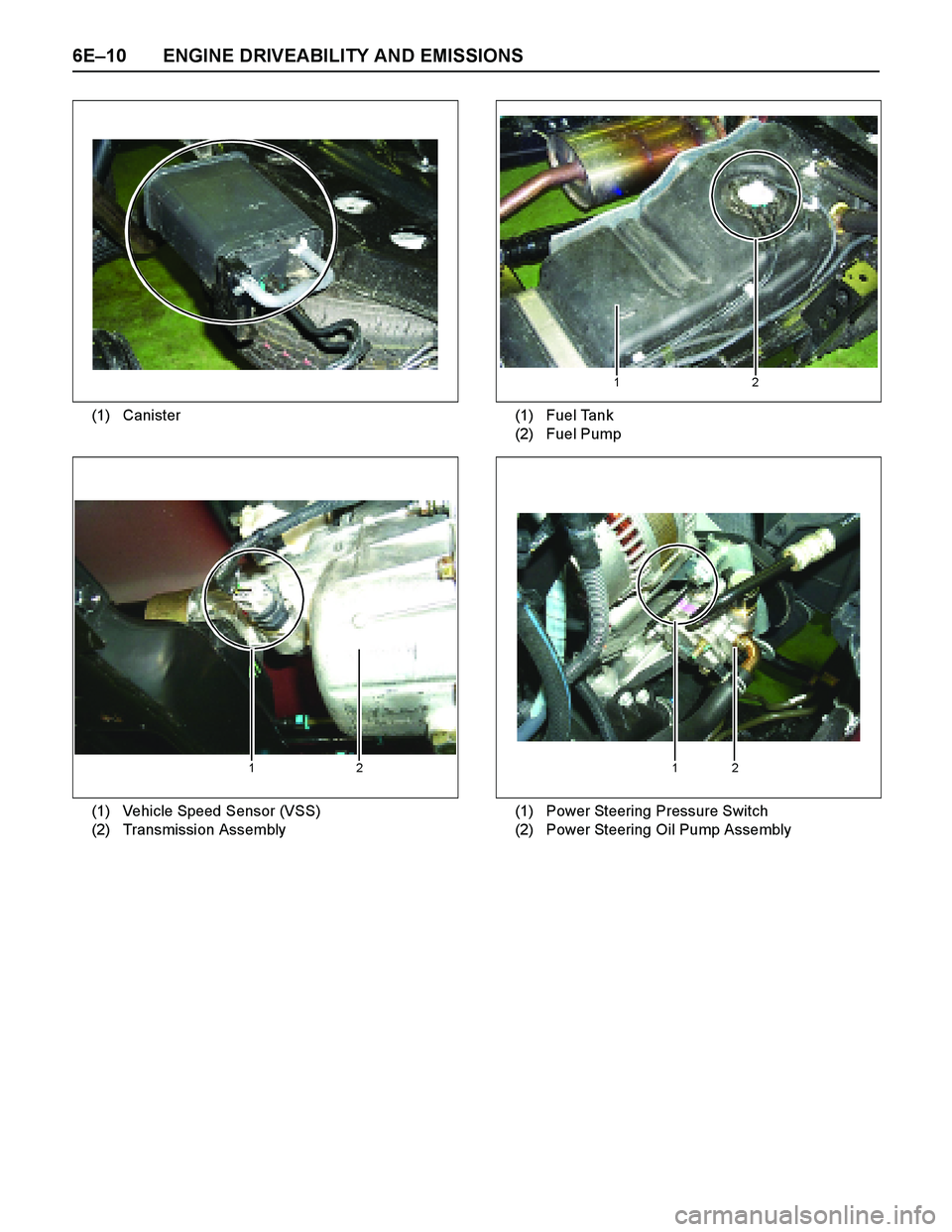

ISUZU TF SERIES 2004 Workshop Manual 6E–10 ENGINE DRIVEABILITY AND EMISSIONS (1) Canister(1) (2)Fuel Tank Fuel Pump 2 1 (1) (2)Vehicle Speed Sensor (VSS) Transmission Assembly 12 (1) (2)Power Steering Pressure Switch Power Steering Oil

Page 2587 of 4264

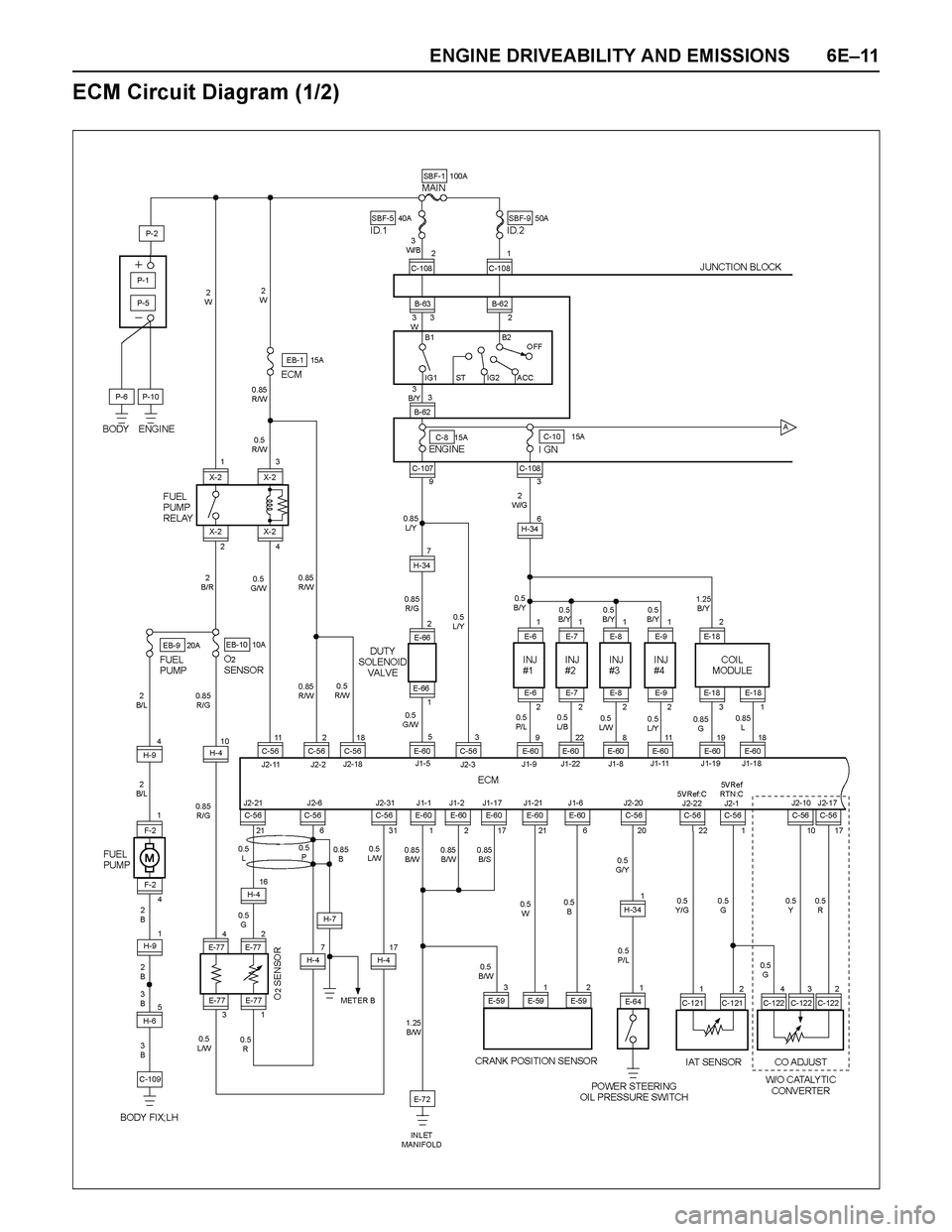

ISUZU TF SERIES 2004 Workshop Manual ENGINE DRIVEABILITY AND EMISSIONS 6E–11 ECM Circuit Diagram (1/2)

Page 2588 of 4264

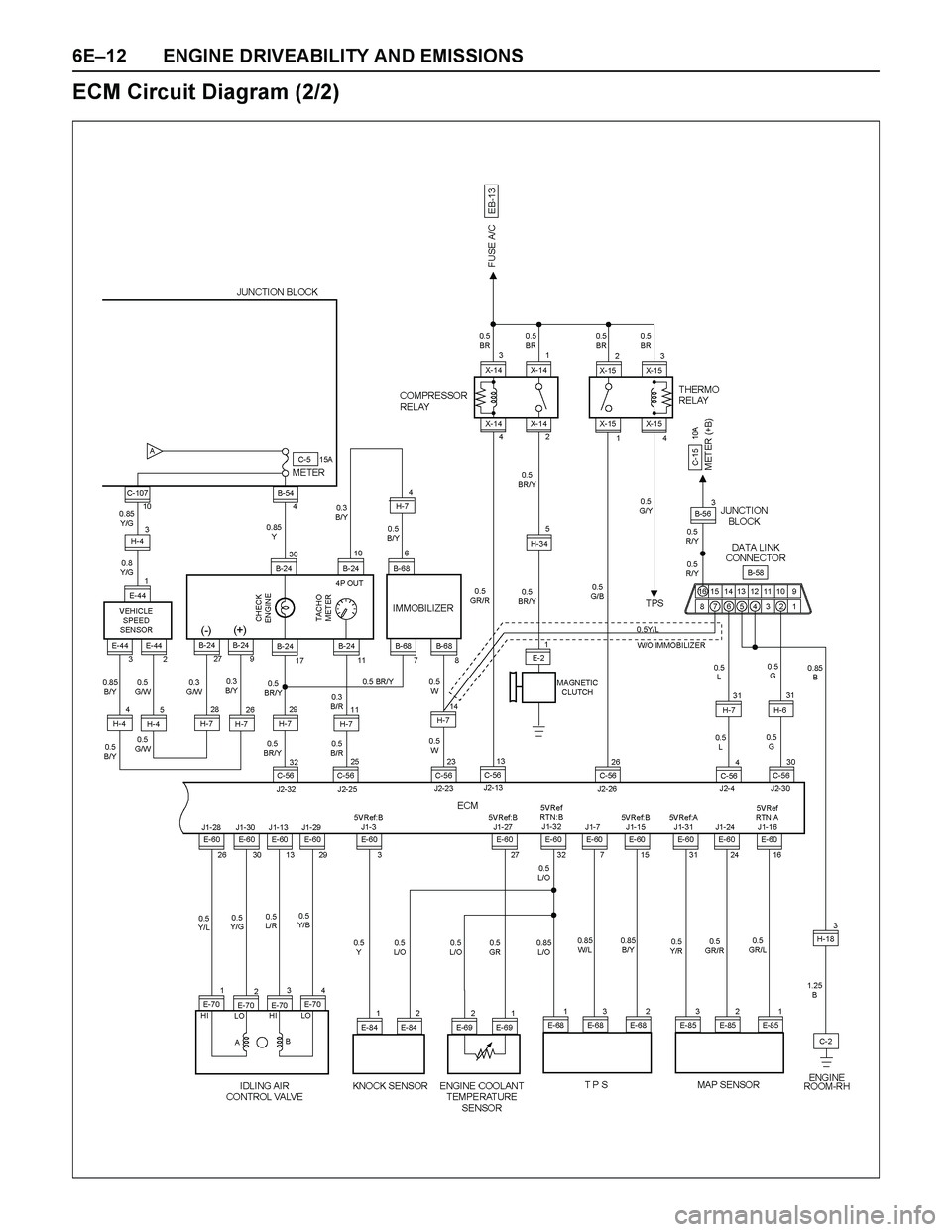

ISUZU TF SERIES 2004 Workshop Manual 6E–12 ENGINE DRIVEABILITY AND EMISSIONS ECM Circuit Diagram (2/2)

Page 2589 of 4264

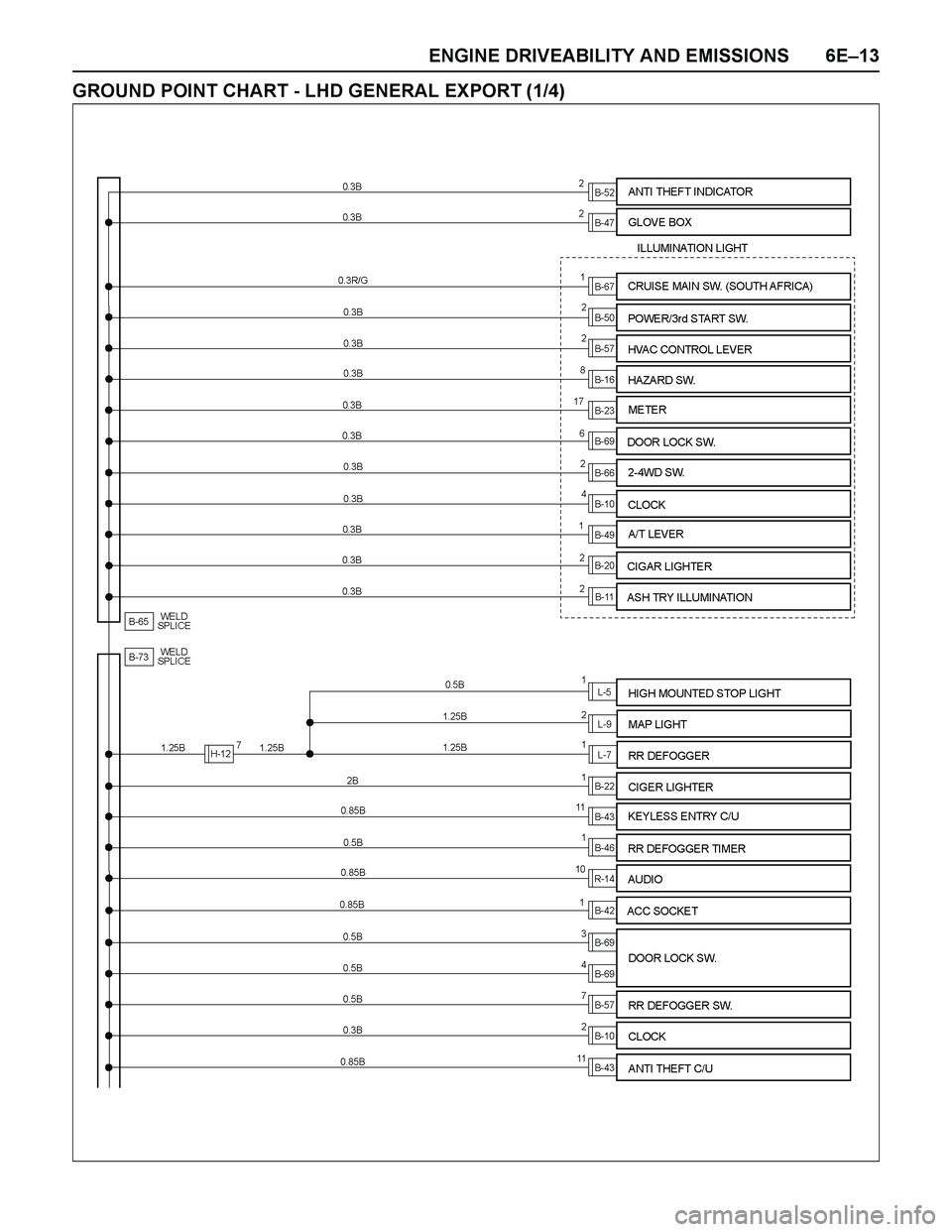

ISUZU TF SERIES 2004 Workshop Manual ENGINE DRIVEABILITY AND EMISSIONS 6E–13 GROUND POINT CHART - LHD GENERAL EXPORT (1/4)

Page 2590 of 4264

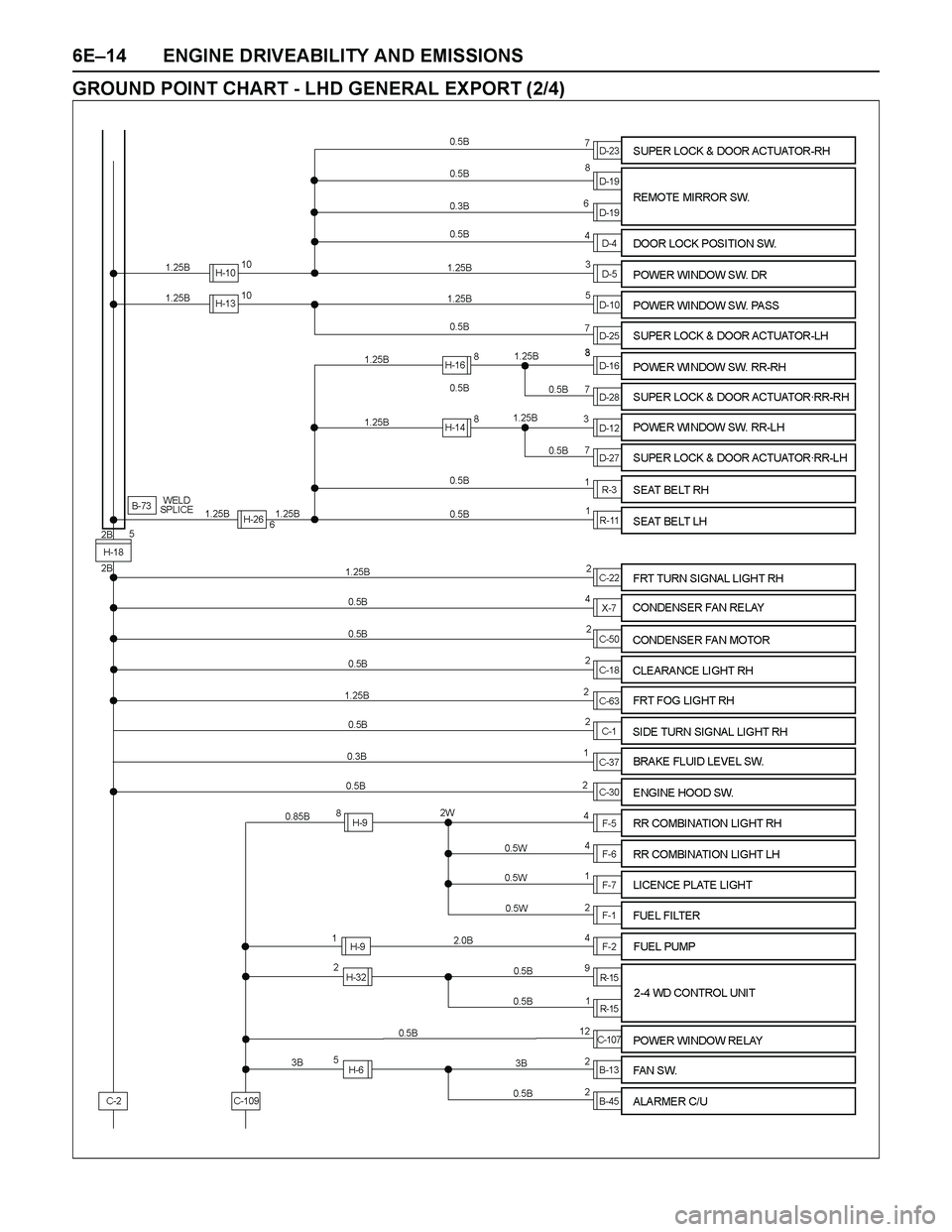

ISUZU TF SERIES 2004 Workshop Manual 6E–14 ENGINE DRIVEABILITY AND EMISSIONS GROUND POINT CHART - LHD GENERAL EXPORT (2/4)

Page 2591 of 4264

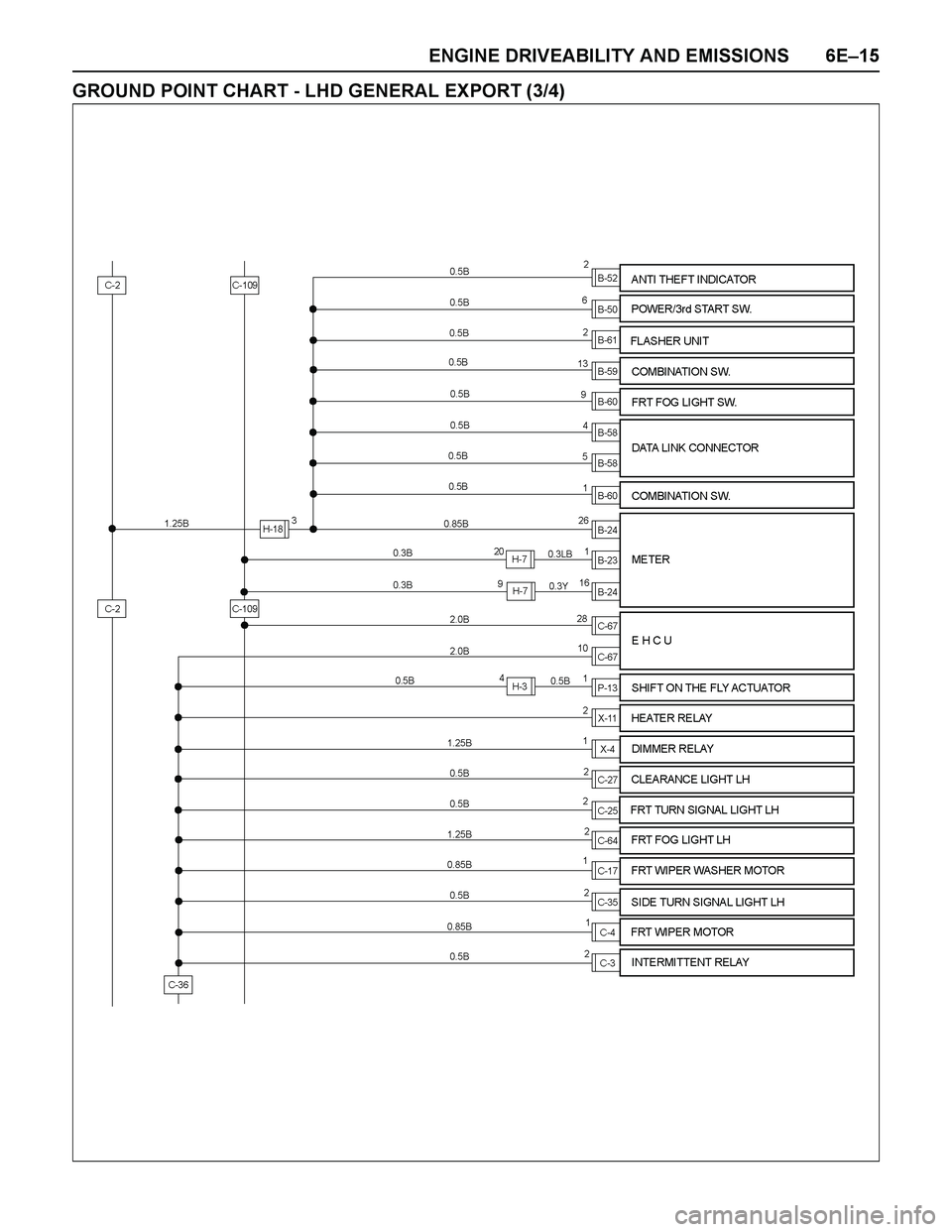

ISUZU TF SERIES 2004 Workshop Manual ENGINE DRIVEABILITY AND EMISSIONS 6E–15 GROUND POINT CHART - LHD GENERAL EXPORT (3/4)

Page 2592 of 4264

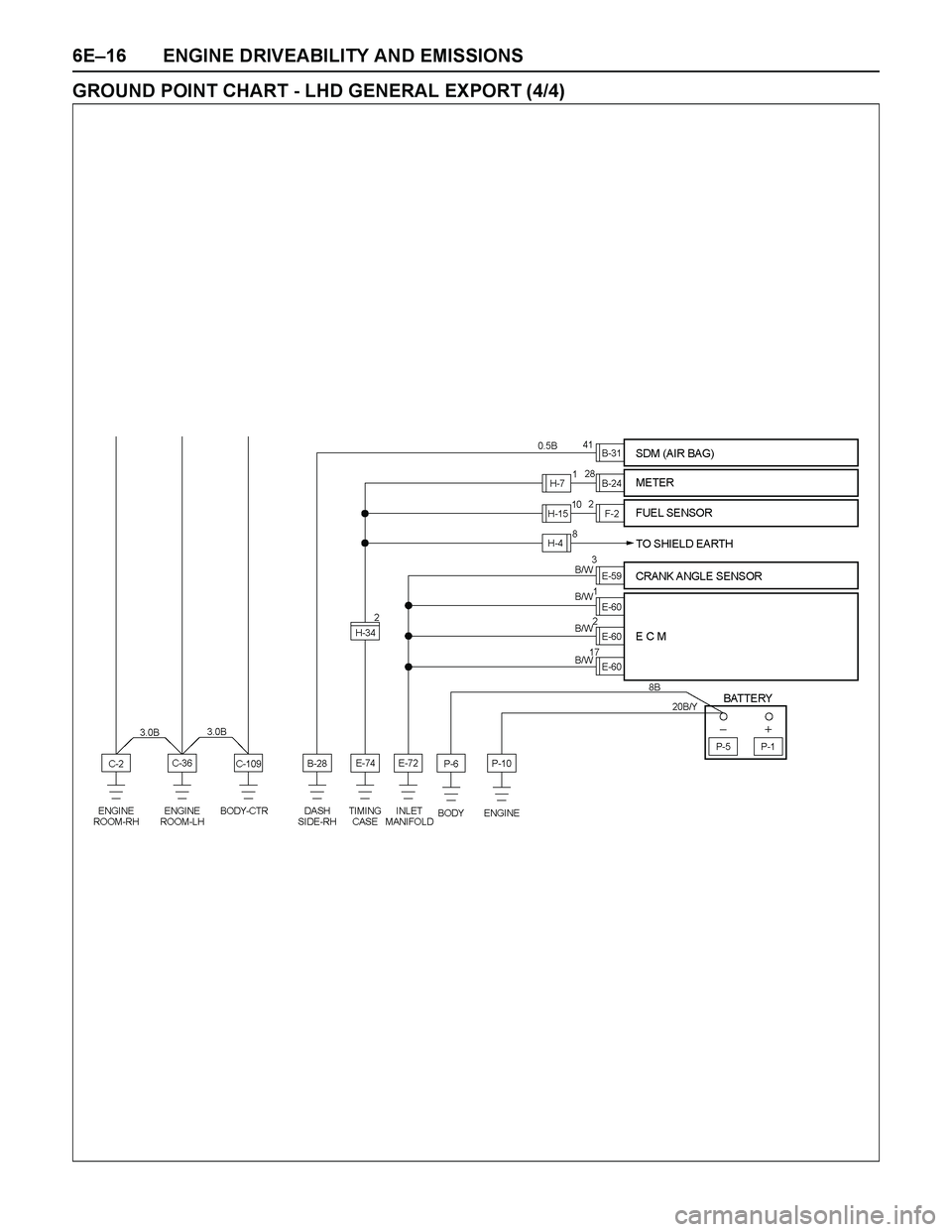

ISUZU TF SERIES 2004 Workshop Manual 6E–16 ENGINE DRIVEABILITY AND EMISSIONS GROUND POINT CHART - LHD GENERAL EXPORT (4/4)
