Page 1049 of 4264

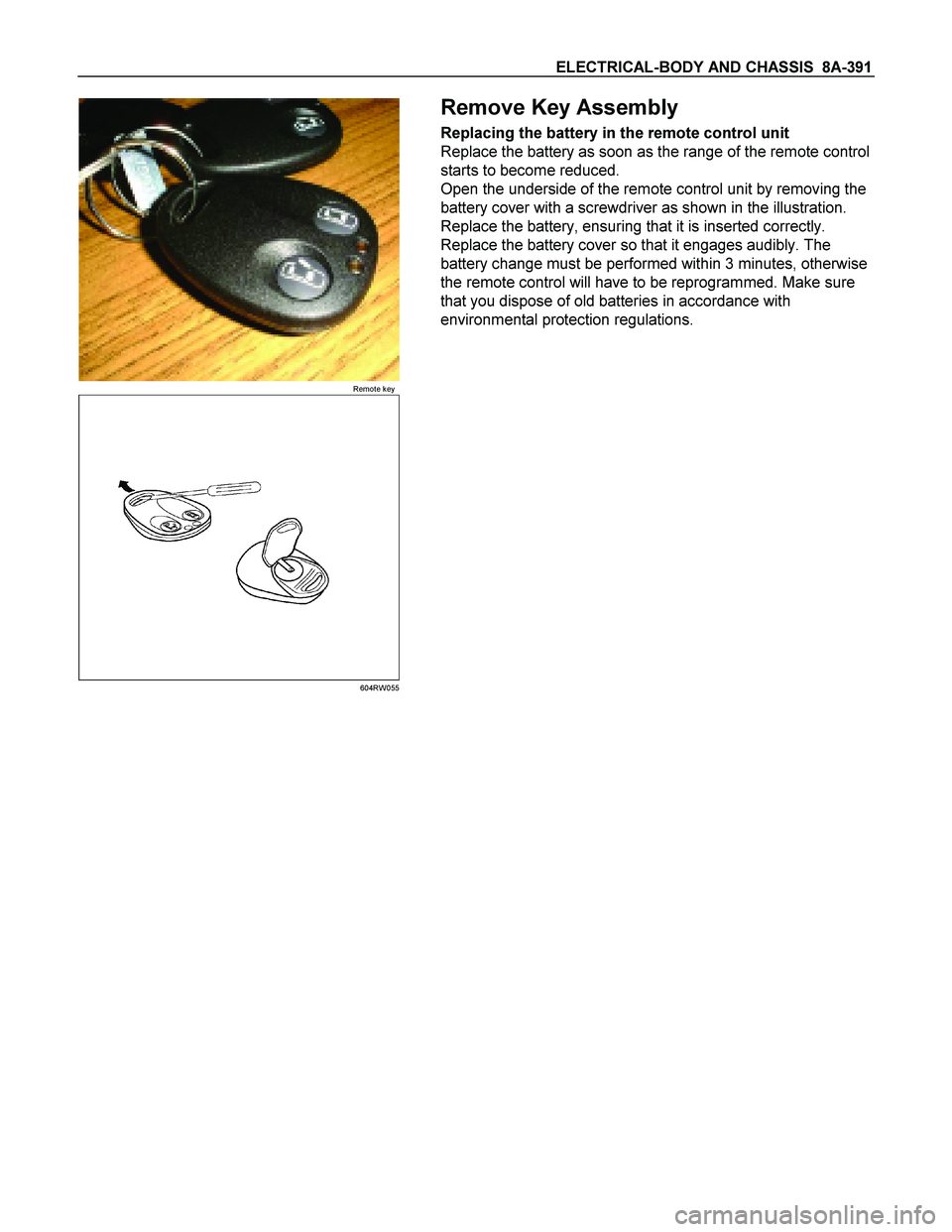

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-391 Remote key Remove Key Assembly Replacing the battery in the remote control unit Replace the battery as soon as the range of the remote control starts to become

Page 1050 of 4264

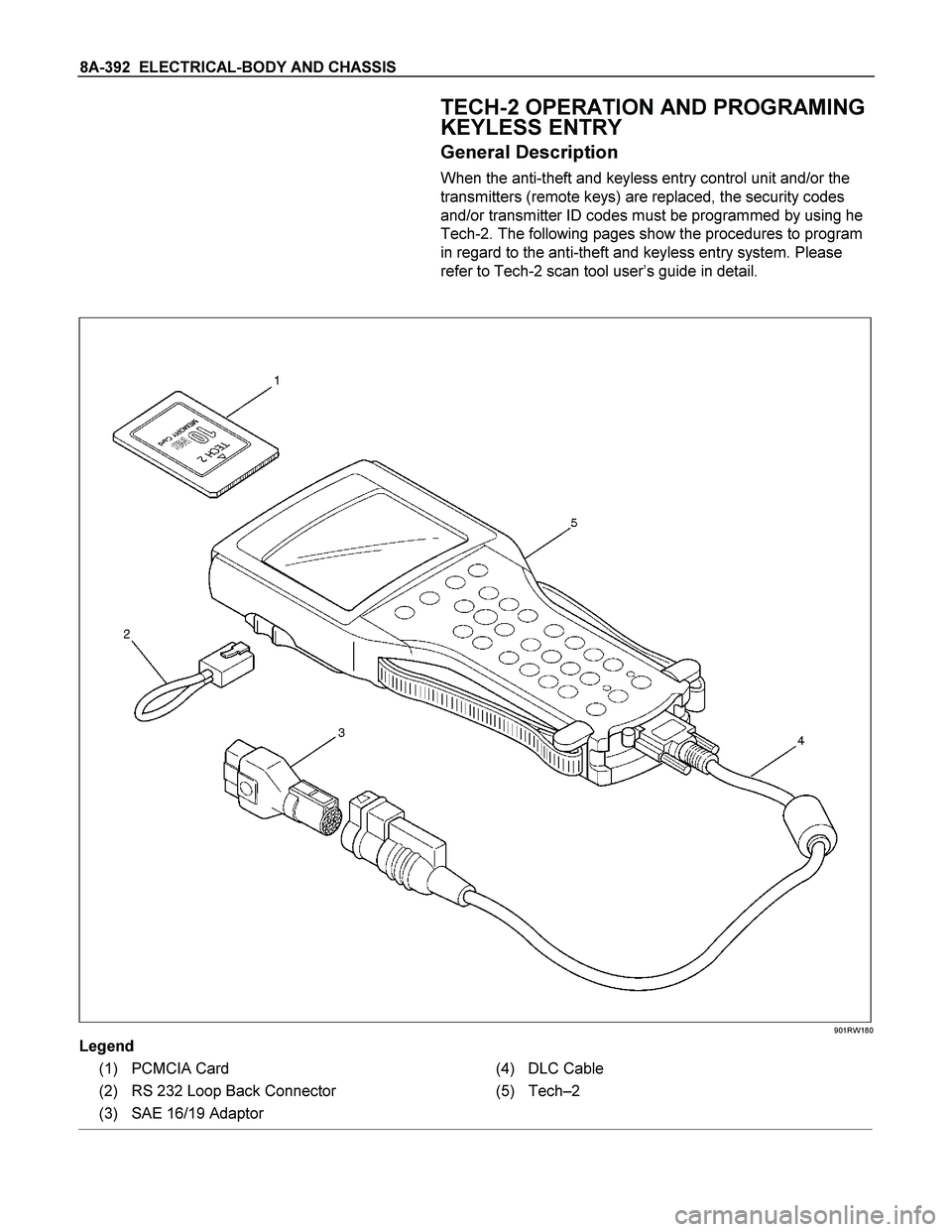

ISUZU TF SERIES 2004 Workshop Manual 8A-392 ELECTRICAL-BODY AND CHASSIS TECH-2 OPERATION AND PROGRAMING KEYLESS ENTRY General Description When the anti-theft and keyless entry control unit and/or the transmitters (remote keys) a

Page 1051 of 4264

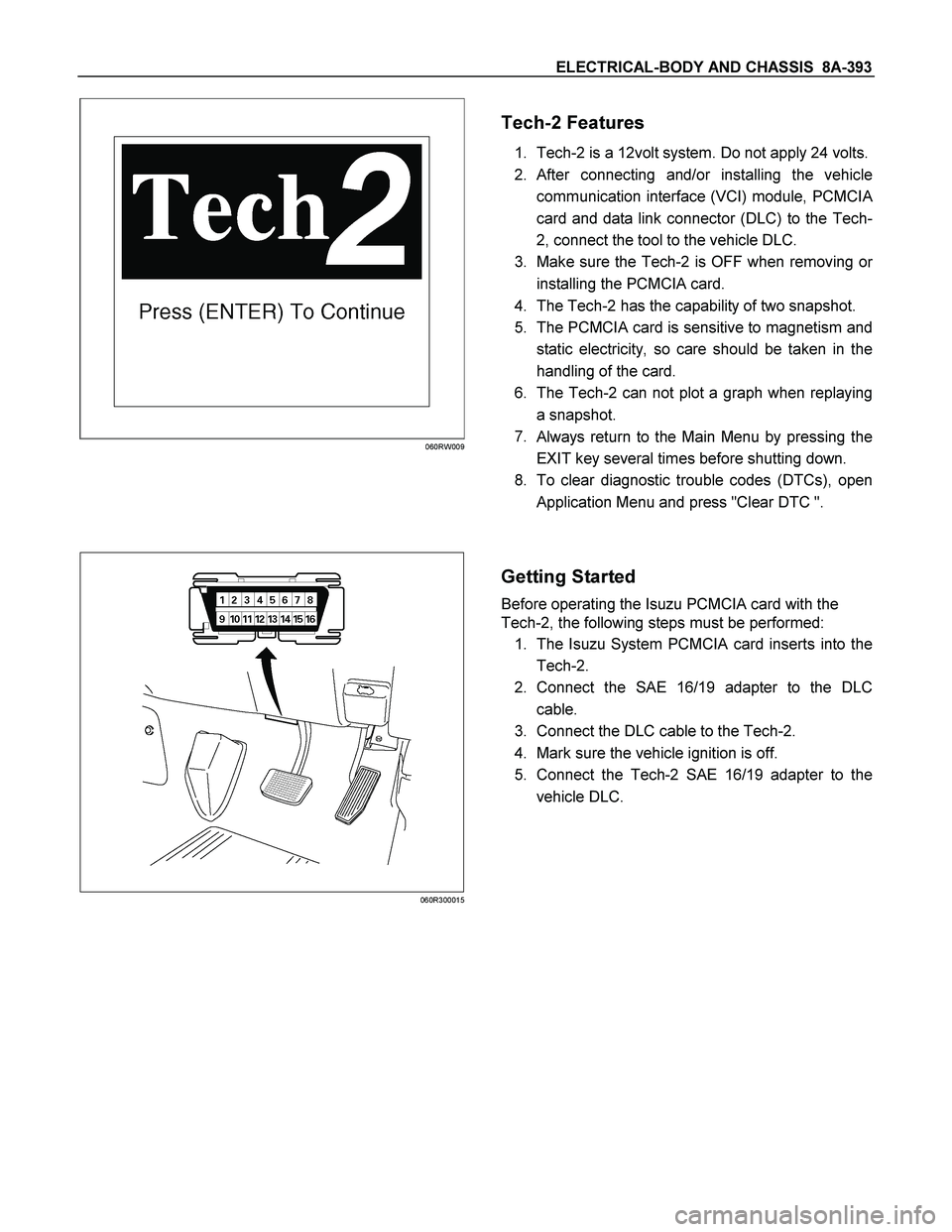

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-393 060RW009 Tech-2 Features 1. Tech-2 is a 12volt system. Do not apply 24 volts. 2. After connecting and/or installing the vehicle communication interface (VCI

Page 1052 of 4264

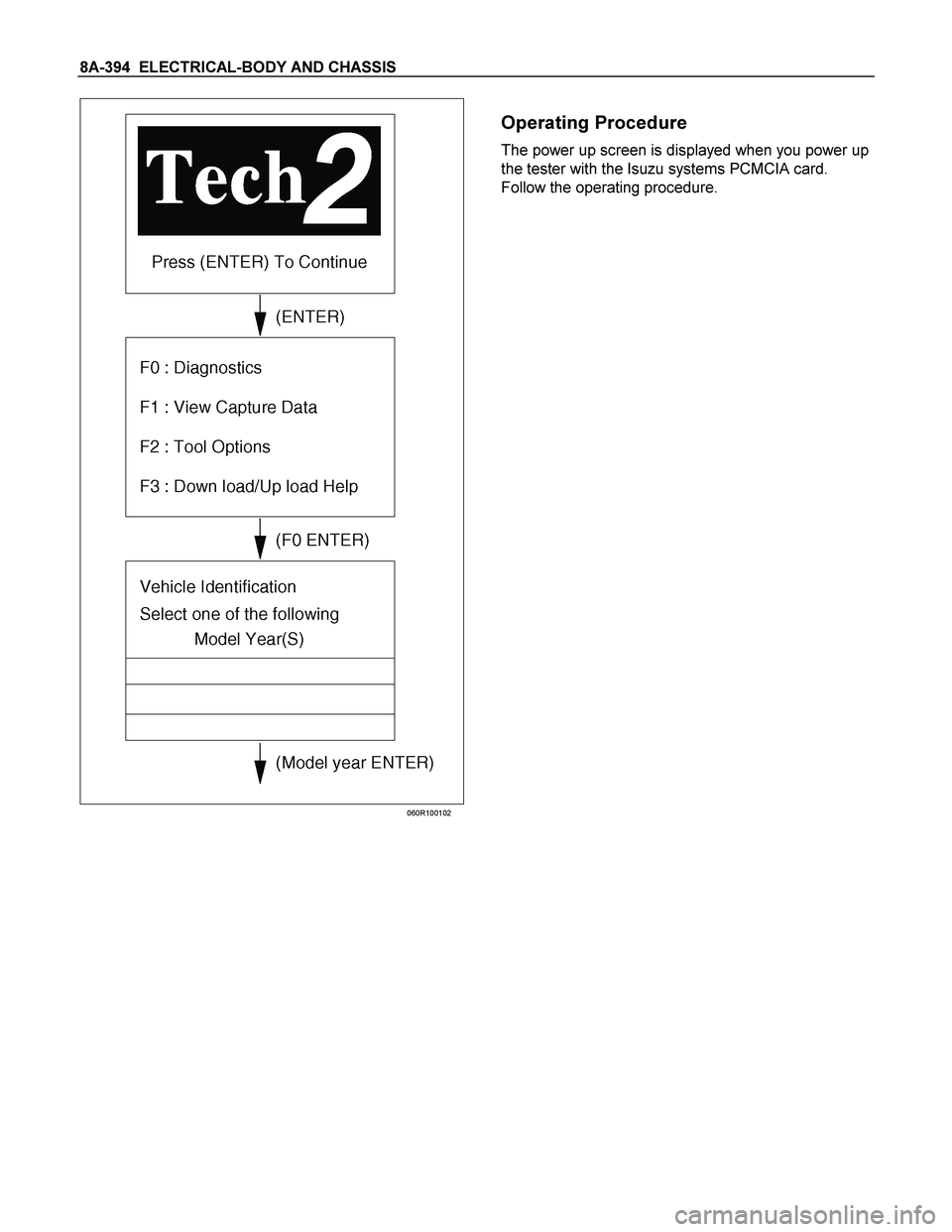

ISUZU TF SERIES 2004 Workshop Manual 8A-394 ELECTRICAL-BODY AND CHASSIS 060R100102 Operating Procedure The power up screen is displayed when you power up the tester with the Isuzu systems PCMCIA card. Follow the operating procedu

Page 1053 of 4264

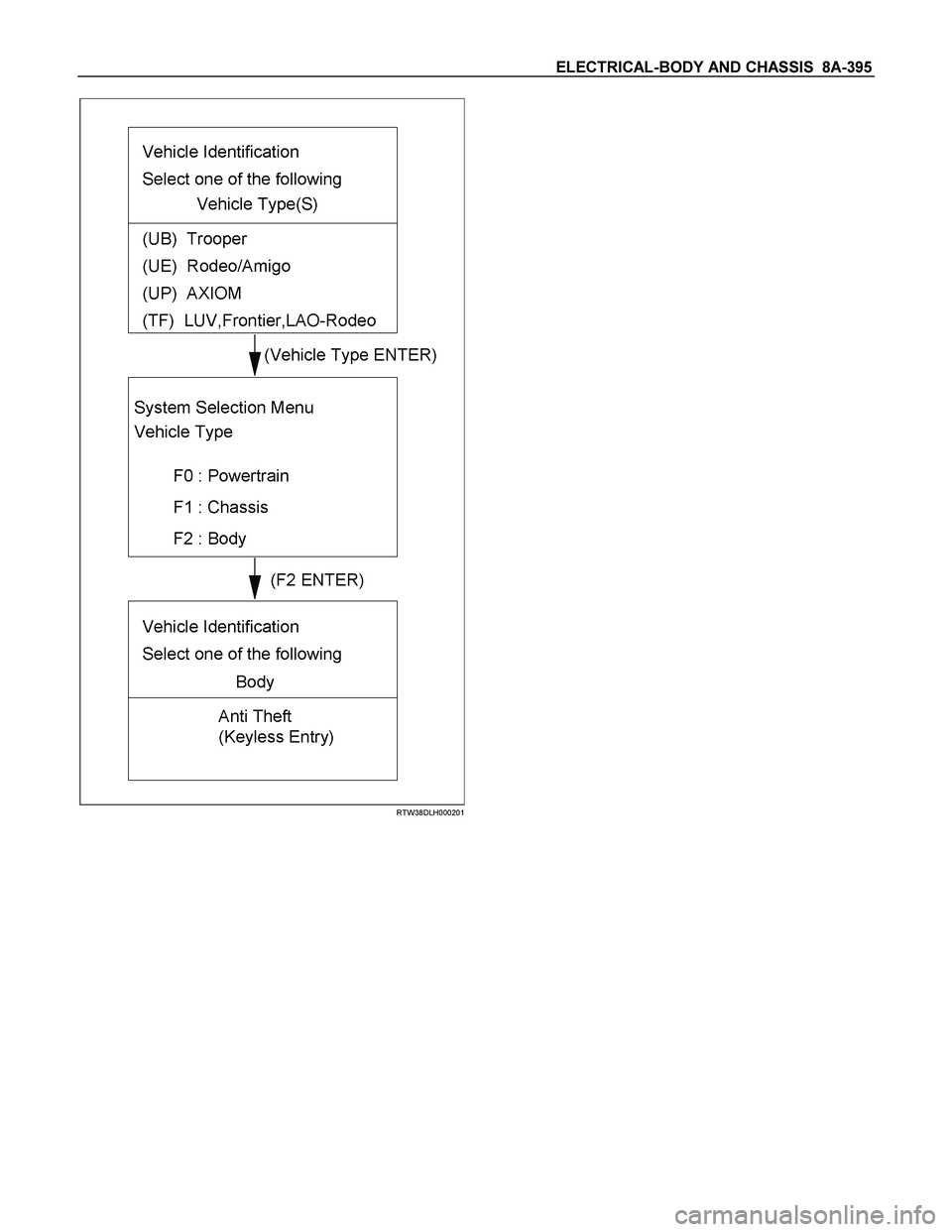

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-395 RTW38DLH000201

Page 1054 of 4264

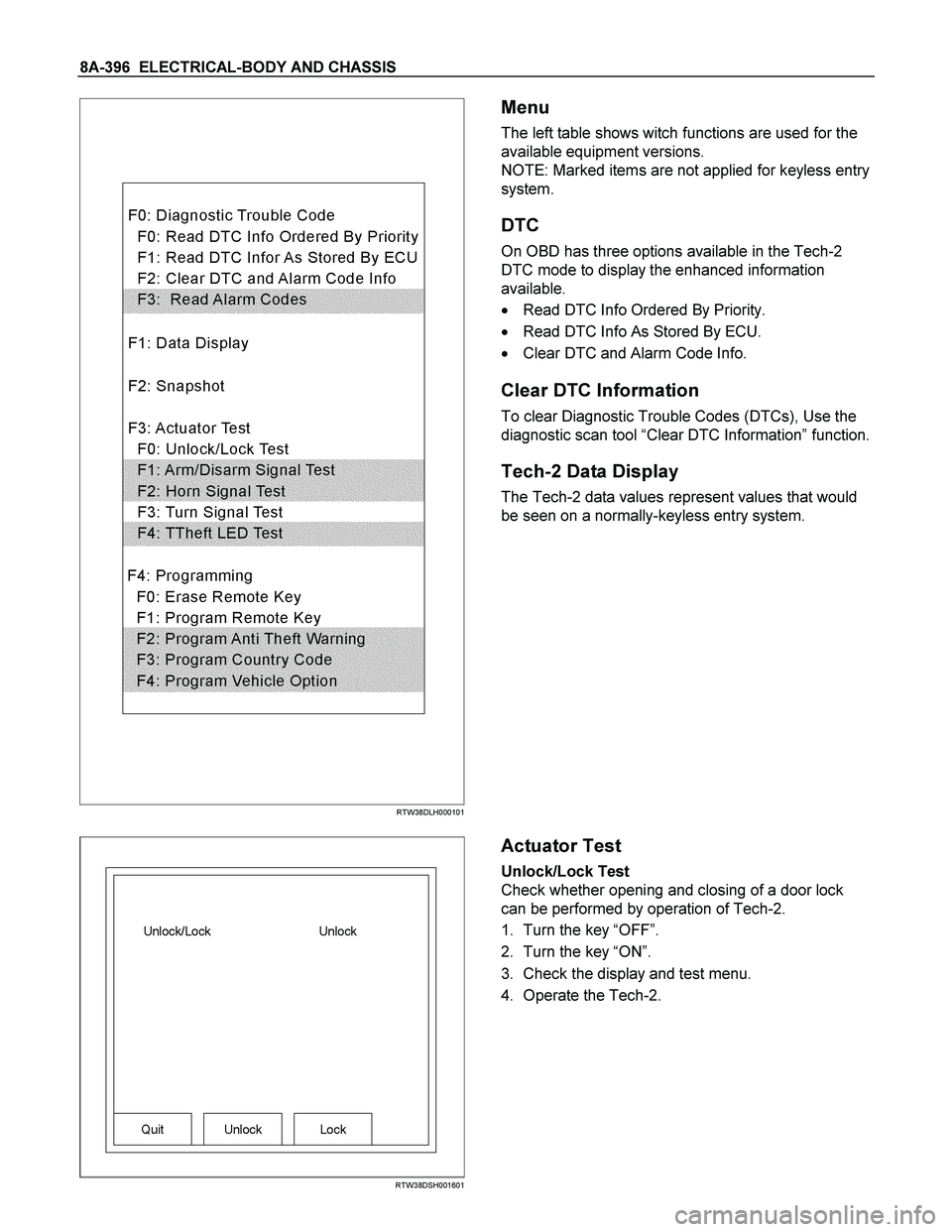

ISUZU TF SERIES 2004 Workshop Manual 8A-396 ELECTRICAL-BODY AND CHASSIS RTW38DLH000101 Menu The left table shows witch functions are used for the available equipment versions. NOTE: Marked items are not applied for keyless entry sy

Page 1055 of 4264

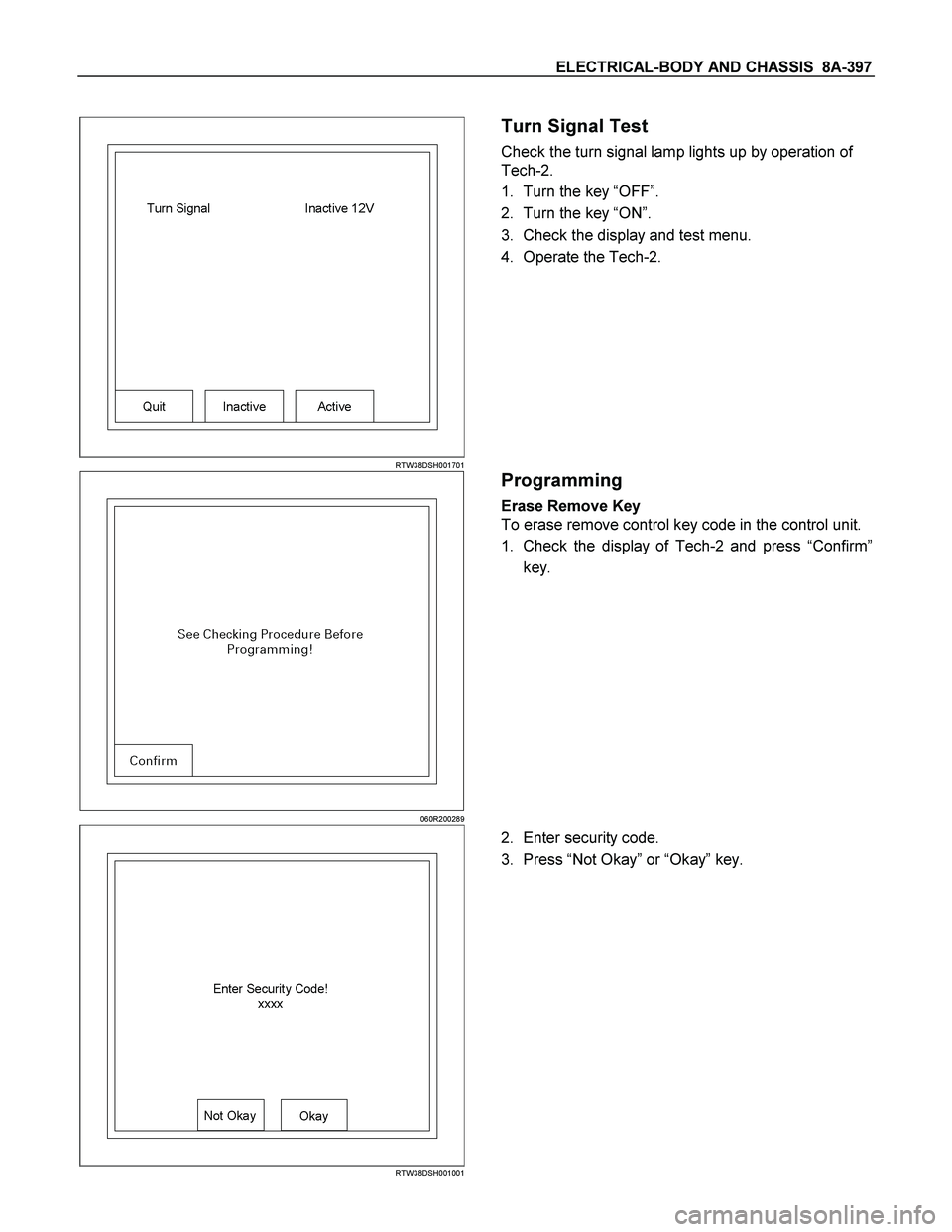

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-397 RTW38DSH001701 Turn Signal Test Check the turn signal lamp lights up by operation of Tech-2. 1. Turn the key “OFF”. 2. Turn the key “ON”. 3. Che

Page 1056 of 4264

ISUZU TF SERIES 2004 Workshop Manual 8A-398 ELECTRICAL-BODY AND CHASSIS RTW38DSH001101 4. Check the display of Tech-2 and press “Confirm” key. RTW38DSH001201 5. Check the display of Tech-2 and press “Confirm” key. 060R2
