Page 3761 of 4264

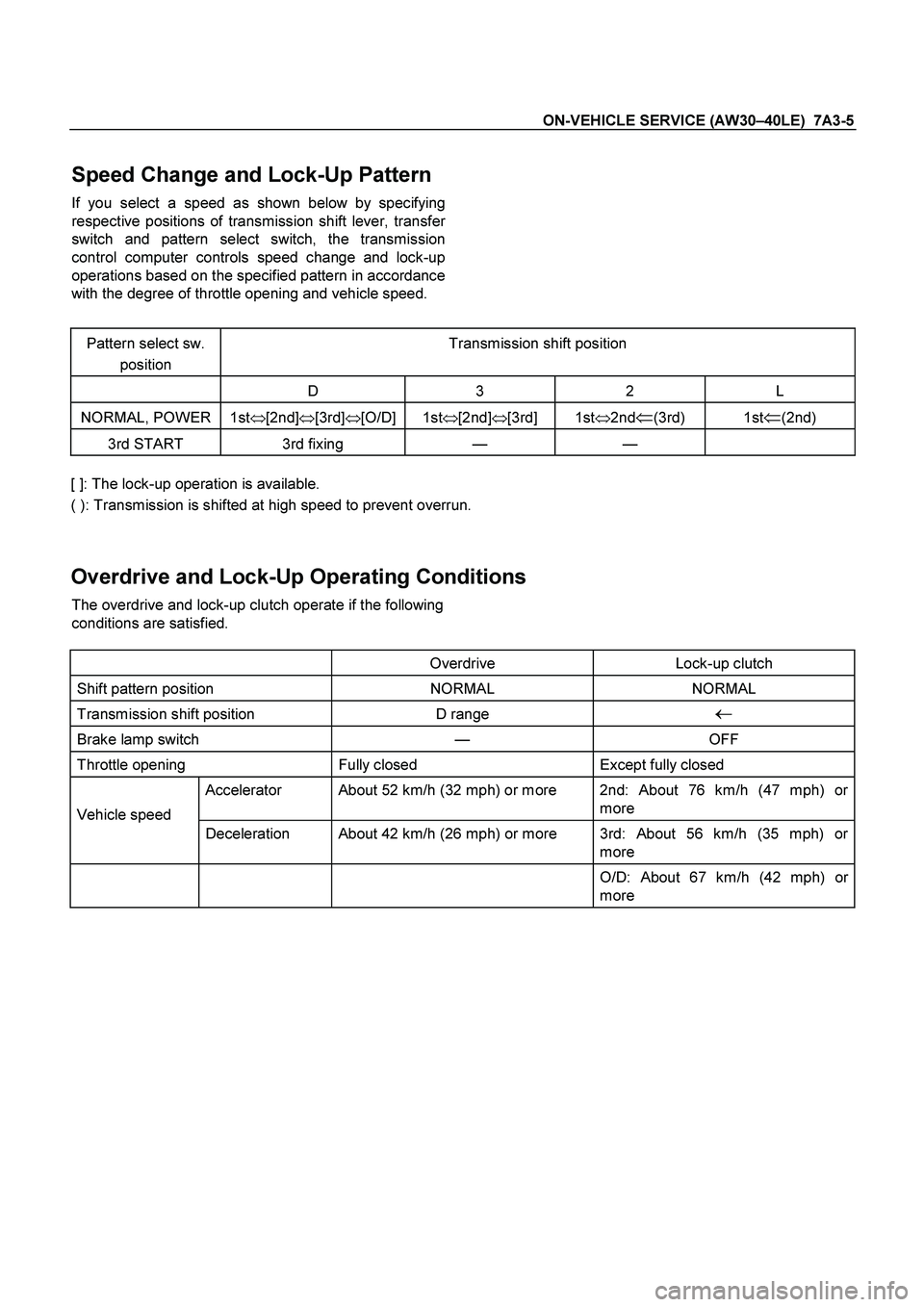

ISUZU TF SERIES 2004 Workshop Manual ON-VEHICLE SERVICE (AW30 –40LE) 7A3-5 Speed Change and Lock-Up Pattern If you select a speed as shown below by specifying respective positions of transmission shift lever, transfe r switch an

Page 3762 of 4264

ISUZU TF SERIES 2004 Workshop Manual 7A3-6 ON-VEHICLE SERVICE (AW30 –40LE) Diagnosis Basic Troubleshooting AW30 –40LE transmission, with Transmission Control Module (TCM), differs from the Mechanical – Hydraulic contro

Page 3763 of 4264

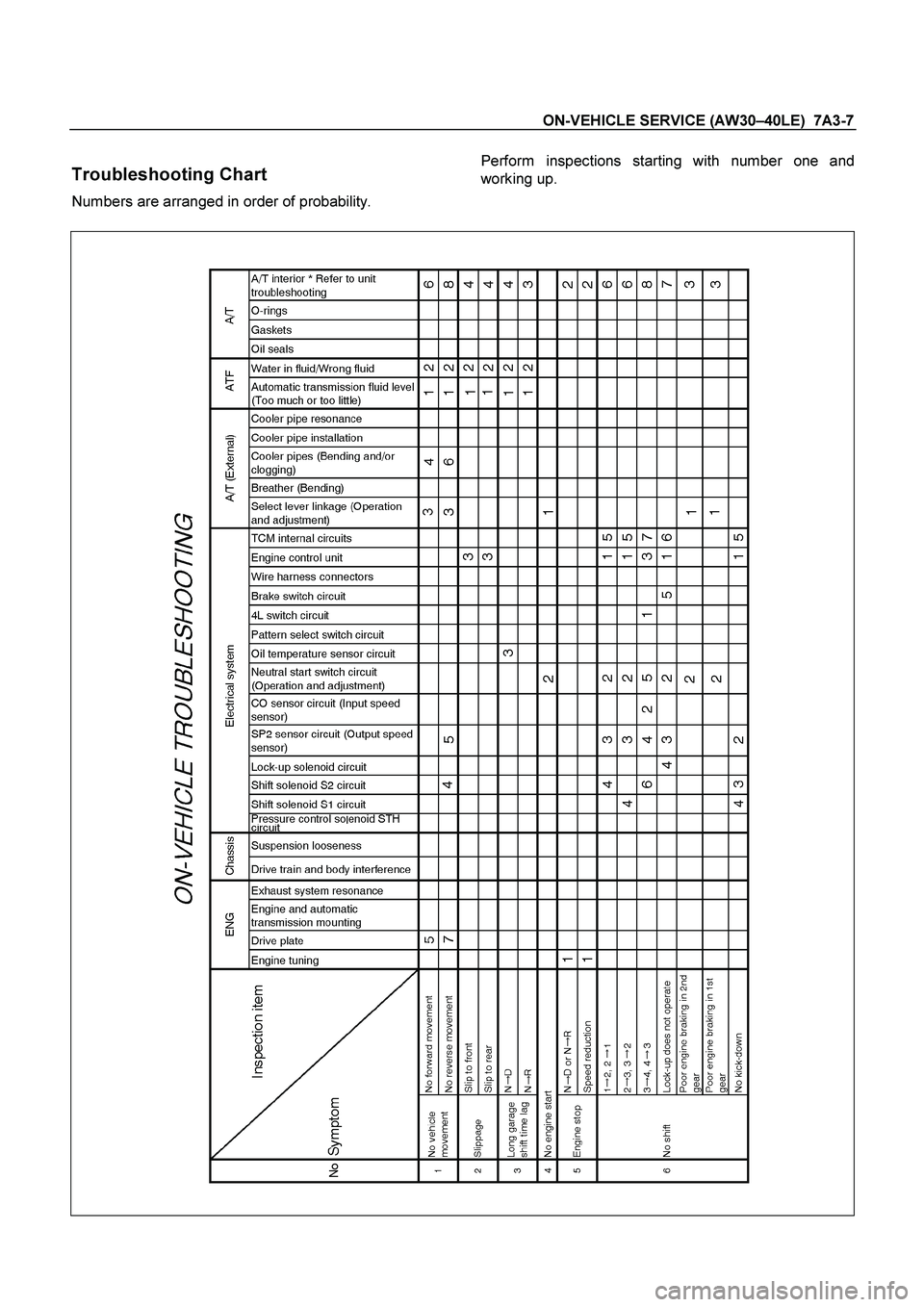

ISUZU TF SERIES 2004 Workshop Manual ON-VEHICLE SERVICE (AW30 –40LE) 7A3-7 Troubleshooting Chart Numbers are arranged in order of probability. Perform inspections starting with number one and working up.

Page 3764 of 4264

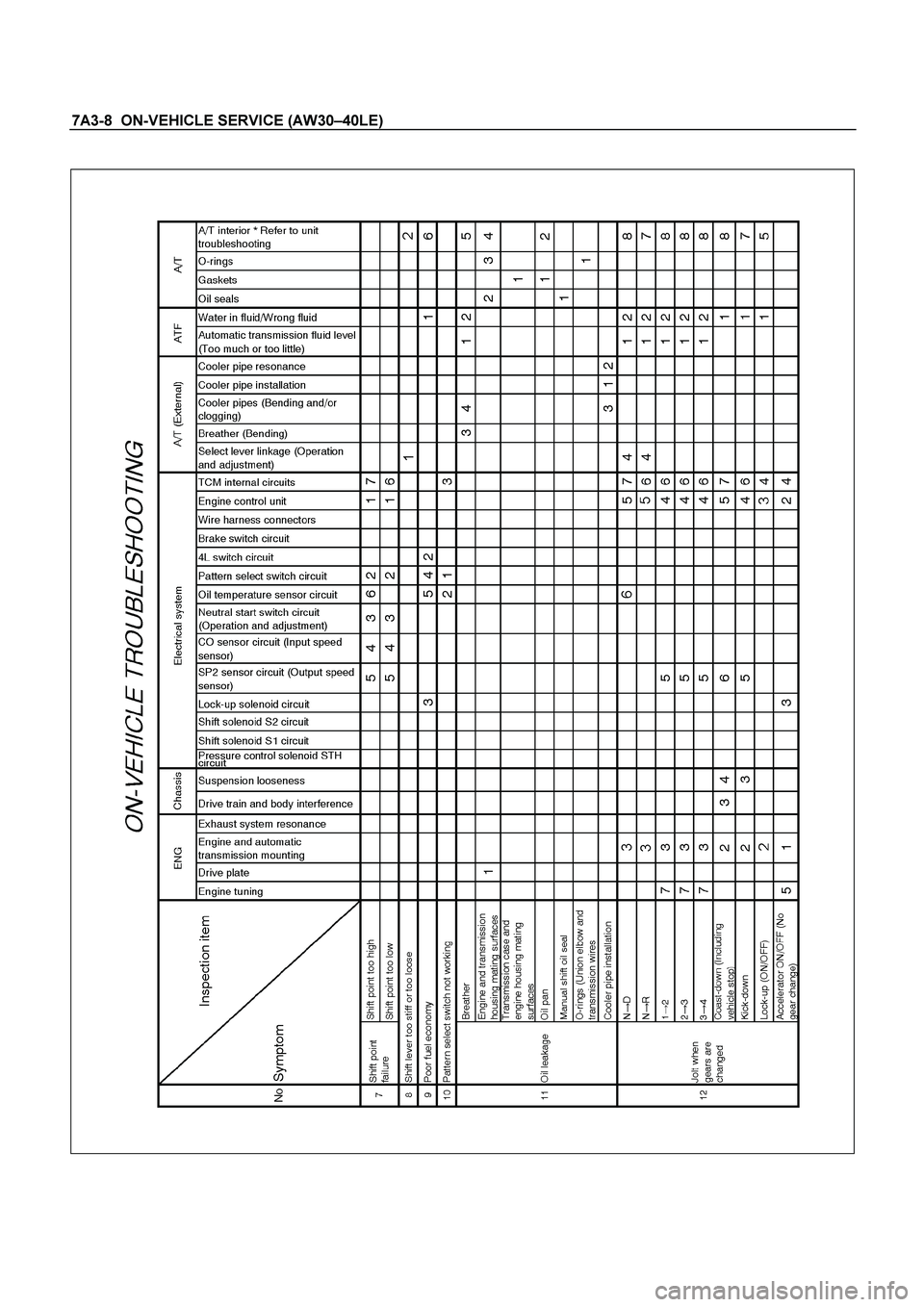

ISUZU TF SERIES 2004 Workshop Manual 7A3-8 ON-VEHICLE SERVICE (AW30 –40LE)

Page 3765 of 4264

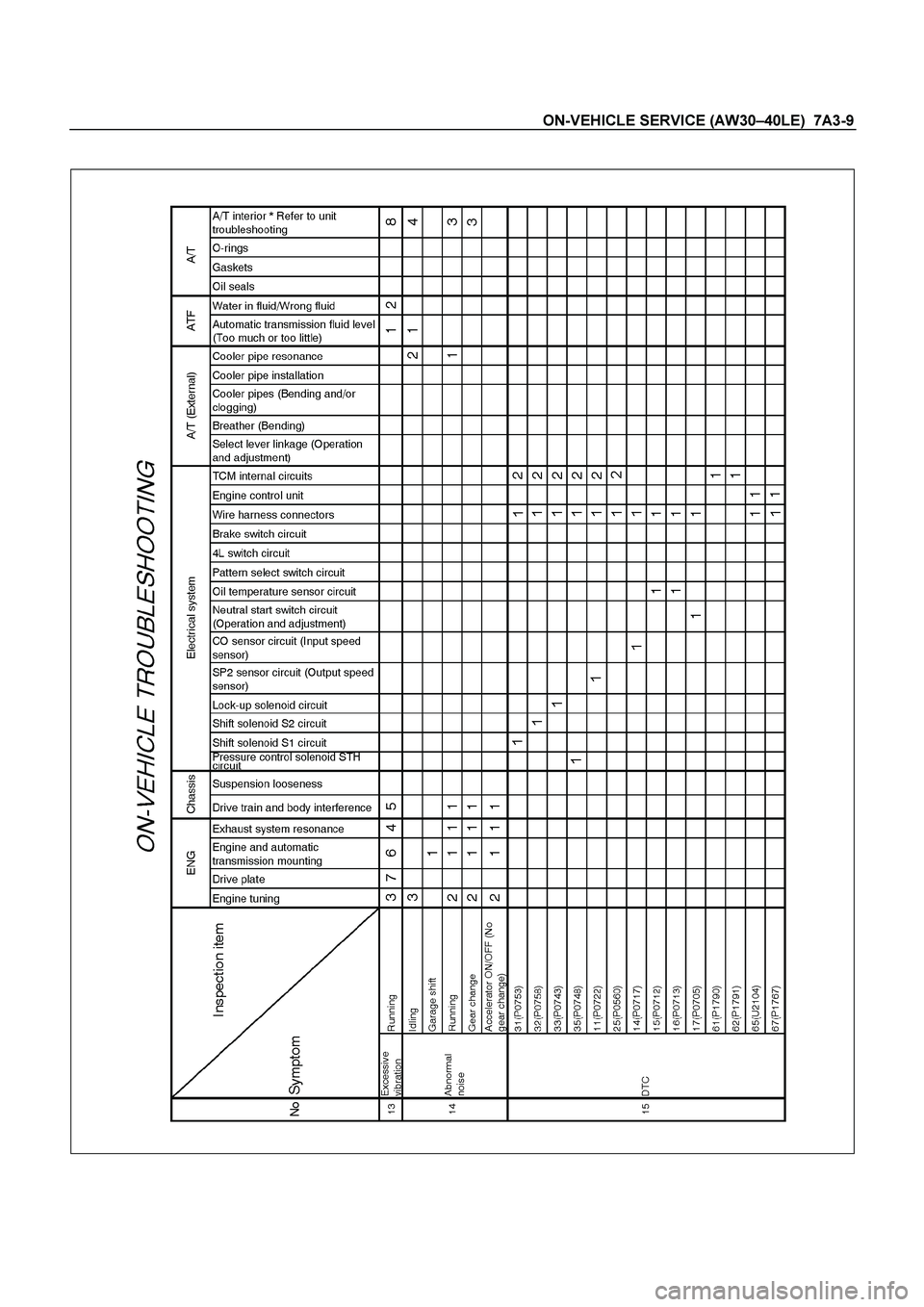

ISUZU TF SERIES 2004 Workshop Manual ON-VEHICLE SERVICE (AW30 –40LE) 7A3-9

Page 3766 of 4264

ISUZU TF SERIES 2004 Workshop Manual 7A3-10 ON-VEHICLE SERVICE (AW30 –40LE)

Page 3767 of 4264

ISUZU TF SERIES 2004 Workshop Manual ON-VEHICLE SERVICE (AW30 –40LE) 7A3-11

Page 3768 of 4264

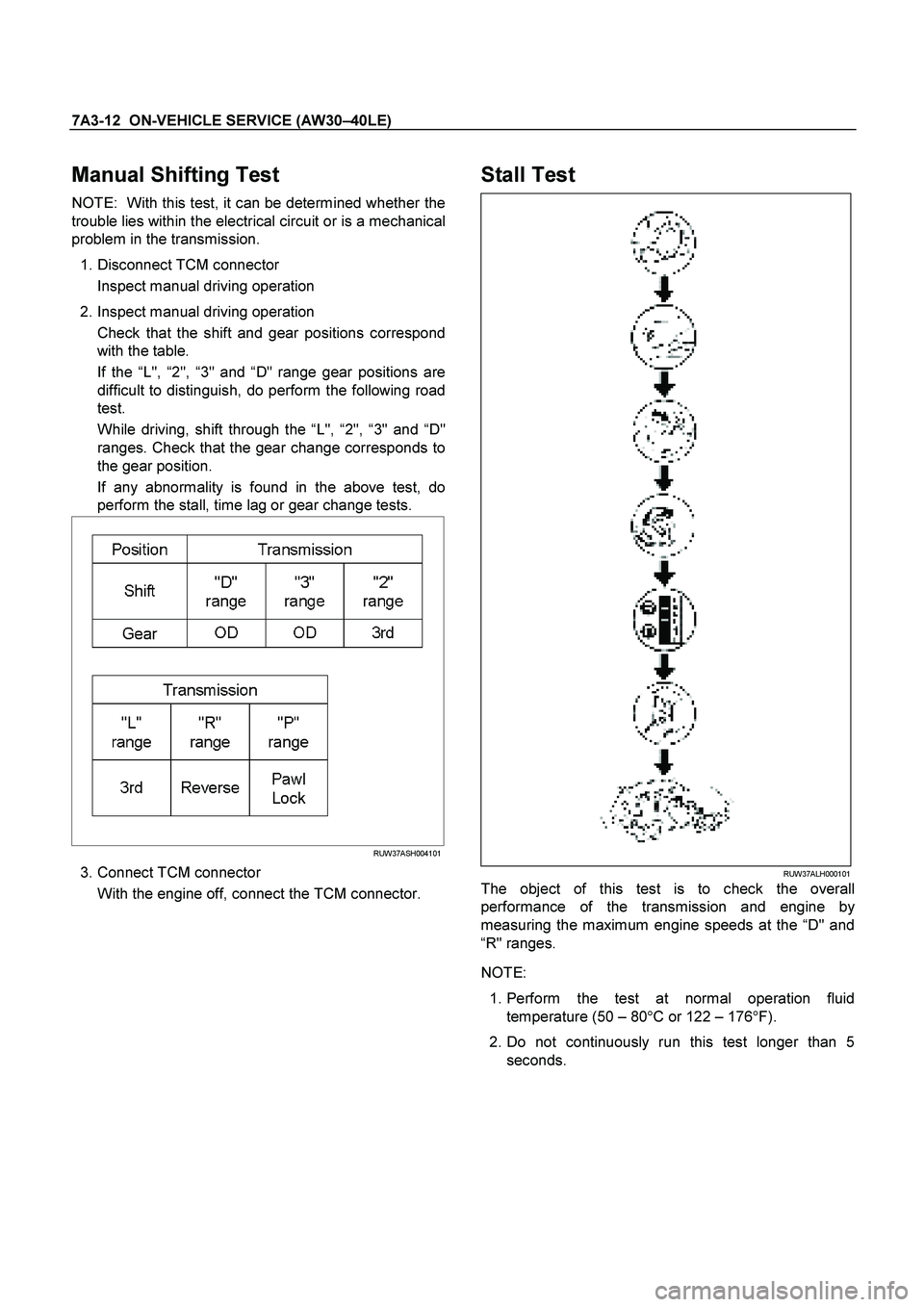

ISUZU TF SERIES 2004 Workshop Manual 7A3-12 ON-VEHICLE SERVICE (AW30 –40LE) Manual Shifting Test NOTE: With this test, it can be determined whether the trouble lies within the electrical circuit or is a mechanical problem in the
