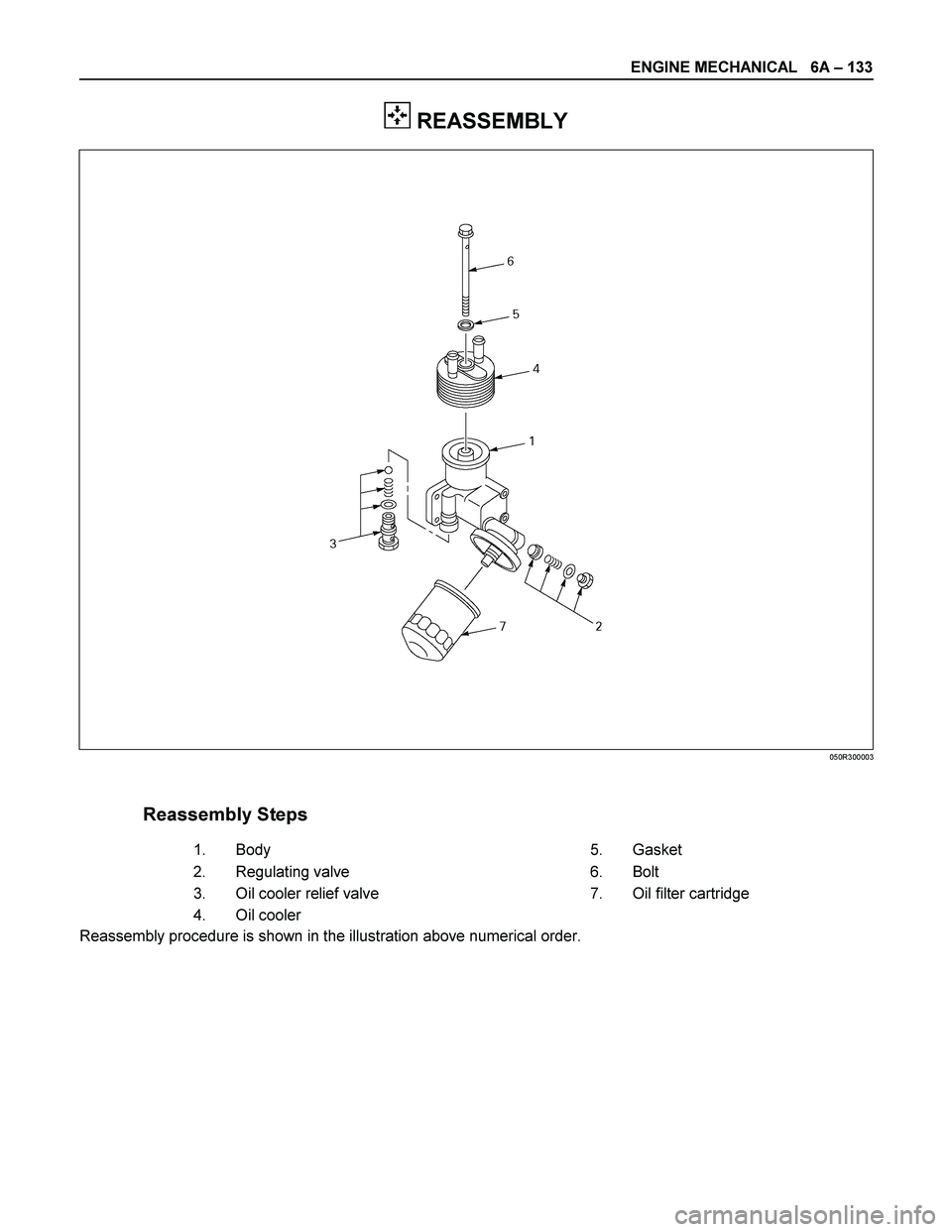

ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL 6A – 133 REASSEMBLY Reassembly Steps 1. Body 5. Gasket 2. Regulating valve 6. Bolt

Page 1274 of 4264

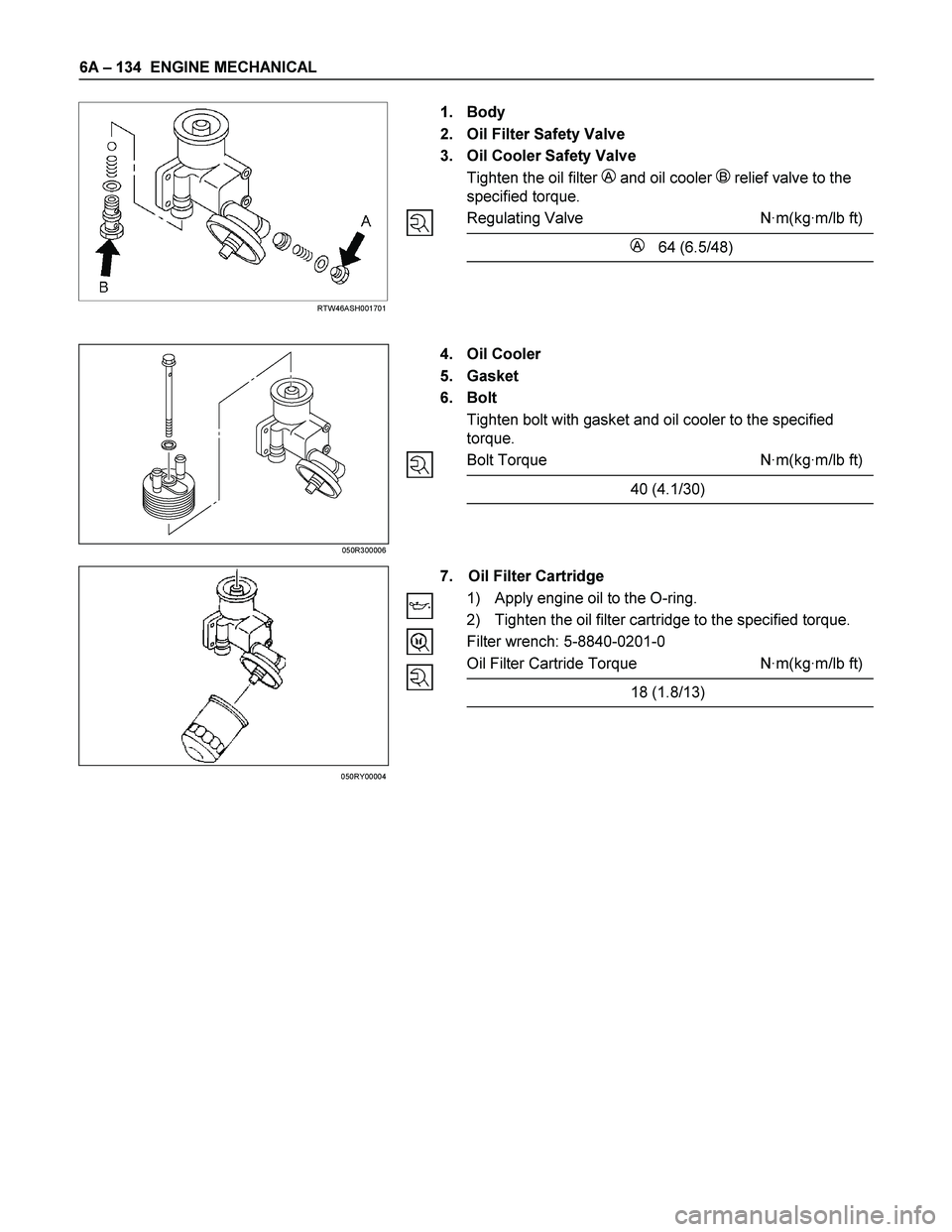

ISUZU TF SERIES 2004 Workshop Manual 6A – 134 ENGINE MECHANICAL RTW46ASH001701 1. Body 2. Oil Filter Safety Valve 3. Oil Cooler Safety Valve Tighten the oil filter A and oil cooler B relief val

Page 1275 of 4264

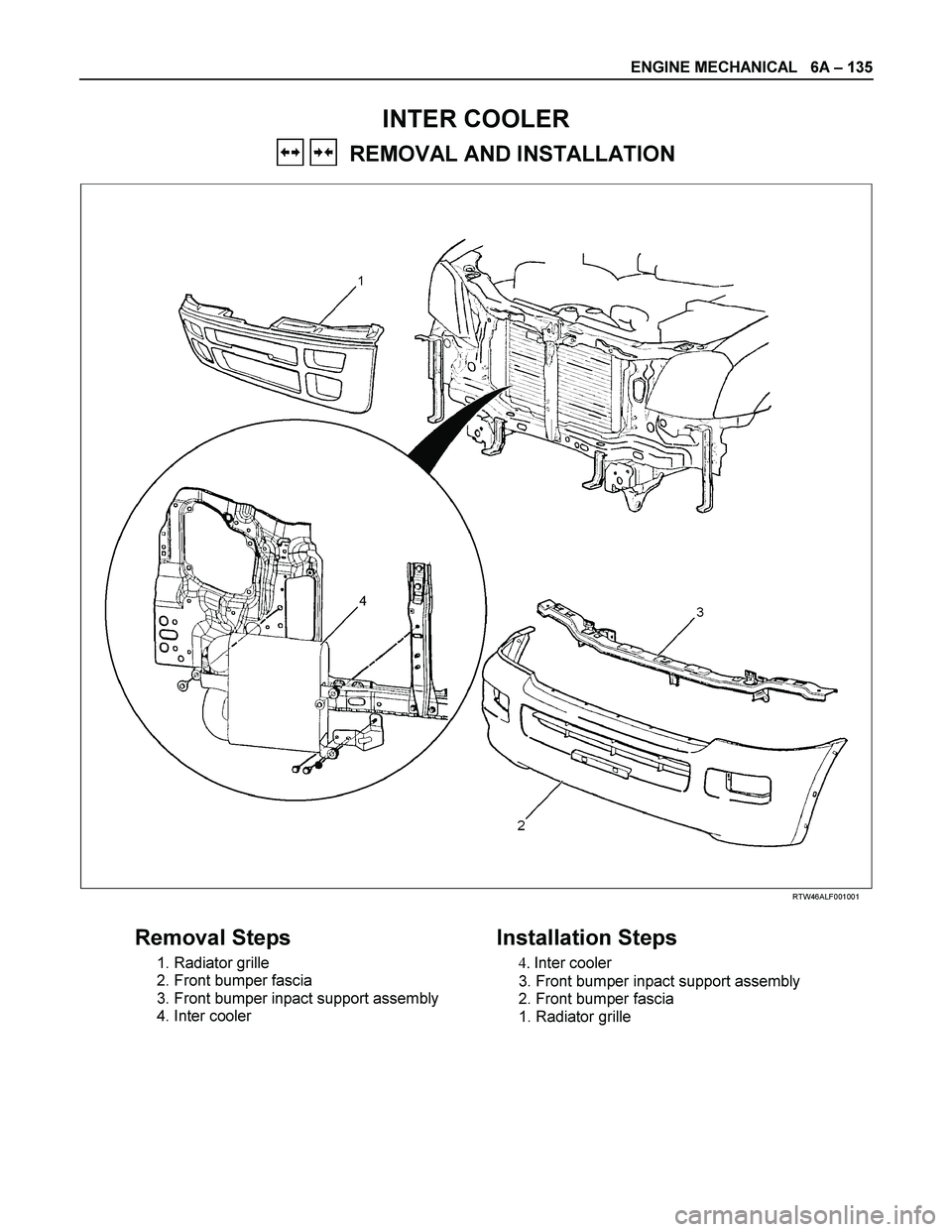

ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL 6A – 135 INTER COOLER REMOVAL AND INSTALLATION RTW46ALF001001 Removal Steps 1. Radiator grille 2. Front bumper fascia 3. Front bumper inpact suppo

Page 1276 of 4264

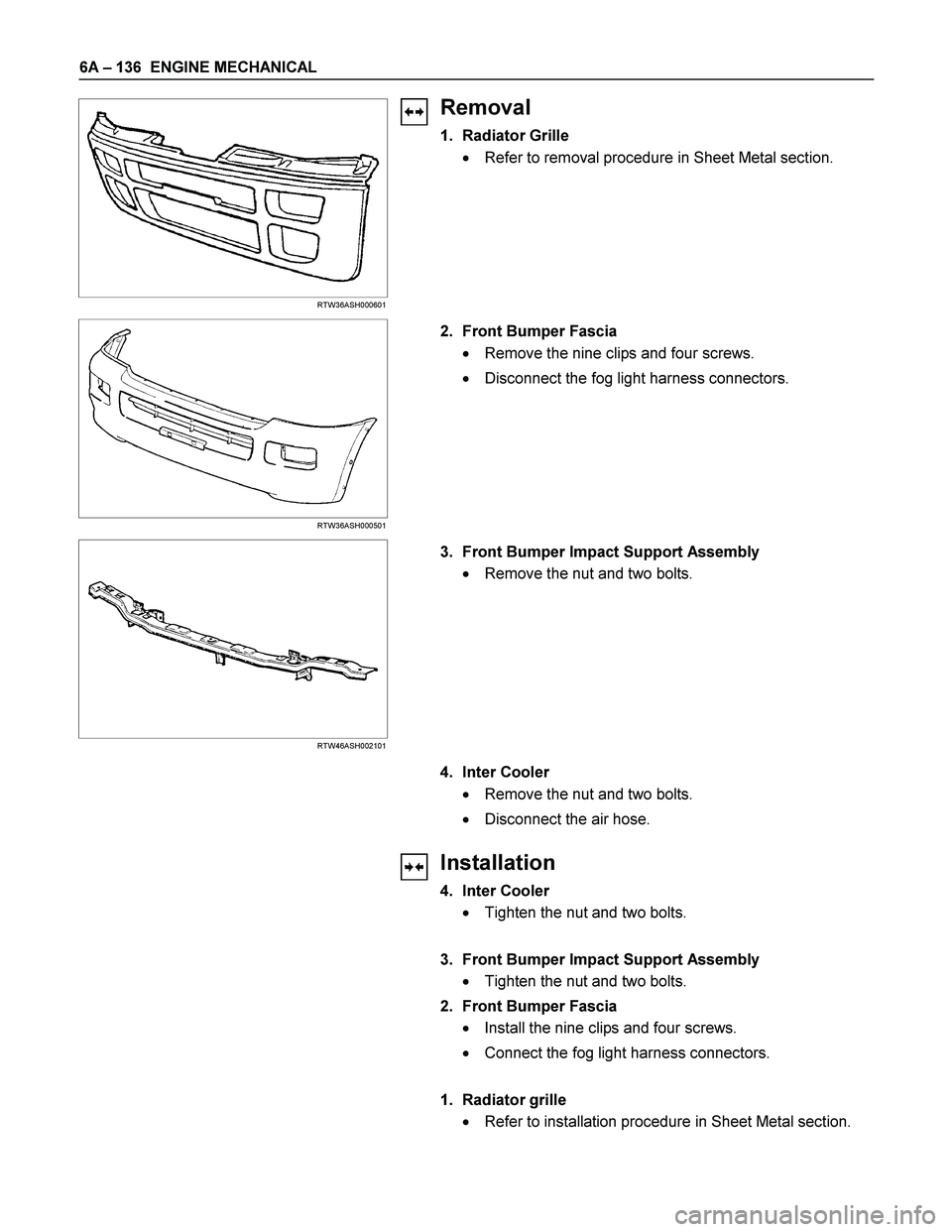

ISUZU TF SERIES 2004 Workshop Manual 6A – 136 ENGINE MECHANICAL RTW36ASH000601 Removal 1. Radiator Grille  Refer to removal procedure in Sheet Metal section. RTW36ASH000501 2. Front Bumper Fascia

Page 1277 of 4264

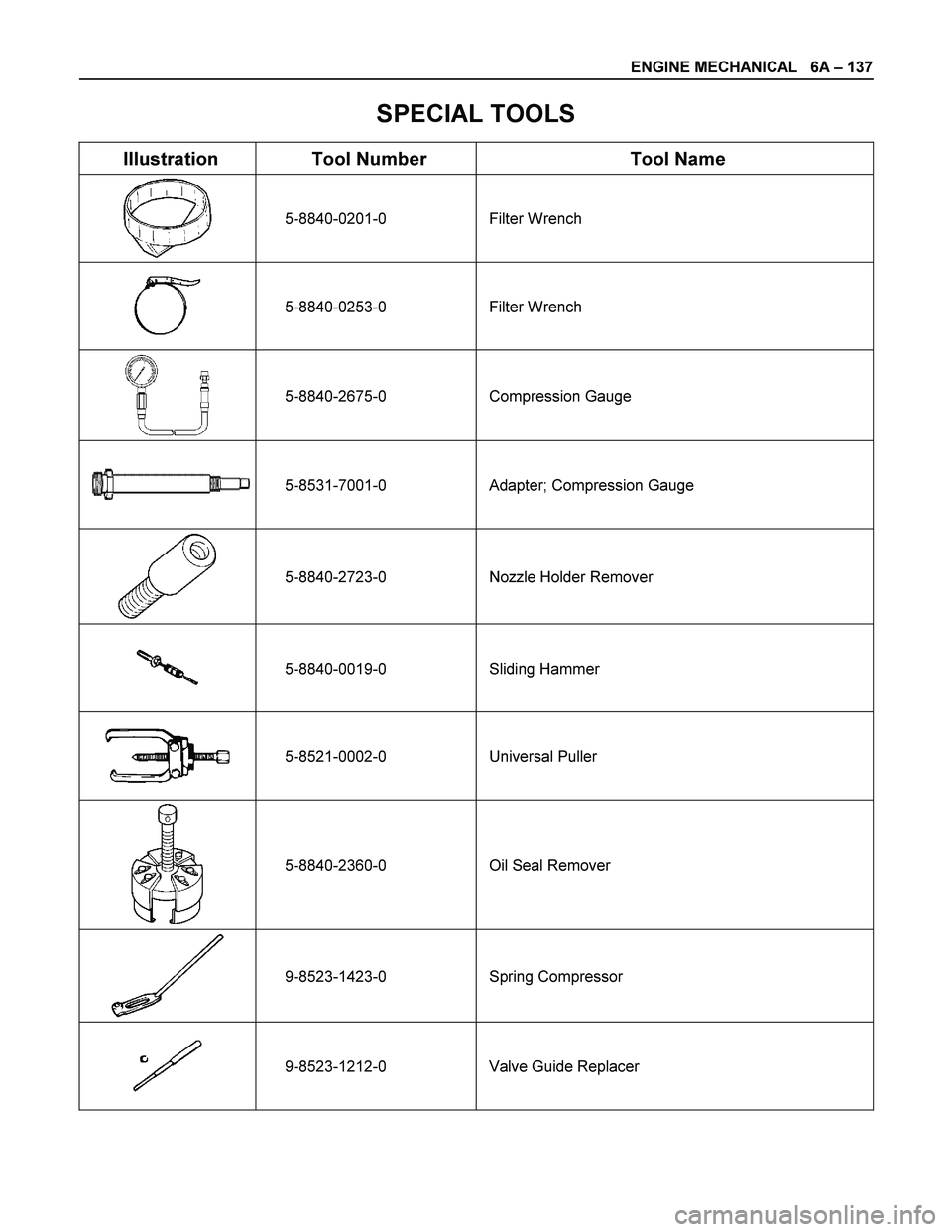

ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL 6A – 137 SPECIAL TOOLS Illustration Tool Number Tool Name 5-8840-0201-0 Filter Wrench 5-8840-0253-0 Filter Wrench 5-8840-2675-0 Compression Gauge 5-8531-7001-0 Adapt

Page 1278 of 4264

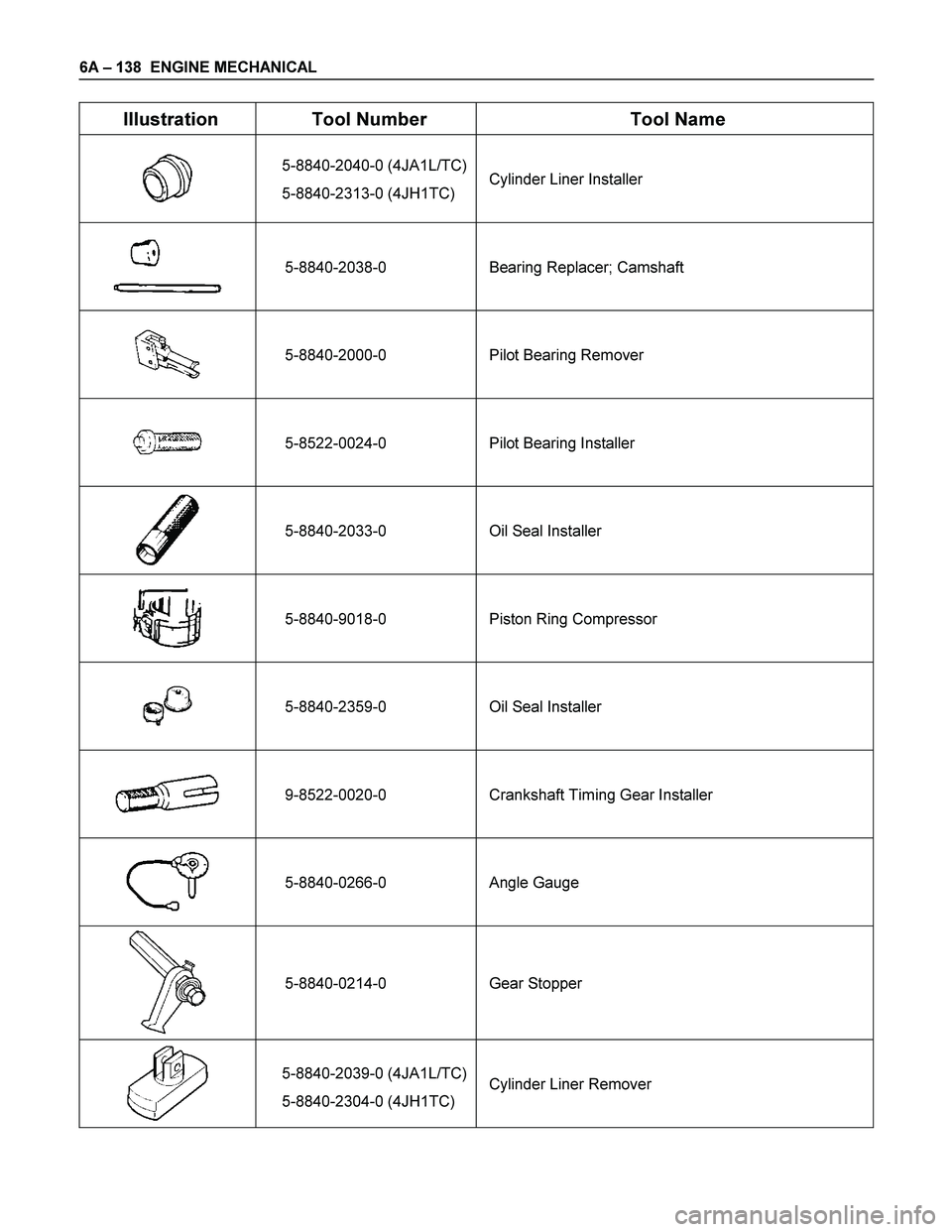

ISUZU TF SERIES 2004 Workshop Manual 6A – 138 ENGINE MECHANICAL Illustration Tool Number Tool Name 5-8840-2040-0 (4JA1L/TC) 5-8840-2313-0 (4JH1TC) Cylinder Liner Installer 5-8840-2038-0 Bearing Replacer; Camshaft 5-8840-20

Page 1279 of 4264

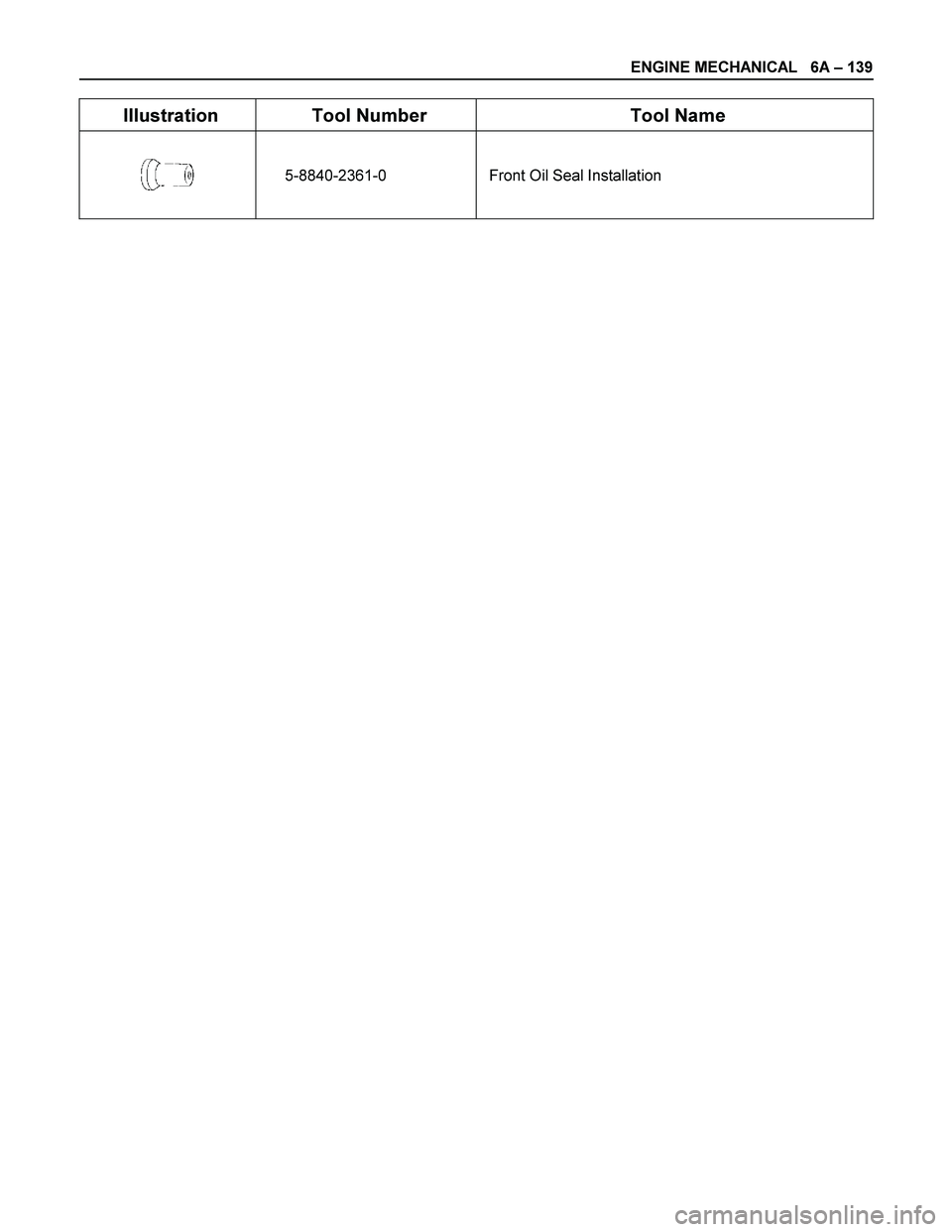

ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL 6A – 139 Illustration Tool Number Tool Name 5-8840-2361-0 Front Oil Seal Installation

Page 1280 of 4264

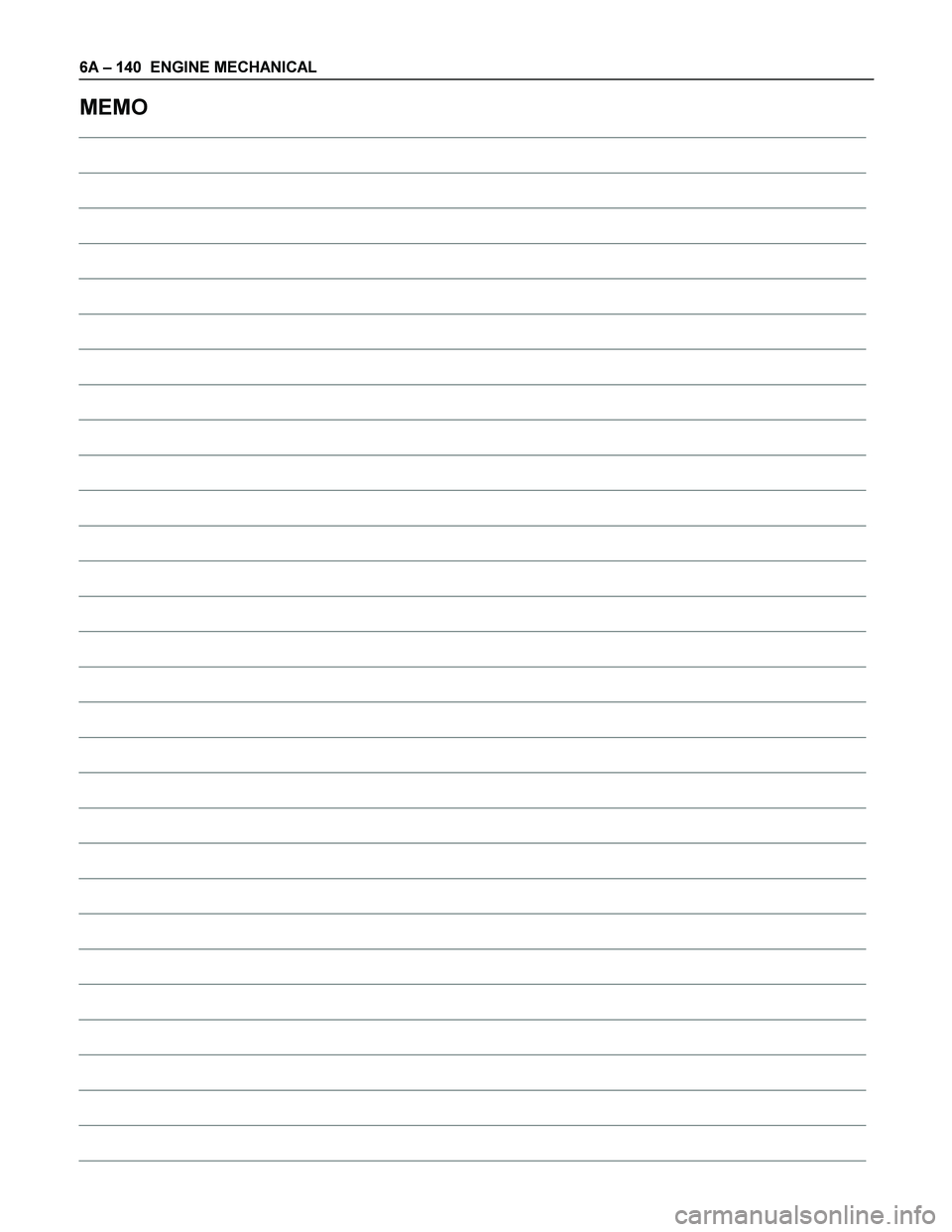

ISUZU TF SERIES 2004 Workshop Manual 6A – 140 ENGINE MECHANICAL MEMO
