MANUAL TRANSMISSION 7B1-69

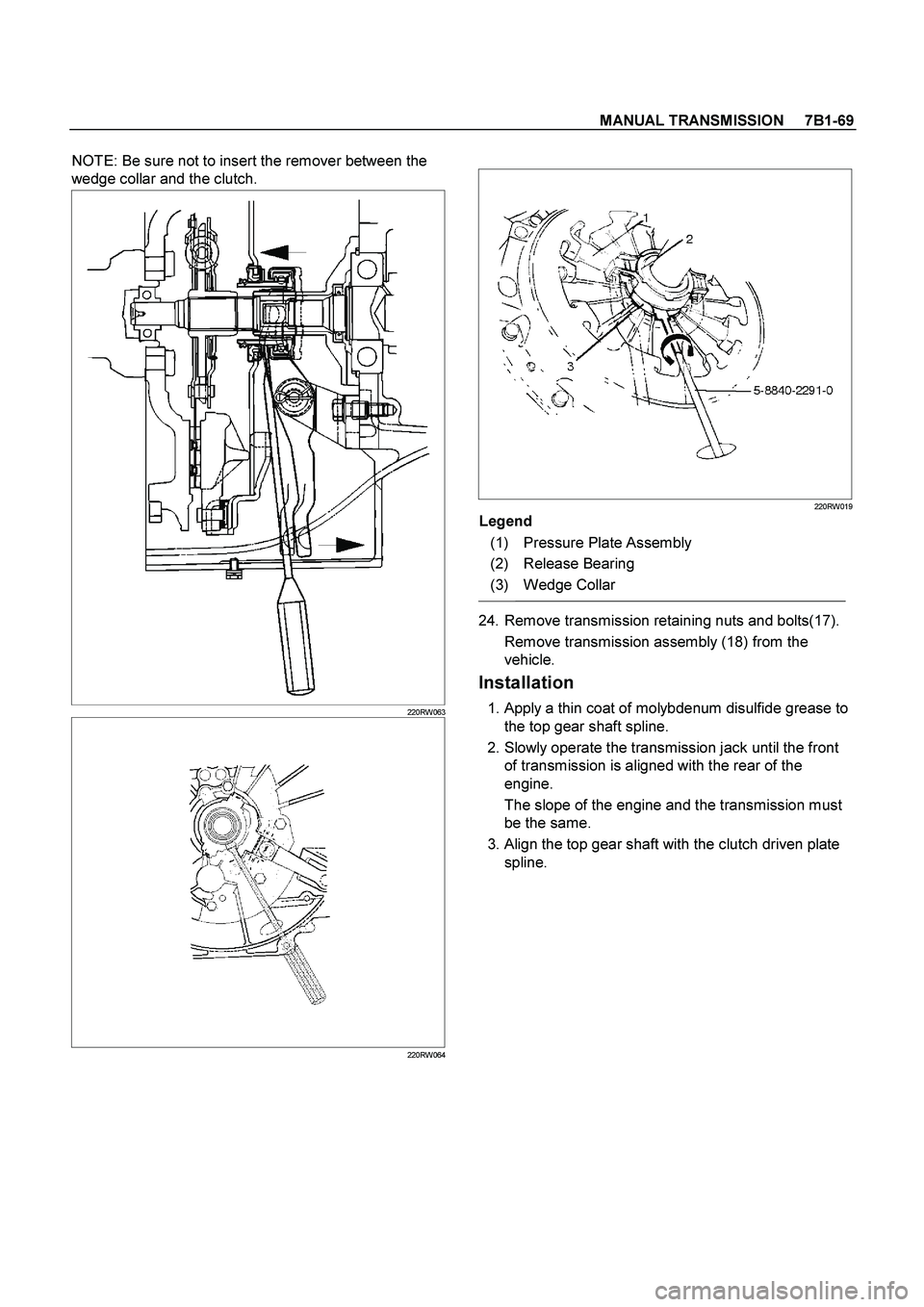

NOTE: Be sure not to insert the remover between the
wedge collar and the clutch.
220RW063
220RW064
220RW019
Legend
(1) Pressure Plate Assembly
(2) Release Bearing
(3) Wedge Collar
24. Remove transmission retaining nuts and bolts(17).
Remove transmission assembly (18) from the
vehicle.
Installation
1. Apply a thin coat of molybdenum disulfide grease to
the top gear shaft spline.
2. Slowly operate the transmission jack until the front
of transmission is aligned with the rear of the
engine.
The slope of the engine and the transmission must
be the same.
3. Align the top gear shaft with the clutch driven plate
spline.
Page 3234 of 4264
7B1-70 MANUAL TRANSMISSION

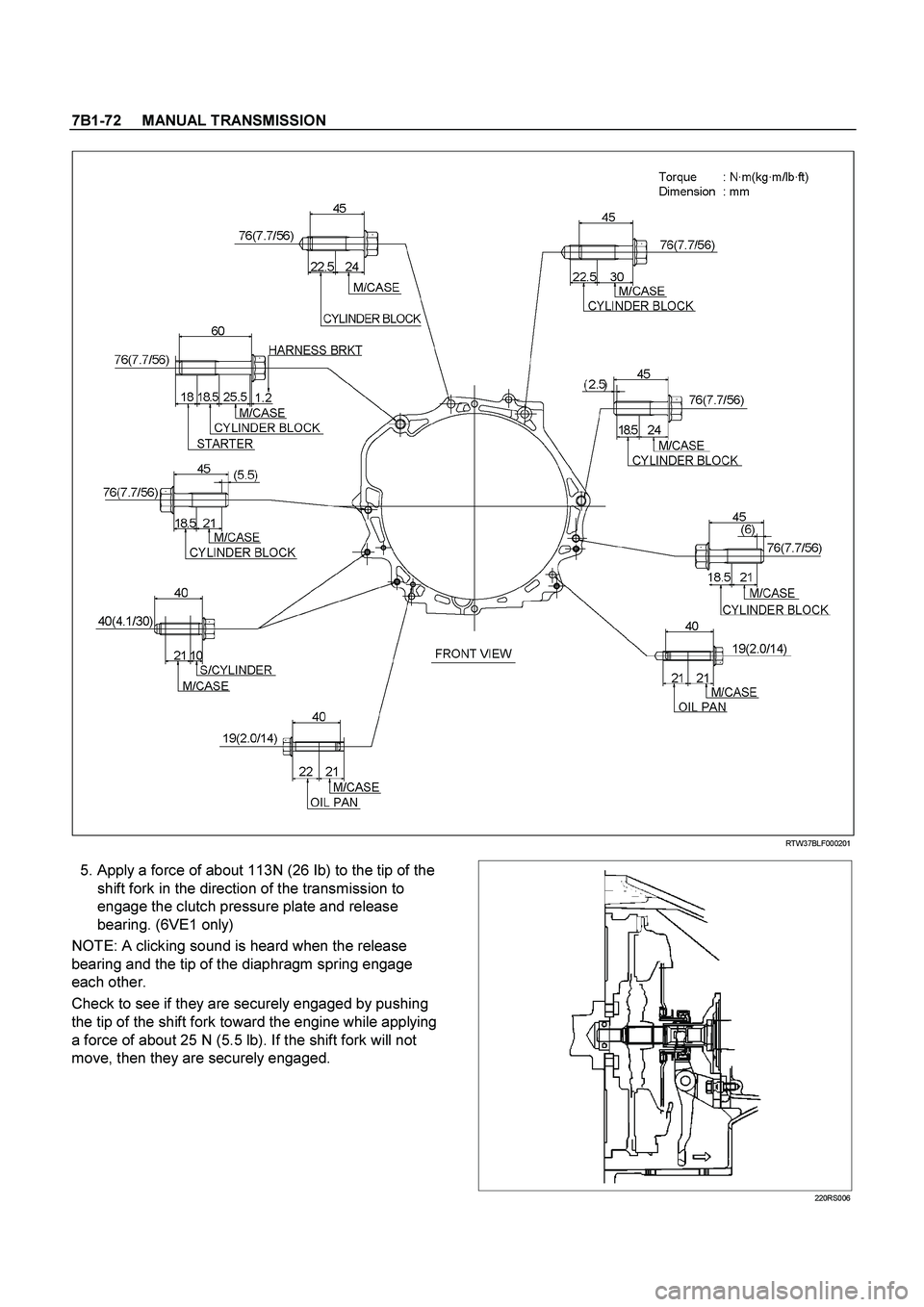

4. Install the transmission assembly (18) to the engine.
Tighten the transmission nuts and bolts as shown in
the figure.
Diesel engine
RTW37BLF000901
Page 3235 of 4264
MANUAL TRANSMISSION 7B1-71
6VE1
RTW37BLF0001
Page 3236 of 4264
7B1-72 MANUAL TRANSMISSION
RTW37BLF000201
5. Apply a force of about 113N (26 Ib) to the tip of the
shift fork in the direction of the transmission to
engage the clutch pressure plate and release
bearing. (6VE1 only)
NOTE: A clicking sound is heard when the release
bearing and the tip of the diaphragm spring engage
each other.
Check to see if they are securely engaged by pushing
the tip of the shift fork toward the engine while applying
a force of about 25 N (5.5 lb). If the shift fork will not
move, then they are securely engaged.
220RS006
Page 3237 of 4264

MANUAL TRANSMISSION 7B1-73
6. Install starter(16).(Diesel engine)
NOTE: Tighten the lower bolt temporarily.
After installing the fuel pipe assembly, tighten the bolt to
the specified torque.
Torque: 76 N
m (7.7 kg
m/56 lb
ft)
7. Install the rear support rubber on the transmission
and tighten the bolts to the specified torque.
Torque: 50 N
m (5.1 kg
m/37 lb
ft)
8. Install the middle part of transmission crossmember
(15) and bolts.
Tighten the nuts to the specified torque.
Torque: 67 N
m (6.8 kg
m/49 lb
ft)
9. Install engine rear mount nuts (14).
Torque: 52 N
m (5.3 kg
m/38 lb
ft)
Remove the transmission jack from transmission
side.
10. Apply grease to top hole portion of the shift fork.
Install slave cylinder (13) and tighten the bolts to the
specified torque.
Torque: 76 N
m (7.7 kg
m/56 lb
ft)
11. Install the fuel pipe brackets on the transmission.
Install the fuel pipe assembly to the fuel pipe
brackets
Torque: Bolt & Nut 76 N
m (7.7 kg
m/56 lb
ft)
Nut 37 N
m (3.8 kg
m/28 lb
ft)
Diesel engine
220R300012
Legend
(1) Bolt
(2) Nut
(3) Fuel Pipe Assembly
6VE1, C24NE
Scan-2

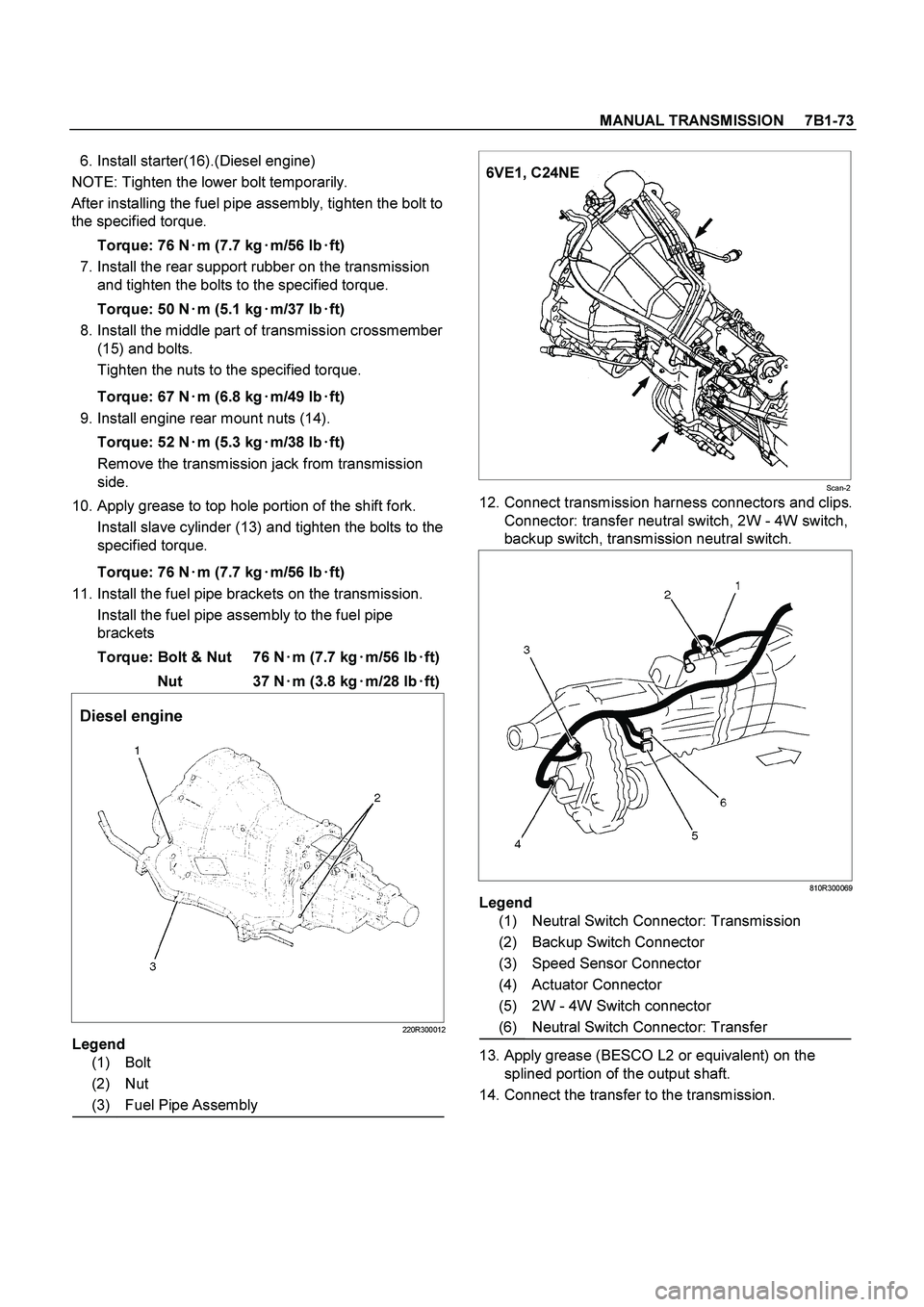

12. Connect transmission harness connectors and clips.
Connector: transfer neutral switch, 2W - 4W switch,
backup switch, transmission neutral switch.
810R300069
Legend
(1) Neutral Switch Connector: Transmission
(2) Backup Switch Connector
(3) Speed Sensor Connector
(4) Actuator Connector
(5) 2W - 4W Switch connector
(6) Neutral Switch Connector: Transfer
13. Apply grease (BESCO L2 or equivalent) on the
splined portion of the output shaft.
14. Connect the transfer to the transmission.
Page 3238 of 4264
7B1-74 MANUAL TRANSMISSION
15. Install the transmission-transfer bolts and nut and
tighten them to the specified torque.
Torque: 41 N
m (4.2 kg
m/30 lb
ft)
261R300005
18. Install the exhaust pipe (9). (6VE1)
Torque: 67 N
m (6.8 kg
m/49 lb
ft)
RTW37ASH000101
19. Install front propeller shaft (7).
Refer to the section “Front Propeller Shaft”.
20. Install rear propeller shaft (6).
Torque: 63 N
m (6.4 kg
m/46 lb
ft)
21. Install the center bearing on crossmember.
Torque: 69 N
m (7.0 kg
m/51 lb
ft)
22. Install gear control lever (5).
Torque: 19 N
m (1.9 kg
m/14 lb
ft)
Page 3239 of 4264
MANUAL TRANSMISSION 7B1-75

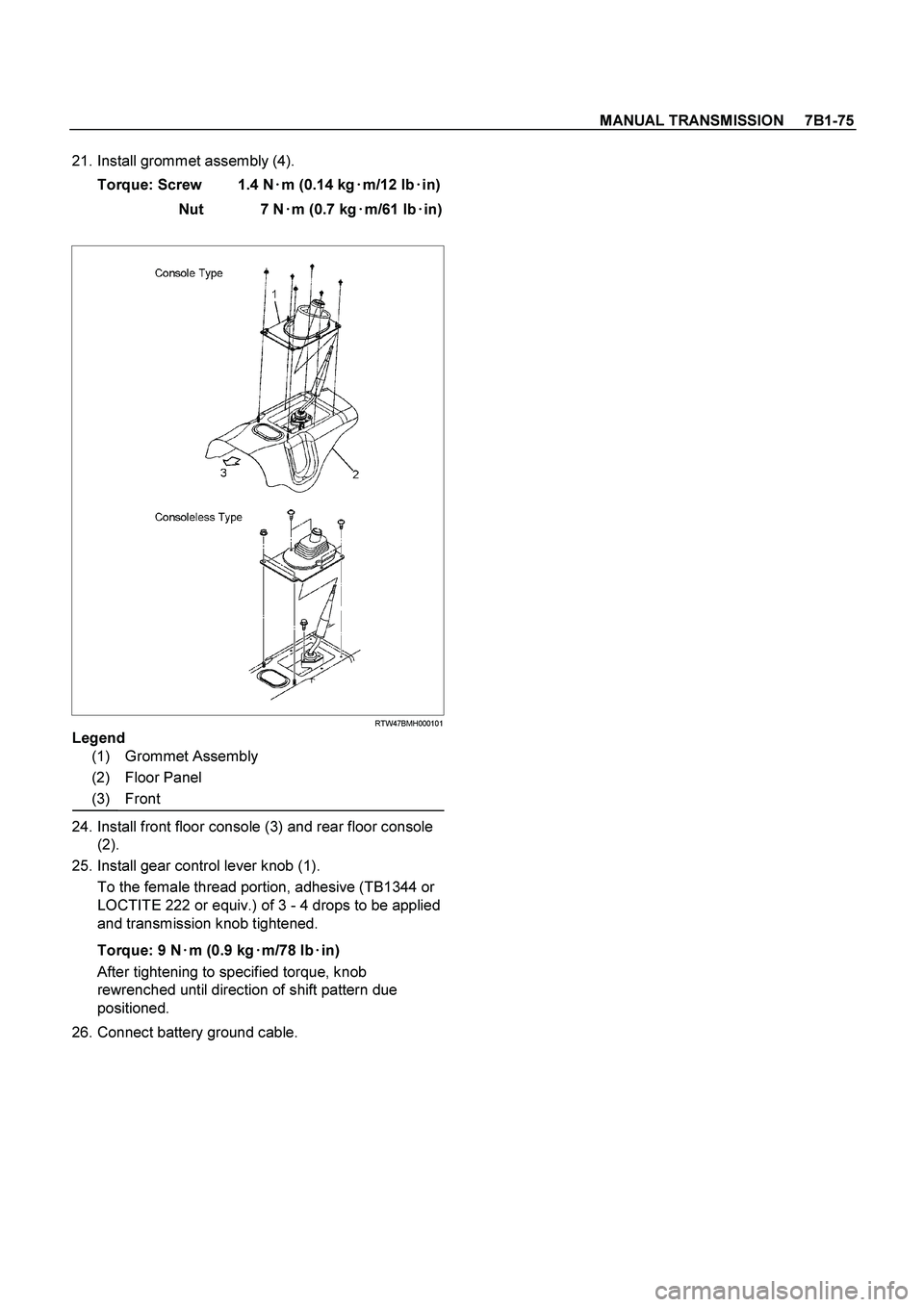

21. Install grommet assembly (4).
