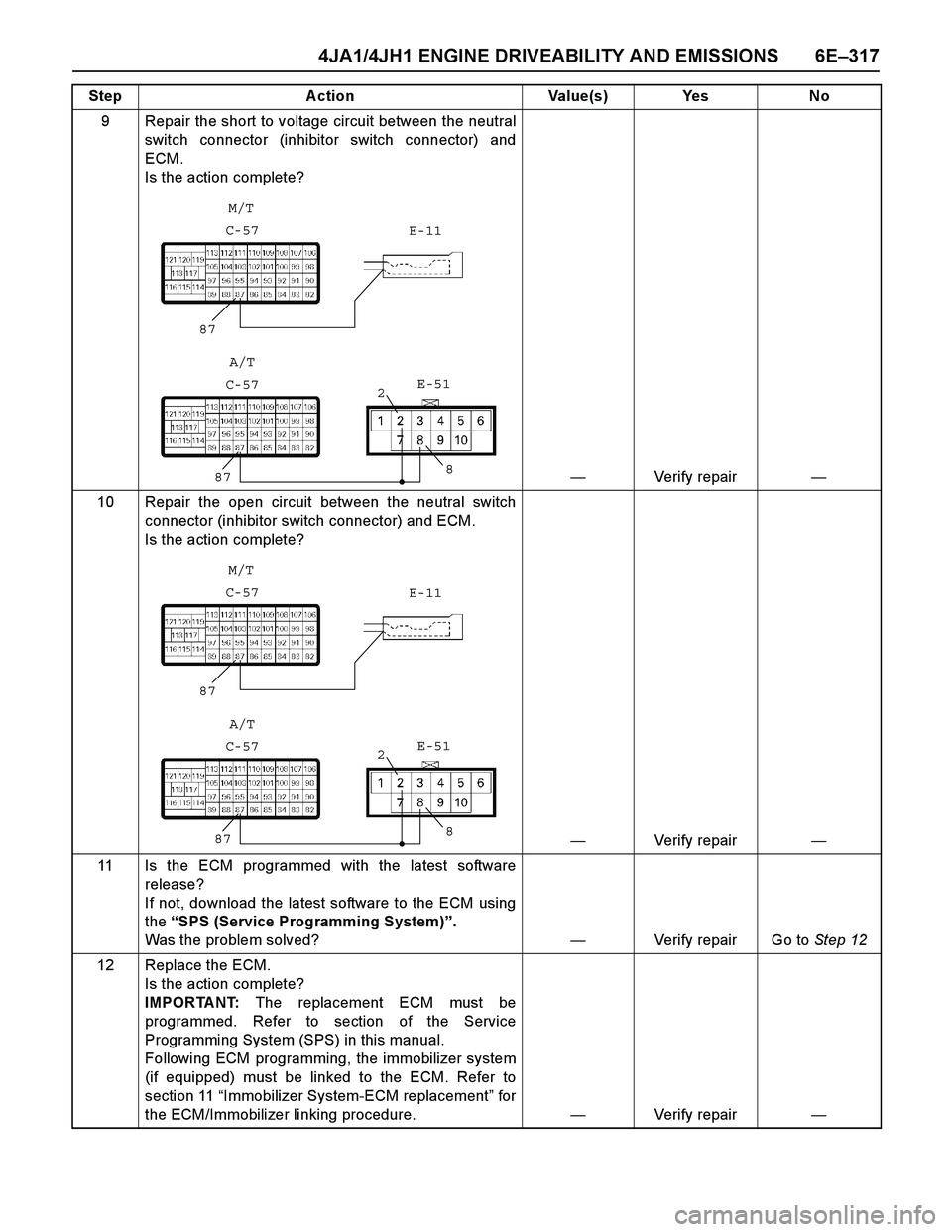

ISUZU TF SERIES 2004 Workshop Manual 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–317
9 Repair the short to voltage circuit between the neutral
switch connector (inhibitor switch connector) and
ECM.
Is the action complete?
—Verify

Page 1690 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6E–318 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
DIAGNOSTIC TROUBLE CODE (DTC) P1605 (SYMPTOM CODE C)
(FLASH CODE 55) SEED AND KEY FILE DESTROYED
DIAGNOSTIC TROUBLE CODE (DTC) P1605 (SYMPTOM CODE

Page 1691 of 4264

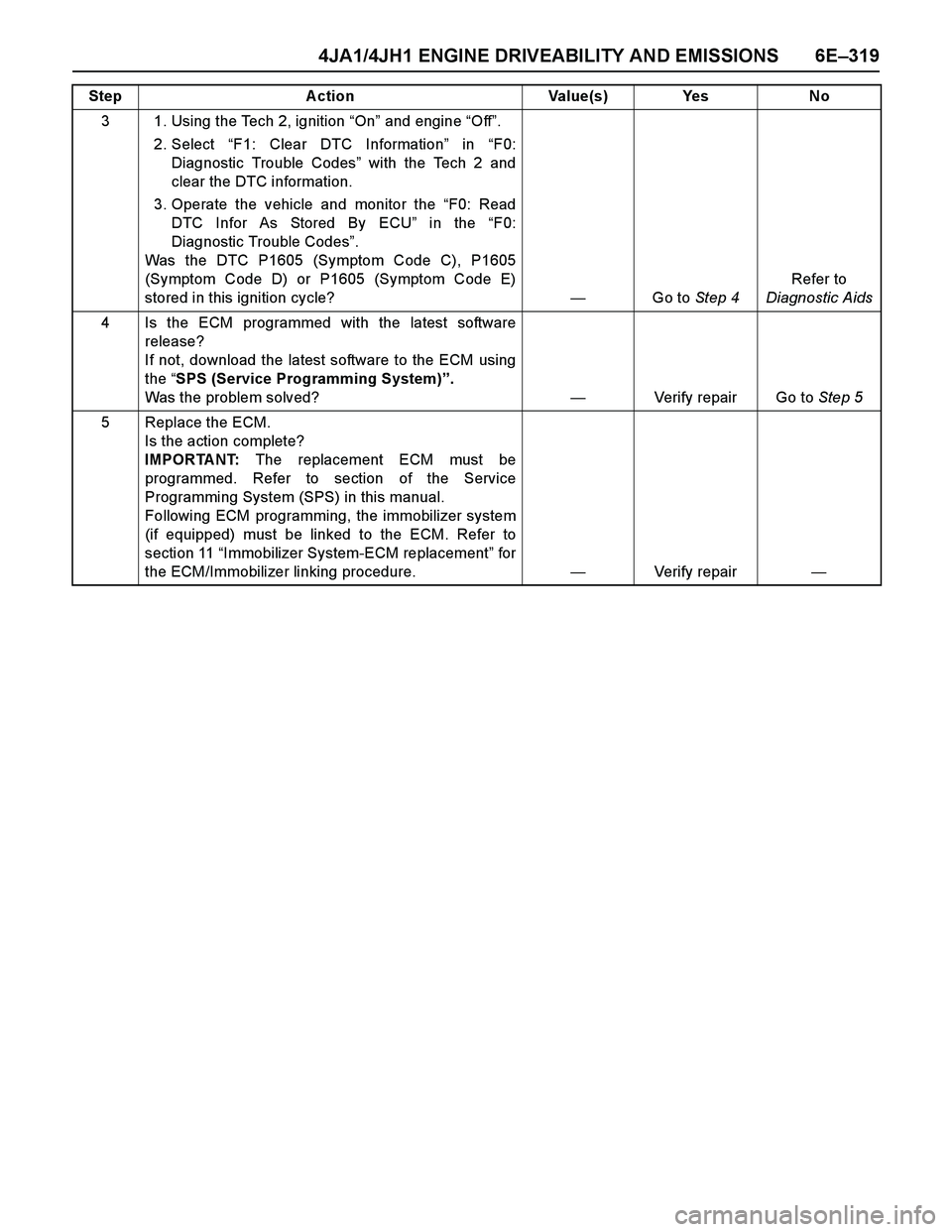

ISUZU TF SERIES 2004 Workshop Manual 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–319
3 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Select “F1: Clear DTC Information” in “F0:
Diagnostic Trouble Codes” wit

Page 1692 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6E–320 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
DIAGNOSTIC TROUBLE CODE (DTC) P1610 (SYMPTOM CODE A)
(FLASH CODE 56) SECURITY KEY AND SECURITY CODE NOT PROGRAMMED
Condition for setting the DTC a

Page 1693 of 4264

ISUZU TF SERIES 2004 Workshop Manual 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–321
Diagnostic Trouble Code (DTC) P1610 (Symptom Code A) (Flash Code 56)
Security Key and Security Code Not Programmed
Step Action Value(s) Yes No
1W

4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–321
Diagnostic Trouble Code (DTC) P1610 (Symptom Code A) (Flash Code 56)
Security Key and Security Code Not Programmed
Step Action Value(s) Yes No
1Was the “On-Board Diagnostic (OBD) System Check”
performed?
—Go to Step 2Go to On Board
Diagnostic
(OBD) System
Check
2 1. Connect the Tech 2.
2. Review and record the failure information.
3. Select “F0: Read DTC Infor As Stored By ECU” in
“F0: Diagnostic Trouble Codes”.
Is the DTC P1610 (Symptom Code A) stored as
“Present Failure”?—Go to Step 3Refer to
Diagnostic Aids
and Go to Step
3
3 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Select “F1: Clear DTC Information” in “F0:
Diagnostic Trouble Codes” with the Tech 2 and
clear the DTC information.
3. Operate the vehicle and monitor the “F0: Read
DTC Infor As Stored By ECU” in the “F0:
Diagnostic Trouble Codes”.
Was the DTC P1610 (Symptom Code A) stored in this
ignition cycle?—Go to Step 4Refer to
Diagnostic Aids
and Go to Step
4
4 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Select “Immobilizer” in the system selection menu
“Body”.
3. Select “Read DTC Info Ordered By Priority” in the
“Diagnostic Trouble Code”.
Was the any DTC's B0002 or B0009 stored in this
ignition cycle?—Refer to
“Immobilizer
Workshop
Manual” & Go
to DTC Chart
B0002 or
B0009Go to Step 5
5 Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?—Verify repair Go to Step 6
6 Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure.—Verify repair—

Page 1694 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6E–322 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS

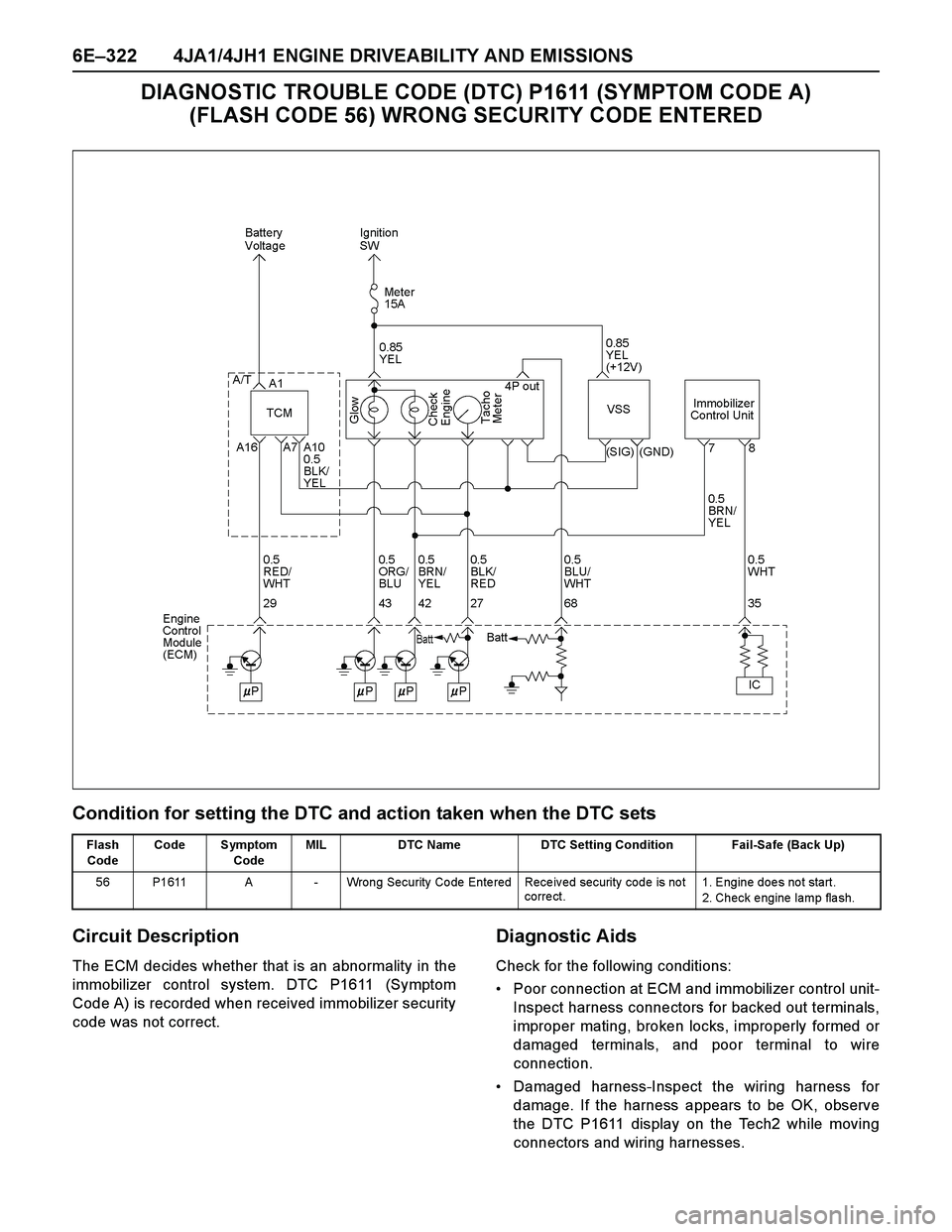

DIAGNOSTIC TROUBLE CODE (DTC) P1611 (SYMPTOM CODE A)
(FLASH CODE 56) WRONG SECURITY CODE ENTERED
Condition for setting the DTC and action taken wh

Page 1695 of 4264

ISUZU TF SERIES 2004 Workshop Manual 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–323
Diagnostic Trouble Code (DTC) P1611 (Sy mptom Code A) (Flash Code 56)
Wrong Security Code Entered
Step Action Value(s) Yes No
1Was the “On-Board

4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–323
Diagnostic Trouble Code (DTC) P1611 (Sy mptom Code A) (Flash Code 56)
Wrong Security Code Entered
Step Action Value(s) Yes No
1Was the “On-Board Diagnostic (OBD) System Check”
performed?
—Go to Step 2Go to On Board
Diagnostic
(OBD) System
Check
2 1. Connect the Tech 2.
2. Review and record the failure information.
3. Select “F0: Read DTC Infor As Stored By ECU” in
“F0: Diagnostic Trouble Codes”.
Is the DTC P1611 (Symptom Code A) stored as
“Present Failure”?—Go to Step 3Refer to
Diagnostic Aids
and Go to Step
3
3 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Select “F1: Clear DTC Information” in “F0:
Diagnostic Trouble Codes” with the Tech 2 and
clear the DTC information.
3. Operate the vehicle and monitor the “F0: Read
DTC Infor As Stored By ECU” in the “F0:
Diagnostic Trouble Codes”.
Was the DTC P1611 (Symptom Code A) stored in this
ignition cycle?—Go to Step 4Refer to
Diagnostic Aids
and Go to Step
4
4 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Select “Immobilizer” in the system selection menu
“Body”.
3. Select “Read DTC Info Ordered By Priority” in the
“Diagnostic Trouble Code”.
Was the any DTC's B**** stored in this ignition cycle?—Refer to
“Immobilizer
Workshop
Manual” & Go
to DTC Chart
B**** Go to Step 5
5 Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?—Verify repair Go to Step 6
6 Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure.—Verify repair—

Page 1696 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6E–324 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS

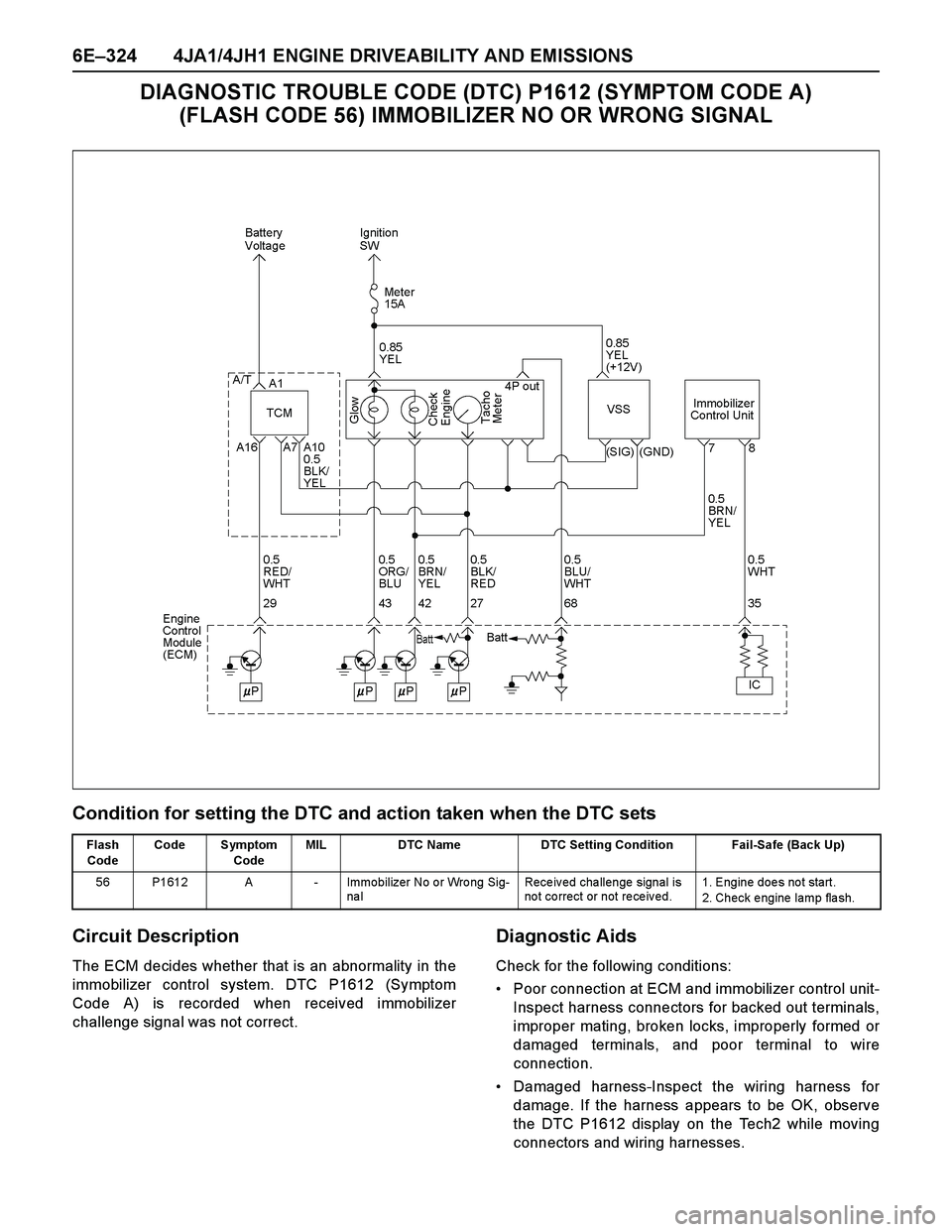

DIAGNOSTIC TROUBLE CODE (DTC) P1612 (SYMPTOM CODE A)
(FLASH CODE 56) IMMOBILIZER NO OR WRONG SIGNAL
Condition for setting the DTC and action taken
