Page 1065 of 4264
ELECTRICAL-BODY AND CHASSIS 8A-407

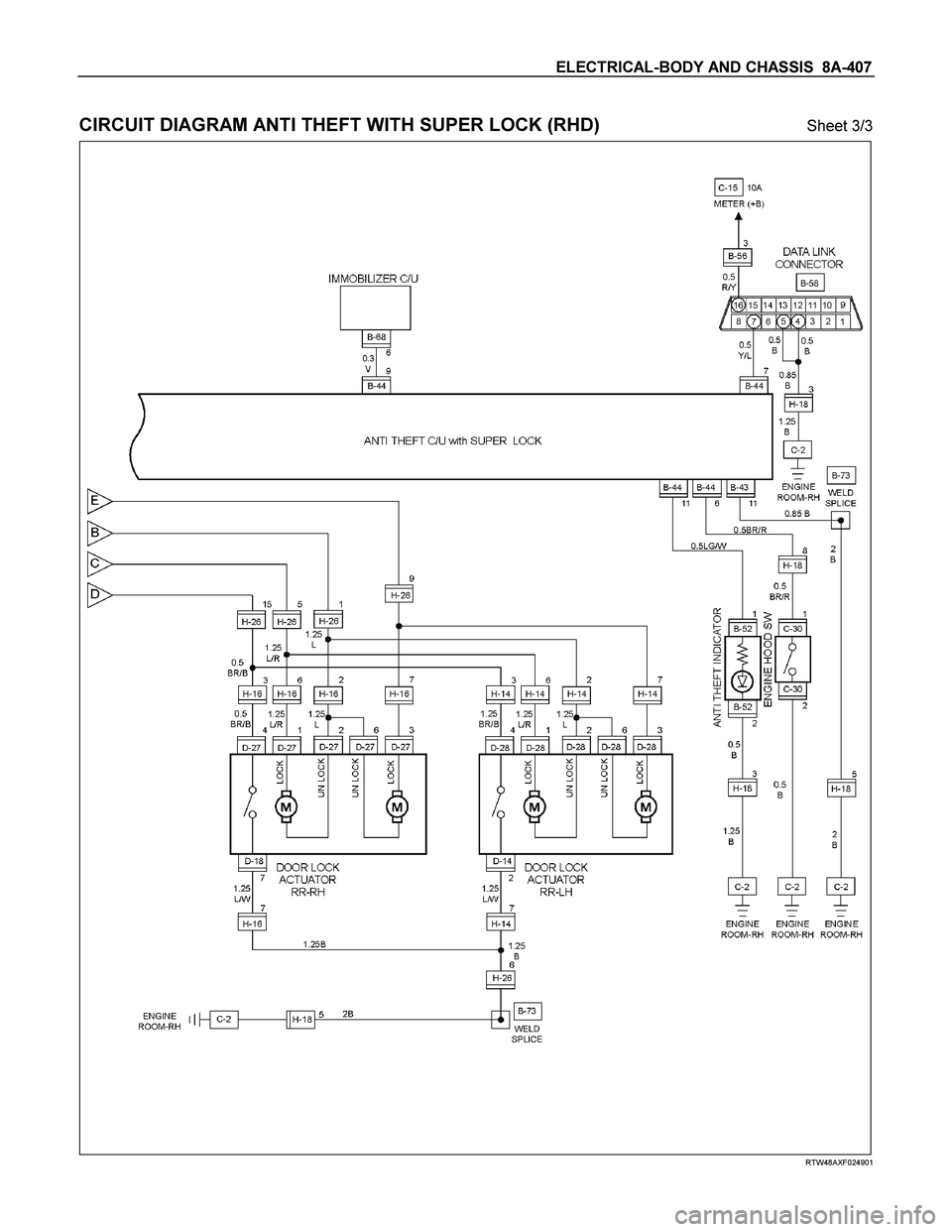

CIRCUIT DIAGRAM ANTI THEFT WITH SUPER LOCK (RHD) Sheet 3/3
RTW48AXF024901
Page 1066 of 4264
8A-408 ELECTRICAL-BODY AND CHASSIS

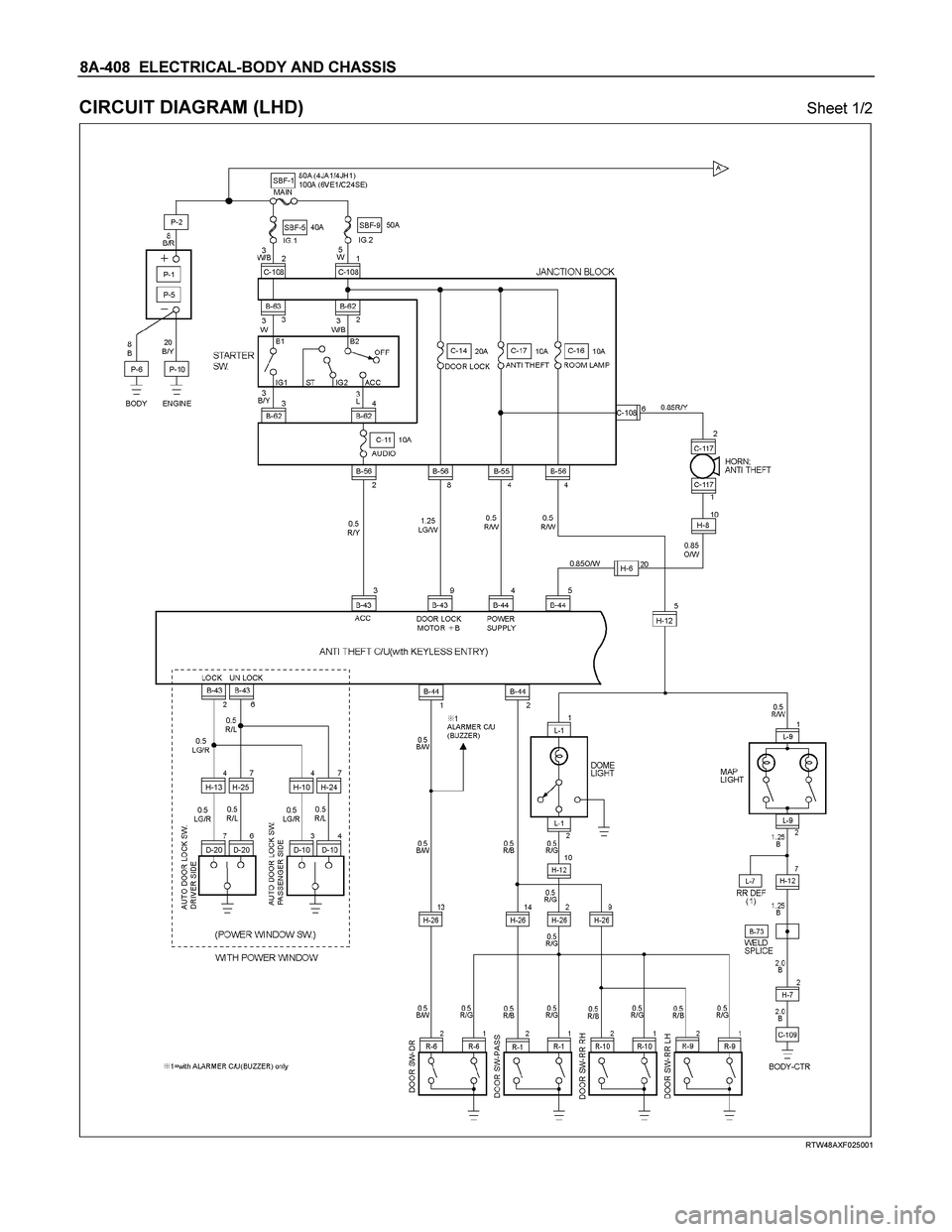

CIRCUIT DIAGRAM (LHD) Sheet 1/2
RTW48AXF025001
Page 1067 of 4264
ELECTRICAL-BODY AND CHASSIS 8A-409

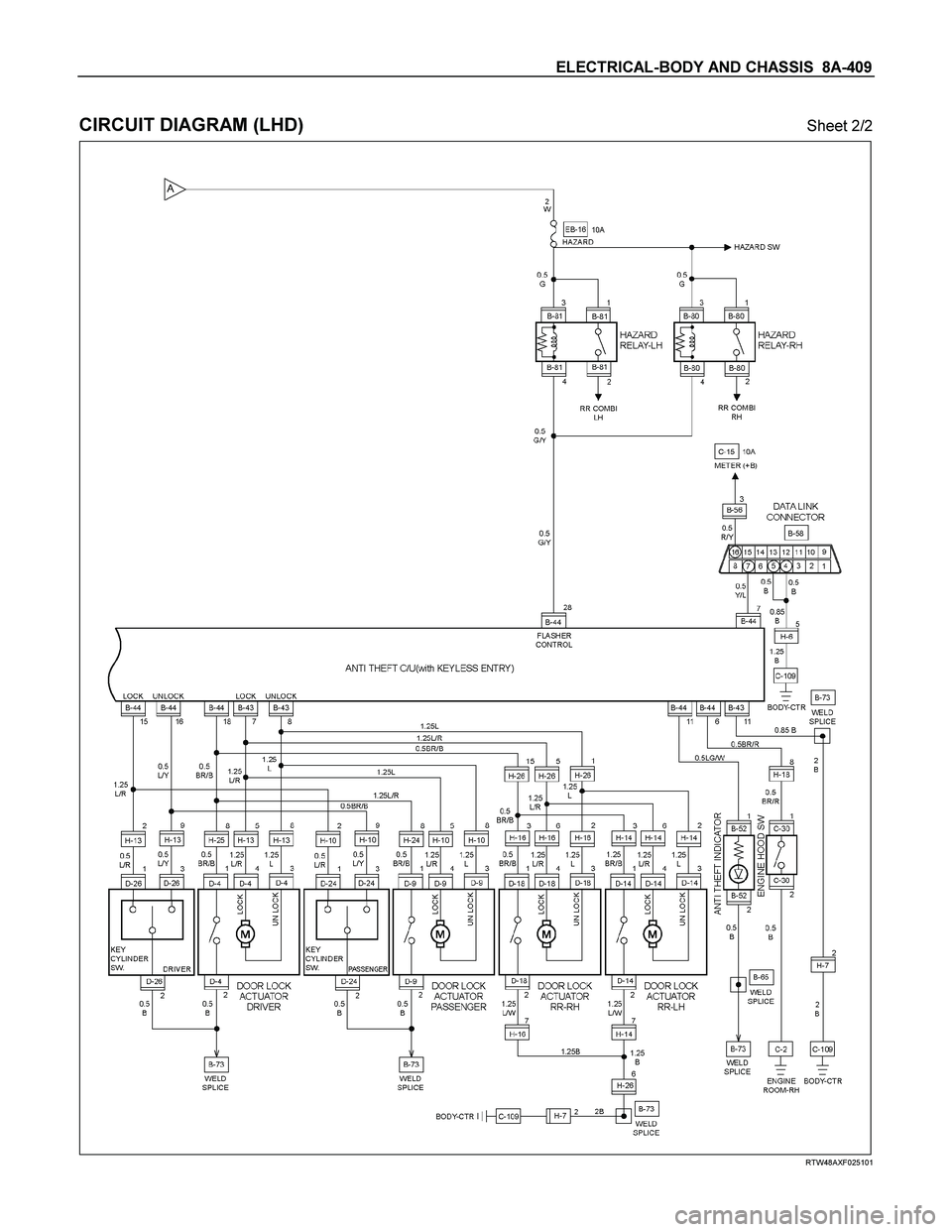

CIRCUIT DIAGRAM (LHD) Sheet 2/2
RTW48AXF025101
Page 1068 of 4264

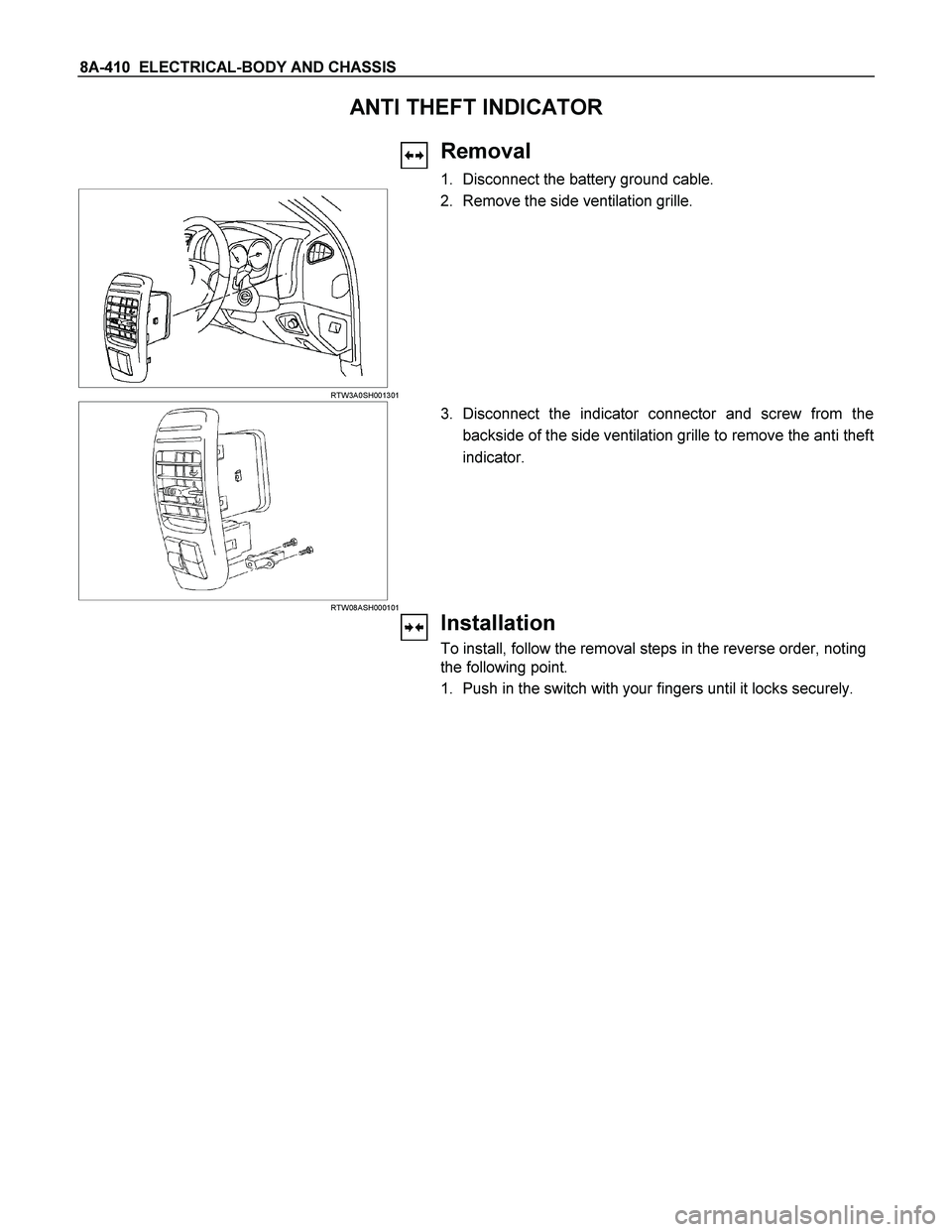

8A-410 ELECTRICAL-BODY AND CHASSIS
ANTI THEFT INDICATOR
Removal
1. Disconnect the battery ground cable.
RTW3A0SH001301
2. Remove the side ventilation grille.
RTW08ASH000101
3. Disconnect the indicator connector and screw from the
backside of the side ventilation grille to remove the anti thef
t
indicator.
Installation
To install, follow the removal steps in the reverse order, noting
the following point.
1. Push in the switch with your fingers until it locks securely.
Page 1069 of 4264
ELECTRICAL-BODY AND CHASSIS 8A-411

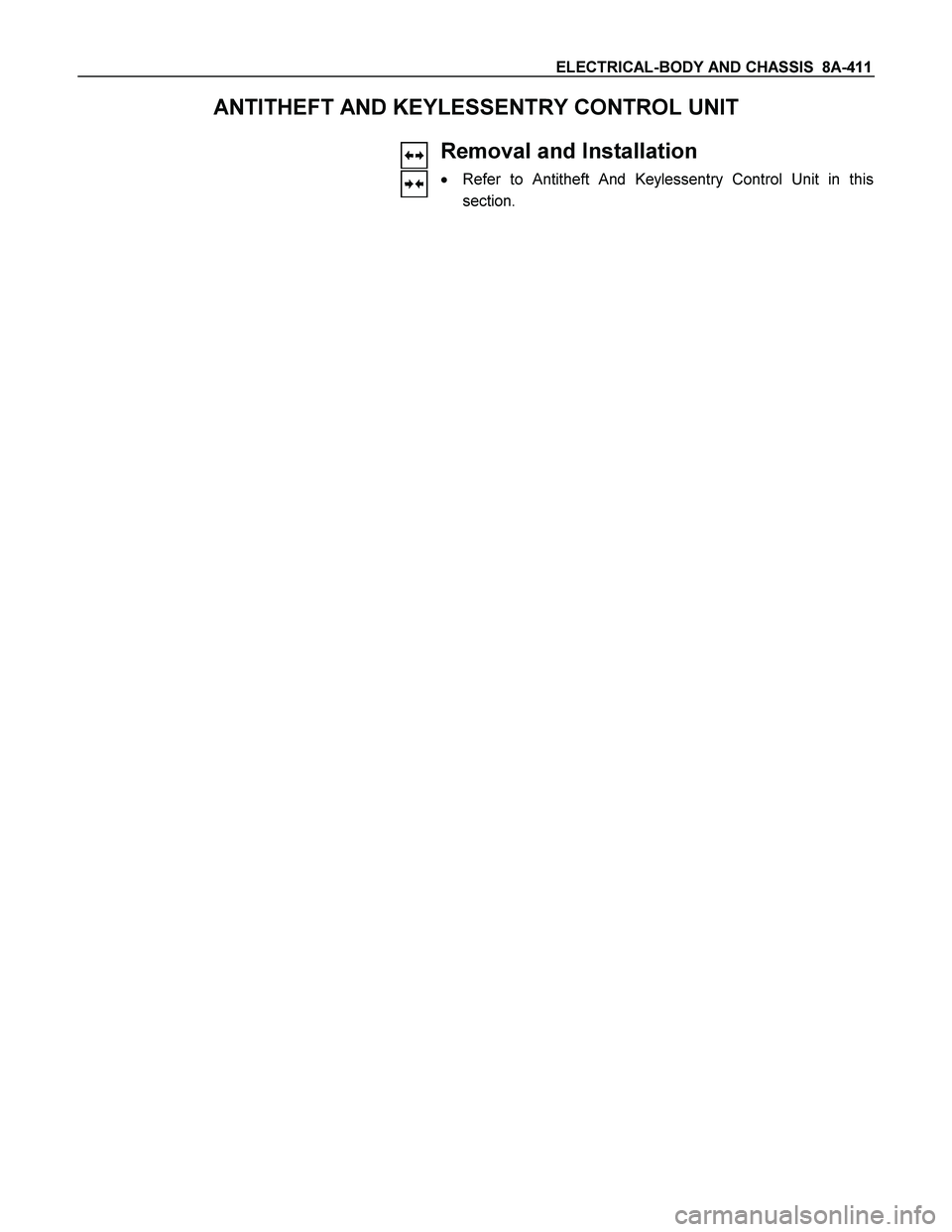

ANTITHEFT AND KEYLESSENTRY CONTROL UNIT
Removal and Installation
Refer to Antitheft And Keylessentry Control Unit in this
section.
Page 1070 of 4264
8A-412 ELECTRICAL-BODY AND CHASSIS
AUTO CRUISE

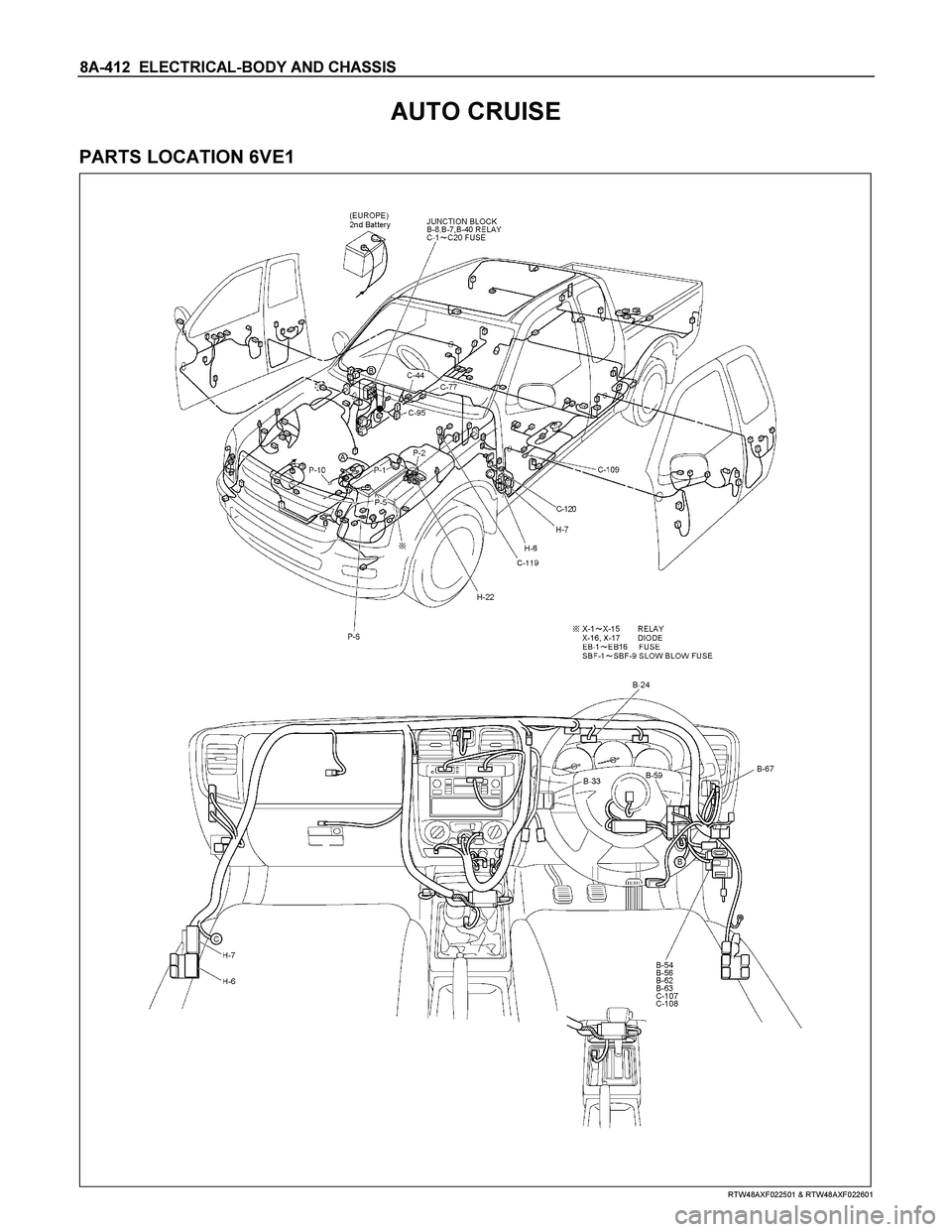

PARTS LOCATION 6VE1
RTW48AXF022501 & RTW48AXF022601
Page 1071 of 4264
ELECTRICAL-BODY AND CHASSIS 8A-413

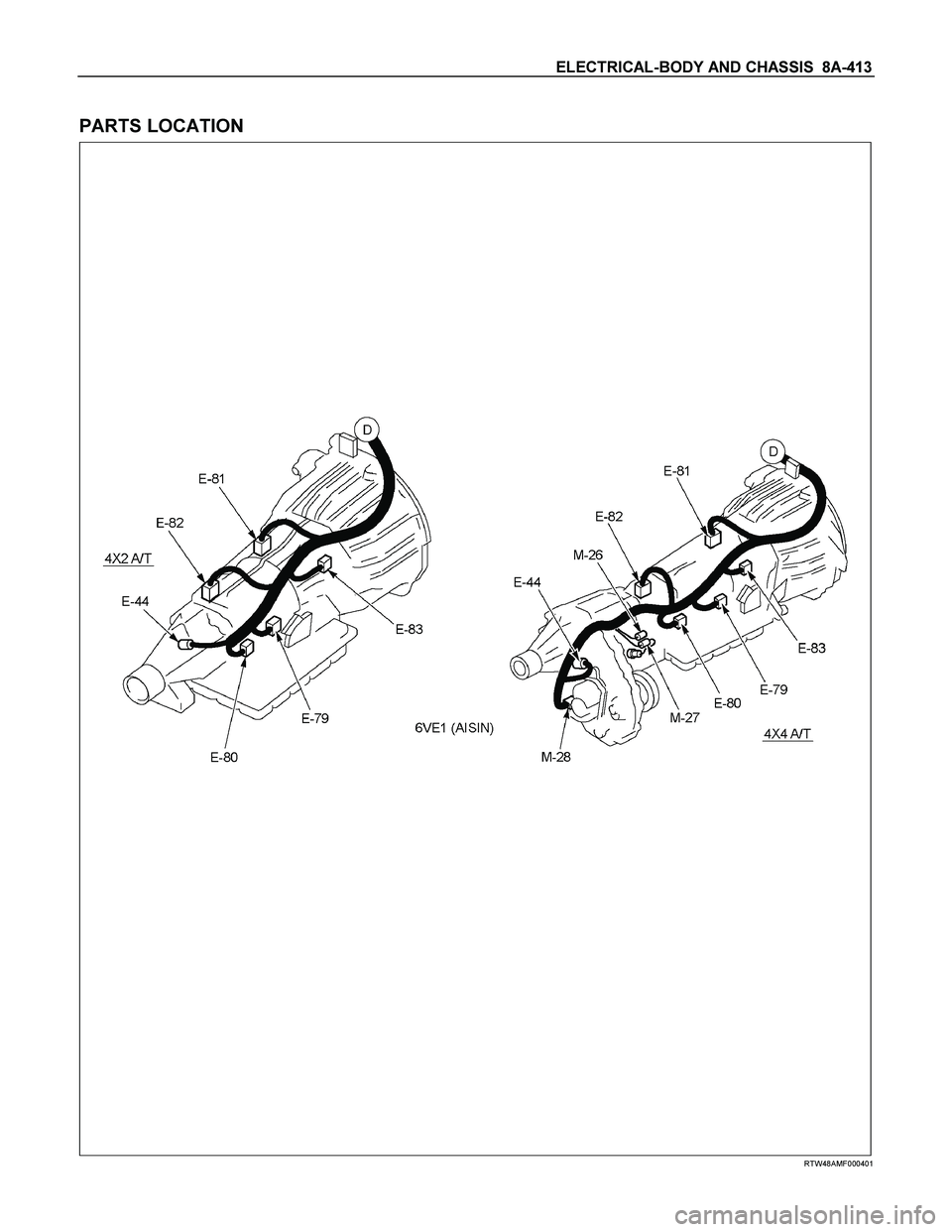

PARTS LOCATION
RTW48AMF000401
Page 1072 of 4264
8A-414 ELECTRICAL-BODY AND CHASSIS

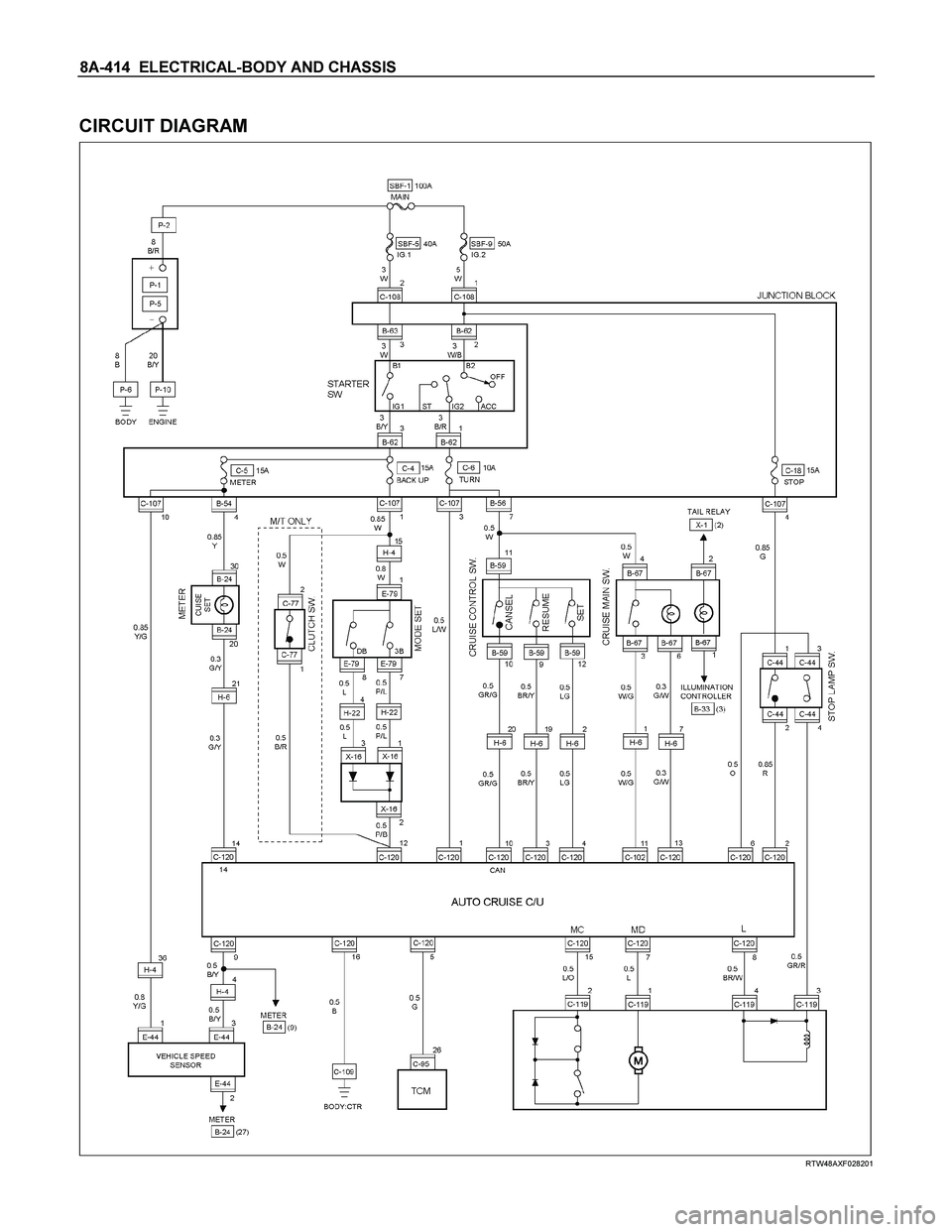

CIRCUIT DIAGRAM
RTW48AXF028201
