Page 4033 of 4264

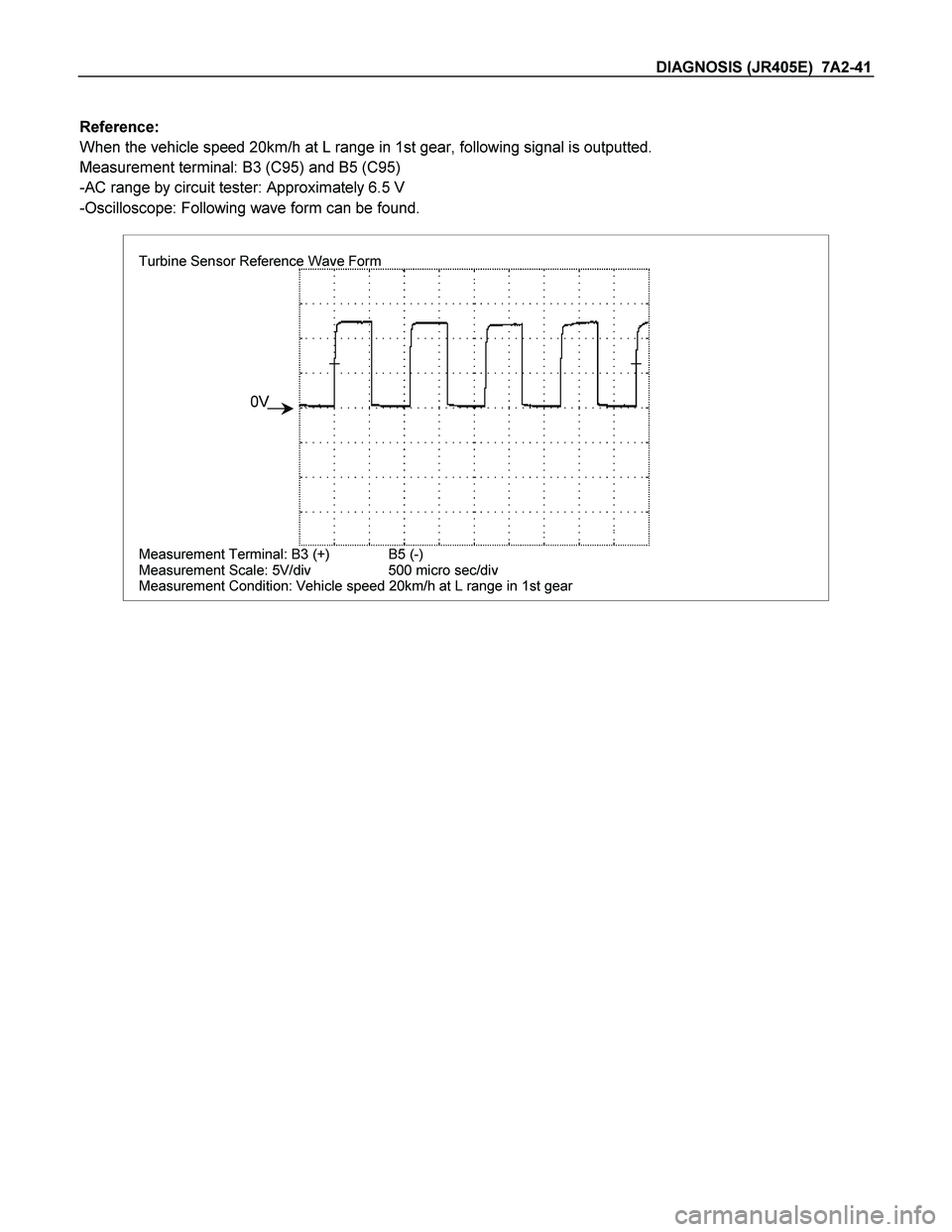

DIAGNOSIS (JR405E) 7A2-41
Reference:
When the vehicle speed 20km/h at L range in 1st gear, following signal is outputted.
Measurement terminal: B3 (C95) and B5 (C95)
-AC range by circuit tester: Approximately 6.5 V
-Oscilloscope: Following wave form can be found.
Turbine Sensor Reference Wave Form
Measurement Terminal: B3 (+) B5 (-)
Measurement Scale: 5V/div 500 micro sec/div
Measurement Condition: Vehicle speed 20km/h at L range in 1st gear
0V
Page 4034 of 4264

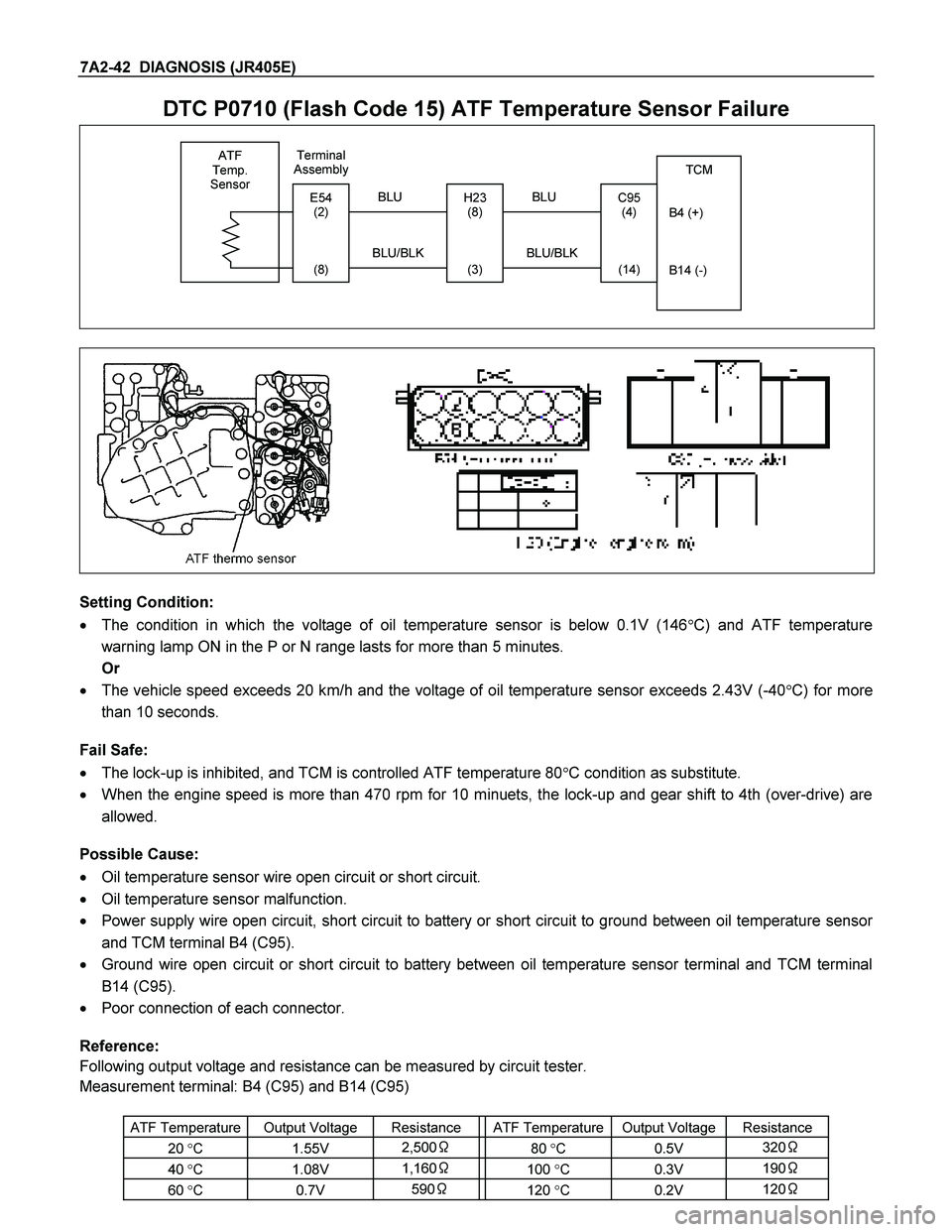

7A2-42 DIAGNOSIS (JR405E)
DTC P0710 (Flash Code 15) ATF Temperature Sensor Failure
ATF
Temp.
Sensor
TCM
B4 (+)
B14 (-)
H23 (8)
(3)
C95 (4)
(14)
BLU
Terminal
Assembly
BLU/BLKE54 (2)
(8)
BLU
BLU/BLK
Setting Condition:
The condition in which the voltage of oil temperature sensor is below 0.1V (146 C) and ATF temperature
warning lamp ON in the P or N range lasts for more than 5 minutes.
Or
The vehicle speed exceeds 20 km/h and the voltage of oil temperature sensor exceeds 2.43V (-40 C) for more
than 10 seconds.
Fail Safe:
The lock-up is inhibited, and TCM is controlled ATF temperature 80 C condition as substitute.
When the engine speed is more than 470 rpm for 10 minuets, the lock-up and gear shift to 4th (over-drive) are
allowed.
Possible Cause:
Oil temperature sensor wire open circuit or short circuit.
Oil temperature sensor malfunction.
Power supply wire open circuit, short circuit to battery or short circuit to ground between oil temperature sensor
and TCM terminal B4 (C95).
Ground wire open circuit or short circuit to battery between oil temperature sensor terminal and TCM terminal
B14 (C95).
Poor connection of each connector.
Reference:
Following output voltage and resistance can be measured by circuit tester.
Measurement terminal: B4 (C95) and B14 (C95)
ATF Temperature Output Voltage Resistance ATF Temperature Output Voltage Resistance
20 C 1.55V 2,500 80 C 0.5V 320
40 C 1.08V 1,160 100 C 0.3V 190
60 C 0.7V 590 120 C 0.2V 120
Page 4035 of 4264

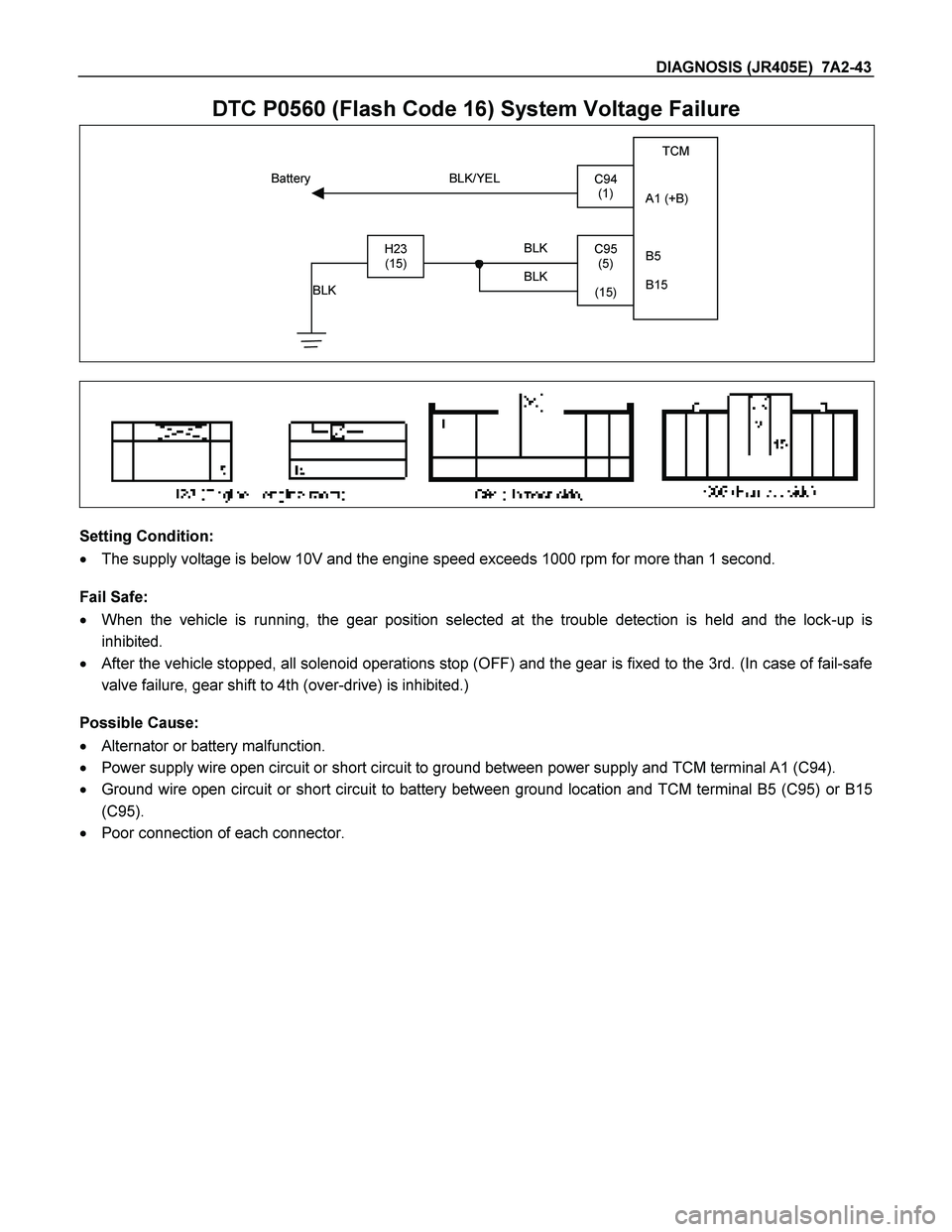

DIAGNOSIS (JR405E) 7A2-43
DTC P0560 (Flash Code 16) System Voltage Failure
TCM
A1 (+B)
B5
B15
H23 (15)C95 (5)
(15)
BLK/YEL
BLK
BLK
Battery
C94
(1)
BLK
Setting Condition:
The supply voltage is below 10V and the engine speed exceeds 1000 rpm for more than 1 second.
Fail Safe:
When the vehicle is running, the gear position selected at the trouble detection is held and the lock-up is
inhibited.
After the vehicle stopped, all solenoid operations stop (OFF) and the gear is fixed to the 3rd. (In case of fail-safe
valve failure, gear shift to 4th (over-drive) is inhibited.)
Possible Cause:
Alternator or battery malfunction.
Power supply wire open circuit or short circuit to ground between power supply and TCM terminal A1 (C94).
Ground wire open circuit or short circuit to battery between ground location and TCM terminal B5 (C95) or B15
(C95).
Poor connection of each connector.
Page 4036 of 4264

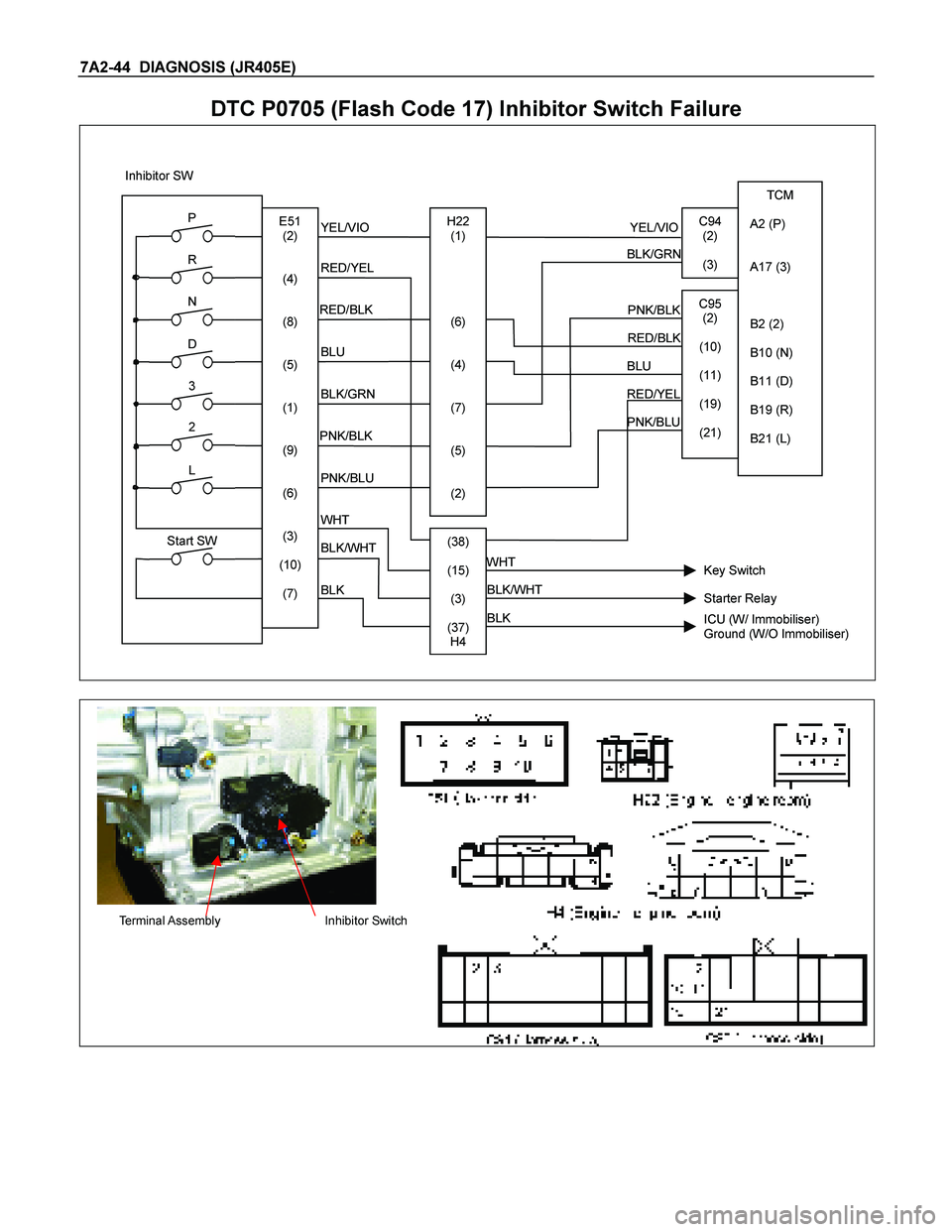

7A2-44 DIAGNOSIS (JR405E)
DTC P0705 (Flash Code 17) Inhibitor Switch Failure
Inhibitor SW
TCM
A2 (P)
A17 (3)
B2 (2)
B10 (N)
B11 (D)
B19 (R)
B21 (L)
C95 (2)
(10)
(11)
(19)
(21)
YEL/VIO
RED/BLK
BLU BLK/GRN
Starter Relay
C94 (2)
(3)
BH22 (1)
(6)
(4)
(7)
(5)
(2)
P
2
R
N
D
3
L
Start SW
PNK/BLU
E51
(2)
(4)
(8)
(5)
(1)
(9)
(6)
(3)
(10)
(7)
(38)
(15) (3)
(37) H4 PNK/BLK
RED/YEL
YEL/VIO
BLK/GRN
PNK/BLK
RED/BLK
BLU
RED/YEL
PNK/BLU
BLK/WHT
BLK BLK
BLK/WHT Key Switch
WHT
WHT
ICU (W/ Immobiliser)
Ground (W/O Immobiliser)
Terminal Assembly Inhibitor Switch
Page 4037 of 4264

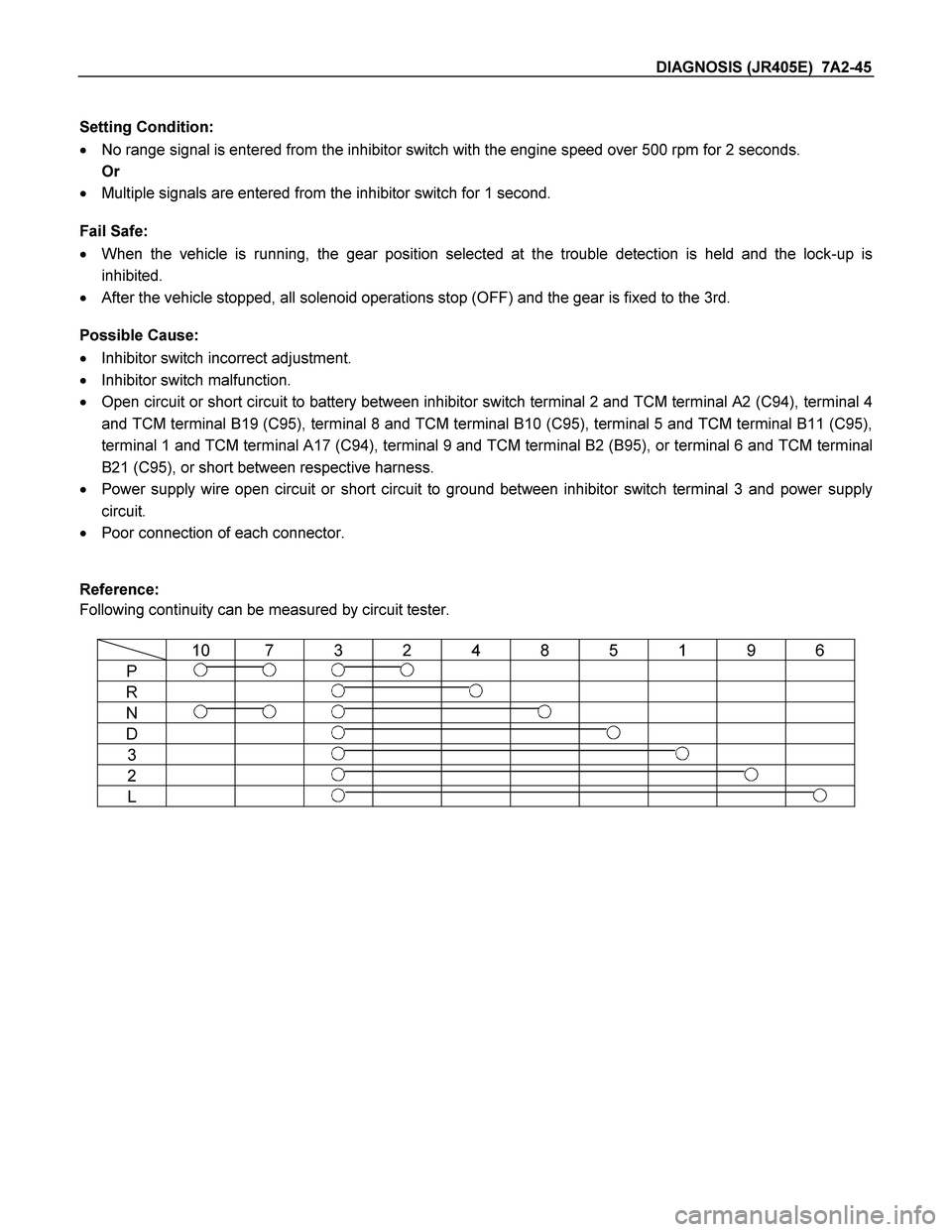

DIAGNOSIS (JR405E) 7A2-45
Setting Condition:
No range signal is entered from the inhibitor switch with the engine speed over 500 rpm for 2 seconds.
Or
Multiple signals are entered from the inhibitor switch for 1 second.
Fail Safe:
When the vehicle is running, the gear position selected at the trouble detection is held and the lock-up is
inhibited.
After the vehicle stopped, all solenoid operations stop (OFF) and the gear is fixed to the 3rd.
Possible Cause:
Inhibitor switch incorrect adjustment.
Inhibitor switch malfunction.
Open circuit or short circuit to battery between inhibitor switch terminal 2 and TCM terminal A2 (C94), terminal 4
and TCM terminal B19 (C95), terminal 8 and TCM terminal B10 (C95), terminal 5 and TCM terminal B11 (C95),
terminal 1 and TCM terminal A17 (C94), terminal 9 and TCM terminal B2 (B95), or terminal 6 and TCM terminal
B21 (C95), or short between respective harness.
Power supply wire open circuit or short circuit to ground between inhibitor switch terminal 3 and power supply
circuit.
Poor connection of each connector.
Reference:
Following continuity can be measured by circuit tester.
10 7 3 2 4 8 5 1 9 6
P
R
N
D
3
2
L
Page 4038 of 4264

7A2-46 DIAGNOSIS (JR405E)
DTC P1120 (Flash Code 22) Throttle Signal Failure
TPS TCM
A16
C56 (29)C94 (16)
RED/WHT
C56
(49)
(38)
(57)
(69)
ECM
C56 (ECM-A)
Setting Condition:
No throttle signal is sent from the ECM for 0.4 seconds.
Fail Safe:
When the vehicle is running, the gear position selected at the trouble detection is held and the lock-up is
inhibited.
After the vehicle stopped, all solenoid operations stop (OFF) and the gear is fixed to the 3rd.
Possible Cause:
Throttle position sensor malfunction.
Signal wire open circuit or short circuit to battery of the harness between ECM 29 (C56) and TCM terminal A16
(C94).
Poor connection of each connector.
Reference:
At throttle position 0%, OFF duty signal 10% is sent from ECM terminal 29 (C56) to TCM terminal A16 (C94).
At throttle position 100% (WOT), OFF duty signal 90% is sent from ECM terminal 29 (C56) to TCM terminal A16
(C94).
7.14ms 7.14ms
Time Time
0.714ms 6.426ms
Vo l t a ge
Off duty 10% =Throttle Position 0%
Vo l t a ge
Off duty 90% =Throttle Position 100%
Page 4039 of 4264

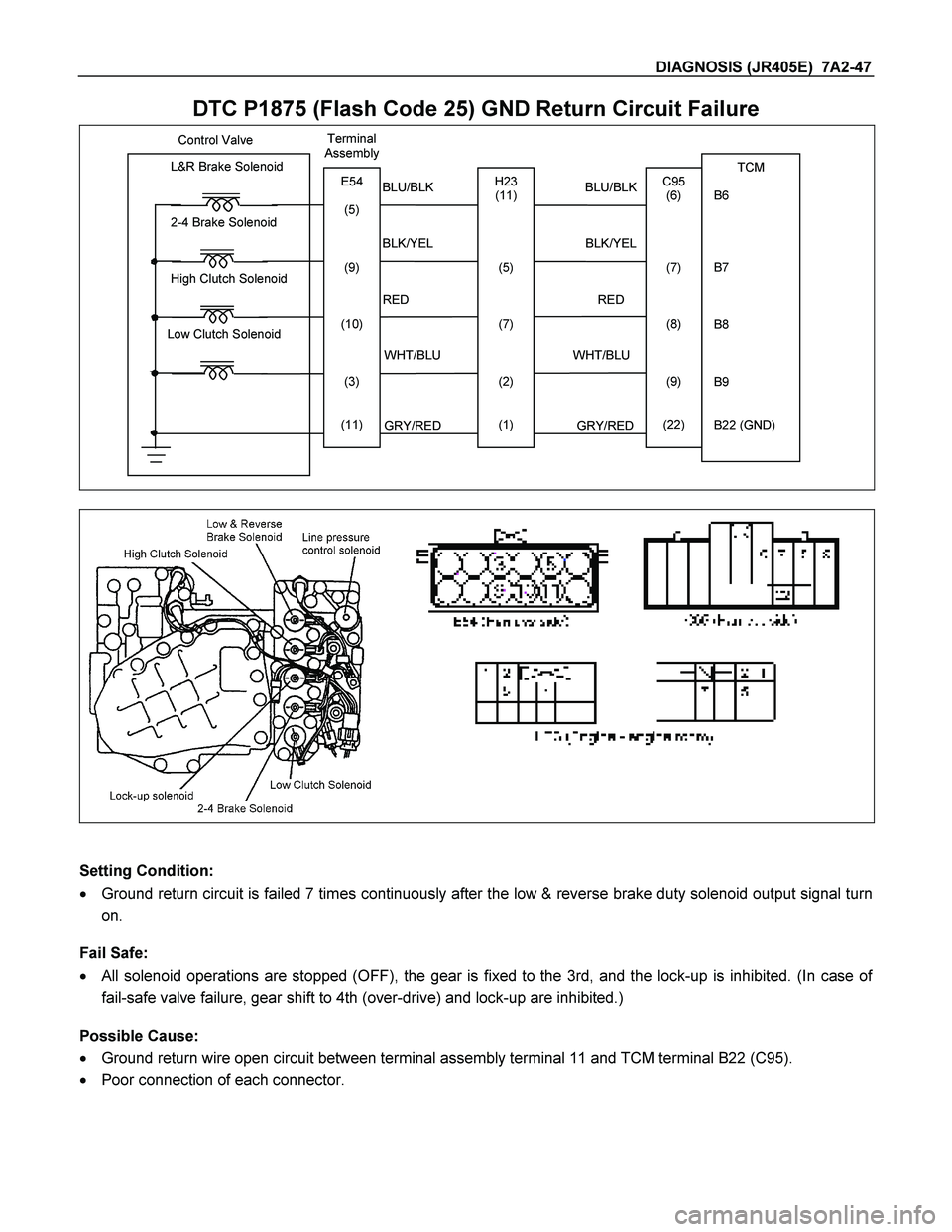

DIAGNOSIS (JR405E) 7A2-47
DTC P1875 (Flash Code 25) GND Return Circuit Failure
Control Valve
TCM
B6
B7
B8
B9
B22 (GND)
BLU/BLK
WHT/BLU
L&R Brake Solenoid
Terminal
Assembly
BLK/YEL
RED 2-4 Brake Solenoid
High Clutch Solenoid
Low Clutch Solenoid
E54
(5)
(9)
(10)
(3)
(11) H23 (11)
(5)
(7)
(2)
(1)
GRY/REDC95
(6)
(7)
(8)
(9)
(22)
BLU/BLK
BLK/YEL RED
WHT/BLU
GRY/RED
Setting Condition:
Ground return circuit is failed 7 times continuously after the low & reverse brake duty solenoid output signal turn
on.
Fail Safe:
All solenoid operations are stopped (OFF), the gear is fixed to the 3rd, and the lock-up is inhibited. (In case of
fail-safe valve failure, gear shift to 4th (over-drive) and lock-up are inhibited.)
Possible Cause:
Ground return wire open circuit between terminal assembly terminal 11 and TCM terminal B22 (C95).
Poor connection of each connector.
Page 4040 of 4264

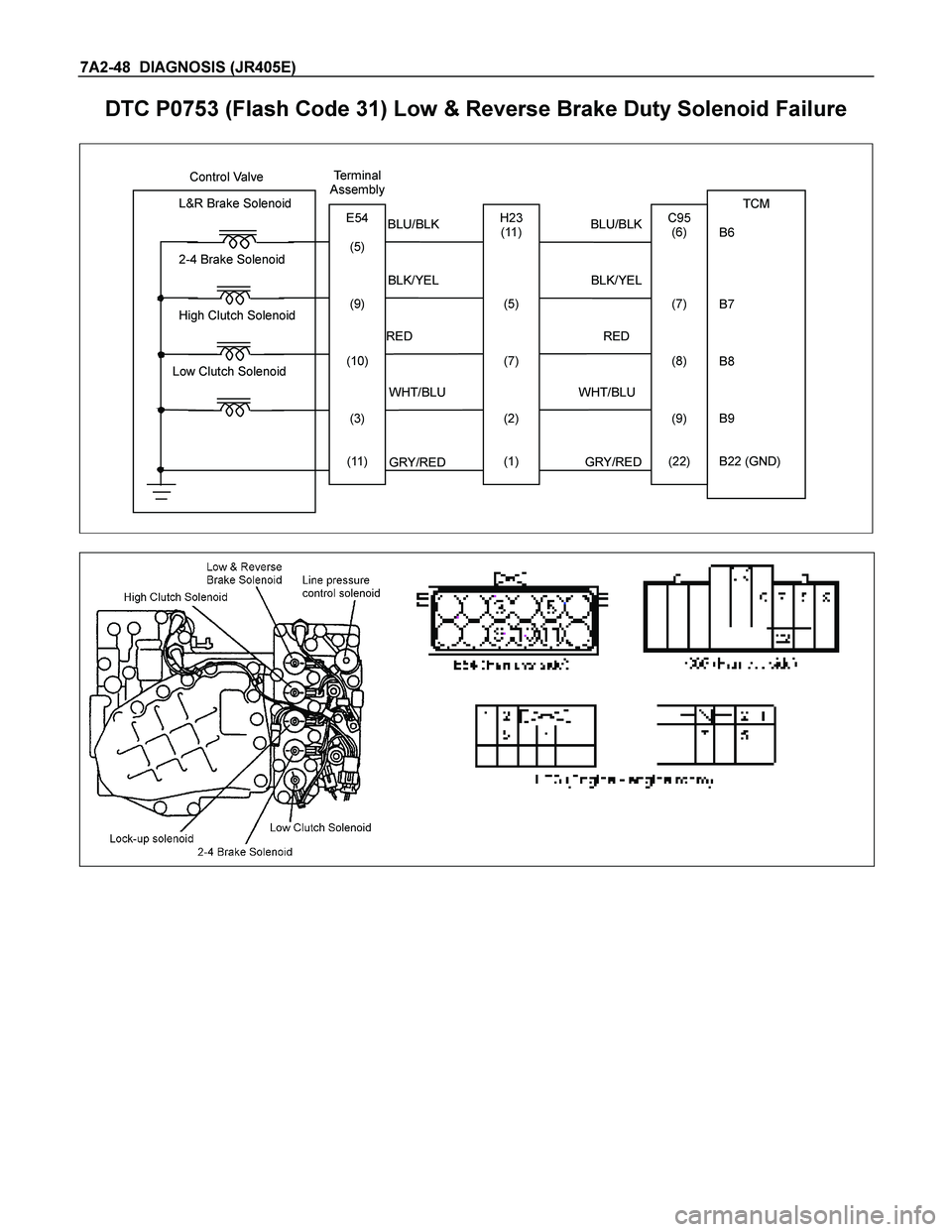

7A2-48 DIAGNOSIS (JR405E)
DTC P0753 (Flash Code 31) Low & Reverse Brake Duty Solenoid Failure
Control Valve
TCM
B6
B7
B8
B9
B22 (GND)
BLU/BLK
WHT/BLU
L&R Brake Solenoid
Terminal
Assembly
BLK/YEL
RED 2-4 Brake Solenoid
High Clutch Solenoid
Low Clutch Solenoid
E54
(5)
(9)
(10)
(3)
(11) H23 (11)
(5)
(7)
(2)
(1)
GRY/REDC95
(6)
(7)
(8)
(9)
(22)
BLU/BLK
BLK/YEL RED
WHT/BLU
GRY/RED
