Page 3977 of 4264

ISUZU TF SERIES 2004 Workshop Manual CONSTRUCTION AND FUNCTION 7A1-31

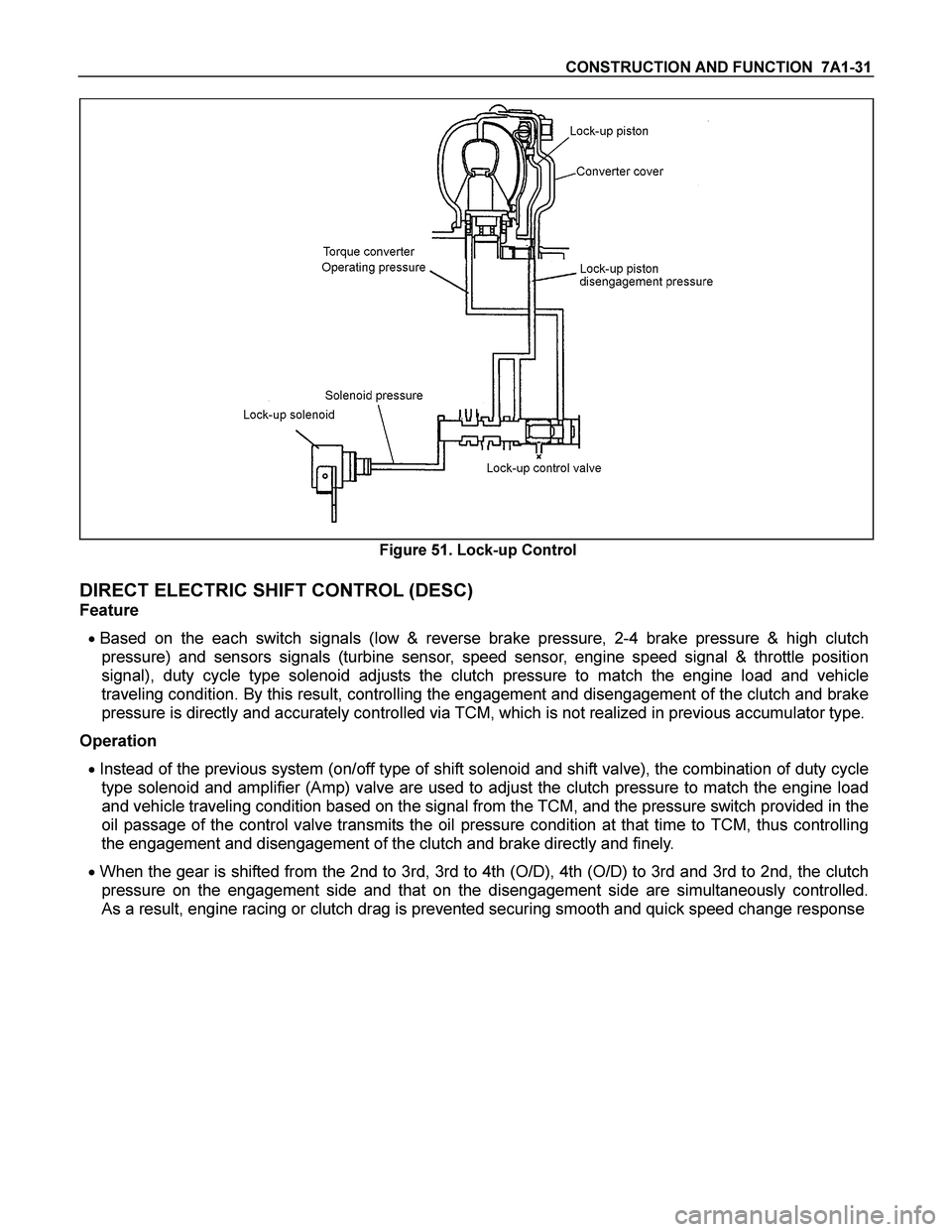

Figure 51. Lock-up Control

DIRECT ELECTRIC SHIFT CONTROL (DESC)
Feature
Based on the each switch signals (low & reverse brake pressure, 2-4 brake press

Page 3978 of 4264

ISUZU TF SERIES 2004 Workshop Manual 7A1-32 CONSTRUCTION AND FUNCTION

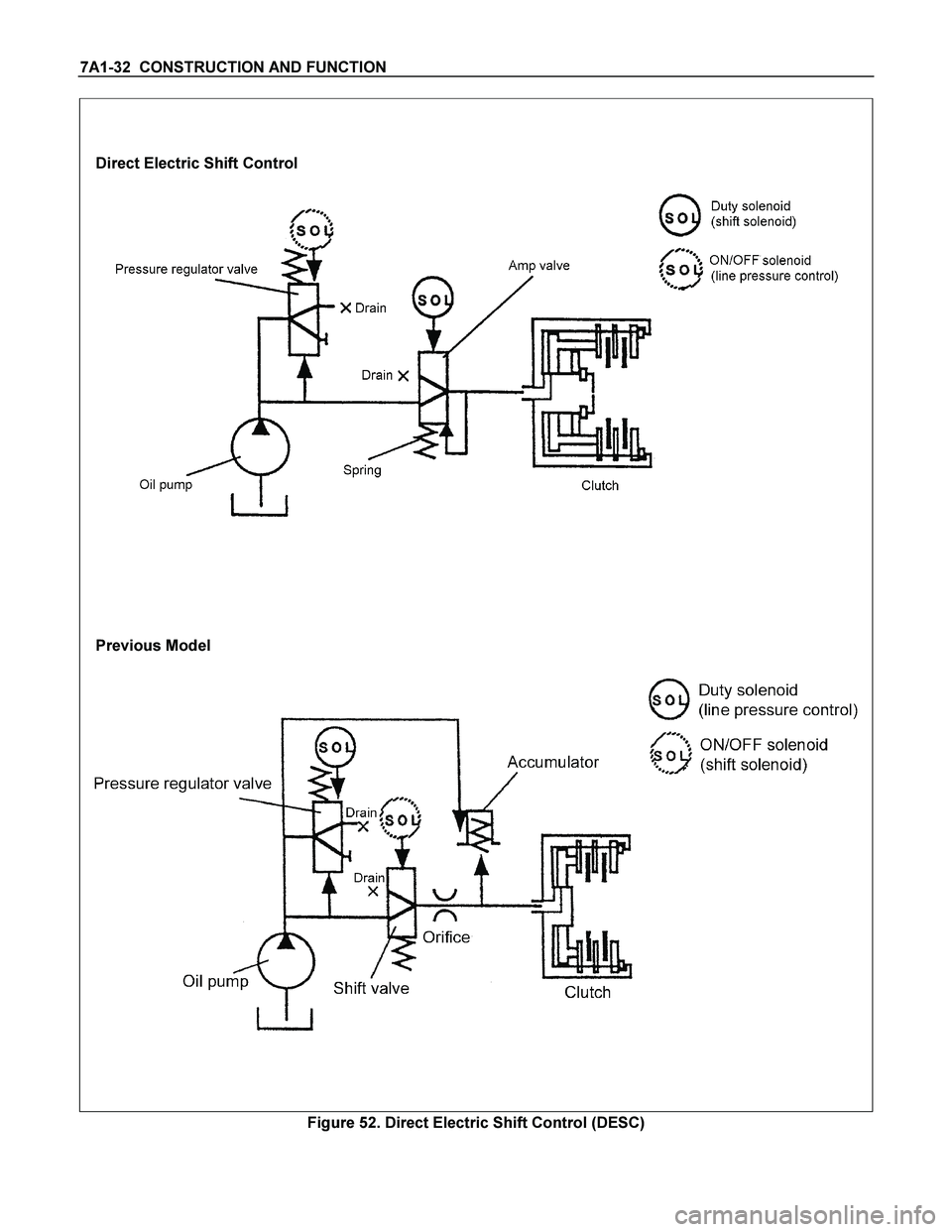

Direct Electric Shift Control

Previous Model

Figure 52. Direct Electric Shift Control (DESC)

Page 3979 of 4264

ISUZU TF SERIES 2004 Workshop Manual CONSTRUCTION AND FUNCTION 7A1-33

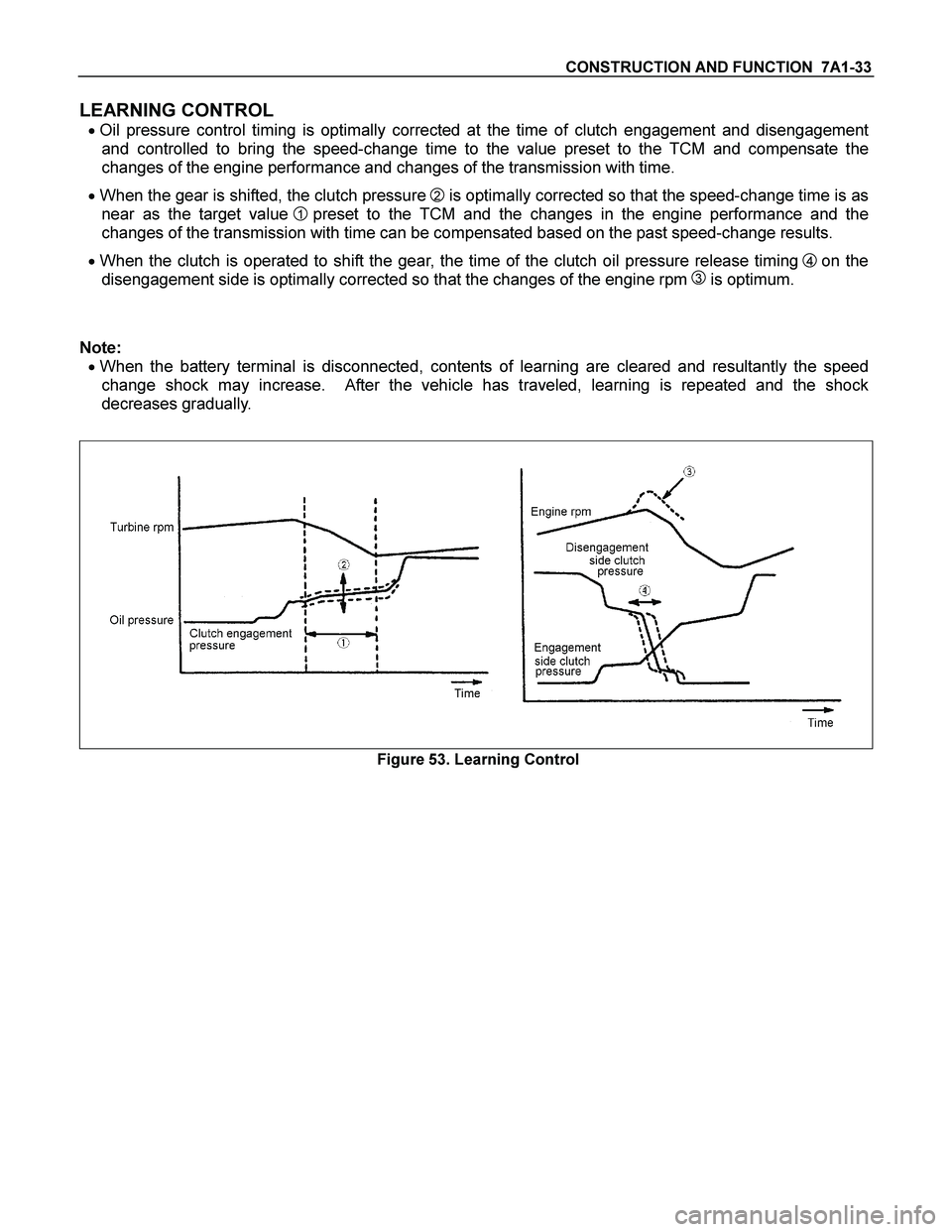

LEARNING CONTROL
Oil pressure control timing is optimally corrected at the time of clutch engagement and disengagement
and controlled to bring the speed-change t

Page 3980 of 4264

ISUZU TF SERIES 2004 Workshop Manual 7A1-34 CONSTRUCTION AND FUNCTION

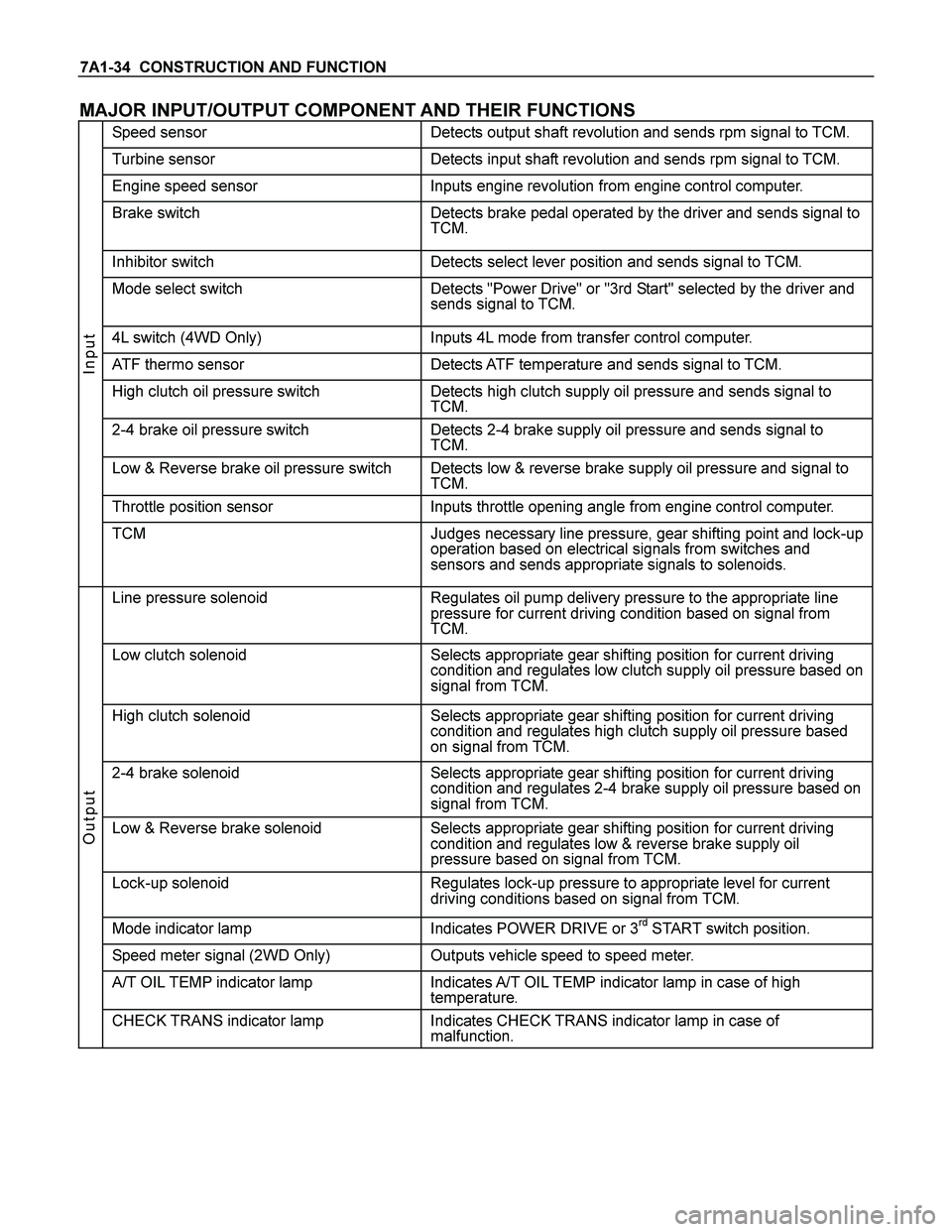

MAJOR INPUT/OUTPUT COMPONENT AND THEIR FUNCTIONS
Speed sensor Detects output shaft revolution and sends rpm signal to TCM.
Turbine sensor Detects input shaft rev

7A1-34 CONSTRUCTION AND FUNCTION
MAJOR INPUT/OUTPUT COMPONENT AND THEIR FUNCTIONS
Speed sensor Detects output shaft revolution and sends rpm signal to TCM.
Turbine sensor Detects input shaft revolution and sends rpm signal to TCM.
Engine speed sensor Inputs engine revolution from engine control computer.
Brake switch Detects brake pedal operated by the driver and sends signal to
TCM.
Inhibitor switch Detects select lever position and sends signal to TCM.
Mode select switch Detects "Power Drive" or "3rd Start" selected by the driver and
sends signal to TCM.
4L switch (4WD Only) Inputs 4L mode from transfer control computer.
ATF thermo sensor Detects ATF temperature and sends signal to TCM.
High clutch oil pressure switch Detects high clutch supply oil pressure and sends signal to
TCM.
2-4 brake oil pressure switch Detects 2-4 brake supply oil pressure and sends signal to
TCM.
Low & Reverse brake oil pressure switch Detects low & reverse brake supply oil pressure and signal to
TCM.
Throttle position sensor Inputs throttle opening angle from engine control computer.
Input
TCM Judges necessary line pressure, gear shifting point and lock-up
operation based on electrical signals from switches and
sensors and sends appropriate signals to solenoids.
Line pressure solenoid Regulates oil pump delivery pressure to the appropriate line
pressure for current driving condition based on signal from
TCM.
Low clutch solenoid Selects appropriate gear shifting position for current driving
condition and regulates low clutch supply oil pressure based on
signal from TCM.
High clutch solenoid Selects appropriate gear shifting position for current driving
condition and regulates high clutch supply oil pressure based
on signal from TCM.
2-4 brake solenoid Selects appropriate gear shifting position for current driving
condition and regulates 2-4 brake supply oil pressure based on
signal from TCM.
Low & Reverse brake solenoid Selects appropriate gear shifting position for current driving
condition and regulates low & reverse brake supply oil
pressure based on signal from TCM.
Lock-up solenoid Regulates lock-up pressure to appropriate level for current
driving conditions based on signal from TCM.
Mode indicator lamp Indicates POWER DRIVE or 3rd START switch position.
Speed meter signal (2WD Only) Outputs vehicle speed to speed meter.
A/T OIL TEMP indicator lamp Indicates A/T OIL TEMP indicator lamp in case of high
temperature.
Output
CHECK TRANS indicator lamp Indicates CHECK TRANS indicator lamp in case of
malfunction.

Page 3981 of 4264

ISUZU TF SERIES 2004 Workshop Manual CONSTRUCTION AND FUNCTION 7A1-35

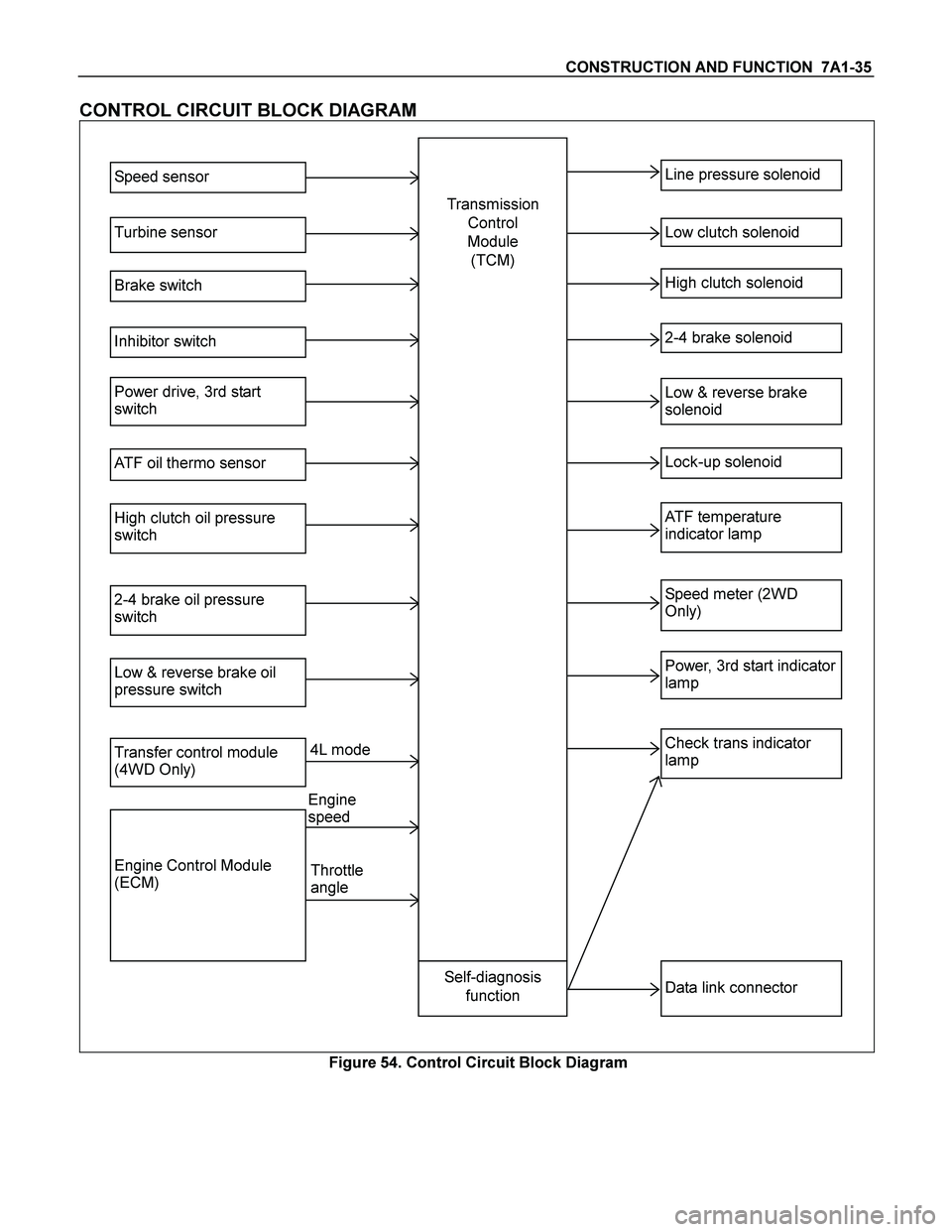

CONTROL CIRCUIT BLOCK DIAGRAM

Speed sensor
Turbine sensor
Brake switch
Inhibitor switch
Power drive, 3rd start
switch
ATF oil thermo sensor
High clutch

Page 3982 of 4264

ISUZU TF SERIES 2004 Workshop Manual 7A1-36 CONSTRUCTION AND FUNCTION

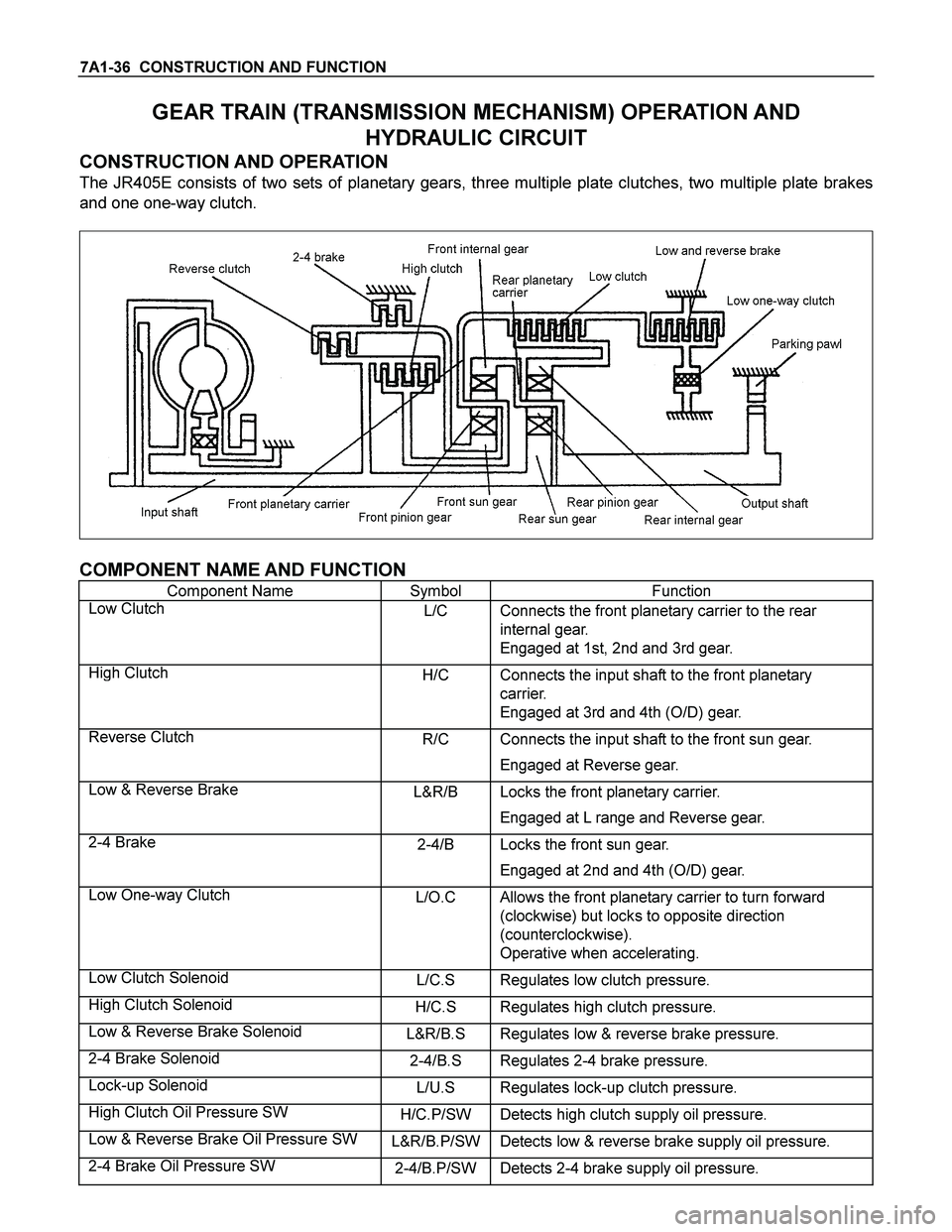

GEAR TRAIN (TRANSMISSION MECHANISM) OPERATION AND
HYDRAULIC CIRCUIT
CONSTRUCTION AND OPERATION
The JR405E consists of two sets of planetary gears, three multiple

Page 3983 of 4264

ISUZU TF SERIES 2004 Workshop Manual CONSTRUCTION AND FUNCTION 7A1-37

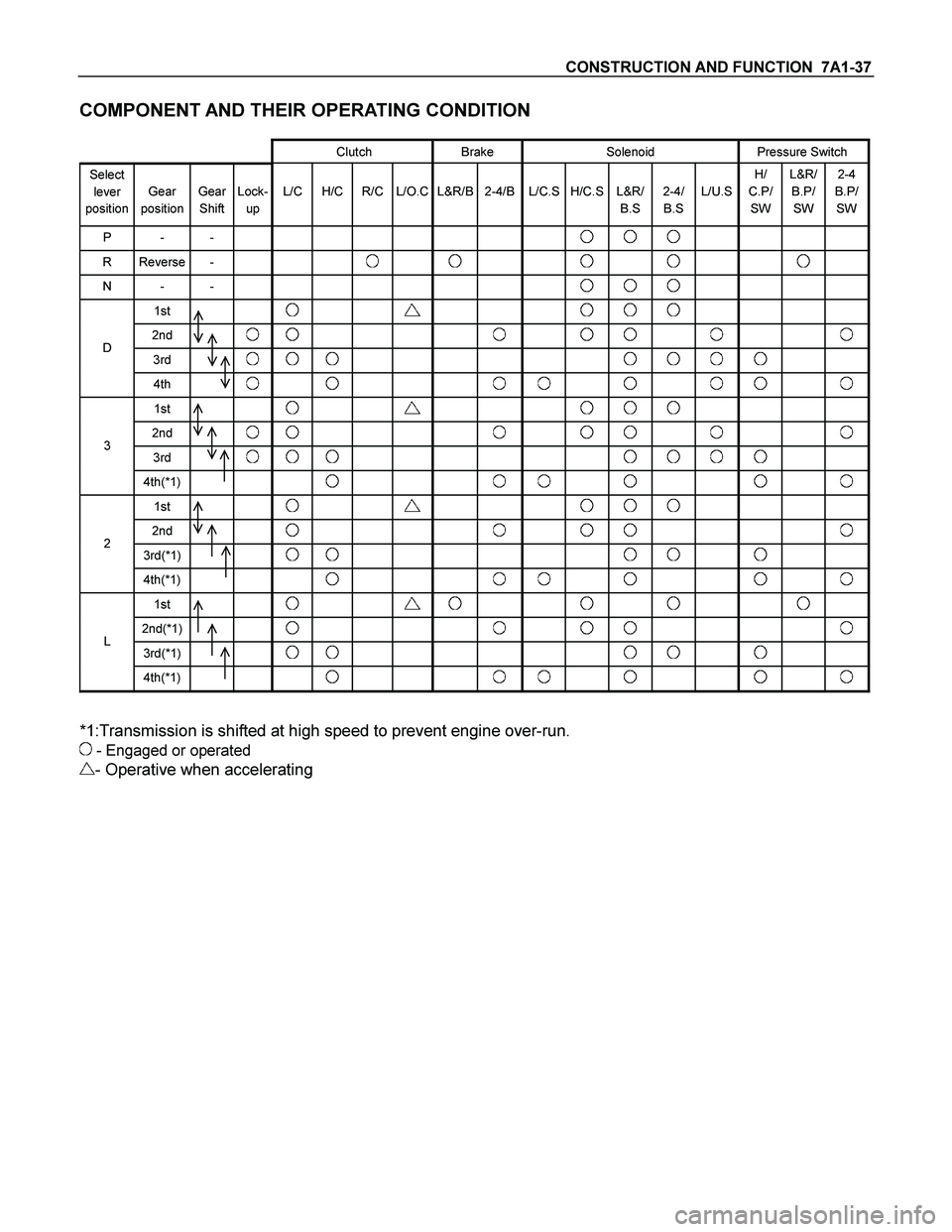

COMPONENT AND THEIR OPERATING CONDITION

Clutch Brake Solenoid Pressure Switch
Select
lever
position
Gear
position
Gear
Shift
Lock-
up
L/C
H/C

Page 3984 of 4264

ISUZU TF SERIES 2004 Workshop Manual 7A1-38 CONSTRUCTION AND FUNCTION

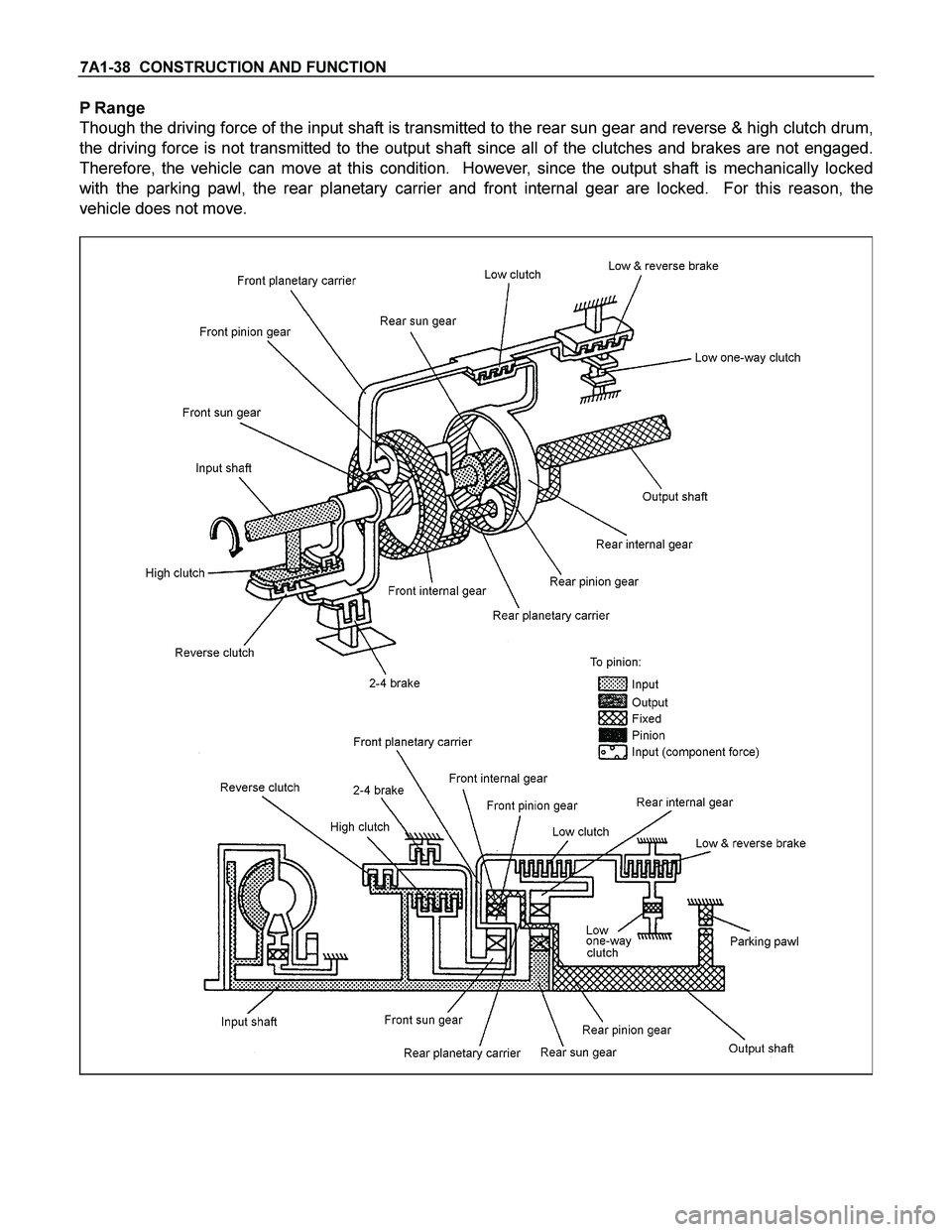

P Range
Though the driving force of the input shaft is transmitted to the rear sun gear and reverse & high clutch drum,
the driving force is not transmitted to the
