Page 1985 of 4264

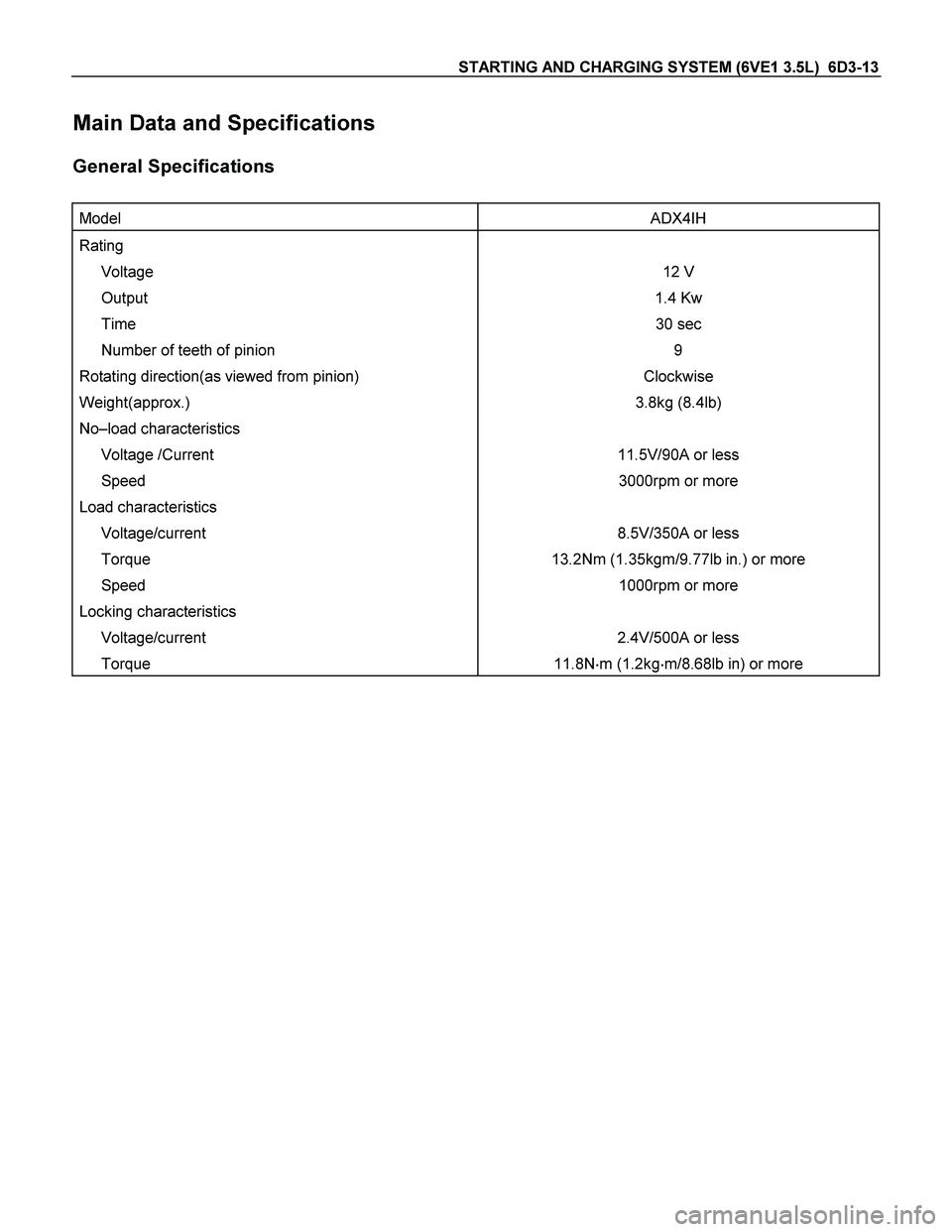

ISUZU TF SERIES 2004 Workshop Manual STARTING AND CHARGING SYSTEM (6VE1 3.5L) 6D3-13 Main Data and Specifications General Specifications Model ADX4IH Rating Voltage 12 V Output 1.4 Kw Time 30 sec Number of teeth of pinion

Page 1986 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6D3-14 STARTING AND CHARGING SYSTEM (6VE1 3.5L) Torque Specifications N  m (kg  m/lb ft) RTW46DLF000101

Page 1987 of 4264

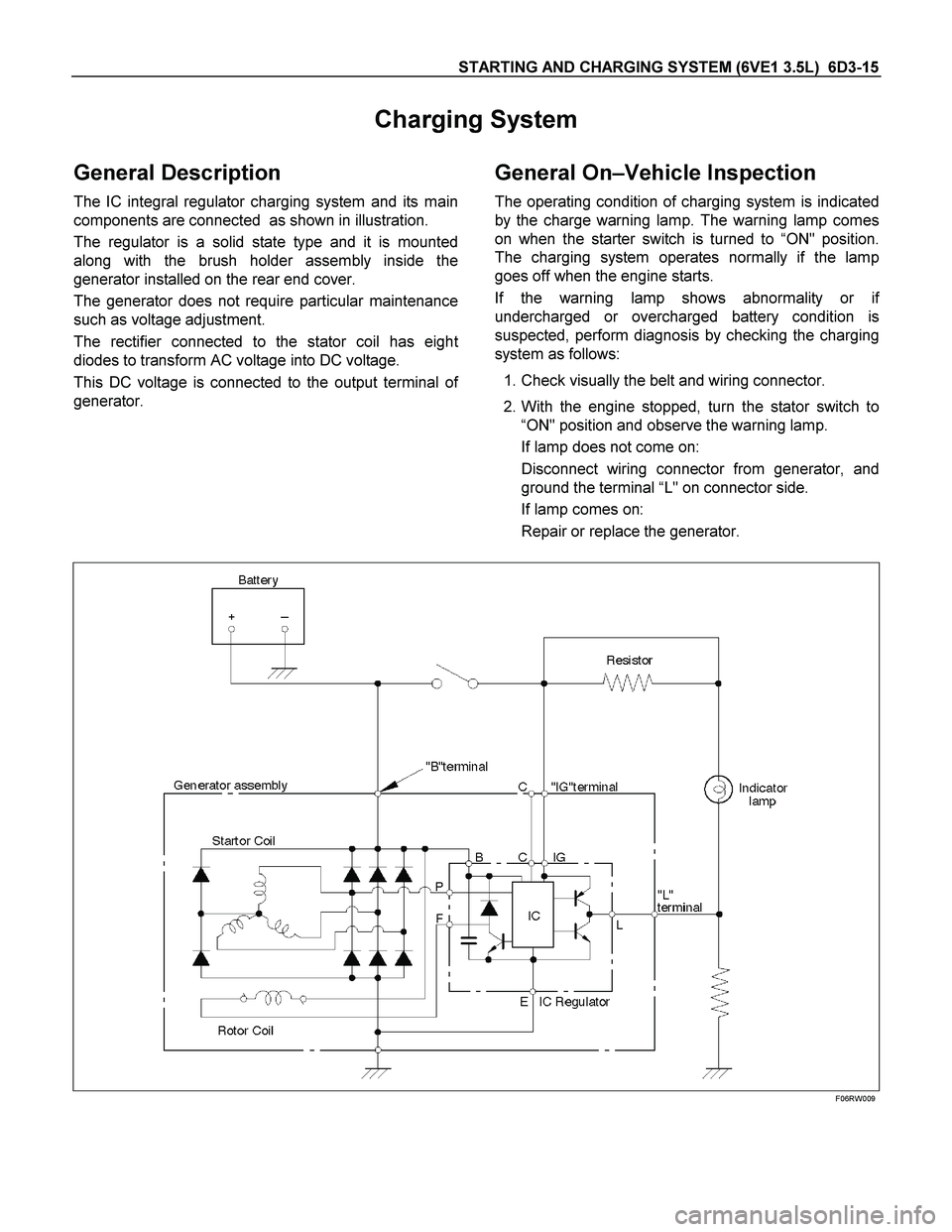

ISUZU TF SERIES 2004 Workshop Manual STARTING AND CHARGING SYSTEM (6VE1 3.5L) 6D3-15 Charging System General Description The IC integral regulator charging system and its main components are connected as shown in illustration. The

Page 1988 of 4264

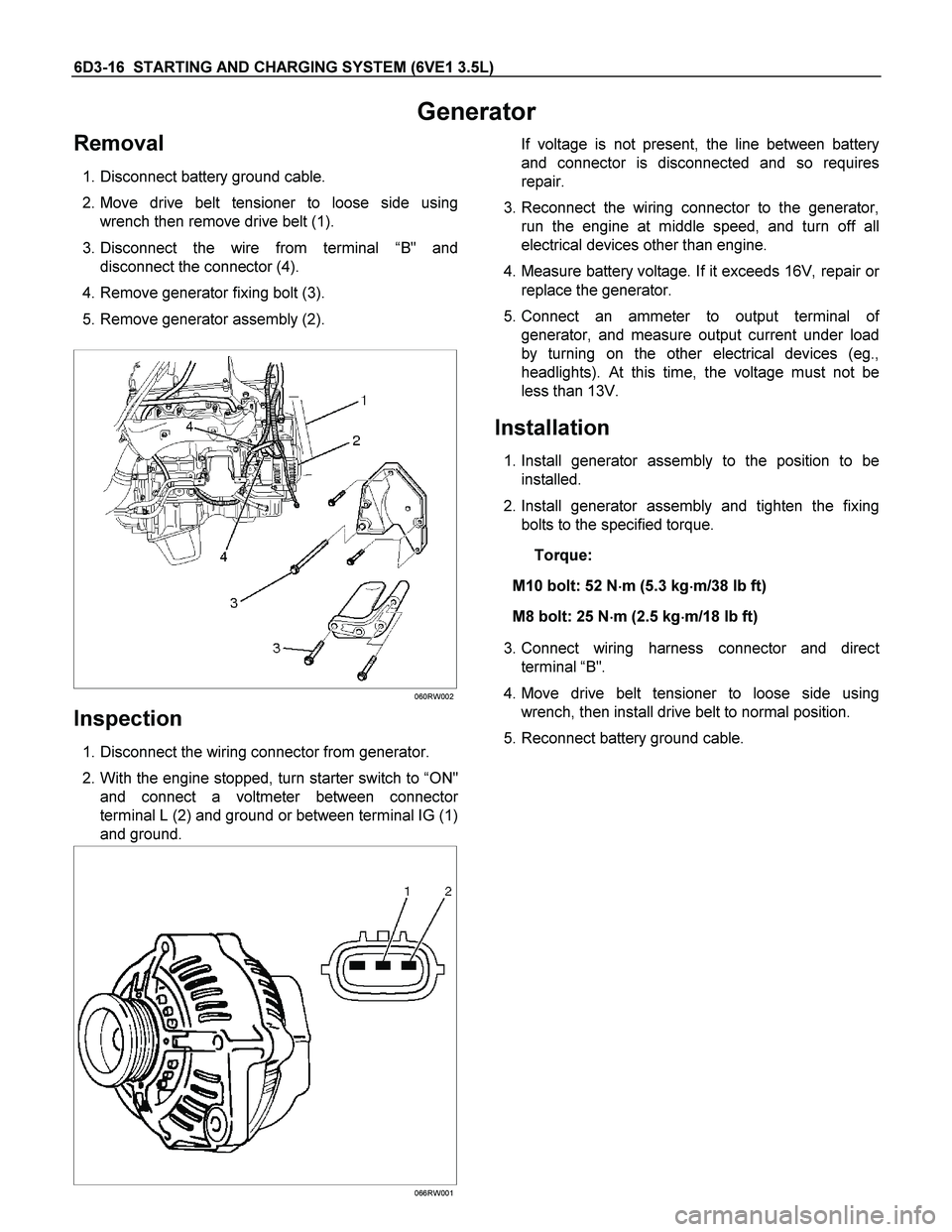

ISUZU TF SERIES 2004 Workshop Manual 6D3-16 STARTING AND CHARGING SYSTEM (6VE1 3.5L) Generator Removal 1. Disconnect battery ground cable. 2. Move drive belt tensioner to loose side using wrench then remove drive belt (1). 3. Di

Page 1989 of 4264

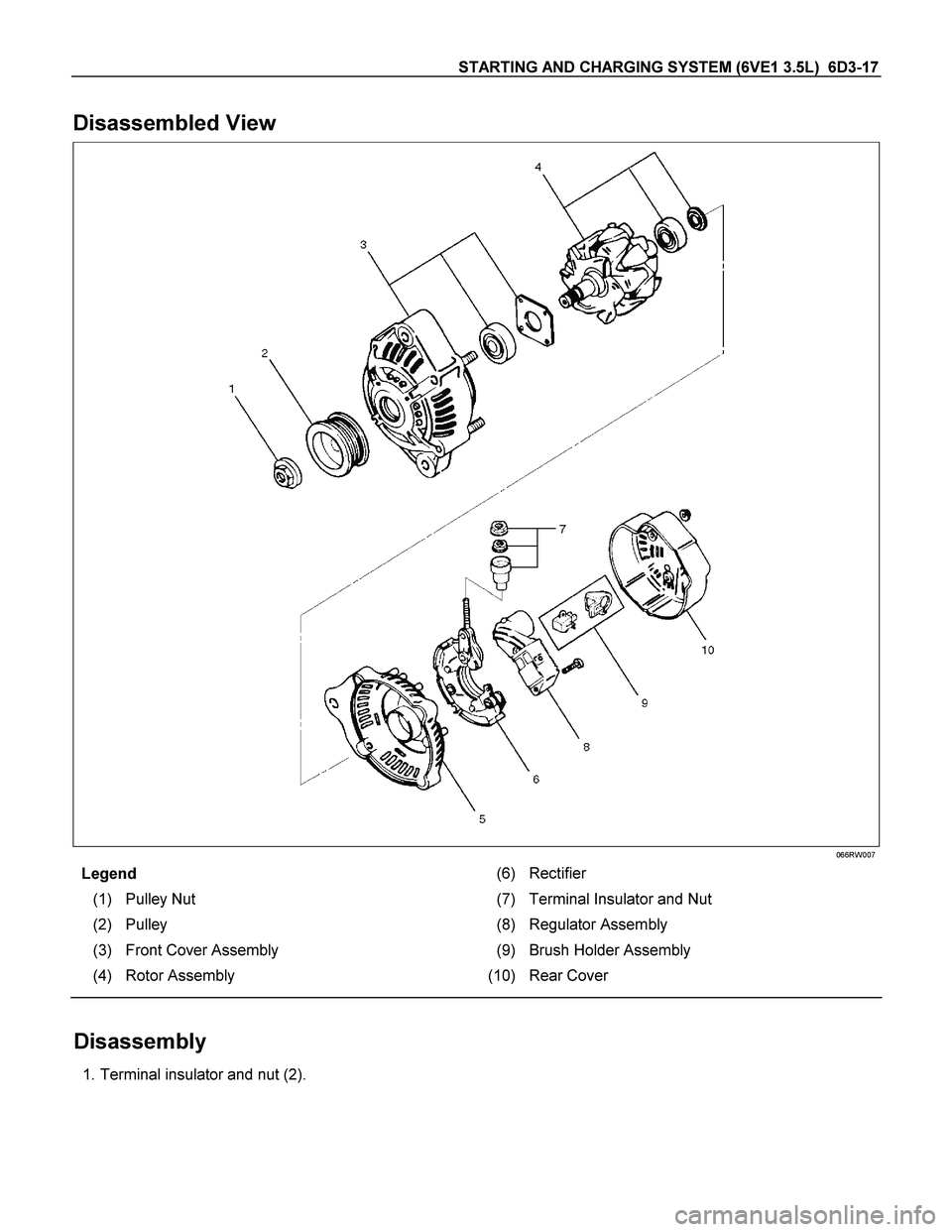

ISUZU TF SERIES 2004 Workshop Manual STARTING AND CHARGING SYSTEM (6VE1 3.5L) 6D3-17 Disassembled View 066RW007 Legend (6) Rectifier (1) Pulley Nut (7) Terminal Insulator and Nut (2) Pulley (8) Regulator Assembly (3) Fro

Page 1990 of 4264

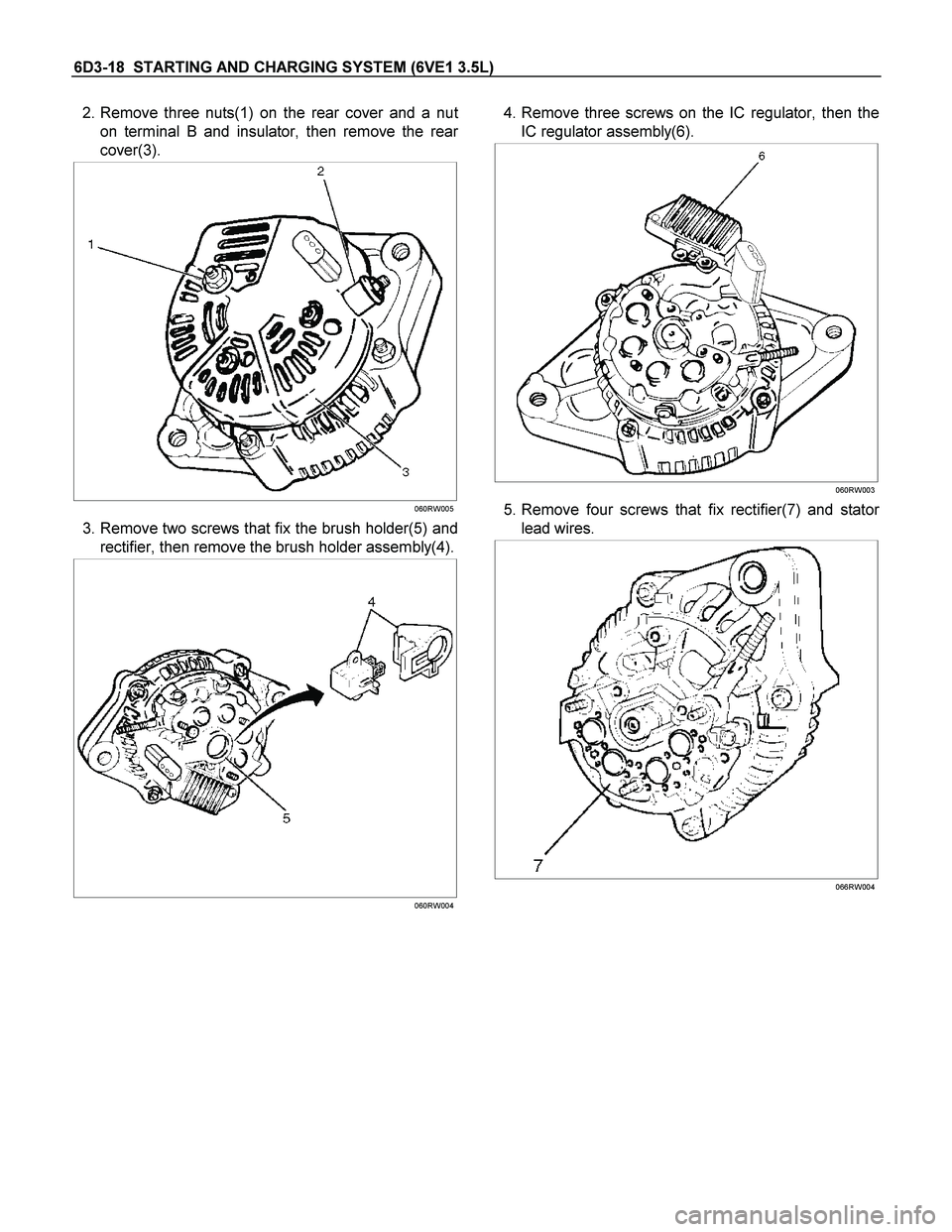

ISUZU TF SERIES 2004 Workshop Manual 6D3-18 STARTING AND CHARGING SYSTEM (6VE1 3.5L) 2. Remove three nuts(1) on the rear cover and a nut on terminal B and insulator, then remove the rear cover(3). 060RW005 3. Remove two screws

Page 1991 of 4264

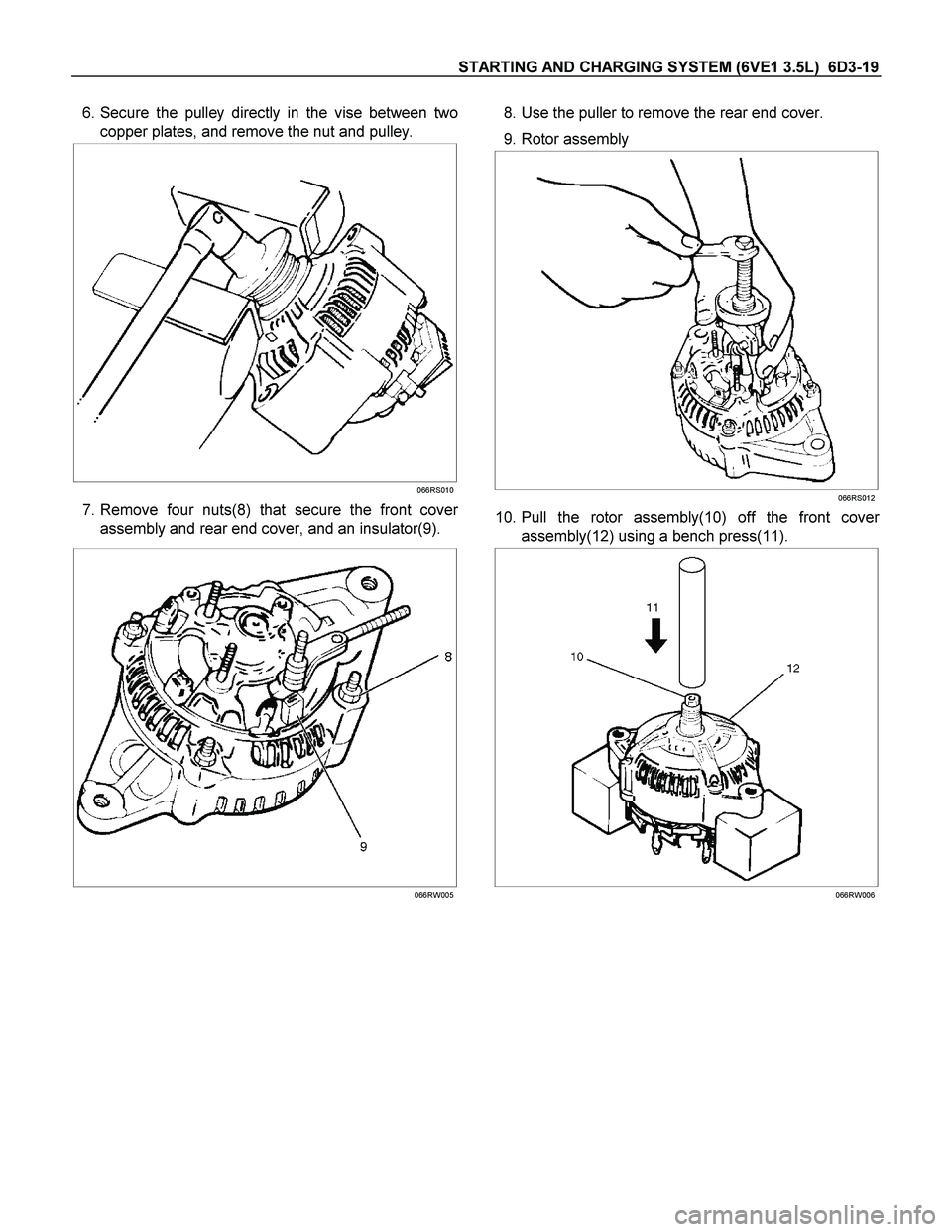

ISUZU TF SERIES 2004 Workshop Manual STARTING AND CHARGING SYSTEM (6VE1 3.5L) 6D3-19 6. Secure the pulley directly in the vise between two copper plates, and remove the nut and pulley. 066RS010 7. Remove four nuts(8) that se

Page 1992 of 4264

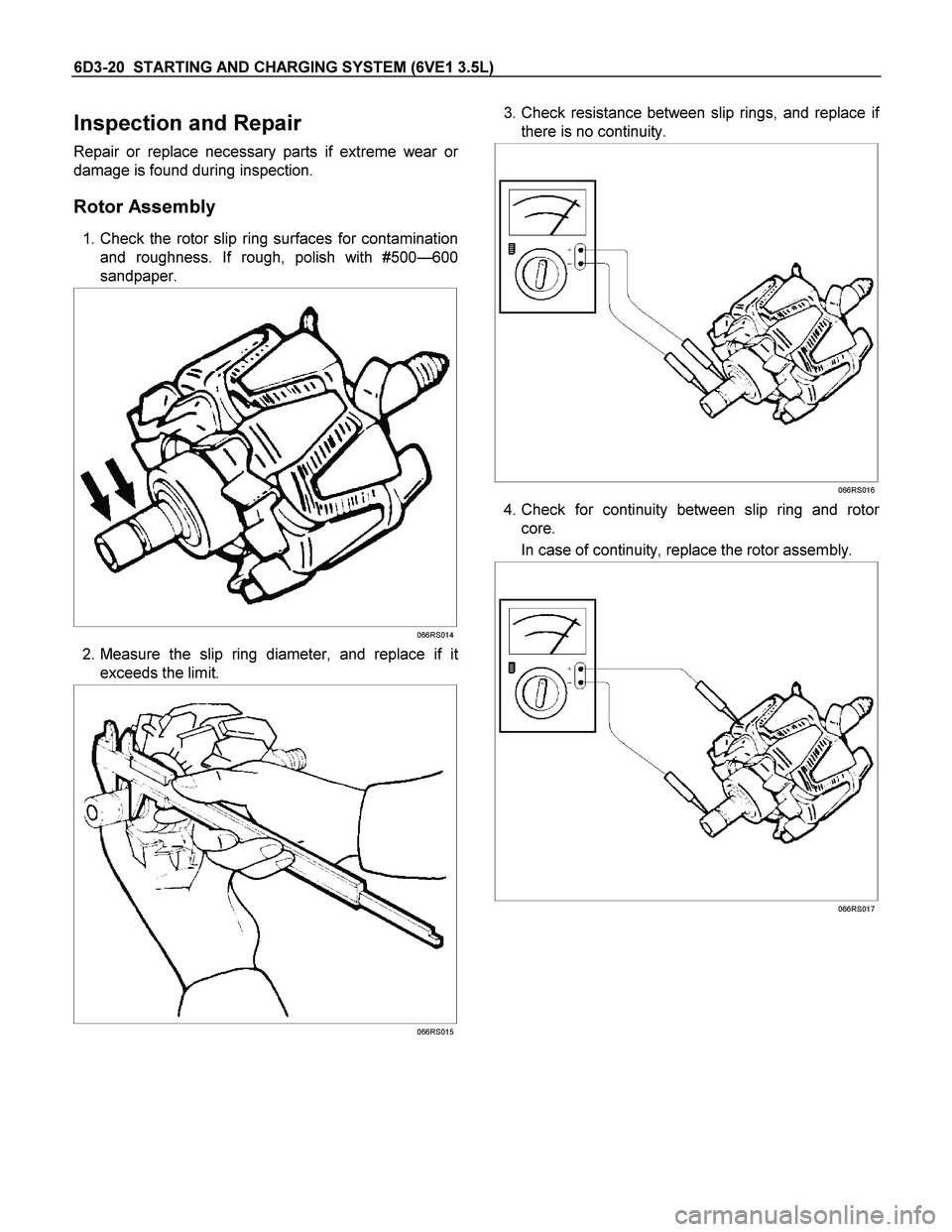

ISUZU TF SERIES 2004 Workshop Manual 6D3-20 STARTING AND CHARGING SYSTEM (6VE1 3.5L) Inspection and Repair Repair or replace necessary parts if extreme wear or damage is found during inspection. Rotor Assembly 1. Check the rotor sl
