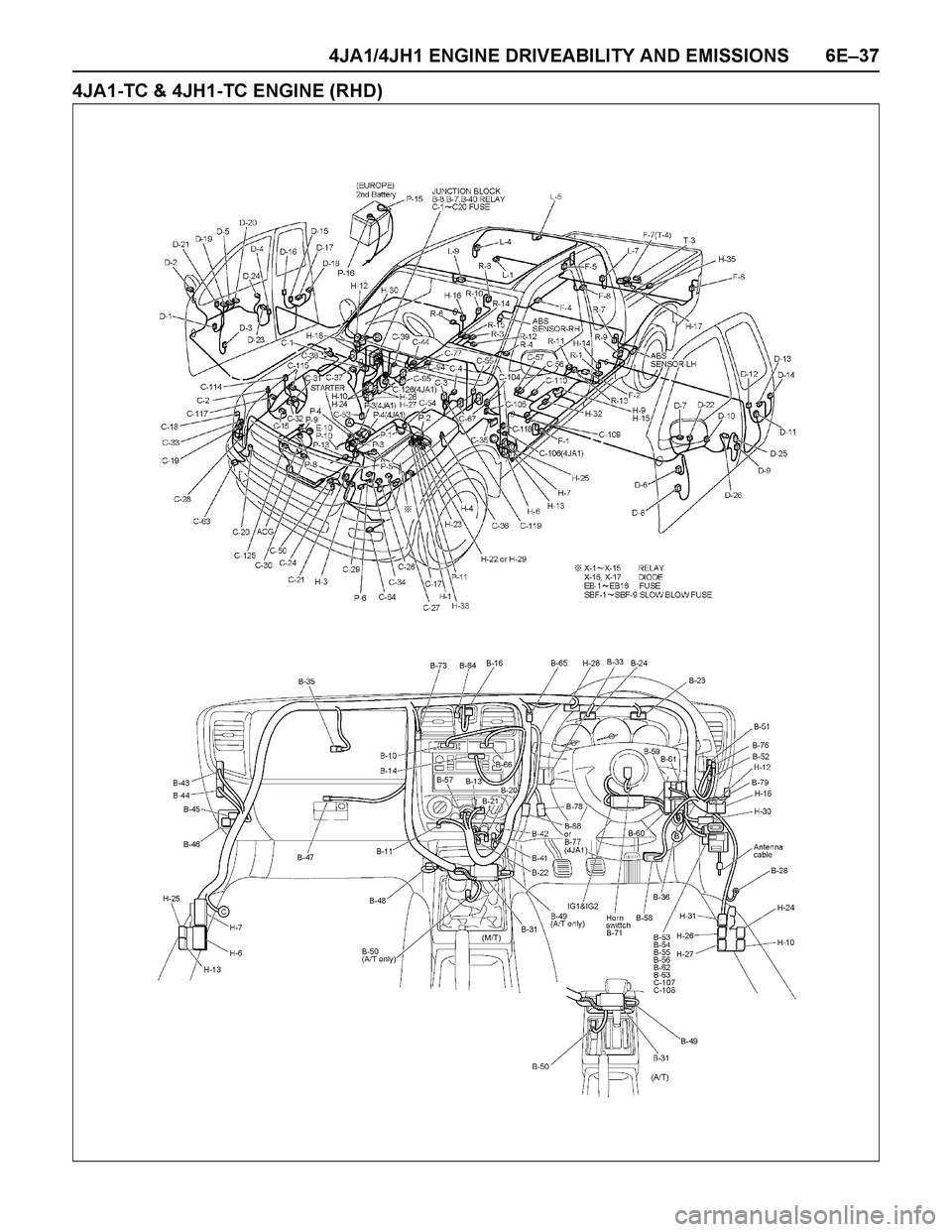

ISUZU TF SERIES 2004 Workshop Manual 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–37 4JA1-TC & 4JH1-TC ENGINE (RHD)

Page 1410 of 4264

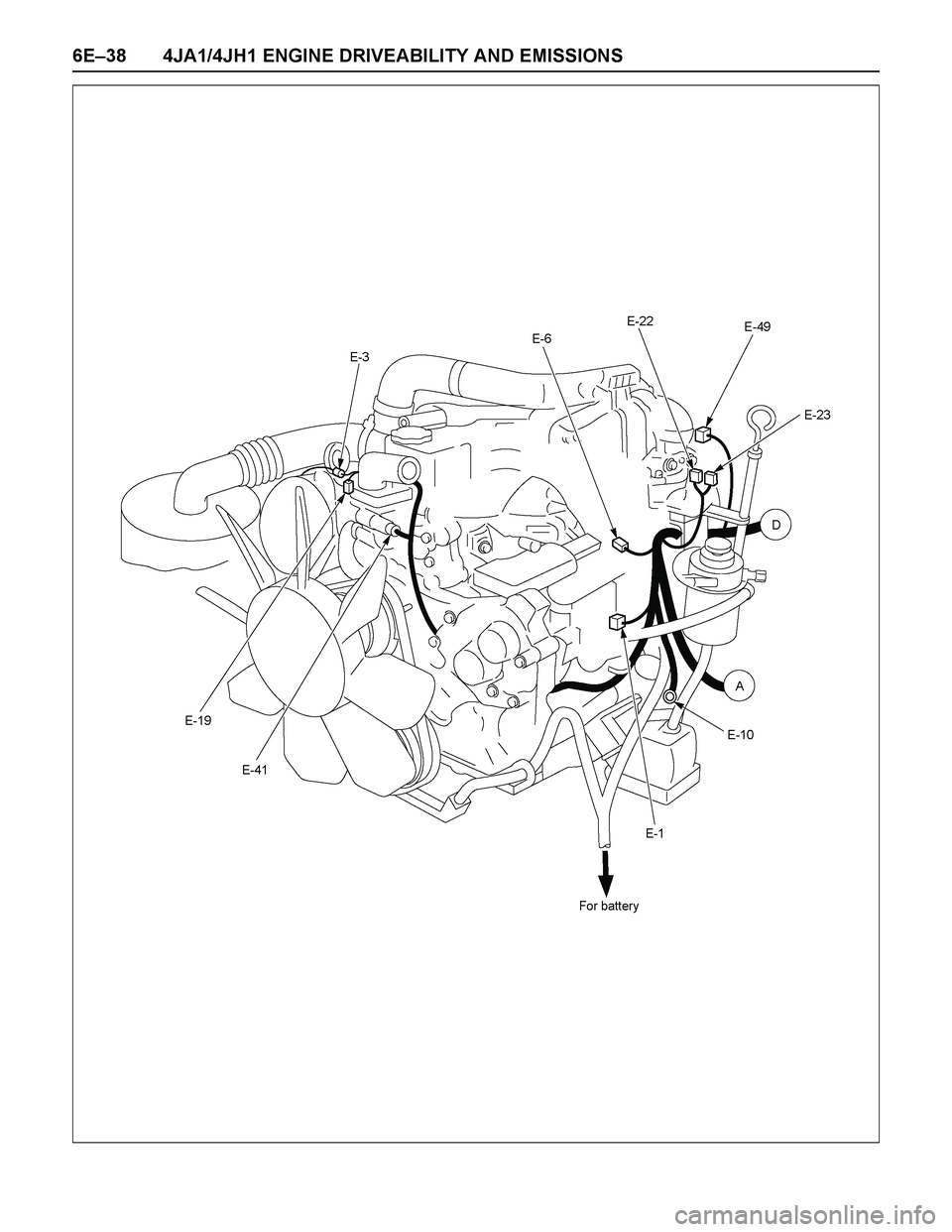

ISUZU TF SERIES 2004 Workshop Manual 6E–38 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS

Page 1411 of 4264

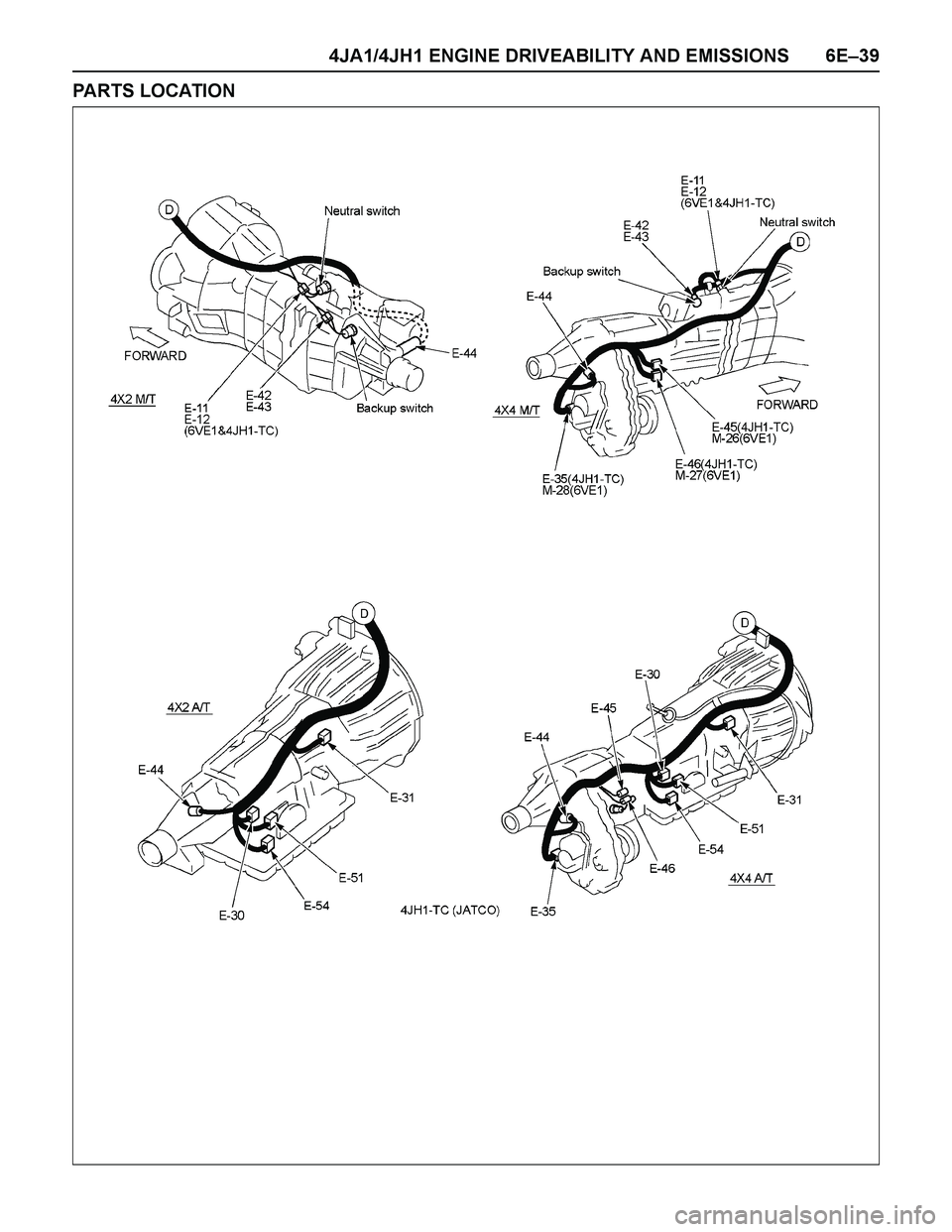

ISUZU TF SERIES 2004 Workshop Manual 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–39 PARTS LOCATION

Page 1412 of 4264

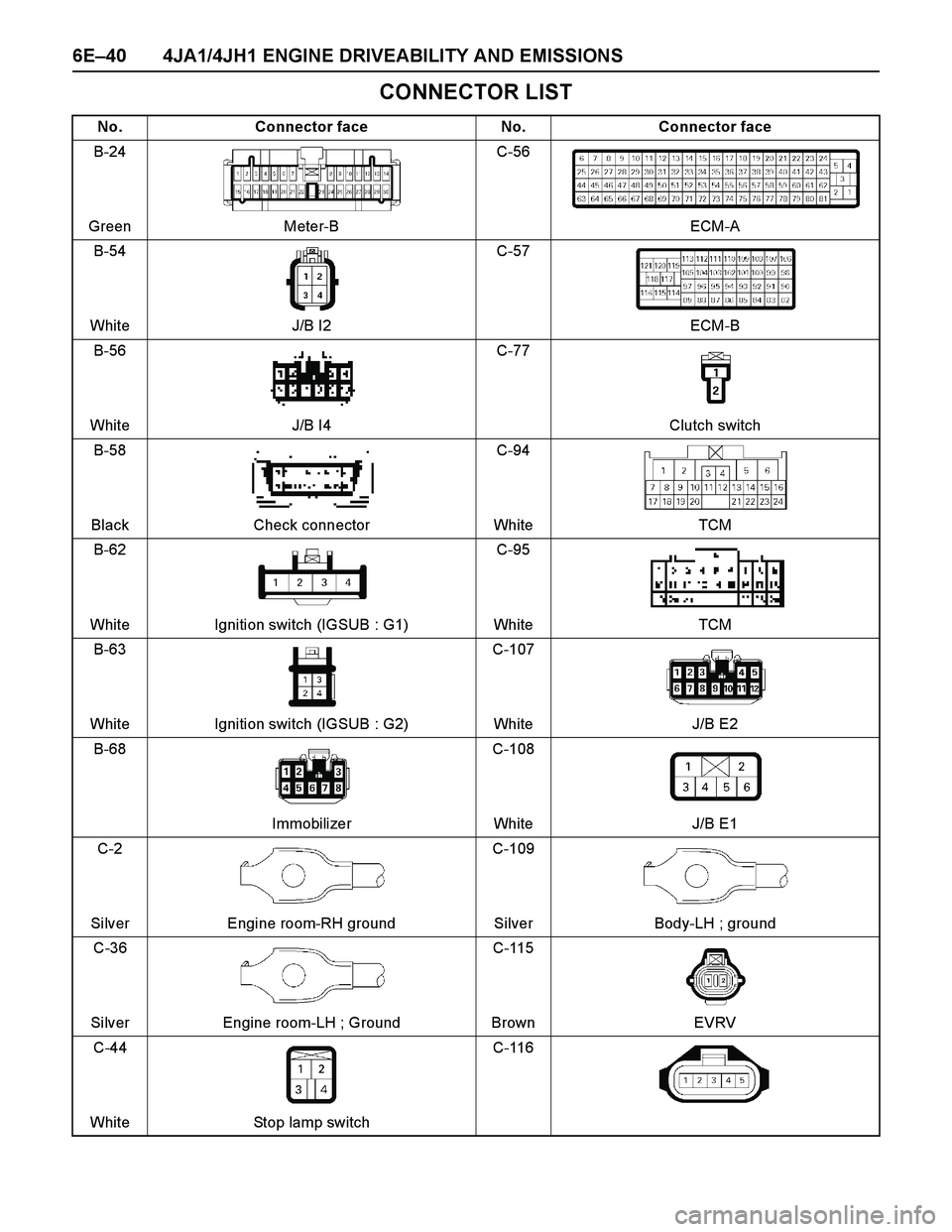

ISUZU TF SERIES 2004 Workshop Manual 6E–40 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS CONNECTOR LIST No. Connector face No. Connector face B-24 Green Meter-BC-56 ECM-A B-54 White J/B I2C-57 ECM-B B-56 White J/B I4C-77 Clutch switch B-

Page 1413 of 4264

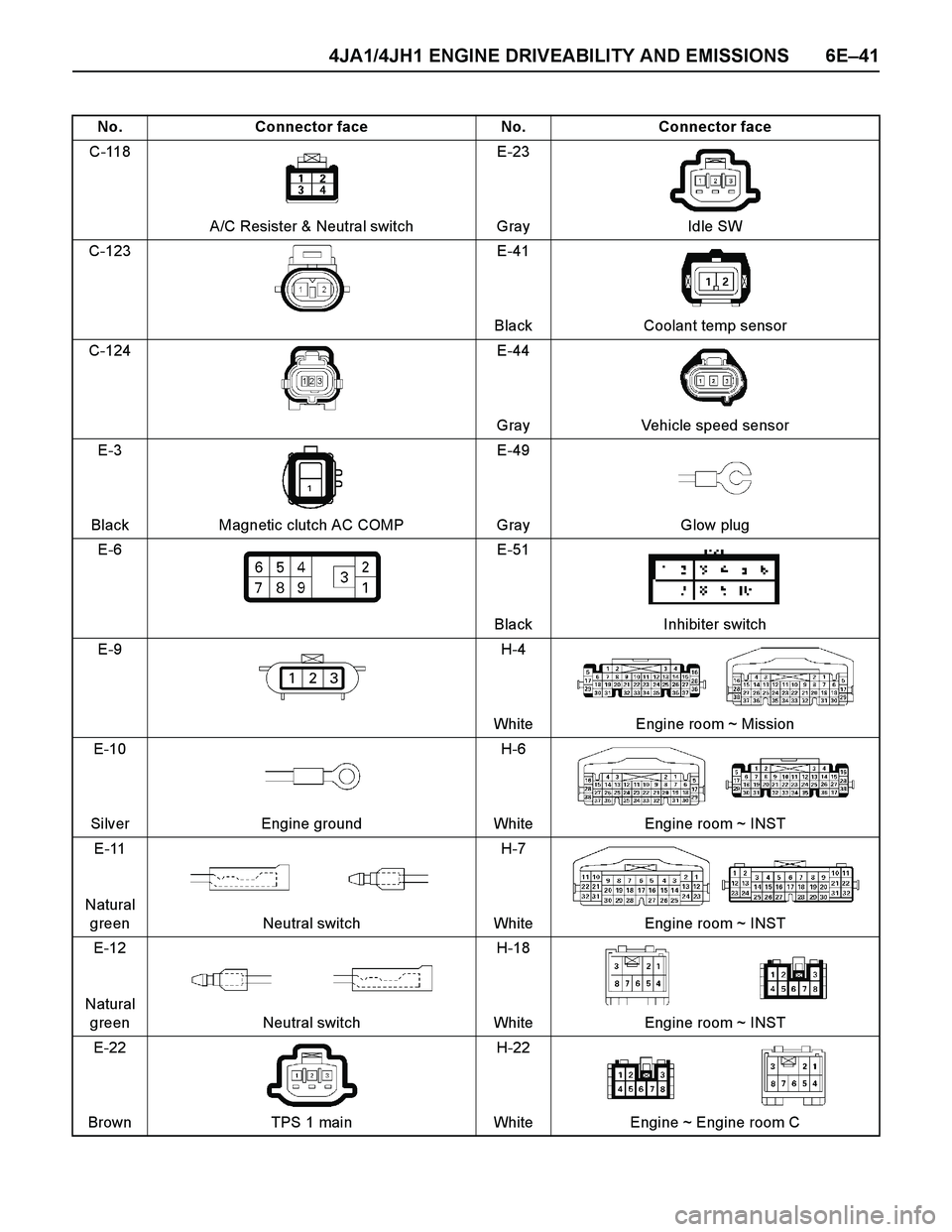

ISUZU TF SERIES 2004 Workshop Manual 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–41 No. Connector face No. Connector face C-118 A/C Resister & Neutral switchE-23 Gray Idle SW C-123 E-41 Black Coolant temp sensor C-124 E-44 Gray Vehi

Page 1414 of 4264

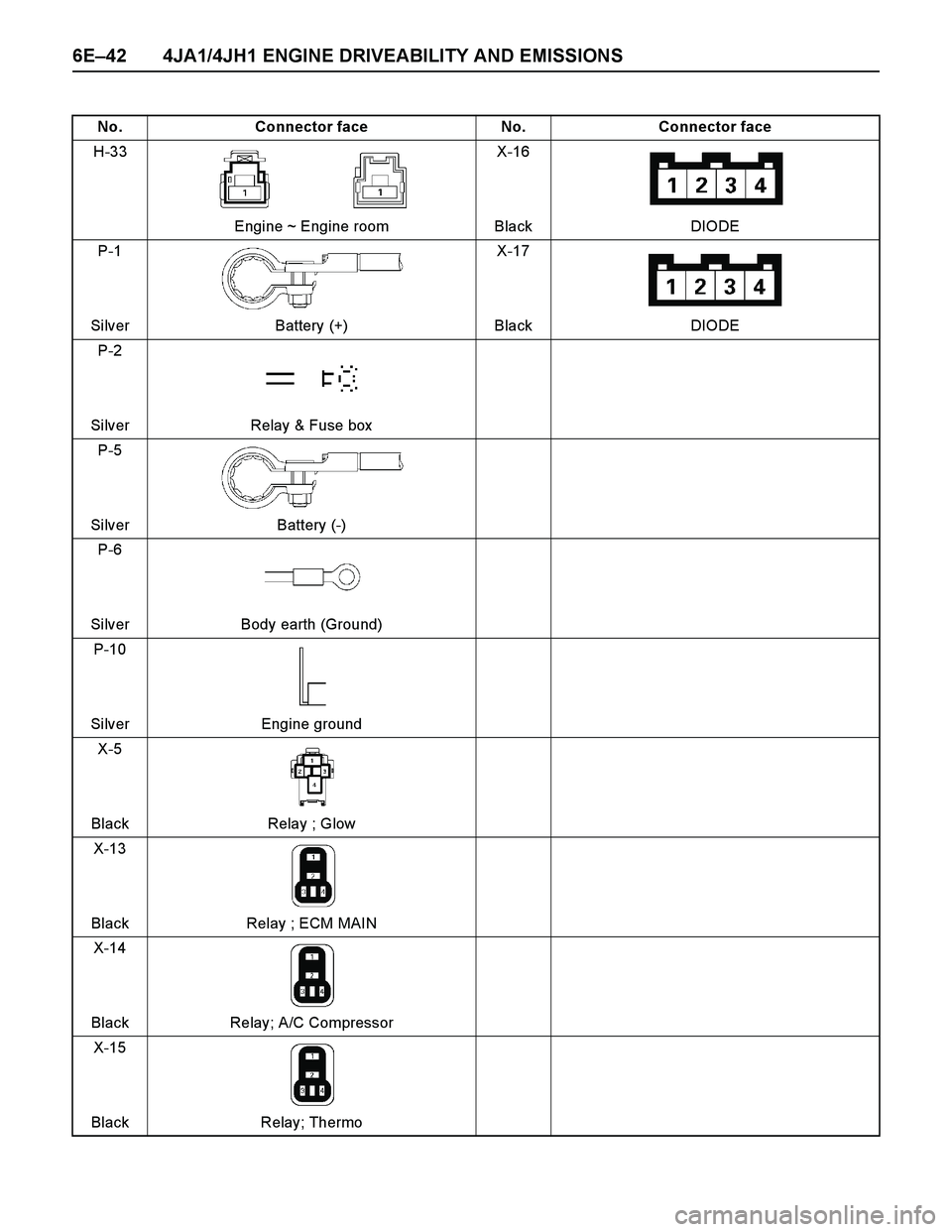

ISUZU TF SERIES 2004 Workshop Manual 6E–42 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS No. Connector face No. Connector face H-33 Engine ~ Engine roomX-16 Black DIODE P-1 Silver Battery (+)X-17 Black DIODE P-2 Silver Relay & Fuse box P

Page 1415 of 4264

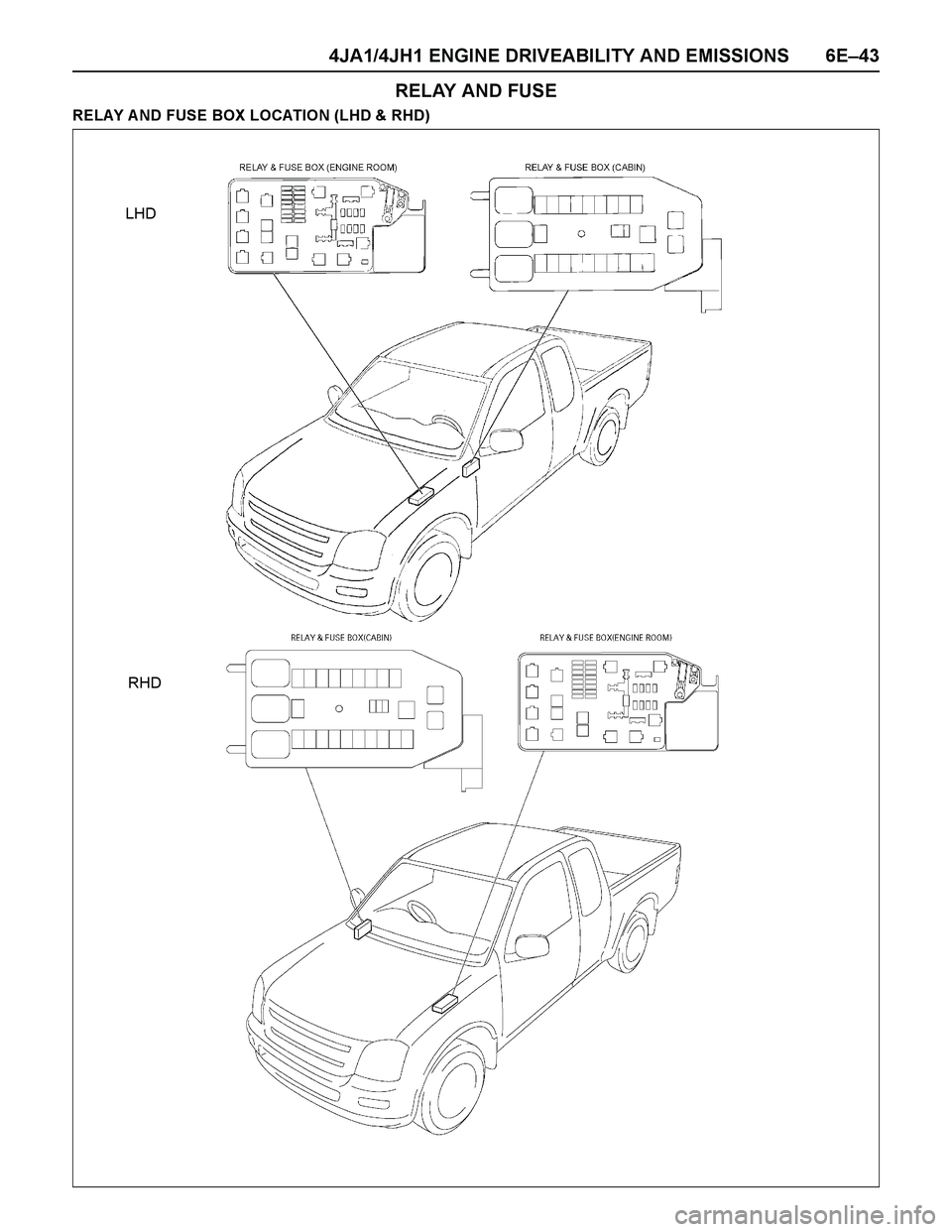

ISUZU TF SERIES 2004 Workshop Manual 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–43 RELAY AND FUSE RELAY A ND FUSE BOX LOCATION (LHD & RHD) LHD RHD

Page 1416 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6E–44 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS RELAY A ND FUSE BOX LOCATION (LHD & RHD) RELAY & FUSE BOX RELAY No .RELAY (4JA1-TC/4JH1-TC) X -1 RELAY; TAIL LIGHT X -2 RELAY; FRT F OG LI GHT X -
