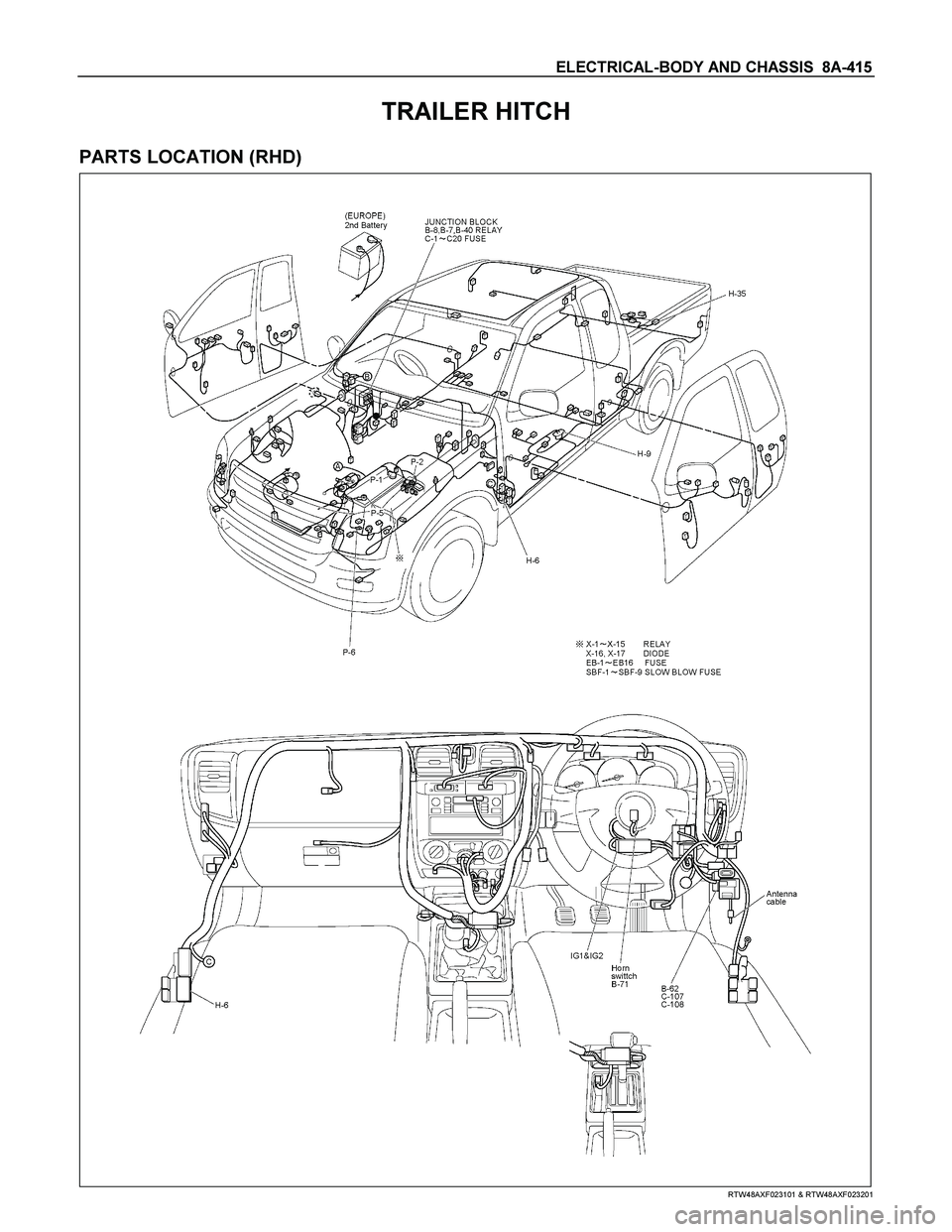

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-415 TRAILER HITCH PARTS LOCATION (RHD) RTW48AXF023101 & RTW48AXF023201

Page 1074 of 4264

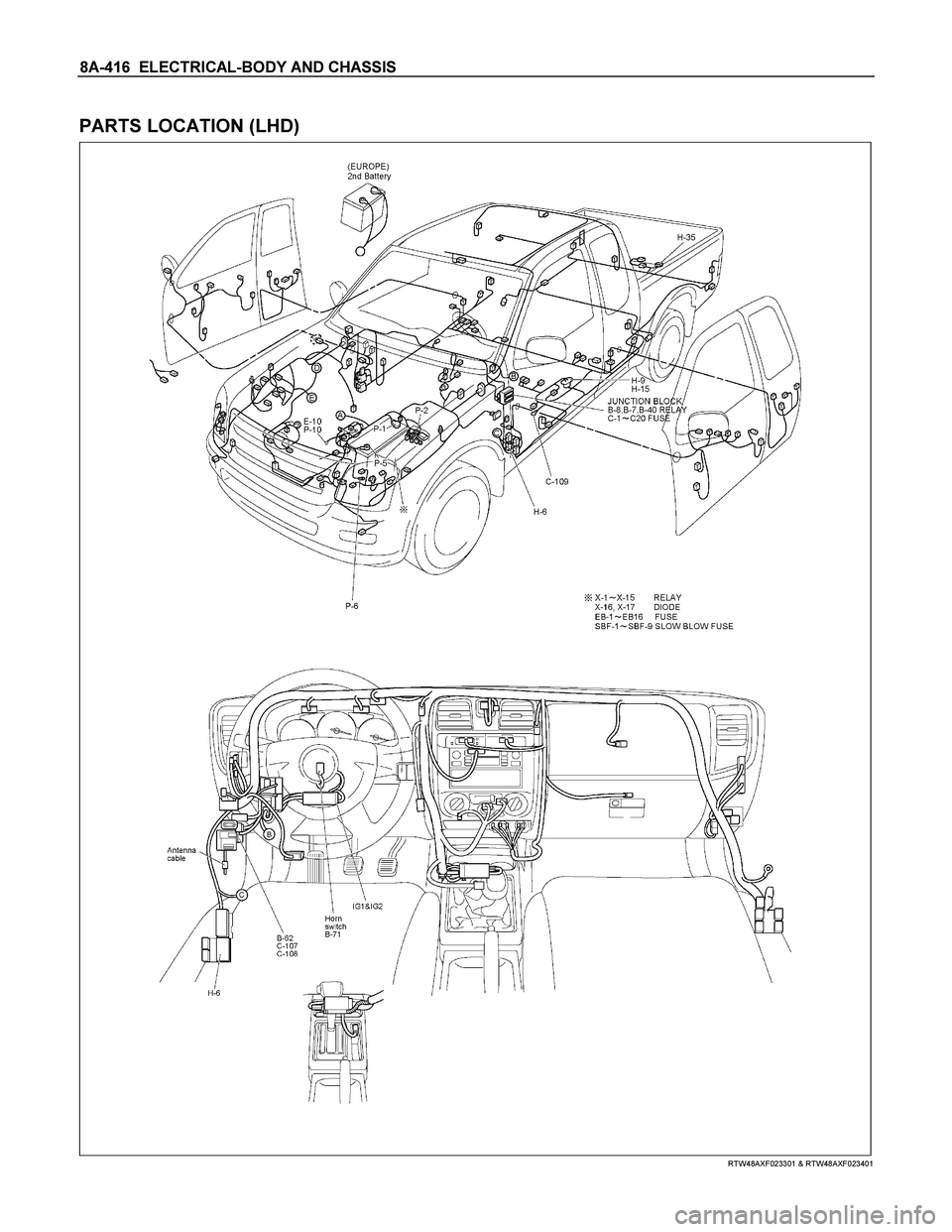

ISUZU TF SERIES 2004 Workshop Manual 8A-416 ELECTRICAL-BODY AND CHASSIS PARTS LOCATION (LHD) RTW48AXF023301 & RTW48AXF023401

Page 1075 of 4264

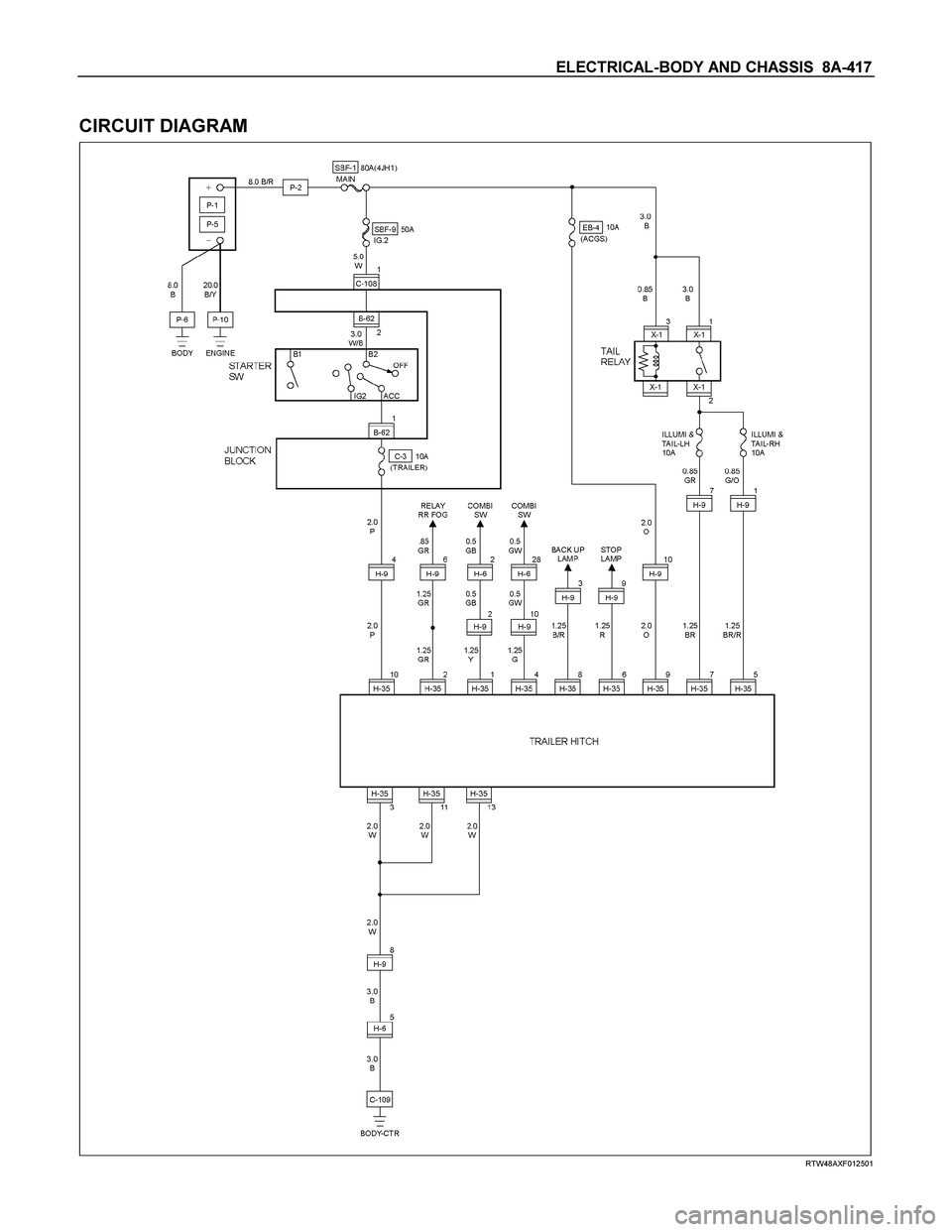

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-417 CIRCUIT DIAGRAM RTW48AXF012501

Page 1076 of 4264

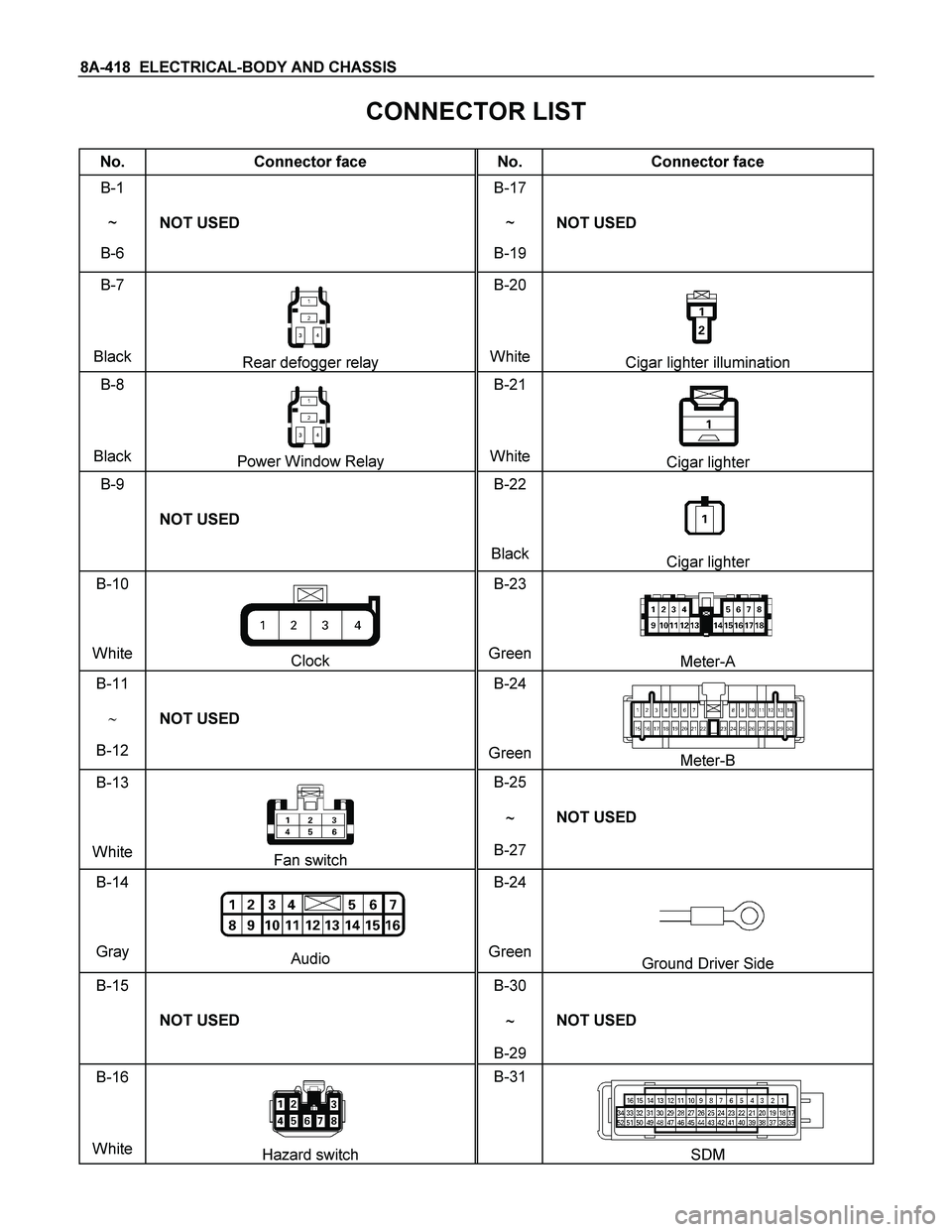

ISUZU TF SERIES 2004 Workshop Manual 8A-418 ELECTRICAL-BODY AND CHASSIS CONNECTOR LIST No. Connector face No. Connector face B-1 ~ B-6 NOT USED B-17 ~ B-19 NOT USED B-7 Black Rear defogger relay B-20 WhiteCigar lighter i

Page 1077 of 4264

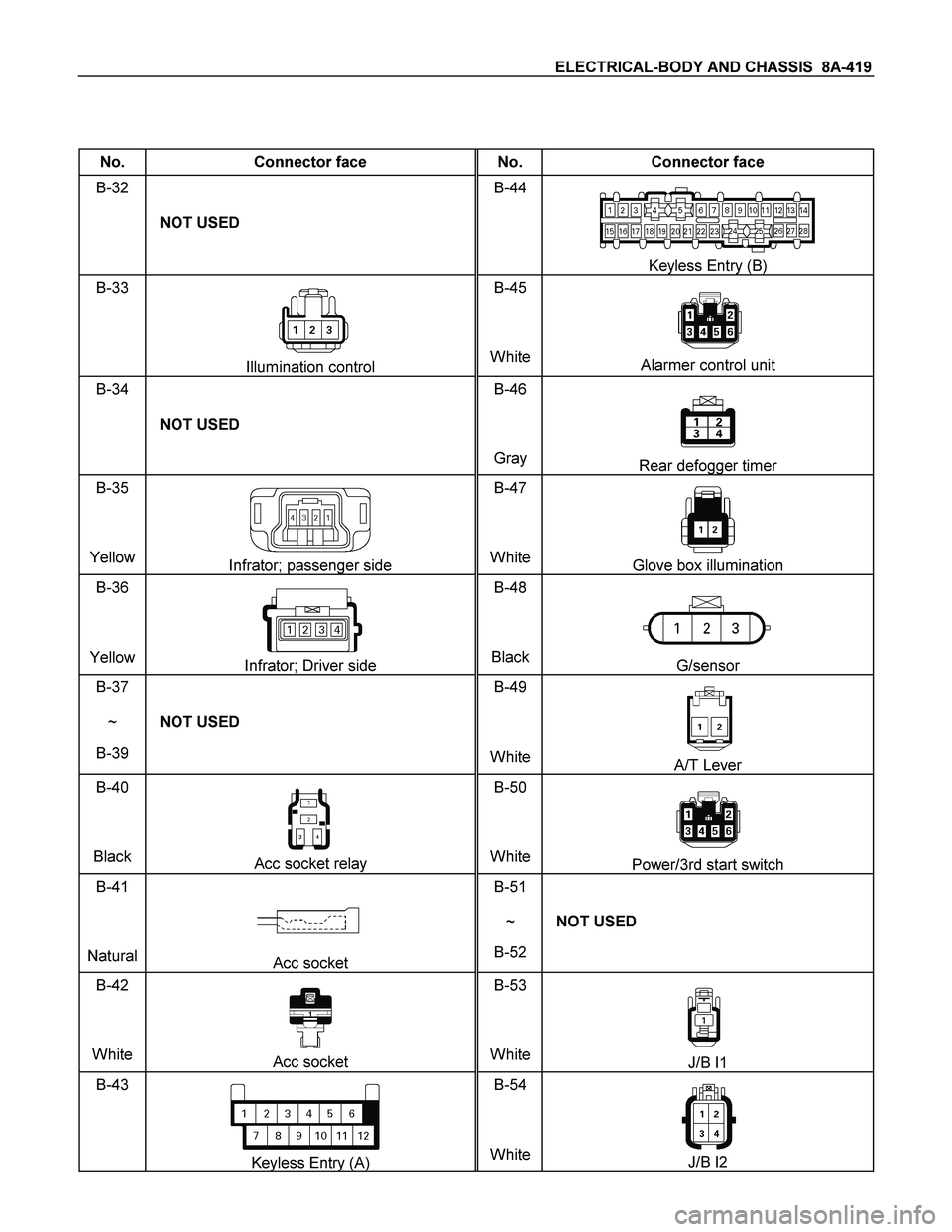

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-419 No. Connector face No. Connector face B-32 NOT USED B-44 Keyless Entry (B) B-33 Illumination control B-45 WhiteAlarmer control unit B-34 NOT U

Page 1078 of 4264

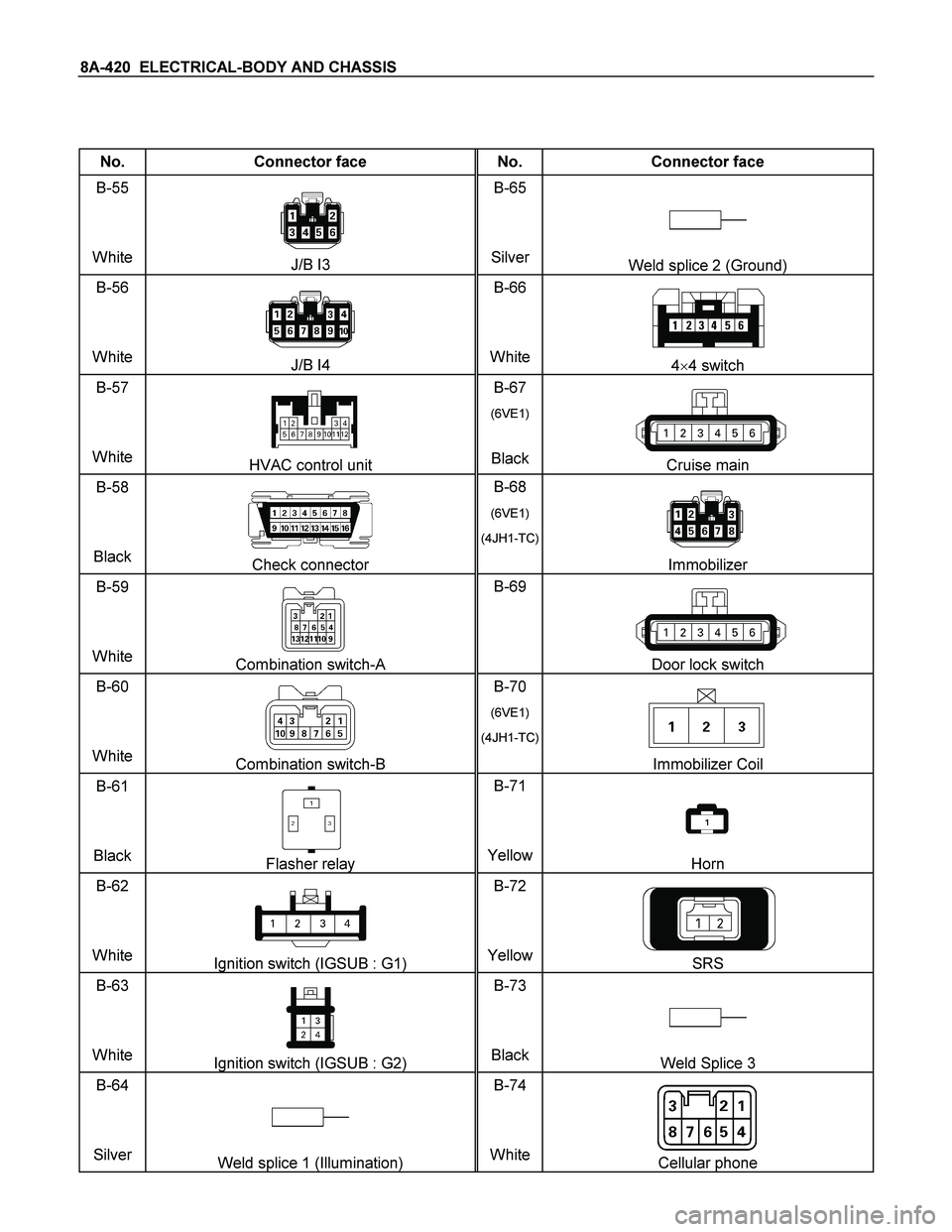

ISUZU TF SERIES 2004 Workshop Manual 8A-420 ELECTRICAL-BODY AND CHASSIS No. Connector face No. Connector face B-55 White J/B I3 B-65 SilverWeld splice 2 (Ground) B-56 White J/B I4 B-66 White44 switch B-57 White HVAC

Page 1079 of 4264

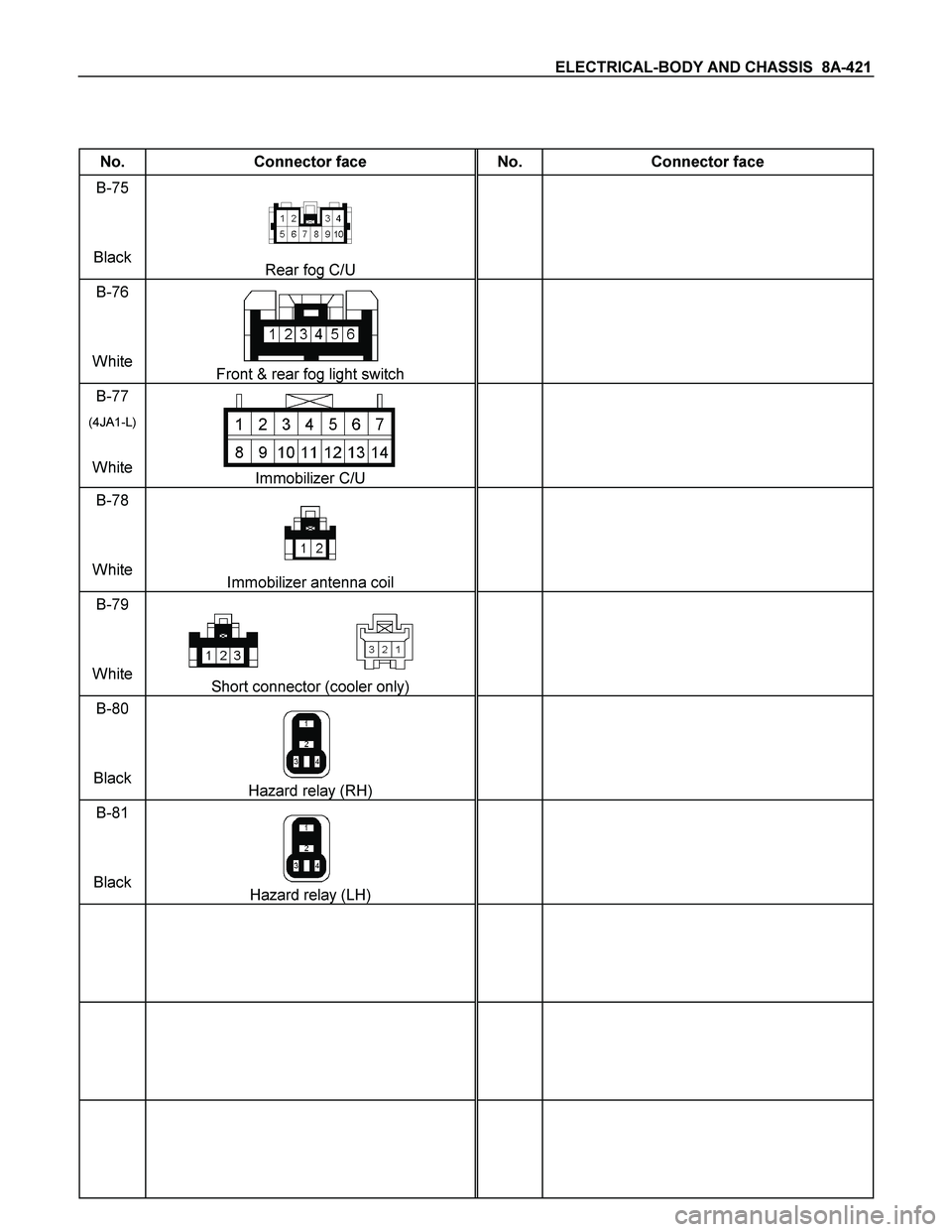

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-421 No. Connector face No. Connector face B-75 Black Rear fog C/U B-76 White Front & rear fog light switch B-77 (4JA1-L) White Immobilizer C/

Page 1080 of 4264

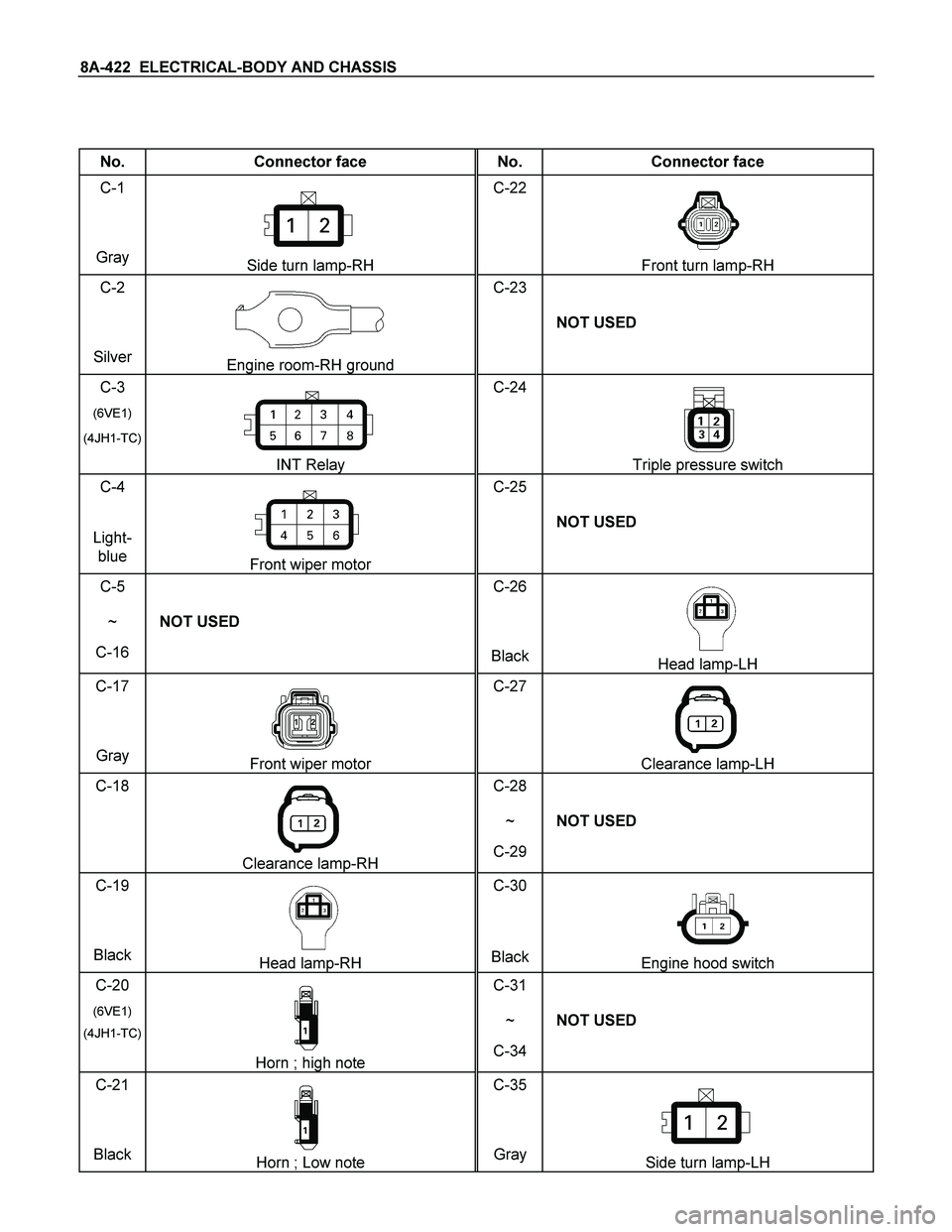

ISUZU TF SERIES 2004 Workshop Manual 8A-422 ELECTRICAL-BODY AND CHASSIS No. Connector face No. Connector face C-1 Gray Side turn lamp-RH C-22 Front turn lamp-RH C-2 Silver Engine room-RH ground C-23 NOT USED C-3 (6VE
