ISUZU TF SERIES 2004 Workshop Manual 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–221
Diagnostic Trouble Code (DTC) P0380 (Symptom Code 8) (Flash Code 66)
Glow Relay Circuit Voltage High
Step Action Value(s) Yes No
1Was the “On-Bo

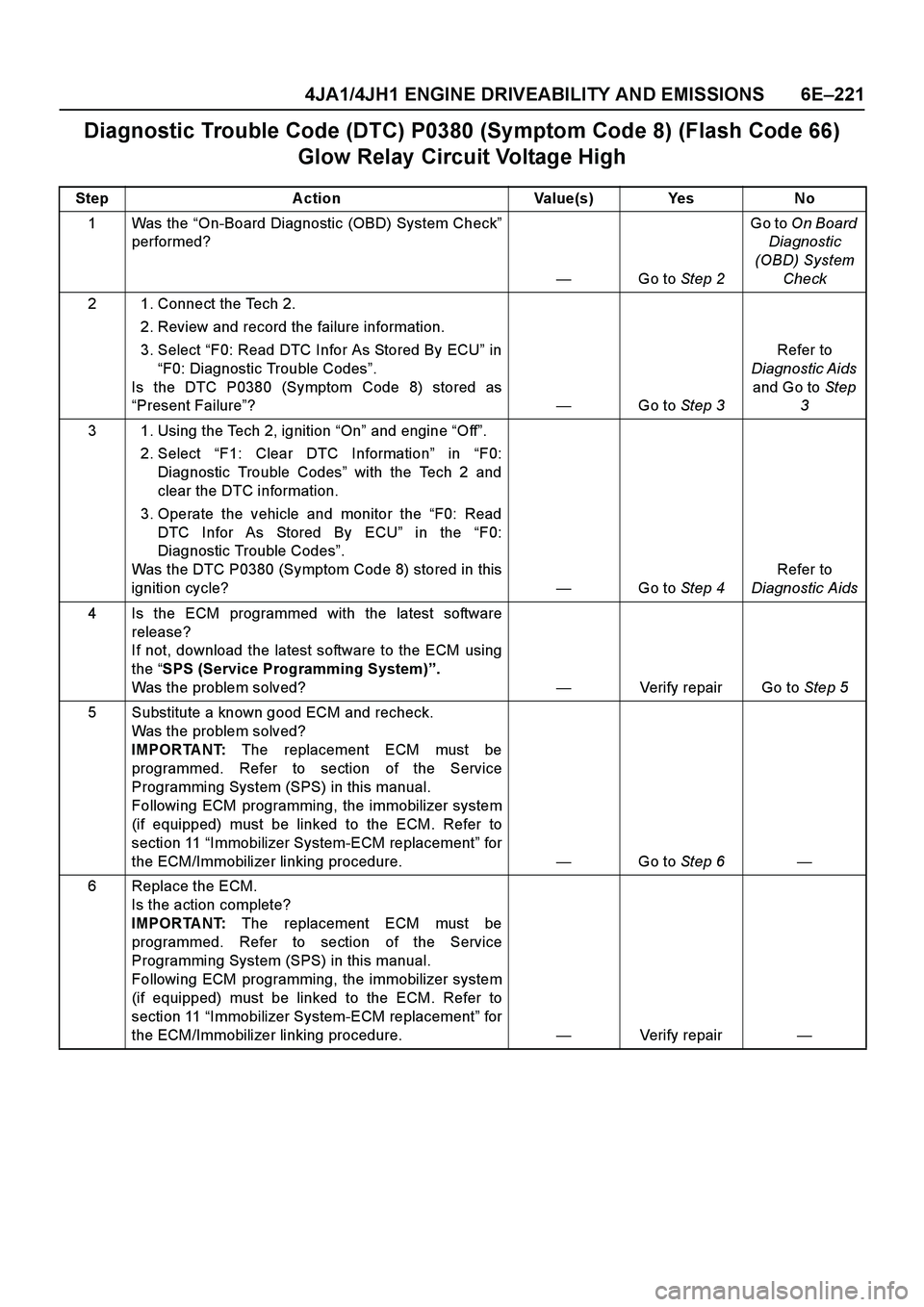

4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–221
Diagnostic Trouble Code (DTC) P0380 (Symptom Code 8) (Flash Code 66)
Glow Relay Circuit Voltage High
Step Action Value(s) Yes No
1Was the “On-Board Diagnostic (OBD) System Check”
performed?
—Go to Step 2Go to On Board
Diagnostic
(OBD) System
Check
2 1. Connect the Tech 2.
2. Review and record the failure information.
3. Select “F0: Read DTC Infor As Stored By ECU” in
“F0: Diagnostic Trouble Codes”.
Is the DTC P0380 (Symptom Code 8) stored as
“Present Failure”?—Go to Step 3Refer to
Diagnostic Aids
and Go to Step
3
3 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Select “F1: Clear DTC Information” in “F0:
Diagnostic Trouble Codes” with the Tech 2 and
clear the DTC information.
3. Operate the vehicle and monitor the “F0: Read
DTC Infor As Stored By ECU” in the “F0:
Diagnostic Trouble Codes”.
Was the DTC P0380 (Symptom Code 8) stored in this
ignition cycle?—Go to Step 4Refer to
Diagnostic Aids
4 Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?—Verify repair Go to Step 5
5 Substitute a known good ECM and recheck.
Was the problem solved?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure. —Go to Step 6—
6 Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure.—Verify repair—

Page 1594 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6E–222 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS

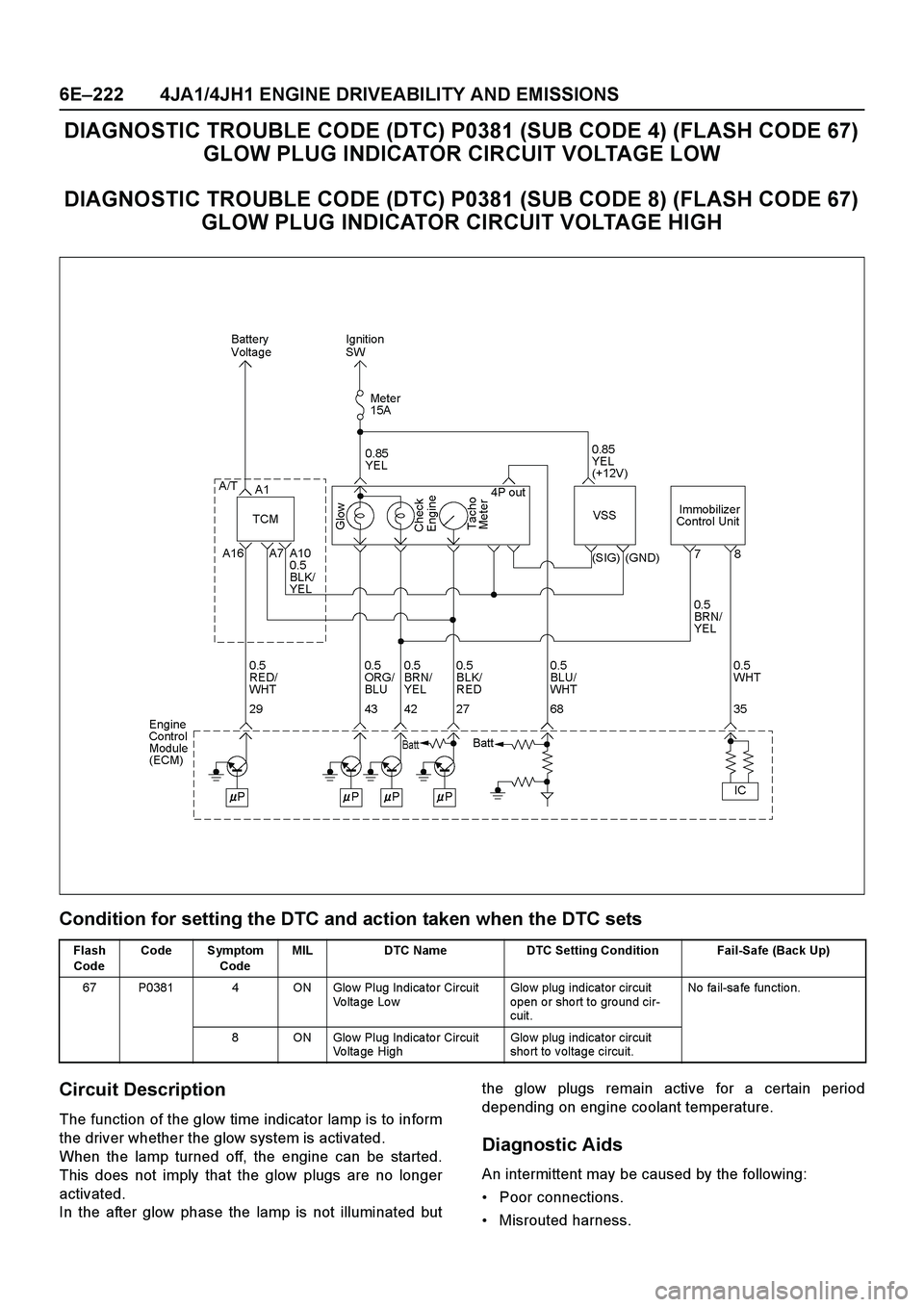

DIAGNOSTIC TROUBLE CODE (DTC) P0381 (SUB CODE 4) (FLASH CODE 67)
GLOW PLUG INDICATOR CIRCUIT VOLTAGE LOW
DIAGNOSTIC TROUBLE CODE (DTC) P0381 (SUB

Page 1595 of 4264

ISUZU TF SERIES 2004 Workshop Manual 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–223
Rubbed through wire insulation.
Broken wire inside the insulation.
Check for the following conditions:
Poor connection at ECM-Inspect harness co

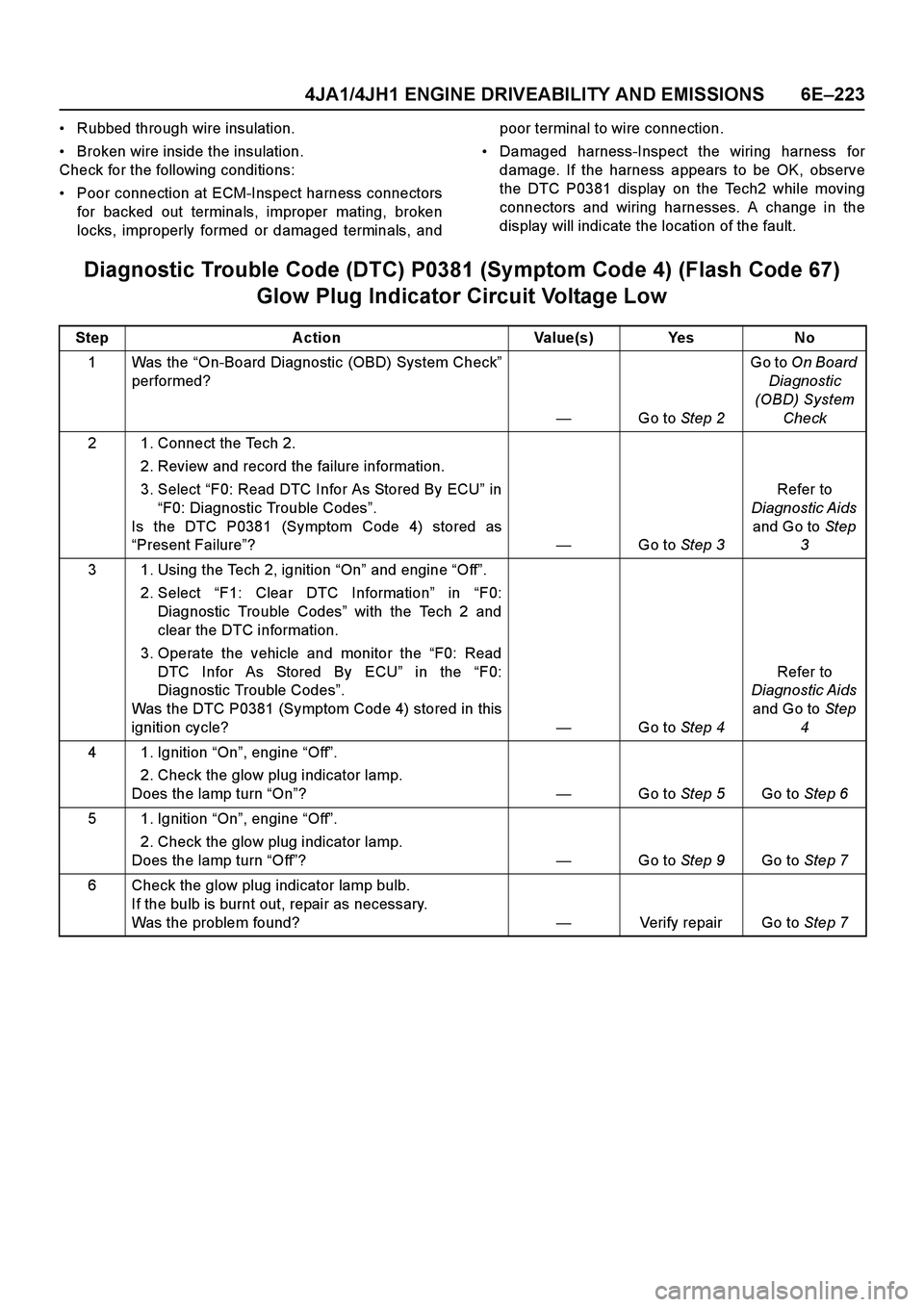

4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–223
Rubbed through wire insulation.
Broken wire inside the insulation.
Check for the following conditions:
Poor connection at ECM-Inspect harness connectors
for backed out terminals, improper mating, broken
locks, improperly formed or damaged terminals, andpoor terminal to wire connection.
Damaged harness-Inspect the wiring harness for
damage. If the harness appears to be OK, observe
the DTC P0381 display on the Tech2 while moving
connectors and wiring harnesses. A change in the
display will indicate the location of the fault.
Diagnostic Trouble Code (DTC) P0381 (Symptom Code 4) (Flash Code 67)
Glow Plug Indicator Circuit Voltage Low
Step Action Value(s) Yes No
1Was the “On-Board Diagnostic (OBD) System Check”
performed?
—Go to Step 2Go to On Board
Diagnostic
(OBD) System
Check
2 1. Connect the Tech 2.
2. Review and record the failure information.
3. Select “F0: Read DTC Infor As Stored By ECU” in
“F0: Diagnostic Trouble Codes”.
Is the DTC P0381 (Symptom Code 4) stored as
“Present Failure”?—Go to Step 3Refer to
Diagnostic Aids
and Go to Step
3
3 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Select “F1: Clear DTC Information” in “F0:
Diagnostic Trouble Codes” with the Tech 2 and
clear the DTC information.
3. Operate the vehicle and monitor the “F0: Read
DTC Infor As Stored By ECU” in the “F0:
Diagnostic Trouble Codes”.
Was the DTC P0381 (Symptom Code 4) stored in this
ignition cycle?—Go to Step 4Refer to
Diagnostic Aids
and Go to Step
4
4 1. Ignition “On”, engine “Off”.
2. Check the glow plug indicator lamp.
Does the lamp turn “On”?—Go to Step 5Go to Step 6
5 1. Ignition “On”, engine “Off”.
2. Check the glow plug indicator lamp.
Does the lamp turn “Off”?—Go to Step 9Go to Step 7
6 Check the glow plug indicator lamp bulb.
If the bulb is burnt out, repair as necessary.
Was the problem found?—Verify repair Go to Step 7

Page 1596 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6E –224 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS

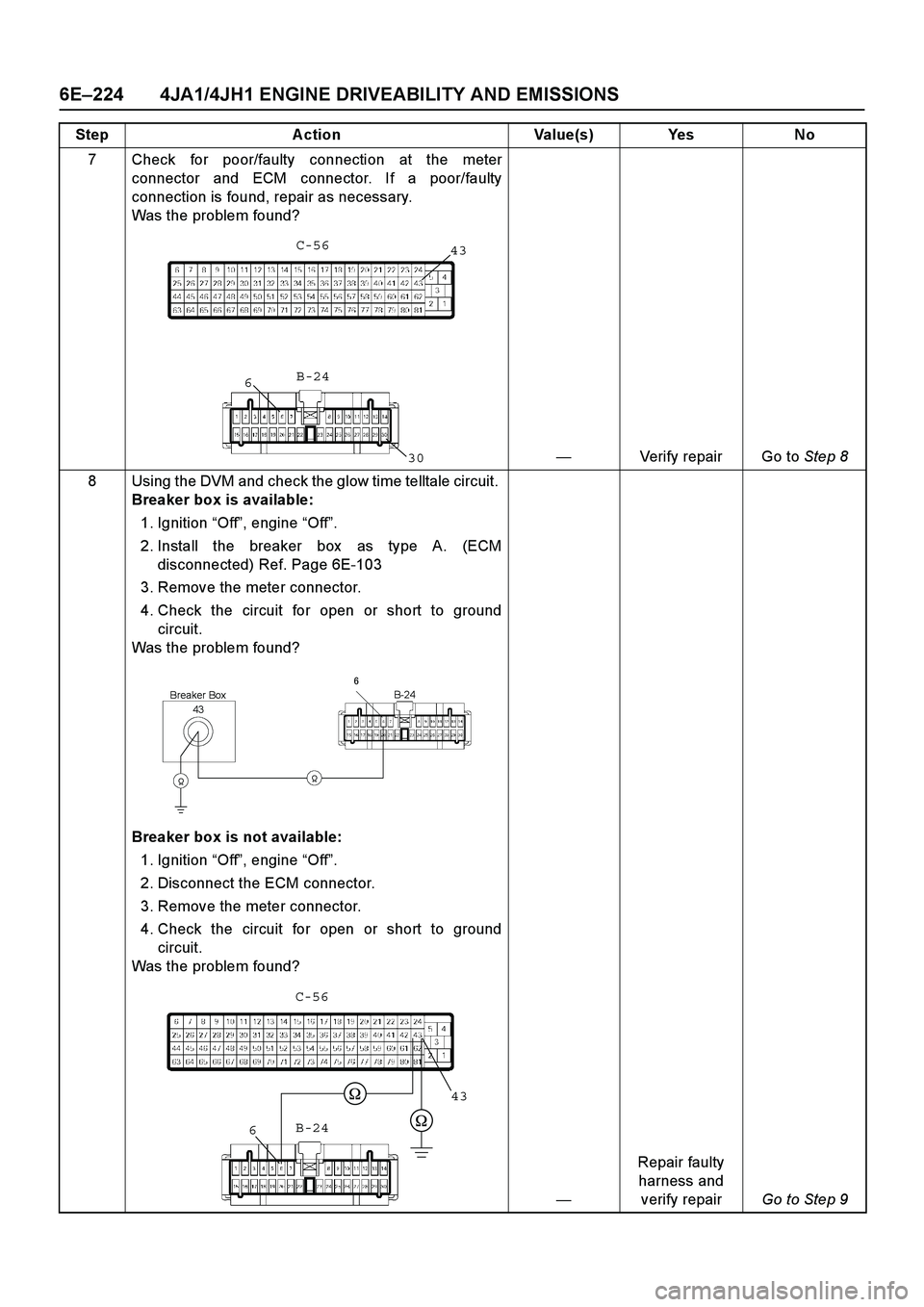

7 Check for poor/faulty connection at the meter
connector and ECM connector. If a poor/faulty
connection is found, repair as necessary.
Was the

Page 1597 of 4264

ISUZU TF SERIES 2004 Workshop Manual 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–225

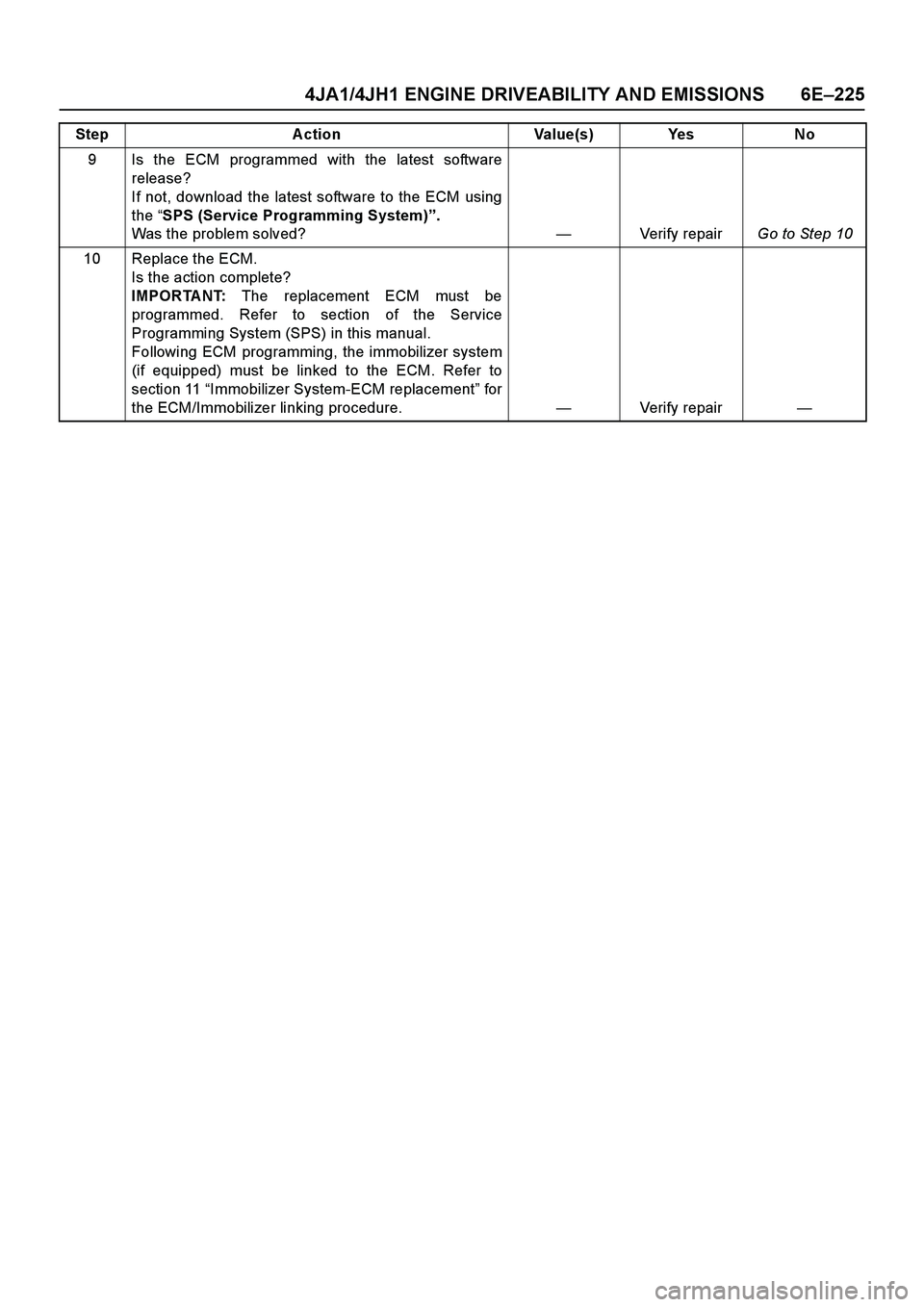

9 Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming Sy

Page 1598 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6E–226 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P0381 (Symptom Code 8) (Flash Code 67)
Glow Plug Indicator Circuit Voltage High
Step Action Value(s) Yes No
1Was the

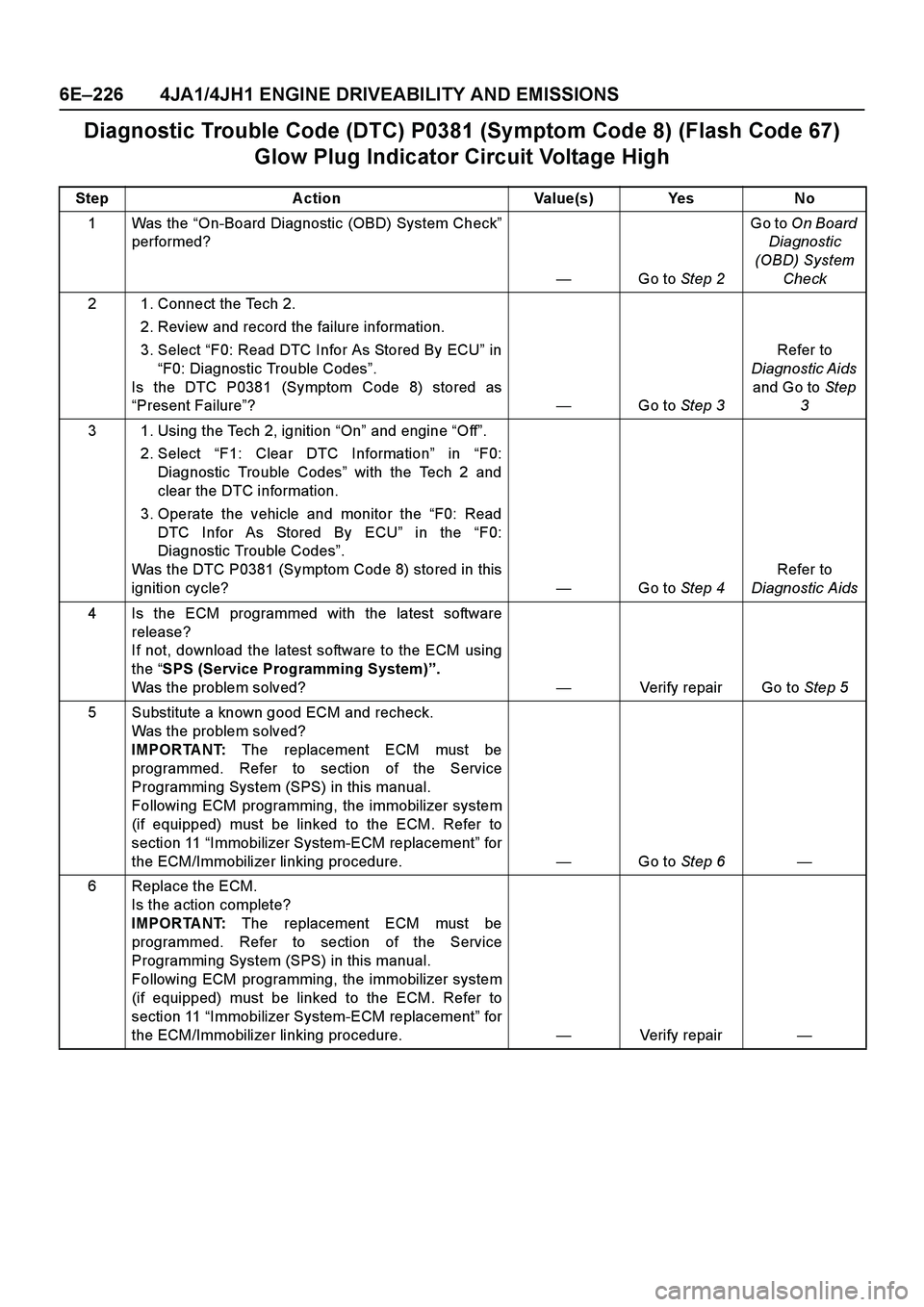

6E–226 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P0381 (Symptom Code 8) (Flash Code 67)
Glow Plug Indicator Circuit Voltage High
Step Action Value(s) Yes No
1Was the “On-Board Diagnostic (OBD) System Check”
performed?
—Go to Step 2Go to On Board
Diagnostic
(OBD) System
Check
2 1. Connect the Tech 2.
2. Review and record the failure information.
3. Select “F0: Read DTC Infor As Stored By ECU” in
“F0: Diagnostic Trouble Codes”.
Is the DTC P0381 (Symptom Code 8) stored as
“Present Failure”?—Go to Step 3Refer to
Diagnostic Aids
and Go to Step
3
3 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Select “F1: Clear DTC Information” in “F0:
Diagnostic Trouble Codes” with the Tech 2 and
clear the DTC information.
3. Operate the vehicle and monitor the “F0: Read
DTC Infor As Stored By ECU” in the “F0:
Diagnostic Trouble Codes”.
Was the DTC P0381 (Symptom Code 8) stored in this
ignition cycle?—Go to Step 4Refer to
Diagnostic Aids
4 Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?—Verify repair Go to Step 5
5 Substitute a known good ECM and recheck.
Was the problem solved?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure. —Go to Step 6—
6 Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure.—Verify repair—

Page 1599 of 4264

ISUZU TF SERIES 2004 Workshop Manual 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–227

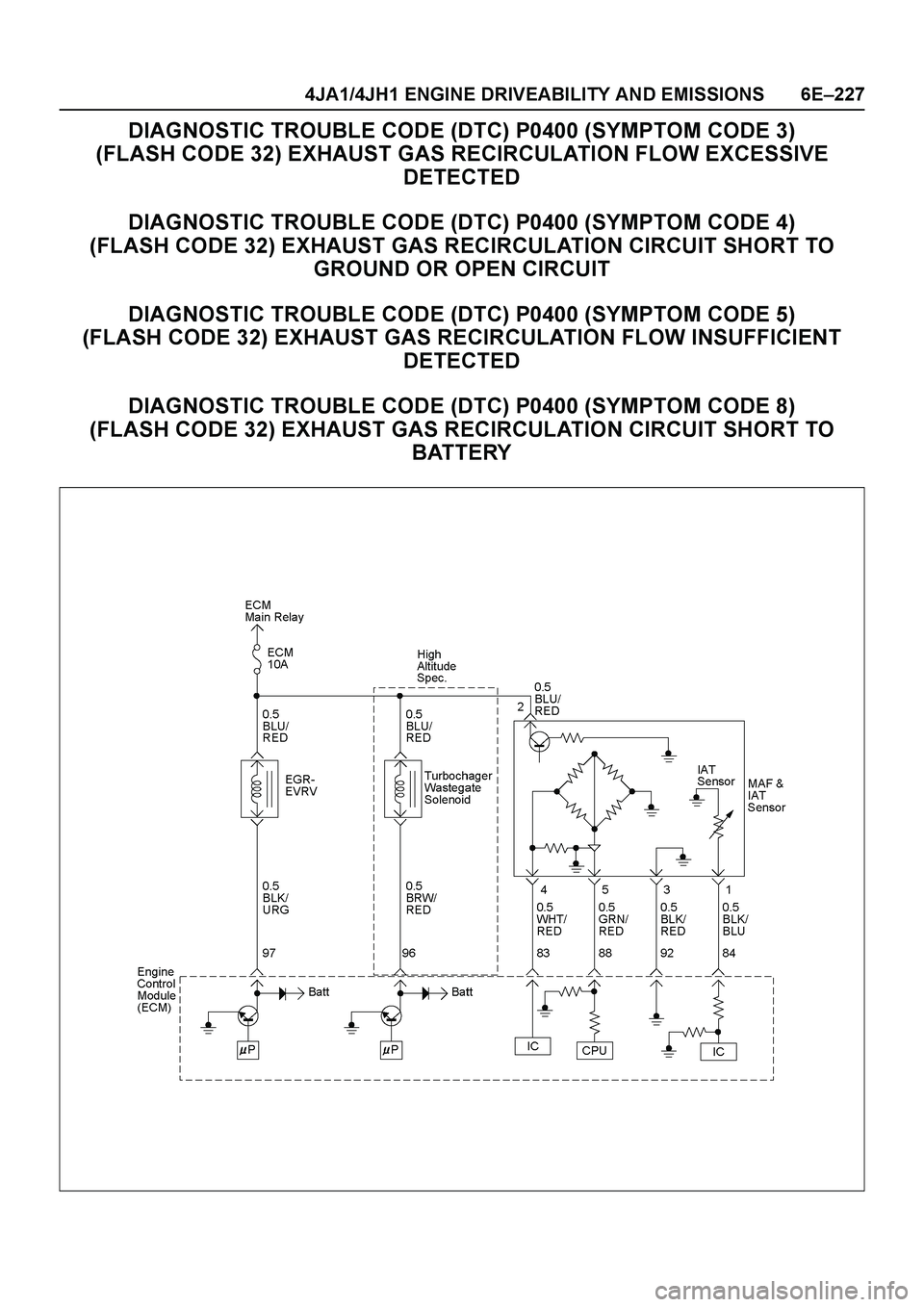

DIAGNOSTIC TROUBLE CODE (DTC) P0400 (SYMPTOM CODE 3)
(FLASH CODE 32) EXHAUST GAS RECIRCULATION FLOW EXCESSIVE
DETECTED
DIAGNOSTIC TROUBLE CODE (D

Page 1600 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6E–228 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
Condition for setting the DTC and action taken when the DTC sets
Circuit Description
The amount of EGR is controlled by EVRV (electrical
vacuum reg

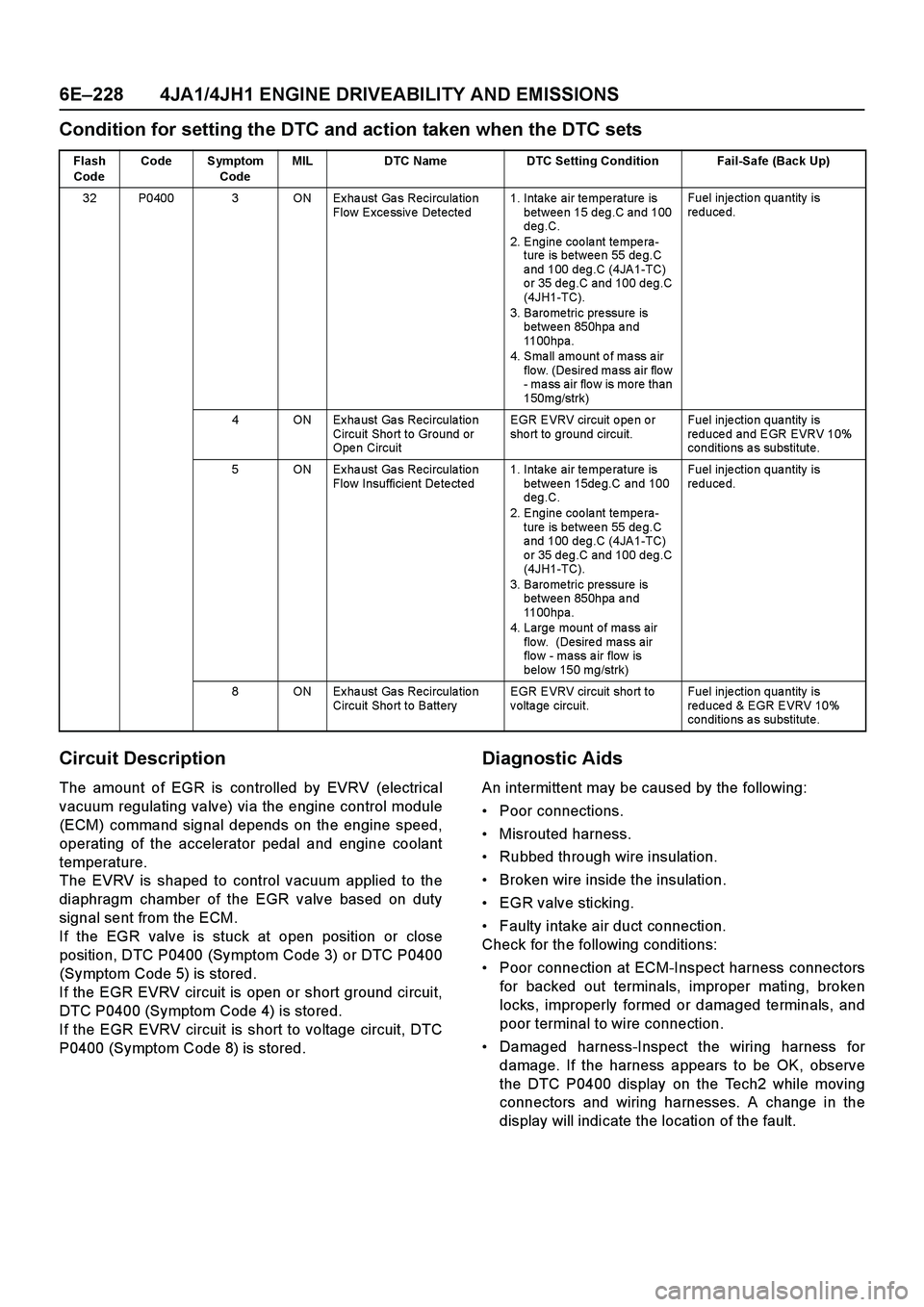

6E–228 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
Condition for setting the DTC and action taken when the DTC sets
Circuit Description
The amount of EGR is controlled by EVRV (electrical
vacuum regulating valve) via the engine control module
(ECM) command signal depends on the engine speed,
operating of the accelerator pedal and engine coolant
temperature.
The EVRV is shaped to control vacuum applied to the
diaphragm chamber of the EGR valve based on duty
signal sent from the ECM.
If the EGR valve is stuck at open position or close
position, DTC P0400 (Symptom Code 3) or DTC P0400
(Symptom Code 5) is stored.
If the EGR EVRV circuit is open or short ground circuit,
DTC P0400 (Symptom Code 4) is stored.
If the EGR EVRV circuit is short to voltage circuit, DTC
P0400 (Symptom Code 8) is stored.
Diagnostic Aids
An intermittent may be caused by the following:
Poor connections.
Misrouted harness.
Rubbed through wire insulation.
Broken wire inside the insulation.
EGR valve sticking.
Faulty intake air duct connection.
Check for the following conditions:
Poor connection at ECM-Inspect harness connectors
for backed out terminals, improper mating, broken
locks, improperly formed or damaged terminals, and
poor terminal to wire connection.
Damaged harness-Inspect the wiring harness for
damage. If the harness appears to be OK, observe
the DTC P0400 display on the Tech2 while moving
connectors and wiring harnesses. A change in the
display will indicate the location of the fault.
Flash
CodeCode Symptom
CodeMIL DTC Name DTC Setting Condition Fail-Safe (Back Up)
32 P0400 3 ON Ex ha ust Ga s Recircula tio n
Flow Excessive Detected1. Intake air temperature is
between 15 deg.C and 100
deg.C.
2. Engine coolant tempera-
ture is betwee n 55 de g.C
and 100 deg.C (4JA1-TC)
or 35 deg.C and 100 deg.C
(4JH1-TC).
3. Baro me tric pre ssure is
betwee n 850hpa a nd
1100hpa.
4. Small amount of mass air
flo w. (Desired ma ss air flo w
- mass air flow is more than
150mg/strk)Fuel inje ctio n qua ntity is
reduced.
4 ON Ex ha ust Ga s Recircula tio n
Circuit Sho rt to Ground or
Ope n CircuitEGR EVRV circuit open or
sho rt to ground circuit.Fuel inje ctio n qua ntity is
reduced and EGR EVRV 10%
conditio ns a s substitute.
5 ON Ex ha ust Ga s Recircula tio n
Flow Insufficient Detected1. Intake air temperature is
betwee n 15de g.C and 100
deg.C.
2. Engine coolant tempera-
ture is betwee n 55 de g.C
and 100 deg.C (4JA1-TC)
or 35 deg.C and 100 deg.C
(4JH1-TC).
3. Baro me tric pre ssure is
betwee n 850hpa a nd
1100hpa.
4. Large mount of mass air
flo w. (Desire d ma ss air
flo w - mass a ir flow is
below 150 mg/strk)Fuel inje ctio n qua ntity is
reduced.
8 ON Ex ha ust Ga s Recircula tio n
Circuit Sho rt to BatteryEGR EVRV circuit sho rt to
voltage circuit.Fuel inje ctio n qua ntity is
reduced & EGR EVRV 10%
conditio ns a s substitute.
