Page 3753 of 4264

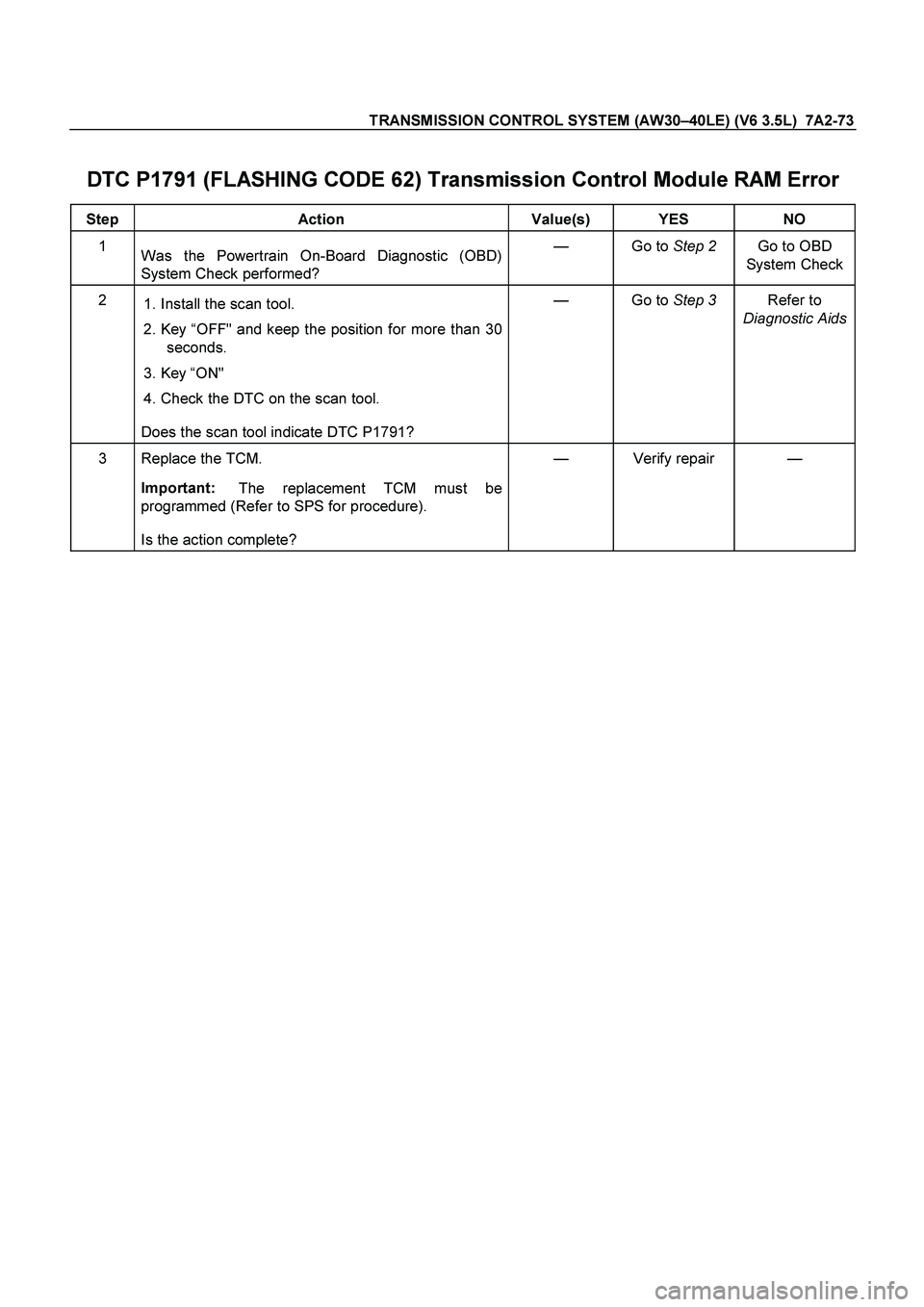

TRANSMISSION CONTROL SYSTEM (AW30–40LE) (V6 3.5L) 7A2-73
DTC P1791 (FLASHING CODE 62) Transmission Control Module RAM Error
Step Action Value(s) YES NO
1
Was the Powertrain On-Board Diagnostic (OBD)
System Check performed? — Go to Step 2 Go to OBD
System Check
2
1. Install the scan tool.
2. Key “OFF" and keep the position for more than 30
seconds.
3. Key “ON"
4. Check the DTC on the scan tool.
Does the scan tool indicate DTC P1791? — Go to Step 3 Refer to
Diagnostic Aids
3 Replace the TCM.
Important:
The replacement TCM must be
programmed (Refer to SPS for procedure).
Is the action complete? — Verify repair —
Page 3754 of 4264

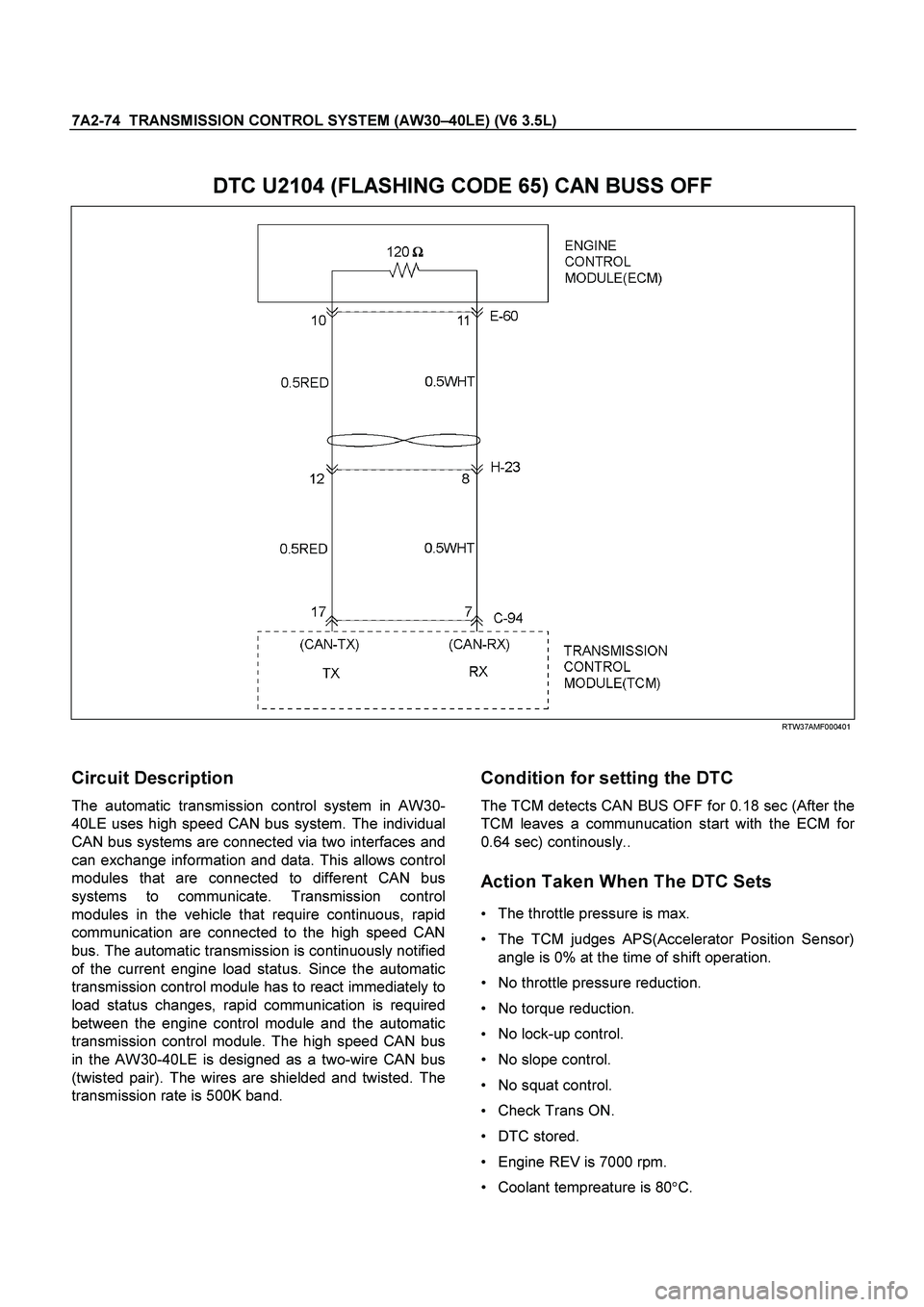

7A2-74 TRANSMISSION CONTROL SYSTEM (AW30–40LE) (V6 3.5L)
DTC U2104 (FLASHING CODE 65) CAN BUSS OFF
RTW37AMF000401
Circuit Description
The automatic transmission control system in AW30-
40LE uses high speed CAN bus system. The individual
CAN bus systems are connected via two interfaces and
can exchange information and data. This allows control
modules that are connected to different CAN bus
systems to communicate. Transmission control
modules in the vehicle that require continuous, rapid
communication are connected to the high speed CAN
bus. The automatic transmission is continuously notified
of the current engine load status. Since the automatic
transmission control module has to react immediately to
load status changes, rapid communication is required
between the engine control module and the automatic
transmission control module. The high speed CAN bus
in the AW30-40LE is designed as a two-wire CAN bus
(twisted pair). The wires are shielded and twisted. The
transmission rate is 500K band.
Condition for setting the DTC
The TCM detects CAN BUS OFF for 0.18 sec (After the
TCM leaves a communucation start with the ECM fo
r
0.64 sec) continously..
Action Taken When The DTC Sets
The throttle pressure is max.
The TCM judges APS(Accelerator Position Sensor)
angle is 0% at the time of shift operation.
No throttle pressure reduction.
No torque reduction.
No lock-up control.
No slope control.
No squat control.
Check Trans ON.
DTC stored.
Engine REV is 7000 rpm.
Coolant tempreature is 80
C.
Page 3755 of 4264

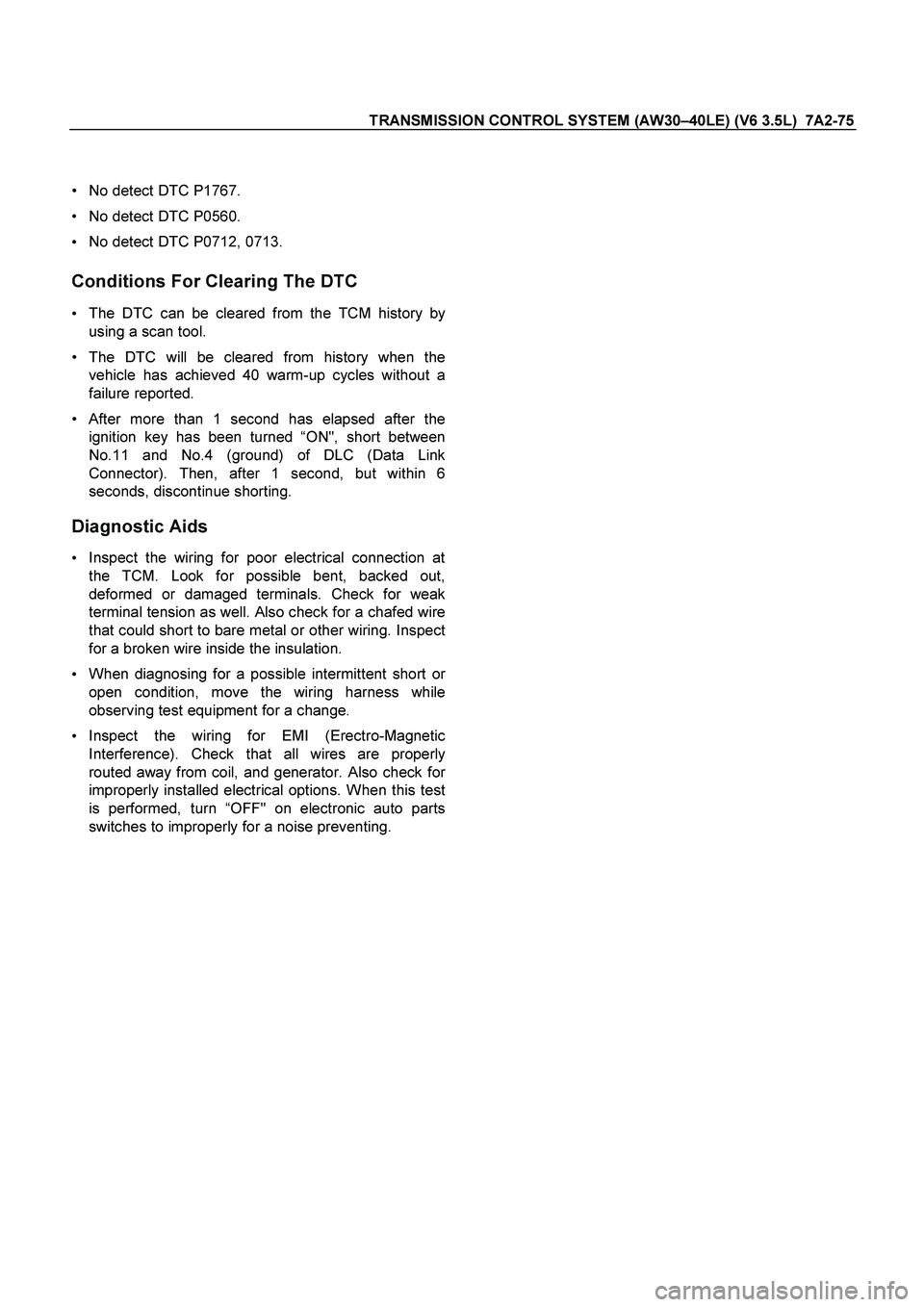

TRANSMISSION CONTROL SYSTEM (AW30–40LE) (V6 3.5L) 7A2-75
No detect DTC P1767.
No detect DTC P0560.
No detect DTC P0712, 0713.
Conditions For Clearing The DTC
The DTC can be cleared from the TCM history by
using a scan tool.
The DTC will be cleared from history when the
vehicle has achieved 40 warm-up cycles without a
failure reported.
After more than 1 second has elapsed after the
ignition key has been turned “ON", short between
No.11 and No.4 (ground) of DLC (Data Link
Connector). Then, after 1 second, but within 6
seconds, discontinue shorting.
Diagnostic Aids
Inspect the wiring for poor electrical connection at
the TCM. Look for possible bent, backed out,
deformed or damaged terminals. Check for weak
terminal tension as well. Also check for a chafed wire
that could short to bare metal or other wiring. Inspect
for a broken wire inside the insulation.
When diagnosing for a possible intermittent short o
r
open condition, move the wiring harness while
observing test equipment for a change.
Inspect the wiring for EMI (Erectro-Magnetic
Interference). Check that all wires are properly
routed away from coil, and generator. Also check fo
r
improperly installed electrical options. When this test
is performed, turn “OFF" on electronic auto parts
switches to improperly for a noise preventing.
Page 3756 of 4264

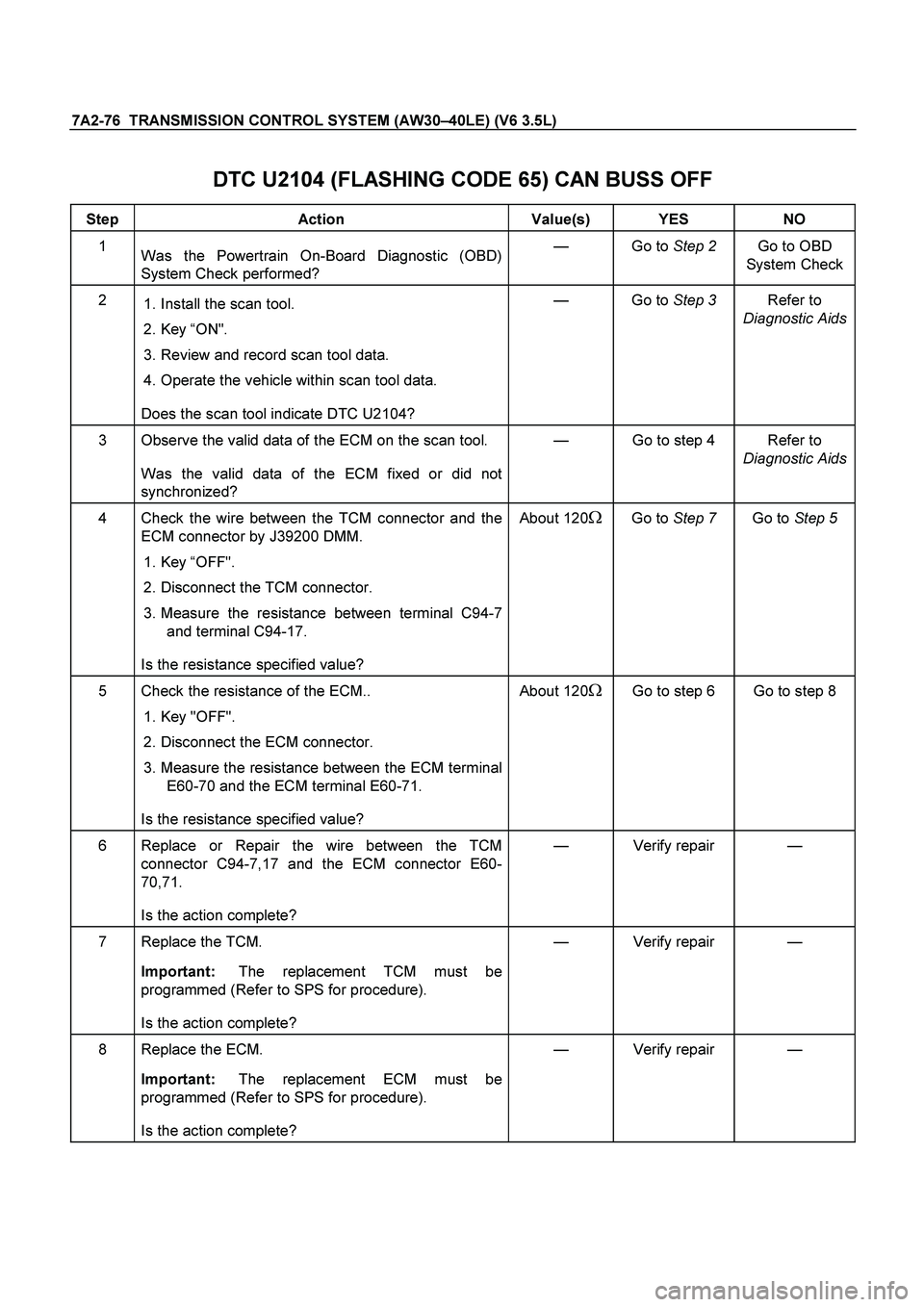

7A2-76 TRANSMISSION CONTROL SYSTEM (AW30–40LE) (V6 3.5L)
DTC U2104 (FLASHING CODE 65) CAN BUSS OFF
Step Action Value(s) YES NO
1
Was the Powertrain On-Board Diagnostic (OBD)
System Check performed? — Go to Step 2 Go to OBD
System Check
2
1. Install the scan tool.
2. Key “ON".
3. Review and record scan tool data.
4. Operate the vehicle within scan tool data.
Does the scan tool indicate DTC U2104? — Go to Step 3 Refer to
Diagnostic Aids
3 Observe the valid data of the ECM on the scan tool.
Was the valid data of the ECM fixed or did not
synchronized? — Go to step 4 Refer to
Diagnostic Aids
4 Check the wire between the TCM connector and the
ECM connector by J39200 DMM.
1. Key “OFF".
2. Disconnect the TCM connector.
3. Measure the resistance between terminal C94-7
and terminal C94-17.
Is the resistance specified value? About 120Go to Step 7 Go to Step 5
5 Check the resistance of the ECM..
1. Key "OFF".
2. Disconnect the ECM connector.
3. Measure the resistance between the ECM terminal
E60-70 and the ECM terminal E60-71.
Is the resistance specified value? About 120Go to step 6 Go to step 8
6 Replace or Repair the wire between the TCM
connector C94-7,17 and the ECM connector E60-
70,71.
Is the action complete? — Verify repair —
7 Replace the TCM.
Important:
The replacement TCM must be
programmed (Refer to SPS for procedure).
Is the action complete? — Verify repair —
8 Replace the ECM.
Important:
The replacement ECM must be
programmed (Refer to SPS for procedure).
Is the action complete? — Verify repair —
Page 3757 of 4264

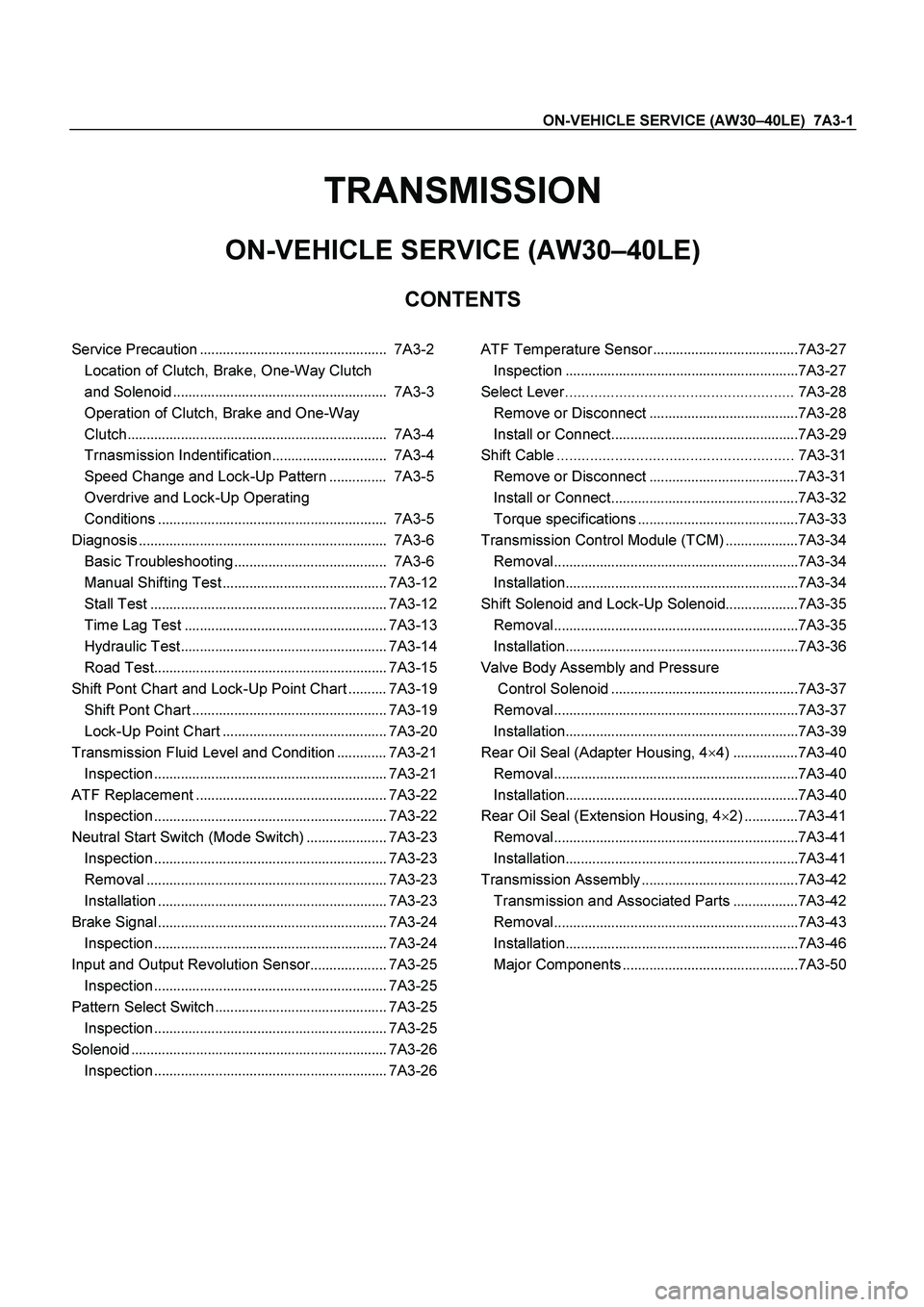

ON-VEHICLE SERVICE (AW30–40LE) 7A3-1
TRANSMISSION
ON-VEHICLE SERVICE (AW30–40LE)
CONTENTS
Service Precaution .................................................
7A3-2
Location of Clutch, Brake, One-Way Clutch
and Solenoid ........................................................
7A3-3

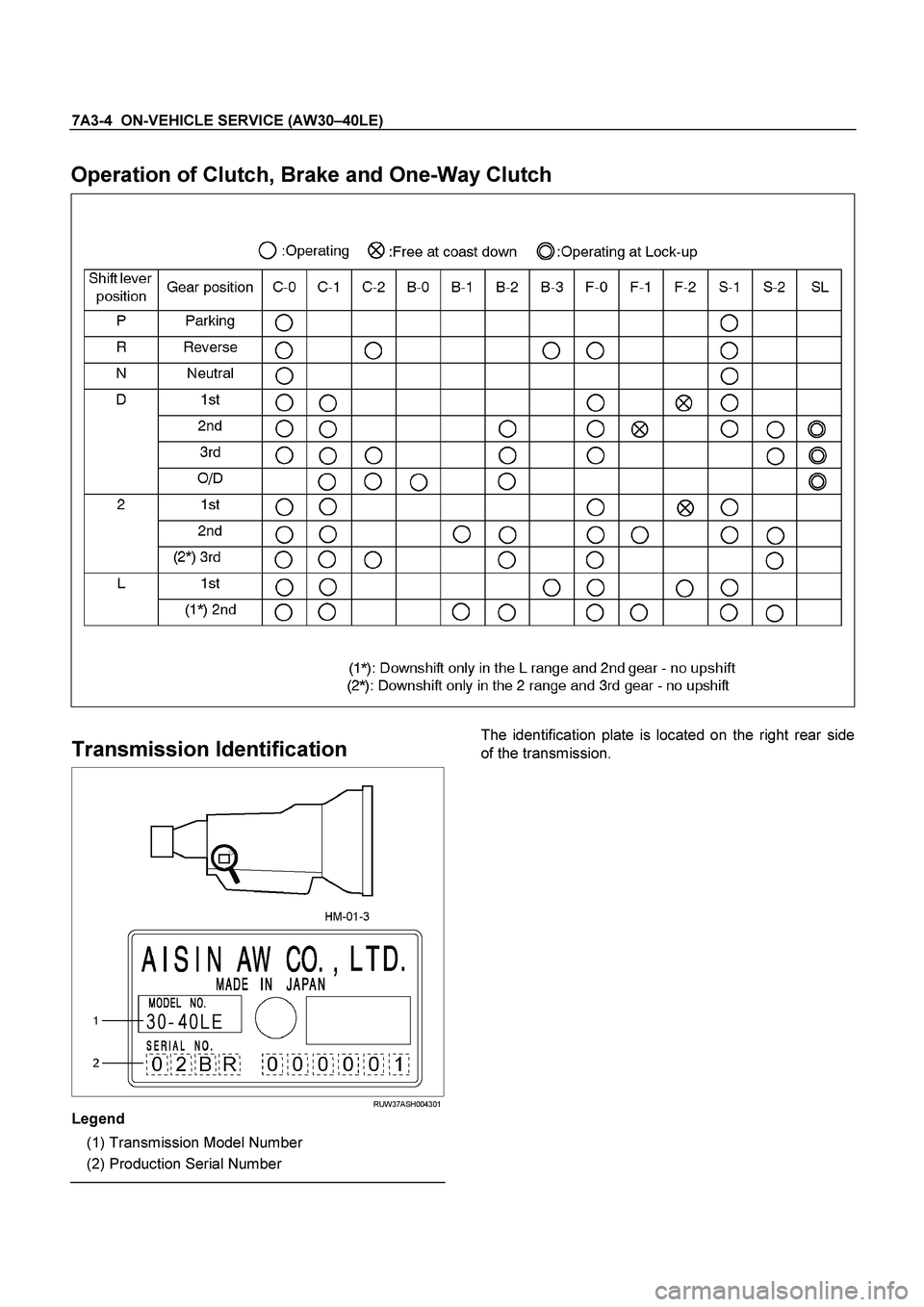

Operation of Clutch, Brake and One-Way
Clutch ....................................................................
7A3-4
Trnasmission Indentification ..............................
7A3-4
Speed Change and Lock-Up Pattern ...............
7A3-5
Overdrive and Lock-Up Operating
Conditions ............................................................
7A3-5
Diagnosis .................................................................
7A3-6
Basic Troubleshooting ........................................
7A3-6
Manual Shifting Test ...........................................
7A3-12
Stall Test ..............................................................
7A3-12
Time Lag Test .....................................................
7A3-13
Hydraulic Test ......................................................
7A3-14
Road Test .............................................................
7A3-15
Shift Pont Chart and Lock-Up Point Chart ..........
7A3-19
Shift Pont Chart ...................................................
7A3-19
Lock-Up Point Chart ...........................................
7A3-20
Transmission Fluid Level and Condition .............
7A3-21
Inspection .............................................................
7A3-21
ATF Replacement ..................................................
7A3-22
Inspection .............................................................
7A3-22
Neutral Start Switch (Mode Switch) .....................
7A3-23
Inspection .............................................................
7A3-23
Removal ...............................................................
7A3-23
Installation ............................................................
7A3-23
Brake Signal ............................................................
7A3-24
Inspection .............................................................
7A3-24
Input and Output Revolution Sensor ....................
7A3-25
Inspection .............................................................
7A3-25
Pattern Select Switch .............................................
7A3-25
Inspection .............................................................
7A3-25
Solenoid ...................................................................
7A3-26
Inspection .............................................................
7A3-26
ATF Temperature Sensor ......................................
7A3-27
Inspection .............................................................
7A3-27
Select Lever ....................................................... 7A3-28 Remove or Disconnect .......................................
7A3-28
Install or Connect .................................................
7A3-29
Shift Cable ......................................................... 7A3-31
Remove or Disconnect .......................................
7A3-31
Install or Connect .................................................
7A3-32
Torque specifications ..........................................
7A3-33
Transmission Control Module (TCM) ...................
7A3-34
Removal ................................................................
7A3-34
Installation .............................................................
7A3-34
Shift Solenoid and Lock-Up Solenoid ...................
7A3-35
Removal ................................................................
7A3-35
Installation .............................................................
7A3-36
Valve Body Assembly and Pressure Control Solenoid .................................................
7A3-37
Removal ................................................................
7A3-37
Installation .............................................................
7A3-39
Rear Oil Seal (Adapter Housing, 4
4) .................
7A3-40
Removal ................................................................
7A3-40
Installation .............................................................
7A3-40
Rear Oil Seal (Extension Housing, 4 2) ..............
7A3-41
Removal ................................................................
7A3-41
Installation .............................................................
7A3-41
Transmission Assembly .........................................
7A3-42
Transmission and Associated Parts .................
7A3-42
Removal ................................................................
7A3-43
Installation .............................................................
7A3-46
Major Components ..............................................
7A3-50
Page 3758 of 4264

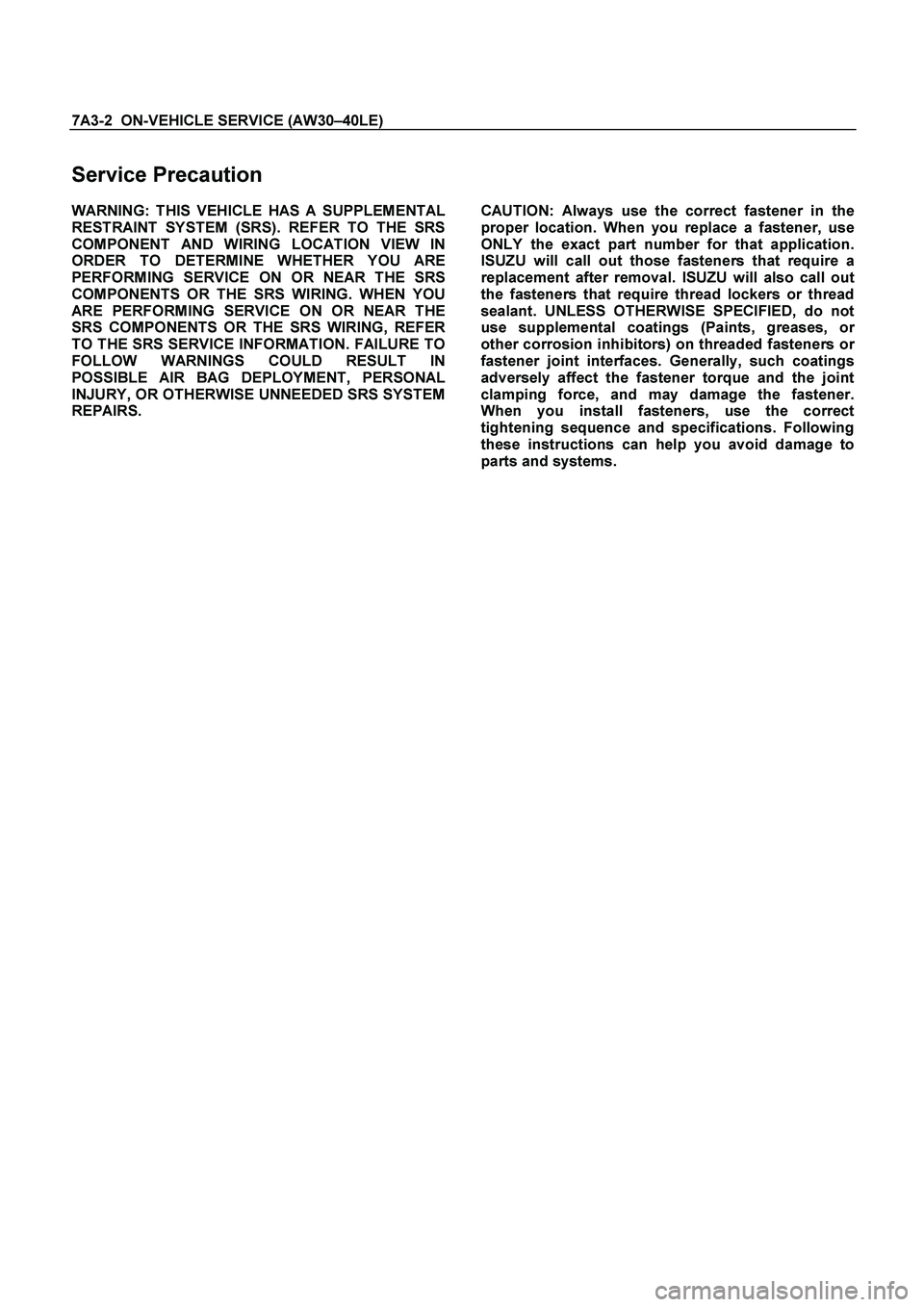

7A3-2 ON-VEHICLE SERVICE (AW30 –40LE)
Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING, REFE
R
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN
POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY, OR OTHERWISE UNNEEDED SRS SYSTEM
REPAIRS.
CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, o
r
other corrosion inhibitors) on threaded fasteners o
r
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener.
When you install fasteners, use the correct
tightening sequence and specifications. Following
these instructions can help you avoid damage to
parts and systems.
Page 3759 of 4264
ON-VEHICLE SERVICE (AW30 –40LE) 7A3-3
Location of Clutch, Brake, One-Way Clutch and Solenoid
RUW37ALF000201
Legend
(8) One-way clutch (No.2) (F–2)
(1) Overdrive direct clutch (C–0) (9) Shift solenoid (S–1)
(2) Overdrive brake (B–0) (10) Shift solenoid (S–2)
(3) Direct clutch (C–2) (11) One-way clutch (No.1) (F–1)
(4) Second coast brake (B–1) (12) Pressure control solenoid (STH)
(5) Forward clutch (C–1) (13) Lock-up solenoid (SL)
(6) Second brake (B–2) (14) Overdrive one-way clutch (F–0)
Page 3760 of 4264
7A3-4 ON-VEHICLE SERVICE (AW30 –40LE)
Operation of Clutch, Brake and One-Way Clutch
Transmission Identification
RUW37ASH004301
Legend
(1)
Transmission Model Number
(2)
Production Serial Number
The identification plate is located on the right rear side
of the transmission.
