ISUZU TF SERIES 2004 Workshop Manual TROUBLESHOOTING 6 – 1

SECTION 6
TROUBLESHOOTING

TABLE OF CONTENTS
PAGE PAGE
BASIC INSPECTION PROCEDURE ... 6– 2

TROUBLESHOOTING 6 – 1

SECTION 6
TROUBLESHOOTING

TABLE OF CONTENTS
PAGE PAGE
BASIC INSPECTION PROCEDURE ... 6– 2

1. HARD STARTING ........................... 6– 3

1-1.Starter Motor Inoperative ......... 6– 3

1-2. Starter Motor Operates But
Engine Does Not Turn Over .......... 6– 3

1-3. Engine Turns Over But Does
Not Start Engine ............................. 6– 4

2. UNSTABLE IDLING ........................ 6– 5

3. INSUFFICIENT POWER ................. 6– 6

4. EXCESSIVE FUEL
CONSUMPTION ................................. 6– 7

5. EXCESSIVE OIL CONSUMPTION.. 6– 8

6. OVERHEATING............................... 6– 9

7. WHITE EXHAUST SMOKE ............. 6– 9

8. DARK EXHAUST SMOKE .............. 6– 10

9. OIL PRESSURE DOES NOT RISE . 6– 11

10. ABNORMAL ENGINE NOISE ....... 6– 12

10-1. Engine Knocking.................... 6– 12

10-2. Gas Leakage Noise ................ 6– 12

10-3. Continuous Noise .................. 6– 13

10-4. Slapping Noise ....................... 6– 13

10-5. Excessive Turbocharger
Noise ............................................... 6– 14
11. ROTATING PART WEAR OF
TURBOCHARGER ............................. 6– 14

12. OIL LEAKAGE FROM
TURBOCHRGER ............................... 6– 15

13. INSUFFICIENT ACCELERATION
AND/OR LACK OF POWER DUE
TO TURBOCHARGER ....................... 6– 15

14. BATTERY CHARGING AND
NOISE PROBLEM.............................. 6– 16

14-1. Battery No Charging .............. 6– 16

14-2. Battery Overcharging ............ 6– 16

14-3. Battery Under Charging......... 6– 17

14-4. Battery Unstable Charging
Current ............................................ 6– 17

14-5. Charging System Noise ......... 6– 18

15. STARTER MOTOR PROBLEM..... 6– 19

15-1. Starter Motor Pinion Engages
to Ring Gear But Engine Does
Not Turn Over ................................. 6– 19

15-2. Incorrect Pinion And Ring
Gear Engagement .......................... 6– 19

15-3. Starter Motor Continues To
Run After The Starter Switch Is
Turned Off ....................................... 6– 20

15-4. Excessive Commutator
Sparking .......................................... 6– 20

Page 1122 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6 – 2 TROUBLESHOOTING
Basic Inspection Procedure
Follow the under inspection procedure, when the problem vehicle comes workshop.
Step Inspection point Inspection result YES NO
1 Check the

Page 1123 of 4264

ISUZU TF SERIES 2004 Workshop Manual TROUBLESHOOTING 6 – 3

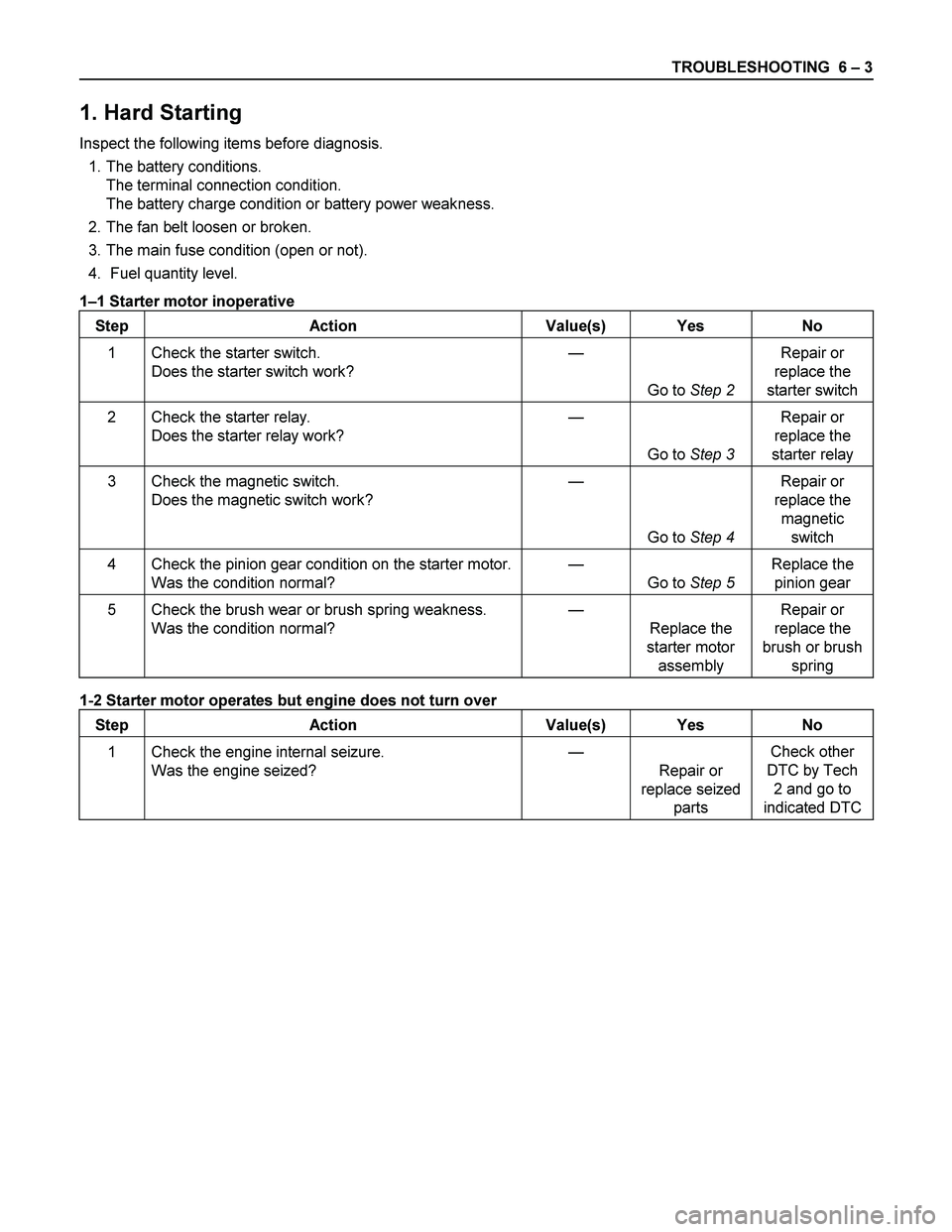

1. Hard Starting
Inspect the following items before diagnosis.
1. The battery conditions.
The terminal connection condition.
The battery charge condition or battery pow

Page 1124 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6 – 4 TROUBLESHOOTING
1-3 Engine turn over but does not start engine
Incase of the fuel not being delivered to the injection pump
Step Action Value(s) Yes No
1 Check clogged, damaged the fuel

Page 1125 of 4264

ISUZU TF SERIES 2004 Workshop Manual TROUBLESHOOTING 6 – 5
2. Unstable Idling
Step Action Value(s) Yes No
1 Was the fuel line air bled completely? — Go to Step 3 Bleed the air
2 Was the fuel line leakage or blockage found? �

Page 1126 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6 – 6 TROUBLESHOOTING
3. Insufficient Power
Step Action Value(s) Yes No
1 Was the air cleaner element condition OK? (Clogged
or not) —
Go to Step 2 Clean or
replace the air
cleaner
elem

Page 1127 of 4264

ISUZU TF SERIES 2004 Workshop Manual TROUBLESHOOTING 6 – 7

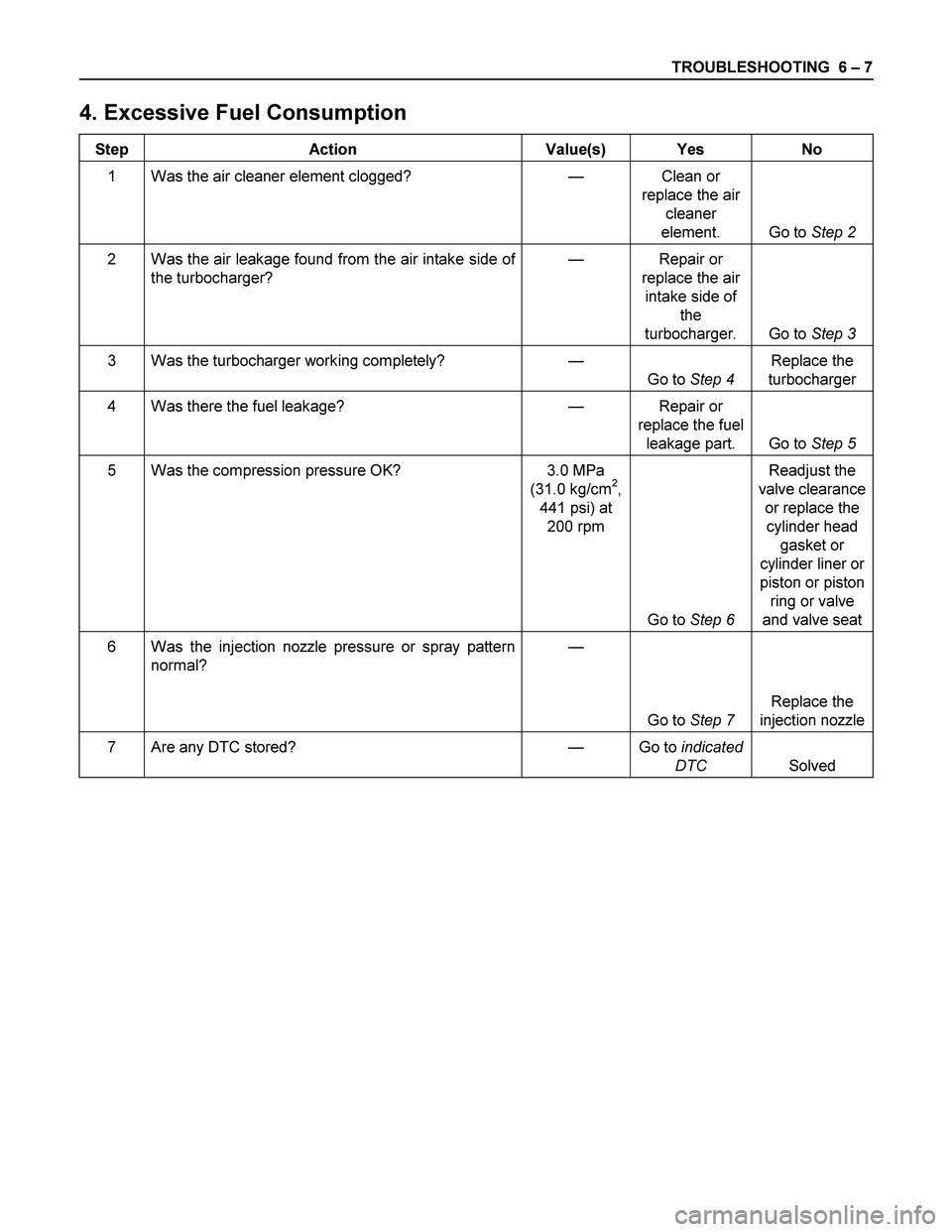

4. Excessive Fuel Consumption
Step Action Value(s) Yes No
1 Was the air cleaner element clogged? — Clean or
replace the air
cleaner
element. Go to Step 2
2 Was the

Page 1128 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6 – 8 TROUBLESHOOTING

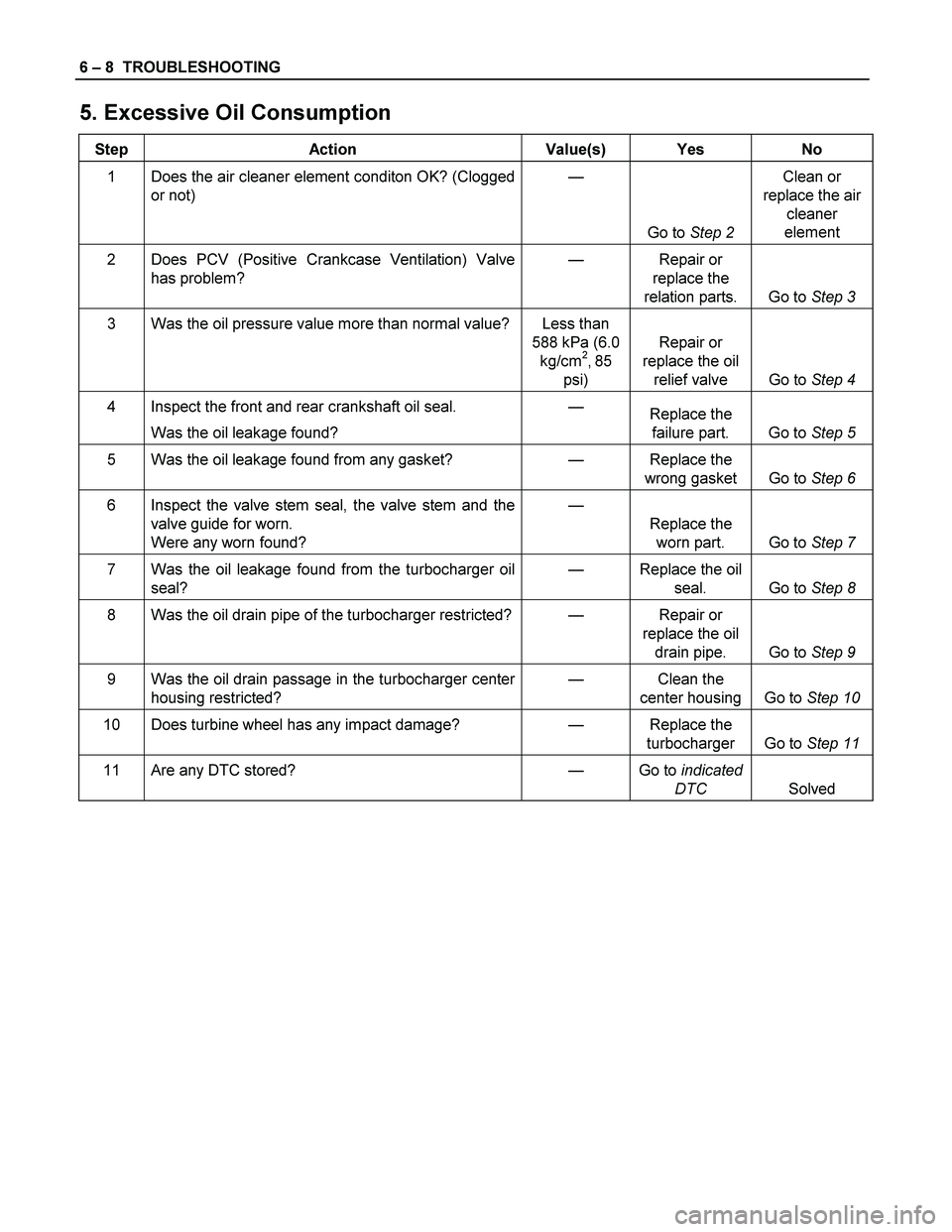

5. Excessive Oil Consumption
Step Action Value(s) Yes No
1 Does the air cleaner element conditon OK? (Clogged
or not) —
Go to Step 2 Clean or
replace the air
cleane

Load next 8 pages
