Page 1089 of 4264

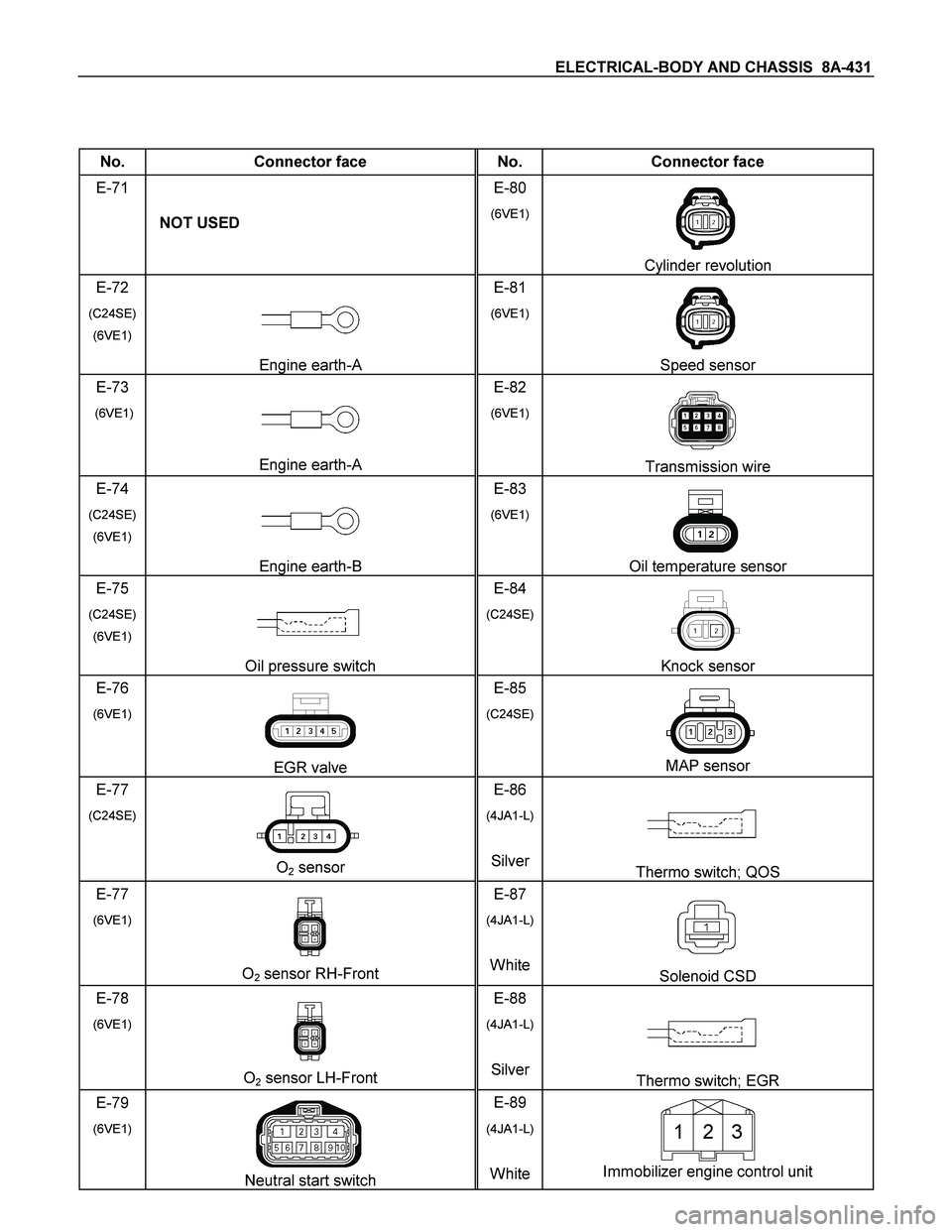

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-431 No. Connector face No. Connector face E-71 NOT USED E-80 (6VE1) Cylinder revolution E-72 (C24SE) (6VE1) Engine earth-A E-81 (6VE1) Speed senso

Page 1090 of 4264

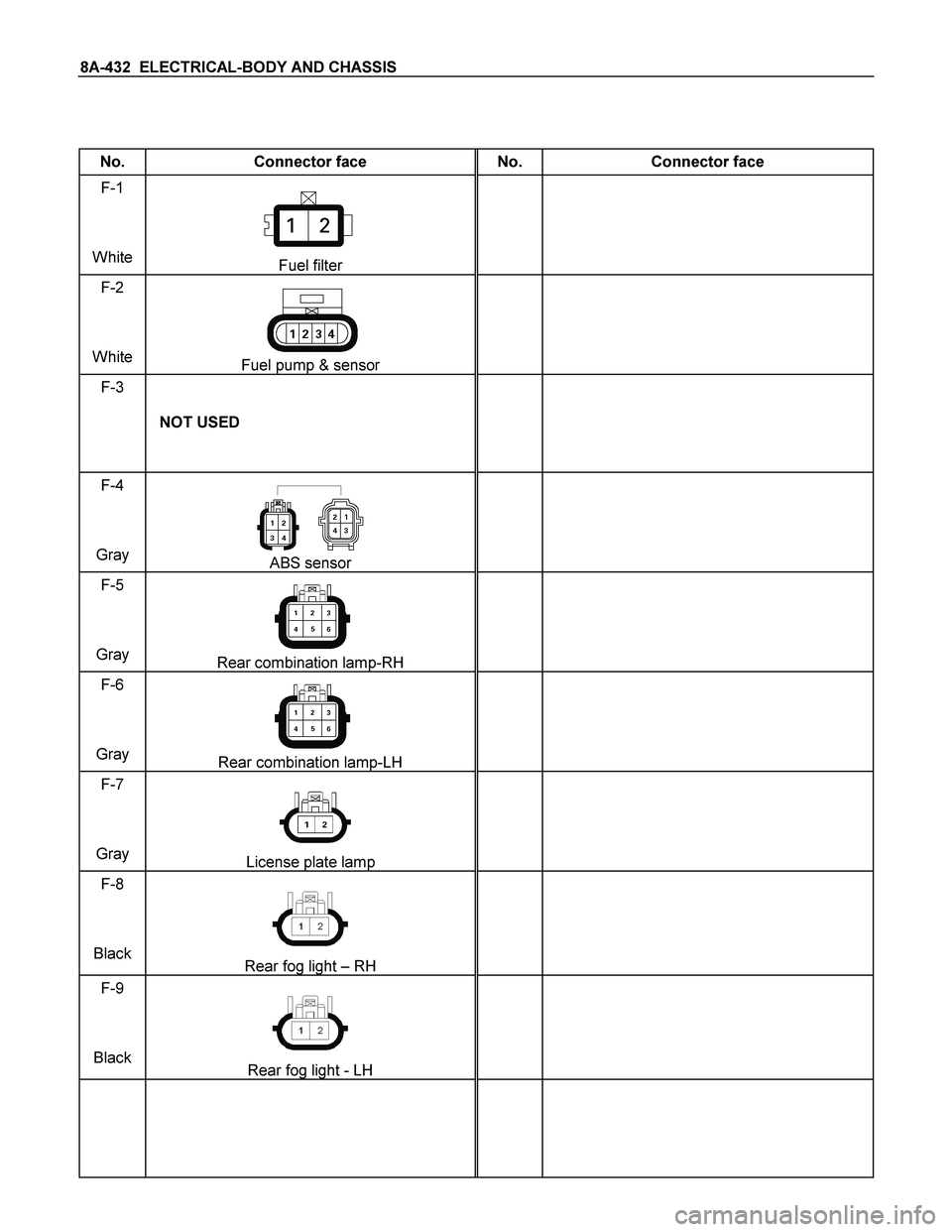

ISUZU TF SERIES 2004 Workshop Manual 8A-432 ELECTRICAL-BODY AND CHASSIS No. Connector face No. Connector face F-1 White Fuel filter F-2 White Fuel pump & sensor F-3 NOT USED F-4 Gray ABS sensor F

Page 1091 of 4264

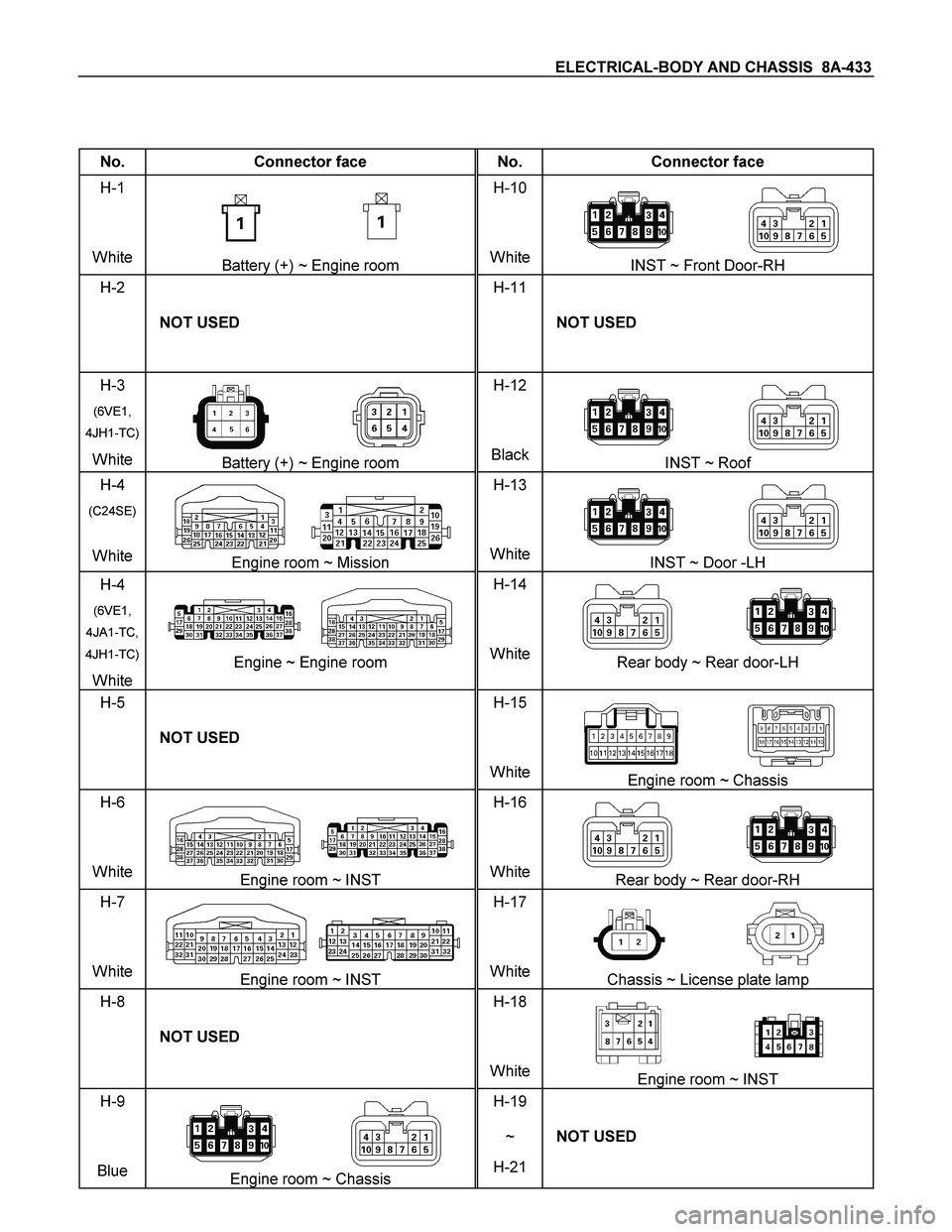

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-433 No. Connector face No. Connector face H-1 White Battery (+) ~ Engine room H-10 WhiteINST ~ Front Door-RH H-2 NOT USED H-11 NOT USED H-3 (6VE1, 4

Page 1092 of 4264

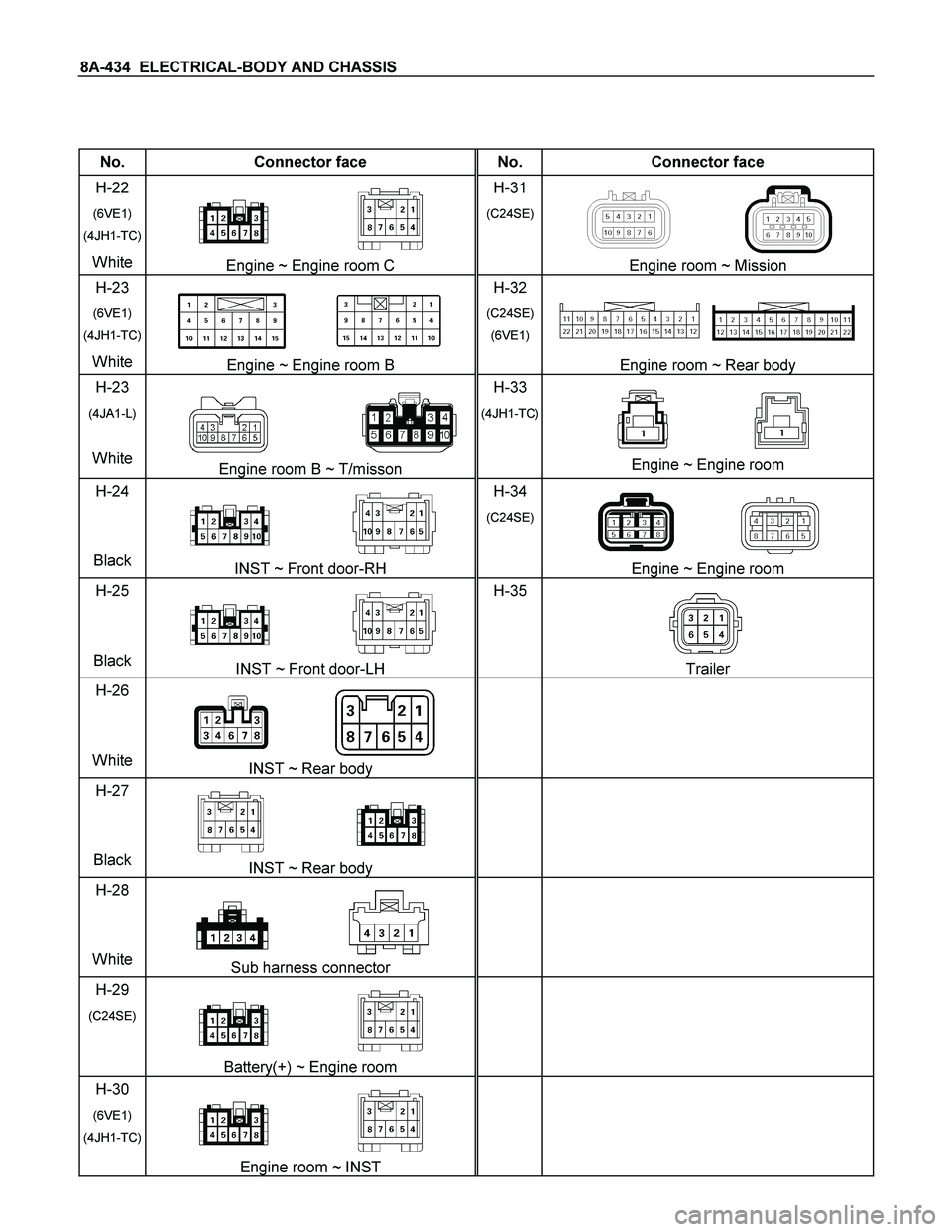

ISUZU TF SERIES 2004 Workshop Manual 8A-434 ELECTRICAL-BODY AND CHASSIS No. Connector face No. Connector face H-22 (6VE1) (4JH1-TC) White Engine ~ Engine room C H-31 (C24SE) Engine room ~ Mission H-23 (6VE1) (4JH1-TC)

Page 1093 of 4264

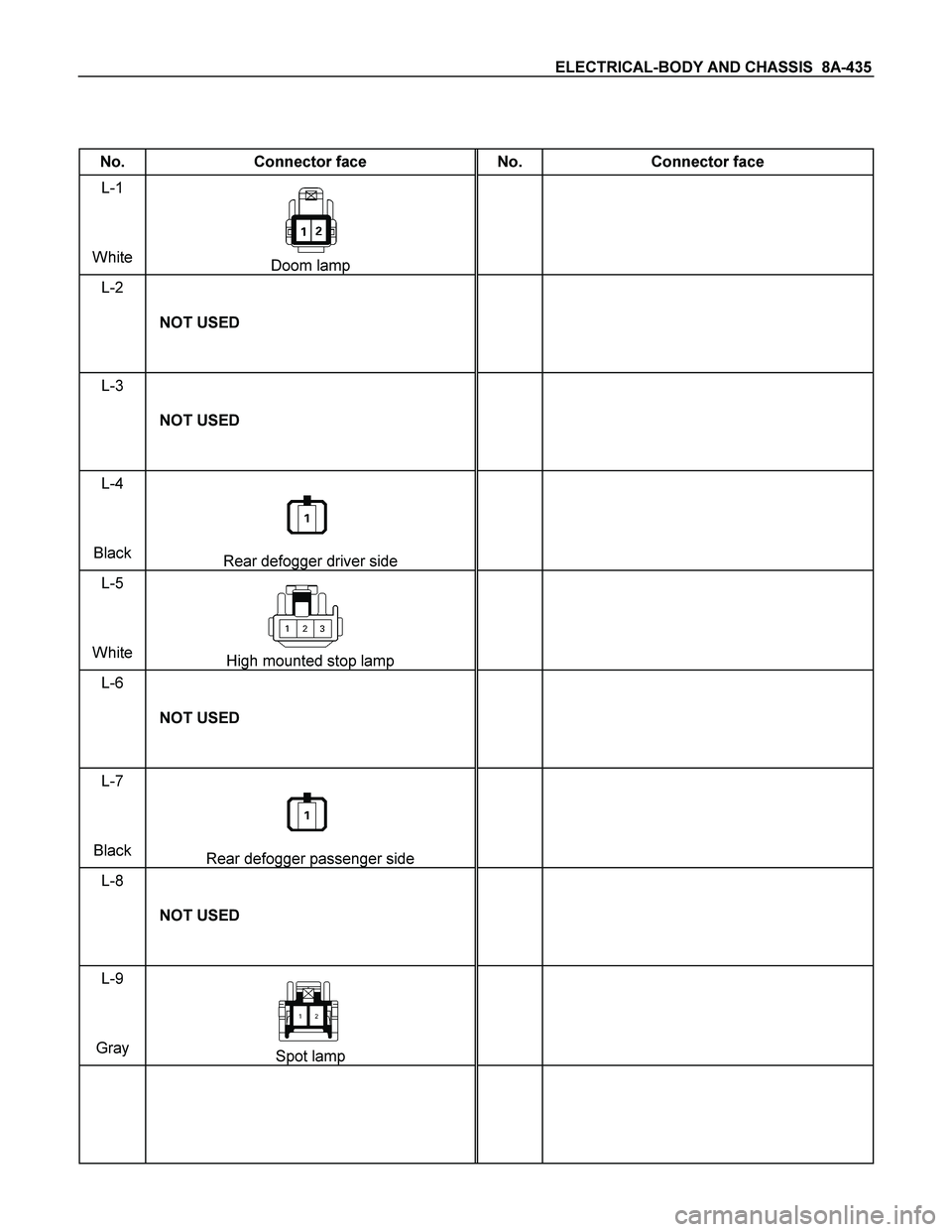

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-435 No. Connector face No. Connector face L-1 White Doom lamp L-2 NOT USED L-3 NOT USED L-4 Black Rear defogger driver side L-5

Page 1094 of 4264

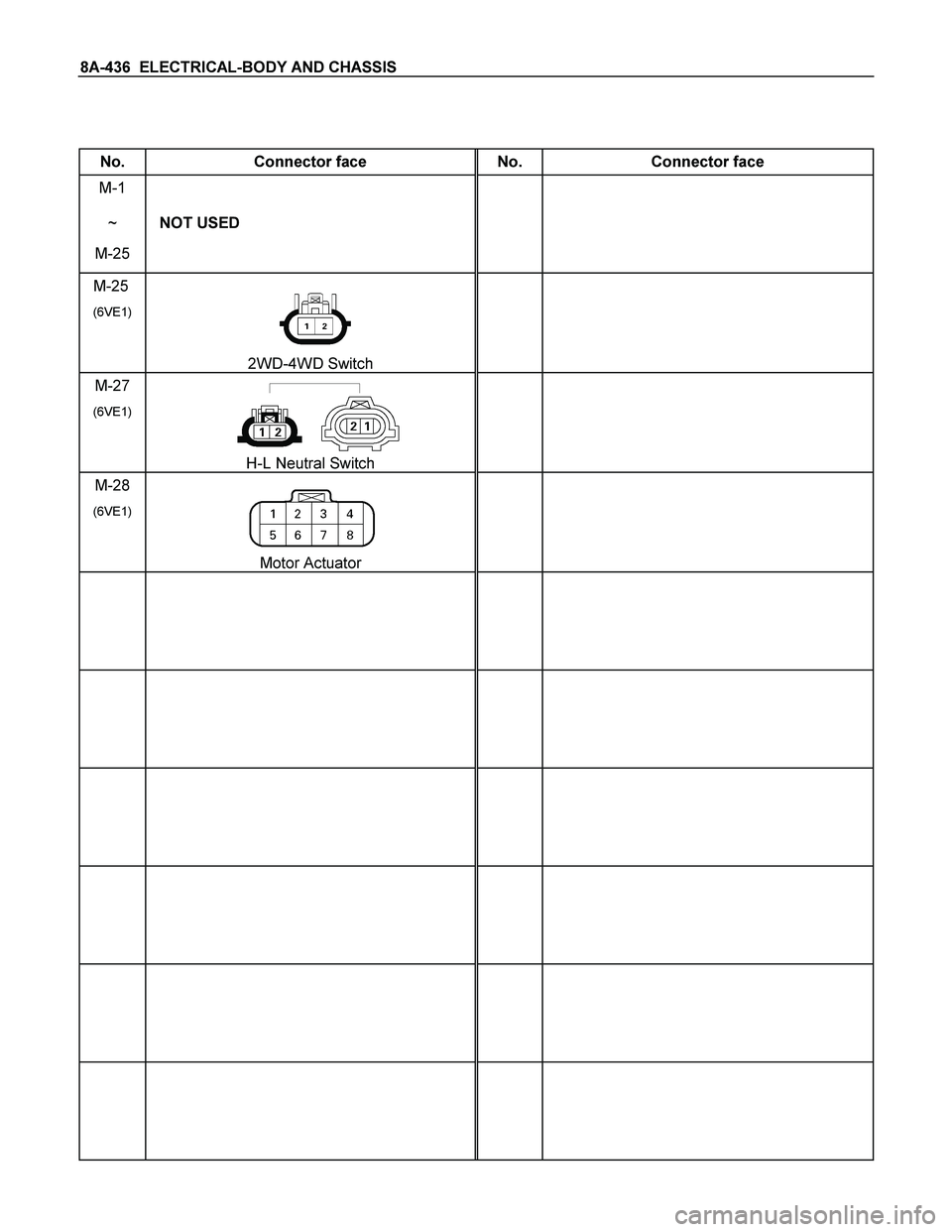

ISUZU TF SERIES 2004 Workshop Manual 8A-436 ELECTRICAL-BODY AND CHASSIS No. Connector face No. Connector face M-1 ~ M-25 NOT USED M-25 (6VE1) 2WD-4WD Switch M-27 (6VE1) H-L Neutral Switch M-28 (6VE1) M

Page 1095 of 4264

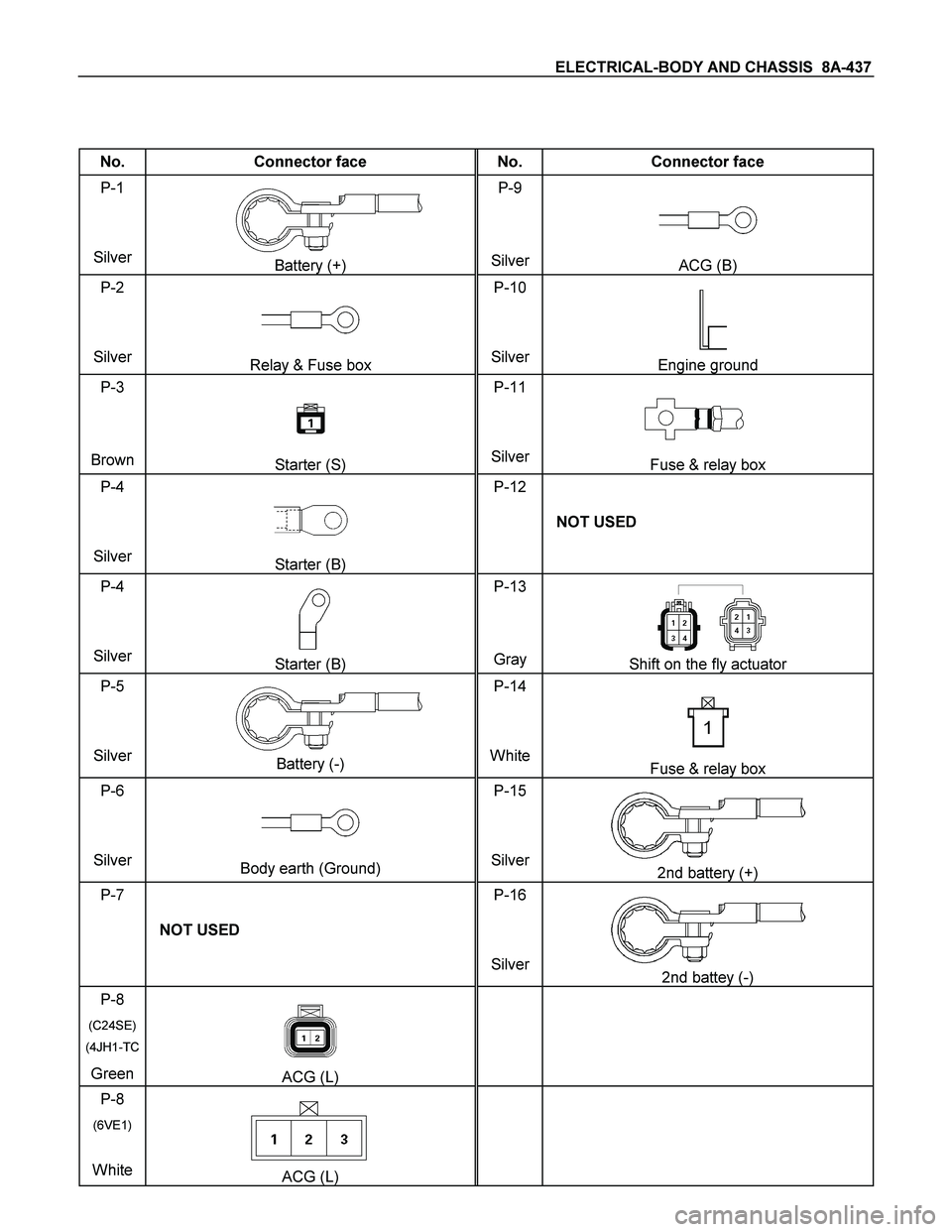

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-437 No. Connector face No. Connector face P-1 Silver Battery (+) P-9 SilverACG (B) P-2 Silver Relay & Fuse box P-10 SilverEngine ground P-3 Brown

Page 1096 of 4264

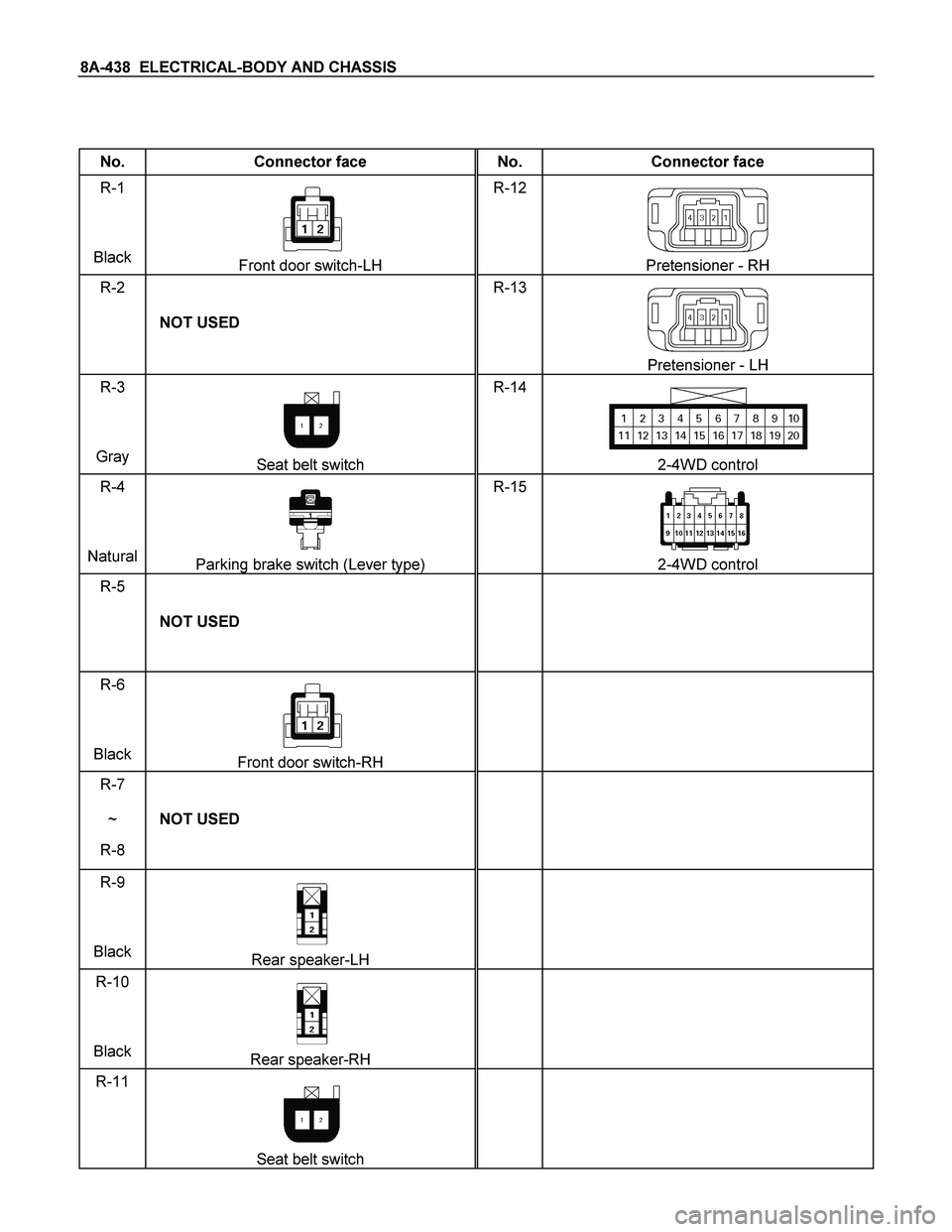

ISUZU TF SERIES 2004 Workshop Manual 8A-438 ELECTRICAL-BODY AND CHASSIS No. Connector face No. Connector face R-1 Black Front door switch-LH R-12 Pretensioner - RH R-2 NOT USED R-13 Pretensioner - LH R-3 Gray Seat
