Page 3809 of 4264

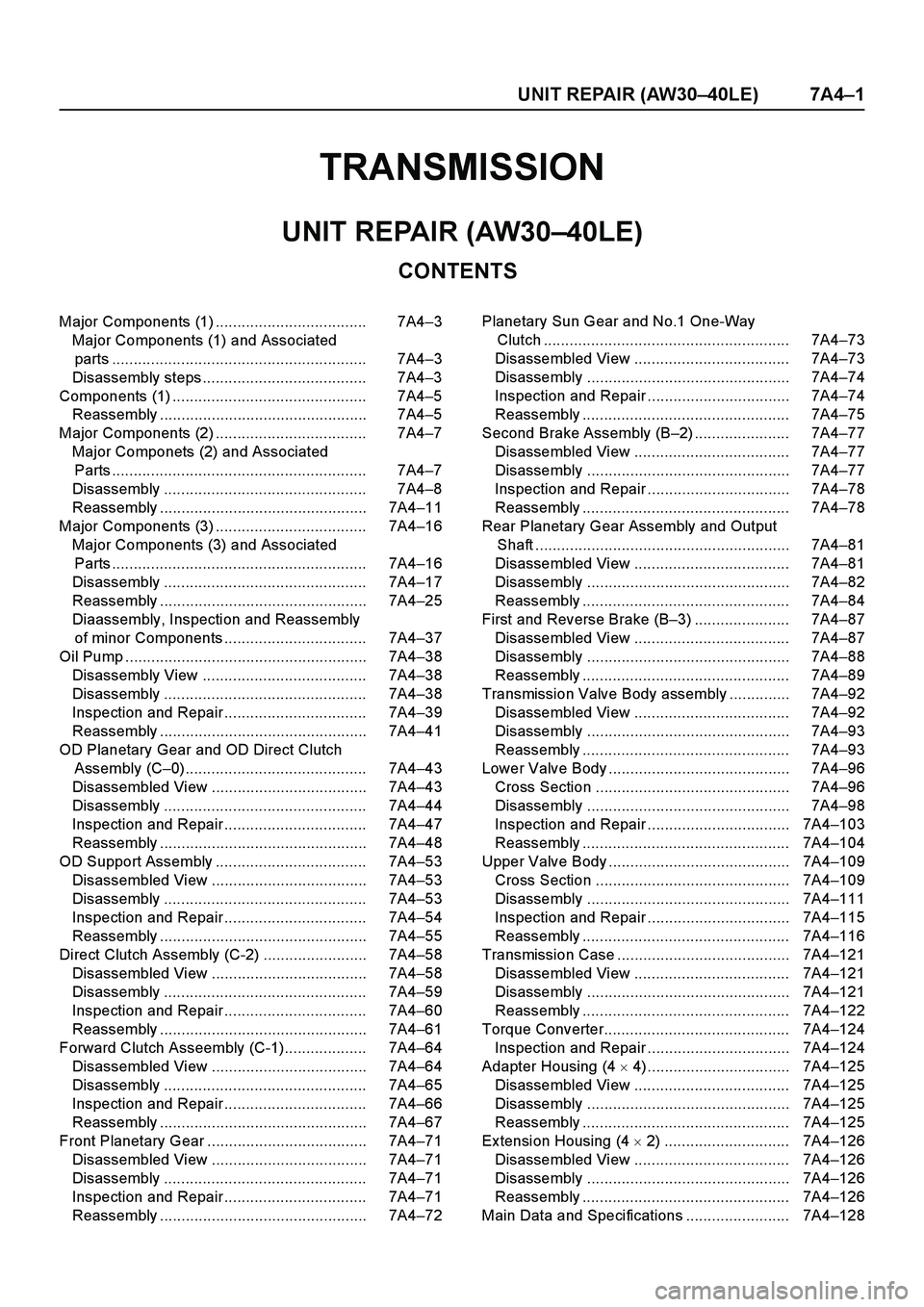

ISUZU TF SERIES 2004 Workshop Manual UNIT REPAIR (AW30–40LE) 7A4–1
TRANSMISSION
CONTENTS
UNIT REPAIR (AW30–40LE)
Major Components (1) ................................... 7A4–3
Major Components (1) and Associated
parts ...........

UNIT REPAIR (AW30–40LE) 7A4–1
TRANSMISSION
CONTENTS
UNIT REPAIR (AW30–40LE)
Major Components (1) ................................... 7A4–3
Major Components (1) and Associated
parts ........................................................... 7A4–3
Disassembly steps...................................... 7A4–3
Components (1) ............................................. 7A4–5
Reassembly ................................................ 7A4–5
Major Components (2) ................................... 7A4–7
Major Componets (2) and Associated
Parts ........................................................... 7A4–7
Disassembly ............................................... 7A4–8
Reassembly ................................................ 7A4–11
Major Components (3) ................................... 7A4–16
Major Components (3) and Associated
Parts ........................................................... 7A4–16
Disassembly ............................................... 7A4–17
Reassembly ................................................ 7A4–25
Diaassembly, Inspection and Reassembly
of minor Components ................................. 7A4–37
Oil Pump ........................................................ 7A4–38
Disassembly View ...................................... 7A4–38
Disassembly ............................................... 7A4–38
Inspection and Repair................................. 7A4–39
Reassembly ................................................ 7A4–41
OD Planetary Gear and OD Direct Clutch
Assembly (C–0).......................................... 7A4–43
Disassembled View .................................... 7A4–43
Disassembly ............................................... 7A4–44
Inspection and Repair................................. 7A4–47
Reassembly ................................................ 7A4–48
OD Support Assembly ................................... 7A4–53
Disassembled View .................................... 7A4–53
Disassembly ............................................... 7A4–53
Inspection and Repair................................. 7A4–54
Reassembly ................................................ 7A4–55
Direct Clutch Assembly (C-2) ........................ 7A4–58
Disassembled View .................................... 7A4–58
Disassembly ............................................... 7A4–59
Inspection and Repair................................. 7A4–60
Reassembly ................................................ 7A4–61
Forward Clutch Asseembly (C-1)................... 7A4–64
Disassembled View .................................... 7A4–64
Disassembly ............................................... 7A4–65
Inspection and Repair................................. 7A4–66
Reassembly ................................................ 7A4–67
Front Planetary Gear ..................................... 7A4–71
Disassembled View .................................... 7A4–71
Disassembly ............................................... 7A4–71
Inspection and Repair................................. 7A4–71
Reassembly ................................................ 7A4–72Planetary Sun Gear and No.1 One-Way
Clutch ......................................................... 7A4–73
Disassembled View .................................... 7A4–73
Disassembly ............................................... 7A4–74
Inspection and Repair ................................. 7A4–74
Reassembly ................................................ 7A4–75
Second Brake Assembly (B–2)...................... 7A4–77
Disassembled View .................................... 7A4–77
Disassembly ............................................... 7A4–77
Inspection and Repair ................................. 7A4–78
Reassembly ................................................ 7A4–78
Rear Planetary Gear Assembly and Output
Shaft ........................................................... 7A4–81
Disassembled View .................................... 7A4–81
Disassembly ............................................... 7A4–82
Reassembly ................................................ 7A4–84
First and Reverse Brake (B–3) ...................... 7A4–87
Disassembled View .................................... 7A4–87
Disassembly ............................................... 7A4–88
Reassembly ................................................ 7A4–89
Transmission Valve Body assembly .............. 7A4–92
Disassembled View .................................... 7A4–92
Disassembly ............................................... 7A4–93
Reassembly ................................................ 7A4–93
Lower Valve Body .......................................... 7A4–96
Cross Section ............................................. 7A4–96
Disassembly ............................................... 7A4–98
Inspection and Repair ................................. 7A4–103
Reassembly ................................................ 7A4–104
Upper Valve Body .......................................... 7A4–109
Cross Section ............................................. 7A4–109
Disassembly ............................................... 7A4–111
Inspection and Repair ................................. 7A4–115
Reassembly ................................................ 7A4–116
Transmission Case ........................................ 7A4–121
Disassembled View .................................... 7A4–121
Disassembly ............................................... 7A4–121
Reassembly ................................................ 7A4–122
Torque Converter........................................... 7A4–124
Inspection and Repair ................................. 7A4–124
Adapter Housing (4 4)................................. 7A4–125
Disassembled View .................................... 7A4–125
Disassembly ............................................... 7A4–125
Reassembly ................................................ 7A4–125
Ex tension Housing (4 2) ............................. 7A4–126
Disassembled View .................................... 7A4–126
Disassembly ............................................... 7A4–126
Reassembly ................................................ 7A4–126
Main Data and Specifications ........................ 7A4–128

Page 3810 of 4264

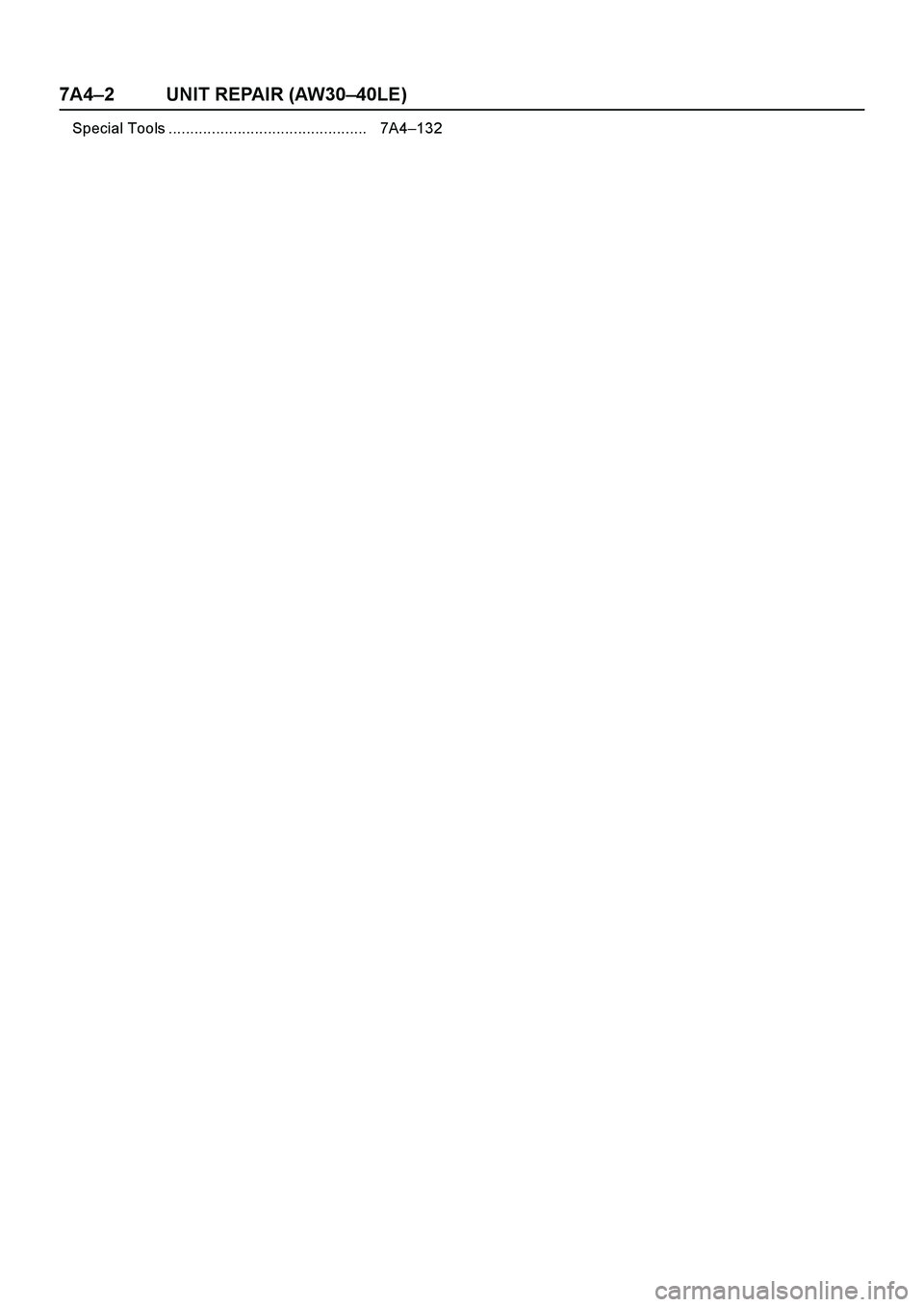

ISUZU TF SERIES 2004 Workshop Manual 7A4–2 UNIT REPAIR (AW30–40LE)
Special Tools .............................................. 7A4–132

Page 3811 of 4264

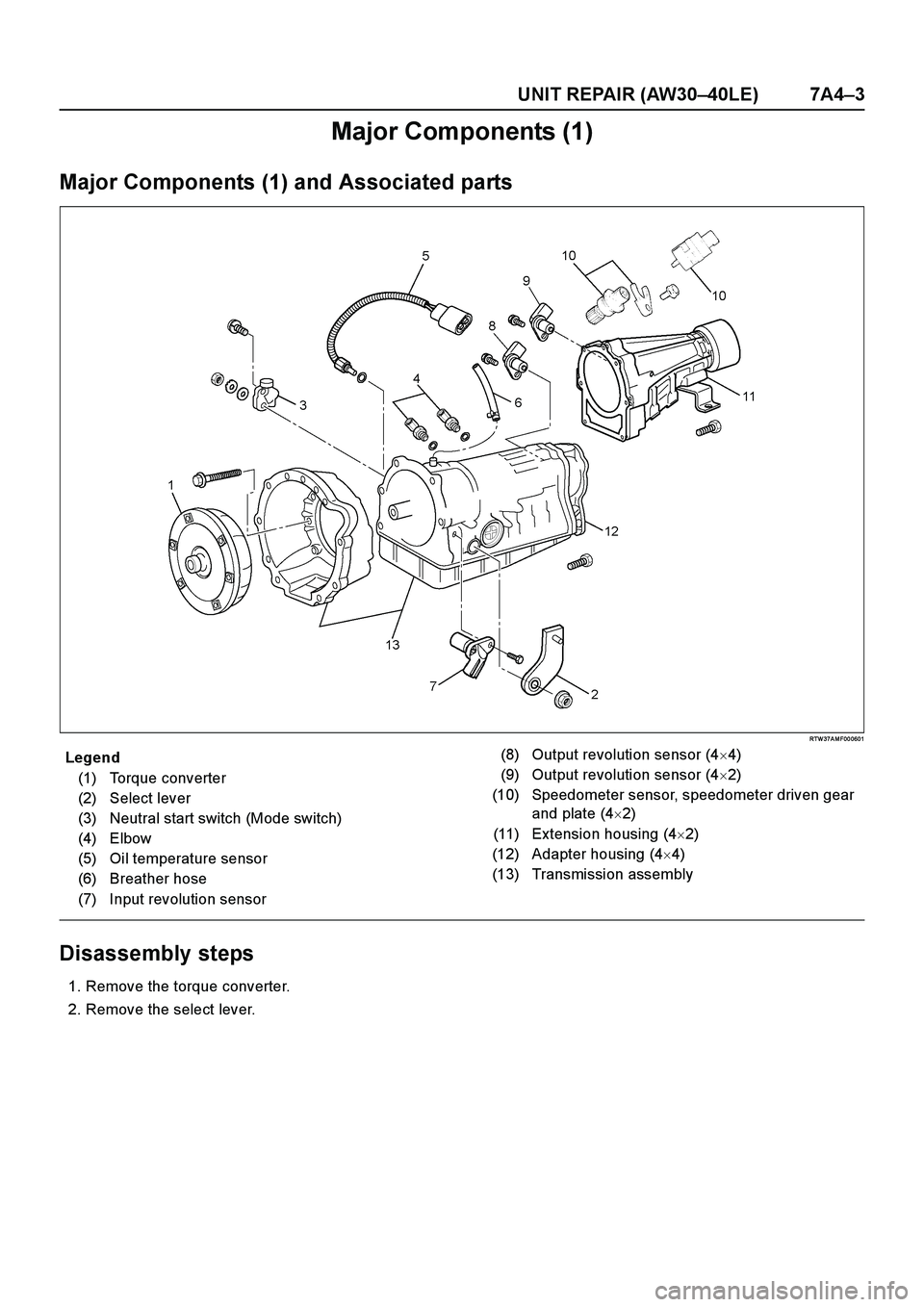

ISUZU TF SERIES 2004 Workshop Manual UNIT REPAIR (AW30–40LE) 7A4–3
Major Components (1)
Major Components (1) and Associated parts
RTW 37A M F00 0601
E nd O FCallo ut
Disassembly steps
1. Remove the torque converter.
2. Remov e the s

Page 3812 of 4264

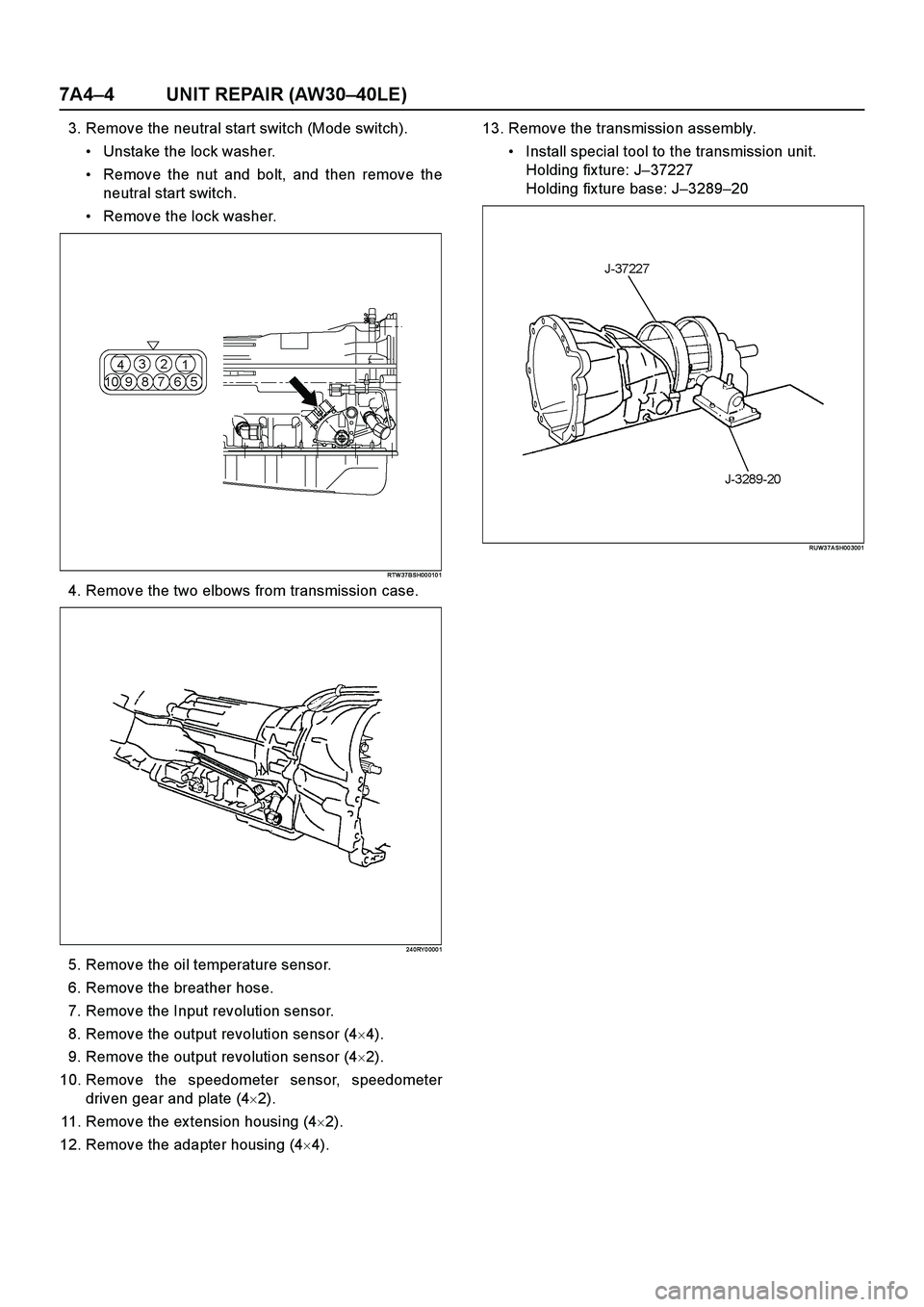

ISUZU TF SERIES 2004 Workshop Manual 7A4–4 UNIT REPAIR (AW30–40LE)
3. Remove the neutral start switch (Mode switch).
Unstake the lock washer.
Remove the nut and bolt, and then remove the
neutral start switch.
Remove the lock washe

Page 3813 of 4264

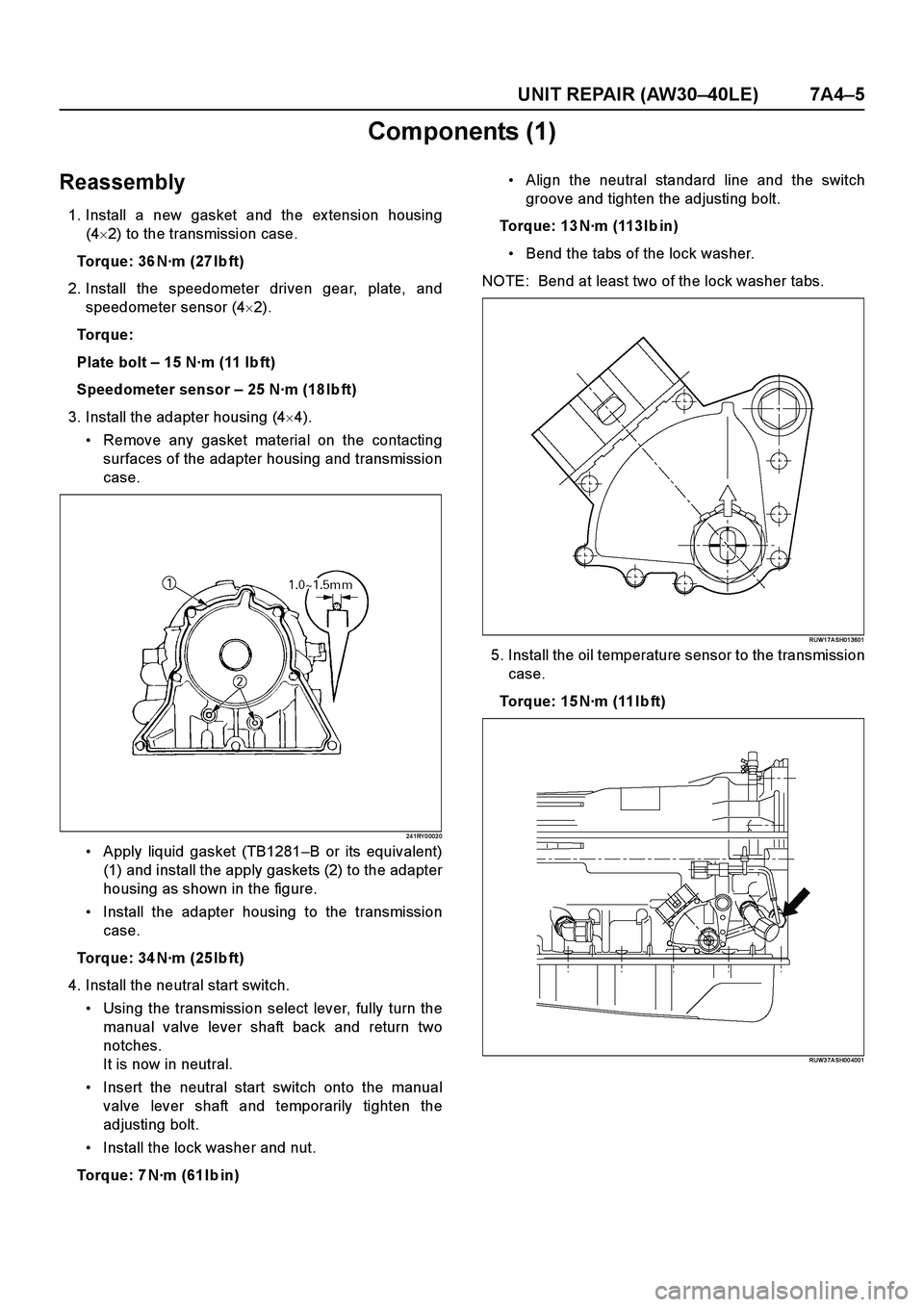

ISUZU TF SERIES 2004 Workshop Manual UNIT REPAIR (AW30–40LE) 7A4–5
Components (1)
Reassembly
1. Install a new gasket and the ex tension housing
(42) to the transmission case.
Torque: 36 N·m (27 Ib ft)
2. Install the speedometer dri

Page 3814 of 4264

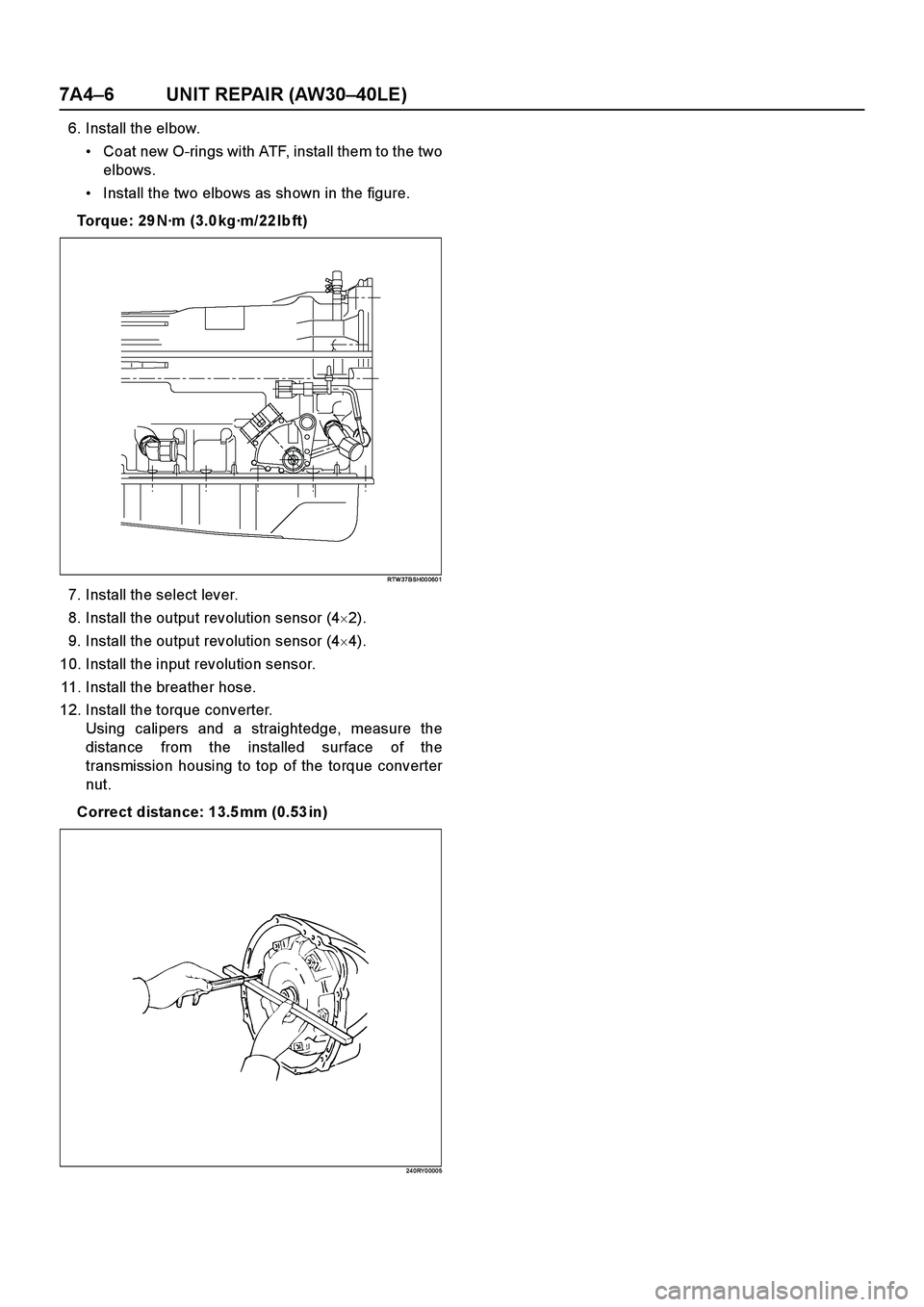

ISUZU TF SERIES 2004 Workshop Manual 7A4–6 UNIT REPAIR (AW30–40LE)
6. Install the elbow.
Coat new O-rings with ATF, install them to the two
elbows.
Install the two elbows as shown in the figure.
Torque: 29 N·m (3.0kg·m/22 Ib ft)

Page 3815 of 4264

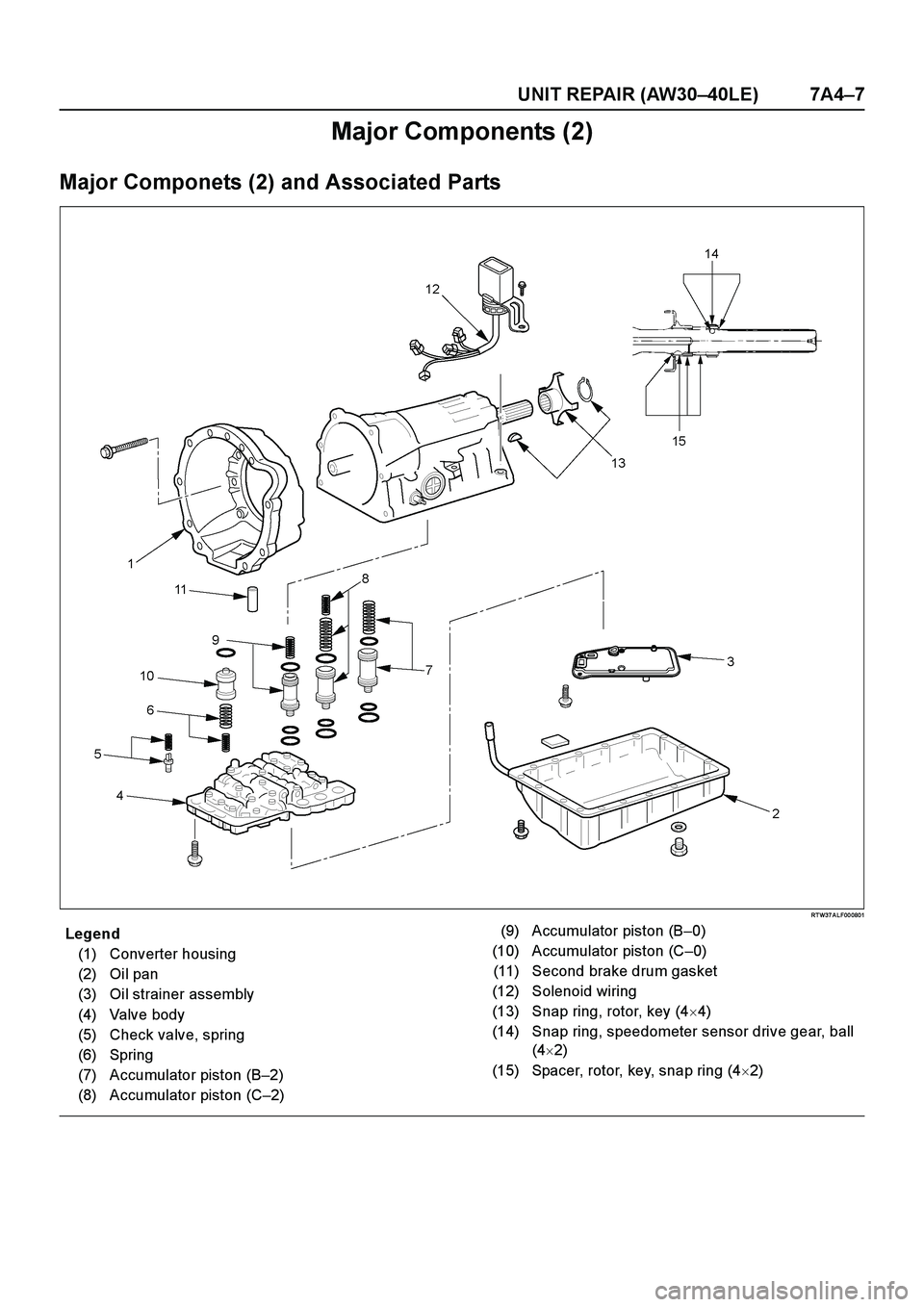

ISUZU TF SERIES 2004 Workshop Manual UNIT REPAIR (AW30–40LE) 7A4–7
Major Components (2)
Major Componets (2) and Associated Parts
RT W37 A LF00 0801
E nd O FCallo ut
Legend
(1) Converter housing
(2) Oil pan
(3) Oil strainer assembly
(

Page 3816 of 4264

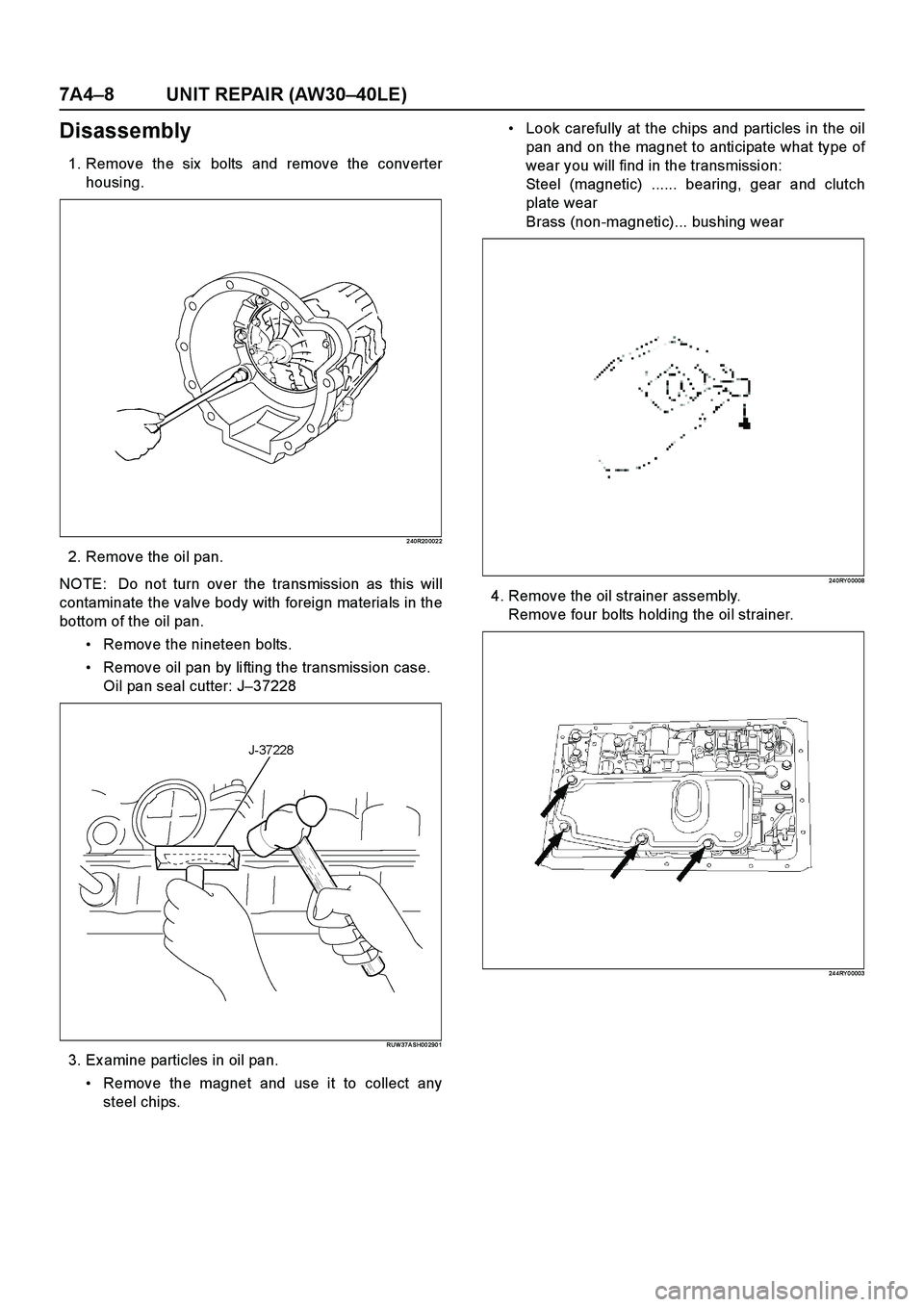

ISUZU TF SERIES 2004 Workshop Manual 7A4–8 UNIT REPAIR (AW30–40LE)
Disassembly
1. Remove the six bolts and remove the converter
housing.
2 40R20 002 2
2. Remove the oil pan.
NOTE: Do not turn over the transmission as this will
cont
