2004 ISUZU TF SERIES Workshop Manual

spark plugstiresjack pointsmanual radio setbrake rotorhandbrake
Popular search:
fuel cap releasebuttonsbrakesphonefuse chartalternatortransmission
Previous
Next
Load previous 8 pages

Page 3105 of 4264

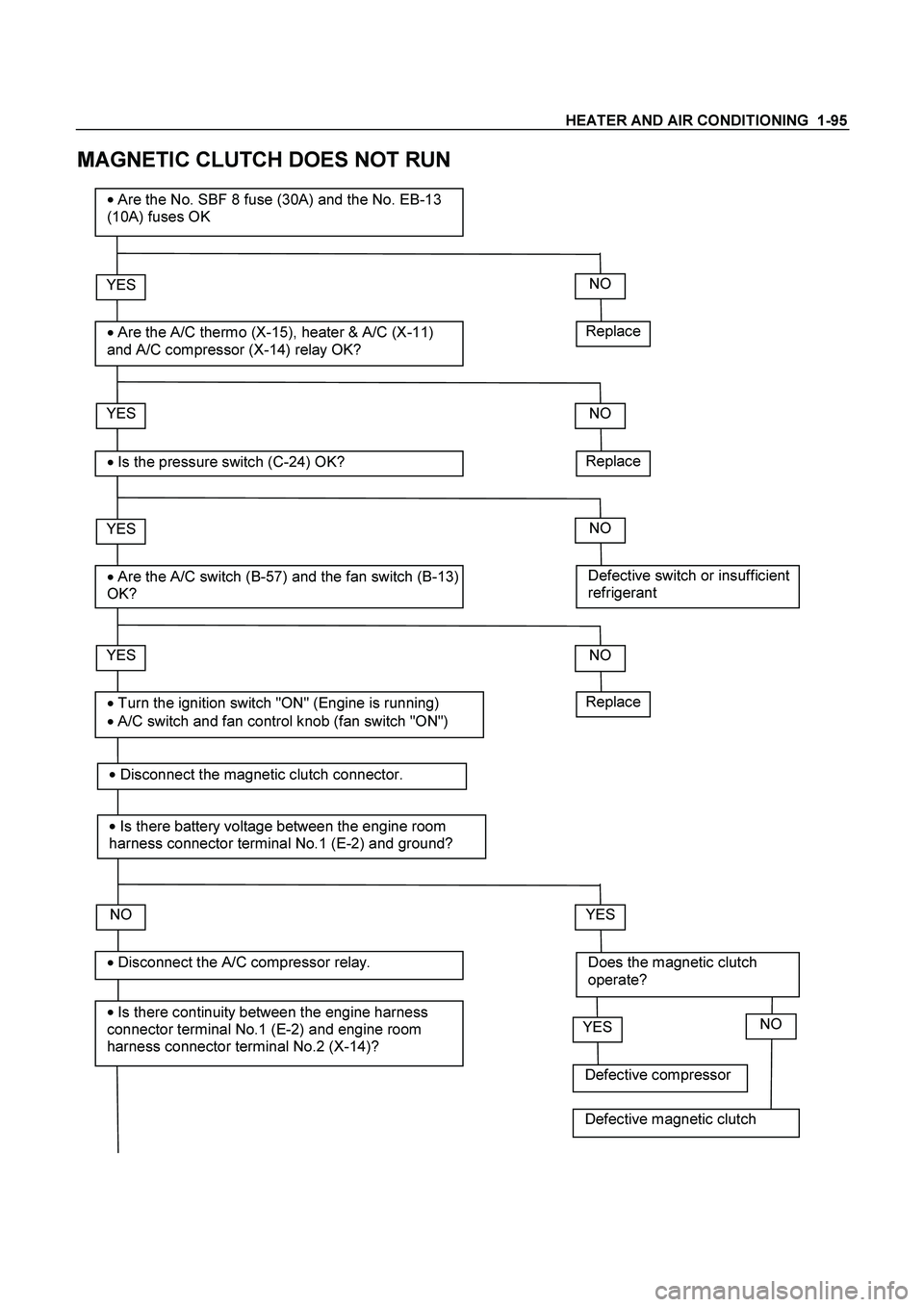

ISUZU TF SERIES 2004 Workshop Manual HEATER AND AIR CONDITIONING 1-95 MAGNETIC CLUTCH DOES NOT RUN Replace YES  Are the A/C thermo (X-15), heater & A/C (X-11) and A/C compressor (X-14) relay OK?  Are the No. SBF 8 fuse (30A

Page 3106 of 4264

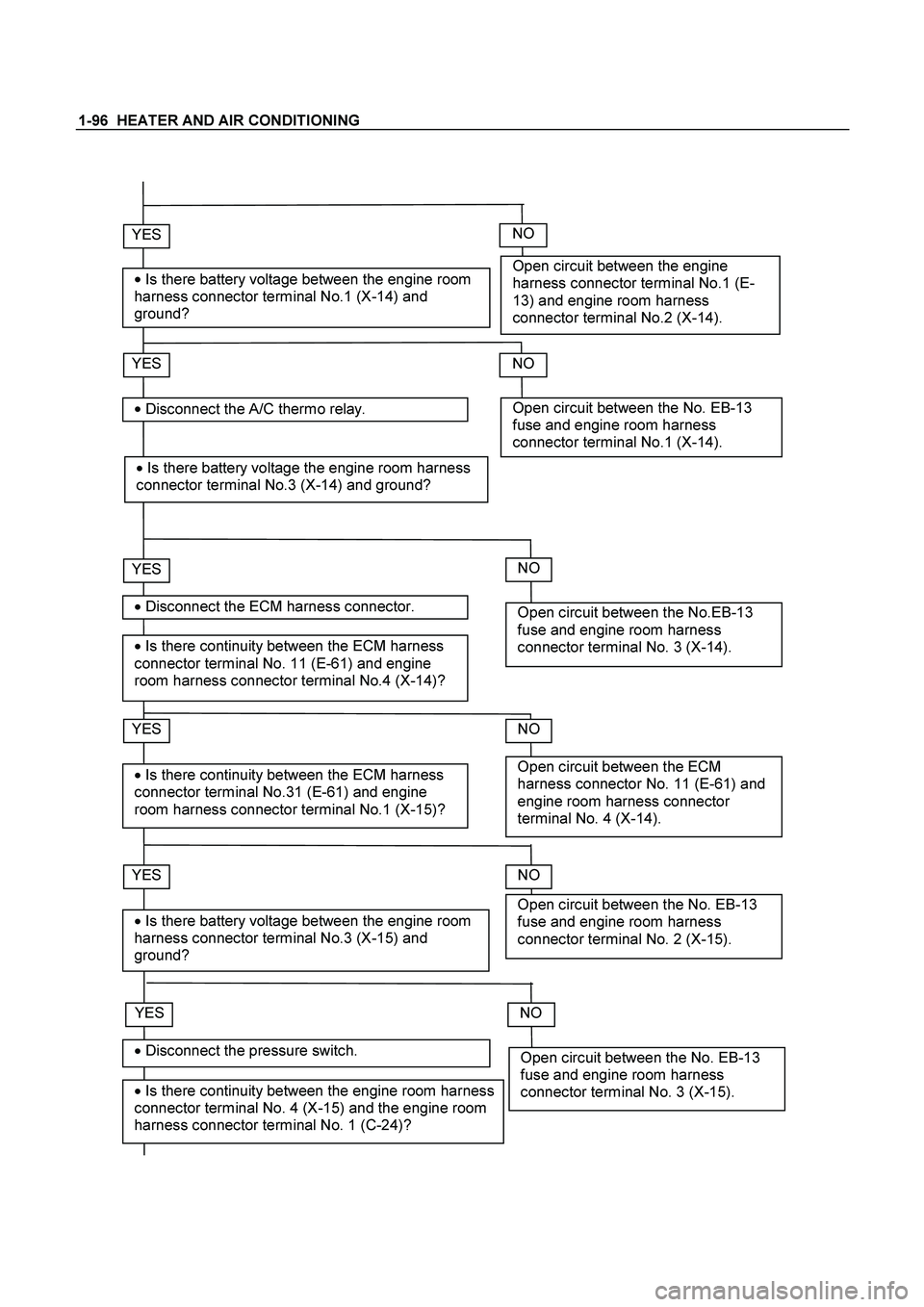

ISUZU TF SERIES 2004 Workshop Manual 1-96 HEATER AND AIR CONDITIONING Open circuit between the engine harness connector terminal No.1 (E- 13) and engine room harness connector terminal No.2 (X-14). YES  Is there battery vo

Page 3107 of 4264

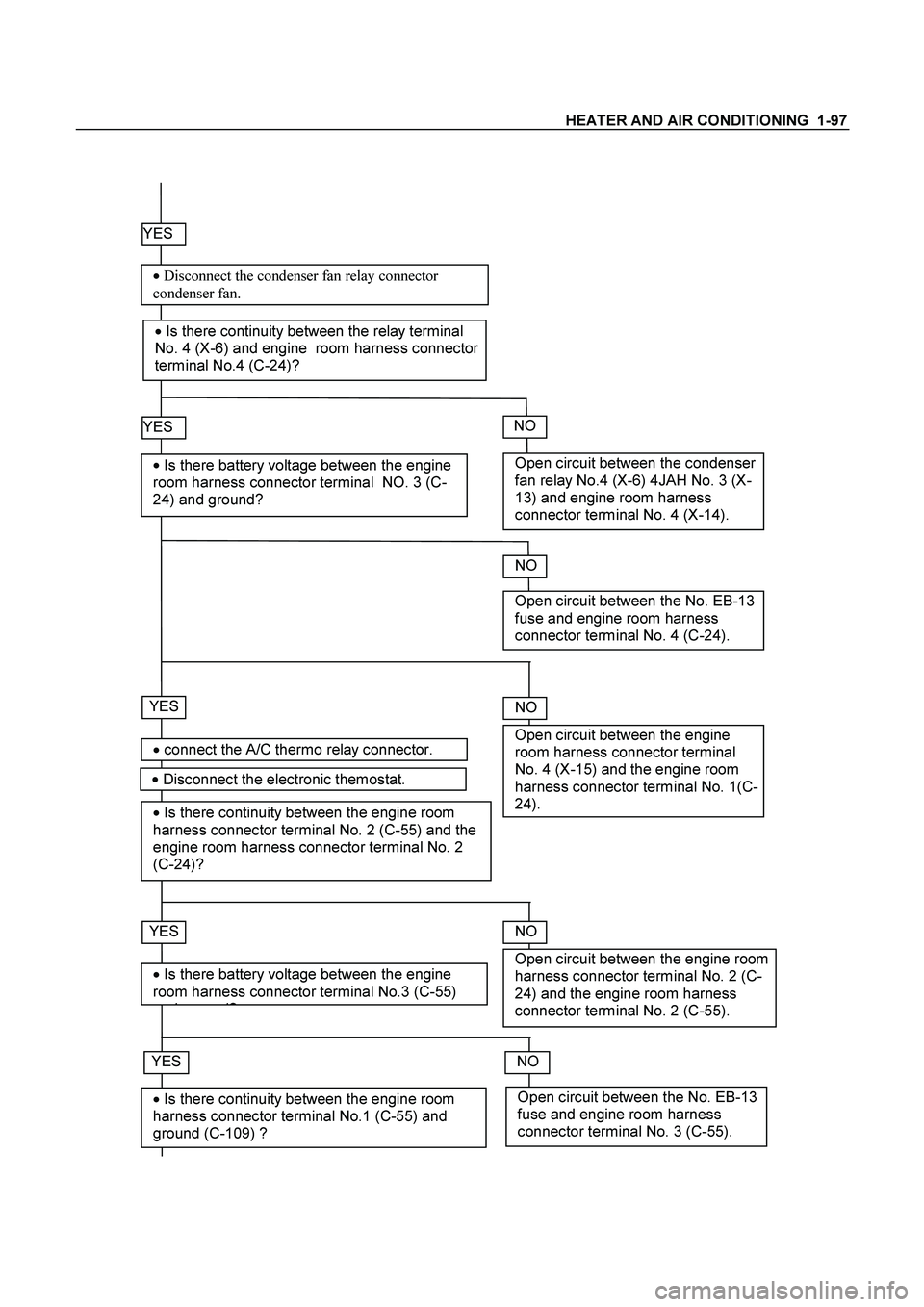

ISUZU TF SERIES 2004 Workshop Manual HEATER AND AIR CONDITIONING 1-97 YES  Disconnect the condenser fan relay connector condenser fan. YES  Is there battery voltage between the engine room harness connector terminal NO. 3

Page 3108 of 4264

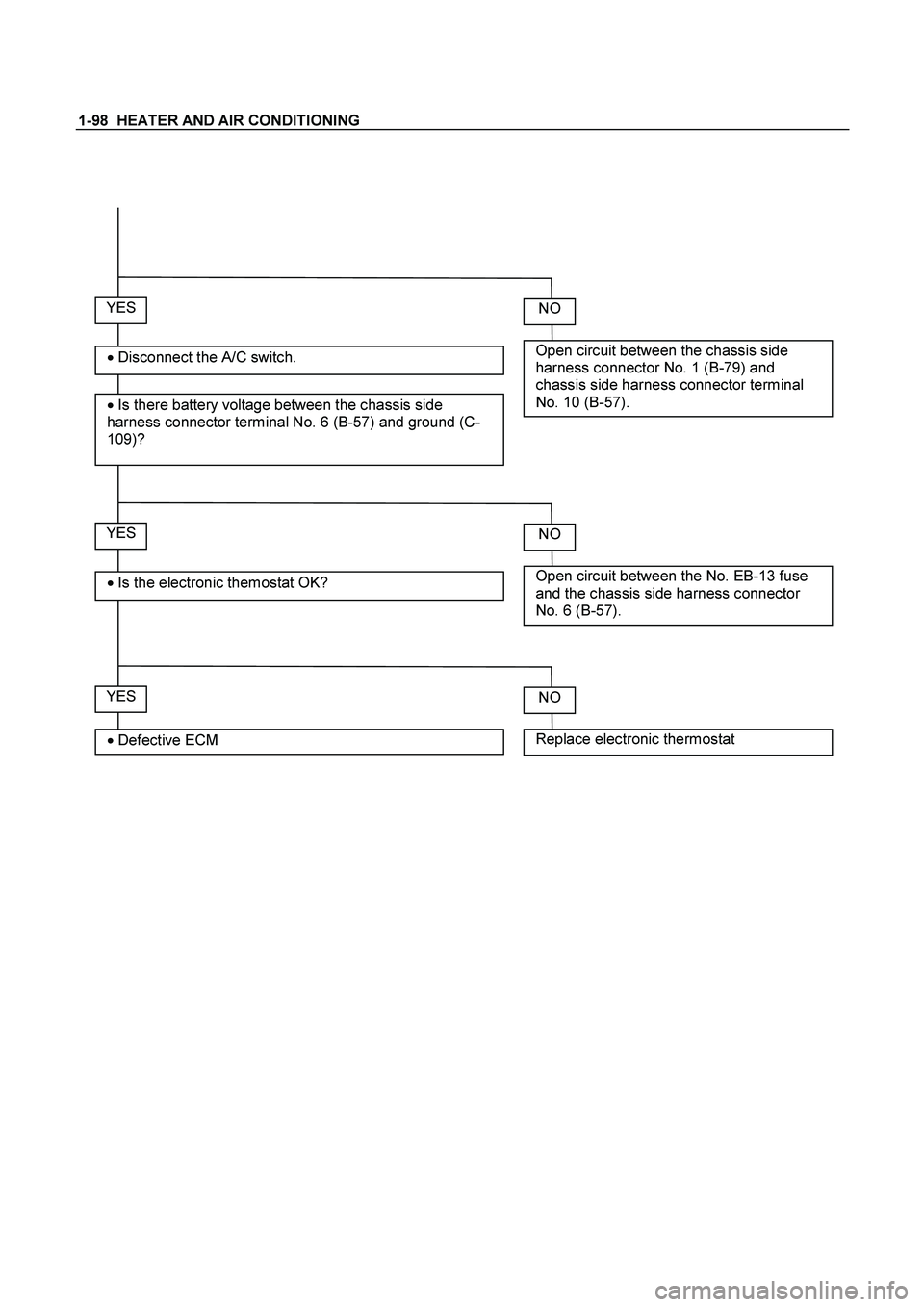

ISUZU TF SERIES 2004 Workshop Manual 1-98 HEATER AND AIR CONDITIONING YES  Disconnect the A/C switch.  Is there battery voltage between the chassis side harness connector terminal No. 6 (B-57) and ground (C- 109)? Open circu

Page 3109 of 4264

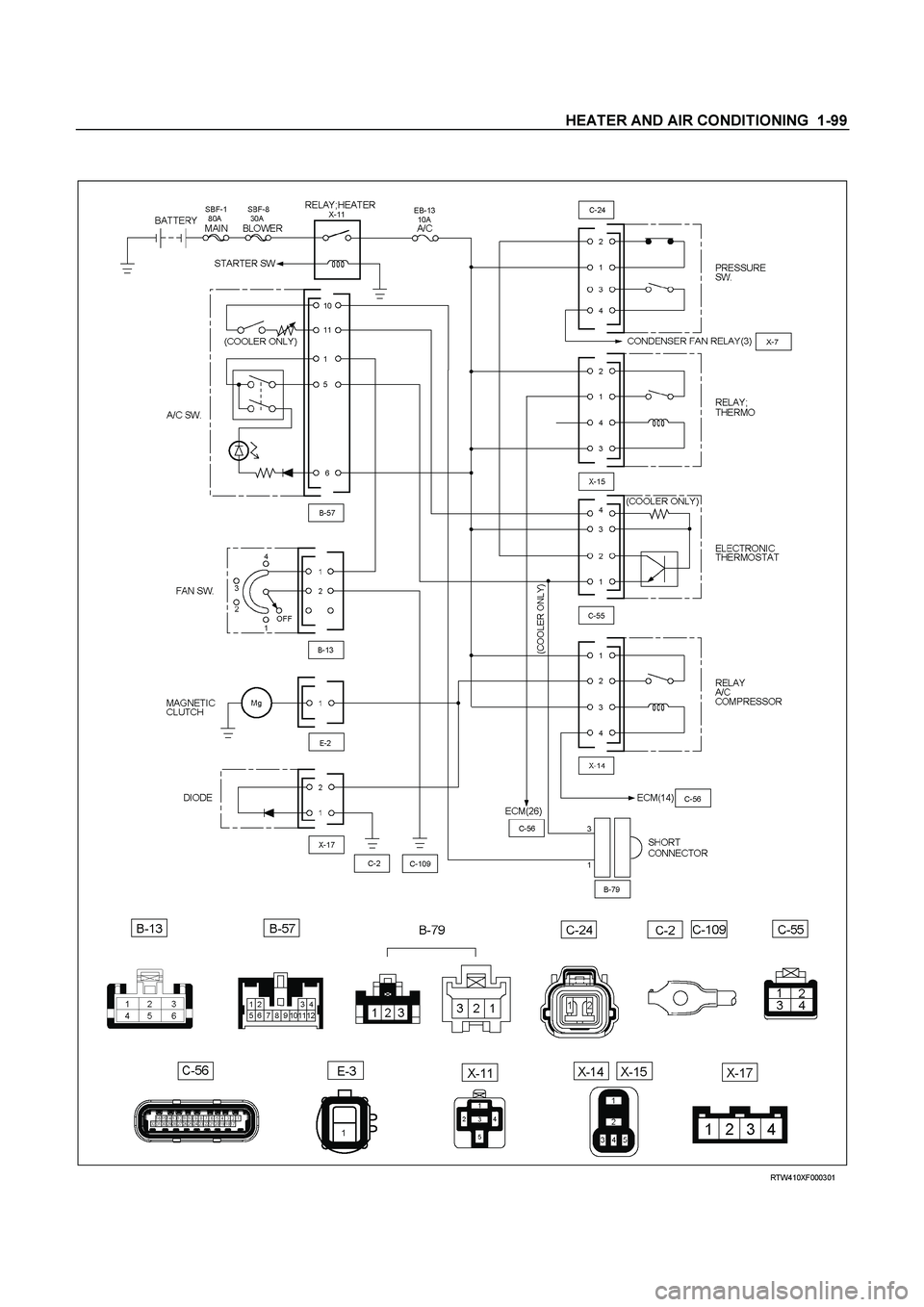

ISUZU TF SERIES 2004 Workshop Manual HEATER AND AIR CONDITIONING 1-99 RTW410XF000301

Page 3110 of 4264

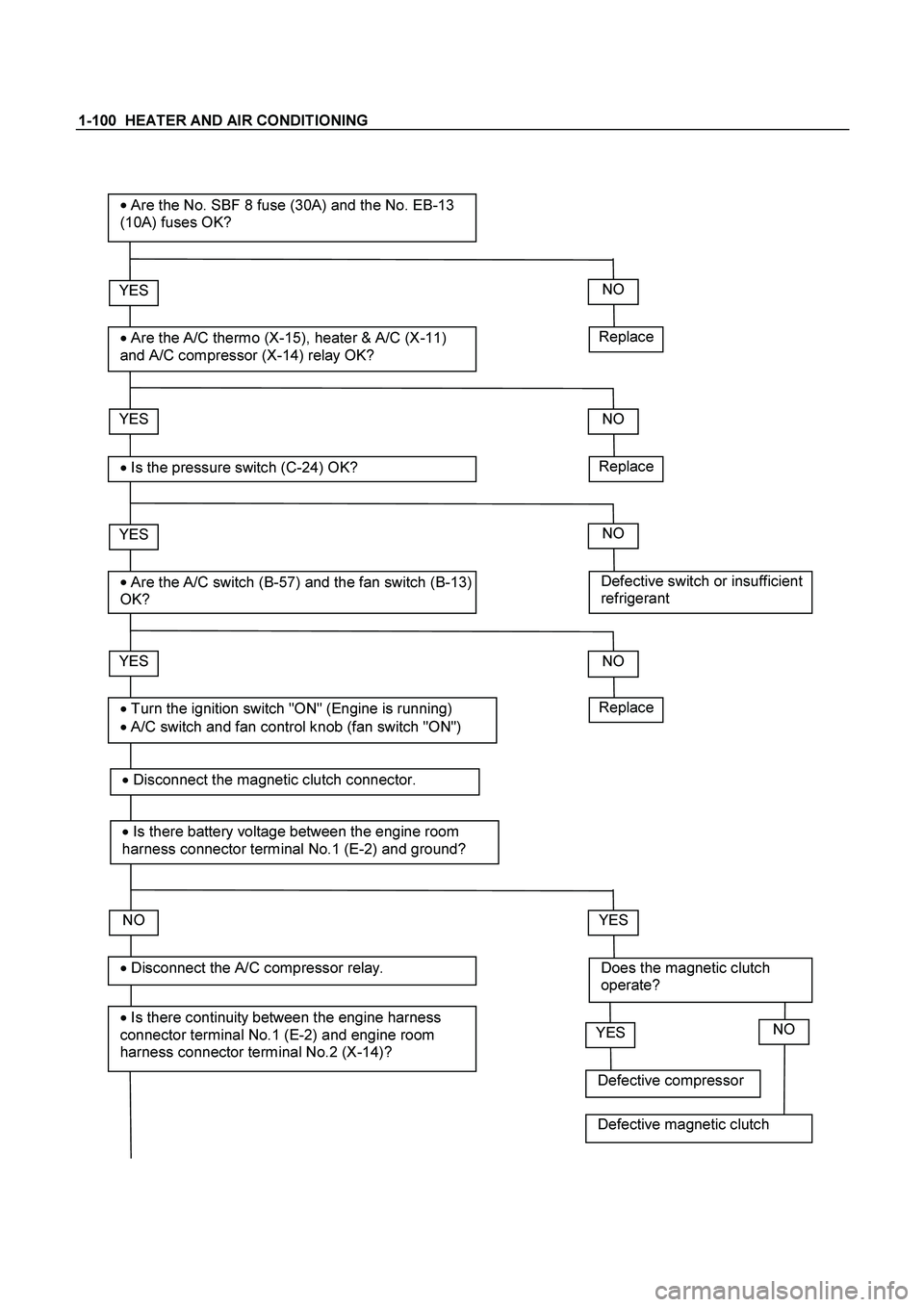

ISUZU TF SERIES 2004 Workshop Manual 1-100 HEATER AND AIR CONDITIONING Replace YES  Are the A/C thermo (X-15), heater & A/C (X-11) and A/C compressor (X-14) relay OK?  Are the No. SBF 8 fuse (30A) and the No. EB-13 (10A)

Page 3111 of 4264

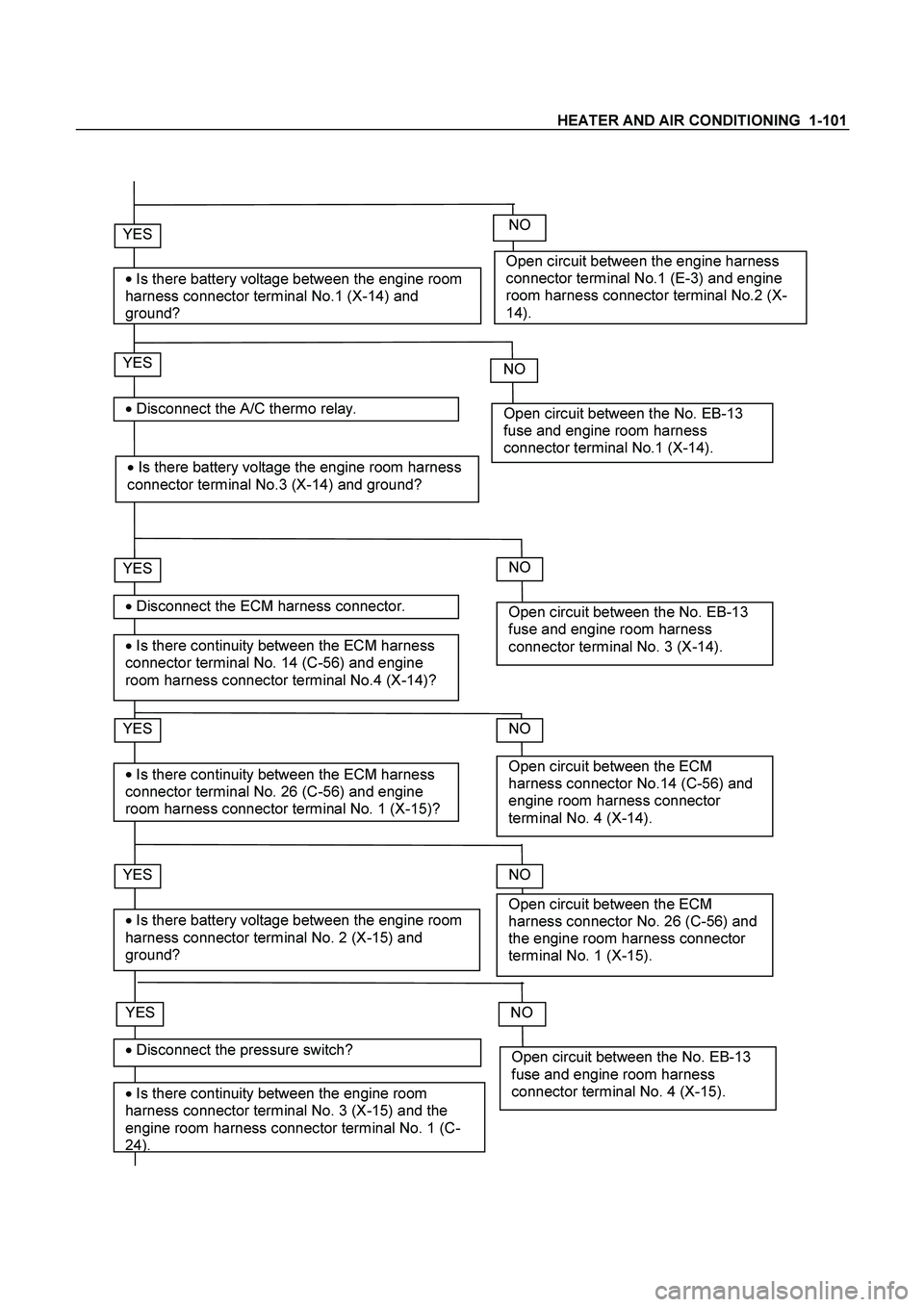

ISUZU TF SERIES 2004 Workshop Manual HEATER AND AIR CONDITIONING 1-101 Open circuit between the No. EB-13 fuse and engine room harness connector terminal No.1 (X-14). NO YES  Is there battery voltage between the engine room

Page 3112 of 4264

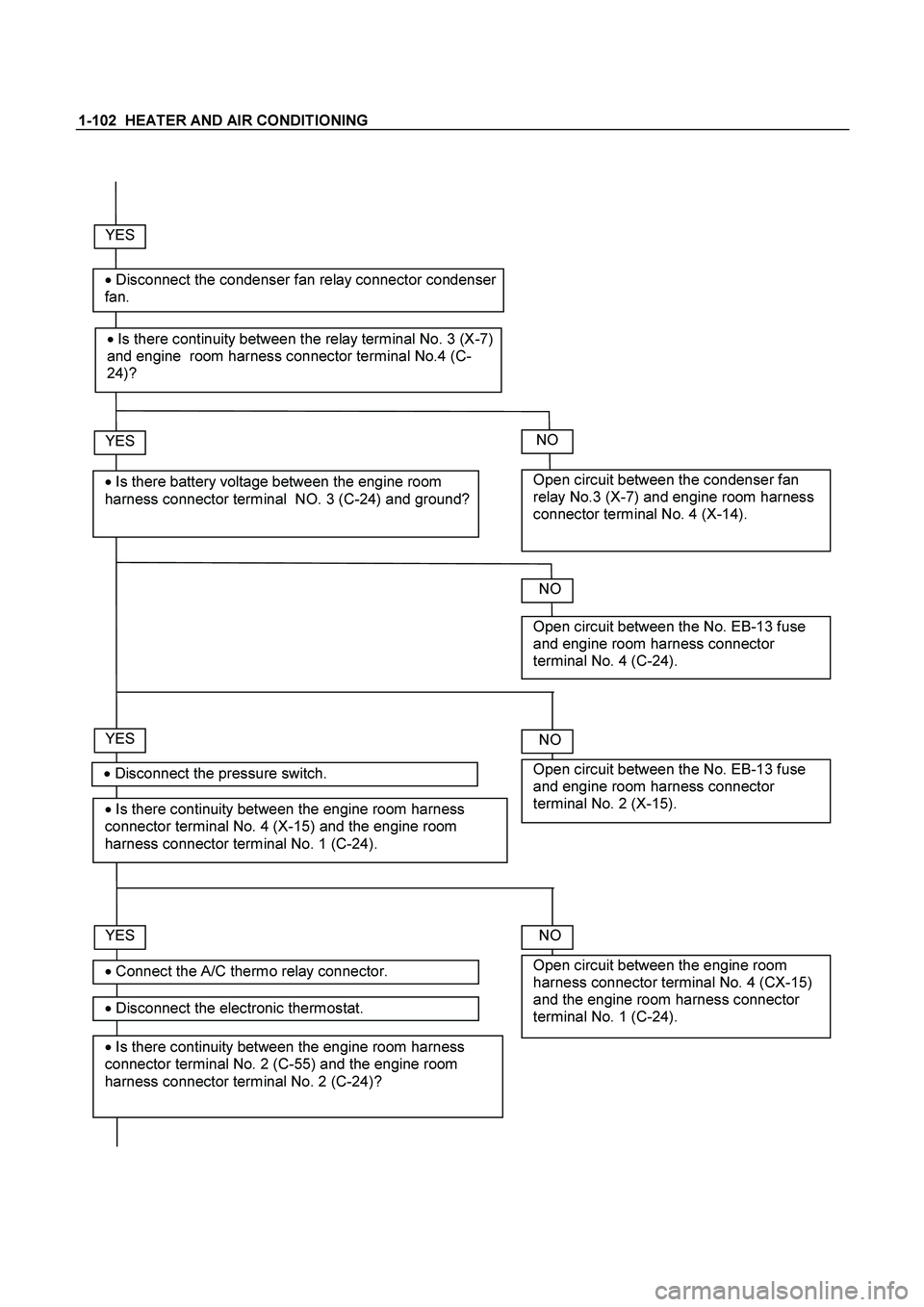

ISUZU TF SERIES 2004 Workshop Manual 1-102 HEATER AND AIR CONDITIONING YES  Disconnect the condenser fan relay connector condenser fan. YES  Is there battery voltage between the engine room harness connector terminal NO.
Load next 8 pages
Page:   < prev 1-10 ... 3073-3080 3081-3088 3089-3096 3097-3104 3105-3112 3113-3120 3121-3128 3129-3136 3137-3144 ... 4264 next >
load capacitykey fob batterycheck enginenavigation systemadding oilfuse chart
Popular search:
bolt patterncheck transmission fluidfuel consumptionrefrigerant typeThrottle Position SensorFuel sensordrain bolt
