UNIT REPAIR (AW30–40LE) 7A4–97

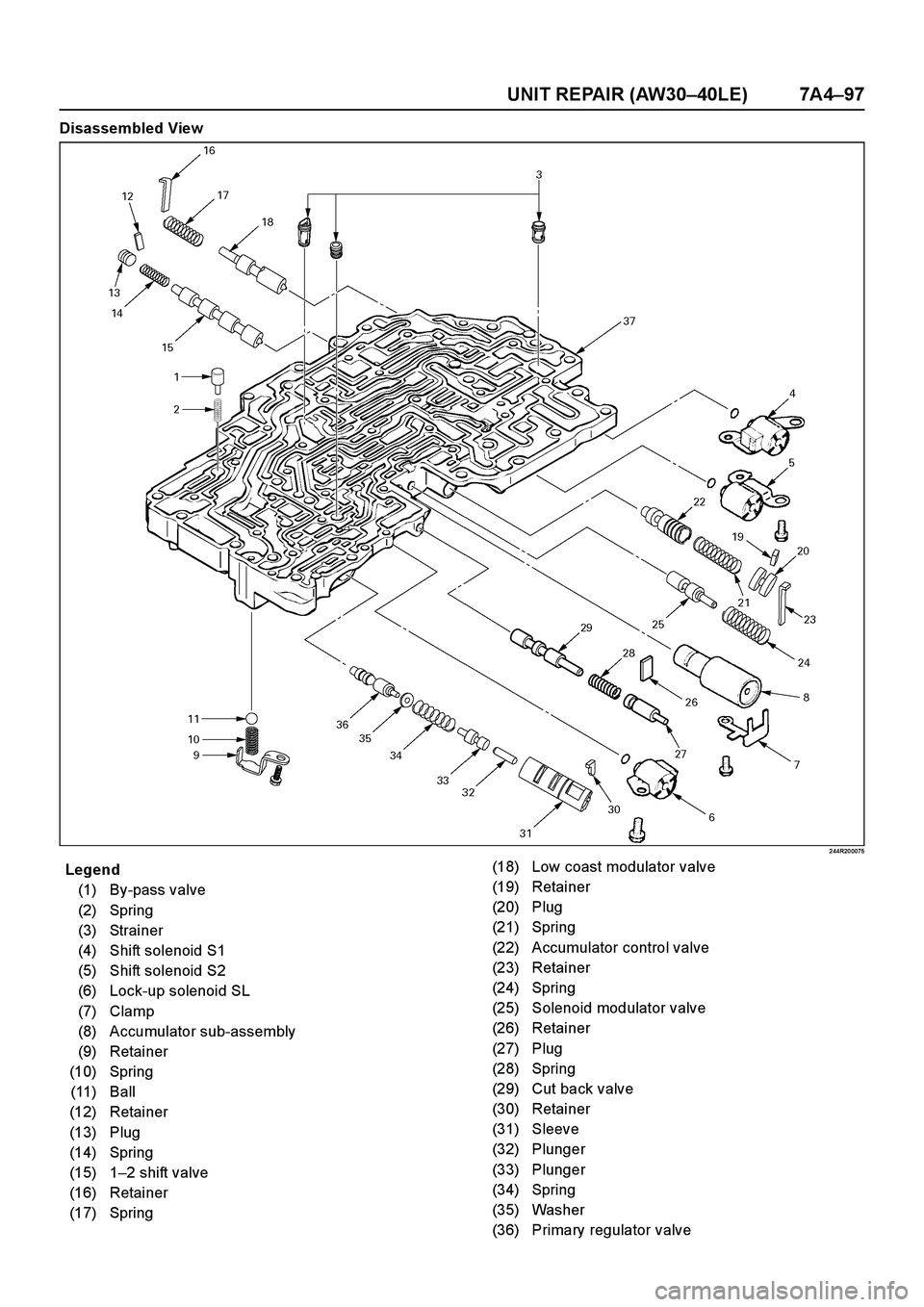

Disassembled View
2 44R20 0075
Legend
(1) By-pass valve
(2) Spring
(3) Strainer
(4) Shift solenoid S1
(5) Shift solenoid S2
(6) Lock-up solenoid SL
(7) Clamp
(8) Accumulator sub-assembly
(9) Retainer
(10) Spring
(11) Ball
(12) Retainer
(13) Plug
(14) Spring
(15) 1–2 shift valve
(16) Retainer
(17) Spring(18) Low coast modulator valve
(19) Retainer
(20) Plug
(21) Spring
(22) Accumulator control valve
(23) Retainer
(24) Spring
(25) Solenoid modulator valve
(26) Retainer
(27) Plug
(28) Spring
(29) Cut back valve
(30) Retainer
(31) Sleeve
(32) Plunger
(33) Plunger
(34) Spring
(35) Washer
(36) Primary regulator valve
Page 3906 of 4264
7A4–98 UNIT REPAIR (AW30–40LE)
E nd O FCallo ut
Disassembly
1. Remove by-pass valve and spring.
2 44R20 006 3
2. Remove three strainers.
2 44R20 006 4
NOTE: Confirm six retainers are installed correctly.
2 44R20 0066
3. Remove the shift solenoid S1 and shift solenoid S2.
Remove the fix ing bolt.
Remove the shift solenoid S1 (2) and S2 (1) from
each bore.
Remove the O-rings from each solenoid.
4. Remove the lock-up solenoid SL
Remove the fix ing bolt.
Remove the lock-up solenoid SL (3) from the
bore.
Remove the O-ring from solenoid.
5. Remove the accumulator sub-assembly
Remove the clamp.
Remove the accumulator sub-assembly (4) from
the bore. (37) Lower valve body
Page 3907 of 4264
UNIT REPAIR (AW30–40LE) 7A4–99
6. Remove the retainer (5).
Remove the spring and ball from the valve body.
2 44R20 005 2
2 40R20 0042
Page 3908 of 4264
7A4–100 UNIT REPAIR (AW30–40LE)
7. Remove the 1–2 shift valve retainer (12) with a
magnetic finger by pushing the plug.
2 44R20 006 7
8. Remove the plug, spring and 1–2 shift valve.
2 44R20 005 4
9. Remove the retainer (16) for low coast modulator
valve by pushing the spring with a screwdriver.
2 44R20 0068
10. Remove the spring and low coast modulator valve.
2 44R20 0056
Page 3909 of 4264
UNIT REPAIR (AW30–40LE) 7A4–101

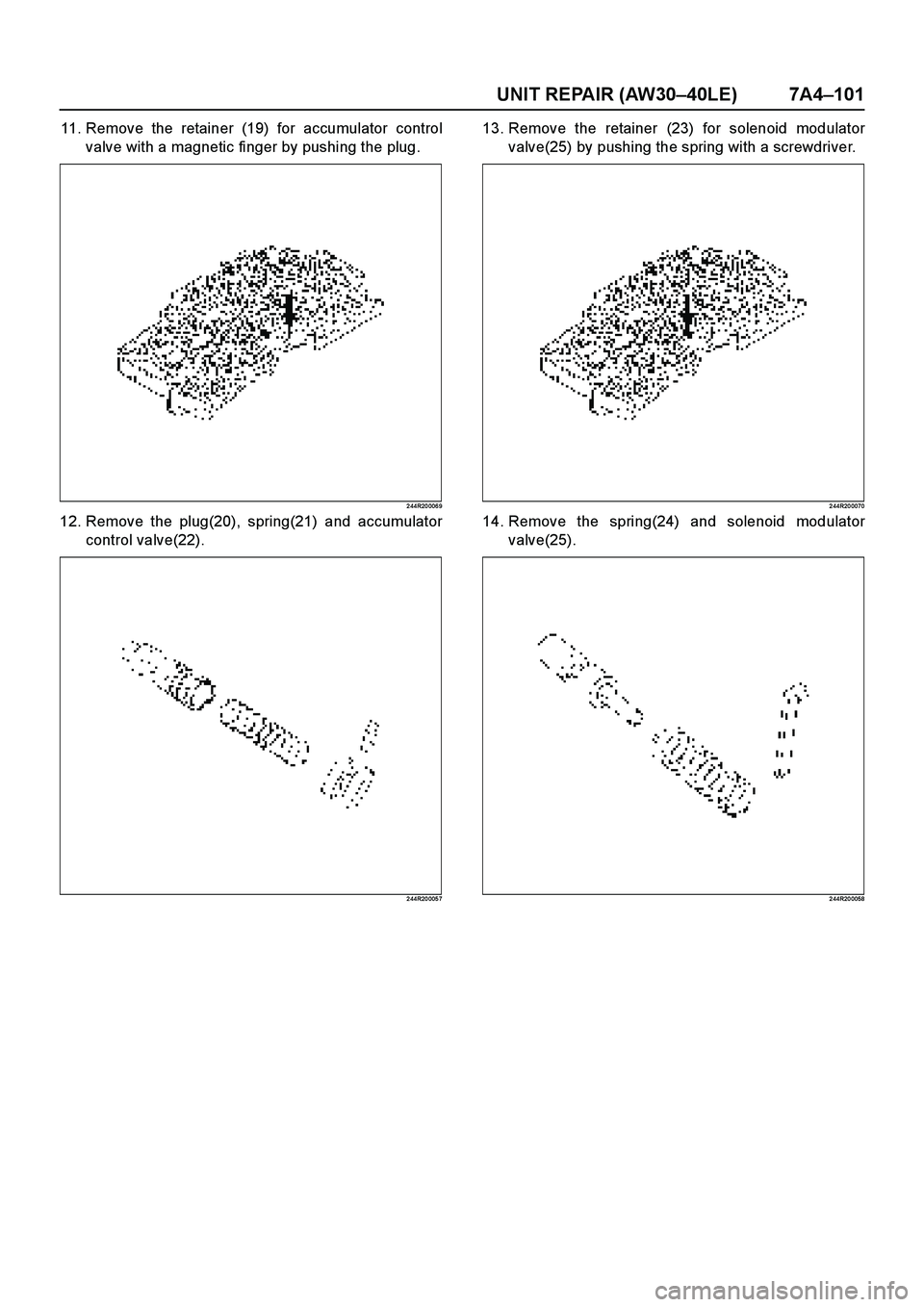

11. Remove the retainer (19) for accumulator control
valve with a magnetic finger by pushing the plug.
2 44R20 006 9
12. Remove the plug(20), spring(21) and accumulator
control valve(22).
2 44R20 005 7
13. Remove the retainer (23) for solenoid modulator
valve(25) by pushing the spring with a screwdriver.
2 44R20 0070
14. Remove the spring(24) and solenoid modulator
valve(25).
2 44R20 0058
Page 3910 of 4264
7A4–102 UNIT REPAIR (AW30–40LE)

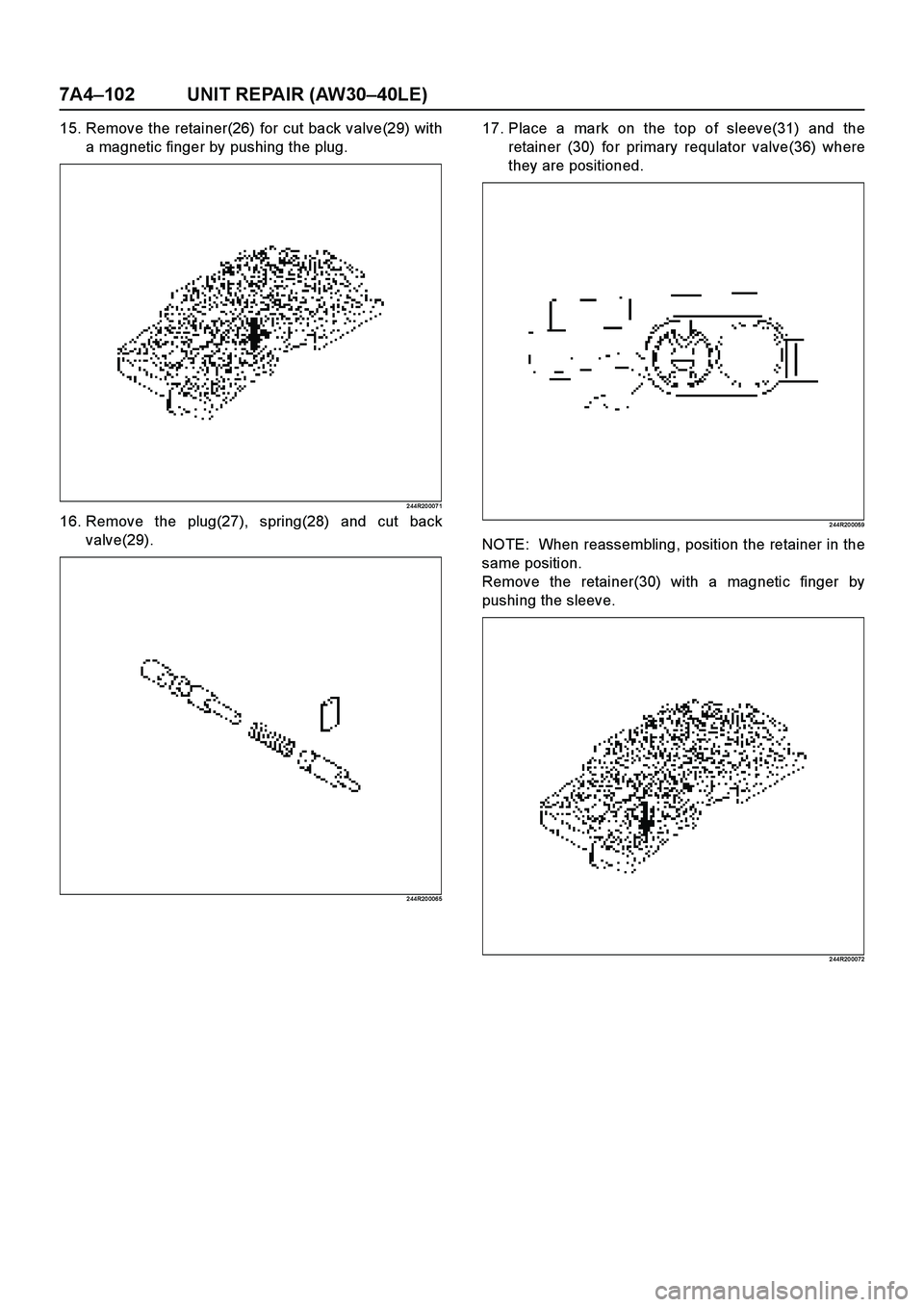

15. Remove the retainer(26) for cut back valve(29) with
a magnetic finger by pushing the plug.
2 44R20 007 1
16. Remove the plug(27), spring(28) and cut back
valve(29).
2 44R20 006 5
17. Place a mark on the top of sleeve(31) and the
retainer (30) for primary requlator valve(36) where
they are positioned.
2 44R20 0059
NOTE: When reassembling, position the retainer in the
same position.
Remove the retainer(30) with a magnetic finger by
pushing the sleeve.
2 44R20 0072
Page 3911 of 4264
UNIT REPAIR (AW30–40LE) 7A4–103
18. Remove the sleeve(31) with the plungers(32)(33),
spring(34) and washer.
Remove the two plungers(32)(33) from the sleeve.
Remove the primary regulator valve(36) from the
valve body(37).
2 44R20 006 0
Inspection and Repair
1. Inspect strainer
Inspect strainer for residual adhesive and damage,
and clean and replace as necessary.
2 44R20 005 1
2. Inspect valve springs
Check for damage, squareness, rust and distorted
coils.
Measure the spring free length and replace if less
than shown below.
mm (in)
2 44R20 0077
SpringFree
lengthColor
(1) By-pass valve21.3
(0.839 )YELLOW
(2) Steel ball20.5
(0.807 )WHITE
(3) 1–2 shift valve 30.8
(1.213 )PURPLE
(4) Low coast modulator valve30.4
(1.197 )LIGHT
GREEN
(5) Accumulator control valve33.8
(1.331)—
(6) Solenoid modulator valve 26.6
(1.047)LIGHT
BLUE
(7) Cut back valve 34.0
(1.339)DARK
BLUE
(8) Primary regulator valve38.58
(1.519)WITHE
Page 3912 of 4264
7A4–104 UNIT REPAIR (AW30–40LE)
Reassembly

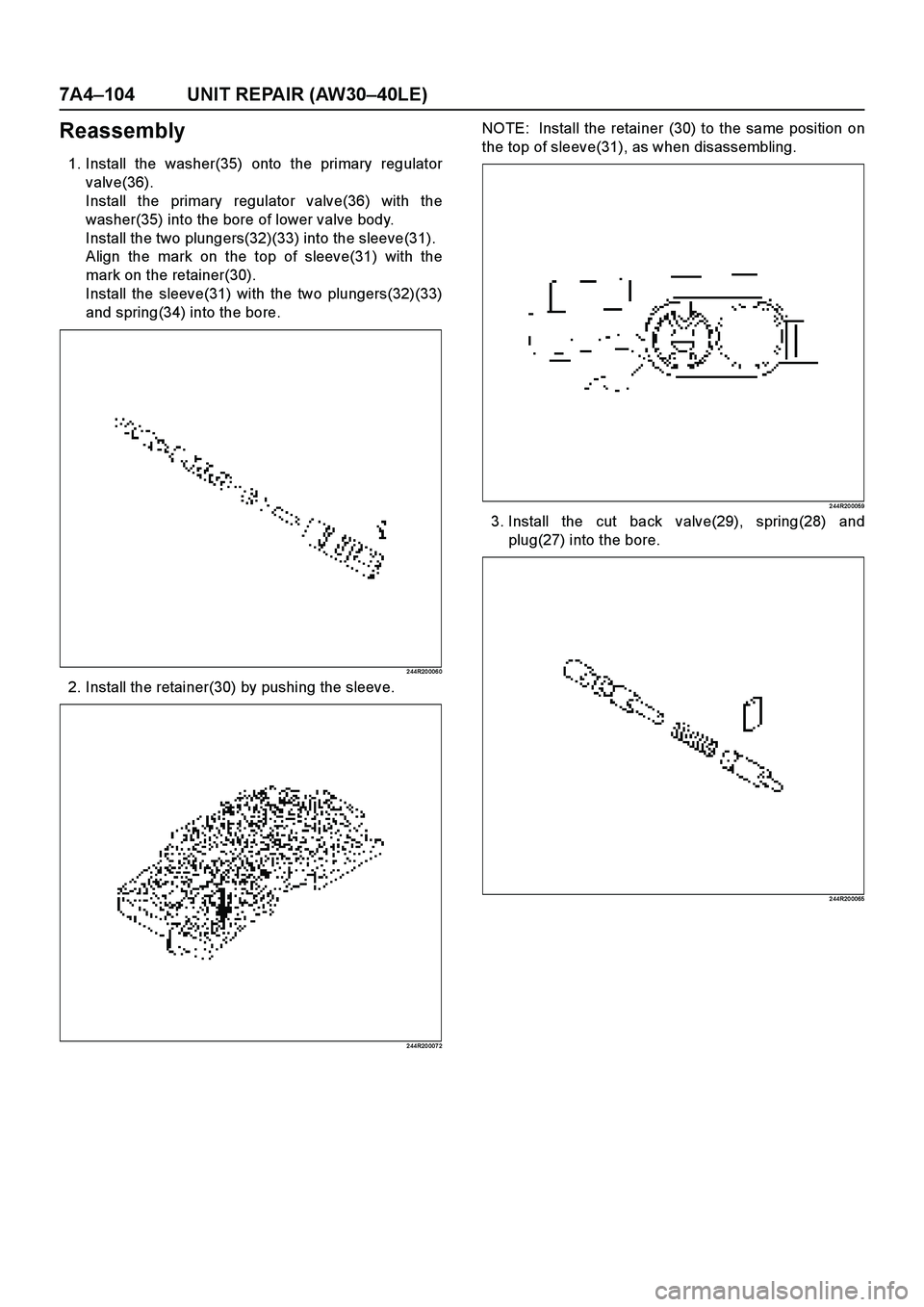

1. Install the washer(35) onto the primary regulator
valve(36).
Install the primary regulator valve(36) with the
washer(35) into the bore of lower valve body.
Install the two plungers(32)(33) into the sleeve(31).
Align the mark on the top of sleeve(31) with the
mark on the retainer(30).
Install the sleeve(31) with the two plungers(32)(33)
and spring(34) into the bore.
2 44R20 006 0
2. Install the retainer(30) by pushing the sleeve.
2 44R20 007 2
NOTE: Install the retainer (30) to the same position on
the top of sleeve(31), as when disassembling.
2 44R20 0059
3. Install the cut back valve(29), spring(28) and
plug(27) into the bore.
2 44R20 0065
