ISUZU TF SERIES 2004 Workshop Manual GENERAL INFORMATION 0A-5

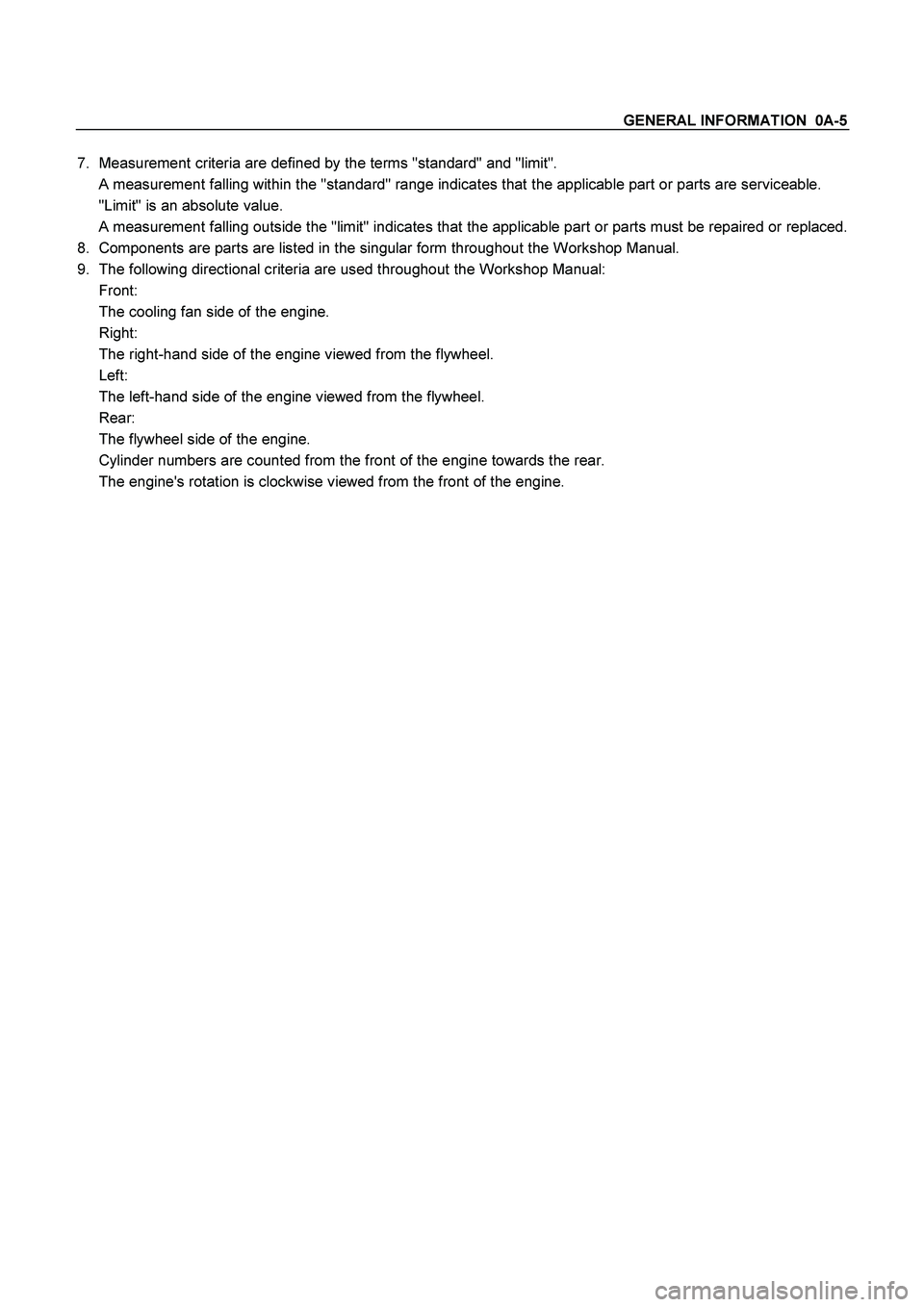

7. Measurement criteria are defined by the terms "standard" and "limit".

A measurement falling within the "standard" range indicates that the applicable part or parts a

Page 2978 of 4264

ISUZU TF SERIES 2004 Workshop Manual 0A-6 GENERAL INFORMATION

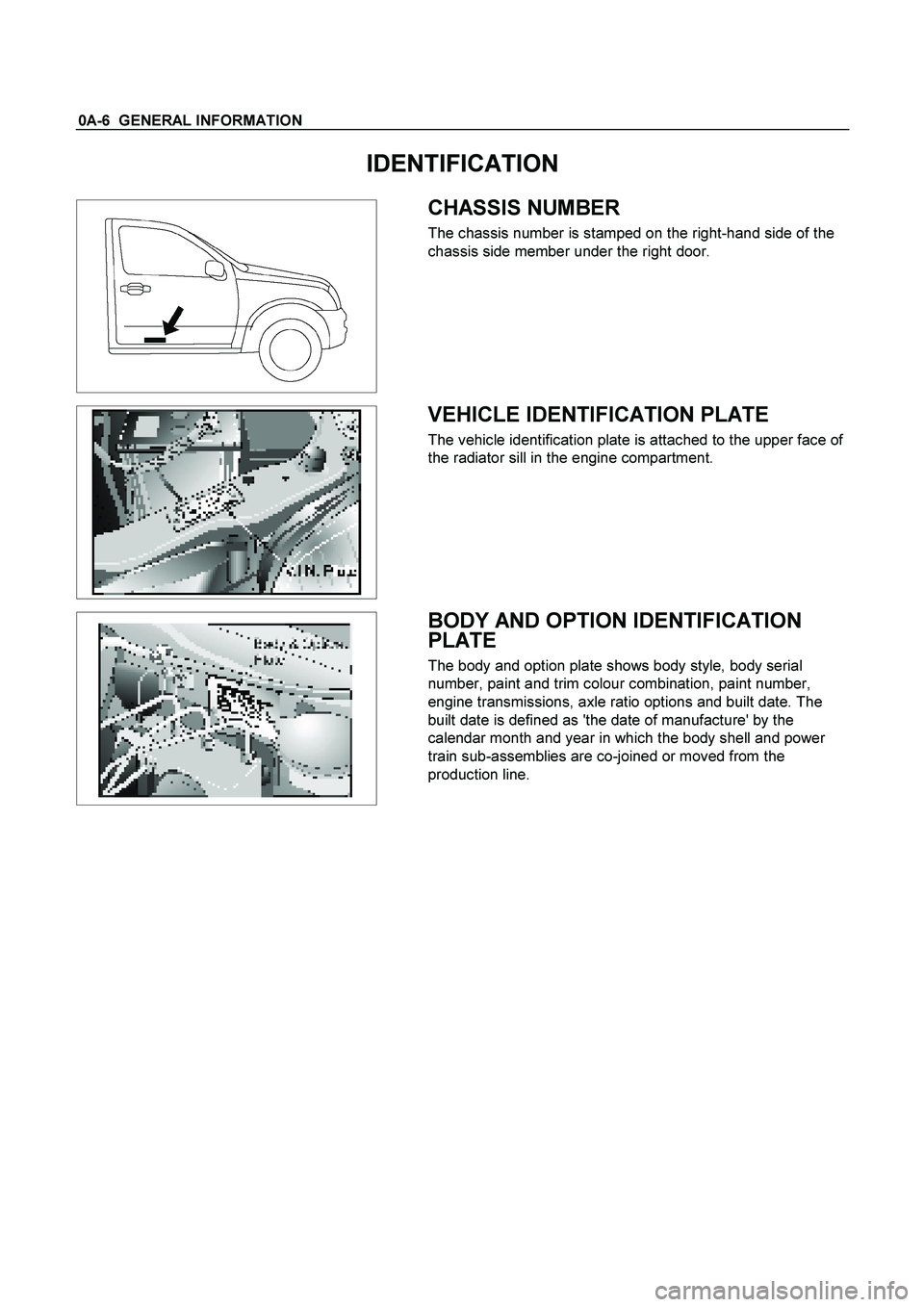

IDENTIFICATION

CHASSIS NUMBER
The chassis number is stamped on the right-hand side of the
chassis side member under the right door.

VEHICLE IDENTIFI

Page 2979 of 4264

ISUZU TF SERIES 2004 Workshop Manual GENERAL INFORMATION 0A-7

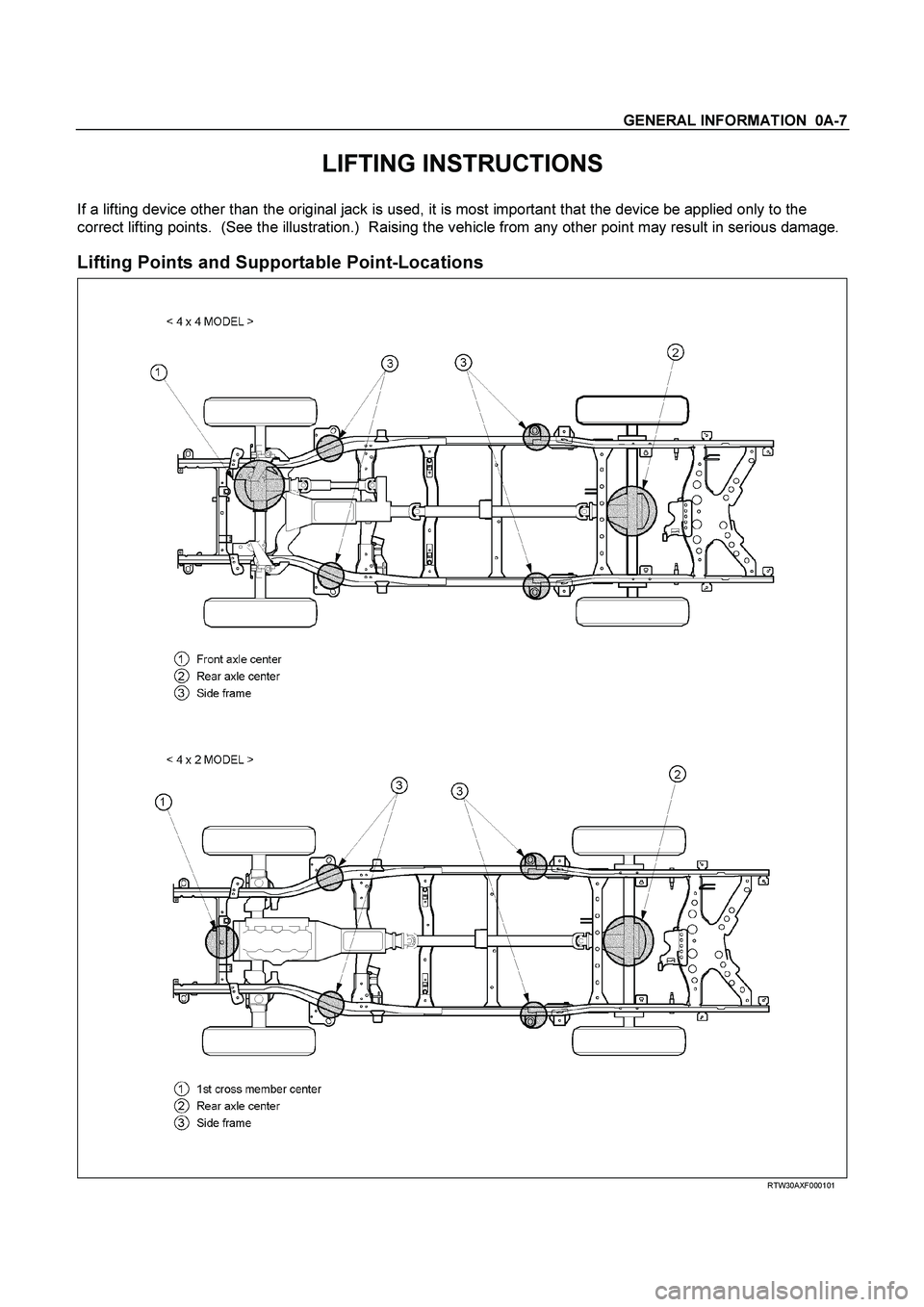

LIFTING INSTRUCTIONS
If a lifting device other than the original jack is used, it is most important that the device be applied only to the
correct lifting points. (See t

Page 2980 of 4264

ISUZU TF SERIES 2004 Workshop Manual 0A-8 GENERAL INFORMATION

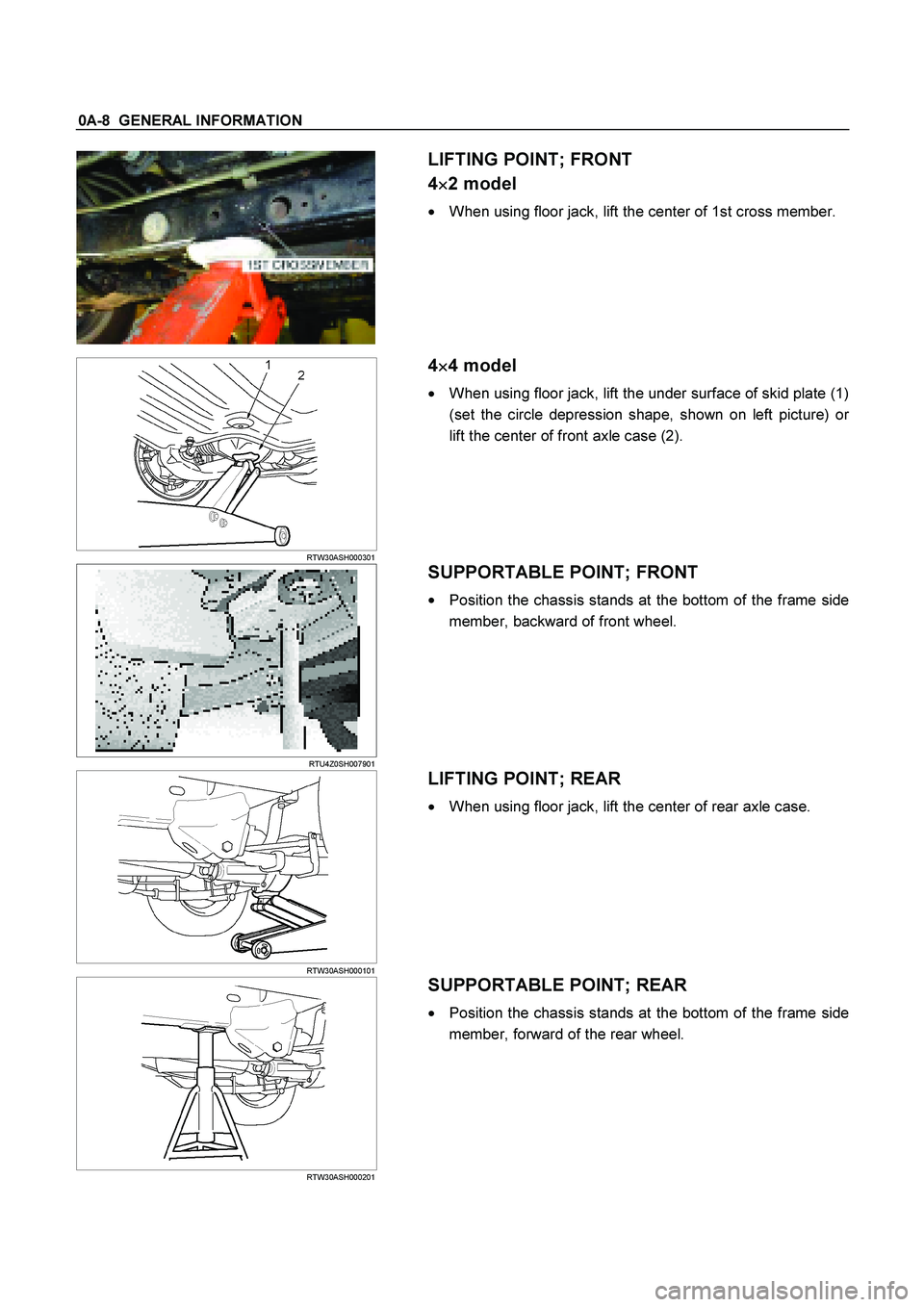

LIFTING POINT; FRONT
4
2 model

When using floor jack, lift the center of 1st cross member.
RTW30ASH000301

4
4 model

When using floor jack, lift th

Page 2981 of 4264

ISUZU TF SERIES 2004 Workshop Manual GENERAL INFORMATION 0A-9

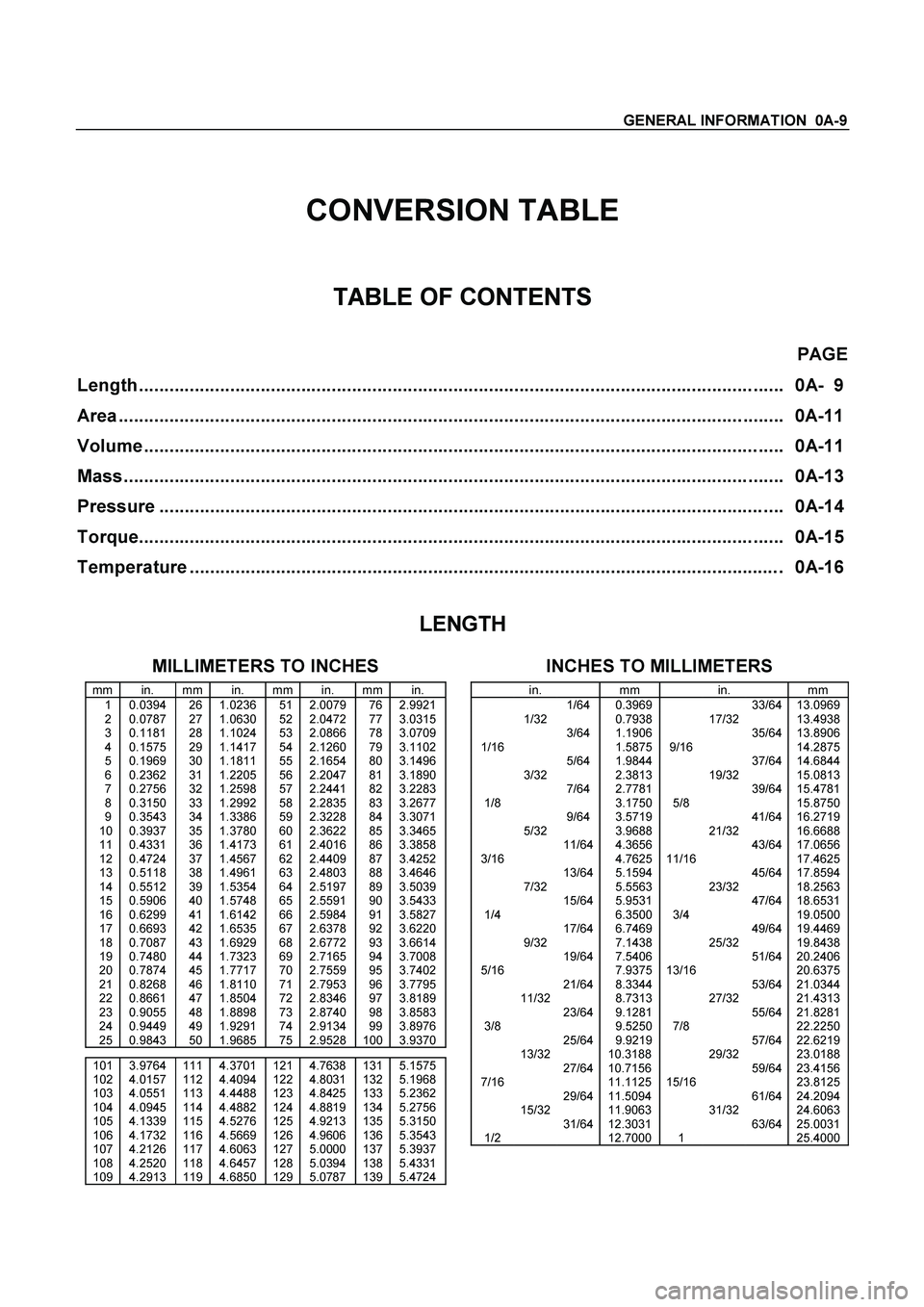

CONVERSION TABLE
TABLE OF CONTENTS
PAGE
Length ........................................................................................................................

GENERAL INFORMATION 0A-9

CONVERSION TABLE
TABLE OF CONTENTS
PAGE
Length ............................................................................................................................... 0A- 9
Area ................................................................................................................................... 0A-11
Volume .............................................................................................................................. 0A-11
Mass.................................................................................................................................. 0A-13
Pressure ........................................................................................................................... 0A-14
Torque............................................................................................................................... 0A-15
Temperature ..................................................................................................................... 0A-16

LENGTH

MILLIMETERS TO INCHES
mm in. mm in. mm in. mm in. 1 0.0394 26 1.0236 51 2.0079 76 2.9921 2 0.0787 27 1.0630 52 2.0472 77 3.0315 3 0.1181 28 1.1024 53 2.0866 78 3.0709 4 0.1575 29 1.1417 54 2.1260 79 3.1102 5 0.1969 30 1.1811 55 2.1654 80 3.1496 6 0.2362 31 1.2205 56 2.2047 81 3.1890 7 0.2756 32 1.2598 57 2.2441 82 3.2283 8 0.3150 33 1.2992 58 2.2835 83 3.2677 9 0.3543 34 1.3386 59 2.3228 84 3.307110 0.3937 35 1.3780 60 2.3622 85 3.346511 0.4331 36 1.4173 61 2.4016 86 3.385812 0.4724 37 1.4567 62 2.4409 87 3.425213 0.5118 38 1.4961 63 2.4803 88 3.464614 0.5512 39 1.5354 64 2.5197 89 3.503915 0.5906 40 1.5748 65 2.5591 90 3.543316 0.6299 41 1.6142 66 2.5984 91 3.582717 0.6693 42 1.6535 67 2.6378 92 3.622018 0.7087 43 1.6929 68 2.6772 93 3.661419 0.7480 44 1.7323 69 2.7165 94 3.700820 0.7874 45 1.7717 70 2.7559 95 3.740221 0.8268 46 1.8110 71 2.7953 96 3.779522 0.8661 47 1.8504 72 2.8346 97 3.818923 0.9055 48 1.8898 73 2.8740 98 3.858324 0.9449 49 1.9291 74 2.9134 99 3.897625 0.9843 50 1.9685 75 2.9528 100 3.9370 101 3.9764 111 4.3701 121 4.7638 131 5.1575102 4.0157 112 4.4094 122 4.8031 132 5.1968103 4.0551 113 4.4488 123 4.8425 133 5.2362104 4.0945 114 4.4882 124 4.8819 134 5.2756105 4.1339 115 4.5276 125 4.9213 135 5.3150106 4.1732 116 4.5669 126 4.9606 136 5.3543107 4.2126 117 4.6063 127 5.0000 137 5.3937108 4.2520 118 4.6457 128 5.0394 138 5.4331109 4.2913 119 4.6850 129 5.0787 139 5.4724
INCHES TO MILLIMETERS
in. mm in. mm 1/64 0.3969 33/64 13.0969 1/32 0.7938 17/32 13.4938 3/64 1.1906 35/64 13.89061/16 1.5875 9/16 14.2875 5/64 1.9844 37/64 14.6844 3/32 2.3813 19/32 15.0813 7/64 2.7781 39/64 15.47811/8 3.1750 5/8 15.8750 9/64 3.5719 41/64 16.2719 5/32 3.9688 21/32 16.6688 11/64 4.3656 43/64 17.06563/16 4.7625 11/16 17.4625 13/64 5.1594 45/64 17.8594 7/32 5.5563 23/32 18.2563 15/64 5.9531 47/64 18.65311/4 6.3500 3/4 19.0500 17/64 6.7469 49/64 19.4469 9/32 7.1438 25/32 19.8438 19/64 7.5406 51/64 20.24065/16 7.9375 13/16 20.6375 21/64 8.3344 53/64 21.0344 11/32 8.7313 27/32 21.4313 23/64 9.1281 55/64 21.82813/8 9.5250 7/8 22.2250 25/64 9.9219 57/64 22.6219 13/32 10.3188 29/32 23.0188 27/64 10.7156 59/64 23.41567/16 11.1125 15/16 23.8125 29/64 11.5094 61/64 24.2094 15/32 11.9063 31/32 24.6063 31/64 12.3031 63/64 25.00311/2 12.7000 1 25.4000

Page 2982 of 4264

ISUZU TF SERIES 2004 Workshop Manual 0A-10 GENERAL INFORMATION

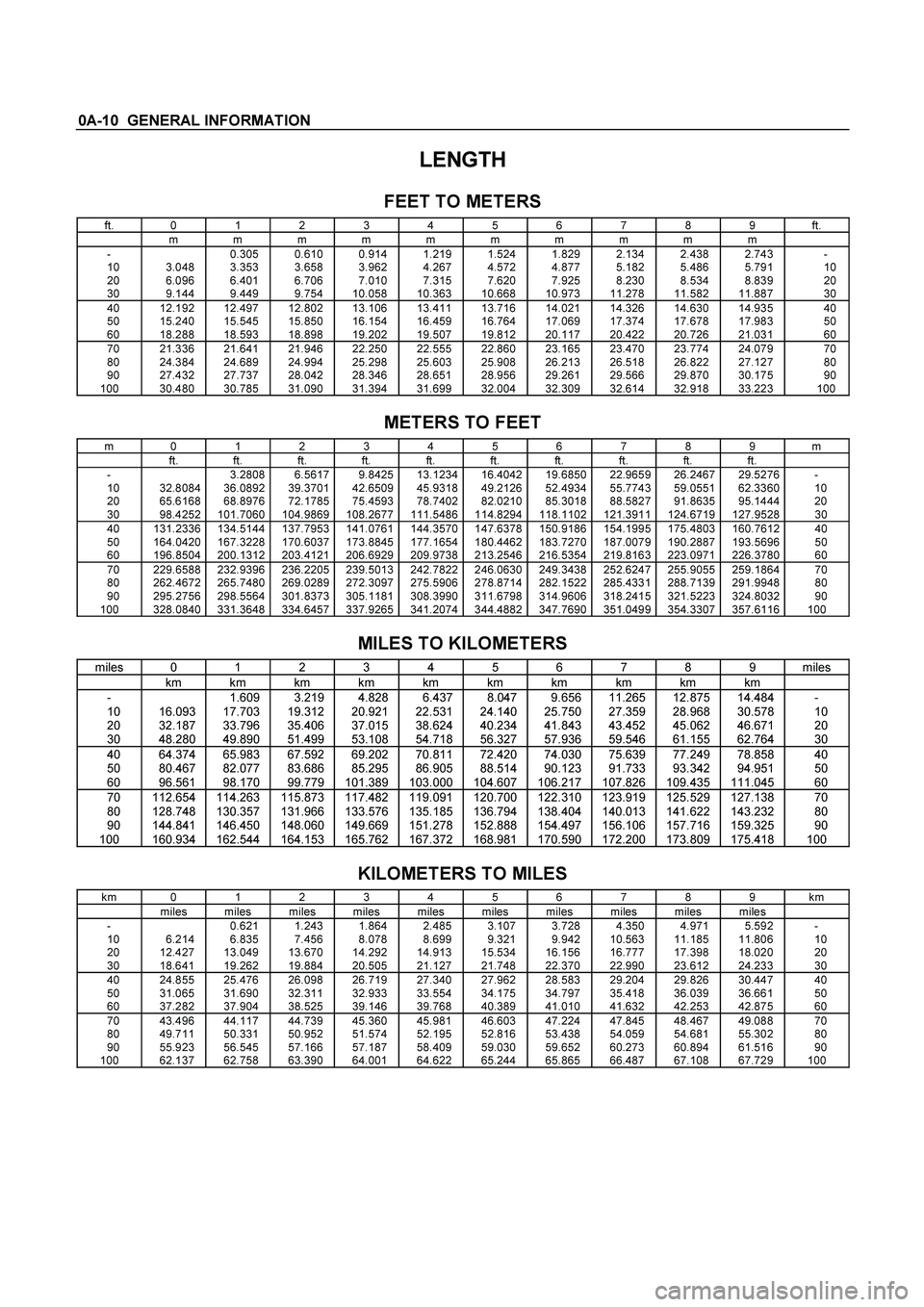

LENGTH

FEET TO METERS
ft. 0 1 2 3 4 5 6 7 8 9 ft. m m m m m m m m m m - 0.305 0.610 0.914 1.219 1.524 1.829 2.134 2.438 2.743 - 10 3.048 3.353 3.658 3.962 4.

0A-10 GENERAL INFORMATION
LENGTH

FEET TO METERS
ft. 0 1 2 3 4 5 6 7 8 9 ft. m m m m m m m m m m - 0.305 0.610 0.914 1.219 1.524 1.829 2.134 2.438 2.743 - 10 3.048 3.353 3.658 3.962 4.267 4.572 4.877 5.182 5.486 5.791 10 20 6.096 6.401 6.706 7.010 7.315 7.620 7.925 8.230 8.534 8.839 20 30 9.144 9.449 9.754 10.058 10.363 10.668 10.973 11.278 11.582 11.887 30 40 12.192 12.497 12.802 13.106 13.411 13.716 14.021 14.326 14.630 14.935 40 50 15.240 15.545 15.850 16.154 16.459 16.764 17.069 17.374 17.678 17.983 50 60 18.288 18.593 18.898 19.202 19.507 19.812 20.117 20.422 20.726 21.031 60 70 21.336 21.641 21.946 22.250 22.555 22.860 23.165 23.470 23.774 24.079 70 80 24.384 24.689 24.994 25.298 25.603 25.908 26.213 26.518 26.822 27.127 80 90 27.432 27.737 28.042 28.346 28.651 28.956 29.261 29.566 29.870 30.175 90100 30.480 30.785 31.090 31.394 31.699 32.004 32.309 32.614 32.918 33.223 100

METERS TO FEET
m 0 1 2 3 4 5 6 7 8 9 m ft. ft. ft. ft. ft. ft. ft. ft. ft. ft. - 3.2808 6.5617 9.8425 13.1234 16.4042 19.6850 22.9659 26.2467 29.5276 - 10 32.8084 36.0892 39.3701 42.6509 45.9318 49.2126 52.4934 55.7743 59.0551 62.3360 10 20 65.6168 68.8976 72.1785 75.4593 78.7402 82.0210 85.3018 88.5827 91.8635 95.1444 20 30 98.4252 101.7060 104.9869 108.2677 111.5486 114.8294 118.1102 121.3911 124.6719 127.9528 30 40 131.2336 134.5144 137.7953 141.0761 144.3570 147.6378 150.9186 154.1995 175.4803 160.7612 40 50 164.0420 167.3228 170.6037 173.8845 177.1654 180.4462 183.7270 187.0079 190.2887 193.5696 50 60 196.8504 200.1312 203.4121 206.6929 209.9738 213.2546 216.5354 219.8163 223.0971 226.3780 60 70 229.6588 232.9396 236.2205 239.5013 242.7822 246.0630 249.3438 252.6247 255.9055 259.1864 70 80 262.4672 265.7480 269.0289 272.3097 275.5906 278.8714 282.1522 285.4331 288.7139 291.9948 80 90 295.2756 298.5564 301.8373 305.1181 308.3990 311.6798 314.9606 318.2415 321.5223 324.8032 90 100 328.0840 331.3648 334.6457 337.9265 341.2074 344.4882 347.7690 351.0499 354.3307 357.6116 100

MILES TO KILOMETERS
miles 0 1 2 3 4 5 6 7 8 9 miles km km km km km km km km km km - 1.609 3.219 4.828 6.437 8.047 9.656 11.265 12.875 14.484 - 10 16.093 17.703 19.312 20.921 22.531 24.140 25.750 27.359 28.968 30.578 10 20 32.187 33.796 35.406 37.015 38.624 40.234 41.843 43.452 45.062 46.671 20 30 48.280 49.890 51.499 53.108 54.718 56.327 57.936 59.546 61.155 62.764 30 40 64.374 65.983 67.592 69.202 70.811 72.420 74.030 75.639 77.249 78.858 40 50 80.467 82.077 83.686 85.295 86.905 88.514 90.123 91.733 93.342 94.951 50 60 96.561 98.170 99.779 101.389 103.000 104.607 106.217 107.826 109.435 111.045 60 70 112.654 114.263 115.873 117.482 119.091 120.700 122.310 123.919 125.529 127.138 70 80 128.748 130.357 131.966 133.576 135.185 136.794 138.404 140.013 141.622 143.232 80 90 144.841 146.450 148.060 149.669 151.278 152.888 154.497 156.106 157.716 159.325 90 100 160.934 162.544 164.153 165.762 167.372 168.981 170.590 172.200 173.809 175.418 100

KILOMETERS TO MILES
km 0 1 2 3 4 5 6 7 8 9 km miles miles miles miles miles miles miles miles miles miles - 0.621 1.243 1.864 2.485 3.107 3.728 4.350 4.971 5.592 - 10 6.214 6.835 7.456 8.078 8.699 9.321 9.942 10.563 11.185 11.806 10 20 12.427 13.049 13.670 14.292 14.913 15.534 16.156 16.777 17.398 18.020 20 30 18.641 19.262 19.884 20.505 21.127 21.748 22.370 22.990 23.612 24.233 30 40 24.855 25.476 26.098 26.719 27.340 27.962 28.583 29.204 29.826 30.447 40 50 31.065 31.690 32.311 32.933 33.554 34.175 34.797 35.418 36.039 36.661 50 60 37.282 37.904 38.525 39.146 39.768 40.389 41.010 41.632 42.253 42.875 60 70 43.496 44.117 44.739 45.360 45.981 46.603 47.224 47.845 48.467 49.088 70 80 49.711 50.331 50.952 51.574 52.195 52.816 53.438 54.059 54.681 55.302 80 90 55.923 56.545 57.166 57.187 58.409 59.030 59.652 60.273 60.894 61.516 90 100 62.137 62.758 63.390 64.001 64.622 65.244 65.865 66.487 67.108 67.729 100

Page 2983 of 4264

ISUZU TF SERIES 2004 Workshop Manual GENERAL INFORMATION 0A-11
AREA

SQUARE INCHES TO SQUARE CENTIMETERS
in2 0 1 2 3 4 5 6 7 8 9 in2 cm2 cm2 cm2 cm2 cm2 cm2 cm2 cm2 cm2 cm2 - 6.452 12.903 19.355 25.806 32.258 38.710 45.161 51.

GENERAL INFORMATION 0A-11
AREA

SQUARE INCHES TO SQUARE CENTIMETERS
in2 0 1 2 3 4 5 6 7 8 9 in2 cm2 cm2 cm2 cm2 cm2 cm2 cm2 cm2 cm2 cm2 - 6.452 12.903 19.355 25.806 32.258 38.710 45.161 51.613 58.064 - 10 64.516 70.968 77.419 83.871 90.322 96.774 103.226 109.677 116.129 122.580 10 20 129.032 135.484 141.935 148.387 154.838 161.290 167.742 174.193 180.645 187.096 20 30 193.548 200.000 206.451 212.903 219.354 225.806 232.258 238.709 245.161 251.612 30 40 258.064 264.516 270.967 277.419 283.870 290.322 296.774 303.225 309.677 316.128 40 50 322.580 329.032 335.483 341.935 348.386 354.838 361.290 367.741 374.193 380.644 50 60 387.096 393.548 399.999 406.451 412.902 419.354 425.806 432.257 438.709 445.160 60 70 451.612 458.064 464.515 470.967 477.418 483.870 490.322 496.773 503.225 509.676 70 80 516.128 522.580 529.031 535.483 541.934 548.386 554.838 561.289 567.741 574.192 80 90 580.644 587.096 593.547 599.999 606.450 612.902 619.354 625.805 632.257 638.708 90 100 645.160 651.612 658.063 664.515 670.966 677.418 683.870 690.312 696.773 703.224 100

SQUARE CENTIMETERS TO SQUARE INCHES
cm2 0 1 2 3 4 5 6 7 8 9 cm2 in2 in2 in2 in2 in2 in2 in2 in2 in2 in2 - 0.155 0.310 0.465 0.620 0.775 0.930 1.085 1.240 1.395 - 10 1.550 1.705 1.860 2.015 2.170 2.325 2.480 2.635 2.790 2.945 10 20 3.100 3.255 3.410 3.565 3.720 3.875 4.030 4.185 4.340 4.495 20 30 4.650 4.805 4.960 5.115 5.270 5.425 5.580 5.735 5.890 6.045 30 40 6.200 6.355 6.510 6.665 6.820 6.975 7.130 7.285 7.440 7.595 40 50 7.750 7.905 8.060 8.215 8.370 8.525 8.680 8.835 8.990 9.145 50 60 9.300 9.455 9.610 9.765 9.920 10.075 10.230 10.385 10.540 10.695 60 70 10.850 11.005 11.160 11.315 11.470 11.625 11.780 11.935 12.090 12.245 70 80 12.400 12.555 12.710 12.865 13.020 13.175 13.330 13.485 13.640 13.795 80 90 13.950 14.105 14.260 14.415 14.570 14.725 14.880 15.035 15.190 15.345 90 100 15.500 15.655 15.810 15.965 16.120 16.275 16.430 16.583 16.740 16.895 100

VOLUME

CUBIC INCHES TO CUBIC CENTIMETERS
in3 0 1 2 3 4 5 6 7 8 9 in3 cm3(cc) cm3(cc) cm3(cc) cm3(cc) cm3(cc) cm3(cc) cm3(cc) cm3(cc) cm3(cc) cm3(cc) - 16.387 32.774 49.161 65.548 81.935 98.322 114.709 131.097 147.484 - 10 163.871 180.258 196.645 213.032 229.419 245.806 262.193 278.580 294.967 311.354 10 20 327.741 344.128 360.515 376.902 393.290 209.677 426.064 442.451 458.838 475.225 20 30 491.612 507.999 524.386 540.773 557.160 573.547 589.934 606.321 622.708 639.095 30 40 655.483 671.870 688.257 704.644 721.031 737.418 753.805 770.192 786.579 802.966 40 50 819.353 835.740 852.127 868.514 884.901 901.289 917.676 934.063 950.450 966.837 50 60 983.224 999.611 1015.998 1032.385 1048.772 1065.159 1081.546 1097.933 1114.320 1130.707 60 70 1147.094 1163.482 1179.869 1196.256 1212.643 1229.030 1245.417 1261.804 1278.191 1294.578 70 80 1310.965 1327.352 1343.739 1360.126 1376.513 1392.900 1409.288 1425.675 1442.062 1458.449 80 90 1474.836 1491.223 1507.610 1523.997 1540.384 1156.771 1573.158 1589.545 1605.932 1622.319 90 100 1638.706 1655.093 1671.481 1687.868 1704.255 1720.642 1737.029 1753.416 1769.803 1786.190 100

CUBIC CENTIMETERS TO CUBIC INCHES
cm3(cc) 0 1 2 3 4 5 6 7 8 9 cm3(cc) in3 in3 in3 in3 in3 in3 in3 in3 in3 in3 - 0.0610 0.1220 0.1831 0.2441 0.3051 0.3661 0.4272 0.4882 0.5492 - 10 0.6102 0.6713 0.7323 0.7933 0.8543 0.9153 0.9764 1.0374 1.0984 1.1594 10 20 1.2205 1.2815 1.3425 1.4035 1.4646 1.5256 1.5866 1.6476 1.7086 1.7697 20 30 1.8307 1.8917 1.9527 2.0138 2.0748 2.1358 2.1968 2.2579 2.1389 2.3799 30 40 2.4409 2.5020 2.5630 2.6240 2.6850 2.7460 2.8071 2.8681 2.9291 2.9901 40 50 3.0512 3.1122 3.1732 3.2342 3.2952 3.3563 3.4173 3.4783 3.5393 3.6004 50 60 3.6614 3.7224 3.7834 3.8444 3.9055 3.9665 4.0275 4.0885 4.1496 4.2106 60 70 4.2716 4.3326 4.3937 4.4547 4.5157 4.5767 4.6377 4.6988 4.7598 4.8208 70 80 4.8818 4.9429 5.0039 5.0649 5.1259 5.1870 5.2480 5.3090 5.3700 5.4310 80 90 5.4921 5.5531 5.6141 5.6751 5.7362 5.7972 5.8582 5.9192 5.9803 6.0413 90 100 6.1023 6.1633 6.2243 6.2854 6.3464 6.4074 6.4684 6.5295 6.5905 6.6515 100

Page 2984 of 4264

ISUZU TF SERIES 2004 Workshop Manual 0A-12 GENERAL INFORMATION
VOLUME

GALLONS (U.S.) TO LITERS
U.S. gal. 0 1 2 3 4 5 6 7 8 9 U.S. gal. liters liters liters liters liters liters liters liters liters liters - 3.7854 7.5709 11

0A-12 GENERAL INFORMATION
VOLUME

GALLONS (U.S.) TO LITERS
U.S. gal. 0 1 2 3 4 5 6 7 8 9 U.S. gal. liters liters liters liters liters liters liters liters liters liters - 3.7854 7.5709 11.3563 15.1417 18.9271 22.7126 26.4980 30.2834 34.0633 - 10 37.8543 41.6397 45.4251 49.2105 52.9960 56.7814 60.5668 64.3523 68.1377 71.9231 10 20 75.7085 79.4940 83.2794 87.0648 90.8502 94.6357 98.4211 102.2065 105.9920 109.7774 20 30 113.5629 117.3482 121.1337 124.9191 128.7045 132.4901 136.2754 140.0608 143.8462 147.6316 30 40 141.4171 155.2025 158.9879 162.7734 166.5588 170.3442 174.1296 177.9151 181.7005 185.4859 40 50 189.2713 193.0568 196.8422 200.6276 204.4131 208.1985 211.9839 215.7693 219.5548 223.3402 50 60 227.1256 230.9110 234.6965 238.4819 242.2673 246.0527 249.8382 253.6236 257.4090 261.1945 60 70 264.9799 268.7653 272.5507 276.3362 280.1216 283.9070 287.6924 291.4779 295.2633 299.0487 70 80 302.8342 306.6196 310.4050 314.1904 317.9759 321.7613 325.5467 329.3321 333.1176 336.9030 80 90 340.6884 344.4738 348.2593 352.0447 355.8301 359.6156 363.4010 367.1864 370.9718 374.7573 90 100 378.5427 382.3281 386.1135 389.8990 393.6844 397.4698 401.2553 405.0407 408.8261 412.6115 100

LITERS TO GALLONS (U.S.)
liters 0 1 2 3 4 5 6 7 8 9 liters gal. gal. gal. gal. gal. gal. gal. gal. gal. gal. - 0.2642 0.5283 0.7925 1.0567 1.3209 1.5850 1.8492 2.1134 2.3775 - 10 2.6417 2.9059 3.1701 3.4342 3.6984 3.9626 4.2268 4.4909 4.7551 5.0193 10 20 5.2834 5.5476 5.8118 6.0760 6.3401 6.6043 6.8685 7.1326 7.3968 7.6610 20 30 7.9252 8.1893 8.4535 8.7117 8.9818 9.2460 9.5102 9.7743 10.0385 10.3027 30 40 10.5669 10.8311 11.0952 11.3594 11.6236 11.8877 12.1519 12.4161 12.6803 12.9444 40 50 13.2086 13.4728 13.7369 14.0011 14.2653 14.5295 14.7936 15.0578 15.3220 15.5861 50 60 15.8503 16.1145 16.3787 16.6428 16.9070 17.1711 17.4354 17.6995 17.9637 18.2279 60 70 18.4920 18.7562 19.0204 19.2846 19.5487 19.8129 20.0771 20.3412 20.6054 20.8696 70 80 21.1338 21.3979 21.6621 21.9263 22.1904 22.4546 22.7188 22.9830 23.2471 23.5113 80 90 23.7755 24.0397 24.3038 24.5680 24.8322 25.0963 25.3605 25.6247 25.8889 26.1530 90 100 26.4172 26.6814 26.9455 27.2097 27.4739 27.7381 28.0022 28.2664 28.5306 28.7947 100

GALLONS (IMP.) TO LITERS
Imp gal. 0 1 2 3 4 5 6 7 8 9 Imp gal. liters liters liters liters liters liters liters liters liters liters - 4.5459 9.0918 13.6377 18.1836 22.7295 27.2754 31.8213 36.3672 40.9131 - 10 45.4590 50.0049 54.5508 59.0967 63.6426 68.1885 72.7344 77.2803 81.8262 86.3721 10 20 90.9180 95.4639 100.0098 104.5557 109.1016 113.6475 118.1934 122.7393 127.2852 131.8311 20 30 136.3770 140.9229 145.4688 150.0147 154.5606 159.1065 163.6524 168.1983 172.7442 177.2901 30 40 181.8360 186.3819 190.9278 195.4737 200.0196 204.5655 209.1114 213.6573 218.2032 222.7491 40 50 227.2950 231.8409 236.3868 240.9327 245.4786 250.0245 254.5704 259.1163 263.6622 268.2081 50 60 272.7540 277.2999 281.8458 286.3917 290.9376 295.4835 300.0294 304.5753 309.1212 313.6671 60 70 318.2130 322.7589 327.3048 331.8507 336.8966 340.9425 345.4884 350.0343 354.5802 359.1261 70 80 363.6720 368.2179 372.7638 377.3097 381.8556 386.4015 390.9474 395.4933 400.0392 404.5851 80 90 409.1310 413.6769 418.2228 422.7687 427.3146 431.8605 436.4064 440.9523 445.4982 450.0441 90 100 454.5900 459.1359 463.6818 468.2277 472.7736 477.3195 481.8654 486.4113 490.9572 495.5031 100

LITERS TO GALLONS (IMP.)
liters 0 1 2 3 4 5 6 7 8 9 liters gal. gal. gal. gal. gal. gal. gal. gal. gal. gal. - 0.2200 0.4400 0.6599 0.8799 1.0999 1.3199 1.5399 1.7598 1.9798 - 10 2.1998 2.4198 2.6398 2.8597 3.0797 3.2997 3.5197 3.7397 3.9596 4.1796 10 20 4.3996 4.6196 4.8396 5.0595 5.2795 5.4995 5.7195 5.9395 6.1594 6.3794 20 30 6.5994 6.8194 7.0394 7.2593 7.4793 7.6993 7.9193 8.1393 8.3592 8.5792 30 40 8.7992 9.0192 9.2392 9.4591 9.6791 9.8991 10.1191 10.3391 10.5590 10.7790 40 50 10.9990 11.2190 11.4390 11.6590 11.8789 12.0989 12.3189 12.5389 12.7588 12.9788 50 60 13.1988 13.4188 13.6388 13.8587 14.0787 14.2987 14.5187 14.7387 14.9586 15.1786 60 70 15.3986 15.6186 15.8386 16.0585 16.2785 16.4985 16.7185 16.9385 17.1584 17.3784 70 80 17.5984 17.8184 18.0384 18.2583 18.4783 18.6983 18.9183 19.1383 19.3582 19.5782 80 90 19.7982 20.0182 20.2382 20.4581 20.6781 20.8981 21.1181 21.3381 21.5580 21.7780 90 100 21.9980 22.2180 22.4380 22.6579 22.8779 23.0979 23.3179 23.5379 23.7578 23.9778 100
